Water Heater, ASME, Stainless, Steel, CO2

Key specification for this water heater: power source Electric, Solar, material Stainless-steel SUS304, 316L,duplex. Everything below is reproduced from the factory data sheet. Made by Guangzhou Sst Heating Energy Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Water Heater

• Model Number: 2025
• Power Source: Electric, Solar
• Housing Material: Galvanized steel with painting
• Material: Stainless-steel SUS304, 316L,duplex
• Coil Material: copper/stainless steel/ aluminum
• Warranty: 1 Year

Technical Specifications

Product Details

Advantage:

The largest leading manufacturer of stainless steel hot water tank and the No.1 duplex stainless steel water tank and butt welding technology producer in China with more than 16 years experiences, we are good at OEM and ODM.

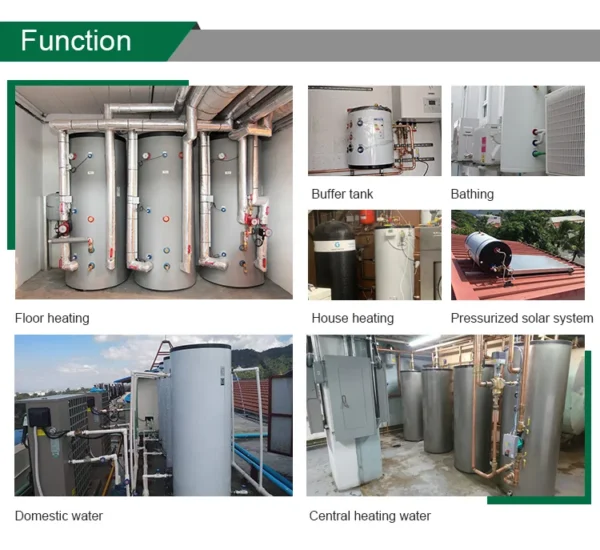

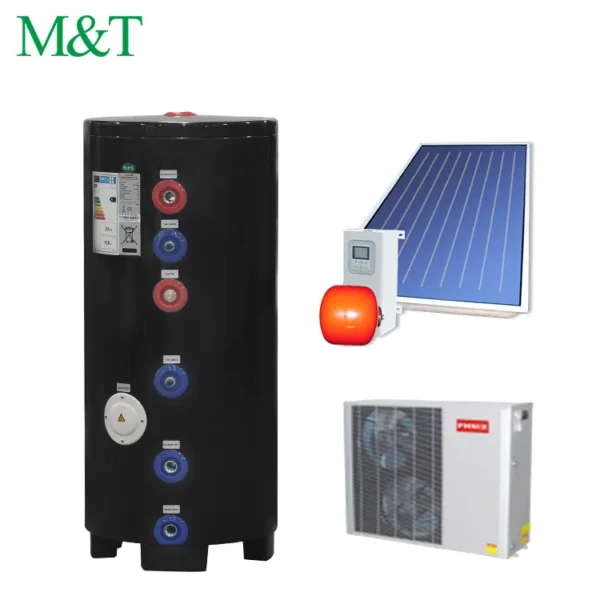

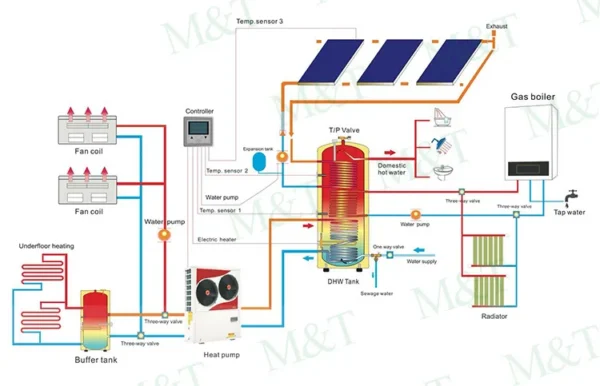

• Combined with solar heation system, heat pump, electrical heater and other heating source.

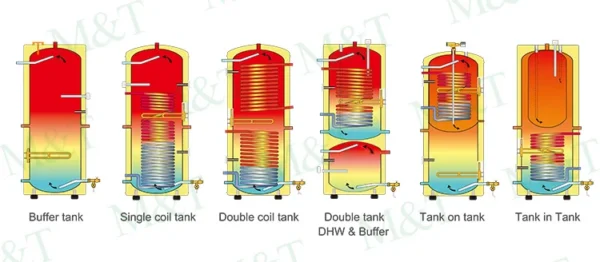

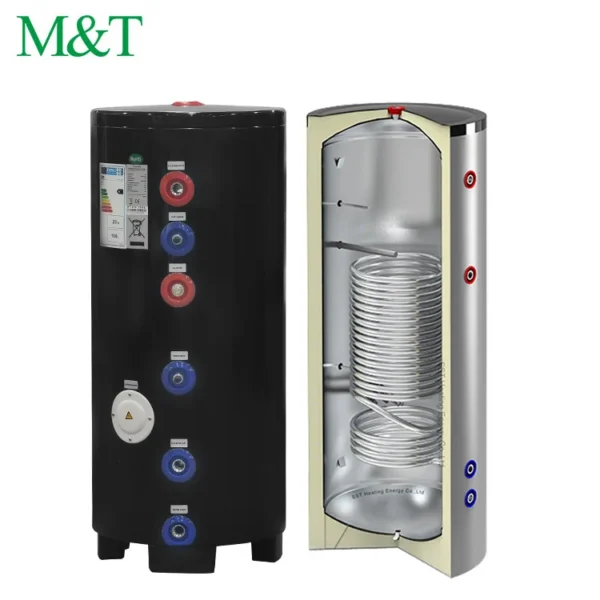

• Optional outer copper coil or inner stainless steel coil.

• Optional coils to fast the efficiency of heat transferring.

• Optional water connections according to customers requests.

• High dencity polyurethane foam reduces heat loss and energy costs for maximum efficiency.

Capacity	L	100	200	300	400	500	600	800	1000
Inner tank diameter	mm	Φ370	Φ470	Φ500	Φ550	Φ600	Φ650	Φ700	Φ800
Out shell diameter	mm	Φ470	Φ560	Φ600	Φ650	Φ700	Φ760	Φ800	Φ900
Inner tank material	mm	SUS304 / SUS316L / Duplex2205 / Duplex2304
Out shell material	mm	galvanized steel with painting / stainless steel / PU
Out shell color		white / silver-grey / blue /red / golden / stainless steel
Max.working pressure	bar	6	6	6	6	6	6	6	6
Max.testing pressure	bar	10	10	10	10	10	10	10	10
Max.running temperature	℃	90	90	90	90	90	90	90	90
Heating loss	W/K	0.65	0.72	0.89	1.02	1.15	1.26	——	——
Standing loss	W	30	33	40	46	52	57	——	——
ERP Class		A	A	A	A	A	A	——	——
Electrical heater	kw	1.5	1.5	1.5	1.5	3	3	3	3
Mg.Anode	mm	Φ22*300
Water connection		G / BSP / NPT 3/4"							G / BSP / NPT 1"
Packing size	mm	L:540 W:540 H:1170	L:630 W:630 H:1440	L:670 W:670 H:1630	L:720 W:720 H:1920	L:780 W:780 H:1930	L:850 W:850 H:1940	Φ900*2200	Φ980*2420

Technology leader: is the largest stainless steel water tank leading manufacturer and exporter and the No.:1 duplex stainless steel water tank and butt welding technology in China.
The leading technology: the international advanced water tank production equipment (such as laser cutting machine, Japan AMADA 357 CNC machines, ABB automatic Robert machine, USA automatic straight and connector welding machine, Italy automatic butt welding machine), and the Germany Advanced welding technology improves not only the stability of product quality, but also the great corrosion resistance and long service lifetime.
Certification: ISO9001 quality system, the French NF certification and Alibaba third party SGS / BV certified factory, the highest standard of stainless steel tank: Australia WaterMark, the European Union CE and ERP. Besides, we are the first and may be the only one factory to obtain the watermark certificate of duplex stainless steel tank.

SST Heating Energy Co., Ltd has been offering OEM&ODM service for customers since 2006. Approved by ISO9001 quality system, the European Union CE and ERP, the French NF certification and the highest standard of stainless steel tank: Australia Water Mark, instant electric water heater, mini instant storage container and Backup water heater for SPA, etc., are mainly exported to Europe, North America, Australia and Asian countries.

We insist in 100% Leakage Testing, Full-automatic productions to ensure product quality. And SST is always committed itself to customize products for you, even the capacity, the shape, or even the design of the products you want with our 14 years experience in this industry.

VR

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–49 unit: US $140 / unit
  • 50–99 unit: US $122 / unit
  • 100+ unit: US $99 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water heater?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this water heater carry?

It is supplied with ce,WaterMark documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Sst Heating Energy Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Sst Heating Energy Co., Ltd. range on HVACR Nexus.
