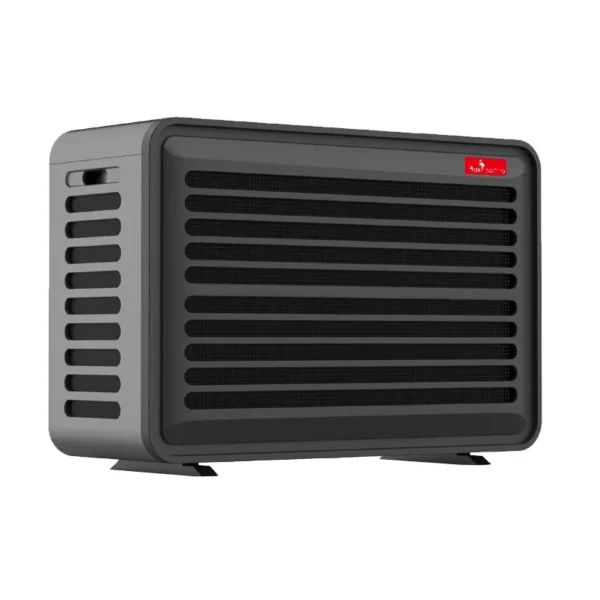

Water heater — voltage 220, 17 kW. The complete factory specification follows. Made by Guangdong Flamingo New Energy Technology Co., Ltd. (3 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Water Heater
- Power Source: Electric
- Voltage: 220
- Heating Capacity: 17 kW
- Housing Material: ABS
- Refrigerant: R32
- Noise Level: <54dB(A)
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 17 kW |
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | Instant / Tankless |
| Compressor | Screw Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | ABS |
| Feature | Easy Installation, Easy Operation, Eco-Friendly, Energy-Saving, High Efficiency, Safe |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English |
| Private Mold | No |
| Packaging Types | Color Box |
| Place Of Origin | Guangdong, China |
| Brand | Flamingoooo |
| Function | water heating&cooling |
| Name | Swimming Pool Air Source Heat Pump |
| Refrigeration | R32 |
| Voltage | 220 |
| Max Current | 16.0 |
| Working Ambient Temp. | 18degree~ 35 degree |
| Noise Level | <54dB(A) |
| Warranyt | 2 years |
| OEM&ODM | accept |
| Water Connection(Mm) | 50 |
| Selling Units | Single item |
| Single Package Size | 98.8X46X78.9 cm |
| Single Gross Weight | 100.0 kg |
Product Details
Product Paramenters
Model | FLM-AH50Y/32 | FLM-AH60Y/32 | ||
Advised pool volume | 35~70 | 40~80 | ||
Power source | 220V 1Phase | 220V 1Phase | ||
Heating Capacity at Air 27℃ ,Humidity 80%,Water 26℃ in,28℃ out | ||||
Capacity (kW) | 17.0 | 20.0 | ||
Power input (kW) | 2.75 | 3.32 | ||
COP (W/W) | 6.18 | 6.02 | ||
Heating Capacity at Air 15℃ ,Humidity 70%,Water 26℃ in,28℃ out | ||||
Capacity (kW) | 12.7 | 14.8 | ||
Power input (kW) | 2.80 | 3.21 | ||
COP (W/W) | 4.54 | 4.62 | ||
Cooling Capacity at Air 35℃ ,Water 30℃ in ,28℃ out | ||||
Capacity (kW) | 6.5 | 8.3 | ||
Power input (kW) | 1.62 | 2.75 | ||
COP (W/W) | 4.01 | 3.02 | ||
Operating ambient temperature | （-15℃ ~ 43℃） | |||
Casing type | ABS Plastic | |||
Funtions | Heating & Cooling | |||
Refrigerant | R32 | R32 | ||
Max Current (A) | 15 | 18 | ||
Power cable (mm²) | 3×4.0 | 3×4.0 | ||
Circuit breaker (A) | 16 | 20 | ||
Sound pressure@1M dB(A) | 41~50 | 42~51 | ||
Sound pressure@2M dB(A) | 23~31 | 24~32 | ||
Compressor type | Twin-rotary DC Inverter | |||
Condenser | Spiral titanium tube in PVC | |||
Evaperator | Hydrophilic aluminium fins & copper tubes | |||
Fan type | DC motor fan – Horizontal | |||
Fan quantity | 1 PCS | |||
Advised water flow (m³/H) | 5~7 | 6~8 | ||
Water connection (mm) | 50 | 50 | ||
Unit dimensions (W*D*H) (mm) | 935*378*660 | 935*378*660 | ||
Packing dimensions (W*D*H) (mm) | 988*460*789 | 988*460*789 | ||
Net weight (KG) | 56.50 | 65.00 | ||
Gross weight (KG) | 66.50 | 75.00 | ||

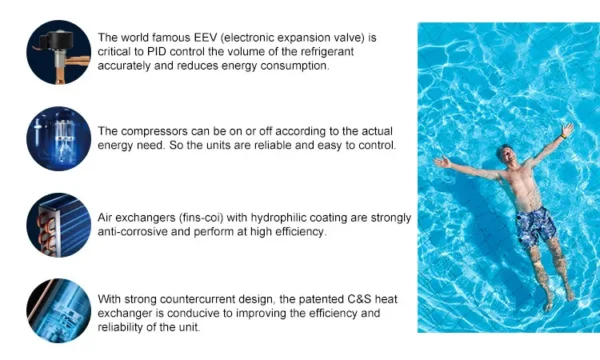

Detailed Features
1. High Efficiency
The hydrophilic coating decreased the frosting possibility. The high eficiency titanium tube in shell heat pump changer has
intermal thread to cause turbulence when the refrigerant is flowing through, which results in excellent high eficiency.
2. Quiet Operation never annoy you
The hydrophilic coating decreased the frosting possibility. The high eficiency titanium tube in shell heat pump changer has
intermal thread to cause turbulence when the refrigerant is flowing through, which results in excellent high eficiency.
2. Quiet Operation never annoy you
Thanks to Flamingo engineers ' elaborate design and constant effort to reduce the noise, Flamingo seal series can run amazingly quietly of 20dB(A) in sleep mode.
3. Fast Heating
By adopting the brushless DC fan motor and inverter compressors, Nulite Seal series can smartly adjust the speed of compressors and fan motors according to the temperature of air and water temperatures, which enables the heat pumps to heat your pooll fast.
4. Constant Water Temperature
5. Soft Start
4. Constant Water Temperature
5. Soft Start
Flamingo seal series achieve completely soft switching at the start-up stage from an intensity of 0A to 28A(at
maximum), while the normal ON/OFF heat pumps start in a current intensity over three times higher, which will greatly impact the family electricity system.
maximum), while the normal ON/OFF heat pumps start in a current intensity over three times higher, which will greatly impact the family electricity system.
6. Heating & Cooling
By utilizing 4 ways valve, Flamingo seal series provide both heating and cooling mode to create more posibility for pool enjoyment.
7. Smart Wi-Fi control
7. Smart Wi-Fi control
Remote control is more convenient

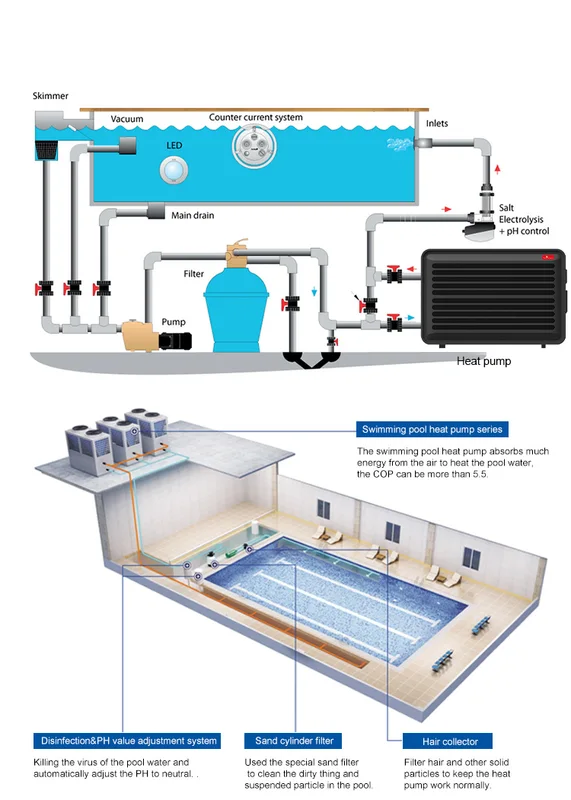

Installation Instructions
Production Process
In the assembly process of the heat pump, copper pipes are first welded to the core components, followed by nitrogen gas testing to ensure the quality of the welds. Subsequently, the electrical controls are installed.
The heat pump undergoes a vacuum test for the refrigerant system, followed by refrigerant charging. Afterward, it undergoes a performance test. Additionally, we conduct condition tests in our laboratory with temperatures as low as -45℃.
Company Profile
Flamingo: Pioneering Heat Pump Innovation Since 2010
Guangdong Flamingo New Energy Technology Co., Ltd. is located at FoShan City,Guangdong Province,China.Established in 2010,Flamingo is a leading force in heat pump manufacturing, dedicated to pushing the boundaries of innovation. With a team of 200 professionals and a cutting-edge 50000㎡ facility housing 6 production lines, including a -45°C low-temperature lab and R290 explosion-proof line.
We specialize in our product range:R290 / R32 / R410A DC inverter Heat Pump,Water Source Heat Pump,Commercial Heat Pump Water Heater,Stainless Steel Water Tanks,Water Chiller,Photovoltaic Heat Pump.
We have a very professional technical team, and the chief engineer has more than 20 years of experience in the heat pump industry.
We can solve projects of different sizes, including central hot water projects, central heating projects, central HVAC projects,swimming pool heating projects, greenhouse cultivation projects, etc.
We specialize in our product range:R290 / R32 / R410A DC inverter Heat Pump,Water Source Heat Pump,Commercial Heat Pump Water Heater,Stainless Steel Water Tanks,Water Chiller,Photovoltaic Heat Pump.
We have a very professional technical team, and the chief engineer has more than 20 years of experience in the heat pump industry.
We can solve projects of different sizes, including central hot water projects, central heating projects, central HVAC projects,swimming pool heating projects, greenhouse cultivation projects, etc.
Our Facilities:
6 Advanced Production Lines: We boast six cutting-edge production lines, ensuring efficient and standardized manufacturing.
-45°C Low-Temperature Lab: Our advanced lab simulates extreme low temperatures, ensuring product stability and performance in diverse climates.
R290 Explosion-Proof Line: A specialized production line ensures product safety in hazardous environments, adhering to the highest safety standards.
Injection Molding Workshop: Utilizing state-of-the-art technology, our workshop produces precision components, maintaining product consistency.
Sheet Metal Workshop: Equipped with advanced machinery, the workshop fabricates high-quality metal components for product durability.
Evaporator Workshop: Dedicated to efficient evaporator unit production, this workshop enhances overall product functionality.
-45°C Low-Temperature Lab: Our advanced lab simulates extreme low temperatures, ensuring product stability and performance in diverse climates.
R290 Explosion-Proof Line: A specialized production line ensures product safety in hazardous environments, adhering to the highest safety standards.
Injection Molding Workshop: Utilizing state-of-the-art technology, our workshop produces precision components, maintaining product consistency.
Sheet Metal Workshop: Equipped with advanced machinery, the workshop fabricates high-quality metal components for product durability.
Evaporator Workshop: Dedicated to efficient evaporator unit production, this workshop enhances overall product functionality.
Team Introduction
Flamingo Team Meeting
Flamingo team is a diversified and professional team composed of several departments.We are a dynamic, professional and efficient team. The company has generous benefits and provides employees with a good working environment and development opportunities.We hold regular team meetings to share experiences, discuss solutions and continuously improve the team's collaboration and execution capabilities.In terms of daily training, we focus on the skills improvement and personal growth of our staff and provide various professional training courses.
Main Components
Pressure Gauges
Control System
In addition to excellent team members, we also pay great attention to team welfare.We provide opportunities to travel abroad so that our employees can relax and enjoy the exotic atmosphere after a stressful day at work.We also organize daily sports group building activities such as badminton to improve the physical quality of our staff and cultivate the spirit of teamwork.
Customers Visiting:With over a decade of global export experience, our company has been a key player, focusing primarily on the European market.Annually, we proactively visit clients to strengthen relationships.In 2023, numerous clients visited our facilities, fostering mutual understanding. Our commitment extends to providing tailored services, ensuring client satisfaction. We take pride in offering a range of services that contribute to enduring partnerships.
Product packaging
Our comprehensive transportation solutions cater to various needs,offering shipping options by Sea, Air, Rail, and Road. We provide flexibility with international trade terms, such as EXW, FOB, CIF, DDU, and DDP, ensuring tailored services.
Our export services extend to European countries, including Poland, Denmark, Germany, Italy, France, Czech Republic, Lithuania, Slovakia,Netherlands, and more. Trust us for seamless logistics and efficient deliveries across diverse transport modes.
FAQ
Q: Do you provide OEM/ODM service?
A: We are R&D and manufacturing factory. With 50,000 sq meters modern factory in Foshan City. we take pride in our unparalleled OEM/ODM customization capabilities, offering a comprehensive array of options to meet the diverse needs of our valued customers.
A: We are R&D and manufacturing factory. With 50,000 sq meters modern factory in Foshan City. we take pride in our unparalleled OEM/ODM customization capabilities, offering a comprehensive array of options to meet the diverse needs of our valued customers.
Q: How long is your heat pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: Do you also provide other kind of heat pumps?
A:R290/R32/R410A DC inverter Heat Pump,Water Source Heat Pump,Commercial Heat Pump Water Heater,Stainless Steel Water Tanks,Water Chiller,Photovoltaic heat pump
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shipment.
AIibaba trade assurance payment available. L/C Payment available only with 1 million+ USD dealing amount.
For the most suitable heating cooling, hot water solution!
More details to confirm, please feel free to contact us as below!
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: Do you also provide other kind of heat pumps?
A:R290/R32/R410A DC inverter Heat Pump,Water Source Heat Pump,Commercial Heat Pump Water Heater,Stainless Steel Water Tanks,Water Chiller,Photovoltaic heat pump
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shipment.
AIibaba trade assurance payment available. L/C Payment available only with 1 million+ USD dealing amount.
For the most suitable heating cooling, hot water solution!
More details to confirm, please feel free to contact us as below!
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–19 set: US $850 / set
- 20+ set: US $799 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water heater be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Flamingo New Energy Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Flamingo New Energy Technology Co., Ltd. range on HVACR Nexus.
