Key specification for this water heater: capacity 0, power source Electric. Everything below is reproduced from the factory data sheet. Made by Foshan Blueway Electric Appliances Co., Ltd. (14 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Heater
- Model Number: SPCH2.5S
- Power Source: Electric
- Capacity: 0
- Housing Material: Galvanized Steel Powder Coated
- Material: Galvanized Steel Powder Coated/Plastic/Stainless steel
- Refrigerant: R410A
Technical Specifications
| Application | Commercial, Hotel, Household, Outdoor |
|---|---|
| Power Source | Electric |
| Type | Heat Pump Water Heaters |
| Storage / Tankless | Storage |
| Capacity | 0 |
| Installation | Freestanding |
| Housing Material | Galvanized Steel Powder Coated |
| App-Controlled | Yes |
| Warranty | 1 Year |
| After-Sales Service Provided | Field Maintenance and Repair Service |
| Private Mold | No |
| Logo/Graphic Design | Silk Screen Printing, Laser Printing, Hot Stamping, Inkjet Printing, UV printing, Heat-Transfer Printing, 3D Printing |
| Place Of Origin | Guangdong, China |
| Brand Name | Blueway |
| Model Number | SPCH2.5S |
| Color | Grey or White |
| COP | 4.0~4.5 |
| Fan Discharging | Vertical or Horizontal |
| Material | Galvanized Steel Powder Coated/Plastic/Stainless steel |
| Max/Rated Temperature | 28℃/40℃ |
| Products Type | Swim Pool heat pump |
| Refrigerant | R410A |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

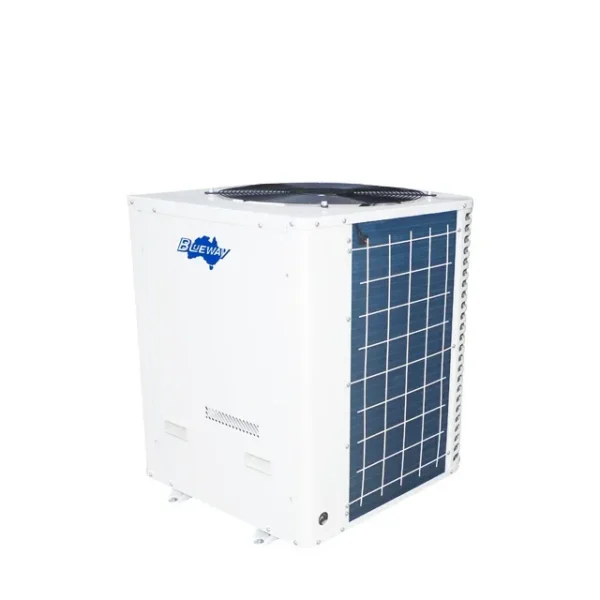

Energy saving swimming pool water heaters heat pump
Product details
| Brand name | Blueway |
| Color | Grey or White |
| COP | 4.0~4.5 |
| Fan discharging | Vertical or Horizontal |
| Material | Galvanized Steel Powder Coated/Plastic/Stainless steel |
| Max/Rated temperature | 28℃/40℃ |
| Place of origin | Guangdong China |
| Products type | Swim Pool heat pump |
| Refrigerant | R410A |
| Application | Home,Villa,SPA, School, Hotels, Hospital |
| Product Keywords | heat pump,swimming pool heat pump,energy saving heat pump |

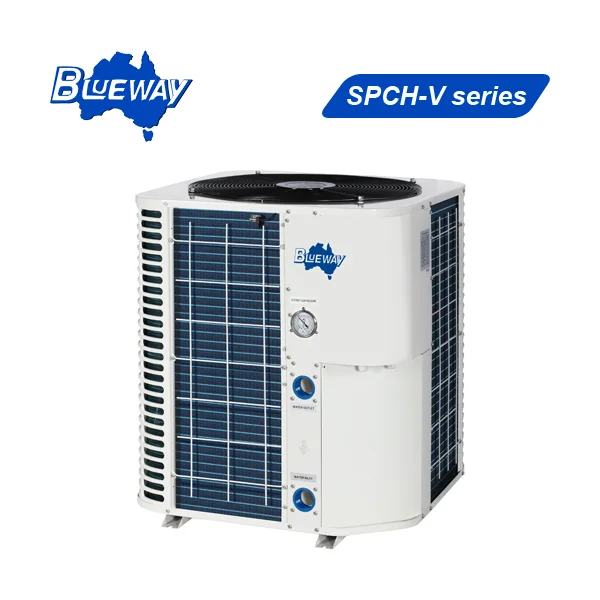

Blueway R32 Inverter swimming pool heat pump is a smart and reliable solution to heat the pool and spa. With most of the energy absorbed from the air, pool heat pumps can heat the pool and spa all year round with much less cost. Running at low cost and without CO2 discharging, people can enjoy swimming or spa at pleasant water temperature all over the year.
| Model | SPCH-I-2.0S | SPCH-I-3.0S | SPCH-I-4.0S | SPCH-I-5.0S | SPCH-I-6.0S | SPCH-I-5S | SPCH-I-6S | SPCH-I-7S | SPCH-I-10S | SPCH-I-15S | SPCH-I-25T | |||
| HP | 2 | 3 | 4 | 5 | 6 | 5 | 6 | 7 | 10 | 15 | 25 | |||
| Power Supply | V/Hz/Ph | 220-240/50/1, 208-230/60/1 | 380-415/50/3, 208-230/60/3, 380-415/60/3 | |||||||||||
| Heating performance | Heating (1): A26/19°C W26/28°C | Heating capacity | kW/h | 2.5~9 | 3.0~12 | 4.0~17 | 5.0~20 | 6.0~24 | 5.0~20 | 6.0~24 | 7~28 | 9~38.5 | 12~59 | 24~116 |
| Power consumption | kW | 0.2~1.65 | 0.24~2.22 | 0.33~3.2 | 0.42~4.15 | 0.51~5 | 0.42~4.1 | 0.5~4.95 | 0.58~5.5 | 0.75~8 | 1~12 | 2~23 | ||
| COP | w/w | 12.5~5.45 | 12.5~5.4 | 12.1~5.31 | 11.9~4.82 | 11.76~4.8 | 12~4.9 | 11.9~4.86 | 12.1~5.1 | 12~4.81 | 12~4.92 | 12~5.04 | ||
| Heating (2): A15/12°C W26/28°C | Heating capacity | kW/h | 1.8~7.5 | 2.2~9.5 | 3~12.5 | 4~15.5 | 5~20 | 4~15.5 | 5~20 | 6~23.5 | 8~31 | 10~48 | 20~93.5 | |
| Power consumption | kW | 0.27~1.7 | 0.33~2.1 | 0.48~3 | 0.66~4 | 0.81~4.94 | 0.65~3.92 | 0.81~5 | 0.95~5.75 | 1.31~7.9 | 1.65~12.5 | 3.4~24 | ||
| COP | w/w | 6.7~4.4 | 6.67~4.52 | 6.25~4.17 | 6.06~3.88 | 6.17~4.05 | 6.15~3.95 | 6.2~4 | 6.32~4.1 | 6.11~3.92 | 6.06~3.84 | 5.88~3.9 | ||
| Cooling performance | Cooling: A35/24°C W30/28°C | Cooling capacity | kW/h | 2~5.5 | 3~7.5 | 5~10.5 | 7~12.5 | 7.5~14 | 7~12.5 | 7.5~14 | 8~17 | 15~25 | 18~38 | 36~72 |
| Power consumption | kW | 0.42~1.7 | 0.61~2.25 | 1~3.2 | 1.37~3.85 | 1.4~4.23 | 1.35~3.9 | 1.37~4.3 | 1.4~5 | 2.7~7.35 | 3.2~11.2 | 6.55~21.5 | ||
| EER | w/w | 4.76~3.24 | 4.92~3.33 | 5~3.28 | 5.1~3.25 | 5.36~3.31 | 5.19~3.2 | 5.47~3.25 | 5.7~3.4 | 5.56~3.5 | 5.63~3.39 | 5.5~3.35 | ||
| Ambient temp. range | °C | -7~46 | ||||||||||||
| Rated/Max.outlet water temp. | °C | 28/40 | ||||||||||||
| Rated water flow rate | m³/h | 3.8 | 5.2 | 7.3 | 8.6 | 10.3 | 8.6 | 10.3 | 12 | 16.6 | 25.4 | 50 | ||
| Rated pressure drop | kPa | 4 | 5 | 5 | 7 | 13 | 7 | 13 | 15 | 15 | 17 | 23 | ||
| Controller | – | Micro processor based digital wire controller with LCD display | ||||||||||||
| External cabinet | – | Galvanized steel with powder coating | ||||||||||||
| Compressor | Type | – | Rotaty | Scroll | ||||||||||
| Qty. | Nos. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | ||
| Refrigerant | – | R32/R410a | ||||||||||||
| Water heat exchanger | – | Titanium tube in PVC shell | ||||||||||||
| Water connection | Inlet&Outlet | inch | DN40 | DN40 | DN40 | DN40 | DN50 | DN40 | DN50 | DN50 | DN65 | DN65 | DN80 | |
| Sound pressure at 1m | dB(A) | 40~51 | 42~52 | 44~53 | 45~56 | 46~58 | 45~56 | 46~58 | 45~59 | 48~62 | 49~63 | 62~72 | ||
| Air discharge | – | Side discharge | Top discharge | |||||||||||
| Net dimension | W*D*H | mm | 950*380*610 | 950*380*610 | 1110*430*700 | 1100*430*800 | 1100*430*960 | 1100*430*800 | 1100*430*960 | 1050*400*1260 | 1100*480*1480 | 1400*525*1630 | 2000*950*2100 | |
| Net weight | kg | 43 | 45 | 54 | 70 | 90 | 70 | 90 | 105 | 210 | 235 | 600 | ||
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–49 set: US $1280 / set
- 50–99 set: US $1250 / set
- 100+ set: US $1200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
