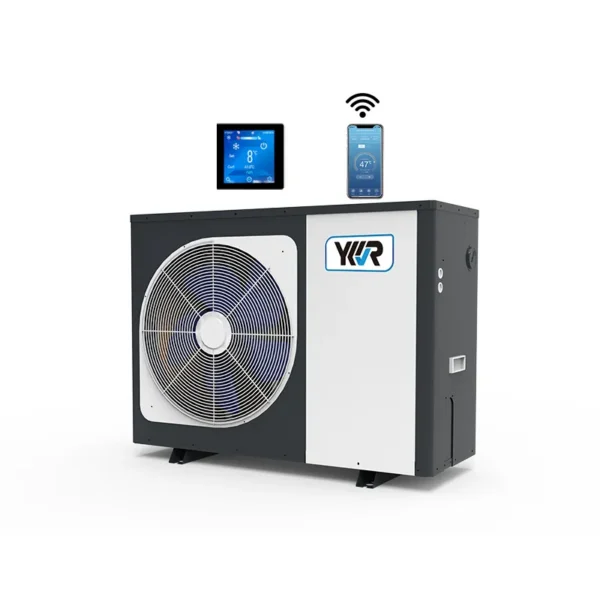

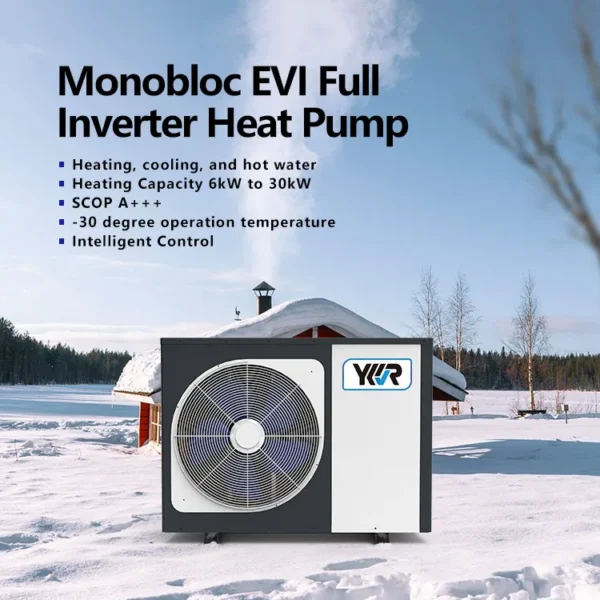

Water Heater, YKR, R32, DHW, WIFI

Water heater — power supply 220~240V 50-60HZ 1Ph, 9KW-30KW. The complete factory specification follows. Made by Guangdong Y.K.R New Energy Co.,Ltd (2 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Water Heater

• Model Number: YK-03/BPKTR3
• Power Source: Electric, Gas, Solar
• Power Supply: 220~240V 50-60HZ 1Ph
• Heating Capacity: 9KW-30KW
• Housing Material: galvanized sheet
• Refrigerant: R32

Technical Specifications

Product Details

Products Description

Model

YK-03/BPKTR3

YK-04/BPKTR3

YK-03/BPKTR3-S

YK-04/BPKTR3-S

YK-05/BPKTR3

Power Supply

VHz/Ph

220-240/50-60/1

380-415/50-60/3N

380-415/50-60/3N

220-240/50-60/1

Heating1

Max.Heating Capacity

kW

9.1

12

9.1

12

16

COP

WM

4.5

4.48

4.5

4.48

4.51

Heating Capacity Min./Max

KW

4.0/9.1

5.3/12

4.0/9.1

5.3/12

7.6/16

Heating power Input Min./Max

kW

0.72712.02

0.97/2.68

0.727/2.02

0.97/2.68

1.31/3.55

COP Min./Max.

WM

4.5/5.5

4.48/5.46

4.5/5.5

4.48/5.46

4.51/5.8

Heating2

Max.Heating Capacity

kW

8.5

11.1

8.5

11.1

15.5

COP

W

3.6

3.58

3.6

3.58

3.8

Heating Capacity Min.Max.

kW

3.8/8.5

4.8/11.1

3.8/8.5

4.8/11.1

7.3/15.5

Heating power Input Min./Max.

kW

0.863/2.36

1.1/3.1

0.863/2.36

1.1/3.1

1.49/4.08

COP Min./Max.

WN

3.6/4.4

3.58/4.35

3.6/4.4

3.58/4.35

3.8/4.9

Cooling1

Max.Cooling Capacity

KW

8.2

10.8

8.2

10.8

14.5

EER

WM

3.45

3.42

3.45

3.42

3.55

Cooling Capacity Min.Max.

kW

3.6/8.2

4.6/10.8

3.6/8.2

4.6/10.8

6.8/14.5

Cooling Power Input Min/Max.

kW

0.878/2.38

1.135/3.15

0.878/2.38

1.135/3.15

1.62/4.08

EER Min.Max.

W

3.45/4.1

3.42/4.05

3.45/4.1

3.42/4.05

3.55/4.19

Cooling2

Max.Cooling Capacity

KW

6.6

8.7

6.6

8.7

10.9

EER

WN

2.8

2.78

2.8

2.78

2.79

Cooling Capacity Min./Max

kW

3.05/6.6

3.92/8.7

3.05/6.6

3.92/8.7

5.9/11.9

Cooling Power Input Min./Max.

kW

0.871/2.35

1.12/3.12

0.871/2.35

1.12/3.12

1.64/4.12

EER Min.Max.

WN

2.8/3.5

2.78/3.48

2.8/3.5

2.78/3.48

2.89/3.6

Rated Current

A

9

11.9

3

4

15.5

Max Current

A

14.5

19

5

6.6

25

SCOP Level (35℃)

A+++

A+++

A+++

A+++

A+++

SCOP Level(55℃)

A++

A++

A++

A++

A++

Working Ambient Temperature

℃

-38~43

Operating Water Temperature

℃

7~60

Refrigerant

R32

Compressor

Type-Quantity/System

Twin Rotary-1

Twin Rotary-1

Twin Rotary-1

Twin Rotary-1

Twin Rotary-1

Fan

Quantity

1

1

1

1

2

Airflow

m³/h

3000

3300

3000

3300

6000

Rated power

W

90

100

90

100

180

Water Side Heat Exchanger

Type

Plate Heat Exchanger

Plate Heat Exchanger

Plate Heat Exchanger

Plate Heat Exchanger

Plate Heat Exchanger

Water Pressure Drop

kPa

20

23

20

23

25

Piping Connection

inch

G1"

G1"

G1"

G1"

G1"

Allowable Water Flow

Min./Rated./Max.

m³/h

0.95/1.6/1.8

1.3/2.1/2.4

0.95/1.6/1.8

1.3/2.1/2.4

1.5/2.75/3.0

Noise Level

dB(A)

53

54

53

54

56

NetSize(LxDxH)

mm

1085×430×824

1085×430×824

1085×430×824

1085×430×824

1104×445×1350

Packing Size(LxDxH)

mm

1130×440×960

1130×440×960

1130×440×960

1130×440×960

1140×450×1490

Net Weight

kg

85

85

87

87

132

Gross Weight

kg

94

94

96

96

143

Loading Quantity(20GP/40HQ)

44/96

44/96

44/96

44/96

22/48

Model

YK-06/BPKTR3

YK-05/BPKTR3-S

YK-06/BPKTR3-S

YK-08/BPKTR3-S

YK-10/BPKTR3-S

Power Supply

V/Hz/Ph

220-240/50-60/1

380-415/50-60/3N

380-415/50-60/3N

Heating1

Max.Heating Capacity

kW

18.6

16

18.6

24

30

COP

WIW

4.47

4.51

4.47

4.48

4.46

Heating Capacity Min.Max

kW

8.2/18.6

7.6/16

8.2/18.6

10.56/24

13.2/30

Heating power Input

KW

1.5/4.16

1.31/3.55

1.5/4.16

1.93/5.36

2.42/6.73

Min/Max. COP Min.Max.

W/W

4.47/5.45

4.51/5.8

4.47/5.45

4.48/5.46

4.46/5.45

Heating2

Max.Heating Capacity

KW

17.3

15.5

17.3

22.3

27.8

COP

W/W

3.56

3.8

3.56

3.58

3.57

Heating Capacity Min.Max

kW

7.6/17.3

7.3/15.5

7.6/17.3

9.8/22.3

12.2/27.8

Heating power Input Min/Max.

kW

1.75/4.85

1.49/4.08

1.75/4.85

2.25/6.23

2.81/7.78

COP Min./Max.

WW

3.5714.34

3.8/4.9

3.5714.34

3.58/4.35

3.5714.34

Cooling1

Max.Cooling Capacity

kW

16.7

14.5

16.7

21.5

26.8

EER

WIW

3.42

3.55

3.42

3.43

3.42

Cooling Capacity Min.Max

kW

7.2/16.7

6.8/14.5

7.2/16.7

9.4/21.5

11.8/26.8

Cooling Power Input Min/Max

kW

1.7714.88

1.62/4.08

1.7714.88

2.32/6.26

2.91/7.83

EER Min.Max.

W/

3.42/4.06

3.55/4.19

3.42/4.06

3.43/4.05

3.42/4.05

Cooling2

Max.Cooling Capacity

kW

13.5

10.9

13.5

17.5

21.7

EER

W/W

2.78

2.79

2.78

2.79

2.78

Cooling Capacity Min.Max

KW

6.1/13.5

5.9/11.9

6.1/13.5

7.8/17.4

9.6/21.7

Cooling Power Input Min/Max.

kW

1.76/4.85

1.64/4.12

1.76/4.85

2.24/6.24

2.78/7.80

EER Min./Max.

WIW

2.78/3.46

2.89/3.6

2.78/3.46

2.79/3.48

2.78/3.45

Rated Current

A

18.5

6.1

6.2

7.8

9.8

Max Current

A

30

9.5

10

12.5

15.7

SCOP Level (35℃)

A+++

A+++

A+++

A+++

A+++

SCOP Level(55℃)

A++

A++

A++

A++

A++

Working Ambient Temperature

℃

-38~43

Operating Water Temperature

℃

7~60

Refrigerant

R32

Compressor

Type-Quantity/System

Twin Rotary-1

Twin Rotary -1

Twin Rotary-1

Twin Rotary-1

Twin Rotary-1

Fan

Quantity

2

2

2

2

2

Airflow

m³/h

6500

6000

6500

9000

11000

Rated power

W

200

180

200

260

300

Water Side Heat Exchanger

Type

Plate Heat Exchanger

Plate Heat Exchanger

Plate Heat Exchanger

Plate Heat Exchanger

Plate Heat Exchanger

Water Pressure Drop

kPa

28

25

28

30

32

Piping Connection

inch

G1"

G1"

G1"

G1-1/4"

G1-1/4"

Allowable Water Flow

Min./Rated./Max.

m³/h

1.9/3.2/3.9

1.5/2.75/3.0

1.9/3.2/3.9

2.9/4.2/5.0

3.6/5.2/6.3

Noise Level

dB(A)

57

56

57

58

59

Net Size(LxDxH)

mm

1104×445×1350

1104×445×1350

1104×445×1350

1308×470×1460

1308×470×1460

Packing Size(LxDxH)

mm

1140×450×1490

1140×450×1490

1140×450×1490

1350×495×1600

1350×495×1600

Net Weight

kg

137

132

137

161

167

Gross Weight

kg

148

143

148

177

183

Loading Quantity(20GP/40HQ)

22/48

22/48

22/48

19/41

19/41

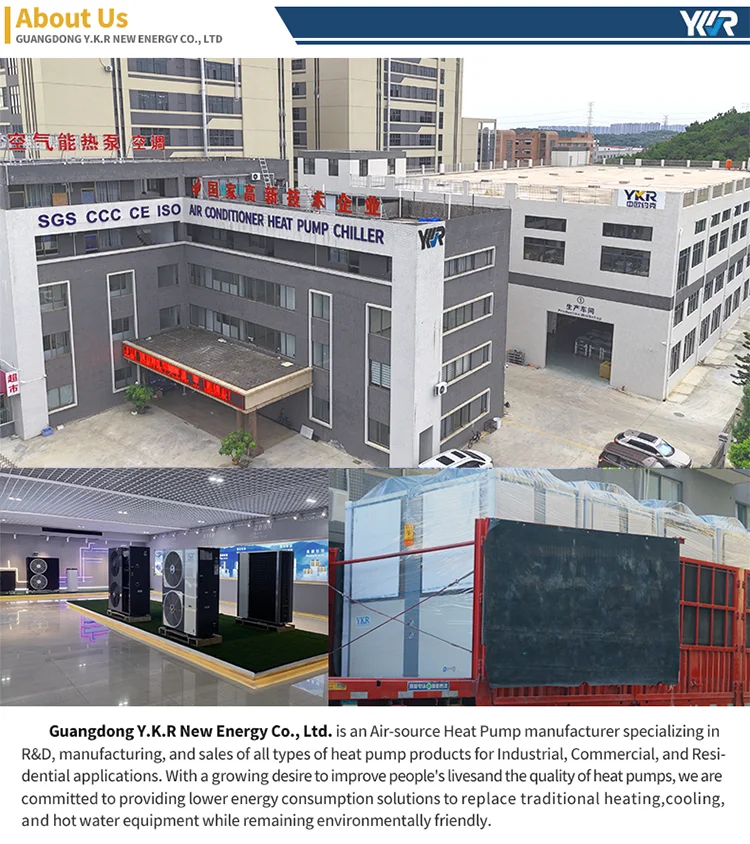

Company Profile

Certifications

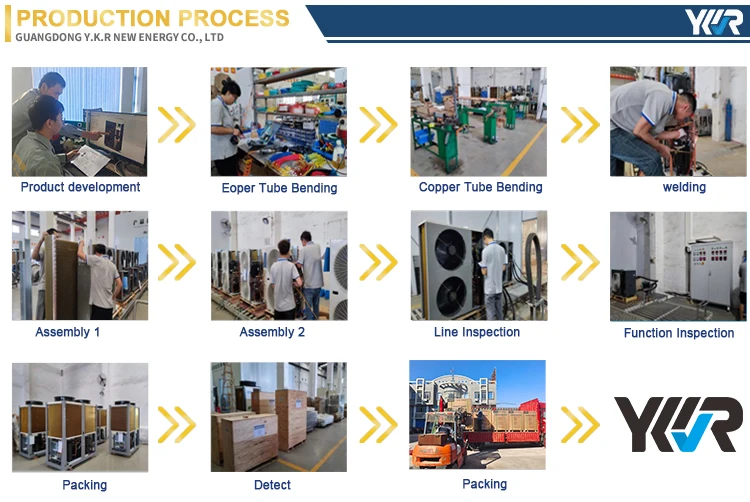

Manufacturing Technique

Exhibition

FAQ

Q1: Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.

Q2: What is your main product?

A: Our main products include DC variable frequency

heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps ,water-ground source heat pump in cold areas.

Q3: How to place an order?

A:Please send us an inquiry or contact us through online services ; after receiving your inquiry, we will reply to you Catalogs,quotations and other information you need.

Q4: Do you provide OEM/ODM customized manufacturing services?

A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We customize heat pumps according to local standards under your brand according toyourspecial needs.

Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.

Q6: Are there any discounts for buying your products?

A:We are doing promotional activities. If you spend more than US$5000, you can enjoy a discount of US$50, and you can enjoy a discount of US$10000 if you spend more than US$100.

Q6: I need to buy in large quantities.Can you provide sample service?

A:Yes, we can provide sample service, and we have engineers to help you solve installation problems.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–49 unit: US $1578 / unit
  • 50–99 unit: US $1464 / unit
  • 100+ unit: US $1335 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water heater?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this water heater carry?

It is supplied with CE RoHS SG-Ready BAFA TUV ERP documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the water heater be supplied for my local voltage?

The standard configuration is 220~240V 50-60HZ 1Ph. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangdong Y.K.R New Energy Co.,Ltd, based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Y.K.R New Energy Co.,Ltd range on HVACR Nexus.
