Water Pump, 115/208-230v, 1hp, 1.5hp, NEMA

The water pump listed here carries type Induction Motor, speed 1800,3600RPM, documented exactly as the manufacturer publishes it. Made by Ningbo Biote Mechanical Electrical Co., Ltd. (19 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Water Pump

• Model Number: NEMA56
• AC Voltage: 115/208-230,208-230/460
• Speed: 1800,3600RPM
• Warranty: 3 months ~ 1 year
• Place Of Origin: Zhejiang, China
• Protect Feature: Drip-proof

Technical Specifications

Product Details

Product Description

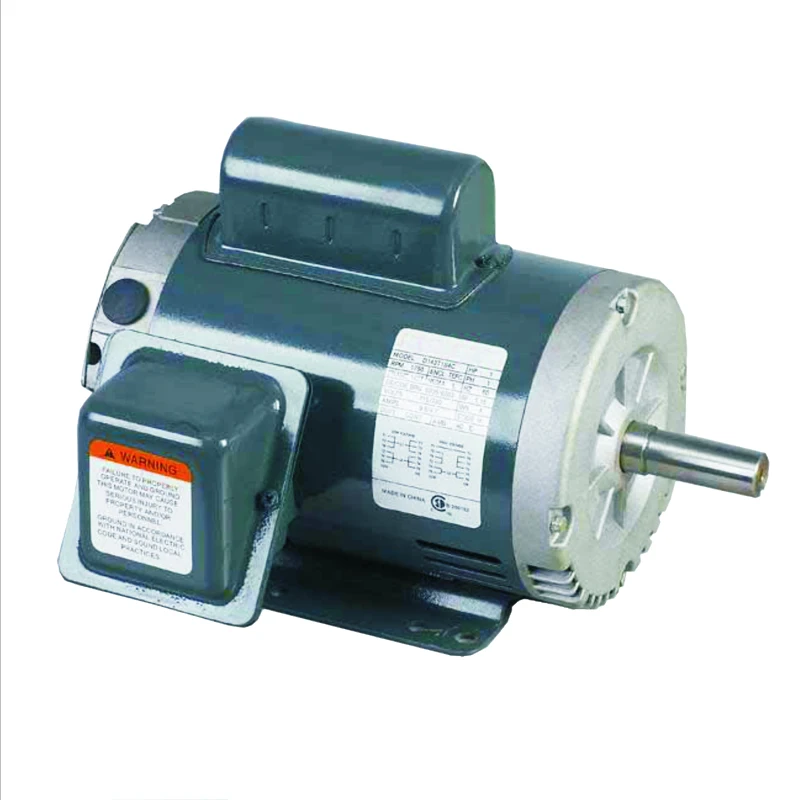

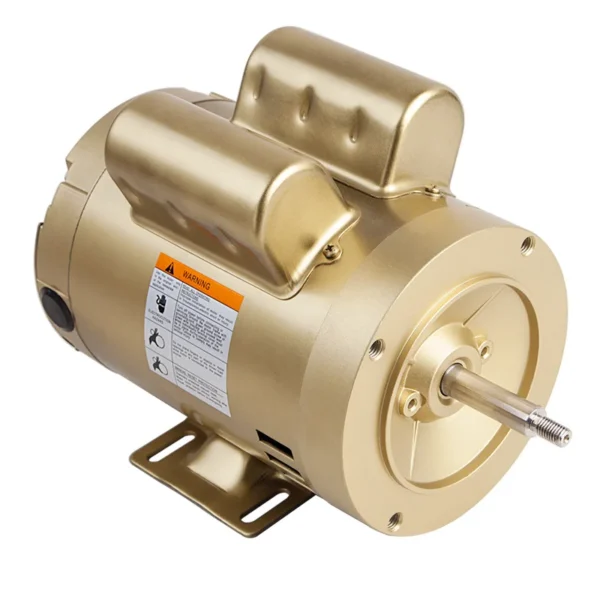

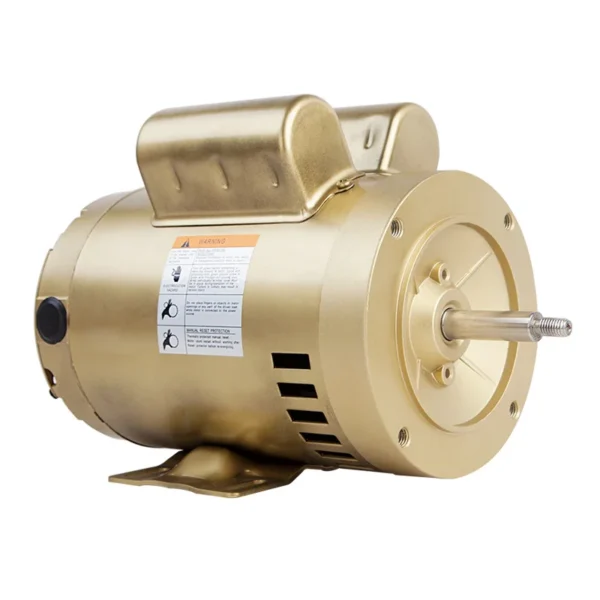

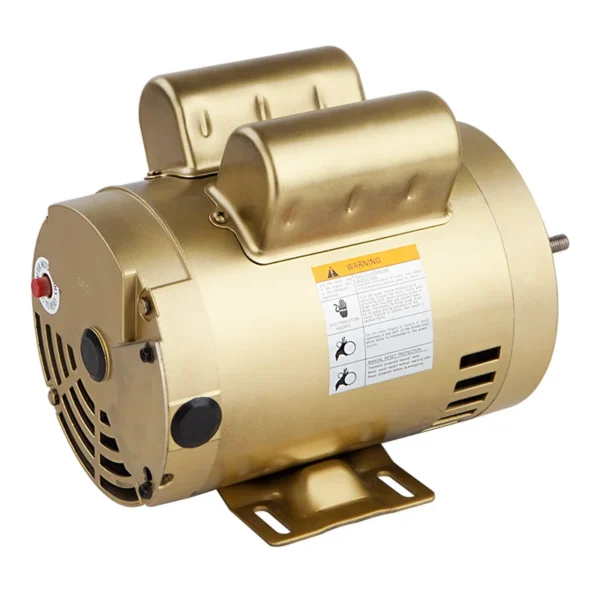

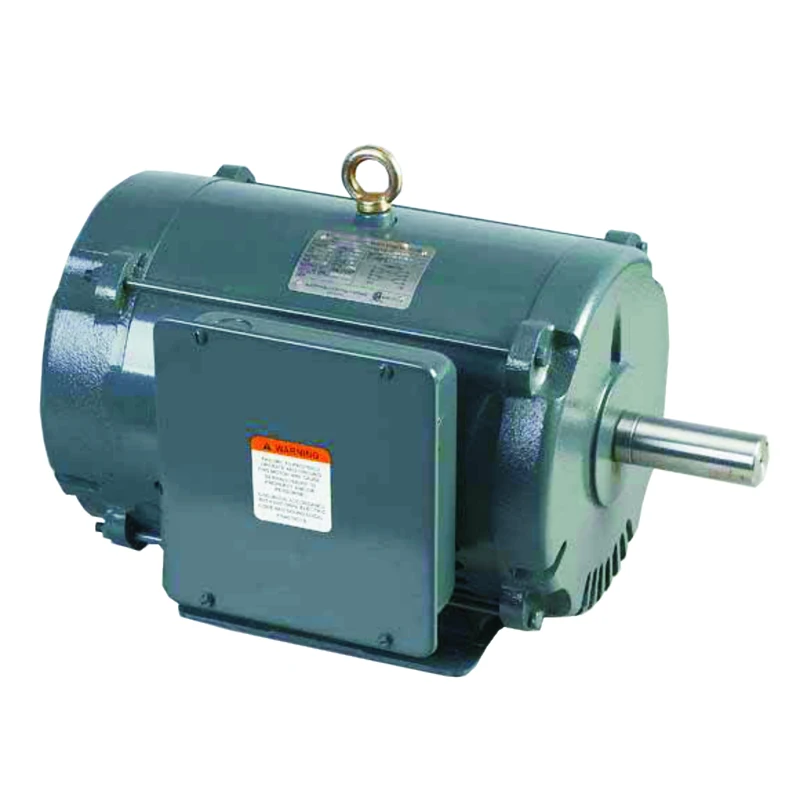

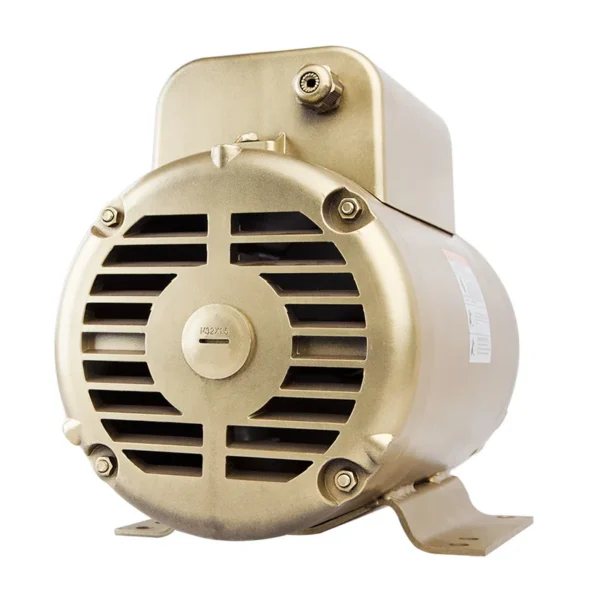

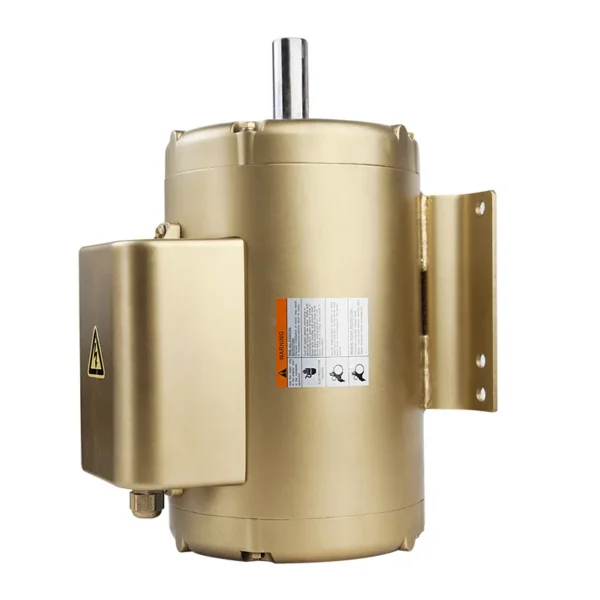

 NEMA ODP WATER PUMP MOTOR

1.5 Hp Electric Motor: This compact and small-sized AC motors feature output 1.5 HP, 56C frame, and single phase. Gasketed capacitor housing and conduit boxes protect all environments. Working Efficiency: The electric motor 56C can run at the maximum speed of 1725 RPM, high working efficiency, Voltage: 115/230V 60 HZ, shaft diameter: 5/8" (1.6 cm), shaft length: 1.88" (4.8 cm), upper hardness shaft is more durable. Steel Housing: The compressor duty motor is made of high-quality steel material. The firm and solid material can protect the engine well, and the smooth appearance is easy to clean; it includes the mounting bracket, and the bracket structure is stable and easy to use. High Speed Cooling Fan: Big fan at one end cools the motor in hours' running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes. Multiple Application: The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.

HP			1HP-10HP
Frame			Rolled Steel, NEMA 56C. 145t,184T, 213T. 215T
Service Factor			1.15
Endosure			ODP
IP Class			IP44
PROTECTOR			Accept Manual or Auto Protector
Certification			All certified

HP	RPM	NEMA FRAME	MODEL	Volts	HZ	ENCL.	SF	Full Load AMPS	WGT. LBS.
1	3600	56	D561S2C	115/208-230	60	ODP	1.15	12/6.4-5.8	30
1	1800	56	D561S4C	115/208-230	60	ODP	1.15	11.5/6.0-5.7	38
1	1800	143T	D143T1S4C	115/208-230	60	ODP	1.15	11.5/6.0-5.7	41
1.5	3600	56	D561.5S2C	115/208-230	60	ODP	1.15	14.5/7.8-7.2	37
1.5	1800	56	D561.5S4C	115/208-230	60	ODP	1.15	15.5/8.1-7.6	42
1.5	1800	145T	D145T1.5S4C	115/208-230	60	ODP	1.15	15.5/8.1-7.6	45
1.5	3600	145T	D145T1.5S2C	115/208-230	60	ODP	1.15	14.5/8.0-7.6	41
2	3600	56	D562S2CC	115/208-230	60	ODP	1.15	18/10.1-9.2	44
2	1800	56	D562S4C	115/208-230	60	ODP	1.15	19.0/10-9.3	47
2	3600	145T	D145T2S2C	115/208-230	60	ODP	1.15	18./10.2-9.4	48
2	1800	145T	D145T2S4C	115/208-230	60	ODP	1.15	19.0/10-9.3	50
3	3600	56	D563S2C	115/208-230	60	ODP	1.15	25/14.2-13	60
3	3600	145T	D145T3S2C	115/208-230	60	ODP	1.15	25/14.2-13	67
3	1800	182T	D182T3S4A	208-230/460	60	ODP	1.15	13.5-12/6.2	88
5	3600	184T	D184T5S2A	208-230/460	60	ODP	1.15	22-20/10	95
5	1800	184T	D184T5S4A	208-230/460	60	ODP	1.15	22.5-20/10	96
7.5	1800	213T	D213T7.5S4A	208-230/460	60	ODP	1.15	32.8-30/15.2	140
10	1800	215T	D215T10S4A	208-230/460	60	ODP	1.15	41.2-39/19.5	153

Detailed Images

Why Choose Us

WHY CHOOSE BIOTE

A.Certificates passed:All tests passed for most of our motors and can supply reports.

B.Fast feedback for customers:24 hours reply for all customers' inquiries.
C. Competitive prices.
D. Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.
E. Fast and Timely delivery:Usually 10-15 days for goods production.
F. Professional Technical support and After-sale service.
G.Customized service for kind of motor according to your requirement.

Our Company

FAQ

Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm. NEMA dc motor. NEMA dc Motor. stainless steel motor

Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.

Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.

Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.

Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.

Packing & Delivery

THE SAMPLE BY EXPRESS OR AIR

LCL=LESS THAN CONTAINER LOAD, FCL=FULL CONTAINER LOAD, BY SHIPMENT

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100–499 piece: US $76 / piece
  • 500–999 piece: US $67 / piece
  • 1000+ piece: US $58 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water pump?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.

Can the water pump be supplied for my local voltage?

The standard configuration is 115/208-230,208-230/460. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
