Key specification for this water pump: 110V, 220V, 110-240V, power frequency 50/60Hz. Everything below is reproduced from the factory data sheet. Made by Zhejiang Monro M&E Co., Ltd. (12 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Pump
- Model Number: EPC-16 Pressure control
- Power Frequency: 50/60Hz
- Max Power: 1.5kW
- Max. Voltage: 240V
- Rated Voltage: 110V, 220V, 110-240V
- Warranty: 1 year
Technical Specifications
| Max. Working Pressure | 10 bar |
|---|---|
| Max. Voltage | 240V |
| Accuracy Class | 10%~30% |
| Contact Arrangement | SPDT |
| Max. Current | 16A |
| Whether The Smart | Yes |
| Place Of Origin | Zhejiang, China |
| Model Number | EPC-16 Pressure control |
| Brand Name | Monro Pressure control |
| Rated Voltage | 110V, 220V, 110-240V |
| Power Frequency | 50/60Hz |
| Max Power | 1.5kW |
| Max Current | 16A |

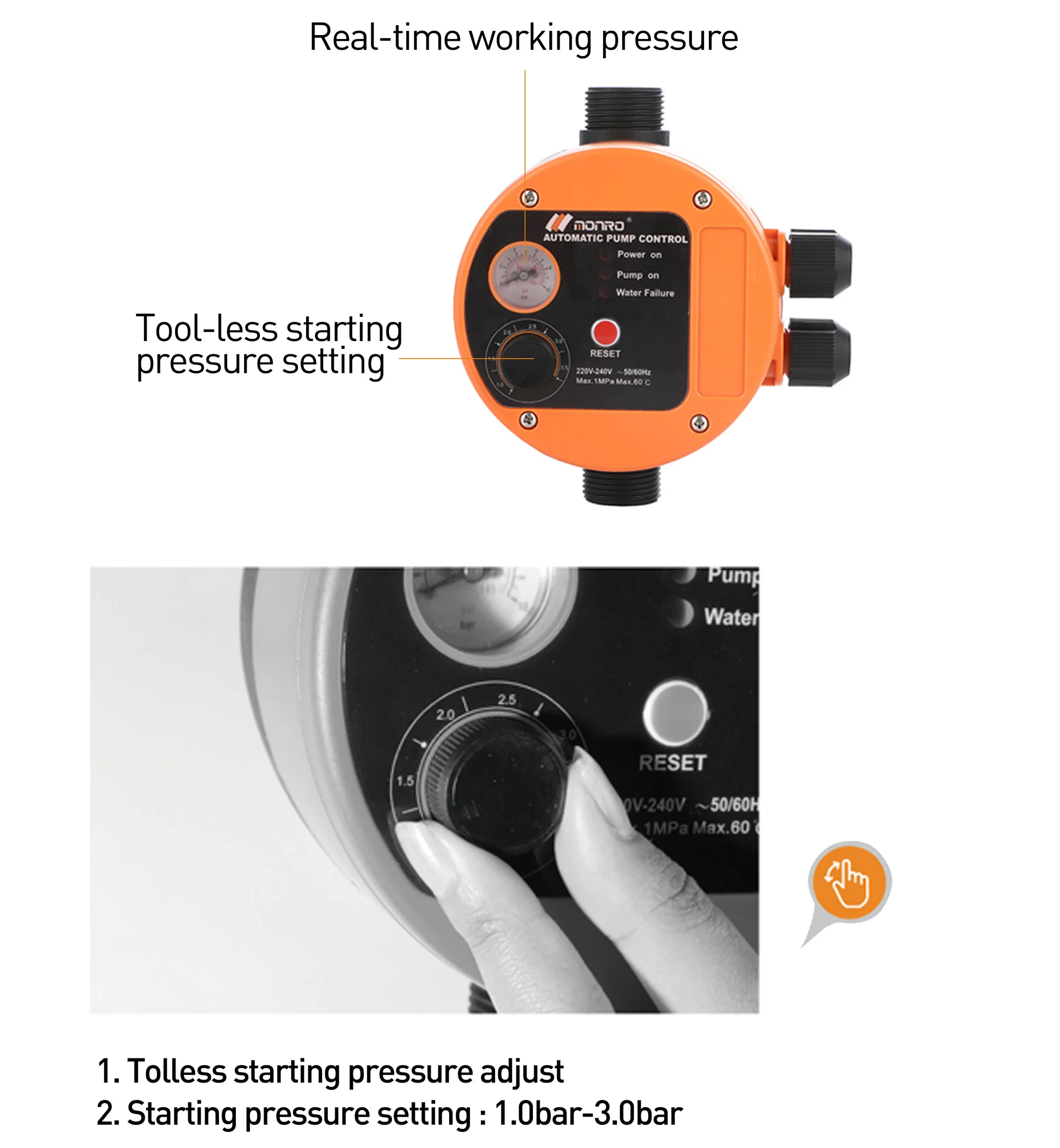

| Starting Pressure Setting | 1.0-3.0 bar |
| Connection Thread | G1" |
| Protection Rating | IP65 |
| Max. Working Temperature | 60℃ |
| Recommended Cable | 3×1.5mm² |
| Warranty | 1 year |
| Selling Units | Single item |
| Single Package Size | 16X17X17.5 cm |
| Single Gross Weight | 1.300 kg |
Product Details

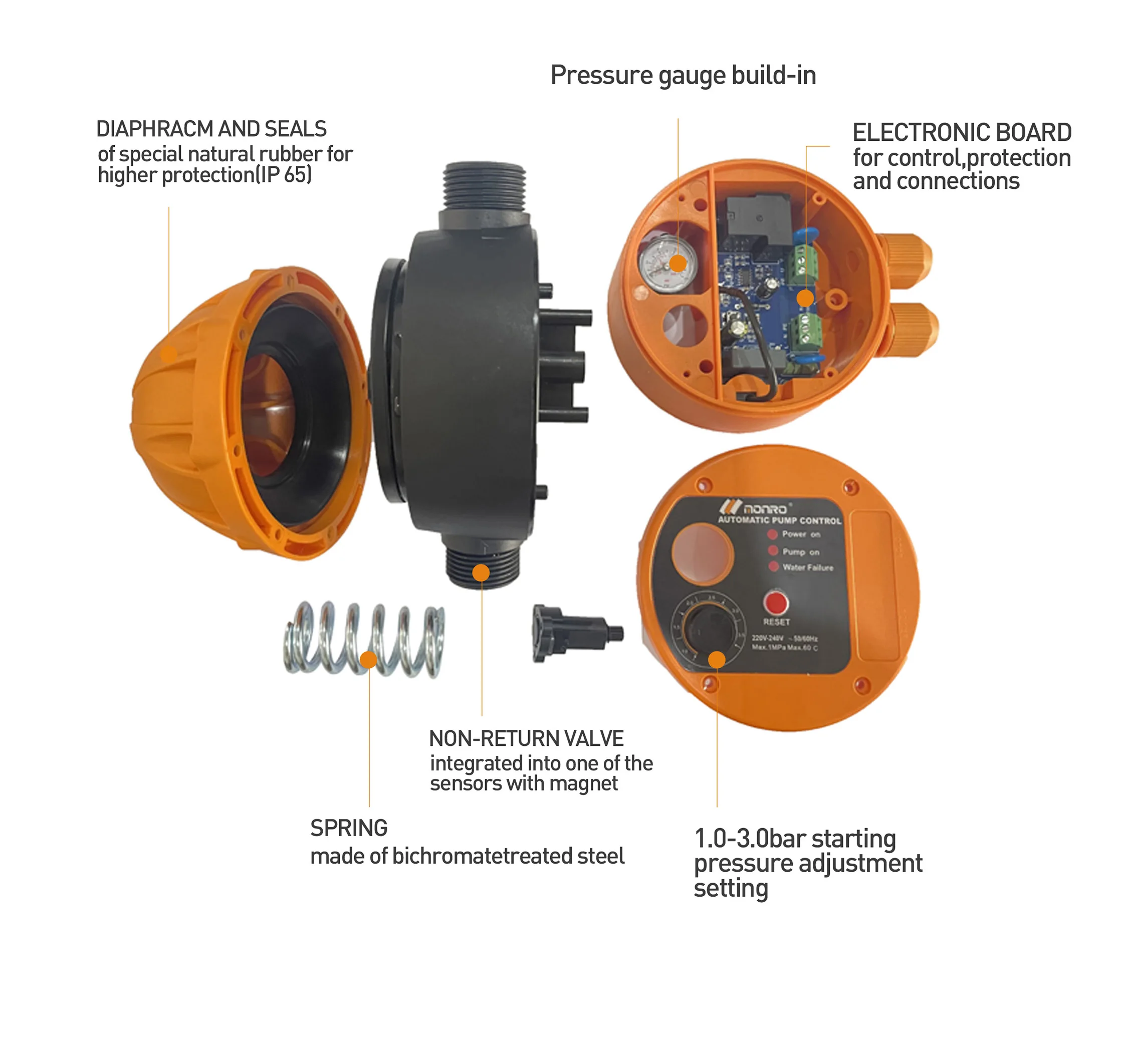

FEATURES OF CONSTRUCTION
THE HYDRAULIC SECTION COMPRISES
a check valve.
a relay with special contacts and an electrical life of over 100,000 cycles (continuous rating).
THE ELECTRONIC SECTION COMPRISES
TECHNICAL DATA
– Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous,
– chemically neutral, close to the characteristics of water
– Liquid temperature range: from 0°C to 65°C
– Maximum ambient temp. 60°C
– Maximum operating pressure: 10 bar (1000 kPa)
– Installation: fixed in a Vertical position
– Power supply : 110/220/110-240v Voltage 50/60Hz
– Max power:1.5kW
FEATURES OF OPERATION
> Triple voltage 110 V , 230 V or 110-240V
> Absorbs water hammer
> Eliminates pressure tank and switch
> Built-in check valve
> Maintains constant pressure at constant flow
> Simple installation saves time and space

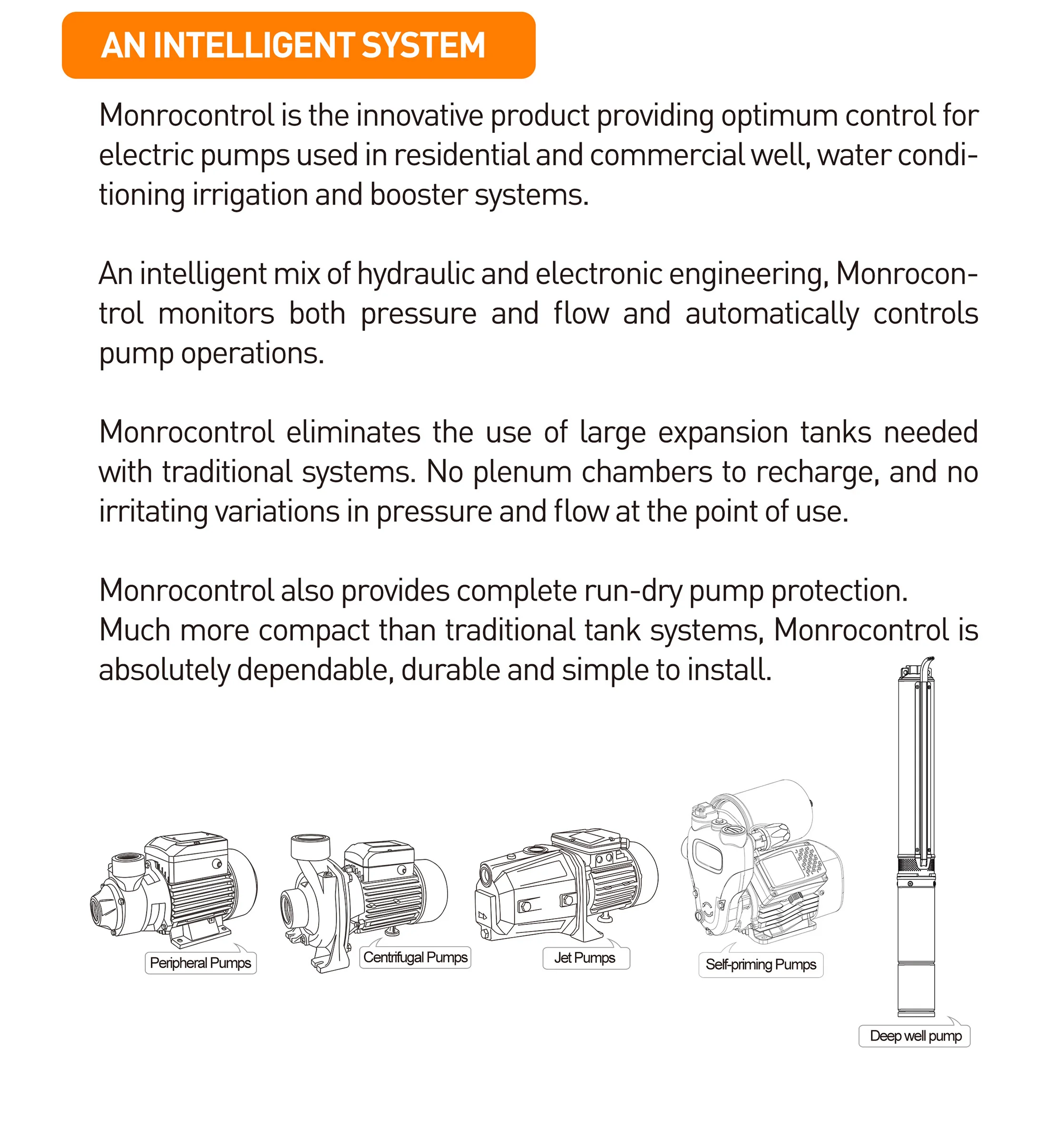

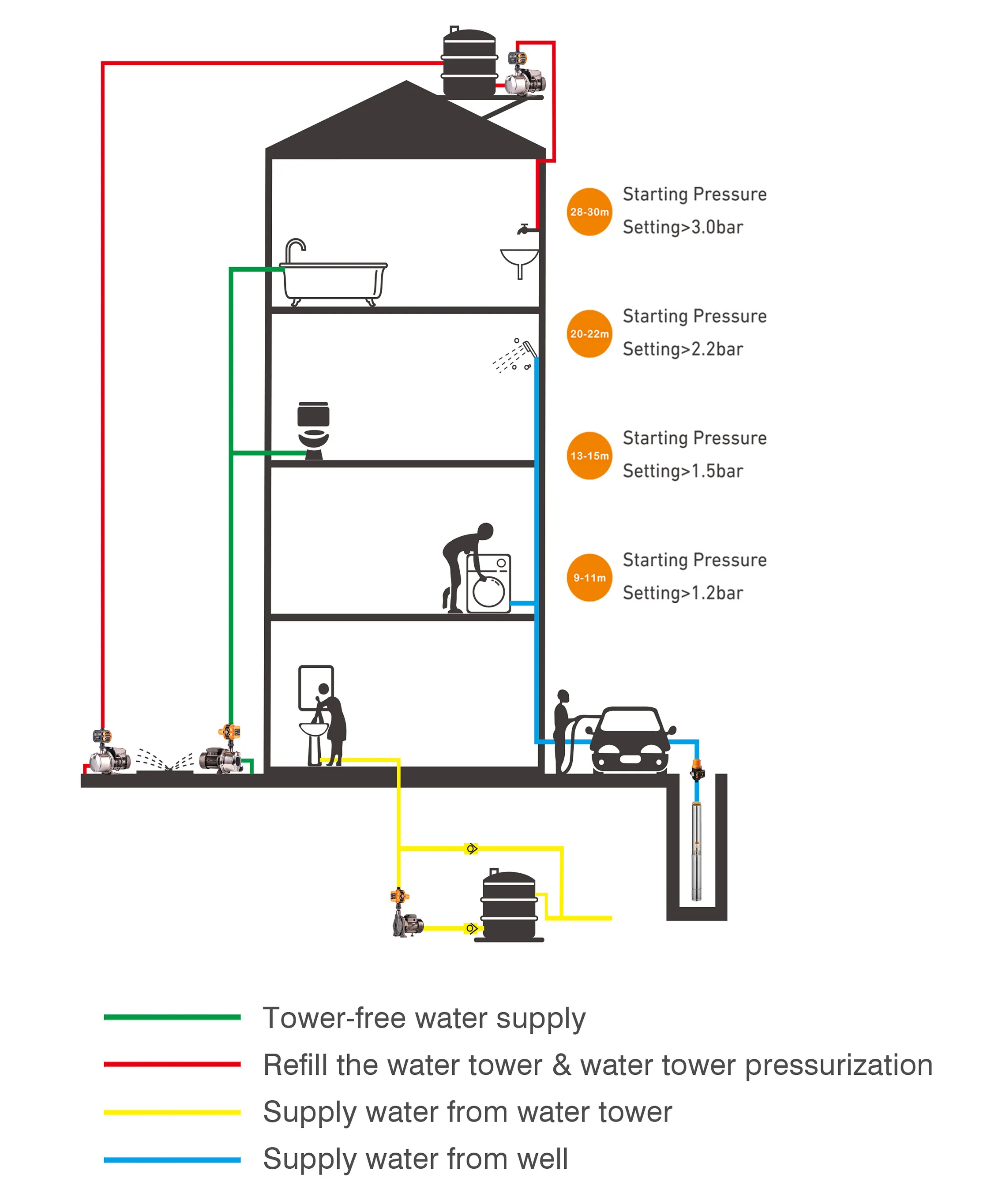

> Can be used with surface or submersible pumps
Ordering and Pricing
- Minimum order quantity: 12 unit
- Volume pricing:
- 12–1199 unit: US $25 / unit
- 1200+ unit: US $11.8 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water pump?
The standard minimum order quantity is 12 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the water pump be supplied for my local voltage?
The standard configuration is 240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

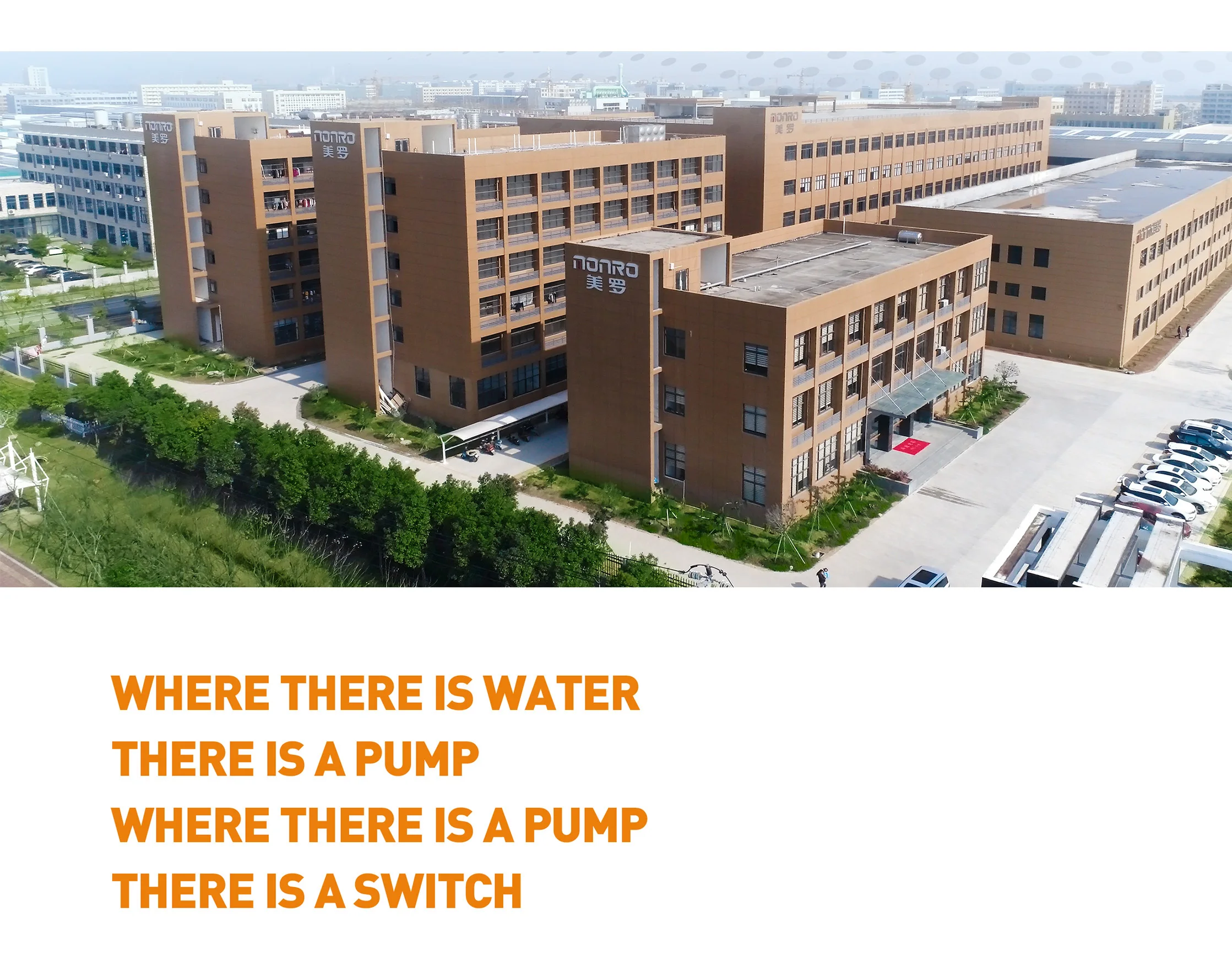

About the Manufacturer
This product is produced by Zhejiang Monro M&E Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Monro M&E Co., Ltd. range on HVACR Nexus.
