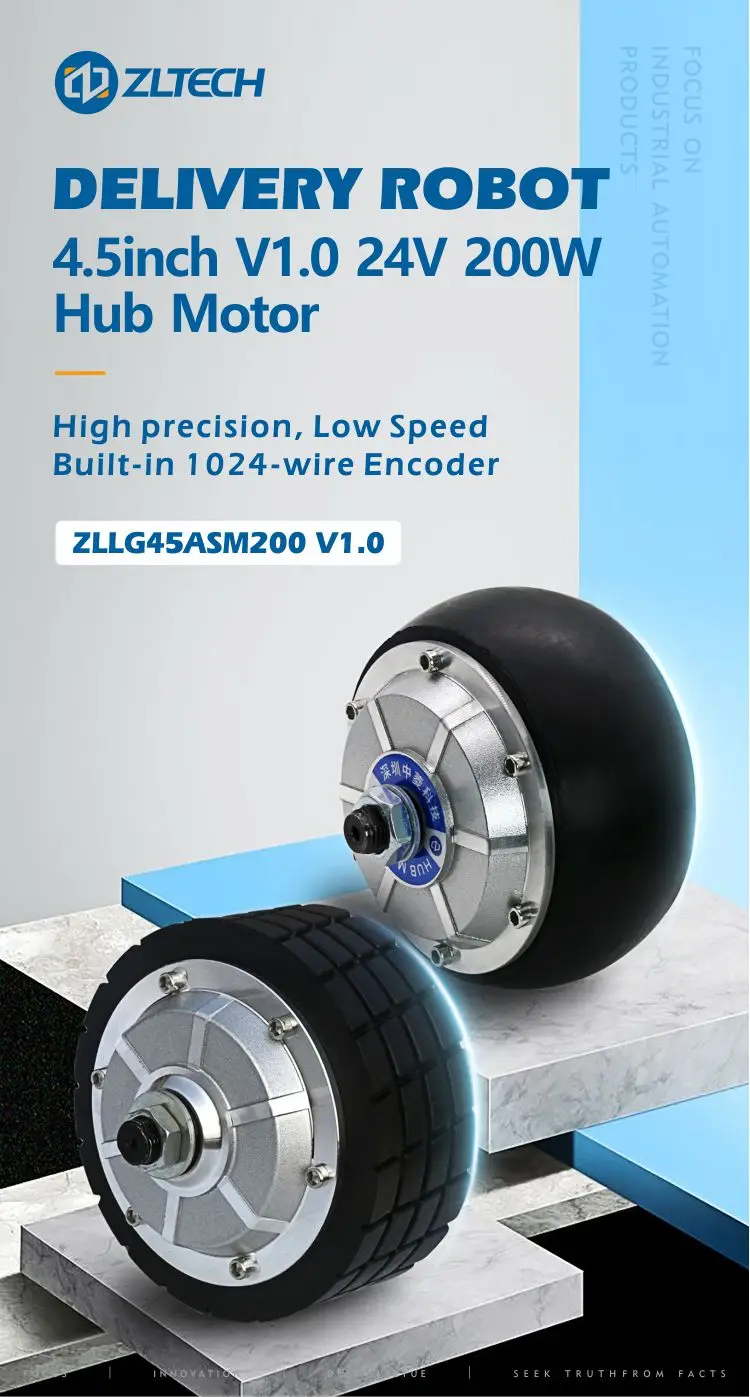

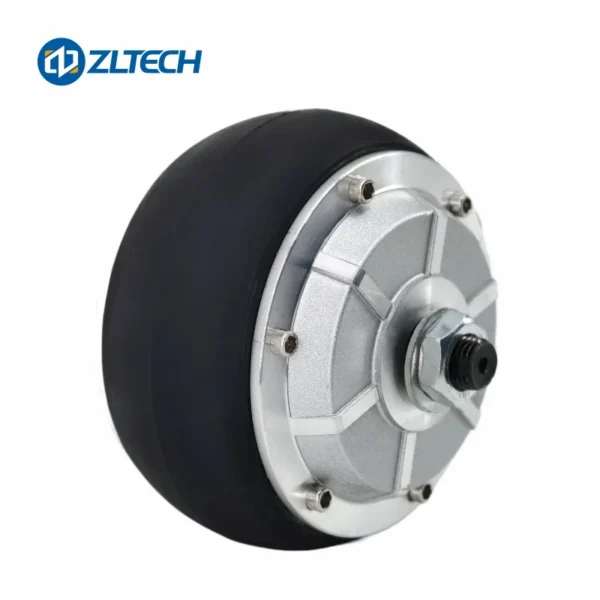

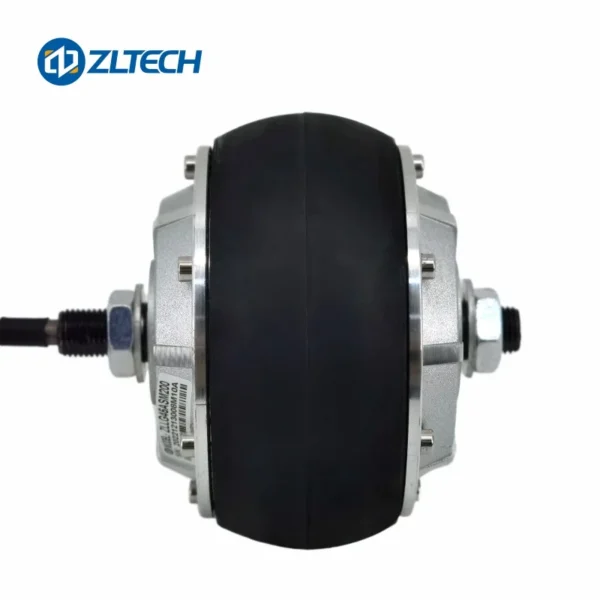

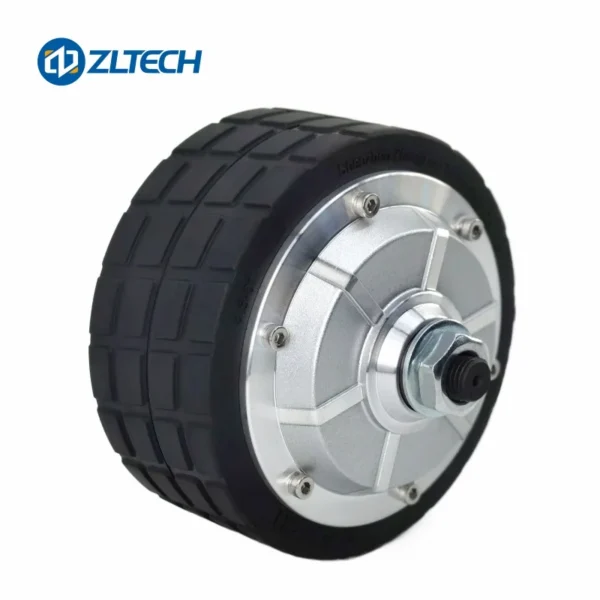

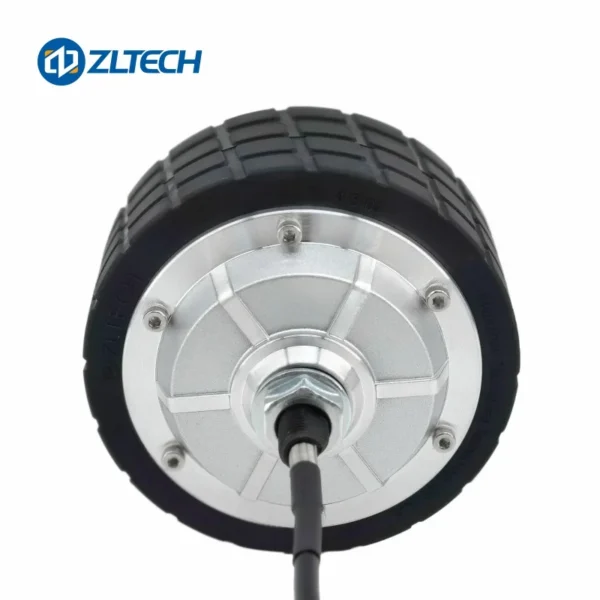

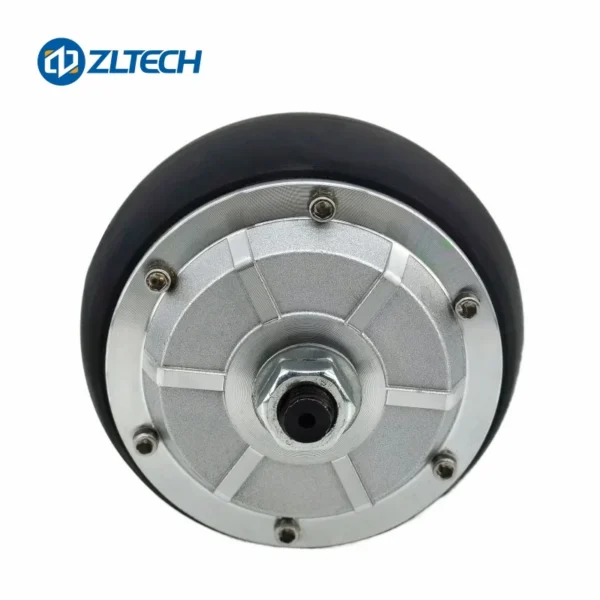

Wheel hub servo motor — rated voltage Dc 24V, type Servo Motor. The complete factory specification follows. Made by Shenzhen Zhongling Technology Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Wheel Hub Servo Motor
- Model Number: ZLLG45ASM200
- Rated Power: 200 W
- Rated Voltage: Dc 24V
- Speed Rpm: 300 RPM
- Speed(RPM): 300RPM
- Max Speed: 370RPM

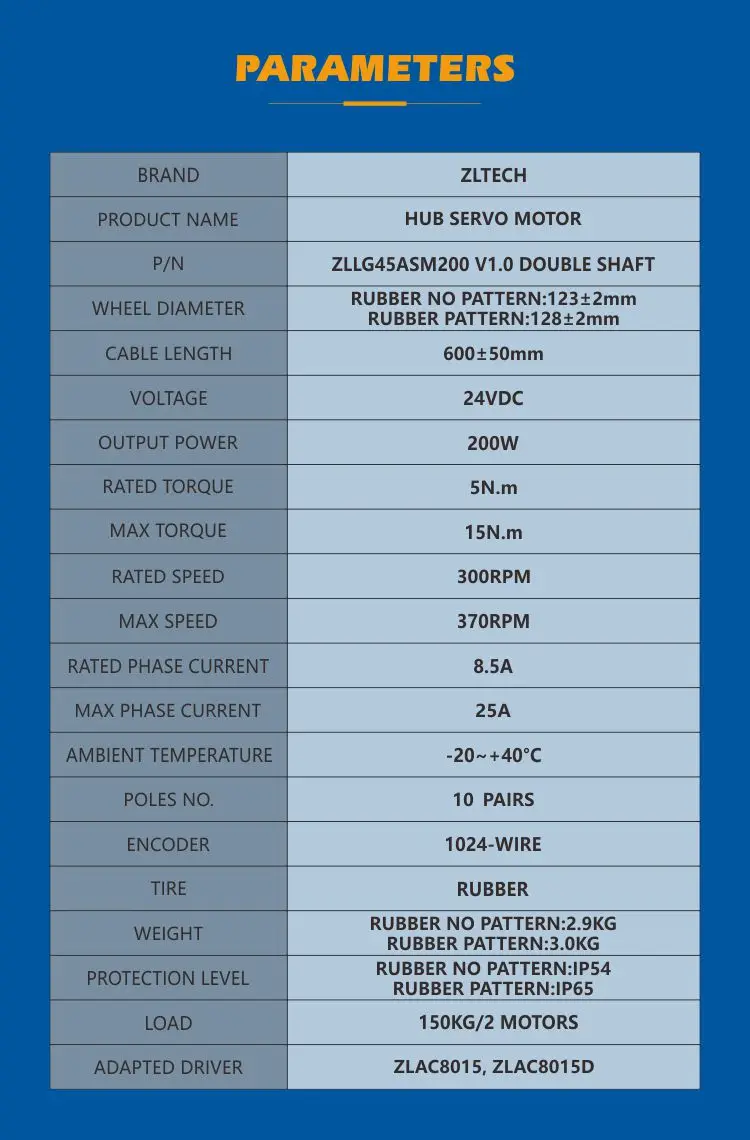

Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | Dc 24V |
| Rated Power | 200 W |
| Speed Rpm | 300 RPM |
| Speed(RPM) | 300RPM |
| Efficiency | 80% |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | No |

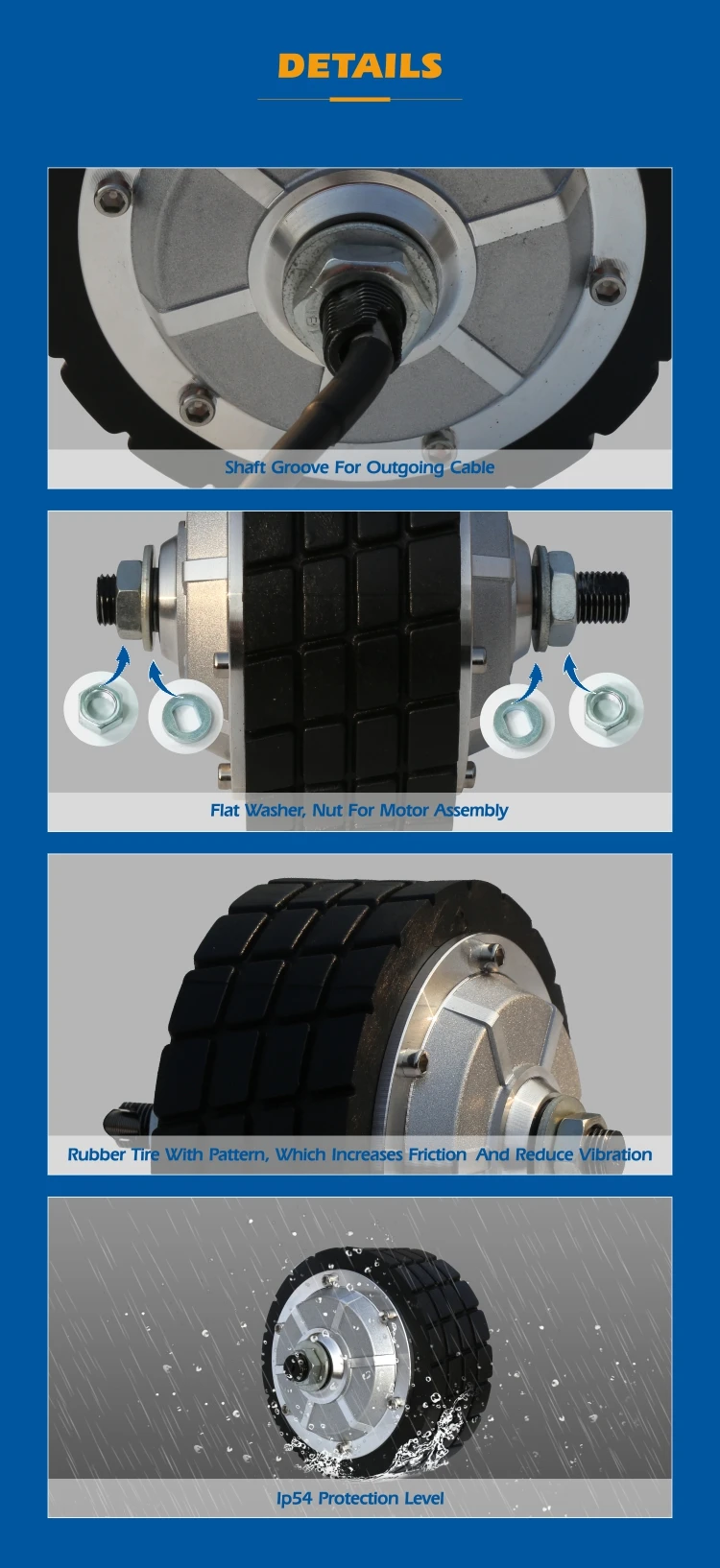

| Motor Mounting Type | Nut mount |
| Protect Feature | IP65 |

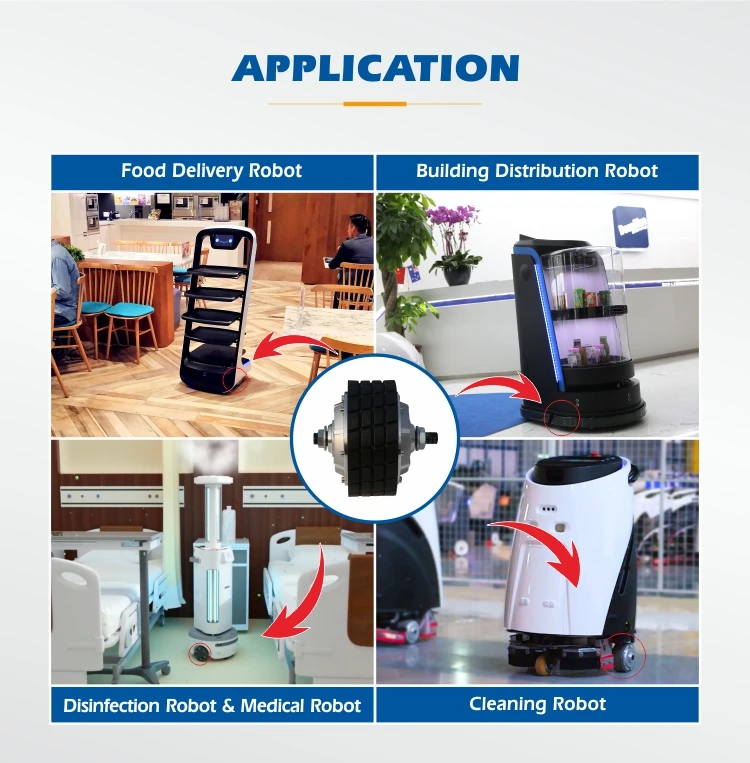

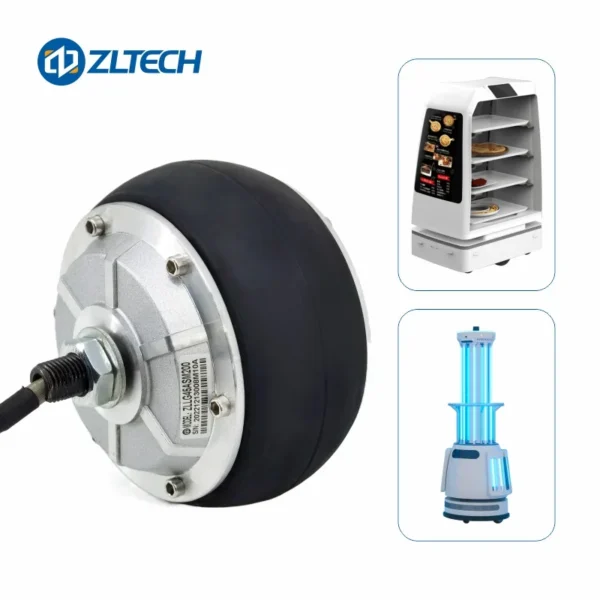

| Usage | ROBOT, AGV |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 8.5A |
| Model Number | ZLLG45ASM200 |
| Torque | 5N.m(3.69lb.ft) |
| Place Of Origin | Guangdong, China |
| Brand Name | ZLTECH |

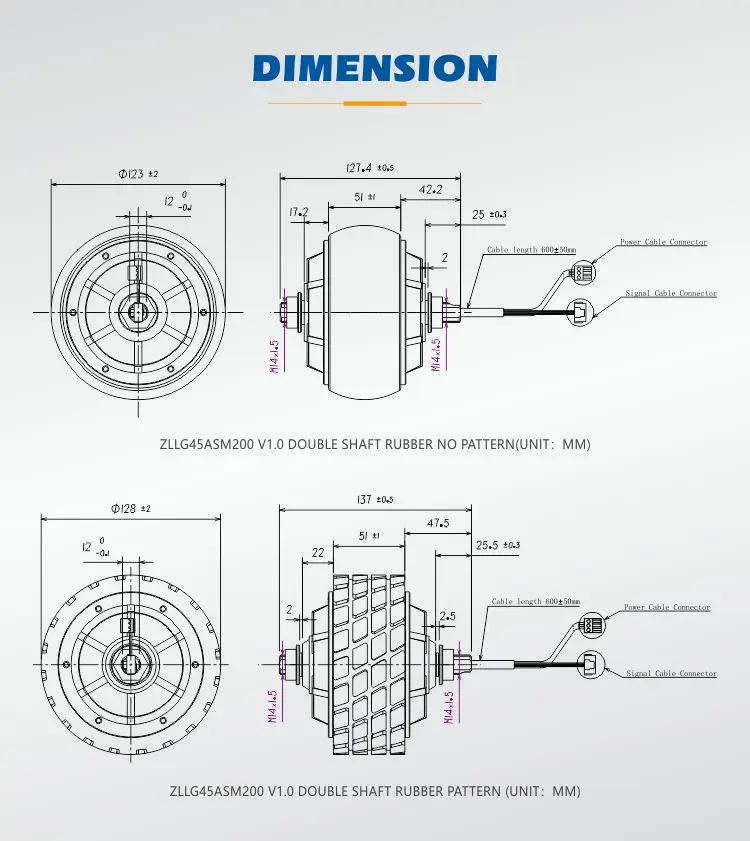

| Outside Diameter With Tyre | 128mm |
| Poles No (Pair) | 10 polos |
| Shaft Type | double shaft |
| Encoder | 1024 ppr |
| Tire | Rubber tire |
| Certification | CE, ROHS, ISO9001, Reach |
| Max Torque | 15N.m |
| Max Current | 25A |
| Max Speed | 370RPM |
| Weight | 3KG |
| Selling Units | Single item |
| Single Package Size | 30X30X20 cm |
| Single Gross Weight | 3.4 kg |
Product Details
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $100 / piece
- 500+ piece: US $93 / piece
- Ships from: China

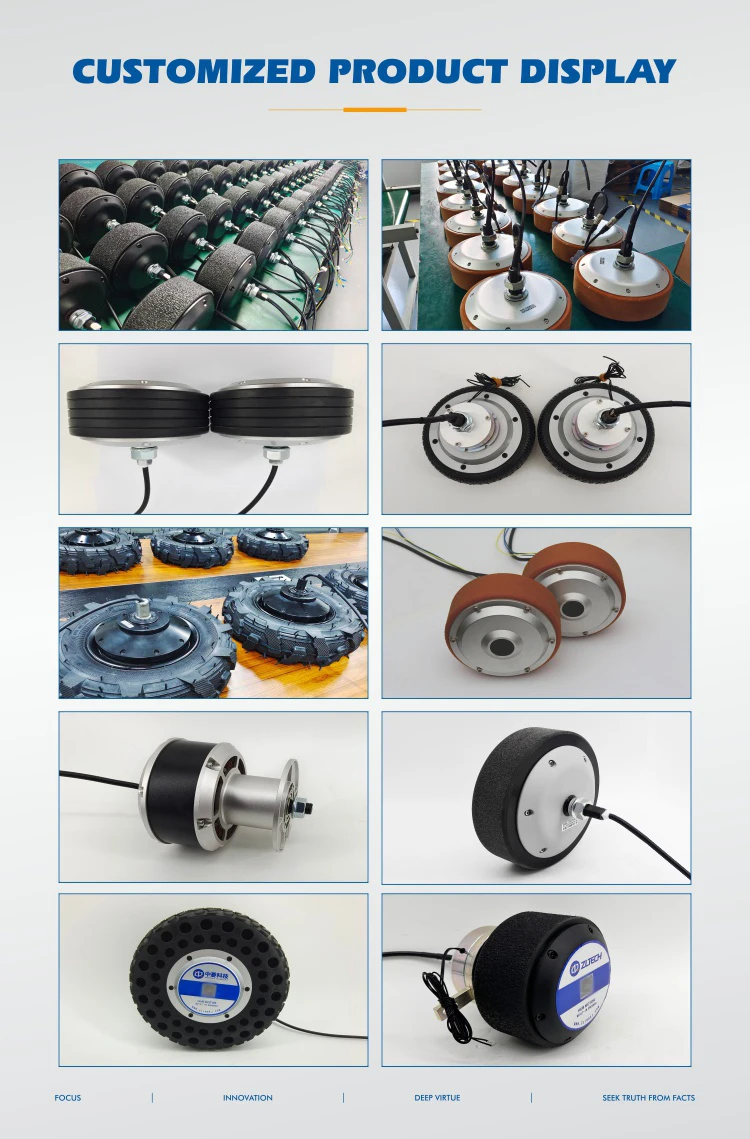

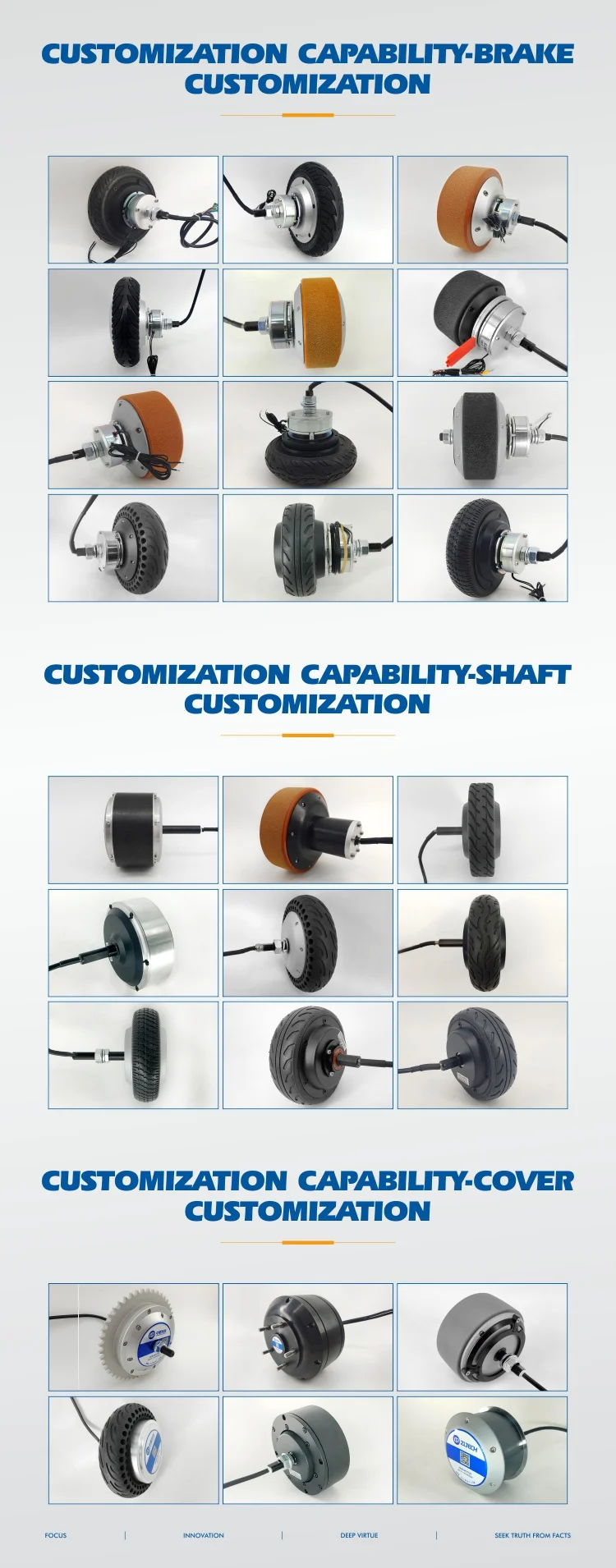

- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wheel hub servo motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this wheel hub servo motor carry?
It is supplied with CE, ROHS, ISO9001, Reach documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the wheel hub servo motor be supplied for my local voltage?
The standard configuration is Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?

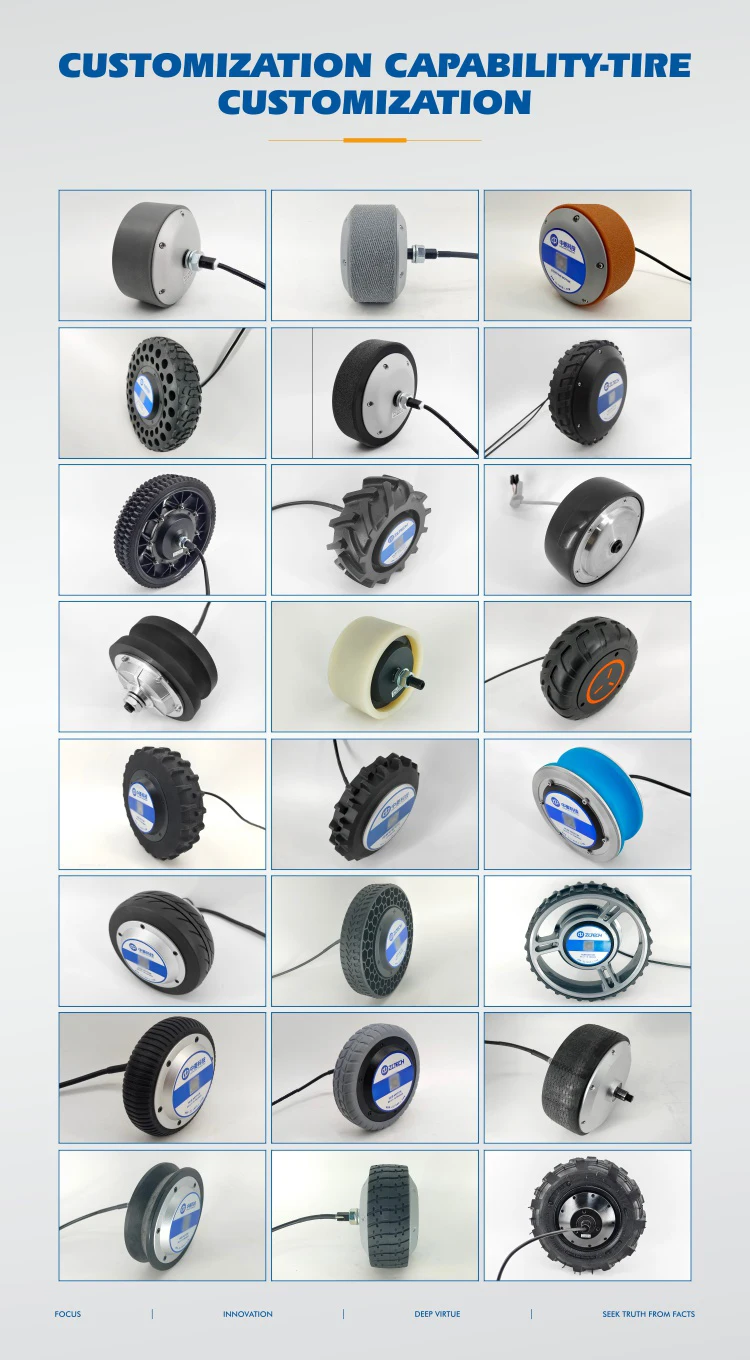

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

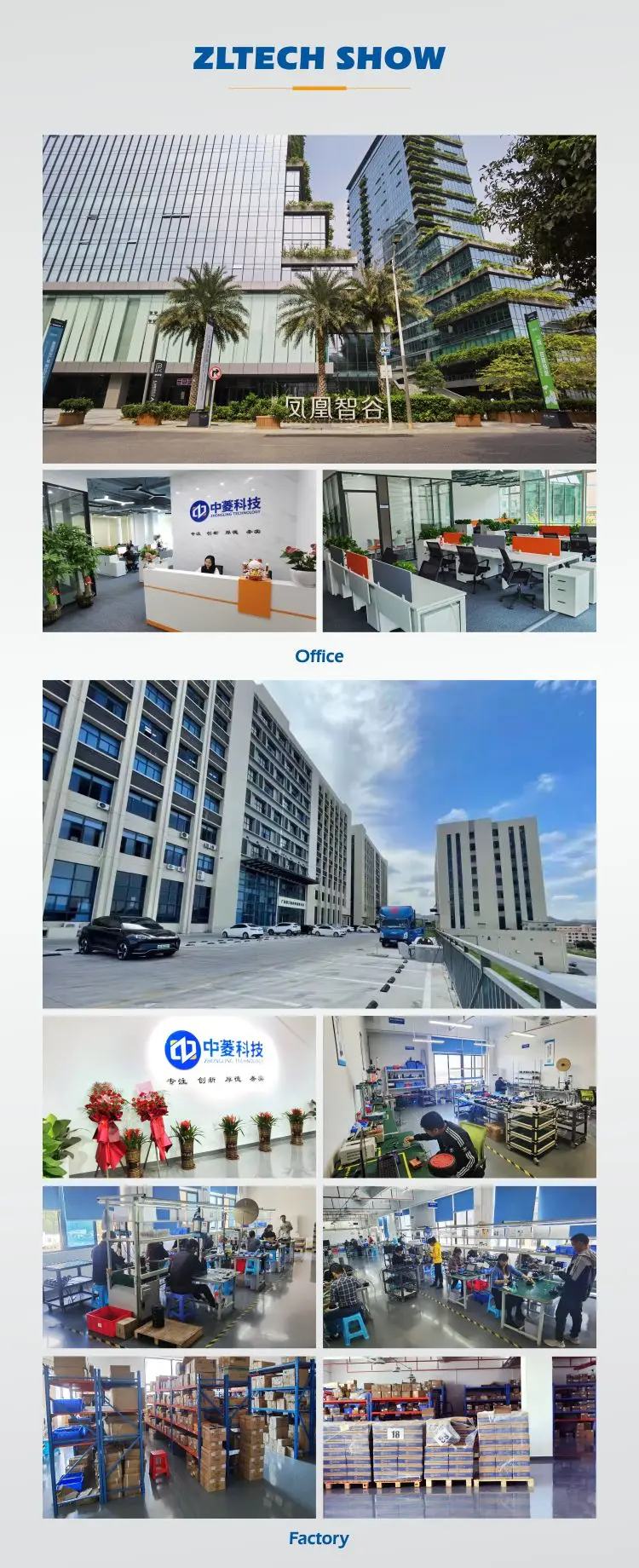

About the Manufacturer
