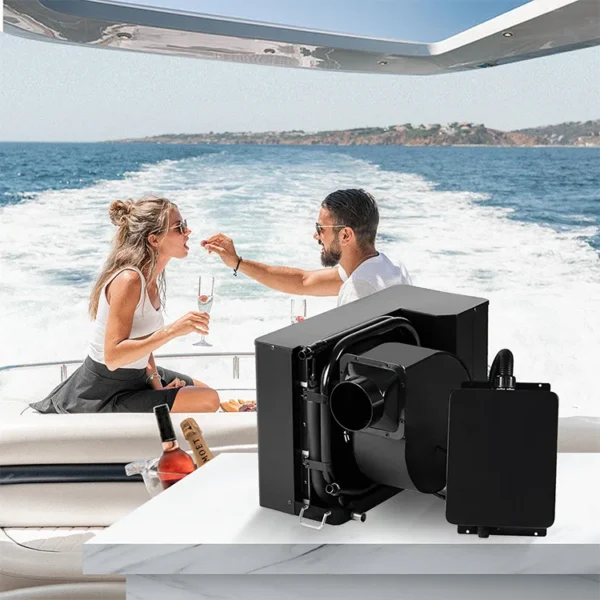

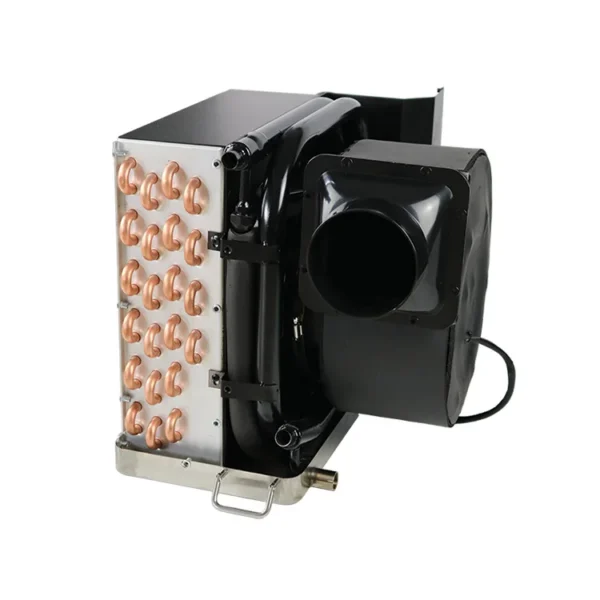

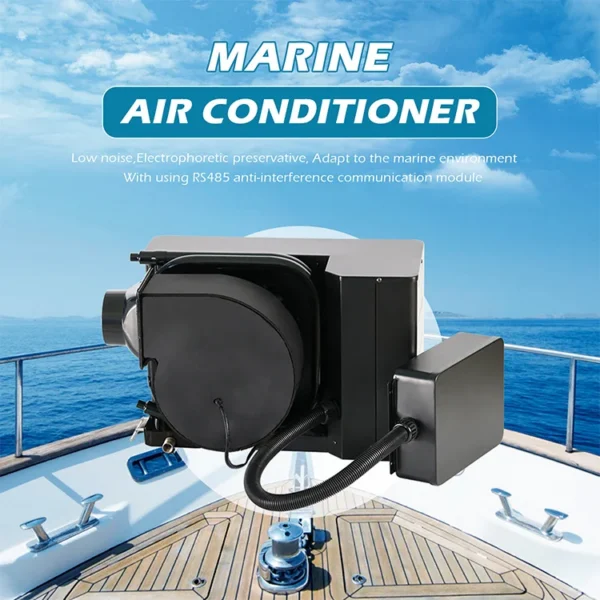

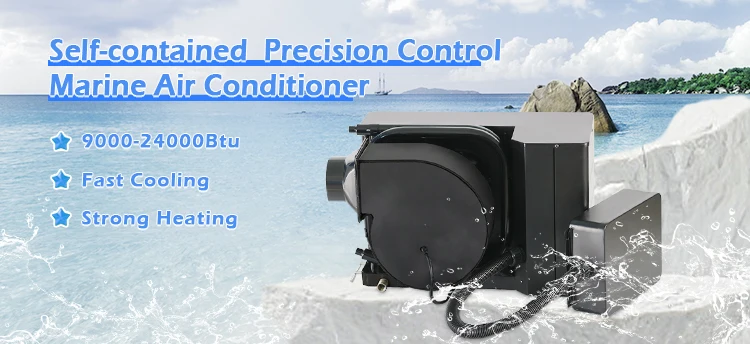

Yacht Air Conditioner, 50HZ, 230, 9000BTU, Brushless

This yacht air conditioner is published with the manufacturer’s full specification — refrigerant R-410A, type Window Air Conditioners. Made by Zhongshan Zhuoli Electric Appliance Co., Ltd. (4 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Yacht Air Conditioner

• Refrigerant: R-410A
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Type: Window Air Conditioners
• Mounting Type: Wall / Window Mount
• Fan Motors Type: Brushless

Technical Specifications

Product Details

New version Contact Account Manager Upgrade Free experience

The new version of the upgrade free experience, in order to reward new and old customers, the old version of the air conditioning was upgraded; New mobile phone WiFi remote control function, you can remote control air conditioning anytime and anywhere through WiFi mobile phone; New features can be obtained free of charge by contacting the Account manager; Due to different customer preferences, the default version does not have WiFi remote control;

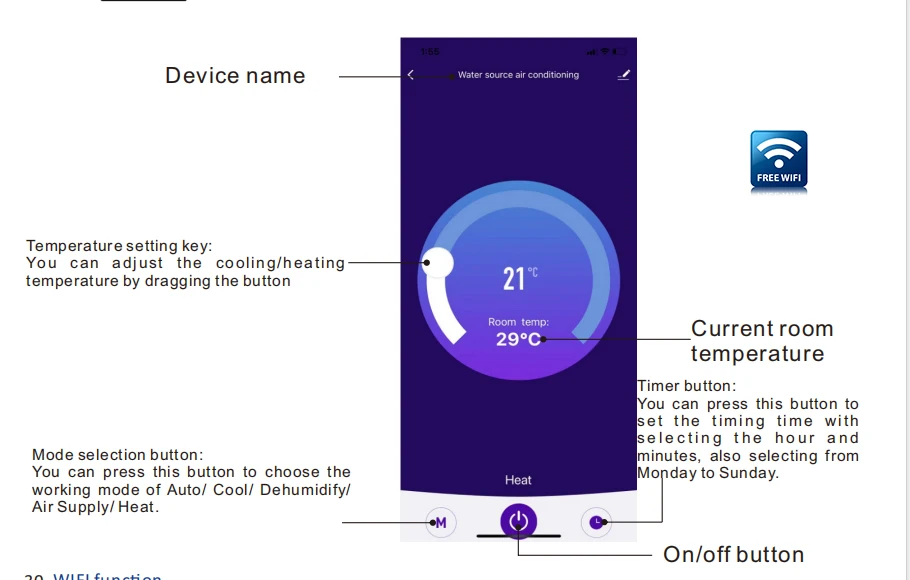

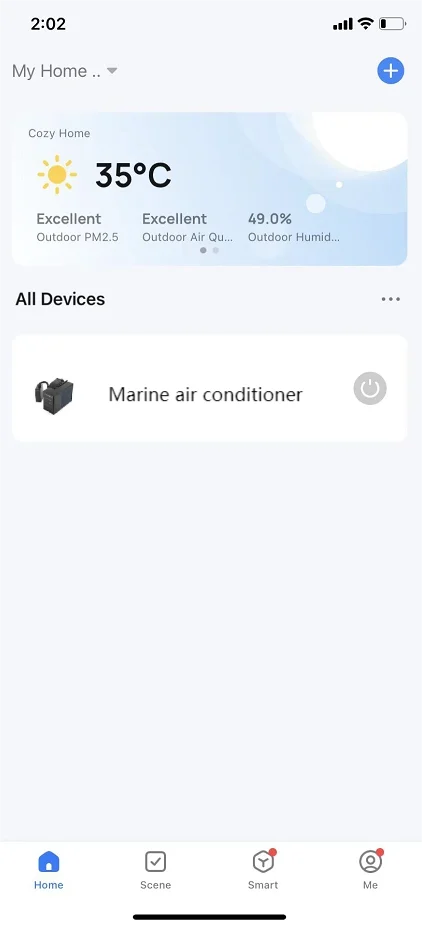

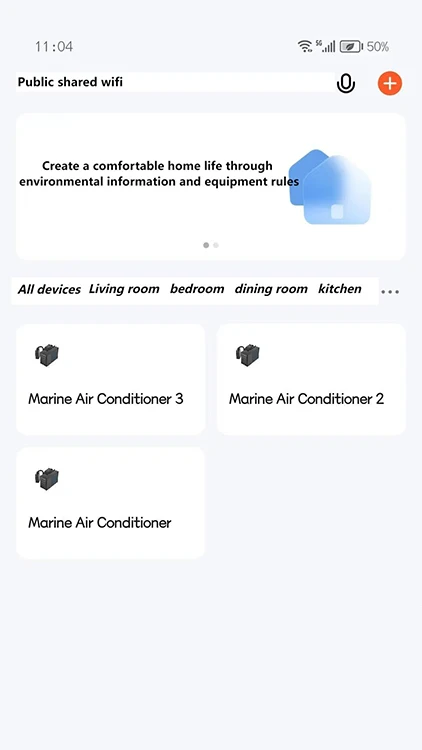

WIFI remote connection tutorial

① Go to the "Smart Life" APP store, or search "Smart Life APP" to download and install. ② Press the CLOCK key, then press the PLUS key Press the 5 second button to add the machine you want to connect. ③ Enter the setting page for setting, you can remotely control the machine on/off, mode and temperature ④ Enter the setting page and set the machine Download public remote control APP for remote wifi control of multiple machines

Partial product parameters  Power supply can be contacted for production: 110V/220V/230V/24V/48V（Both AC and DC can be produced）
Model number	MA-09C	DCR-48V/BP	ACR-220V/DP	ACR-220V/DP
COOLING CAPACITY	9000BTU	12000BTU	16000-18000BTU	24000-27000BTU
HEATING CAPACITY	10450BTU	13450BTU	17450BTU	25150BTU
POWER SUPPLY	AC-220V/1ph/50Hz	DC-48V/1ph/50Hz	AC-220V/1ph/50Hz	AC-220V/1ph/50Hz
RATED POWER INPUT	850W	1020W	1386W	2750W
RATED CURRENT	3.9A	21.25	6.3A	12.5A
MAX. POWER INPUT	950W	1227W	1587W	2958W
REFRIGERANT	R410A/420g	R410A/560g	R410A/670g	R410A/960g
Decibel of noise	42/52dB(A)	42/52dB(A)	42/55dB(A)	42/58dB(A)
AIR VOLUME	560m3/h	560m3/h	650m3/h	880m3/h
ANTI-SHOCK GRADE	I	I	I	I
WATER-PROOF GRADE	IPX4	IPX4	IPX4	IPX4
NET WEIGHT	28Kg	32Kg	36Kg	42Kg
Contact customer service manager can be customized for free: WiFi remote control /RS485 communication protocol

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–20 piece: US $620 / piece
  • 21+ piece: US $600 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

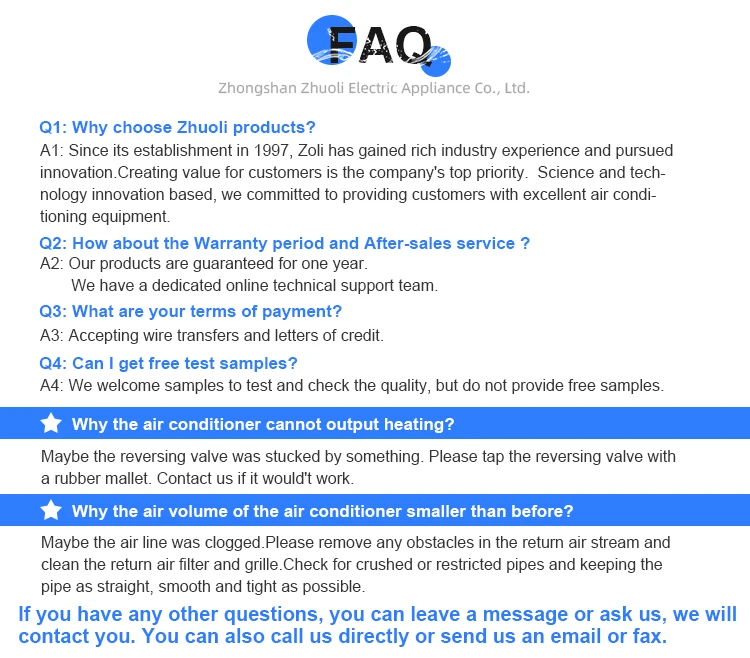

Frequently Asked Questions

What is the minimum order quantity for this yacht air conditioner?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

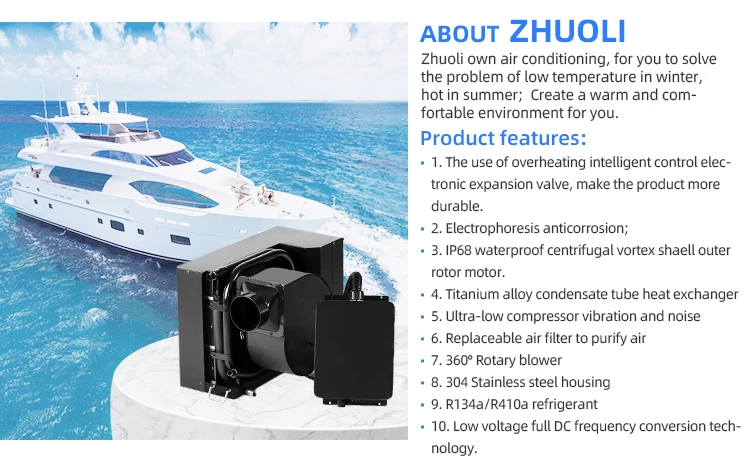

About the Manufacturer

This product is produced by Zhongshan Zhuoli Electric Appliance Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhongshan Zhuoli Electric Appliance Co., Ltd. range on HVACR Nexus.
