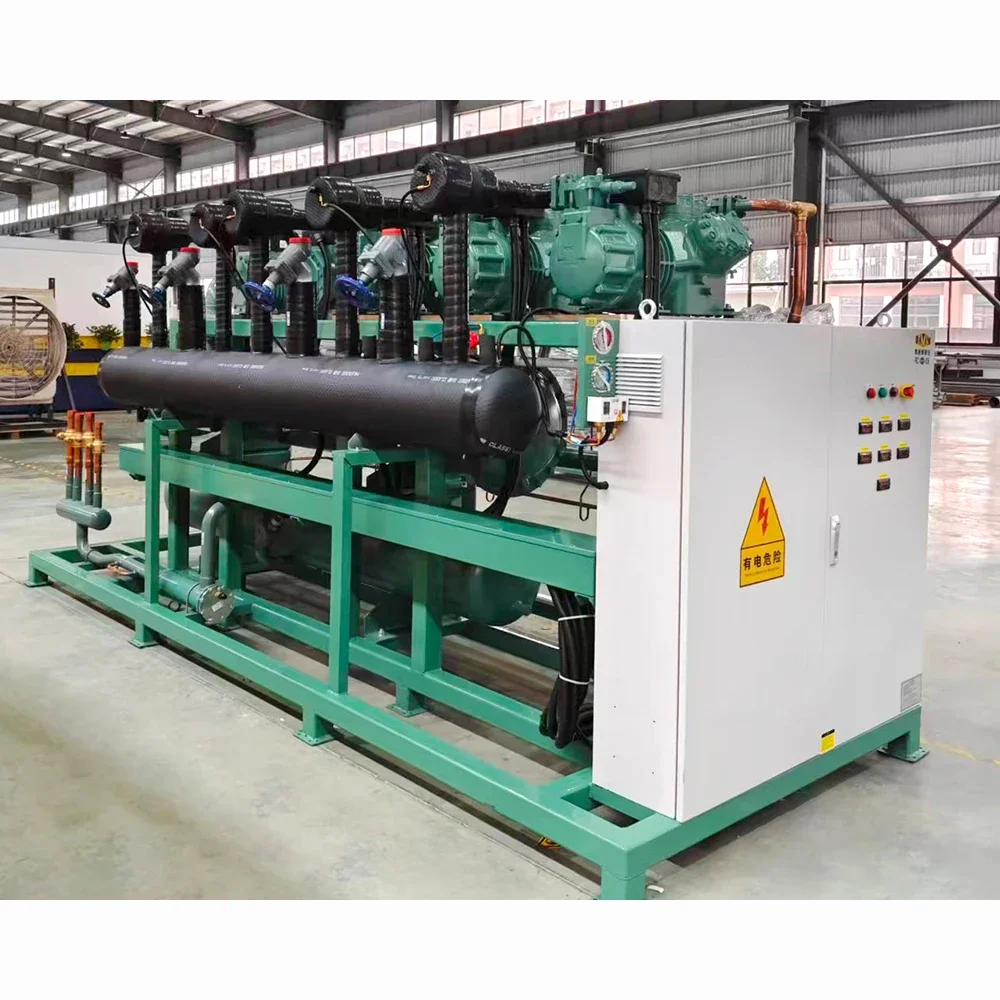

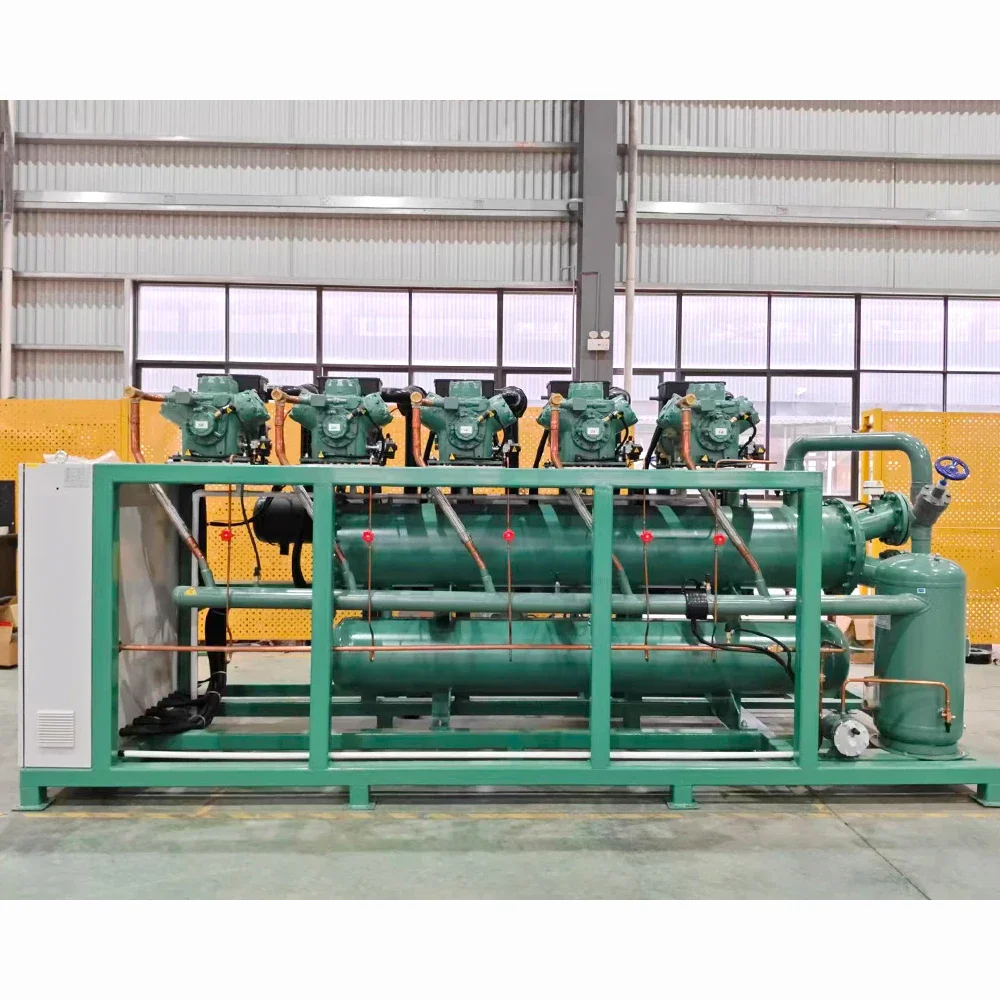

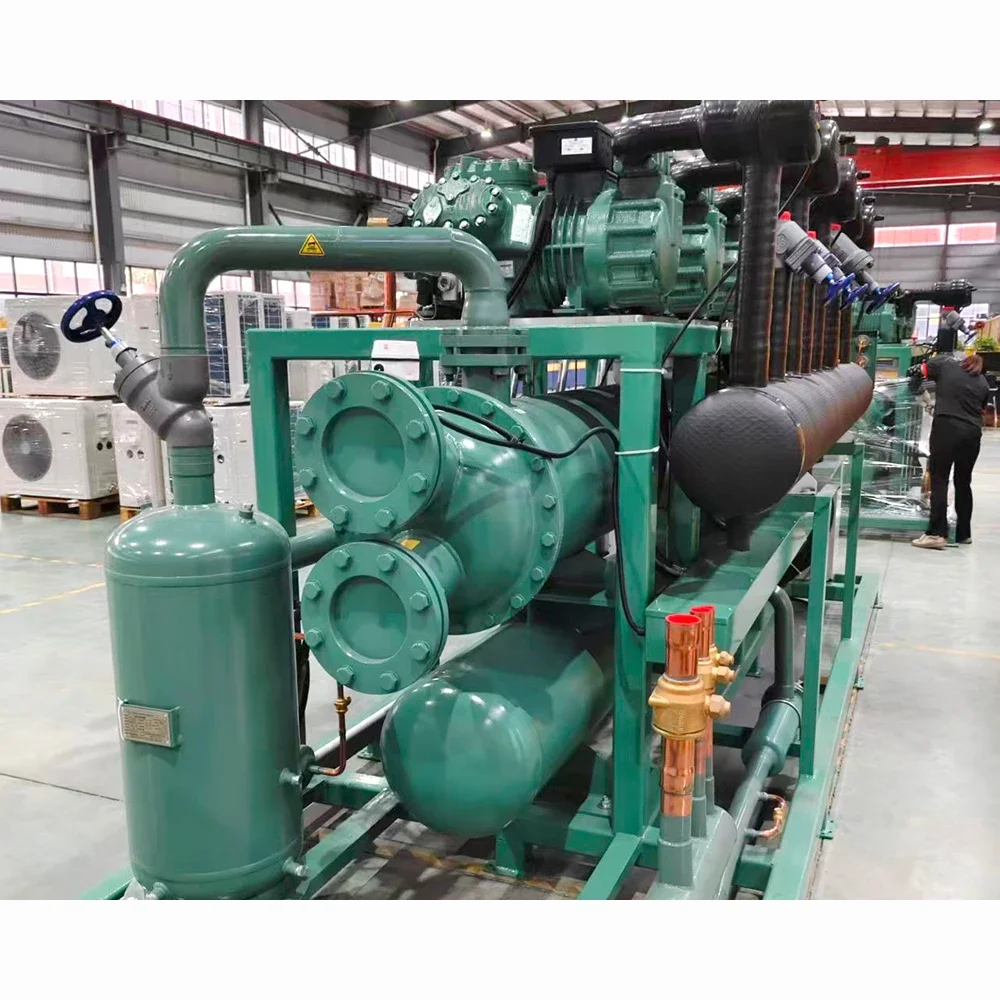

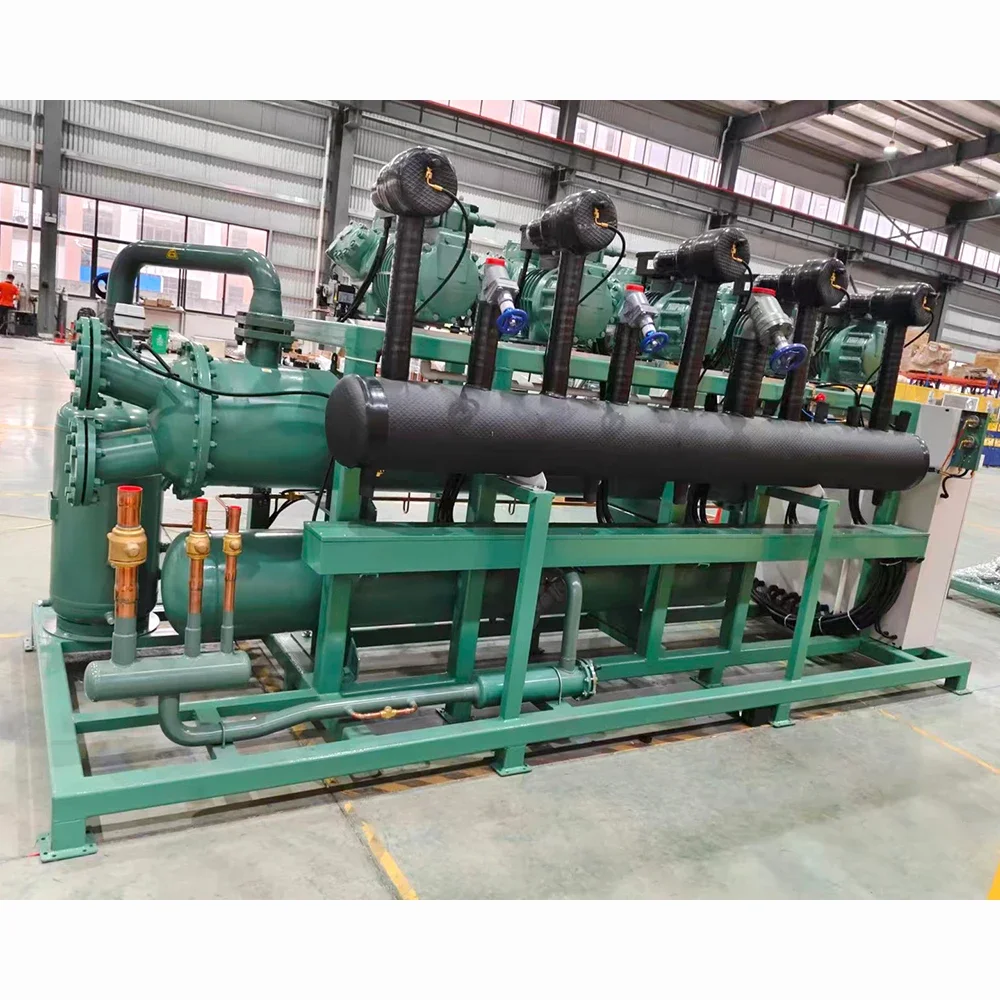

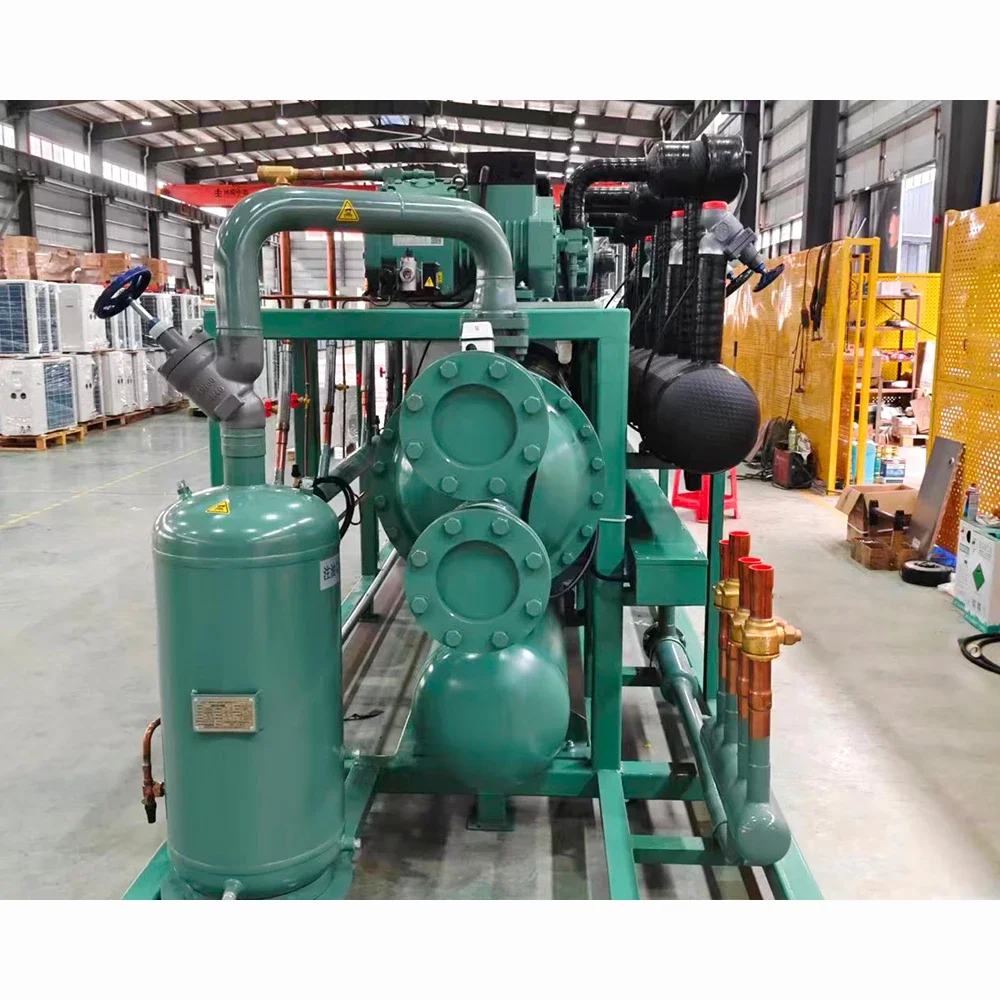

XMK Big Cold Room Project Condensing Screw Parallel Compressor Unit
This open type condenser unit is mainly assembled with semi-hermetic compressor, other brand compressors are also optional.
1. Open-type style makes it easier for moving, installation and maintenance.
2. High and low pressure controller are designed to protect the whole compressor system when the equipment breaks down or overloads.

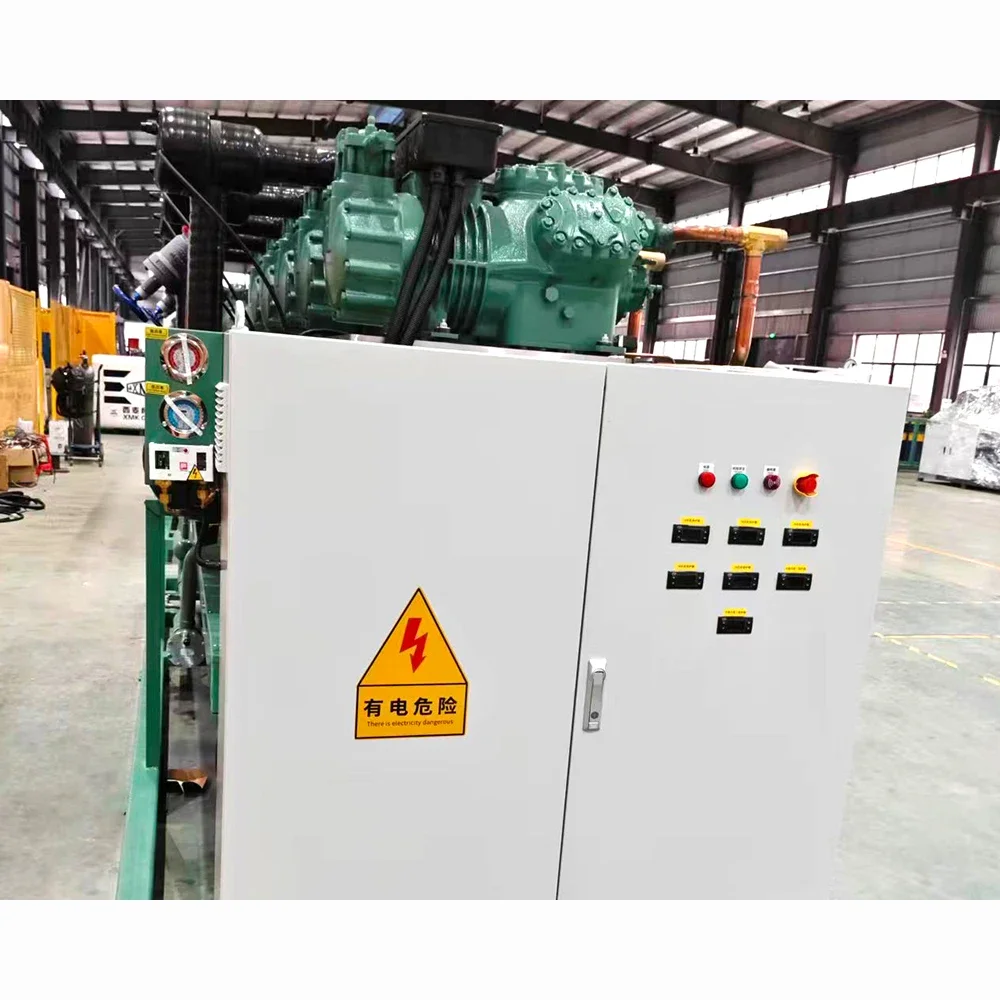

3. Main components are compressor, condenser, receiver tank, filter drier, solenoid valve, pressure controller, pressure gauge, connection box and electrical controller box etc.
| Screw Parallel Compressor Unit | |||
| Model | XBW-2-12MY+3-50MY | Voltage and Frequency | 380V 50Hz 3phase |
| Power | 137KW | Maximum current | 299.8A |
| Capacity | 461.8KW(0degree/+40degree) | Evaporation temperature | 0degree to -45degree |
| Condensing load | 598.8KW(0degree/+40degree) | Refrigerant | R507 |
| Oil | POE | Oil filling amount | 15L |
| Product Size | 4210x1560x1800 | Weight: | 2869KG |
We are a manufacturer, we can customize products for you according to your requirements.If you don’t know which model is suitable for you, you could send message to us.We have several professional engineers to make a customized solution for you.

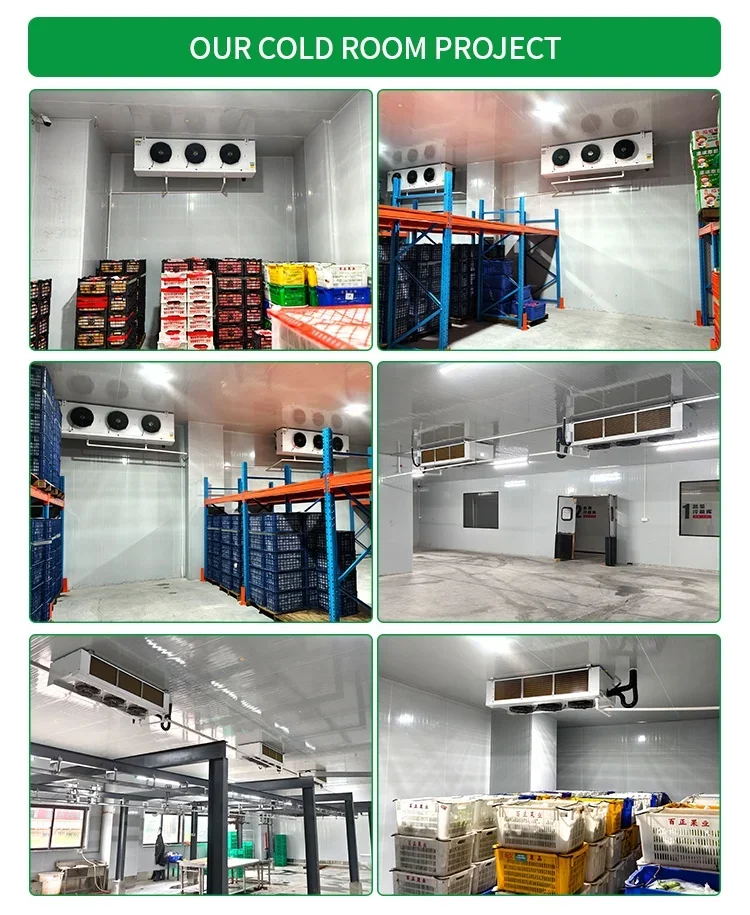

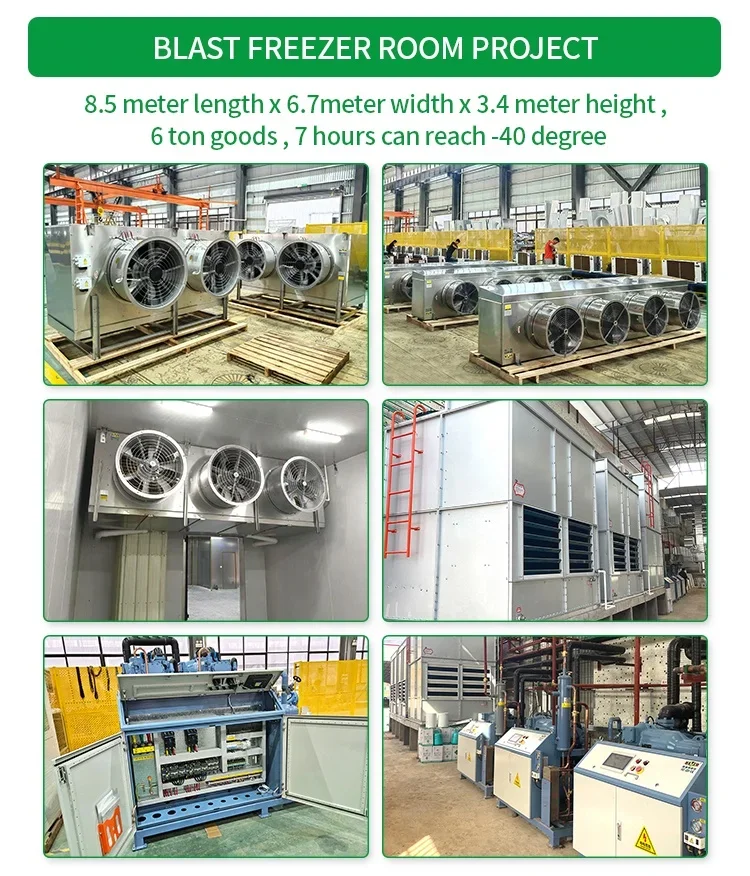

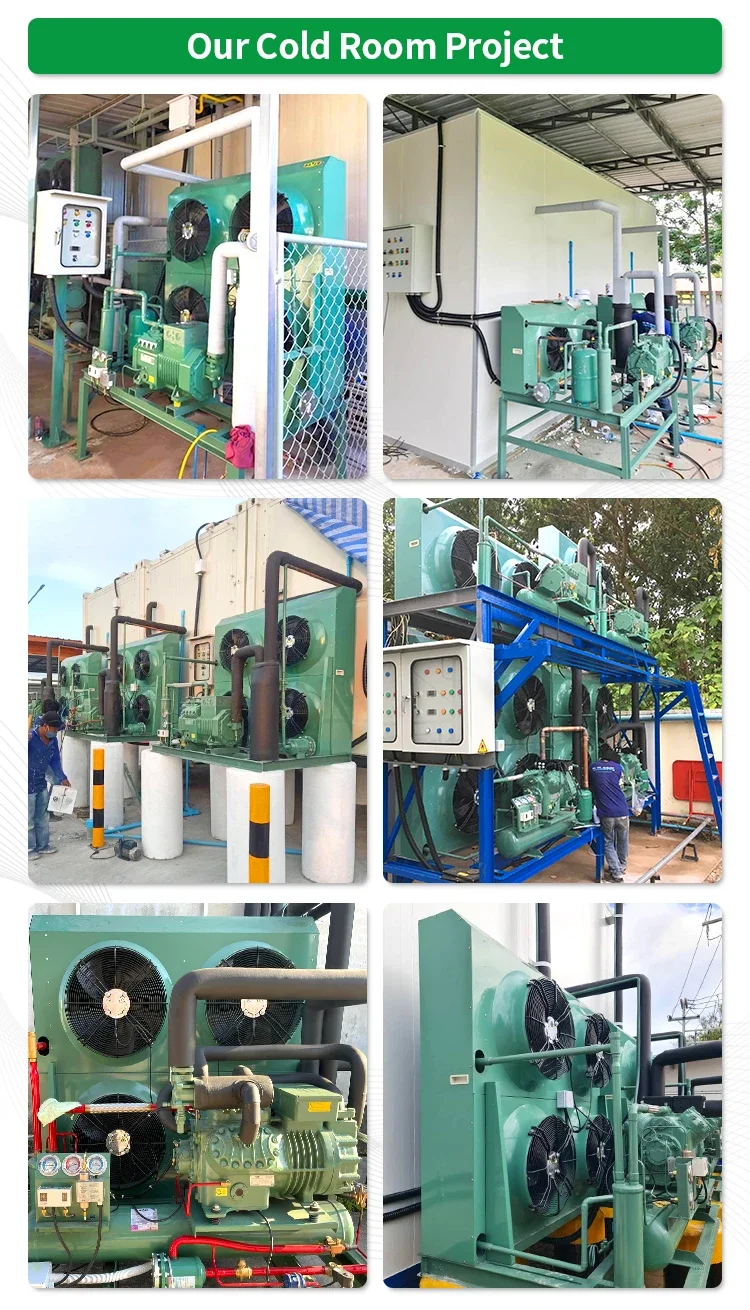

We can provide a complete set of cold storage equipment.
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Zhaoqing, Guanggong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Palestine, Turk, Africa and so on.
Welcome to contact us for more details!
