Key specification for this single inlet centrifugal blower fan: 230V, blade material Galvanized sheet. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.

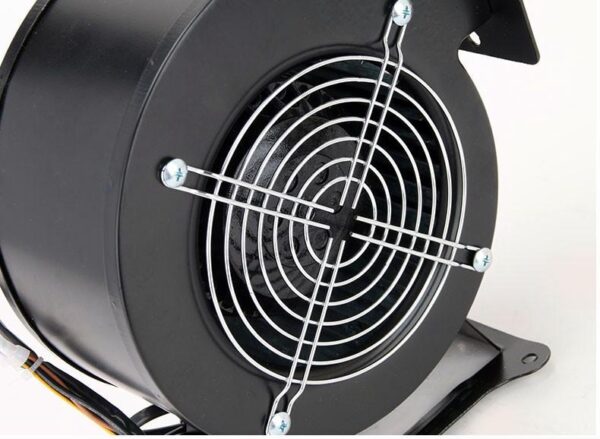

This single inlet centrifugal blower fan draws from one side only, which keeps the overall housing narrow enough to fit into slim equipment sections and against panels where a double inlet unit simply will not go. The 130mm galvanized sheet impeller resists corrosion without the cost of stainless. CE and RoHS certification is already in place for European import. Free standing on 230V 50Hz, with OEM configuration from the Shanghai factory.
Key Features of This Single Inlet Centrifugal Blower Fan
- Model Number: YWFF2E130A
- Voltage: 230V
- Blade Material: Galvanized sheet
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Single Package Size: XX cm
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 230V |
| Blade Material | Galvanized sheet |
| Customized Support | OEM |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Model Number | YWFF2E130A |
| Place Of Origin | Shanghai, China |
| Brand Name | Wormal |
| Item | 130mm suction industrial blower fan |
| Insulation Class | class B or F |
| Ambient Temperature | -30°C to 60°C |
| Selling Units | Single item |
| Single Package Size | XX cm |
130mm/150mm suction industrial blower fan
The Advantages of Our Products:
1. OEM&ODM Good Quality Products
2. CE and ISO9001 Certificate
3. Competitive Price
4. Excellent Service
5. 12Months Warranty
Technical data
|
Type |
Voltage (V) |
Freq. (Hz) |
Current (A) |
Inputpower (W) |
Speed (r/min) |
Weight (Kg) |
Noise (dBA) |
Airflow (m3/h) |
|
YWFF2E130A |
230 |
50 |
0.45 |
100 |
2400 |
2.4 |
60 |
300 |
|
YWFF2E130A |
230 |
60 |
0.54 |
124 |
2600 |
2.4 |
70 |
330 |
|
YWFF4E150A |
230 |
50 |
0.4 |
85 |
1400 |
3.8 |
55 |
330 |
|
YWFF2E150A |
230 |
50 |
0.95 |
200 |
2560 |
3.8 |
65 |
660 |
Application
FAQ
1. What is YWFF series centrifugal fan?
YWFF—2—E—130
a bc d
a. Outer rotor centrifugal fan with external rotor motor
b. Motor poles
c. E—Single phase capacitor operation
D—Three phases asynchronous operation
d. The diameter of the fan blade
2. How to choose centrifugal fan?
Choosing an centrifugal fan, you should consider the points below
*Fan voltage
*Fan speed
*Fan airflow
*Fan size
*Fan power
3. What is the delivery time?
Sample time: 3-5days
Mass production delivery time: 2-4 weeks (depend on the quantity )
Frequently Asked Questions
What is the minimum order quantity for this single inlet centrifugal blower fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this single inlet centrifugal blower fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 230V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
