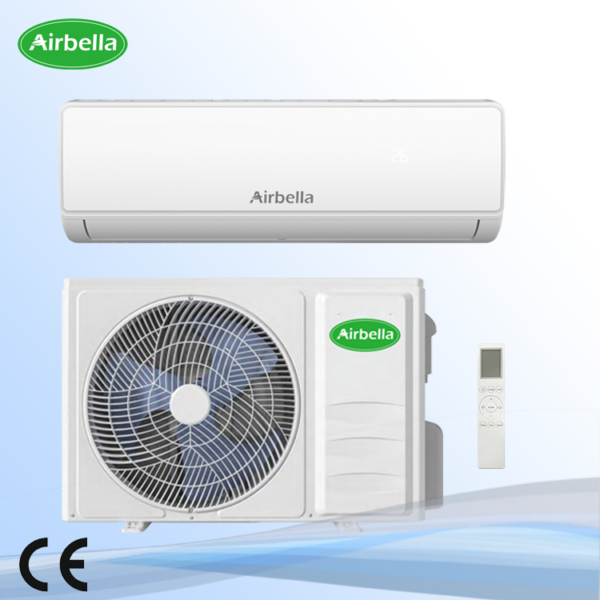

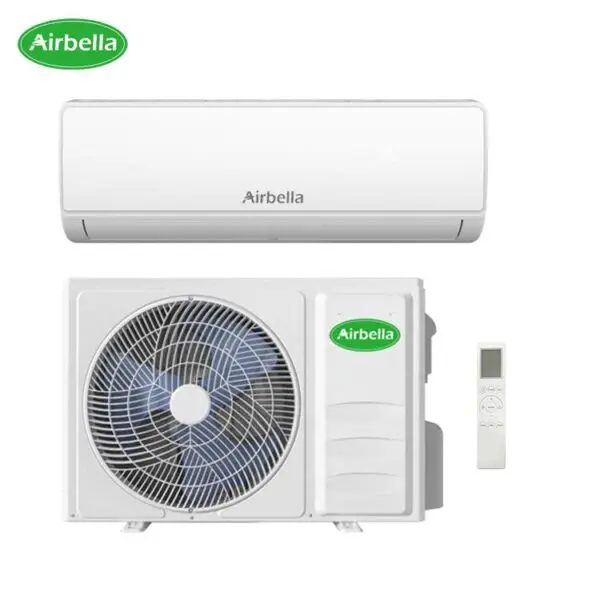

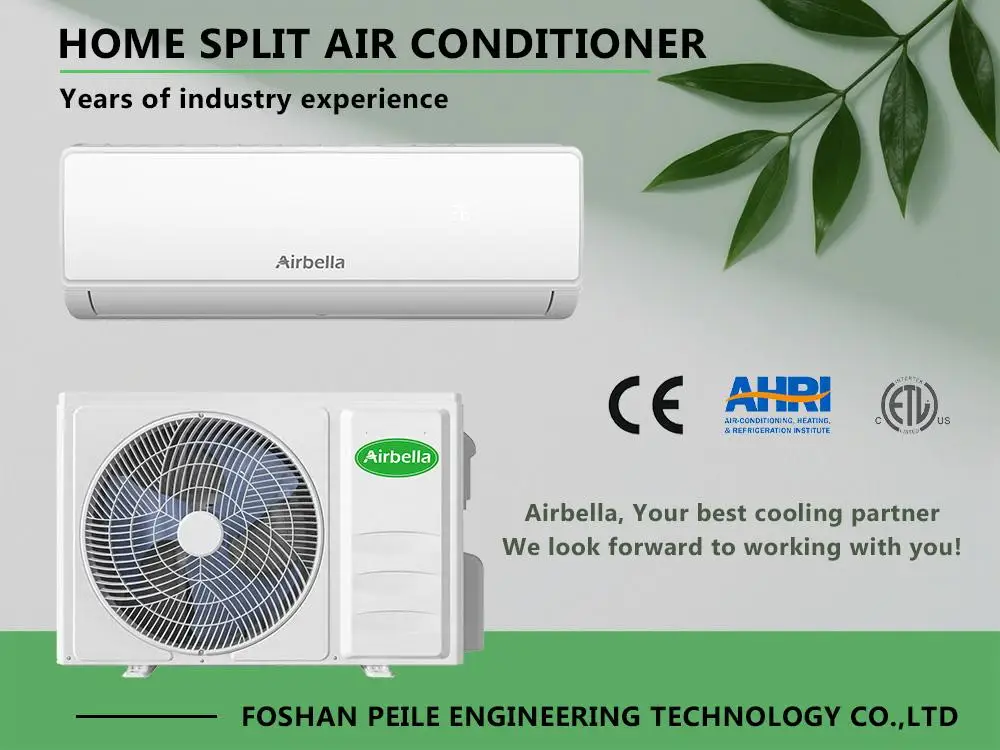

Inverter wall mounted air conditioner — capacity 9000-24000, power source Electric. The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.
This inverter wall mounted air conditioner is cooling-only across a 1HP to 3HP range, which is the sensible specification for tropical and subtropical markets where a heat pump function is simply dead weight and extra failure points. Variable frequency control holds Class A efficiency at part load, covering rooms of 101 square feet and above. R410A refrigerant with timer, remote and app control included.
Key Features of This Inverter Wall Mounted Air Conditioner
- Power Source: Electric
- Capacity (Btu): 9000-24000
- Refrigerant: R410A
- Warranty: 1 Year
- Feature: Energy Saving, Quiet Mode
- Recommended Room Size（Square Feet）: 101 ft² & above
Technical Specifications
| Capacity (Btu) | 9000-24000 |
|---|---|
| Timer | Yes |
| Remote Control | Yes |

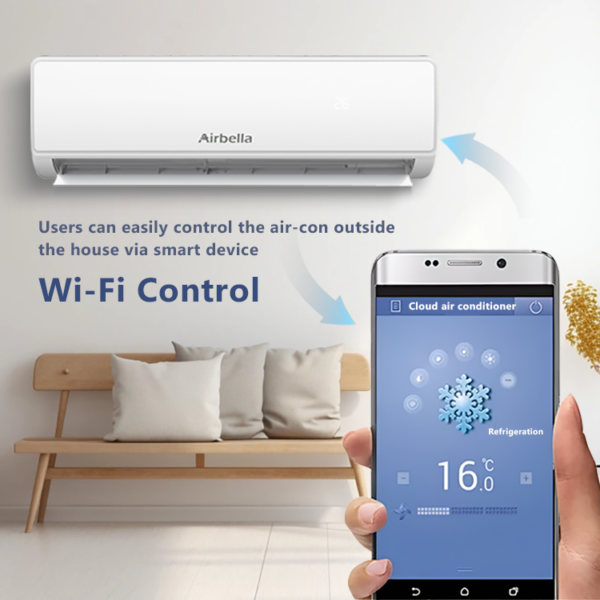

| App-Controlled | Yes |
| Refrigerant | R410A |
| Recommended Room Size（Square Feet） | 101 ft² & above |
| Power Source | Electric |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Warranty | 1 Year |
| Energy Efficiency Rating | Class A |
| Cooling/Heating | Cooling Only |
| Feature | Energy Saving, Quiet Mode |
| Selling Units | Single item |
|
DC INVERTER (R410A)
|
9K
|
12K
|
18K
|
24K
|
||||
|
Rated Power supply
|
1Ph / 220-240V/50Hz
|
1Ph / 220-240V/50Hz
|
1Ph / 220-240V/50Hz
|
1Ph / 220-240V/50Hz
|
||||
|
Workable Power supply
|
1Ph / 150-260V/50Hz
|
1Ph / 150-260V/50Hz
|
1Ph / 150-260V/50Hz
|
1Ph / 150-260V/50Hz
|
||||
|
Cooling
|
Capacity (btu/h)
|
9000
|
12000
|
18000
|
24000
|
|||
|
Capacity (W)
|
2500(150～3000)W
|
3200(150～3600)W
|
4800(1250-5910)
|
6810(1830~7800)
|
||||
|
Input (W)
|
900(100～1200)W
|
1180(75～1560)W
|
1780(330-2340)
|
2350(410~2830)
|
||||
|
Rated current (A)
|
4.0 (0.8～5.3)A
|
5.3(0.5～6.9)A
|
7.9(1.7~12.0)
|
10.5(2.3~12.3)
|
||||
|
EER
|
2.78
|
2.71
|
2.70
|
2.90
|
||||
|
Max. input consumption (W)
|
1600
|
1720
|
2520
|
3100
|
||||
|
Max. current (A)
|
8.50
|
9.00
|
13.00
|
14.80
|
||||
|
Compressor
|
Type
|
Rotary
|
Rotary
|
Rotary
|
Rotary
|
|||
|
Brand
|
GMCC，GREE
|
GMCC
|
HIGHLY
|
GMCC
|
||||
|

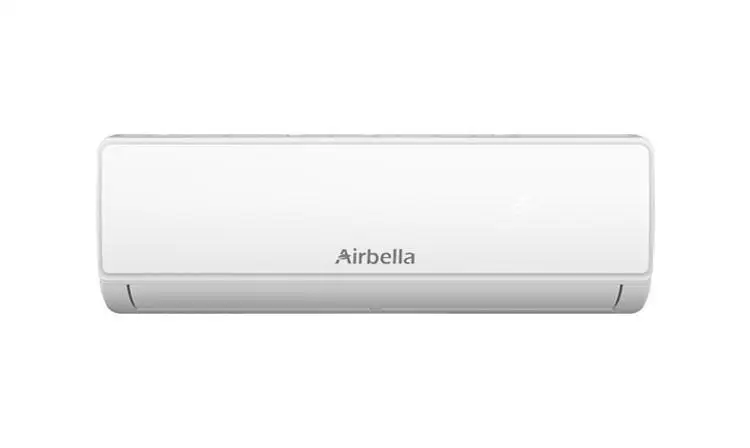

Indoor unit
|
Indoor Coil
|
Fin material
|
Golden& hydrophilic
|
Golden& hydrophilic
|
Golden& hydrophilic
|
Golden& hydrophilic
|
||
|
Tube outside dia.and material
|
φ7mm, inner Grooved
|
φ7mm, inner Grooved
|
φ7mm, inner Grooved
|
φ7mm, inner Grooved
|
||||
|
Indoor air flow (Turbo/Hi/Mi/Lo) (M3/h)
|
500/450/370/320
|
550/500/450/370
|
850/750/650/580
|
1050/950/800/680
|
||||
|
Rated input Power(cooling/heating) (W)
|
30
|
30
|
35
|
45
|
||||
|
Rated current (cooling/heating) (A)
|
0.2
|
0.2
|
0.35
|
0.4
|
||||
|
Moisture Removal (KG/h)
|
0.8
|
0.8
|
2
|
2.6
|
||||
|
Noise level(Turbo/Hi/Mi/Lo) (dB(A))
|
39/34/32/30
|
42/39/36/33
|
45/42/39/37
|
49/47/45/42
|
||||
|
Unit dimension (W*H*D)
|
695×275×190
|
780×275×190
|
910×295×205
|
1030×360×248
|
||||
|
Packing (W*H*D)
|
763×322×241
|
847×322×241
|
975×340×255
|
1094×434×324
|
||||
|
Net weight (KGs)
|
6
|
6.5
|
10
|
13
|
||||
|
Gross weight (KGs)
|
8
|
8.5
|
12
|
16
|
||||
|

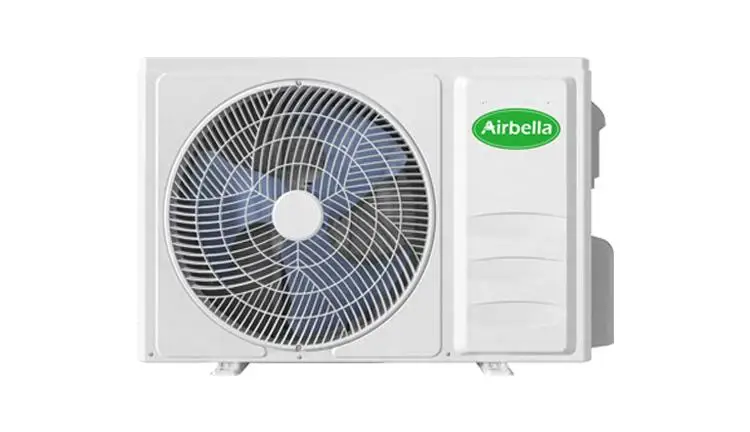

Outdoor unit
|
Outdoor coil
|
Fin material
|
Golden& hydrophilic
|
Golden& hydrophilic
|
Golden& hydrophilic
|
Golden& hydrophilic
|
||
|
Tube outside dia.and material
|
φ5mm, Inner Grooved
|
φ5mm, Inner Grooved
|
φ7mm, Inner Grooved
|
φ5mm, Inner Grooved
|
||||
|
Noise level (dB)
|
50
|
52
|
55
|
59
|
||||
|
Unit dimension (W*H*D) (mm)
|
670(610)×295×495
|
780(710)×295×495
|
830(760)×305×550
|
850(780)×350×600
|
||||
|
Packing (W*H*D) (mm)
|
704×324×530
|
818×328×530
|
869×339×588
|
896×387×625
|
||||
|
Net weight (KGs)
|
17
|
19
|
24
|
30
|
||||
|
Gross weight (KGs)
|
20
|
22
|
28
|
34
|
||||
|
Refrigerant type
|
R410A / 340g
|
R410A / 430g
|
R410A / 770g
|
R410A / 810g
|
||||
|
Refrigerant pipe
|
Liquid side (mm)
|
Φ6
|
Φ6
|
Φ6
|
Φ6
|
|||
|
Gas side (mm)
|
Φ9
|
Φ9
|
Φ12
|
Φ12
|
||||
|
Max. refrigerant pipe length (m)
|
10
|
10
|
10
|
15
|
||||
|
Max. difference in level (m)
|
5
|
5
|
5
|
10
|
||||
|
Operation temperature range
|
16℃-43℃
|
16℃-43℃
|
16℃-43℃
|
16℃-43℃
|
||||
|
Ambient temperature range
|
16℃-48℃
|
16℃-48℃
|
16℃-48℃
|
16℃-48℃
|
||||
|
Application area (MM2)
|
10~17
|
13~27
|
20～40
|
30～55
|
||||
|
Sets per 40ft HQ/20ft
|
382/167
|
334/143
|
267/-
|
184 / –
|
||||
Frequently Asked Questions
What is the minimum order quantity for this inverter wall mounted air conditioner?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this inverter wall mounted air conditioner?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
