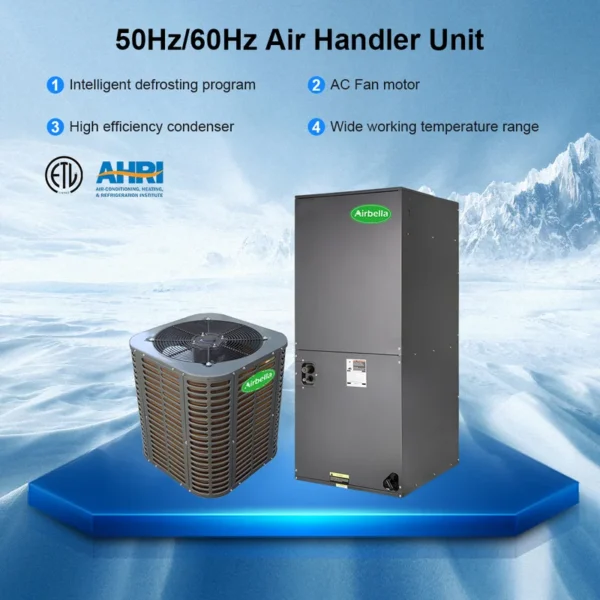

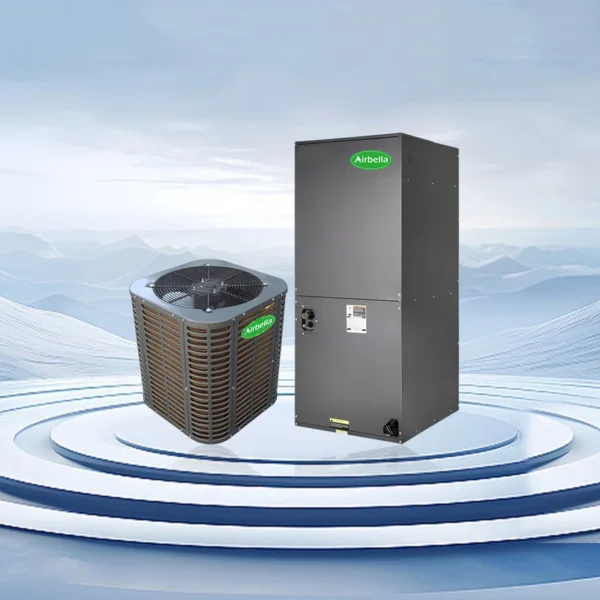

Air Handling Unit, 18000btu, Ducted

Air handling unit — 230V/1N/60HZ, 18000btu. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.

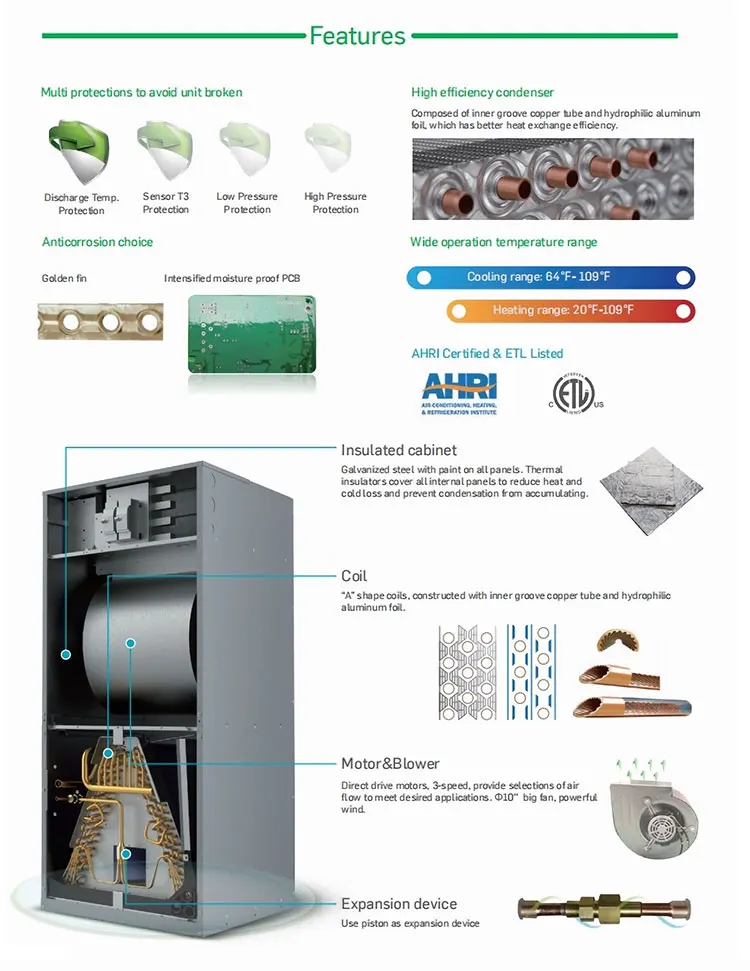

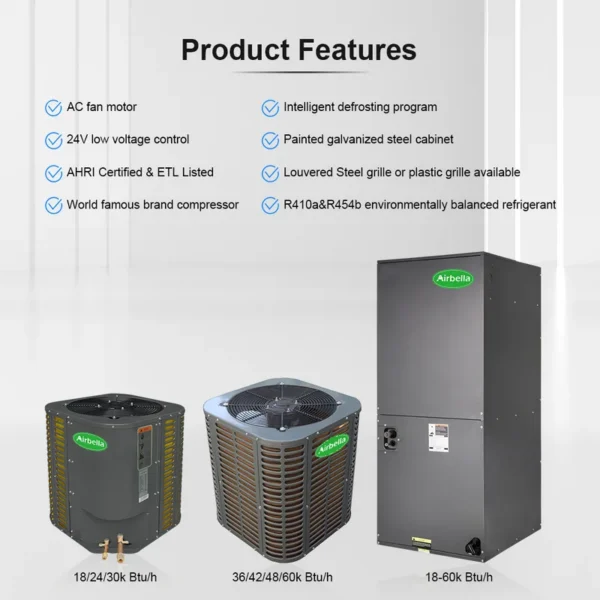

Key Features of This Air Handling Unit

• Power Source: Electric
• Power (W): 1875
• Power Supply: 230V/1N/60HZ
• Capacity (Btu): 18000btu
• Refrigerant: R410A
• Place Of Origin: China

Technical Specifications

Product Details

Model					AOTN-18HA1YG-14	AOTN-24HA1YG-14	AOTN-30HA1YG-14	AOTN-36HA1YG-14	AOTN-42HA1YG-14	AOTN-48HA1YG-14	AOTN-60HA1YG-14
Outdoor power supply			V/Ph/Hz	230V/1N/60HZ	230V/1N/60HZ	230V/1N/60HZ	230V/1N/60HZ	230V/1N/60HZ	230V/1N/60HZ	230V/1N/60HZ
Cooling	Capacity	Btu/h	17600	23600	28600	34000	40500	46000	56000
		Input	W	1500	2020	2450	2910	3480	3950	4900
		EER	Btu/h.W	11.70	12.20	11.70	11.70	11.70	11.20	11.20
		SEER ( AHRI Certified)	Btu/h.W	13-14	13-14	13-14	13-14	13-14	13-14	13-14
heating	Capacity	Btu/h	17200.00	22200.00	28600.00	33500.00	40000.00	46000.00	55000.00
		HSPF ( AHRI Certified)	Btu/h.W	8.20	8.20	8.30	8.30	8.30	8.30	8.30
Max. input consumption			W	1875.00	2525.00	3062.50	3637.50	4350.00	4937.50	6125.00
Max. current			A	8.58	11.56	14.02	16.65	19.91	22.60	28.03
Compressor	Brand		HIGHLY	HIGHLY	HIGHLY	HIGHLY	LG	LG	LG
		Model		ASL145DG-C7EU	ASH201DG-C8LU1L	ASH239DG-C8DU	ASH280DG-C8DU	ABG036KAC	ABG042KAC	ABG051KAC
		Type		rotary	rotary	rotary	rotary	scroll	scroll	scroll
		Capacity	W	4240	5970	7055	8260	10551	12309	14974
		Input	W	1390	1950	2290	2700	3429	3962	4722
		Rated current(RLA)	A	6.10	8.7	10.20	11.9	15.2	17.3	21.0
		Locked rotor Amp(LRA)	A	33	44	56	60	112	108	128
		Thermal protector	uf	40	40	55.00	70	45	70	70
		Refrigerant oil	ml	480	570	570	570	1280	1280	1280
Outdoor fan motor	Brand		chigo	chigo	chigo	chigo	chigo	xinjun	xinjun
		Model		S.TB-DQ-YDK-60-6P2-AL	S.TB-DQ-YDK-85-6P2-AL	S.TB-DQ-YDK-85-6P2-AL	S.TB-DQ-YDK-110-8P2-AL	S.TB-DQ-YDK-110-8P2-AL	S.TB-DQ-YDK-230-6P2	S.TB-DQ-YDK-230-6P2
		Input	W	145	178	178	207	207	510	510
		Output	W	60	85	85	110	110	230	230
		Capacitor	μF	6.00	6.00	6.00	6.00	6.00	12.00	12.00
		Speed	rpm	870	970	970	850	850	1095	1095
Outdoor coil	Number of row		1	2	2	2	2	2	2.7
		Fin spacing	in	0.055	0.055	0.055	0.055	0.055	0.055	0.055
		Fin material		Hydrophilic Aluminium Fin	Hydrophilic Aluminium Fin	non-Hydrophilic Aluminium Fin	Hydrophilic Aluminium Fin	Hydrophilic Aluminium Fin	Hydrophilic Aluminium Fin	Hydrophilic Aluminium Fin
		Tube outside diameter	in	Ф 0.276	Ф 0.276	Ф 0.276	Ф 0.276	Ф 0.276	Ф 0.276	Ф 0.276
		Tube material		Inner Grooved	Inner Grooved	Inner Grooved	Inner Grooved	Inner Grooved	Inner Grooved	Inner Grooved
		Coil length x height x width	in	56.22×23.15×0.53	56.22×23.15×1.05	56.22×23.15×1.05	84.65×23.15×1.05	84.65×31.48×1.05	84.65×31.48×1.05	84.65×31.48×1.05
		Number of circuit		3	6	4	6	10	10	8
Outdoor air flow			CFM	1500	1700	1900	2800	4000	4000	4000
Outdoor noise level			dB(A)	60	60	61	61	63	63	63
Outdoor dimension	Unit (WxHxD)	in	21-4/5×25×21-4/5	21-4/5×25×21-4/5	21-4/5×25×21-4/5	29-1/7×25×29-1/7	29-1/7×32-7/8×29-1/7	29-1/7×32-7/8×29-1/7	29-1/7×32-7/8×29-1/7
				mm	554×633×554	554×633×554	554×633×554	740×633×740	740×835×740	740×835×740	740×835×740
		Packing (WxHxD)	in	22-3/5×25-9/10×22-3/5	22-3/5×25-9/10×22-3/5	22-3/5×25-9/10×22-3/5	29-9/10×25-9/10×x29-9/10	29-9/10×34-2/5×29-9/10	29-9/10×34-2/5×29-9/10	29-9/10×34-2/5×29-9/10
				mm	575×660×575	575×660×575	575×660×575	760×660×760	760×875×760	760×875×760	760×875×760
		Net / Gross weight	kg	47/49	55/57	62/66	70/74	94/98	94/98	101/104
				lbs	104/108	121/126	137/146	156/163	207/216	207/216	222/229
Refrigerant	Type		R410A	R410A	R410A	R410A	R410A	R410A	R410A
		Charging	oz	70.55	97.00	97.00	123.46	148.15	169.32	201.06
Refrigerant pipe	Liquid side	in	Ф3/8	Ф3/8	Ф3/8	Ф3/8	Ф3/8	Ф3/8	Ф3/8
		Gas side	in	Ф3/4	Ф3/4	Ф3/4	Ф3/4	Ф3/4	Ф7/8	Ф7/8
		Max. refrigerant pipe length	ft	50	50	50	50	66	66	66
		Max. difference in level	ft	26	26	26	26	33	33	33
Design pressure		MPa	4.0/1.2	4.0/1.2	4.0/1.2	4.0/1.2	4.0/1.2	4.0/1.2	4.0/1.2
Max pressure			MPa	4.20	4.20	4.20	4.20	4.20	4.20	4.20
Operation temp range	Cooling	℉	64-109	64-109	64-109	64-109	64-109	64-109	64-109
		Heating	℉	19-75	19-75	19-75	19-75	19-75	19-75	19-75

Q:Are you a manufacturer or trading company? A:We are a manufacturer that specialized in refrigeration equipment. And we will do our best to show you the best quality, fastest delivery and highest credit to you.

Q: How about the delivery time? It depends on your quantity. Generally, it takes 45-60 days after receiving your deposit.

Q:How is your afer-sales service? A: We provide 1 year warranty, and 3 years for compressor, and we always provide 1% spare parts For Free.And we will supply the technical supportafer the warranty time. You can contact us 24 hours each day online.

Q:How can l get some samples? A: We welcome sample order to test and check quality. We can't offer free sample.please pay the sample and express fee.

Q: How about the packing? A: packed in carton, can customized different logo according to customers' requirements.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–99 set: US $780 / set
  • 100+ set: US $741 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Can the air handling unit be supplied for my local voltage?

The standard configuration is 230V/1N/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

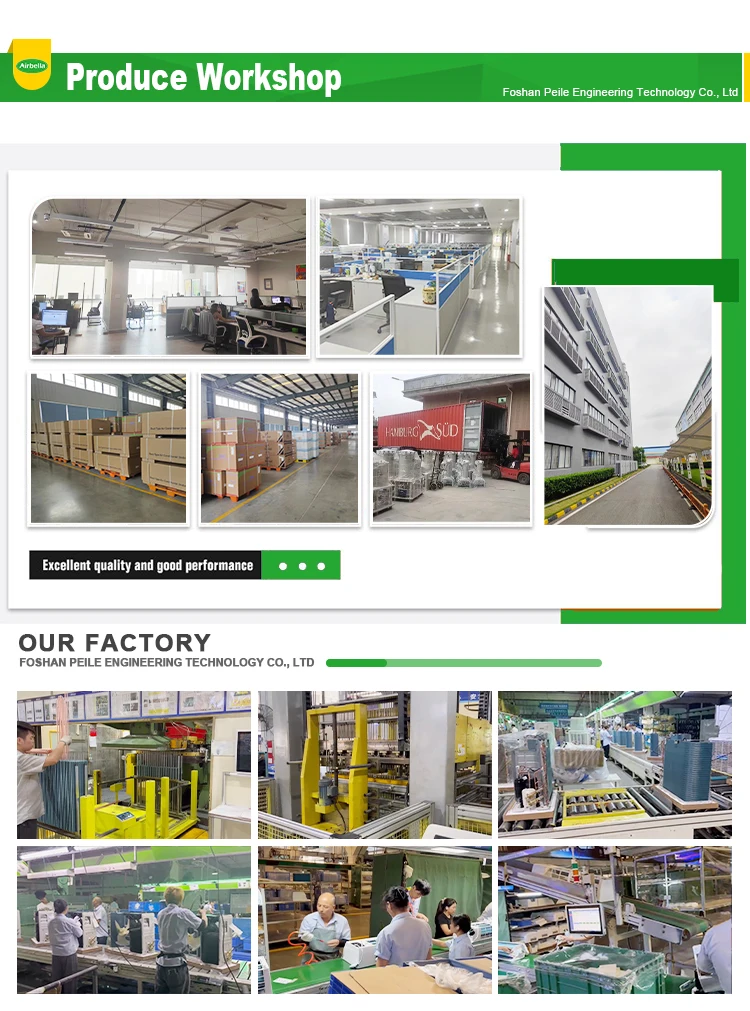

About the Manufacturer
