This cabinet air conditioner is published with the manufacturer’s full specification — 220V 50/60Hz 1Ph, refrigerant R134a. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cabinet Air Conditioner
- Model Number: SGEA-300
- Power Supply: 220V 50/60Hz 1Ph
- Refrigerant: R134a
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Application: 300W
Technical Specifications
| Type | Cabinet Air Conditioner |
|---|---|
| Refrigerant | R134a |
| Mounting Type | Wall / Window Mount |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Filter Type | Regular Filter |
| Key Selling Points | Low Maintenance Cost |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |

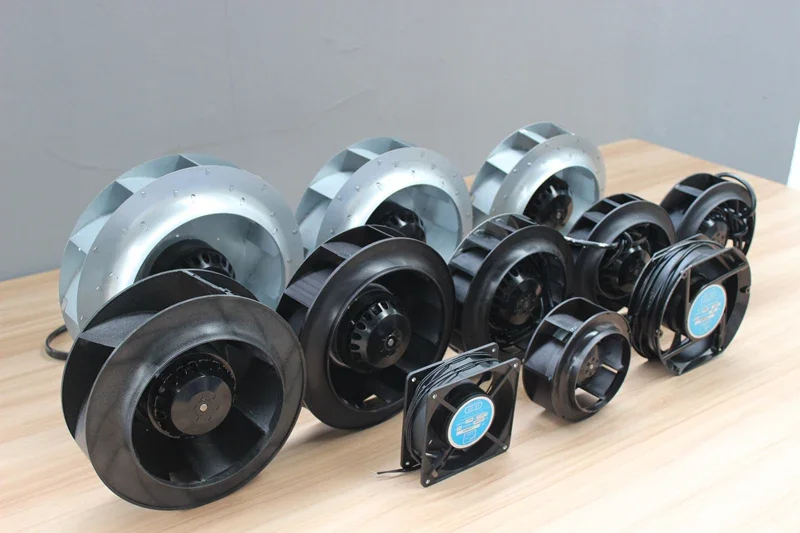

| Core Components | Compressor, controller, Fan |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 18 |
| Brand Name | saigu |
| Model Number | SGEA-300 |
| Dimension(L*W*H) | 288*460*180mm(11.34*18.11*7.09in) |
| Product Name | 300w low cost Mini Cabinet CE Air Conditioner For Electric cabinet |
| Application | 300W |
| Power Supply | 220V 50/60Hz 1Ph |
| Color | RAL 7035(light Gray) |

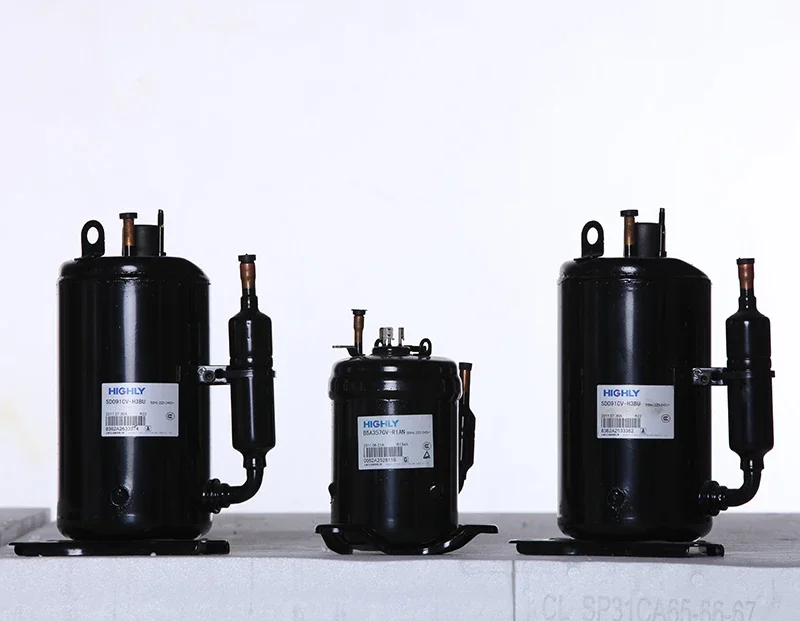

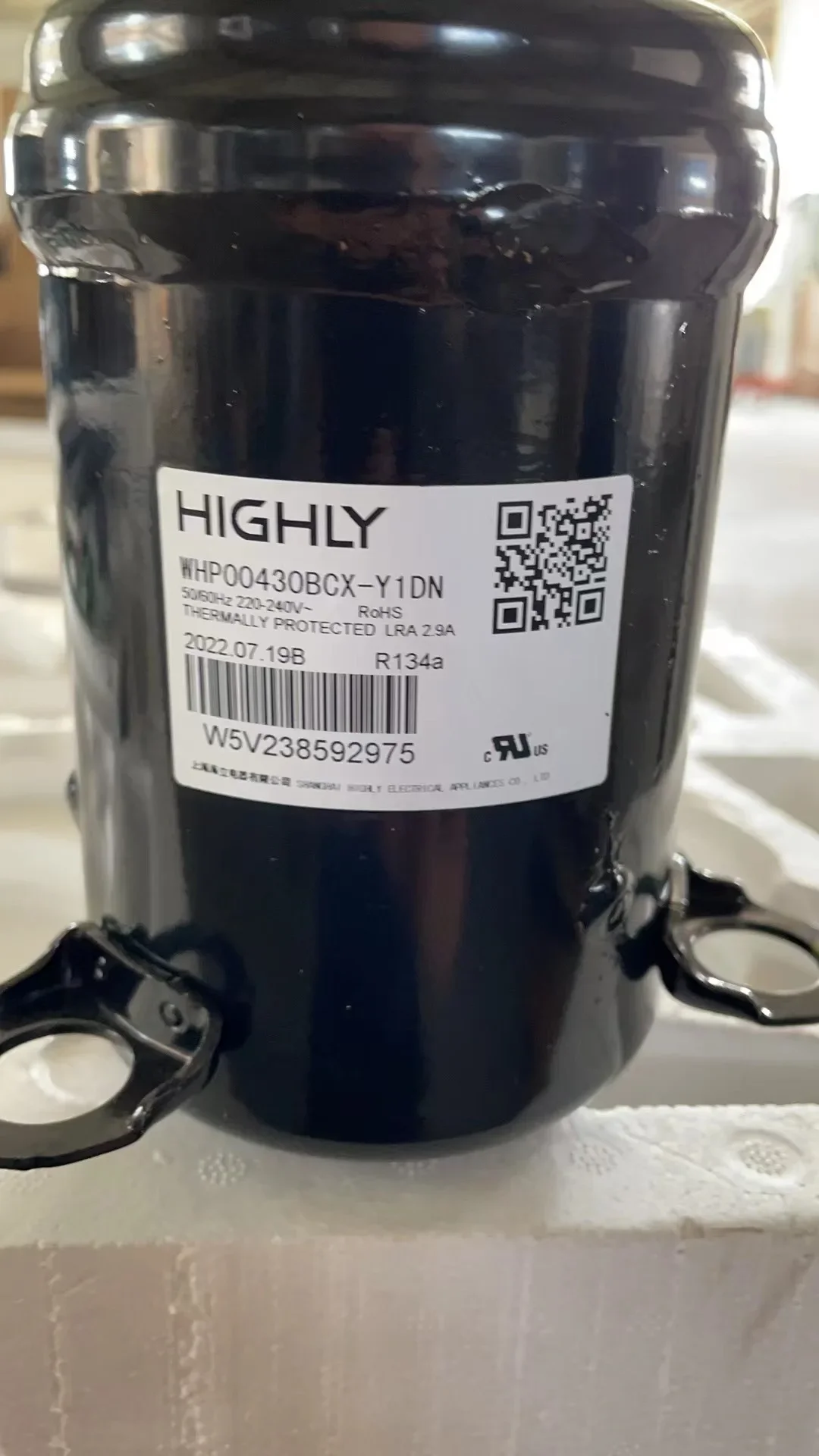

| Compressor | Hitachi |
| Noise | 50-60db |
| Installation | wall-mounted |
| Product Keywords | cabinet air conditioner |
| After-Sales Service Provided | 1.5year |
| Selling Units | Single item |
| Single Package Size | 37X27X65 cm |
| Single Gross Weight | 21.0 kg |
Product Details
Product Description

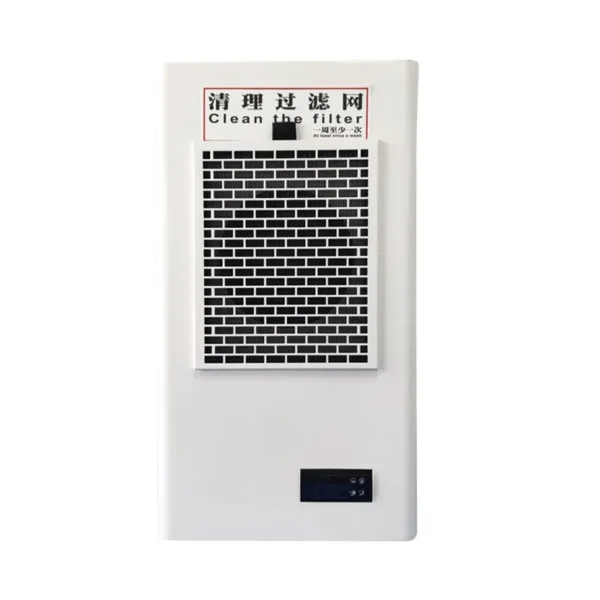

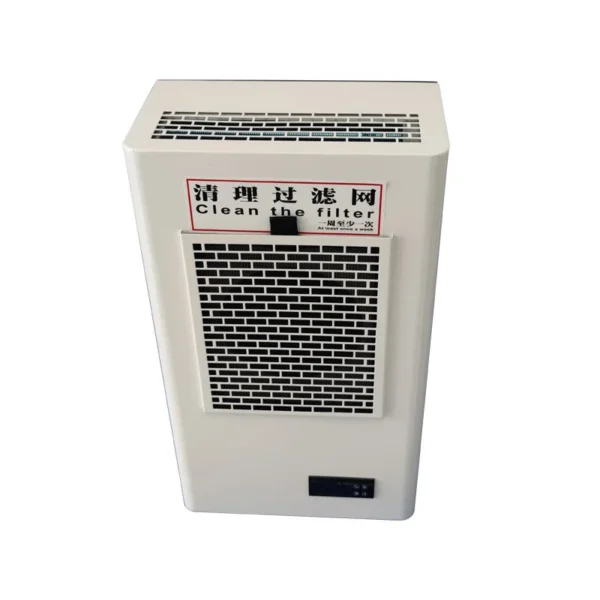

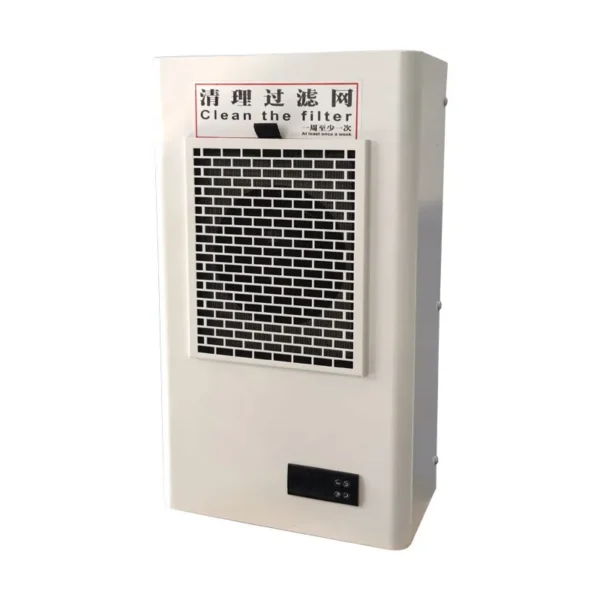

300w low cost Mini Cabinet CE Air Conditioner For Electric cabinet

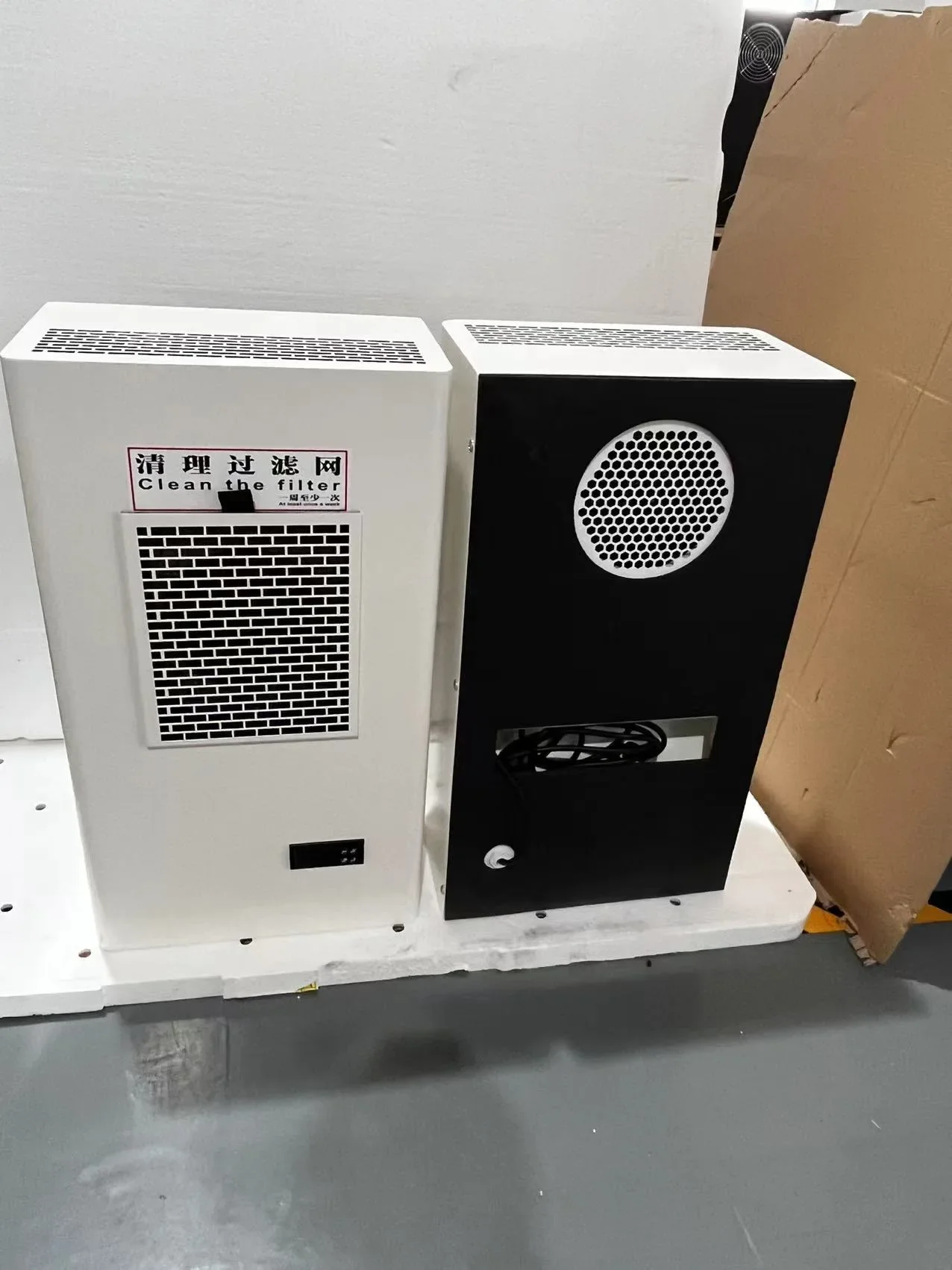

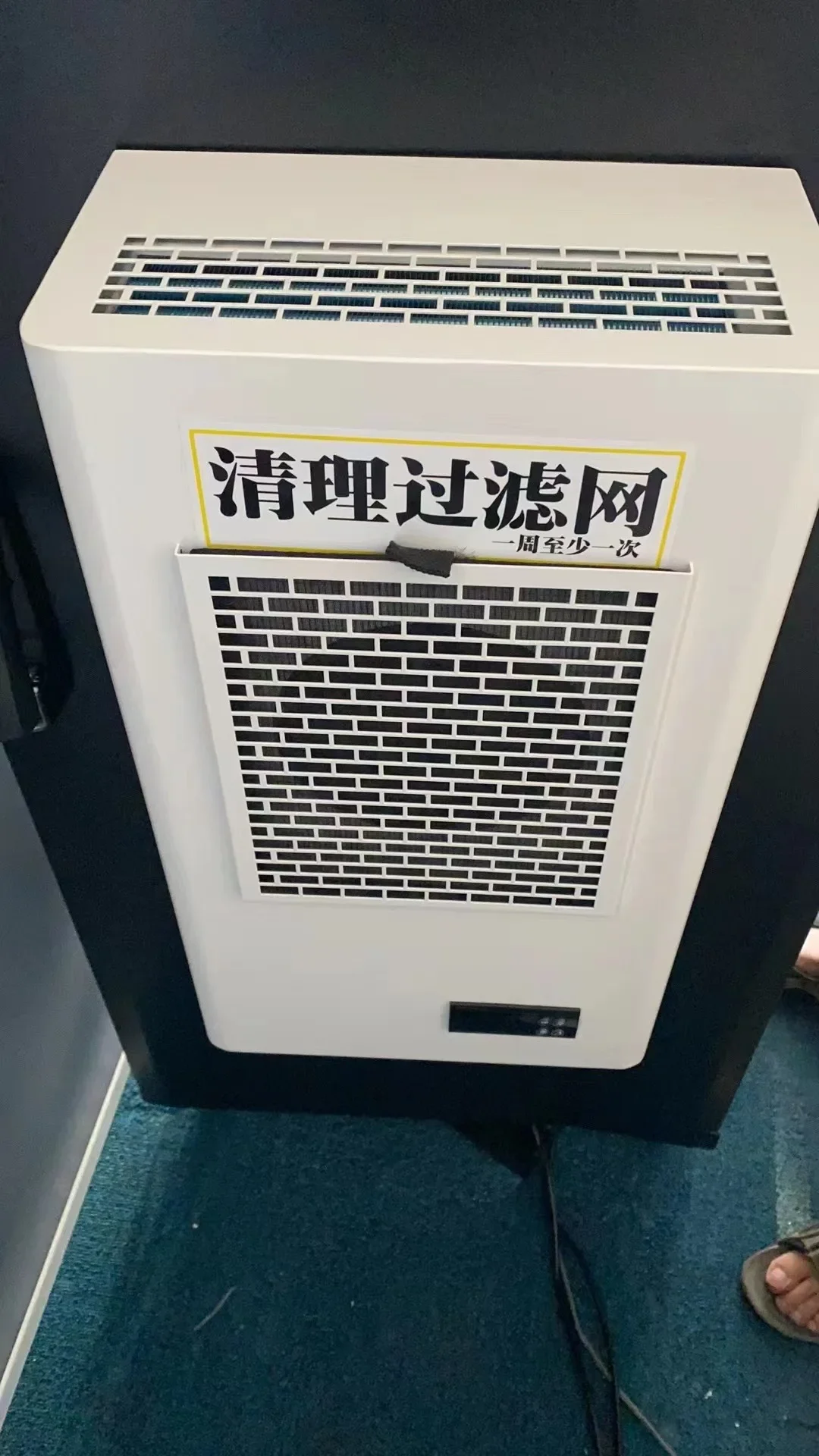

This series product can be used in high ambient temperature environment, even reach in 65℃。With the advanced sign idea in this unit, there are double filter in the air inlet of fan,which can improve the resistance to dust and oil pollution ability. So,It is well suited to steel mills and the textile industry.
Details Images
Specification
model | SGEA-300 |
Power supply | 1P 220V 50Hz |

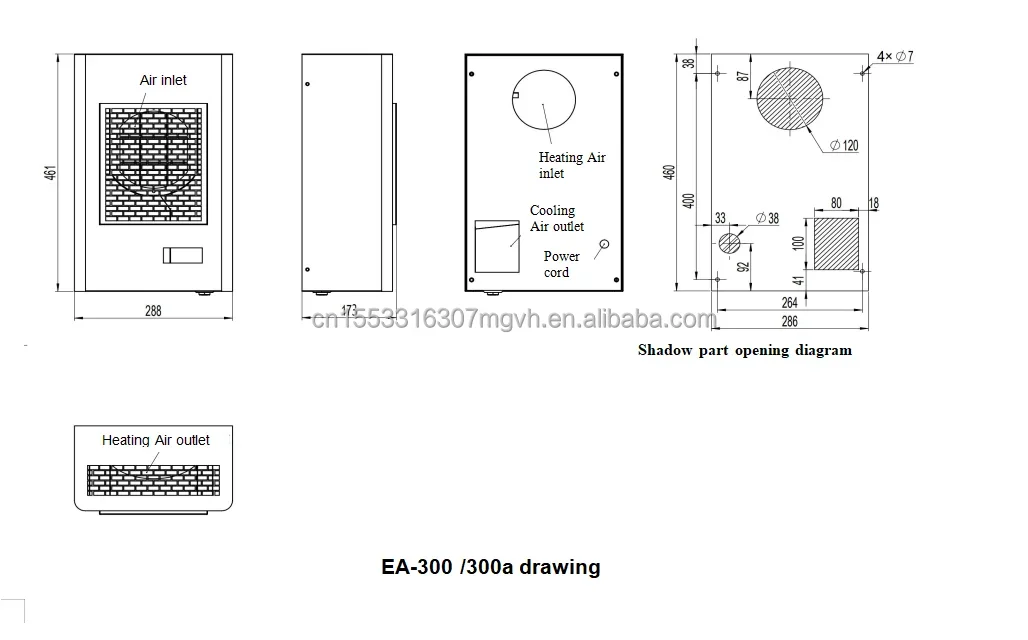

Dimension | 288*460*180mm |
Power supply | 264W |
Refrigerant Type | R134a |
Noise | 55dB |
Controller | Digital type |
Company Profile
Shanghai Saigu Refrigeration Technology Co., Ltd is mainly engaged in industrial cooling equipment research , development and sales. After several years development, we have cabinet air conditioner, heat exchanges and industrial water chiller, precision oil cooler, automotive air conditioning, other series of high-standard products。We have successfully resolved the heating problem in the Machining Process for a number of large and Medium – sized Enterprises. The products are widely used in CNC ，laser cutting, advertising, woodworking, machining, textile processing, communications , automation control systems and other industries fields．Our products were widely exported many foreign countries . We believe that through our continuous efforts and the pursuit ,the large and medium-sized enterprises will certainly be able to achieve mutual benefit and win-win! Welcome to our factory for a visit and negotiation.
Our Advantages

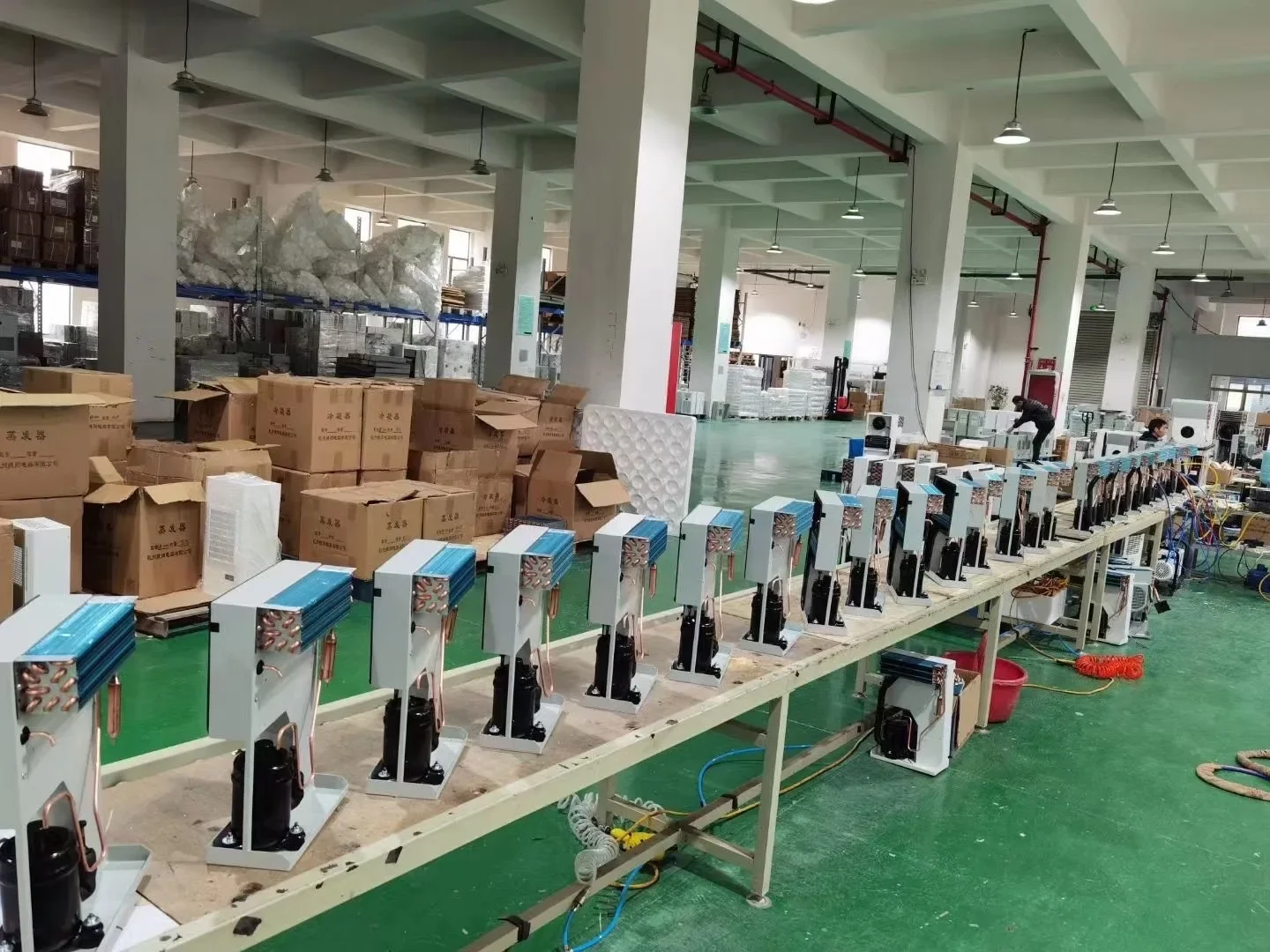

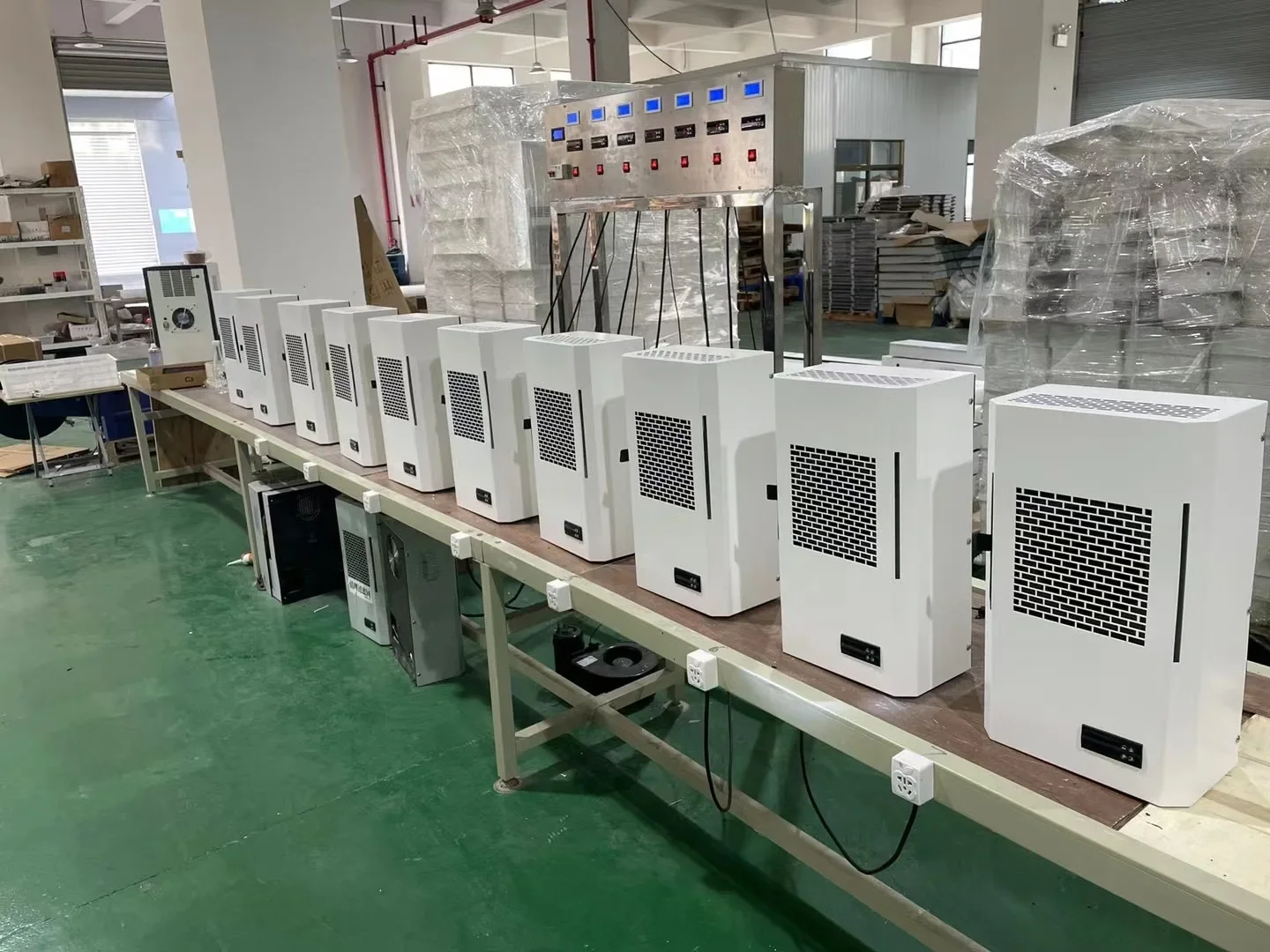

Production Procedure
Paste Thermal insulation cotton

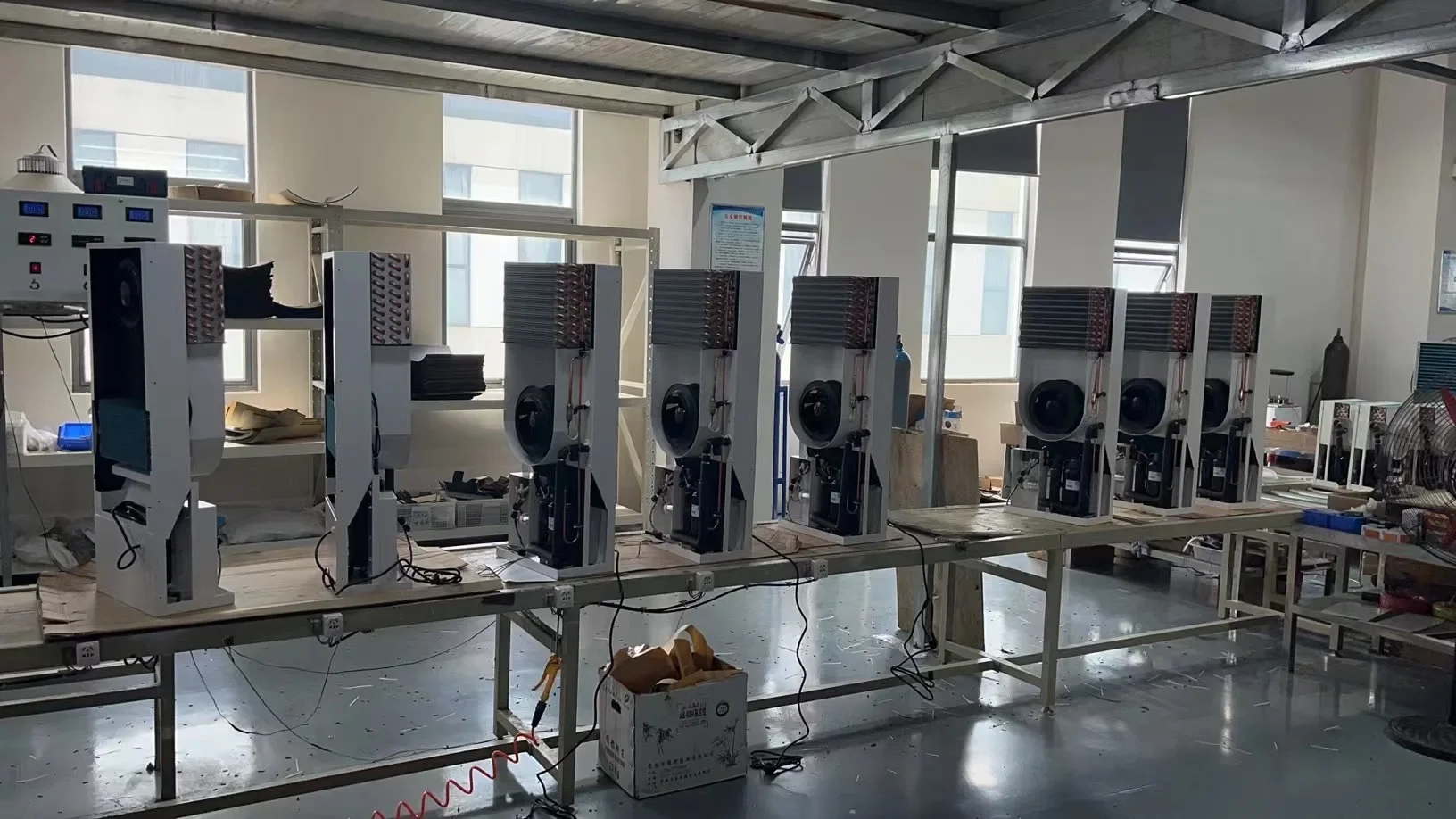

Assembly
Welding
Make the refrigeration system vacummn
Automatic add refrigerant
Connect the wire
Testing
Packing

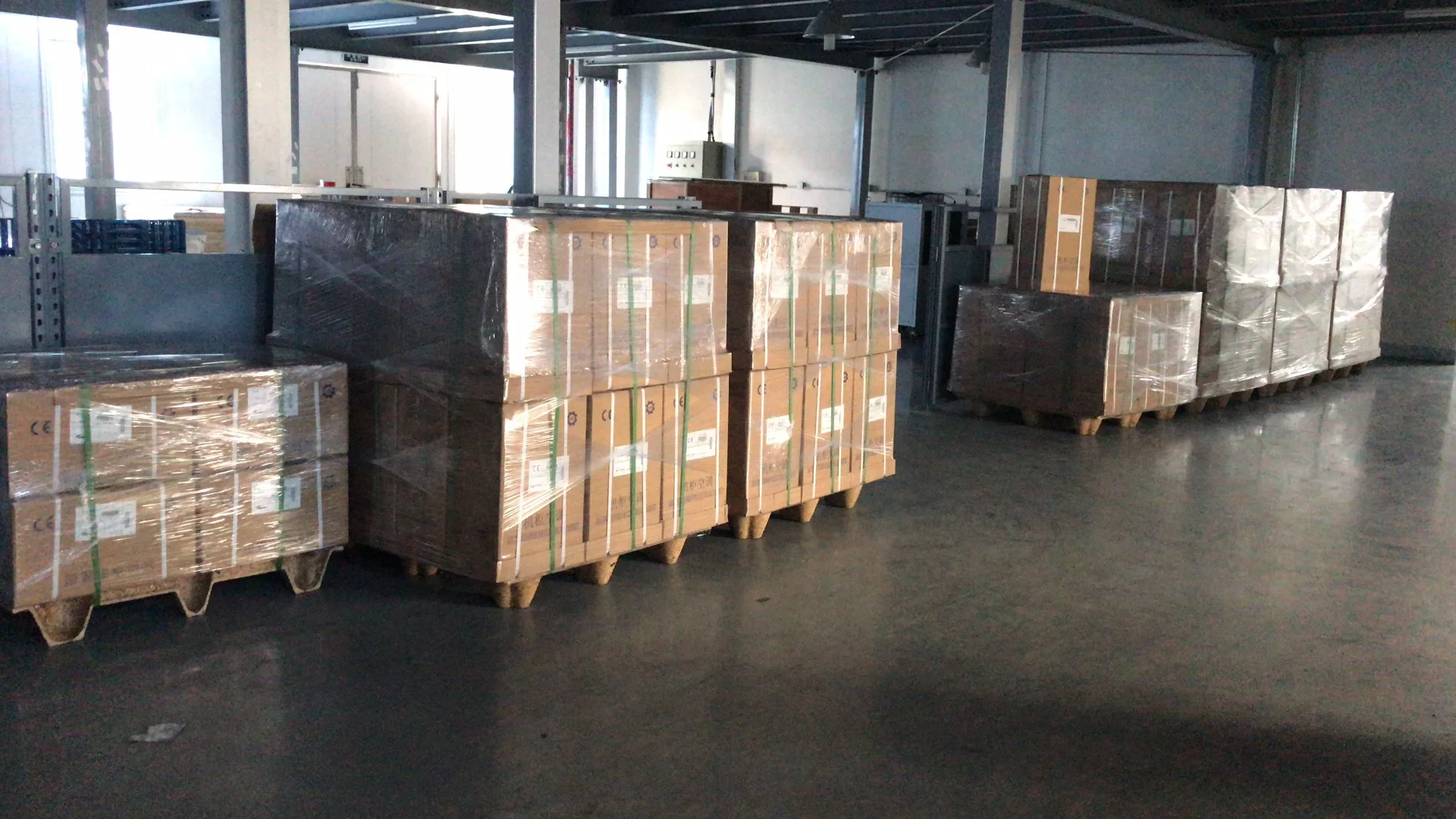

Packing & Delivery
The Cabinet Air Conditioner is designed for many industries. It can protect the electricity wind chest's electrical element in the controllable temperature range movement. Excellent functions and good performance of electric cabinet air conditioning is gradually get more and more foreign high-end praised by users.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Shipping Method
The products will be shipped via EMS, FedEx, DHL, TNT，Special-line, Container, etc.
FAQ
Q:How to Determine Correct Model of Cabinet cooler？ A:Key Point—Calculating Heat Load for your Enclosure To determine the correct model for your application, it is first necessary to determine the total heat load to which the control panel is subjected. This total heat load is the combination of two factors — heat dissipated within the enclosure and heat transfer from outside into the enclosure. Steps of Calculating Btu/hr.: 1. First, determine the approximate watts of heat generated within the enclosure. Watts x 3.41 = Btu/hr. 2. Then, calculate outside heat transfer as follows: a. Determine the area in square feet exposed to the air, ignoring the top of the cabinet. b. Determine the temperature differential between maximum surrounding temperature and desired internal temperature. Then, using the Temperature Conversion Table (below), determine the Btu/hr./ft.2 for that differential. Multiplying the cabinet surface area times Btu/hr./ft.2 provides external heat transfer in Btu/hr.
Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to instal and maintain the machine.
*Provide remote instruction by video or recording
* Engineers available to service machinery overseas.
Contact
If you have any questions please feel free to contact me, there may be a time difference, but we will try to reply as soon as possible.
We attach great importance to all our customers and hope we can establish a good relationship of cooperation, we can
achieve a win-win situation.
achieve a win-win situation.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cabinet air conditioner?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cabinet air conditioner be supplied for my local voltage?
The standard configuration is 220V 50/60Hz 1Ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
