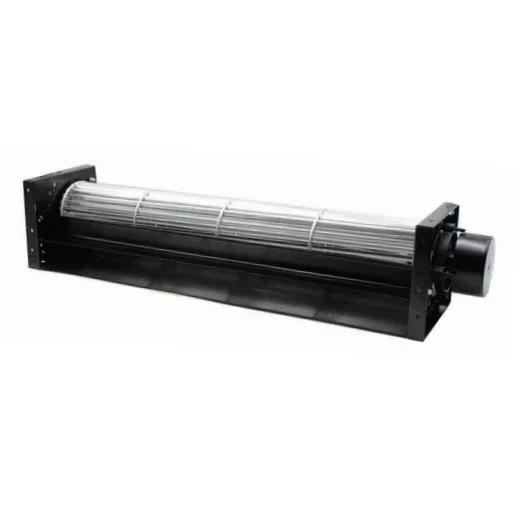

This cross flow fan is published with the manufacturer’s full specification — 12V-24V, blade material Aluminum Alloy. For a binding price and lead time, send the volume you need and where it ships to.
This cross flow fan is listed with the manufacturer’s full published specification — voltage 12V-24V, blade material Aluminum Alloy, model number 60120, 60180, 60240. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: 60120, 60180, 60240
- Voltage: 12V-24V
- Blade Material: Aluminum Alloy
- Warranty: 3 Years
- Place Of Origin: Guangdong, China
- Applications: Floor heating / air curtain / air purifier / microwave oven
Technical Specifications
| Blade Material | Aluminum Alloy |
|---|---|
| Mounting | Free Standing |
| Electric Current Type | DC |
| Place Of Origin | Guangdong, China |
| Voltage | 12V-24V |
| Customized Support | OEM, ODM |
| Brand Name | XINGYUAN |
| Model Number | 60120, 60180, 60240 |
| Warranty | 3 Years |
| After-Sales Service Provided | Video Technical Support |
| Operating Temperature | -10℃~+70℃,5%~90%RH |
| Applications | Floor heating / air curtain / air purifier / microwave oven |
| Packaging Details | Carton K=K packing |
| Port Of Dispatch | SHENZHEN |
| Selling Units | Single item |
| Single Package Size | 18.3X9.8X9 cm |
| Single Gross Weight | 0.620 kg |
| Packaging Examples | |
| Supply Ability | 10000 pieces per Month |
|
item
|
value
|
|
Type
|
CROSS FLOW FAN
|
|
Applicable Industries
|
Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Construction works , Energy & Mining, Other
|
|
Customized support
|
OEM, ODM
|
|
Electric Current Type
|
DC
|
|
Blade Material
|
Aluminum Alloy
|
|
Mounting
|
FREE STANDING
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
XINGYUAN
|
|
Voltage
|
12V-24V
|
|
Warranty
|
1 Year
|
|
After-sales Service Provided
|
Video technical support
|
|
Operating temperature
|
-10℃~+70℃,5%~90%RH
|
|
Applications
|
Floor heating / air curtain / air purifier / microwave oven
|
|
Impeller diameter
|
60mm
|
|
Impeller length
|
120mm/180mm/240mm/300mm/360mm/420mm
|
|
Bearing Type
|
Ball Bearing/Sleeve Bearing
|
|
Motor type
|
DC brushless external motor
|
materials,electronic components, radiators and other products production enterprises.Packaging design planning and packaging
solutions as
one of the production and trade enterprises.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this cross flow fan?
A 3 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 12V-24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
