This box type condensing unit is published with the manufacturer’s full specification — 380 V, refrigerant R404A. For a binding price and lead time, send the volume you need and where it ships to.

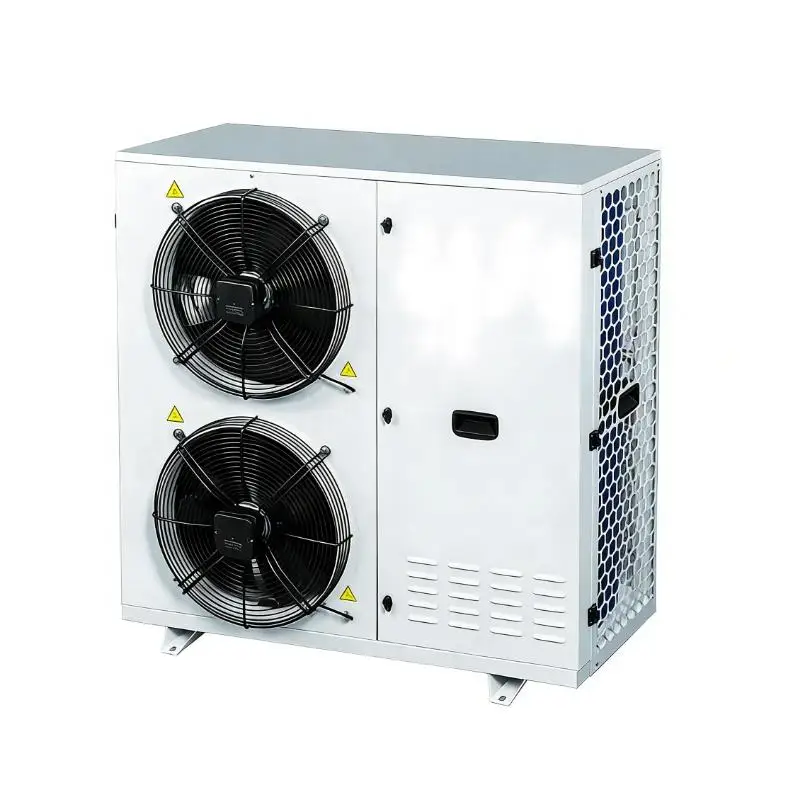

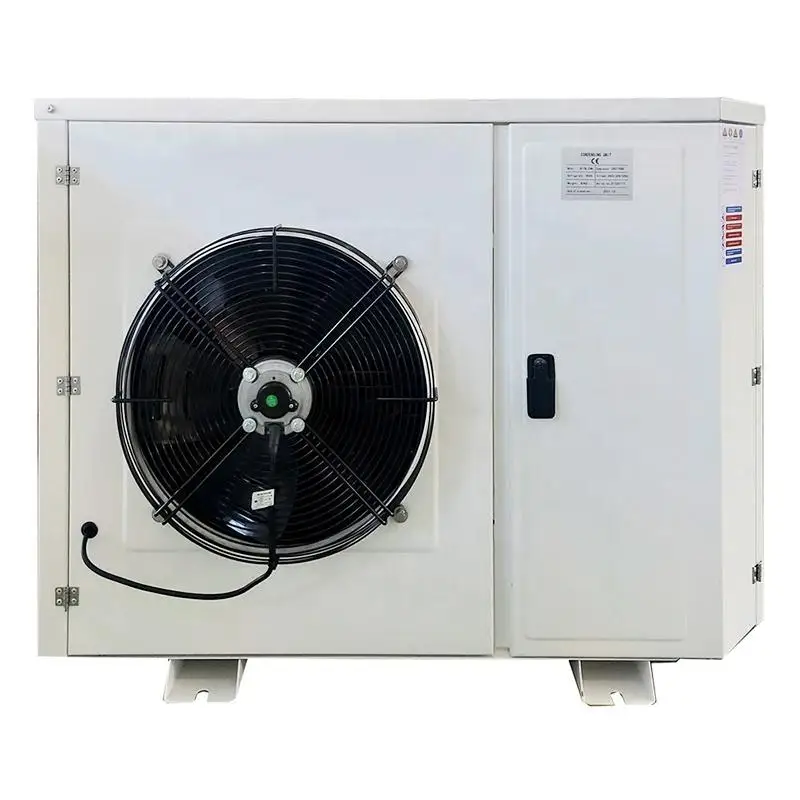

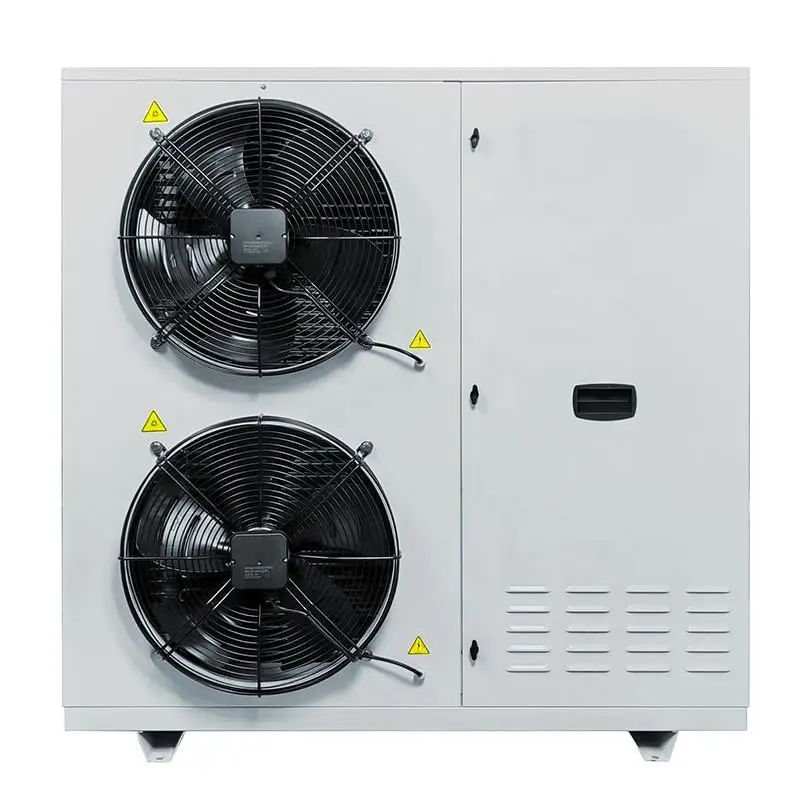

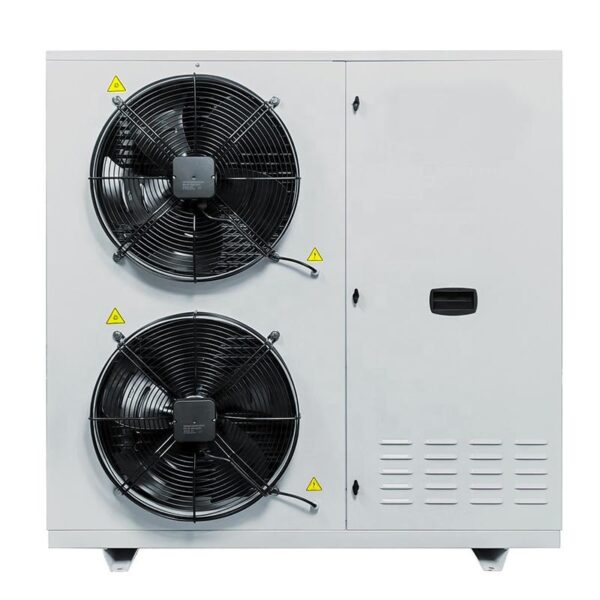

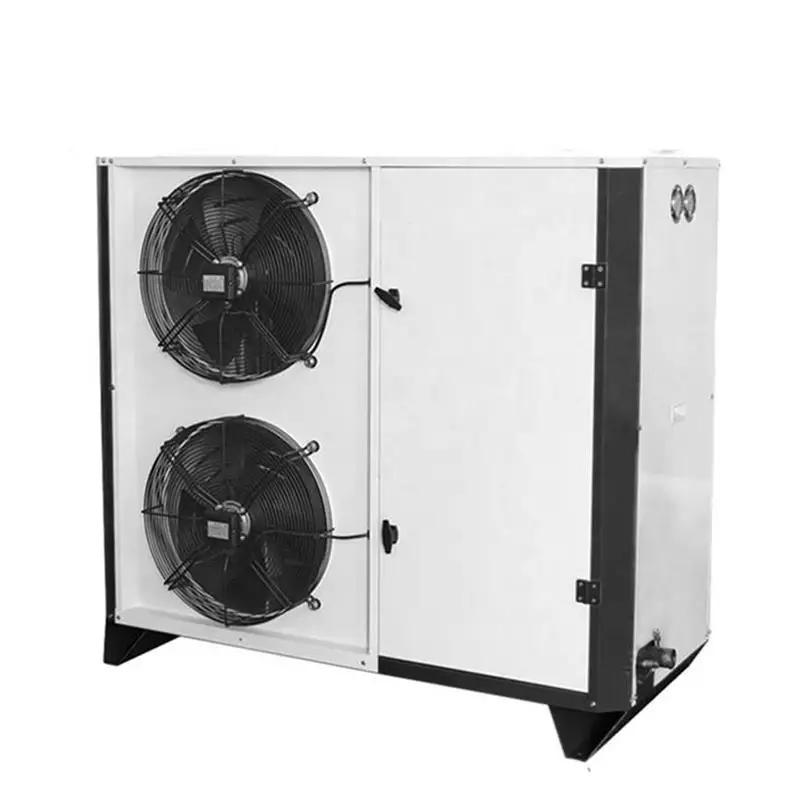

Side blower discharge on this box type condensing unit means the condenser airflow leaves sideways rather than upward, so the unit can be sited under an overhang or against a low ceiling where a top-discharge unit would recirculate its own hot air and lose capacity. Copeland ZFI26KQE scroll compressor covering -40C to -5C on R404A at 380V, 150kg, suited to farms, hotels and home cold rooms.
Key Features of This Box Type Condensing Unit
- Model Number: LDB06FLVCE
- Voltage: 380 V
- Refrigerant: R404A
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Compressor Type: Scroll
Technical Specifications
| Temperature | -40℃–5℃ |
|---|---|
| Compressor Brand | Copeland |
| Compressor Type | Scroll |
| Key Selling Points | Easy To Operate, Energy Saving |
| Voltage | 380 V |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Refrigerant | R404A |
| Place Of Origin | Guangdong, China |
| Weight (KG) | 150 |
| Model Number | LDB06FLVCE |
| Dimension(L*W*H) | 1300*560*690 |
| Selling Units | Single item |
| Single Package Size | 130X100X110 cm |
| Single Gross Weight | 150.000 kg |
|
Modle of units
|
LDB06FLVCE
|
||||||||
|
Compressor Model
|
ZFI26KQE
|
||||||||
|
Brand name
|
Copeland
|
||||||||
|
Type
|
Side blow
|
||||||||
|
Temperature(℃)
|
-40℃–5℃
|
||||||||
|
Refrigerant
|
R404A
|
||||||||
|
Voltage(V)
|
380V/3PH/50Hz
|
||||||||
|
Fan Qty*Dia (mm)
|
2×400
|
||||||||
|
Air Flow(m³/h)
|
2×3900
|
||||||||
|
Power of Fan(W)
|
2*180
|
||||||||
|
Fan voltage
|
220V/1PH/50Hz
|
||||||||
|
capacity (KW)
|
16.2
|
||||||||
|
Cooling capacity(W)
|
13700~5080
|
||||||||
|
Input(KW)
|
6.36~5.1
|
||||||||
|
Horse power
|
6
|
||||||||
Copeland Condensing Units
Our units, powered by Copeland scroll compressors, deliver 10% higher efficiency and superior reliability compared to
traditionalreciprocating models. Key advantages include:
* Low Noise & Vibration: Ensures quiet operation for supermarkets, convenience stores, and commercial spaces.
* Robust Durability: Features a cast iron body for effective heat dissipation and extended service life.
* Proven Motor Protection: Equipped with advanced protective devices for maximum operational security.
With a comprehensive power range from 2HP to 50HP, our condensing units support a wide array of applications, from commercial refrigeration to HVAC systems. We offer tailored solutions with key compressor series for different needs:
* VR/ZR Series: Compatible with R22, R407C, R134a refrigerants.
* VP/ZP Series: Optimized for R404A refrigerant applications.
* ZW Series: Designed specifically for heat pump water heating systems.
Engineered for efficiency, durability, and broad compatibility, our condensing units provide a trusted foundation for your
critical cooling and heating projects.
Guangzhou Landa Technology Co., Ltd. is a trusted refrigeration supplier with over 10 years of experience providing cutting-edge air conditioning condensing unit solutions. Contact us today for a free consultation and discounted pricing!
Frequently Asked Questions
What is the minimum order quantity for this box type condensing unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this box type condensing unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
