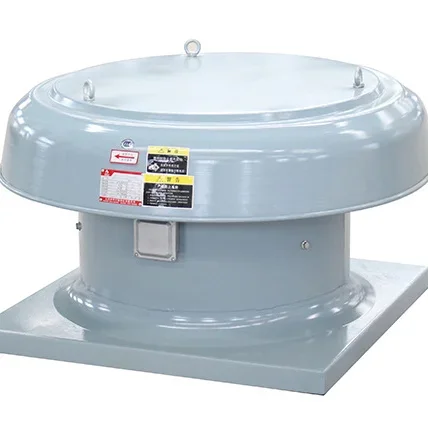

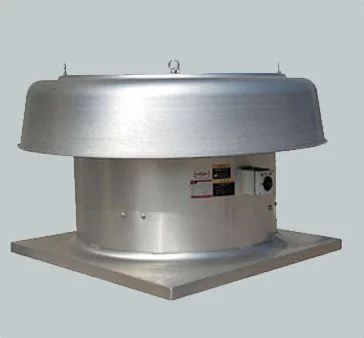

The exhaust ventilation roof fan listed here carries 110v, power source Electric, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
This exhaust ventilation roof fan is listed with the manufacturer’s full published specification — voltage 110v, power source Electric, blade material aluminum. It is produced by Qingdao Pengsheng Electric Appliance Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Exhaust Ventilation Roof Fan
- Power Source: Electric
- Voltage: 110v
- Blade Material: aluminum
- Speed: 1450RPM
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Voltage | 110v |
|---|---|
| Speed | 1450RPM |
| Mounting Type | Roof Fan |
| Type | AC roof Axial Fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | aluminum |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Shandong, China |
| Brand Name | pengsheng |
| Selling Units | Single item |
| Single Package Size | 130X120X95 cm |
| Single Gross Weight | 120.000 kg |

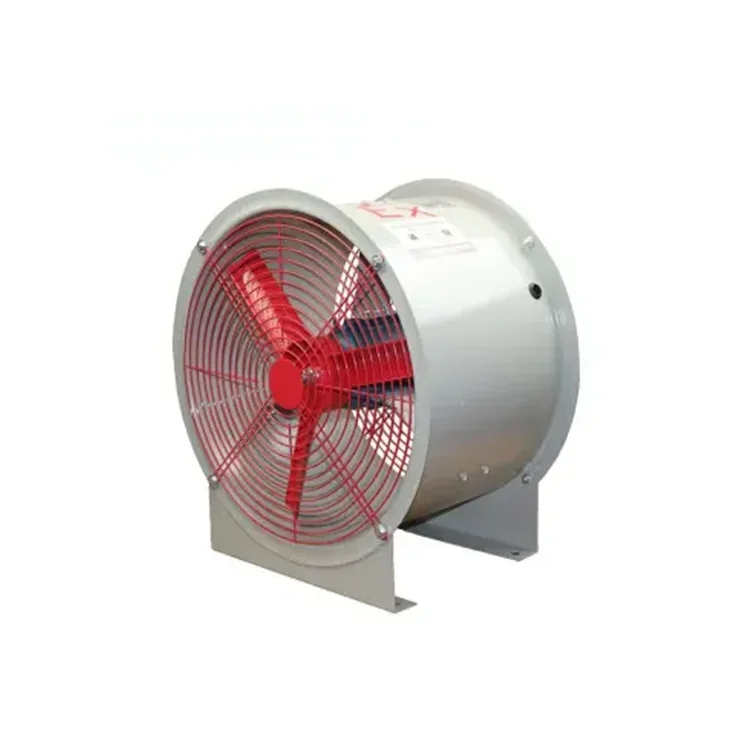

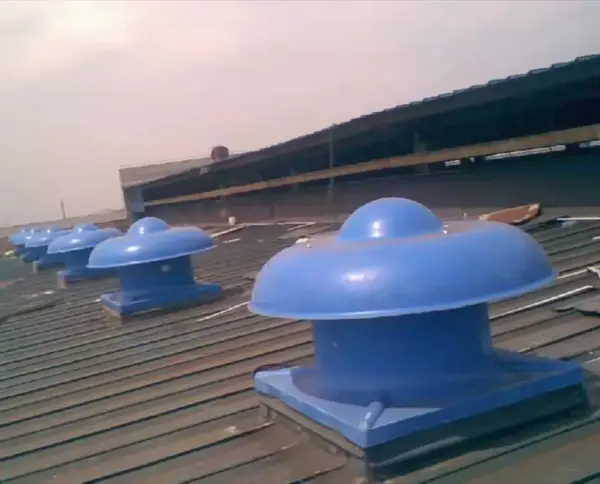

With low noise, low energy consuming and high explosion-proof quality, have man installation ways like wall mounted type, dusted type, post type and fixed type.
|
The Technical data
|
||||||||||
|
Model
|
Rrotation speed (rpm)
|
Air volume (m³/h)
|
Total pressure
(pa) |
Static pressure
(pa) |
Power
(kw) |
|||||
|
250mm |
2900
|
2100-1400
|
90-126
|
50-81
|
0.18
|
|||||
|
1450
|
1100-700
|
23-33
|
13-25
|
0.12
|
||||||
|
300mm |
2900
|
3000-2000
|
120-150
|
60-120
|
0.37
|
|||||
|
1450
|
1900-1200
|
40-50
|
20-30
|
0.18
|
||||||
|
350mm |
2900
|
4600-3000
|
140-210
|
60-160
|
0.37
|
|||||
|
5500-3500
|
160-220
|
60-170
|
0.55
|
|||||||
|
1450
|
2900-1800
|
50-65
|
20-40
|
0.25
|
||||||
|
400mm |
2900
|
5000-3000
|
110-200
|
60-180
|
0.55
|
|||||
|
6500-4000
|
160-250
|
70-200
|
0.75
|
|||||||
|
7000-4500
|
200-280
|
80-210
|
1.1
|
|||||||
|
1450
|
3500-2000
|
60-70
|
30-60
|
0.25
|
||||||
|
4000-2500
|
70-78
|
35-52
|
0.37
|
|||||||
|
4300-2800
|
72-80
|
26-47
|
0.55
|
|||||||
|
500mm |
1450
|
6500-5300
|
125-135
|
60-90
|
0.37
|
|||||
|
7000-5500
|
130-145
|
70-105
|
0.55
|
|||||||
|
8500-6000
|
138-150
|
80-100
|
0.75
|
|||||||
|
960
|
4600-3600
|
57-61
|
40-50
|
0.18
|
||||||
|
5600-4000
|
60-66
|
40-48
|
0.25
|
|||||||
|
550mm |
1450
|
9000-6000
|
138-150
|
80-116
|
0.75
|
|||||
|
960
|
6500-4600
|
61-75
|
42-50
|
0.37
|
||||||
|
600mm |
1450
|
11500-7500
|
140-160
|
80-130
|
1.1
|
|||||
|
13500-8000
|
160-180
|
80-130
|
1.5
|
|||||||
|
14500-8500
|
165-200
|
80-135
|
2.2
|
|||||||
|
960
|
8500-5000
|
57-85
|
45-55
|
0.37
|
||||||
|
9600-5600
|
72-100
|
45-58
|
0.55
|
|||||||
|
700mm |
1450
|
17500-10000
|
180-220
|
140-175
|
1.5
|
|||||
|
20000-12000
|
200-250
|
145-180
|
2.2
|
|||||||
|
21000-13000
|
220-300
|
150-185
|
3
|
|||||||
|
960
|
13000-8000
|
88-110
|
63-80
|
0.75
|
||||||
|
14000-8600
|
96-130
|
65-82
|
1.1
|
|||||||
|
800mm |
1450
|
25000-15000
|
180-270
|
100-260
|
2.2
|
|||||
|
27000-17000
|
210-300
|
120-260
|
3
|
|||||||
|
30000-20000
|
240-330
|
125-265
|
4
|
|||||||
|
33000-23000
|
270-350
|
125-270
|
5.5
|
|||||||
|
960
|
20000-13000
|
110-145
|
53-105
|
1.5
|
||||||
|
22000-15000
|
120-155
|
50-100
|
2.2
|
|||||||
|
900mm |
1450
|
34000-20000
|
240-340
|
160-320
|
4
|
|||||
|
36000-22000
|
250-350
|
150-310
|
5.5
|
|||||||
|
40000-24000
|
320-380
|
155-320
|
7.5
|
|||||||
|
960
|
22000-13000
|
100-140
|
70-120
|
2.2
|
||||||
|
24000-15000
|
120-160
|
70-136
|
3
|
|||||||
|
28000-18000
|
140-180
|
75-140
|
4
|
|||||||
|
1000mm |
1450
|
36000-23000
|
250-400
|
160-370
|
5.5
|
|||||
|
40000-28000
|
270-420
|
165-380
|
7.5
|
|||||||
|
960
|
31500-20000
|
150-220
|
90-170
|
4
|
||||||
|
33000-21000
|
160-230
|
90-176
|
5.5
|
|||||||
Why choose Qingdao Peng Sheng Electrical Appliance Co., Ltd.?
1.Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.
Frequently Asked Questions
What is the minimum order quantity for this exhaust ventilation roof fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this exhaust ventilation roof fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110v. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
