Ac motors — model number CBB65, certificate CE,TUV,VDE. The complete factory specification follows. Made by Ningguo Haichen Elec-Industrial Trade Co., Ltd. (9 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Ac Motors
- Model Number: CBB65
- Place Of Origin: Anhui, China
- Application: air conditioner
- Packaging Type: 50
- Single Package Size: 40X40X35 cm
- Single Gross Weight: 0.4 kg
Technical Specifications
| Model Number | CBB65 |
|---|---|
| Brand Name | Haichen |
| Packaging Type | 50 |
| Capacitance | 1-100uf |
| Place Of Origin | Anhui, China |
| Description | ac capacitor |
| Application | air conditioner |
| Tolerance | +/-5% |
| Working Temperature | -40℃ to 85 ℃ |
| Outer Shell | Aluminum |
| Protection Class | S0,S1.S2.S3 |
| Operation Class | Class A:30000hrs, ClassB:10000hrs |
| Certificate | CE,TUV,VDE |
| Terminal | Pin |
| Media | oil and film |
| Shape | round or oval |
| Product Name | CBB65 450v SH AC Motor Run Capacitor |
| Selling Units | Single item |
| Single Package Size | 40X40X35 cm |
| Single Gross Weight | 0.4 kg |
Product Details

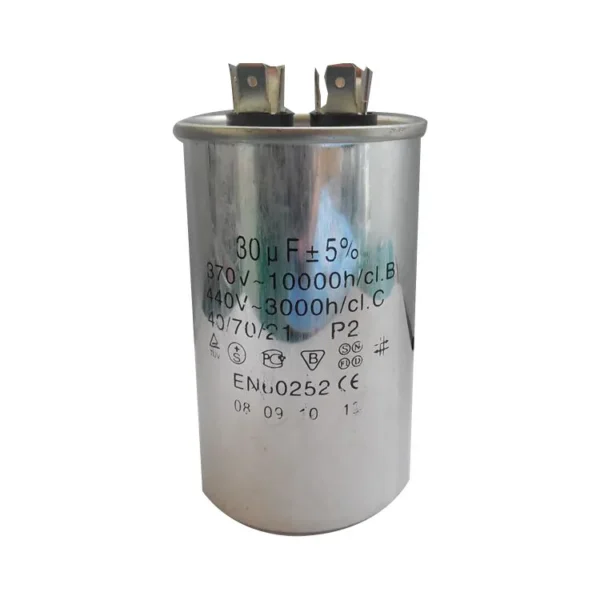

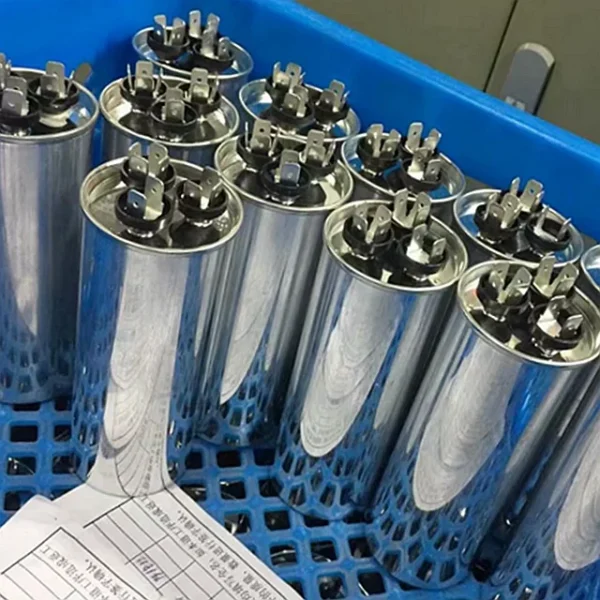

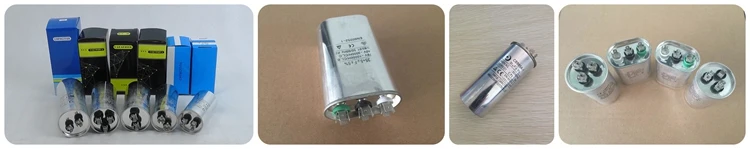

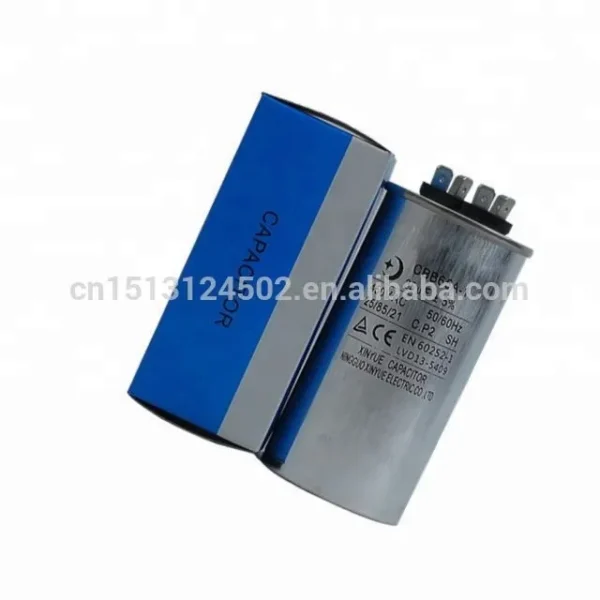

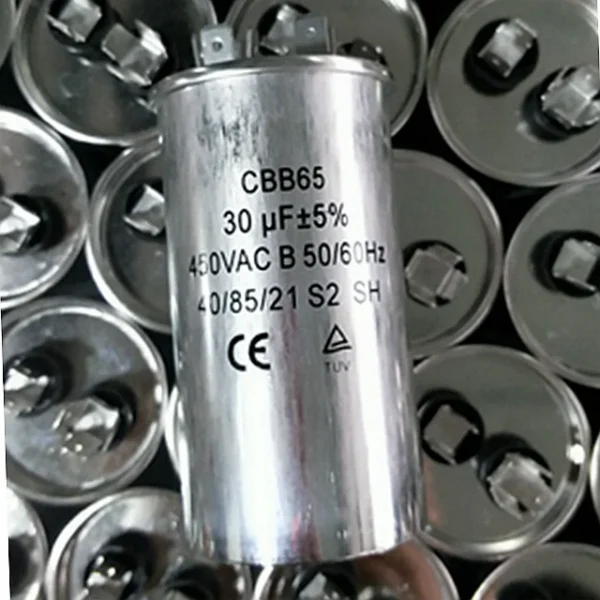

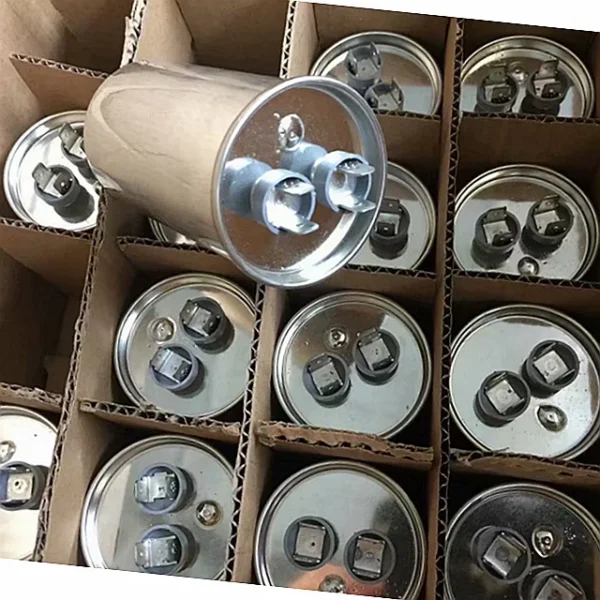

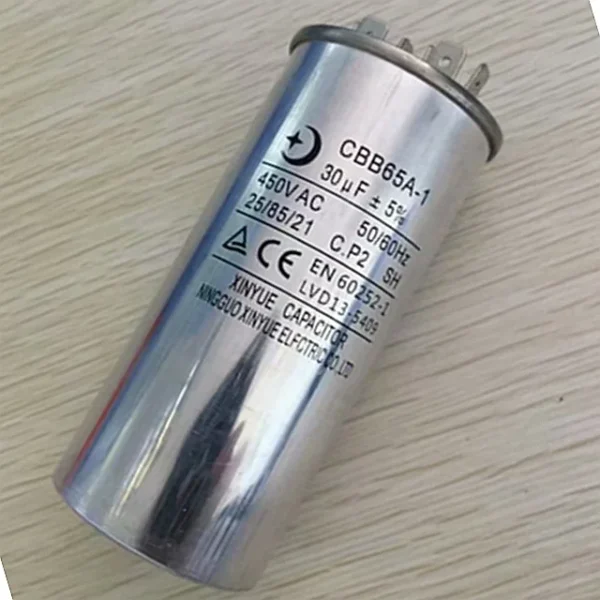

CBB65 450v SH AC Motor Run Capacitor UL TUV VDE RoHS Approval
1.Features and Uses
The capacitor has advantages of low dissipation,high insulation resistance ,good self-healing character,anti-striking current,strong over-carrier capacity and steady electric performance ,and reliable safety with inner anti-explosion devicemetc. It is applied in air conditioning,refrigerator,motor,compressor,it is helpful for motor‘s starting and running.
| Capacitance range | 1-100uf | ||
| Capacitance tolerance | ±5% | ||
| Rated alernate voltage | 450v | ||
| Rated frequency | 50/60hz | ||
| Operating temperature | 40/70/21 | ||
| Dissipation factor | tanδ≤0.002(50Hz) | ||
| Safety grade | P0,P1 |
| CBB65 AC CAPACITOR | Dimension ID*HEIGHT MM | Voltage | PINS | Carton size CM | Qty | Carton weight KG |
| 4 uF | 40*65 | 370-440V | 2+4 | 45.5*23.5*17 | 100 | 15 |
| 5 uF | 40*65 | 370-440V | 2+4 | 45.5*23.5*17 | 100 | 15 |
| 6 uF | 40*65 | 370-440V | 2+4 | 45.5*23.5*17 | 100 | 15 |
| 10uF | 45*75 | 370-440V | 2+4 | 50.5*25.5*18.5 | 100 | 16 |
| 12uF | 45*75 | 370-440V | 2+4 | 50.5*25.5*18.5 | 100 | 16 |
| 15uF | 45*75 | 370-440V | 2+4 | 50.5*25.5*18.5 | 100 | 16 |
| 20uF | 45*75 | 370-440V | 2+4 | 50.5*25.5*18.5 | 100 | 16 |
| 25UF | 45*75 | 370-440V | 2+4 | 50.5*25.5*18.5 | 100 | 16 |
| 30UF | 45*100 | 370-440V | 2+4 | 50.5*25.5*13 | 50 | 10 |
| 35UF | 50*100 | 370-440V | 2+4 | 55.5*28.5*13 | 50 | 12 |
| 40UF | 50*100 | 370-440V | 2+4 | 55.5*28.5*13 | 50 | 12 |
| 45UF | 50*100 | 370-440V | 2+4 | 55.5*28.5*13 | 50 | 12 |
| 50UF | 50*100 | 370-440V | 2+4 | 55.5*28.5*13 | 50 | 12 |
| 55UF | 50*125 | 370-440V | 2+4 | 55.5*28.5*15.5 | 50 | 13 |
| 60UF | 50*125 | 370-440V | 2+4 | 55.5*28.5*15.5 | 50 | 13 |
| 65UF | 50*125 | 370-440V | 2+4 | 55.5*28.5*15.5 | 50 | 13 |
| 70UF | 50*125 | 370-440V | 2+4 | 55.5*28.5*15.5 | 50 | 13 |
| 80UF | 50*125 | 370-440V | 2+4 | 60.5*30.5*15.5 | 50 | 14 |
| 25uF+5uF | 50*105 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 13 |
| 30uF+5uF | 50*105 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 13 |
| 35uF+5uF | 50*105 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 13 |
| 40uF+5uF | 50*105 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 13 |
| 45uF+5uF | 50*105 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 13 |
| 50uF+5uF | 50*130 | 370-440V | 2+3+4 | 55.5*28.5*15.5 | 50 | 14 |
| 55uF+5uF | 50*130 | 370-440V | 2+3+4 | 55.5*28.5*15.5 | 50 | 14 |
| 60uF+5uF | 50*130 | 370-440V | 2+3+4 | 55.5*28.5*15.5 | 50 | 14 |
| 65uF+5uF | 50*130 | 370-440V | 2+3+4 | 55.5*28.5*15.5 | 50 | 13 |
| 70uF+5uF | 55*130 | 370-440V | 2+3+4 | 60.5*30.5*15.5 | 50 | 15 |
| 80uF+5uF | 55*130 | 370-440V | 2+3+4 | 60.5*30.5*15.5 | 50 | 15 |
| 30+1.5uF | 50*100 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 12 |
| 30+2 uF | 50*100 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 12 |
| 35+1.5uF | 50*100 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 12 |
| 35+2 uF | 50*100 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 12 |
| 45+1.5uF | 50*105 | 370-440V | 2+3+4 | 55.5*28.5*13 | 50 | 13 |

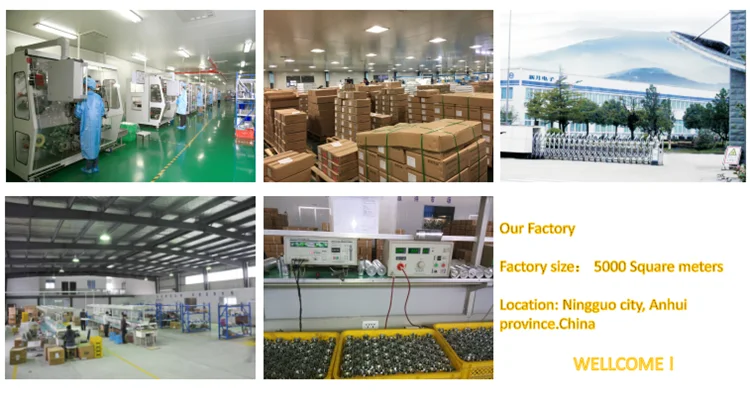

1.More than 15 year's experence in capacitor field about UL,CQC.TUC,CE VDE approval prodtion.
2.We will provide free samples according to your request. Welcome you to visit our factory.
3.Your inquiry and questios will be answered very soon.
Where do you buy CBB65 450v SH AC Motor Run Capacitor UL TUV VDE RoHS Approval?
Ordering and Pricing
- Minimum order quantity: 50 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ac motors?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this ac motors carry?
It is supplied with CE,TUV,VDE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
