The ahu unit listed here carries 220V/50Hz, power 150/71/30W, documented exactly as the manufacturer publishes it. Made by Menred Group Yueqing Import And Export Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ahu Unit
- Model Number: IEC5.350 GB
- Power: 150/71/30W
- Voltage: 220V/50Hz
- Warranty: 3 Years
- Certifications: CE RoHS
- Place Of Origin: Zhejiang, China
Technical Specifications
| Application | ceiling |
|---|---|
| Design Style | Modern |
| Warranty | 3 Years |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | N/A |
| Model Number | IEC5.350 GB |
| Place Of Origin | Zhejiang, China |
| Brand Name | MENRED |
| Voltage | 220V/50Hz |
| Air Volume | 350/250/150m3/h |
| Power | 150/71/30W |
| Noise | 36/29/23dB(A) |
| Effective Air Exchange Rate | 100% |
| Filtration Efficiency | 99% |
| Weight | 35KG |
| Color | white |
| Type | ceiling ventilator |
| Certifications | CE RoHS |
| Packaging Details | Packing quota (pcs/ctn): 1pcs/ctn |
| Port Of Dispatch | Ningbo/Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 20000 pieces per Day air Ahu Unit Factory system |
Product Details
Why Choose Us
1.We are the biggest Chinese production base of HVAC products
2.460 works and 20 years experiences, ISO, CE, RoHS, CCC etc. certificated,120 patents,near Shanghai/Ningbo port.
3.We have our own R&D center, Equipment from Germany, Japan.
No moldy even when the humidity reach 99%, no freeze when the temperature is below 30℃
Features

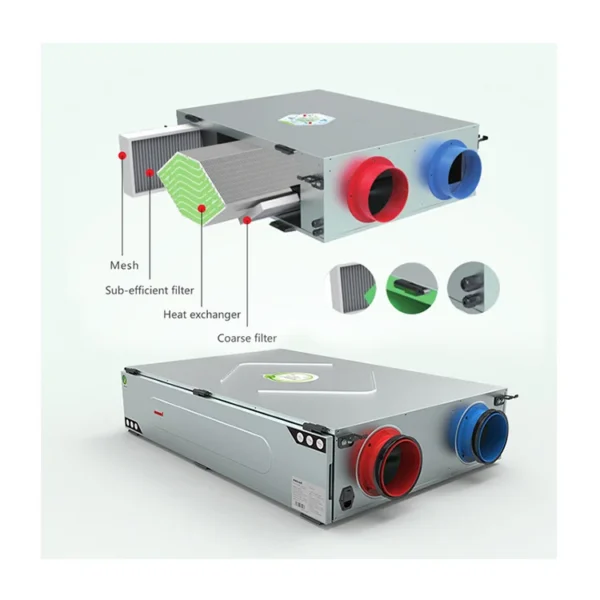

The machine mainly uses EEP and stainless steel materials.
Integrated EEP material: The whole machine adopts one-piece EPP material. EEP is a high end material. It can reduce noise. EEP material has super excellent sealing and heat preservation functions, which effectively reduces energy consumption. Compared with sheet metal material, the machine is lighter. It is anti-shock, durable and acid, alkali, and moisture resistant.
Stainless steel material: the machine surface looks smooth. It’s easy to clean and maintain. It has high plasticity, toughness, mechanical strength and good corrosion resistance.
Filter: The machine uses US 3M filter material, which is able to efficiently filter PM2.5 up to 99% and ensures to provide clean and fresh air.
Motor: We use EMB DC double air inlet motor from Germany; constant flow, high air pressure, and low noise ensure stable and quiet long distance air supply.
The design air volume of the machine is 350m3/h, and the actual max air volume can reach 500m3/h. Higher air volume can be achieved by increasing air volume and wind pressure in the advanced mode.

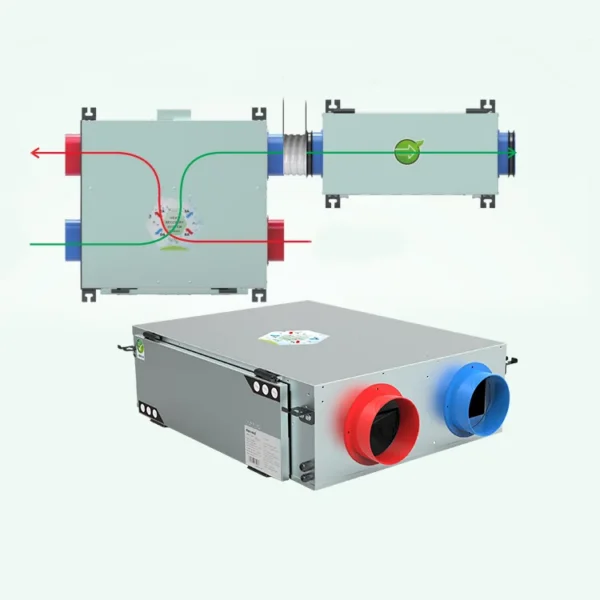

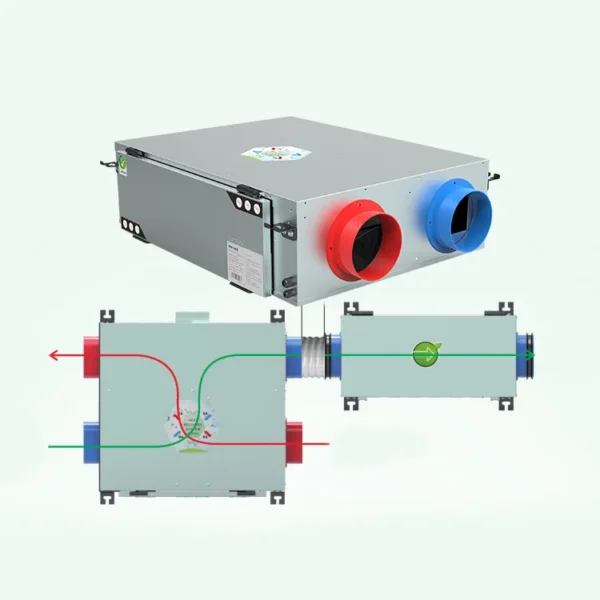

Exchange core: from American DAIS membrane, washable, no leakage, no condensation, no cross contamination, no need drainage device.
Technical data
| Model | IEC5.350 GB |
| Voltage(V/Hz) | 220/50 |
| Air volume(m3/h) | 350/250/150 |
| Power consumption(W) | 150/71/30 |
| Noise(dB(A)) | 36/29/23 |
| Effective air exchange rate(%) | 100 |
| Filtration efficiency(%) | 99 |
| Weight(kg) | 35 |
| Filter model | F1118 |
Filter replacement
1. when the filter usage is less than 10% shown in the controller, it need replacing in time.
2. open the filter cover as shown in the figure
3. take out the filter in the direction shown in the figure
4. put the replaced filter into the corresponded track and close the cover.
5. enter into the filter setting page on the controller and long press filter progress bar for 5 seconds to reset. When the filter shows 100%, the reset is done.
Why Choose Us
1.We are the biggest Chinese production base of HVAC products
2.460 works and 20 years experiences, ISO, CE, RoHS, CCC etc. certificated,120 patents,near Shanghai/Ningbo port.
3.We have our own R&D center, Equipment from Germany, Japan.
Radiant Floor Heating Products:
Thermostats, Electro-thermal Actuators, Thermostatic head and valve,Manifolds &fittings, Water-mixing Center,Wiring Boxes,Energy Meters , PE-Xa pipes
Central Air-Conditioning Products:
FCU Thermostats,FCU Motorized Valves , Electro-thermal Actuators ,Temperature (Humidity) Sensors,University Controller,Modulating Valves & Actuators
Ahu Unit Factory system:
Ventilator and fittings
Central vacuum cleaner system:
Cleaner host and fittings
Intelligent home system
Ecological construction-Radiant heating and cooling system of building construc
We are ambitious, also down-to-earth.Therefore menred has the firm faith,and devote ourselves to developing pragmatic, market-oriented and highly effective strategies at the same time, just because we understand that only win consumers in the future market, we will really get the confidence.
We are able to customize products individually for each of our customers to meet their diverse requirements. Besides that, menred is a popular brand in HVAC industrial in China, for the overseas market, we are professional and experienced for the OEM and ODM service, our products have exported to UK, Germany, Russia, Japan, Finland, Poland, Australia, Brazil etc.
We have passed ISO 9001:2008 as well as ISO14001:2004, and all of our products have acquired the CE certificate. Holding more than 100 patents and 20 software copyrights to protect our intellectual property rights.
Q: Are you a factory?
A: Yes, we are a international trading department belong to MENRED Group, Our Group has three factories,one is in Germany, another two in China.
Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
Q: I can’t find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,
and how many do you want.If we do not have it,we can also design and make a new mould to produce
it.For your reference,making a ordinary mould will take about 35-45 days.
Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.(mainly wire harness) And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cos.If you need many items, or need more qty for each item,
we will charge for the samples.
Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, tsuch as DHL,FedEx,UPS,TNT,EMS.That’s a
Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure
the safety.We will be responsible to any product damage caused on deliver.
Q: Do youu have a guarantee of your product quality?
A: We have a guarantee of one year.
Q: Can I become an Agent / Dealer of MENRED products?
A: Welcome! But please let me know your Country/Area fisrt,We will have a check and then
talk about this.If you want any other kind of cooperation,do not hesitate to contact us.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ahu unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ahu unit carry?
It is supplied with CE RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ahu unit be supplied for my local voltage?
The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Menred Group Yueqing Import And Export Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Menred Group Yueqing Import And Export Co., Ltd. range on HVACR Nexus.
