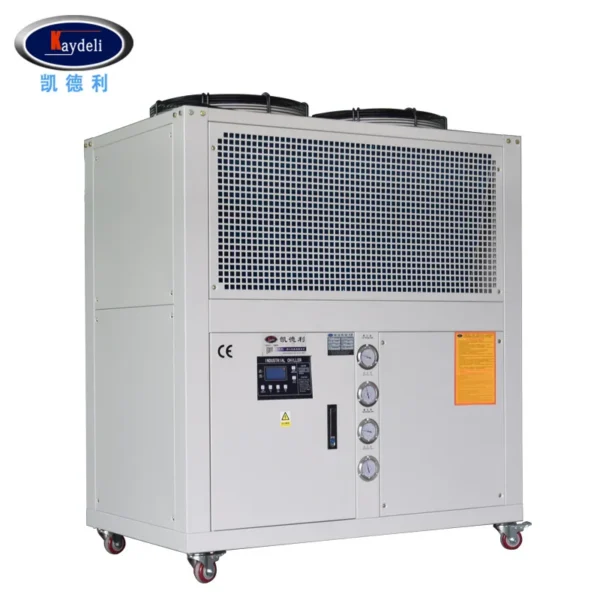

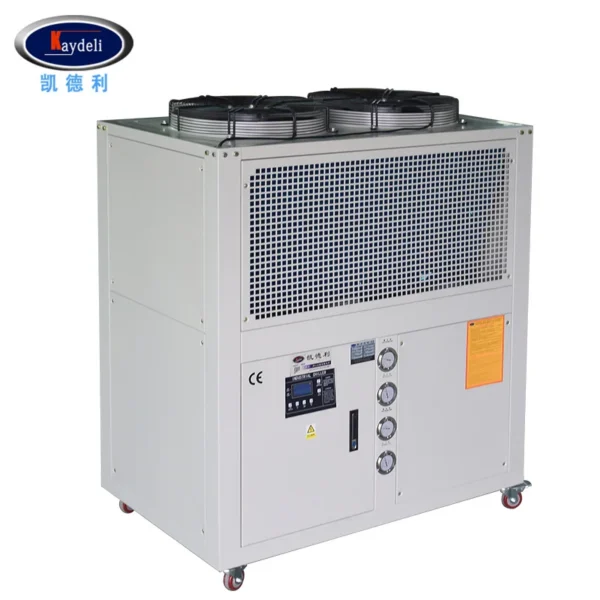

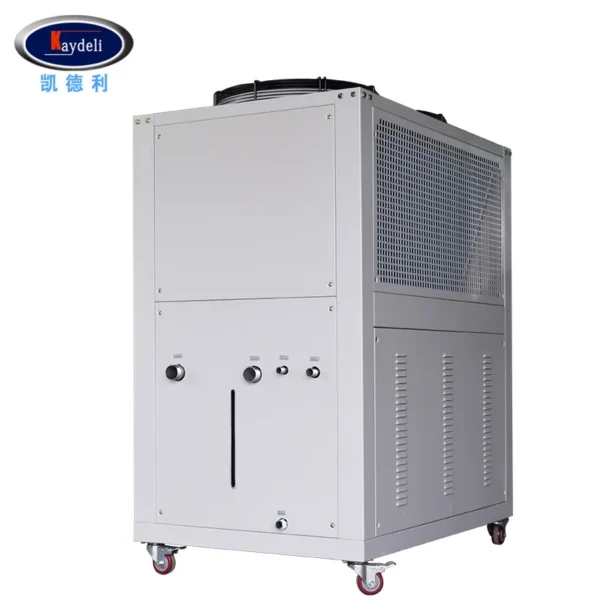

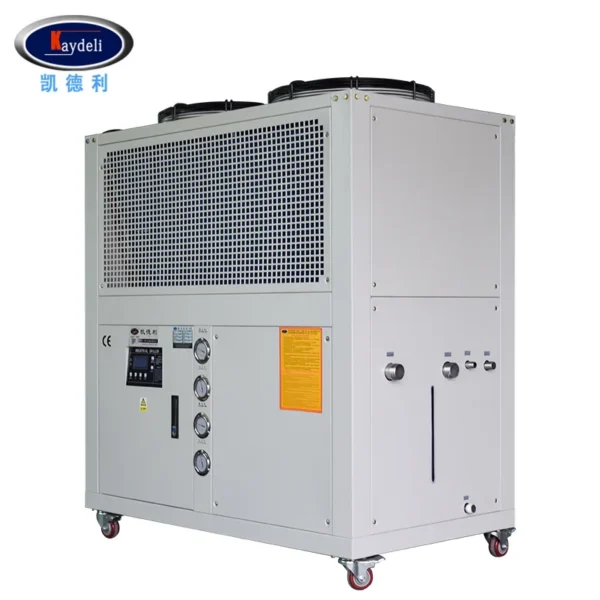

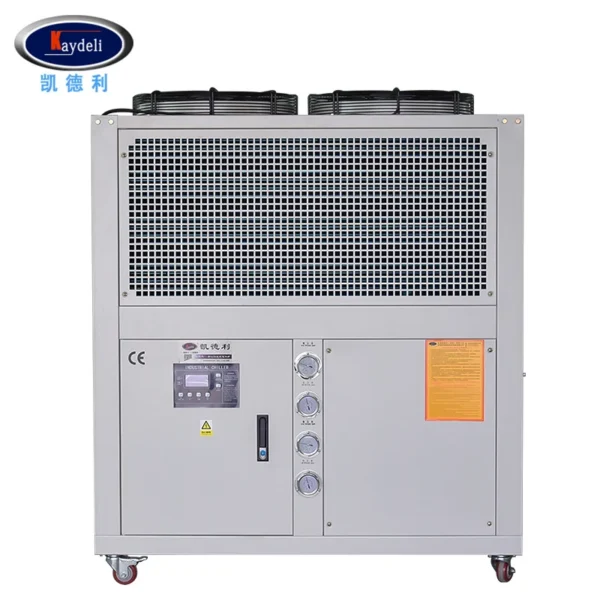

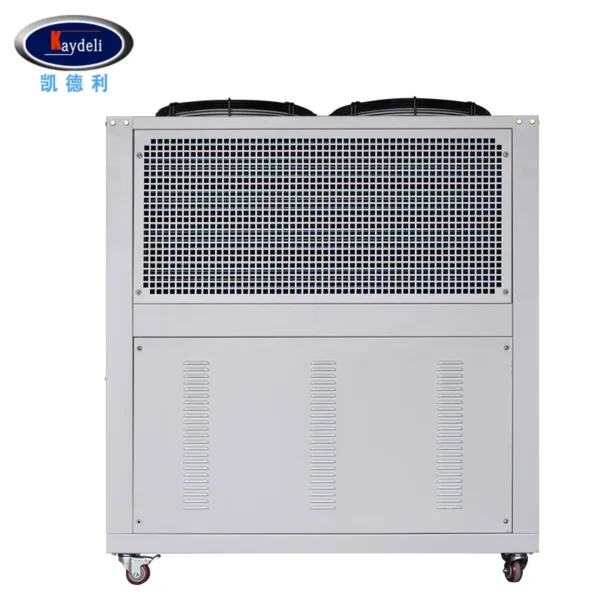

The air cooled scroll chiller listed here carries voltage 3pH-380V-50Hz (200V/220V/415V 50Hz/60Hz), 10HP / 3Ton / 10.5kW / 9,000 kcal/h, documented exactly as the manufacturer publishes it. Made by Shenzhen Kaydeli Refrigerator Equipment Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Cooled Scroll Chiller
- Model Number: KC- 010
- Power: 3.7 kW
- Input Power: 3.7 kW
- Voltage: 3pH-380V-50Hz (200V/220V/415V 50Hz/60Hz)
- Cooling Capacity: 10HP / 3Ton / 10.5kW / 9,000 kcal/h
- Refrigerant: R410a

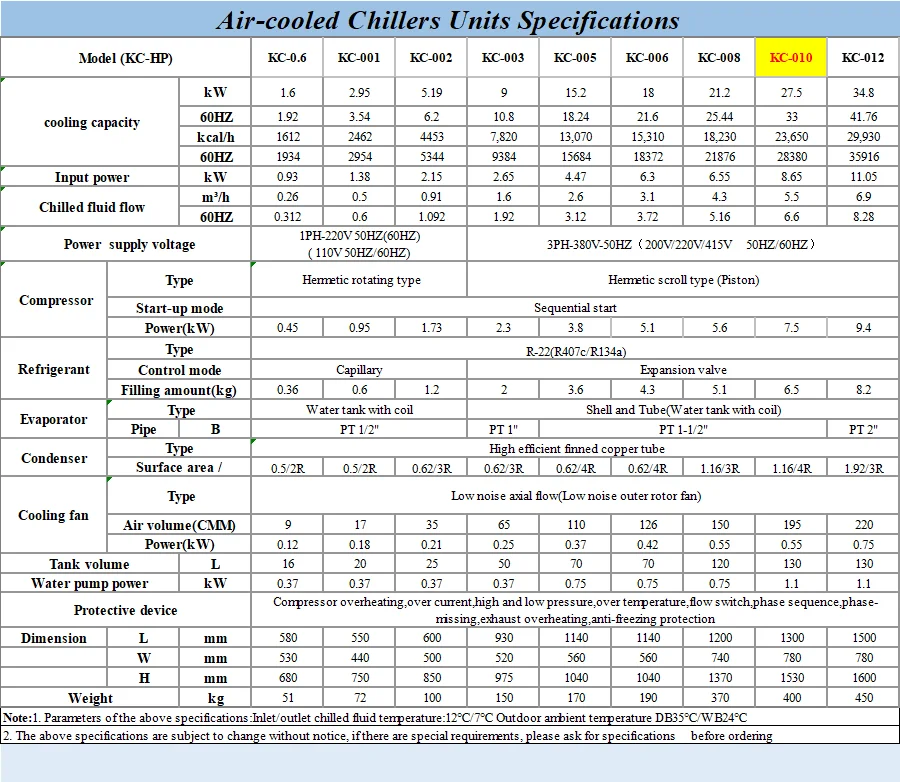

Technical Specifications
| Voltage | 3pH-380V-50Hz (200V/220V/415V 50Hz/60Hz) |
|---|---|
| Power | 3.7 kW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Core Components | Engine, Motor, Pump |
| Model Number | KC- 010 |
| Place Of Origin | China |
| Weight (Kg) | 150 |
| Brand Name | Kaydeli |
| Dimension(L*W*H) | 1300*780*1530mm |
| Certification | ce |
| Cooling Capacity | 10HP / 3Ton / 10.5kW / 9,000 kcal/h |
| Input Power | 3.7 kW |
| Refrigerant | R410a |
| Temperature Range | 5°C ~ 25°C |
| Selling Units | Single item |
| Single Package Size | 130X78X153 cm |
| Single Gross Weight | 410.0 kg |

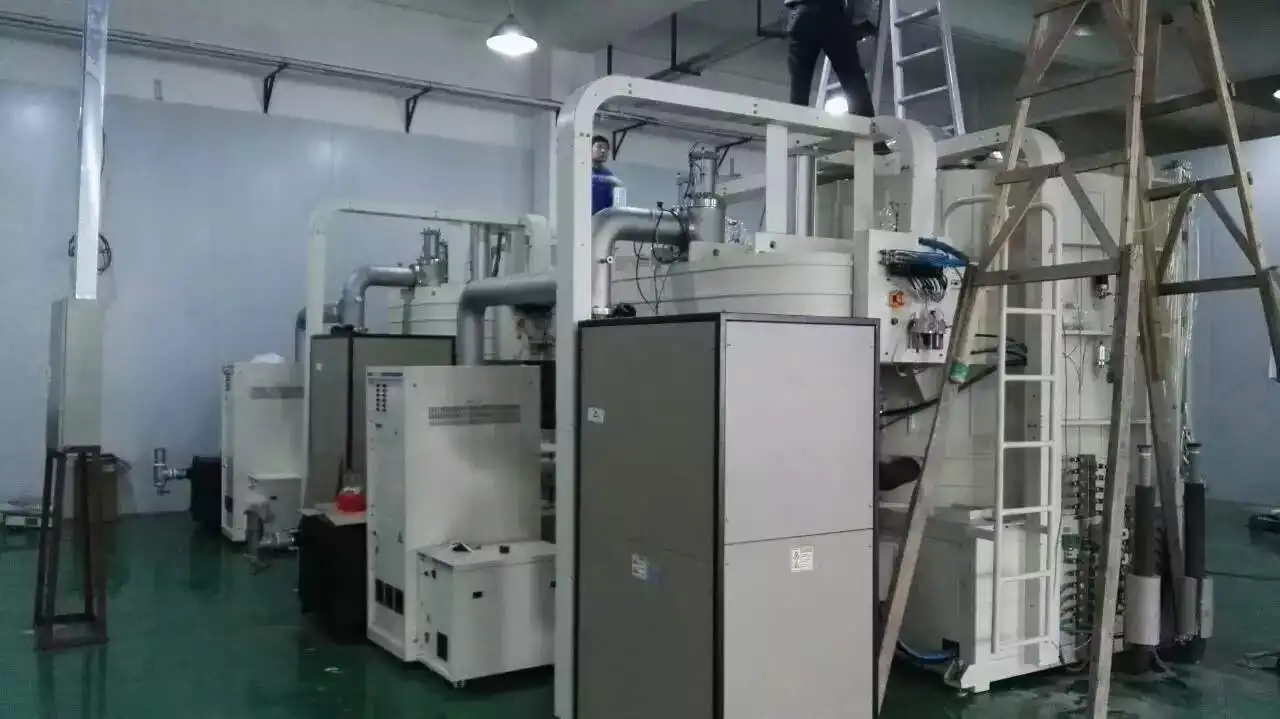

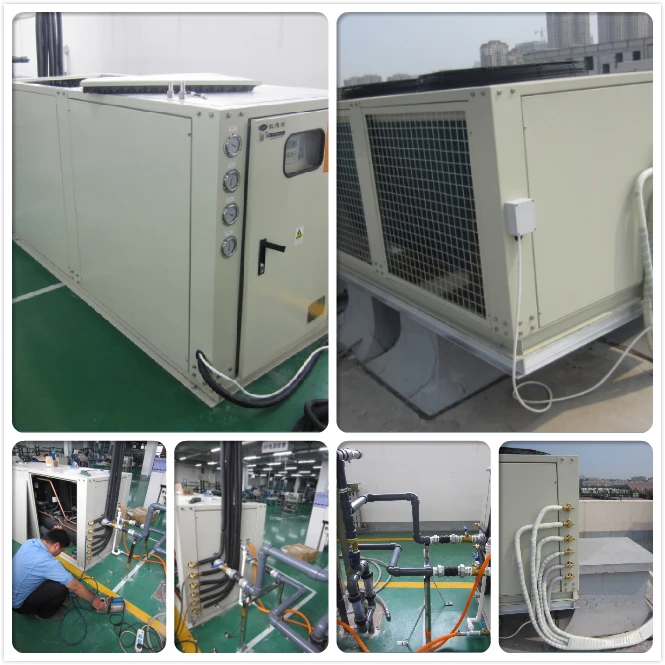

Product Details
Astronomical weather station project
American low temperature project
University's Project
Product Application
KC series industrial chiller is mainly applied in Plastic & Rubber industry; it can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military,
Main Features
opted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.
Chilled water temperature range 5℃ to 35℃.
R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
Microcomputer control system offering accurate temperature stability within ±1℃.
Low noise and big volume air blower.
Standard equipped Iron pump, stainless steel or high lift pump for option.
Multi-protection devices ensure the chiller unit running safely.
The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
KWB water cooled industrial chiller opted shell and tube condenser, features speed heat dissipation and high cooling efficiency, it is good to be used in High ambient temperature area with abundant water.
KC air cooled industrial chiller opted aluminum fin/copper tube type condenser, easy for cleaning and installation.
Power supply: 1PH 220V/50HZ—–1/2HP to 2HP
3PH 380V/415V 50HZ—–3HP to 60HP
Machine Parts
Name: Compressor
Brand: Panasonic/Danfoss/Copeland
Original: Japan/Danmark/America
In the operation, the fuzzy control principle is adopted to balance the running time of the compressor as much as possible to achieve balanced wear and balance the life of the compressor, that is, after the chiller system stopped, the compressor with short running time started firstly, and the compressor with a long running time is started secondly; The energy level adjustment of the two compressors during operation is alternately loaded or alternately unloaded.Extend the life of the compressor and the safety of operation greatly.
Main Features
Name: Electrical components
Brand: Schneider
Original: France
Between energy generation and its usage, Schneider Electric provides technology and integrated solutions to optimize energy usage in markets like energy &infrastructure, industry, data centers, buildings and residential. With a unique portfolio in electrical distribution, industrial automation, critical power & cooling, building management and security, Schneider Electric is the only global specialist in energy management and a world leader in energy efficiency.
Machine Parts
Name: stainless steel water tank with coil evaporator
Brand: Kaydeli
Original: Shenzhen.China
Kaydeli evaporator of the chiller adopt high-efficiency heat transfer tubes, and the main engine adopts imported high-efficiency fully enclosed scroll compressor with structure compact, small size, light weight,small installation position and many other advantages.
Main Features
Name: Stainless Steel Finned condenser
Brand: Kaydeli
Original: Shenzhen.China
Kaydeli Condenser adopt high-efficiency heat transfer tubes, and the main engine adopts imported high-efficiency fully enclosed scroll compressor with structure compact, small size, light weight,small installation position and many other advantages.
PUNP control system:
Name: Computer control system
Brand: Kaydeli
Original: Shenzhen.China
Simple and intuitive operation: the unit adopts microcomputer program controller (English display / digital tube display), follow the prompt menu on the screen/panel to select the operation, straight start the unit with the touch of a button at the touch of a button. The panel can display the running status of the unit at any time, and can be used as a text table.The way of the grid parameter is displayed at a glance.
Pre-Sales Service
* Inquiry and consulting support.
* Production plan making support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1200 (L) * 1050 (W) * 1250 (H) | |
Weight | 320kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 1200 (L) * 1050(W) * 1250 (D) | |
Weight | 320kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Q1. Do you have any MOQ limit for chiller? A: Low MOQ, 1pc for sample checking is available. Q2. How do you ship the goods and how long does it take to arrive? A: We usually ship by sea, we could ship the standard chiller in 3-15 days, customized chiller in 25-35working days. Q3. Do you offer guarantee for the products? A: Yeas, we offer 12 months warranty to our products. Q4: Where the application? A: Our products have been widely used in many industries, like Plastic machinery,PCB Machinery, New Energy industry,Pharmaceutical Industry, Petrochemical industry, Environmental protection industry and other industries. Q5: Are your products can be customized? A: Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius and EXDIIBT4 Explosion-proof chiller. Q6: Whats your payment term? A: International term-30% deposit for production, 70% balance before shipment.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–14 set: US $4499 / set
- 15–29 set: US $4399 / set
- 30+ set: US $4299 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled scroll chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

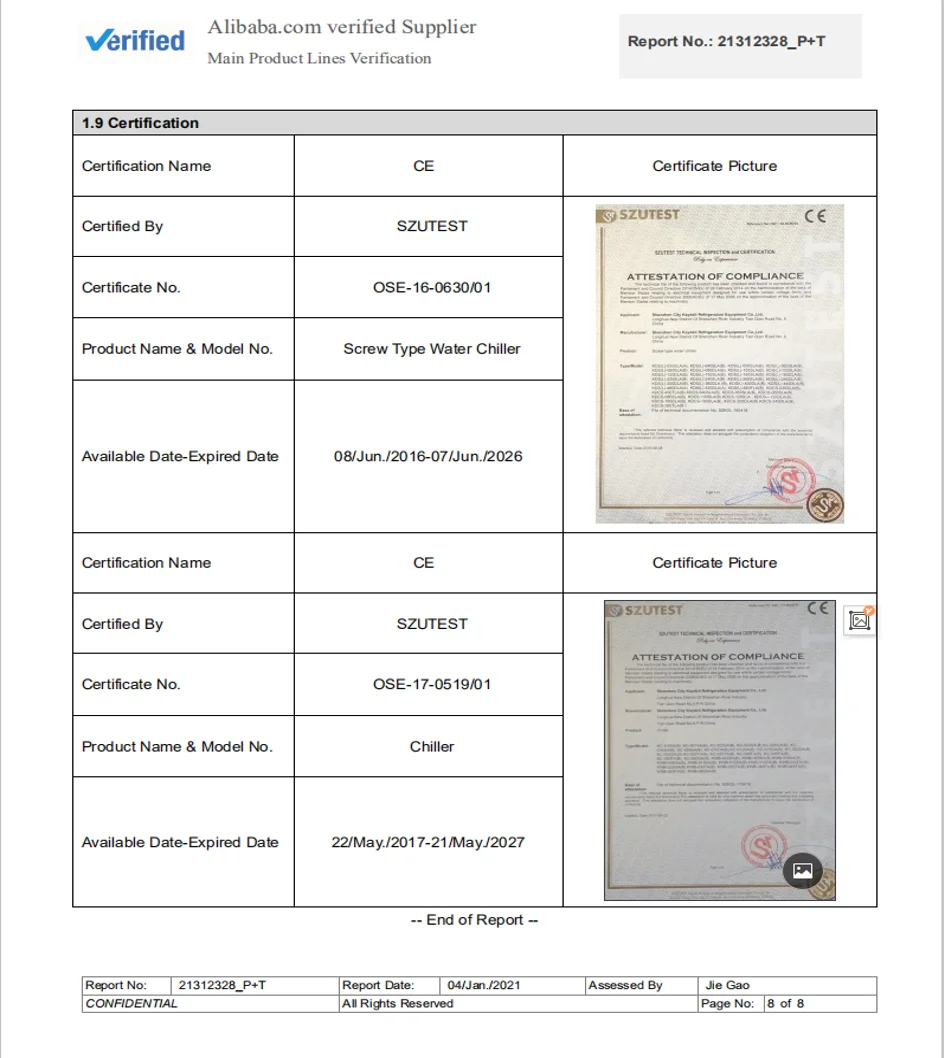

Which certifications does this air cooled scroll chiller carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the air cooled scroll chiller be supplied for my local voltage?
The standard configuration is 3pH-380V-50Hz (200V/220V/415V 50Hz/60Hz). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

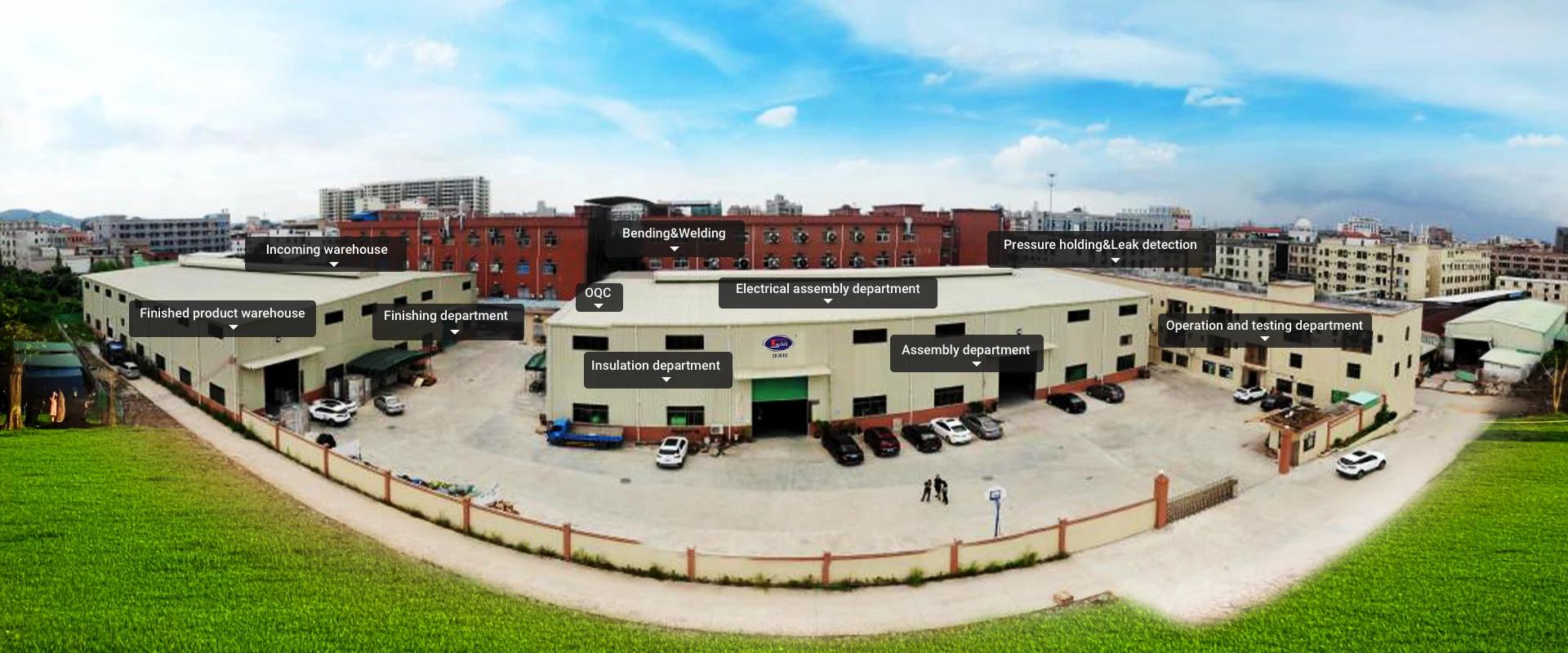

About the Manufacturer

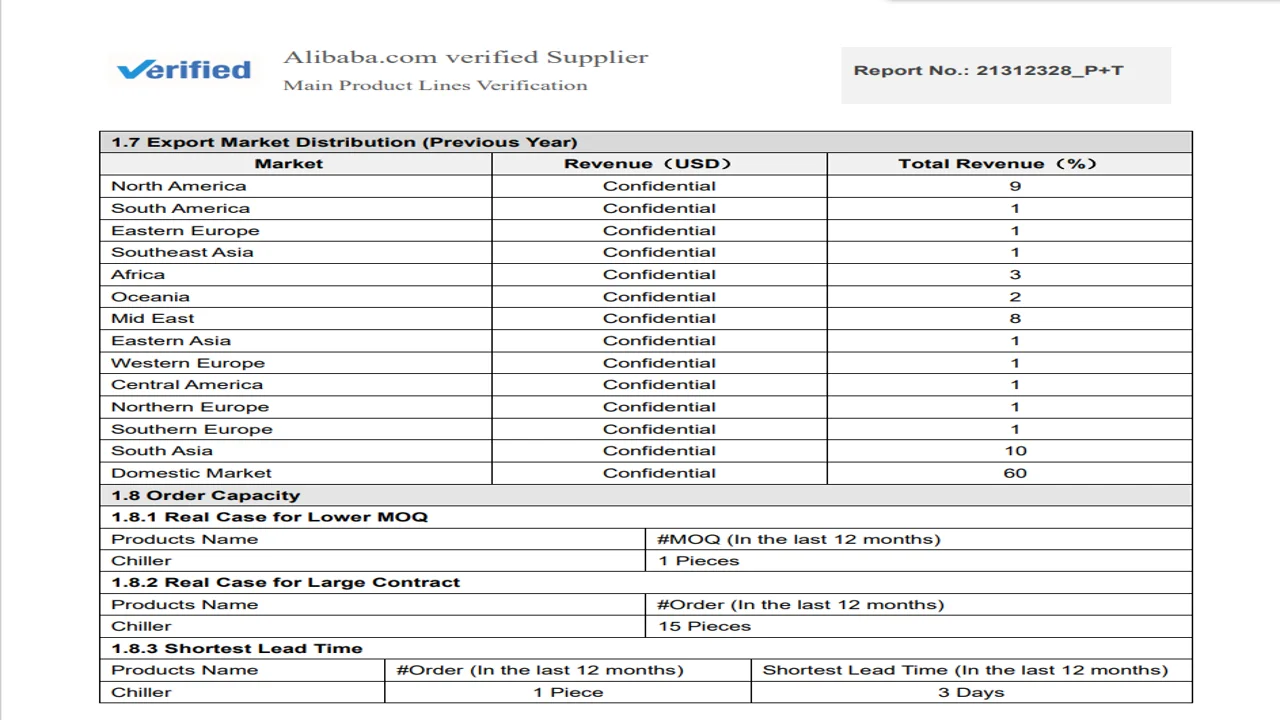

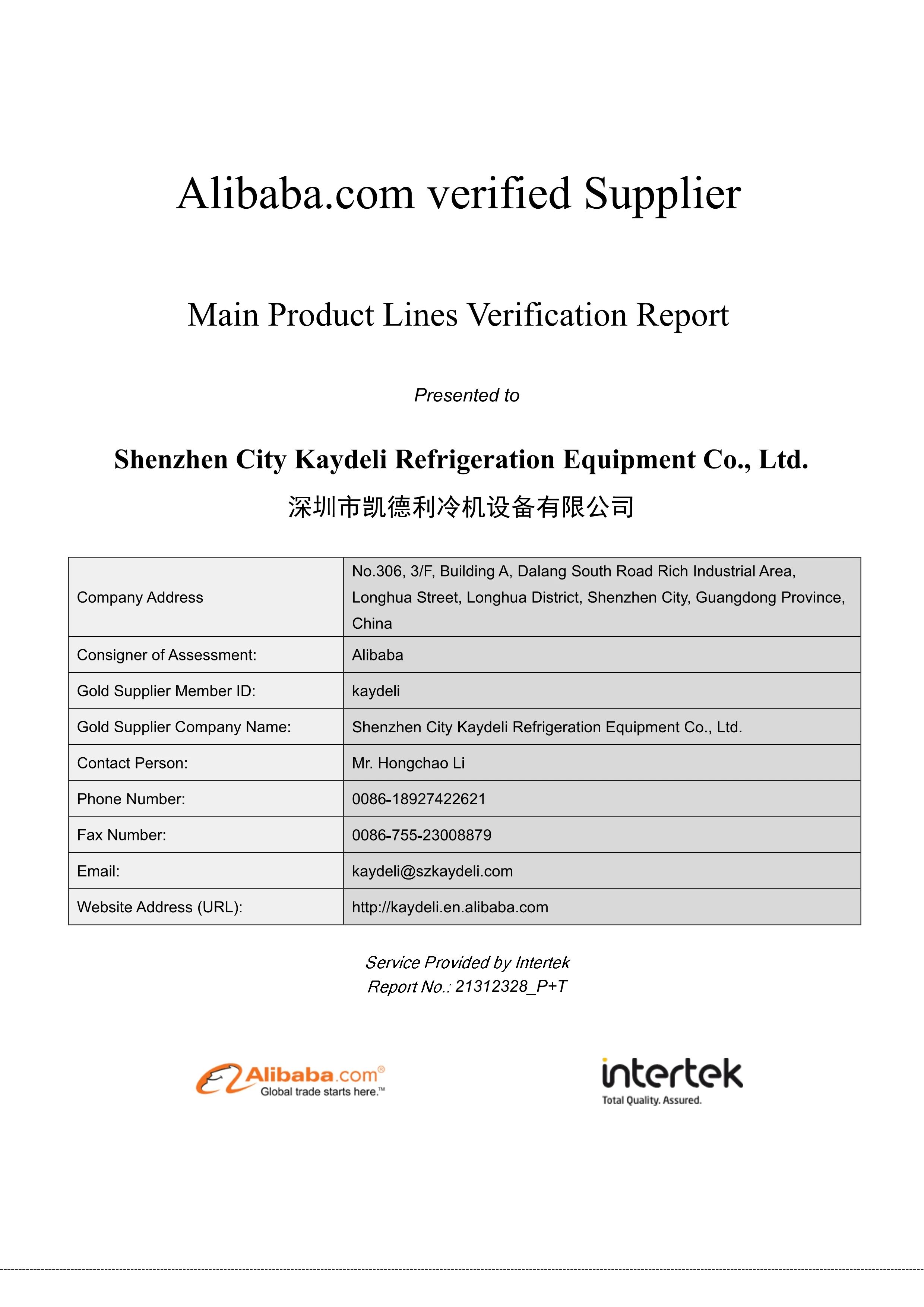

This product is produced by Shenzhen Kaydeli Refrigerator Equipment Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Kaydeli Refrigerator Equipment Co., Ltd. range on HVACR Nexus.
