Air Cooled Water Chiller, 380 V, R-410A

Key specification for this air cooled water chiller: 380 V, AC 3PH 380V, refrigerant R-410A, R-32. Everything below is reproduced from the factory data sheet. Made by Dongguan Blue Penguin Mechanical and Electrical Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Cooled Water Chiller

• Model Number: JL-LS15
• Power: 1.2 kW(1.61hp), 45 W, 1.35KW(1.81hp), 11.6KW(15.56hp), 1500 W
• Voltage: 380 V, AC 3PH 380V
• Refrigerant: R-410A, R-32
• Warranty: 1.5 year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

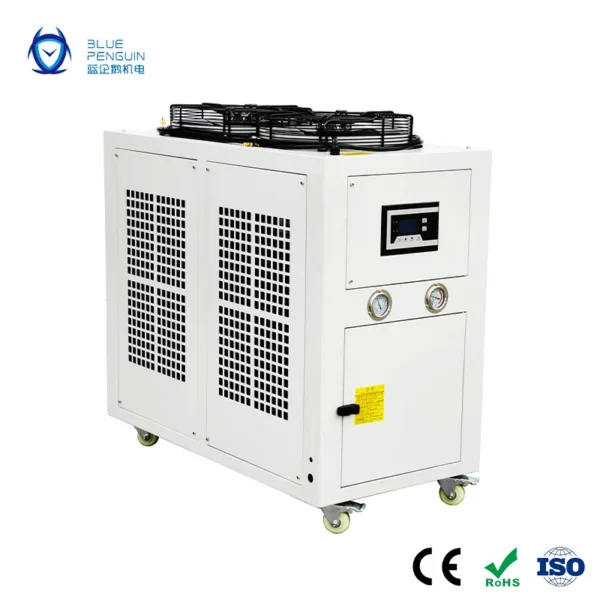

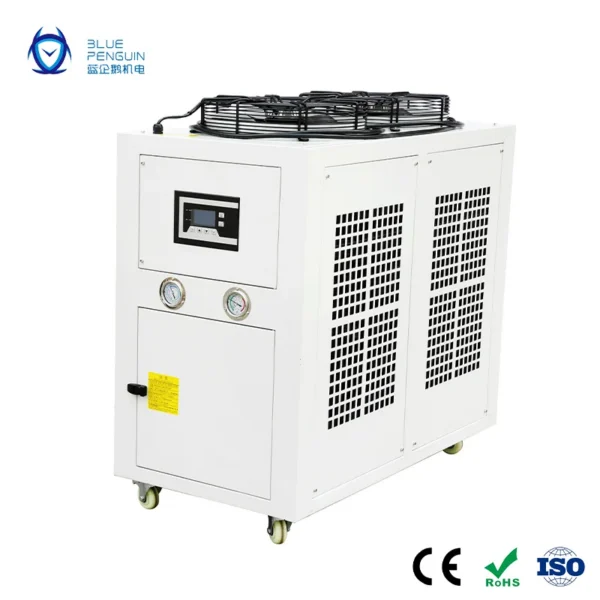

Air-cooled chiller

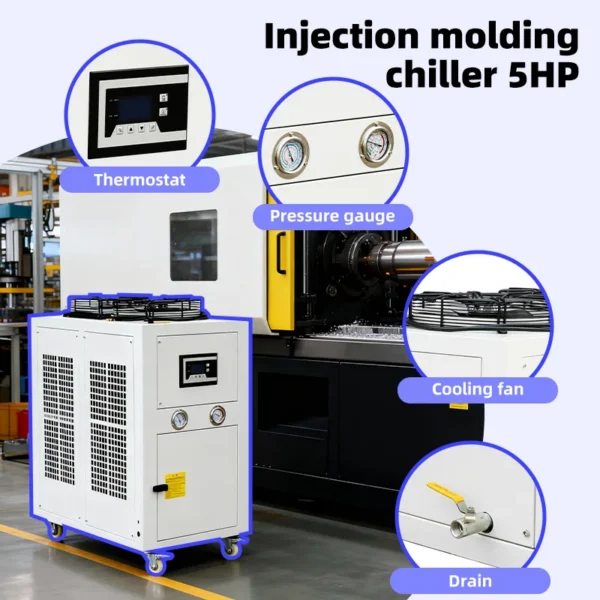

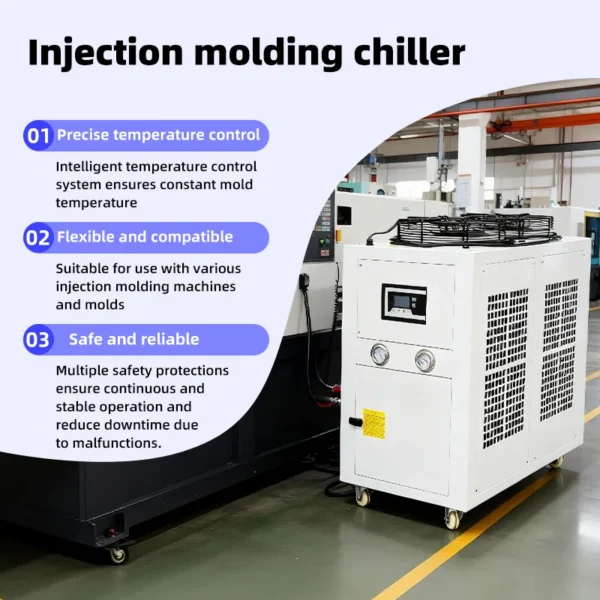

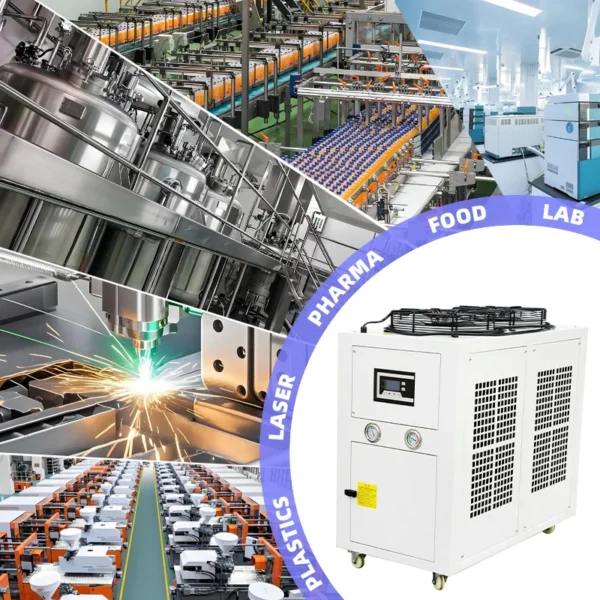

Air-cooled chillers can be widely applied in various industries: for instance, in the plastic industry, they are used in injection molding, blow molding, bottle blowing, extrusion, and film blowing. Chillers can precisely control the temperature inside related

molds or containers to shorten the molding cycle, accelerate product setting, prevent product deformation and shrinkage, and also

enhance the surface smoothness and transparency of plastic products. They are also suitable for cooling in UV printing, CNC machine tools, electroplating, electrophoresis, ultrasonic cleaning, titanium material and beer industries, medical equipment, laser welding, and other industries where water needs to be cooled.

Model			LQE-15AC		JL-LS15
Rated Cooling Capacity	7℃	Kcal/h	32216
				KW	37.46
				Tons	10
		12℃	Kcal/h	38889
				KW	45.22
				Tons	12
Total Input Power			KW	14.65
Power Supply					3PH 380V-415V 50HZ/60HZ
Refrigerant	Type			R22/R407C/R410A/R134A
		Expansion Valve			Externally Balanced Thermostatic Expansion Valve
Compressor	Type			Hermetic Scroll Compressor
		Power	KW	3.75*3
Condenser	Type			High-Efficiency Copper Tube & Aluminum Fin + High Airflow Low-Noise External Rotor Fan(s)
		Air Flow	m³/h	15000
		Fan Power	KW	0.6*2
Evaporator	Type			Tank with Copper Tube Coil / Dry Shell and Tube
		Chilled Water Flow	m³/h	7.1
		Tank Capacity	L	270
		Water Pipe Connection	inch	2
Water Pump	Power	KW	2.2
		Head	M	20
Overall Dimensions			MM	1830*850*1870

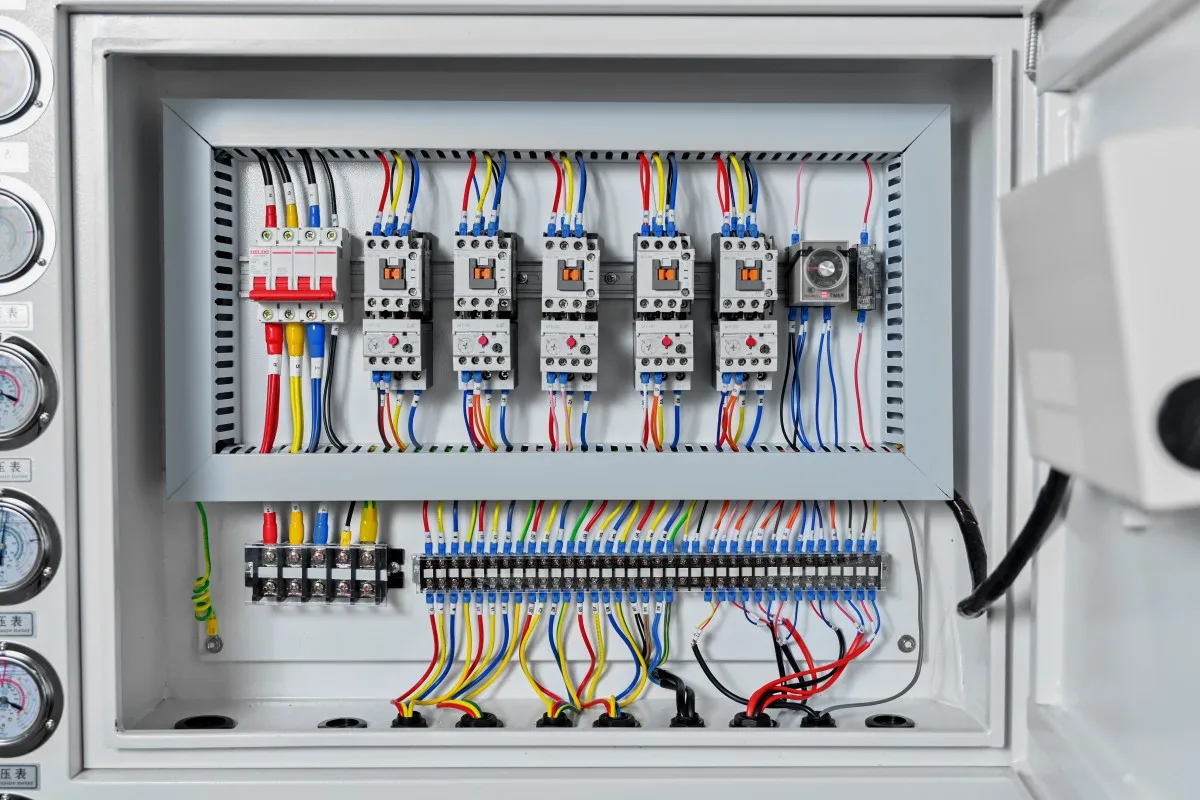

The contactor and thermal relay:

adopt Schneider from France and are equipped with multiple protection devices such as reverse phase protection, current overload protection compressor high/low voltage protection, and delay protection,

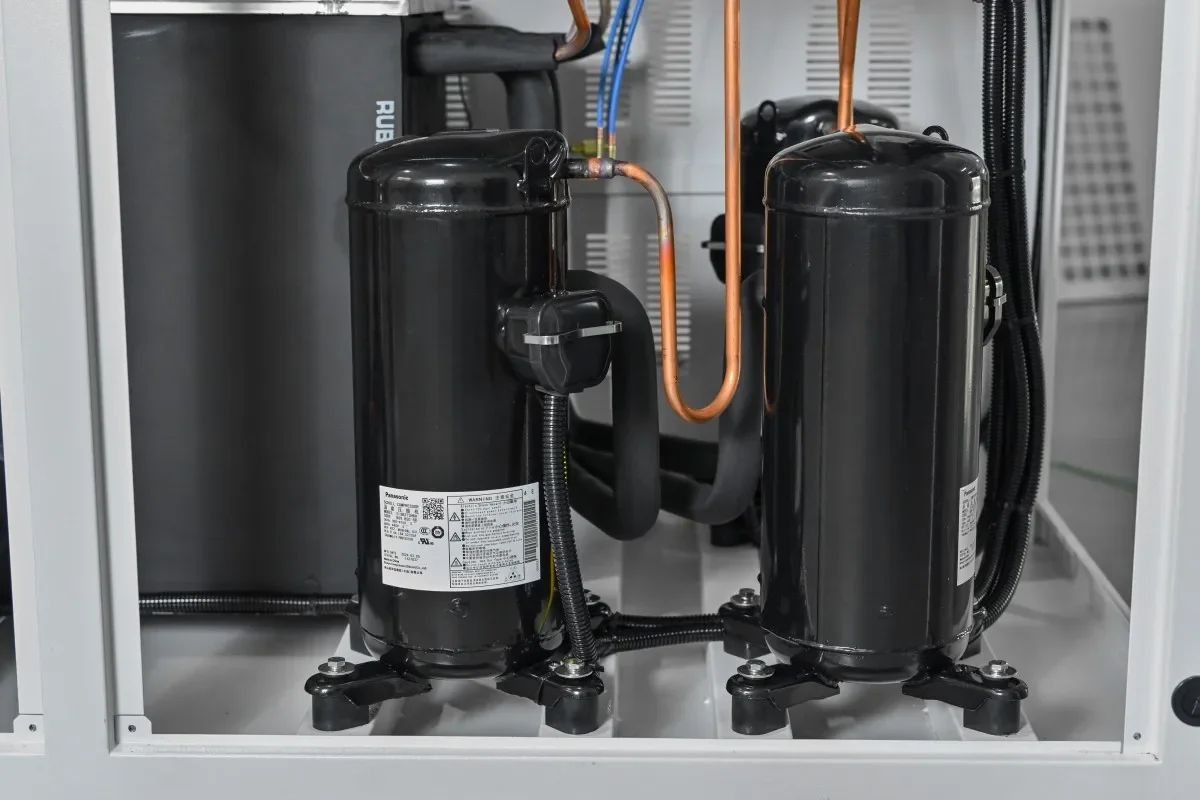

imported compressors:

This product uses brand new imported compressors:Panasonic from Japan,Daikin from Japan, Gulun from the United States, and other brands, which make the energy efficiency ratio of the product higher.

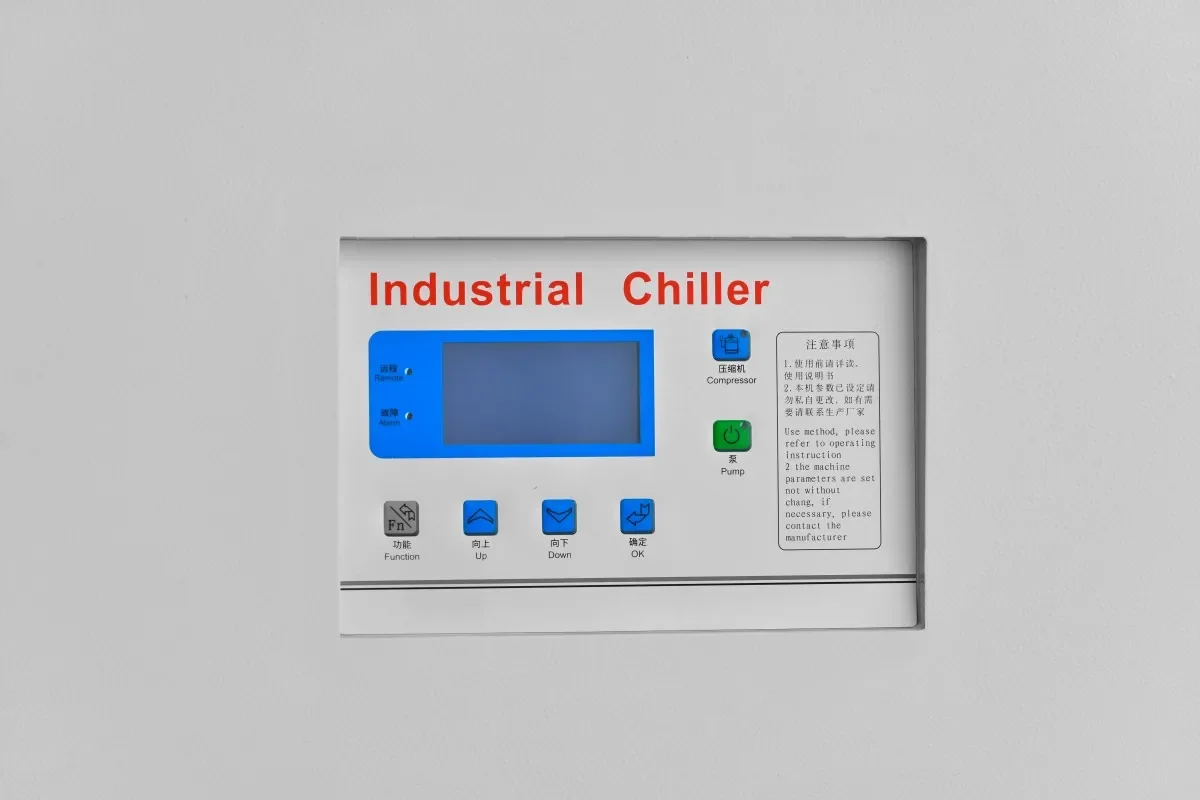

control panel:

This product features a touch sensitive waterproof/dust proof control panel,with adjustable cooling temperature ranging from 3 to 40
degrees Celsius.The control system adopts a modular design

1.How to choose the appropriate voltage and refrigerant?

Please contact customer service and provide the specific country where the product is used. We will recommend voltage and refrigerant that are suitable for your country based on our experience.

2.Does it support customization and OEM production?

Fully supported, can be customized according to your needs, and provide OEM services.

3.How many days is the delivery time?

Standard products take 3-5 days, customized products do not exceed 30 days. Please contact customer service for specific details.

4.What aspects of technical support can be provided?

We can provide equipment selection, installation guidance, after-sales tracking, free accessories during the warranty period, and accessories at cost price after the warranty period.

5.Freight and Payment Terms?

Transportation methods: EXW, FOB, CIF, DDP are all supported. Payment methods: online payment, bank transfer, etc

6.How to get discounts?

For more than 2 sets, please contact customer service for discounts.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1+ piece: US $1900 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air cooled water chiller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the air cooled water chiller be supplied for my local voltage?

The standard configuration is 380 V, AC 3PH 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Dongguan Blue Penguin Mechanical and Electrical Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Blue Penguin Mechanical and Electrical Equipment Co., Ltd. range on HVACR Nexus.
