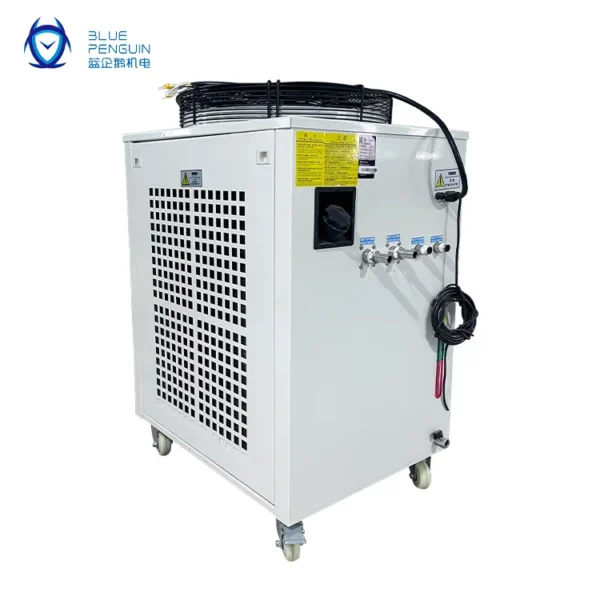

Fiber laser water chiller — 380 V, 220 V, 110 V, 3HP, refrigerant R-410A. The complete factory specification follows. Made by Dongguan Blue Penguin Mechanical and Electrical Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Fiber Laser Water Chiller
- Model Number: JLFL-6000 (Dual In / Dual Out)
- Power: 3 kW, 750 W, 0.75 kW, 4 kW, 500 W, 1.35KW, 1200 W, 5050W
- Voltage: 380 V, 220 V, 110 V, 3HP
- Refrigerant: R-410A
- Warranty: 2 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 380 V, 220 V, 110 V, 3HP |
|---|---|
| Power | 3 kW, 750 W, 0.75 kW, 4 kW, 500 W, 1.35KW, 1200 W, 5050W |
| Refrigerant | R-410A |
| Pump Type | Vane Pump |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate, Accurate Temperature Control, High-Accuracy, Automatic, High Productivity, Eco-Friendly, Long Service Life, Patented Product, Competitive Price |
| Core Components | PLC, Pump, Pressure Vessel, Engine, Bearing |
| Container Volume | 45L |
| Model Number | JLFL-6000 (Dual In / Dual Out) |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 100 |
| Brand Name | Blue Penguin |
| Dimension(L*W*H) | 750*570*1020MM |
| Working Temperature Range | 5-35℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model | JLFL-6000 |
Working Voltage | AC 3PH 380V |
Operating Current | 2.7-14A |
Operating Frequency | 50HZ |
Rated Power Input | 5050W |
Refrigerant | R410a |
Pump Voltage/Power | 220v/750W |
Max. Head | 47M |
Max. Flow Rate | 4m³/h |

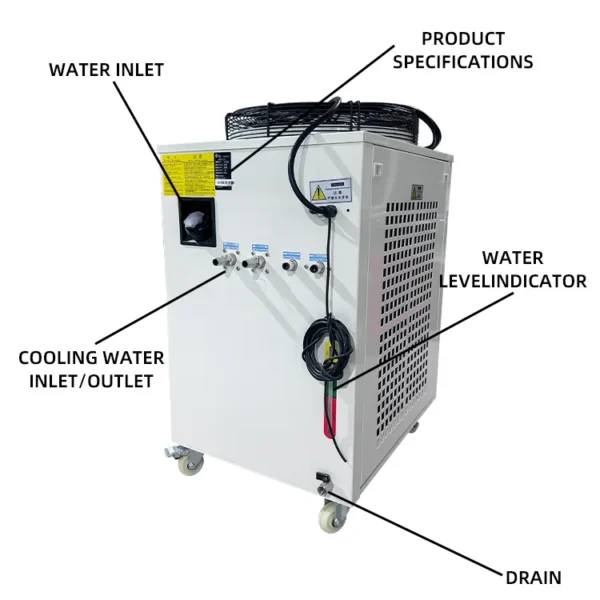

Inlet/Outlet Port | Rp1/2"*Rp3/4" |
Cooling Water Tank Maximum Capacity | 45L |
Cooler Dimensions(L*W*H) | 750*570*1020MM |
Packaging Dimensions(L*W*H) | 780*590*1160MM |
Net Weight | 100KG |
Gross Weight | 110KG |
Protection Functions | Water flow protection, water temperature ultra-high alarm, water temperature ultra-lowalarm,compressor overload protection,roomtemperature ultra-high alarm |
1.Is Blue Penguin Chiller a trading company or a manufacturer?
2.What type of water is recommended for use in industrial chillers?
3. How often should the water in an industrial chiller be changed?
However, the frequency may vary depending on the actual operating environment. For instance, in particularly harsh conditions(e.g., dusty, high-temperature, or humid settings), changing the water monthly or even more frequently is advisable.
4.What is the ideal ambient temperature for an industrial chiller?
ventilation and temperature control help maintain efficiency and prevent overheating.
5. How can I prevent my chiller from freezing?
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1618 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fiber laser water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the fiber laser water chiller be supplied for my local voltage?
The standard configuration is 380 V, 220 V, 110 V, 3HP. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Blue Penguin Mechanical and Electrical Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Blue Penguin Mechanical and Electrical Equipment Co., Ltd. range on HVACR Nexus.
