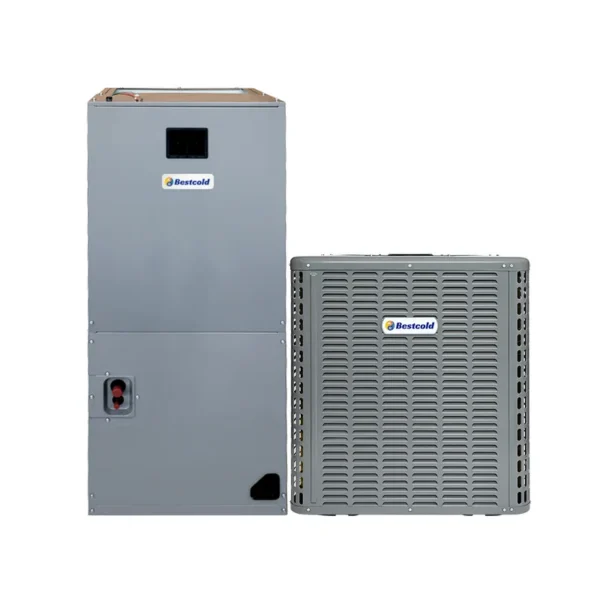

Air Handler Unit, SEER2, R32

FAQ:

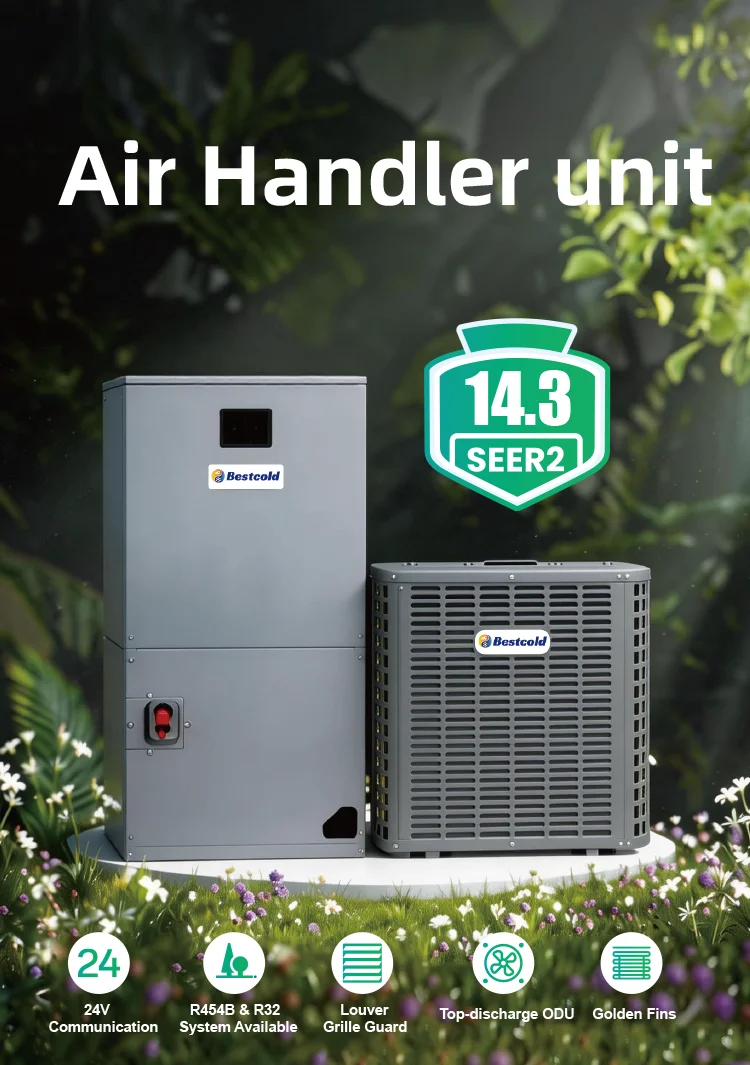

Q: What is the SEER2 rating and does it meet current US efficiency requirements?
A: The matched system achieves up to 14.3 SEER2 Region IV meeting the 2023 DOE minimum efficiency requirements for residential central AC systems. This ensures installations pass code inspections and may qualify for local utility rebates.
Q: What refrigerant options are available and are they compliant with EPA regulations?
A: The air handler supports R454B GWP 467 and R32 GWP 675 refrigerants. R454B is the designated next-gen replacement for R410A under the EPA AIM Act phasedown schedule with production cuts starting 2025. Choosing R454B models future-proofs inventory against regulatory restrictions.
Q: Why is front discharge important? What installation scenarios does it suit?
A: Front discharge directs airflow straight out from the front of the unit ideal for installations where side or top clearance is limited such as tight closets mechanical rooms with adjacent equipment or wall-mounted setups. It simplifies duct connections in constrained spaces reducing installation labor and material costs.
Q: What installation positions are supported? Can it fit different room layouts?
A: The air handler supports multi-position installation – upflow downflow and horizontal configurations. Compact dimensions 18K/24K at 522 by 381 by 915 mm and 30K/36K at 559 by 485 by 1006 mm fit standard residential framing. Net weight ranges 40.3 kg for 18K/24K and 51.6 kg for 30K/36K manageable for single-person handling.
Q: Is it compatible with third-party thermostats and control systems?
A: Yes. The Bestcold air handler features 24V communication compatibility working with standard 24V thermostats and third-party controls without proprietary wiring. This eliminates the cost of branded controllers lowering total installed system cost and giving contractors full thermostat choice.
Q: What safety features are built in? Is an auxiliary heater available?
A: A built-in refrigerant leakage sensor detects refrigerant loss and triggers automatic shutdown preventing compressor damage and environmental release. The galvanized steel cabinet with corrosion-resistant paint withstands humid basements and attics. An optional auxiliary electric heater extends heating capacity for cold climate zones without needing a separate furnace.
Q: What capacity models are available and how do I select the right one?
A: Bestcold offers seven air handler models ranging from 18K to 60K BTU/h – 18K, 24K, 30K, 36K, 42K, 48K, and 60K. Select the model based on your project's required cooling load (BTU/h) and the matching condensing unit capacity. The 18K-30K units fit smaller residential zones, while 36K-60K covers larger residential and light commercial spaces. All models operate on 208/230V / 60Hz / 1-Phase power.
Q: What motor is used and what are the benefits of ECM over PSC?
A: Bestcold air handlers use two motor types depending on capacity: 18K and 24K models come with PSC (Permanent Split Capacitor) motors for cost-effective standard operation; 30K through 60K models feature ECM (Electronically Commutated Motor) DC inverter technology. ECM motors deliver variable-speed airflow for more precise temperature control (±2°F), lower energy consumption, and significantly quieter operation compared to PSC motors.
