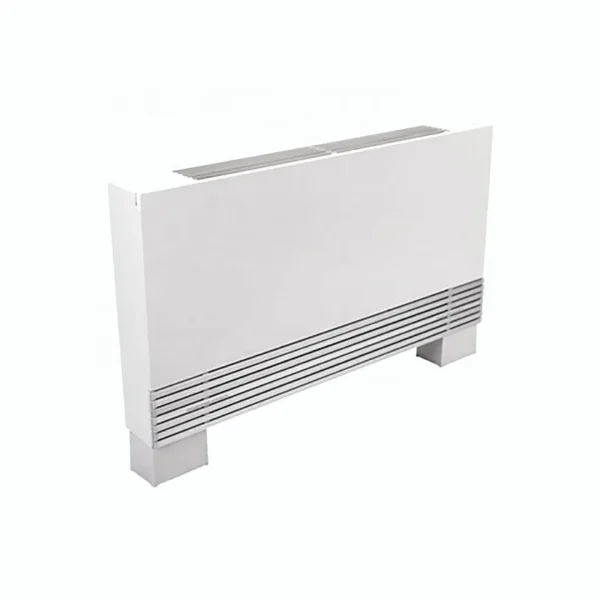

Vertical Low Noise Fan, Customize, 220V

Ultra Thin Floor Standing Fan Coil Unit

1. The vertical fan coil is suitable for hotel or home decoration.
2. The fan coil has a beautiful design and can be well matched with the overall decoration style.

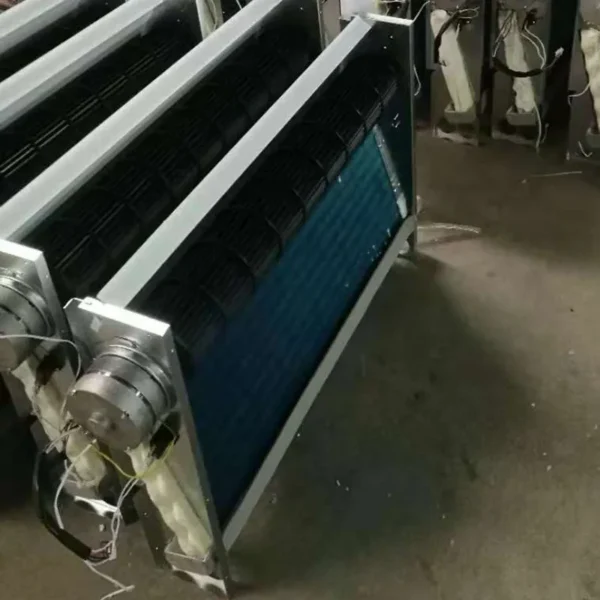

3. The evaporator of the fan coil uses gold heat-dissipating fins for better heat exchange performance and corrosion resistance.

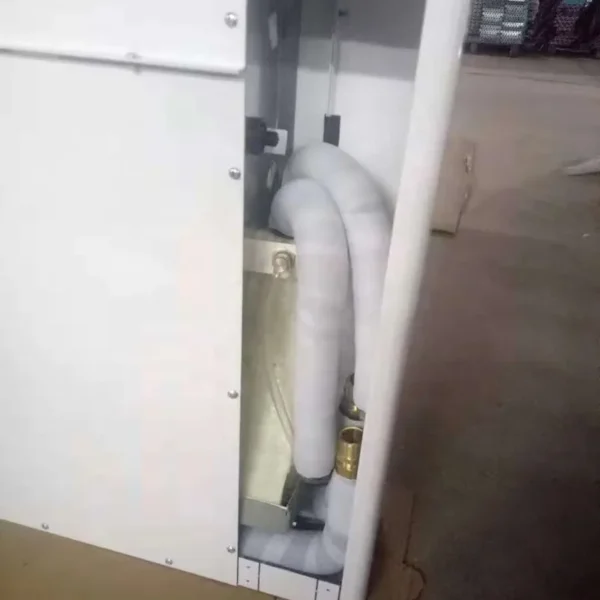

4. The machine adopts the design of left and right double connecting water pipes, which is suitable for most installation environments.
5.This fan coil can be hung in the lower part of the wall.

Main Feature:
1. All copper connection pipe interface.
2. Aluminized zinc plate body.

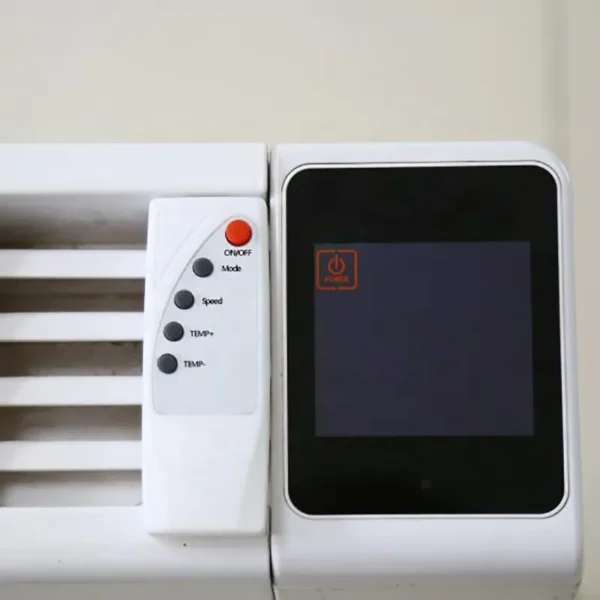

3. Full LCD touchpad with remote control.

Original double-sided connecting tube design

All the parts of the product are processed by ourselves, and we can guarantee the quality of our products ourselves.



Model			Flow 680	Flow 850	Flow 1020
Air flow (m3/h)	High speed		680	850	1020
	Medium speed		520	600	780
	Low speed		400	510	600
Cooling capacity	HIGH	W	3290	4020	4650
	Medium	w	2650	3200	3900
	Low	w	2060	2410	3650
Heating capacity	HIGH	W	4530	6040	6840
	Medium	w	3870	4510	5160
	Low	w	3100	3610	4130
Power supply			AC220V/50Hz
Power input			13W	18W	25W
Waterflow volume	m3/h		0.95	1	1.1
Water tube connection (inlet)	INCH		3/4’’
Water tube connection (outlet)	INCH		3/4’’
Maximum working Pressure	MPA		16	16	16
Condensation pipe size(diameter )	Mm		8 diametre *0.22 wall thickness	8*0.22	8*0.22
Noise dB(A)	HIGH		40	41	45
	Medium		38	40	43
	LOW		36	38	42
Cooling Area			20	25	30
Heating Area			25	30	35
Outside dimension (L*W*H)			950*130*570	1050*130*570	1250*130*570



Delivery

TIME OF DELIVERY:within 35 days after receiving deposit .



Payment

1) Support T/T , L/C

2) TERMS OF PAYMENT : 30% in advance,70% before shipment.



Warranty

1) The whole machine for 1 years.



After-sale

During the warranty period, machines which cannot run due to quality problems,Choose the following options.

1) Free replacement of all parts and related parts at the fault place, freight deducted from next order

2) The new machine will be replaced for free in the next order.



Agent support

1) The consultation of other local customers will be forwarded to you, and you will become the exclusive agent for our local business negotiations.

2) No longer set up the same level of agents in any local area.

3) If a local retailer purchases from us, the local agency commission will be given.



Promotion Method

1) After receiving the goods, the evaluation video feedback will give a 0.5% discount on the next order.

2) 2% discount on full payment in one lump sum.

3) Promote our products at local stores, or introduce other local sellers to give 3% discount on the next order.

1.what is fan coil in air conditioning?
Fan Coil Unit. A fan coil unit (FCU) is a device that uses a coil and a fan to heat or cool a room without connecting to ductwork. Indoor air moves over the coil, which heats or cools the air before pushing it back out into the room.
2.what is fan coil unit for chilled water?
Fan coil units circulate hot or cold water through a coil in order to condition a space. The unit gets its hot or cold water from a central plant, or mechanical room containing equipment for removing heat from the central building's closed-loop.
3.what is fan coil unit for hvac?
A fan coil unit (FCU), also known as a Vertical Fan Coil-Unit (VFC), is a simple device consisting of a heating and/or cooling heat exchanger or 'coil' and fan. It is part of an HVAC system found in residential, commercial, and industrial buildings.
