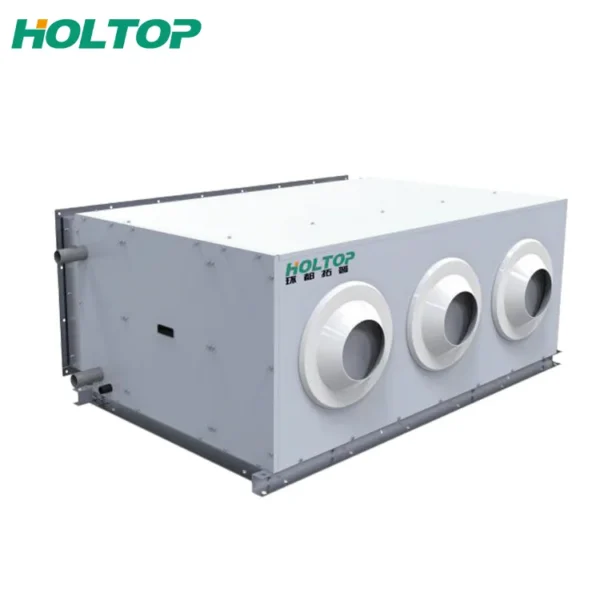

The air handling unit listed here carries 3.6KW, type Air Handling Unit, documented exactly as the manufacturer publishes it. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Rated Cooling Capacity: 3.6KW
- Rated Heating Capacity: 7.5KW
- Supply Airflow (M3/H): 1000
- Warranty: 1 Year
- Place Of Origin: Beijing, China
- Type: Air Handling Unit
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | Other |
| Fan Motors Type | DC |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Engine |
| Place Of Origin | Beijing, China |
| Weight (Kg) | 71 |
| Brand Name | Holtop |
| Dimension(L*W*H) | customized size |
| AHU Type | Standard Air handling unit |
| Rated Cooling Capacity | 3.6KW |
| Rated Heating Capacity | 7.5KW |
| Supply Airflow (M3/H) | 1000 |
| Outdoor Unit Size L*W*H | 1400*5500*5100mm |
| Water Flow(L/S) | 0.18 |
| Water Pressure Drop(Kpa) | 16.42 |
| Chilled Water Pipe Diameter(DN) | 32 |
| Selling Units | Single item |
| Single Package Size | 140X55X51 cm |
| Single Gross Weight | 71.000 kg |
Product Details

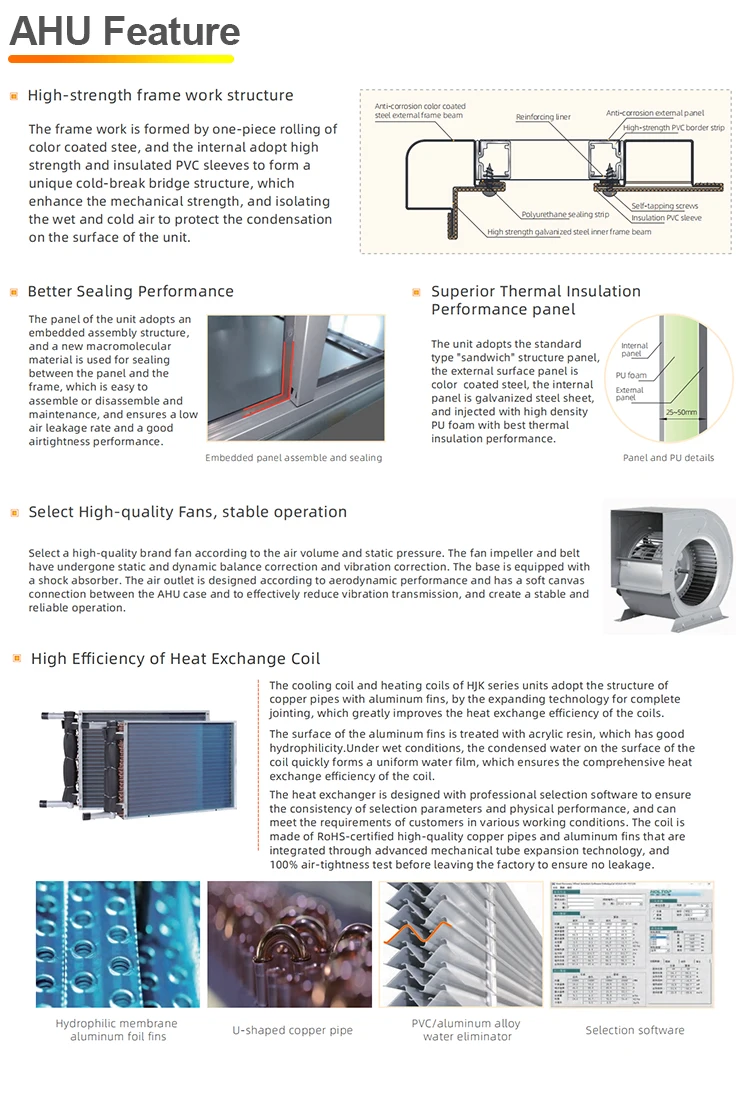

has the feature of high mechanical strength, better air sealing performance, compact structure,
and flexible installation. It’s suitable for comfortable and clean air conditioning environment of
shopping malls, office buildings, railway stations, hospitals, factories, etc. where demand to have
comfortable and clean indoor air quality.

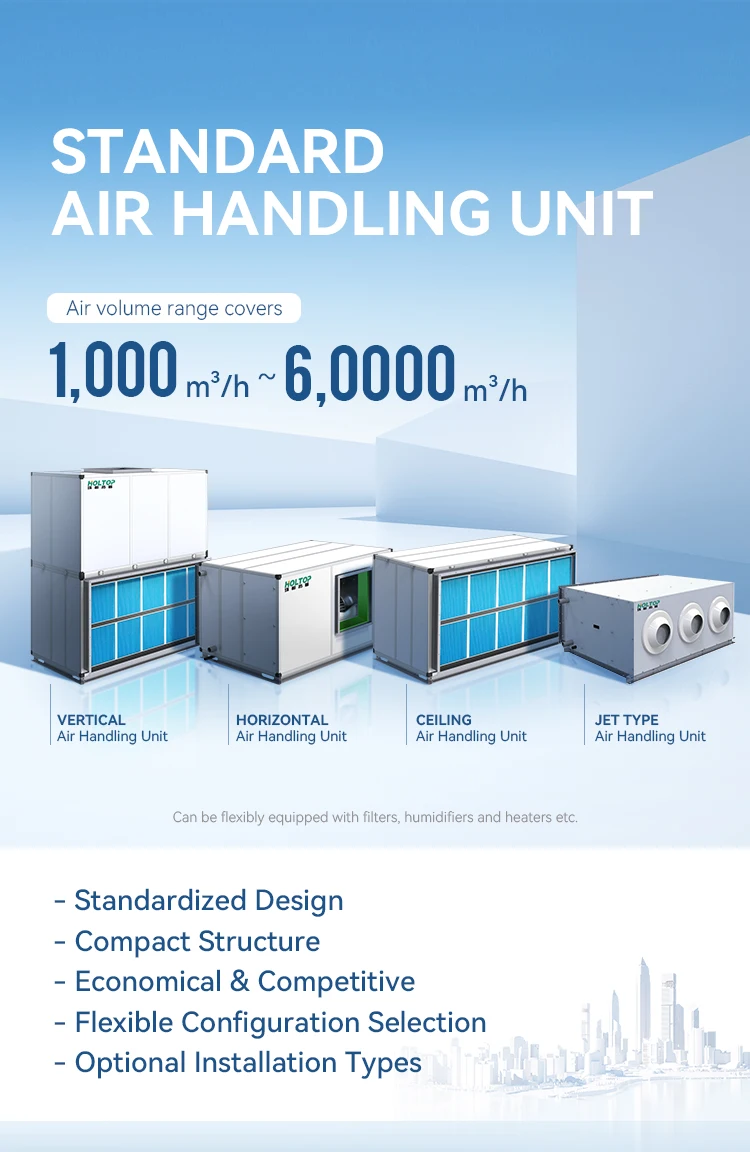

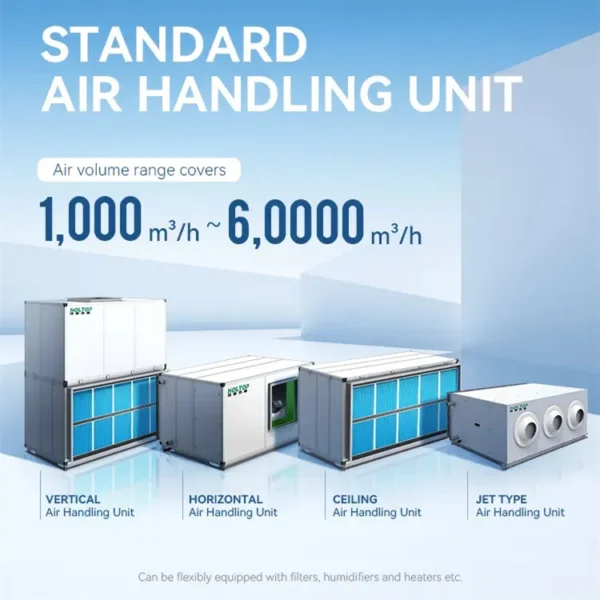

Standard air handling units offer ceiling-mounted, horizontal and vertical types, and air
volume range covers from 1000 to 60000m3/h, which meets various different residual pressure

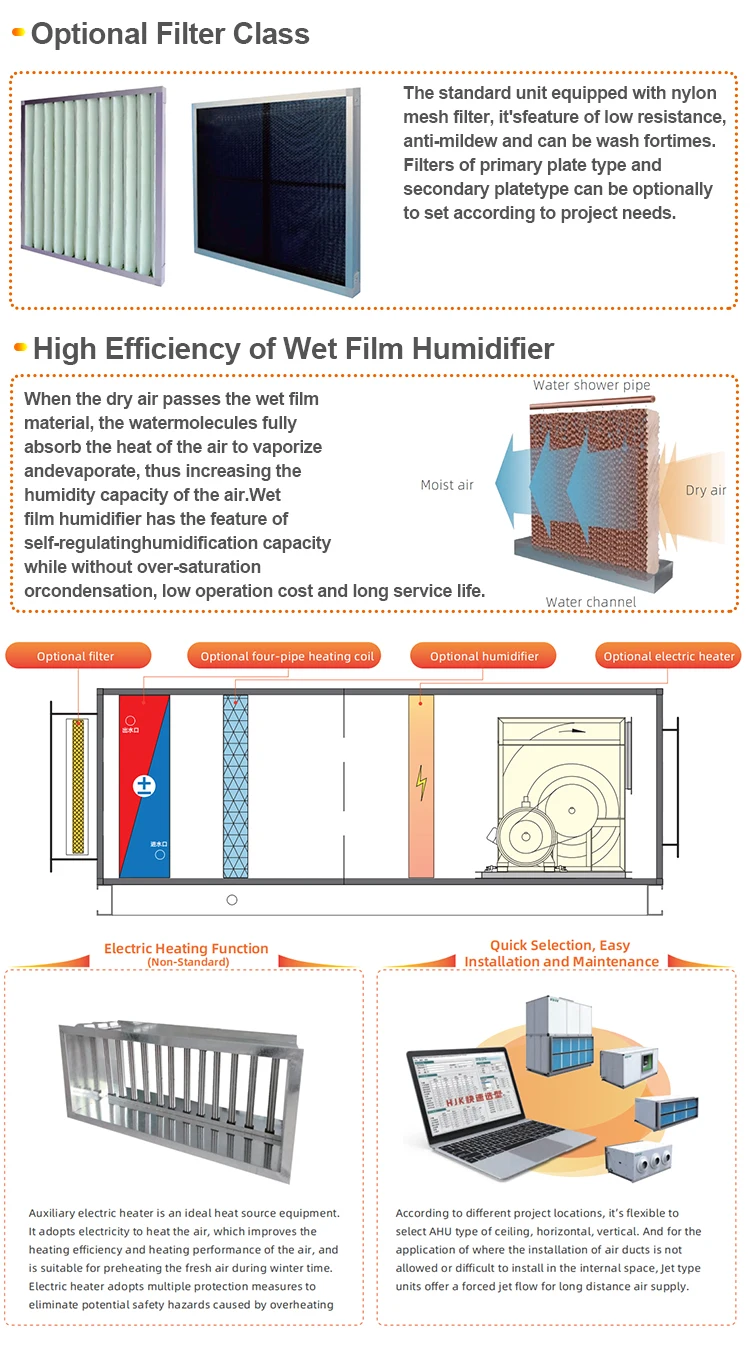

requirements, and the unit can be flexibly equipped with section of filters, humidifiers and heaters
and other sections as well. The unit, can realize quick selection, quick delivery, quick installation,
it’s widely used in commercial or industrial of central air-conditioning systems.
Model HJK | Air Flow(m³/h） | Type C | ||||||||
Rated Cooling Capacity(KW) | Rated Heating Capacity(KW) | Water Flow(L/S) | Water Pressure Drop(kPa) | Chilled Water Pipe Diameter(DN) | ||||||
010 | 1000 | 3.6 | 7.5 | 0.18 | 16.42 | 32 | ||||
020 | 2000 | 8.7 | 15.6 | 0.41 | 54.19 | 32 | ||||
030 | 3000 | 14.2 | 24 | 0.68 | 55.31 | 32 | ||||
040 | 4000 | 16.6 | 31.5 | 0.79 | 27.89 | 40 | ||||
050 | 5000 | 22.2 | 41.7 | 1.06 | 53.67 | 40 | ||||
060 | 6000 | 27.5 | 46 | 1.31 | 33.32 | 40 | ||||
070 | 7000 | 29.2 | 47.8 | 1.39 | 48.17 | 40 | ||||
080 | 8000 | 32.4 | 61.1 | 1.54 | 19.85 | 40 | ||||
090 | 9000 | 37.9 | 64.1 | 1.81 | 21.26 | 40 | ||||
105 | 10500 | 43.6 | 82.8 | 2.08 | 22.82 | 50 | ||||
120 | 12000 | 52.5 | 97.5 | 2.51 | 28.55 | 50 | ||||
Model HJK | Air Flow(m³/h） | Type C | ||||||||
Rated Cooling Capacity(KW) | Rated Heating Capacity(KW) | Water Flow(L/S) | Water Pressure Drop(kPa) | Chilled Water Pipe Diameter(DN) | ||||||
010 | 1000 | 10.3 | 9.8 | 0.49 | 37.96 | 32 | ||||
020 | 2000 | 21.6 | 20.8 | 1.03 | 31.39 | 32 | ||||
030 | 3000 | 30.9 | 32.4 | 1.62 | 41.71 | 40 | ||||
040 | 4000 | 40.7 | 38.8 | 1.94 | 27.77 | 40 | ||||
050 | 5000 | 48.9 | 52 | 2.33 | 54.96 | 50 | ||||
060 | 6000 | 62.4 | 59.6 | 2.98 | 59.9 | 50 | ||||
070 | 7000 | 72.9 | 76.8 | 3.48 | 14.35 | 50 | ||||
080 | 8000 | 87.1 | 82.8 | 4.16 | 17.22 | 50 | ||||
090 | 9000 | 100 | 95.5 | 4.77 | 18.55 | 65 | ||||
105 | 10500 | 112.9 | 107.9 | 5.27 | 19.16 | 65 | ||||
120 | 12000 | 131.8 | 132.7 | 6.29 | 19.36 | 65 | ||||
Ordering and Pricing
- Minimum order quantity: 2 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 2 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer

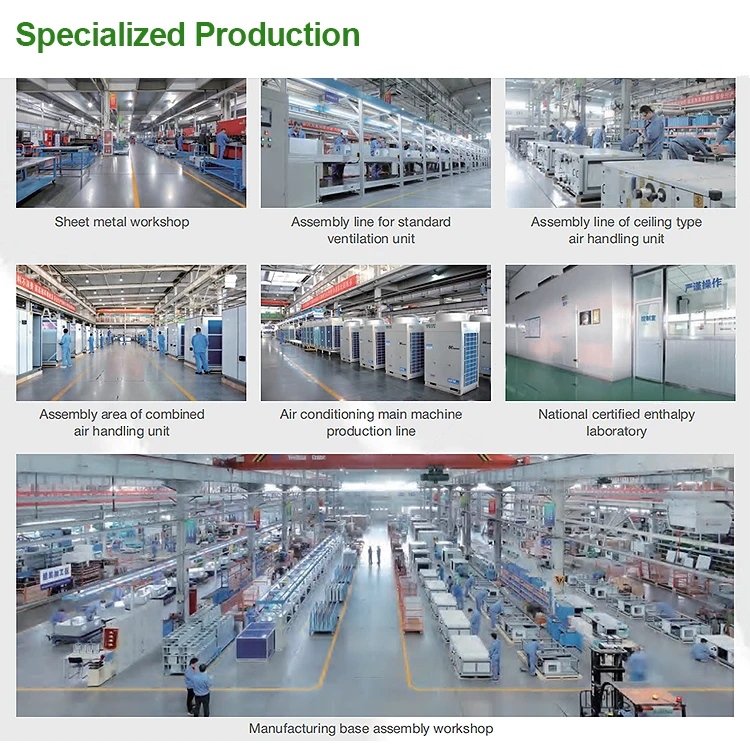

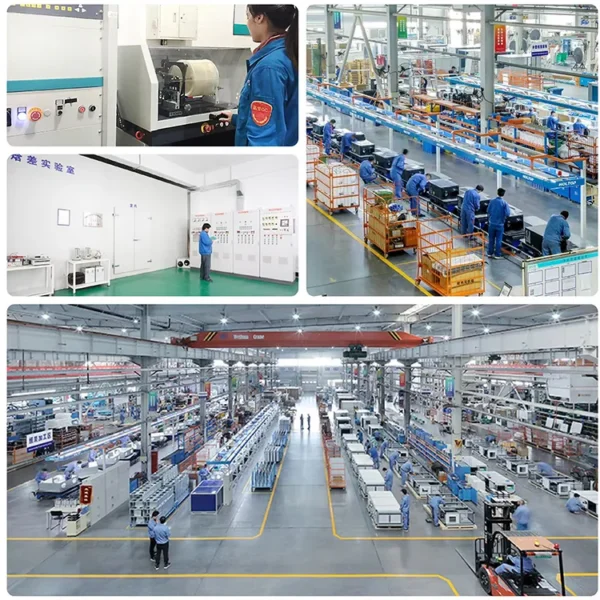

This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
