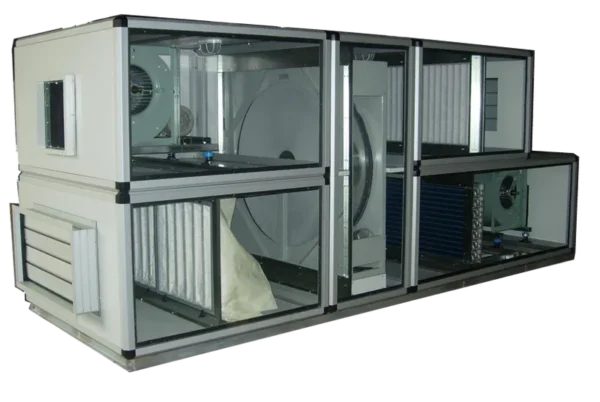

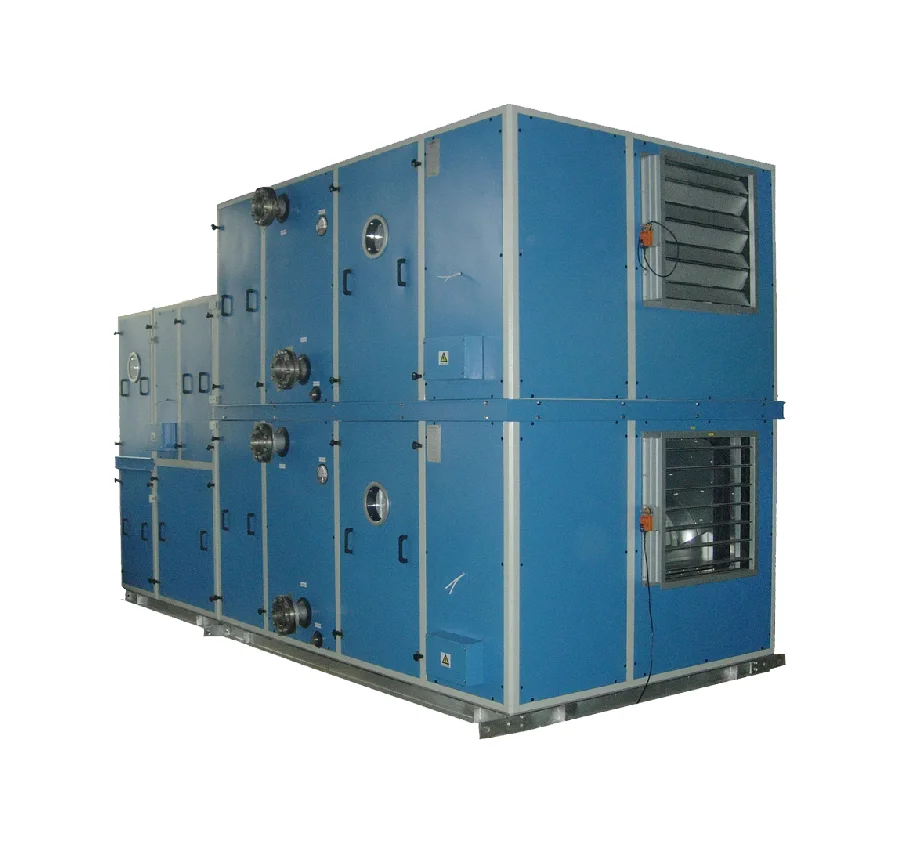

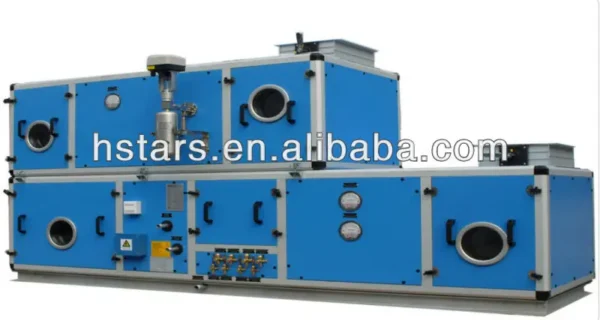

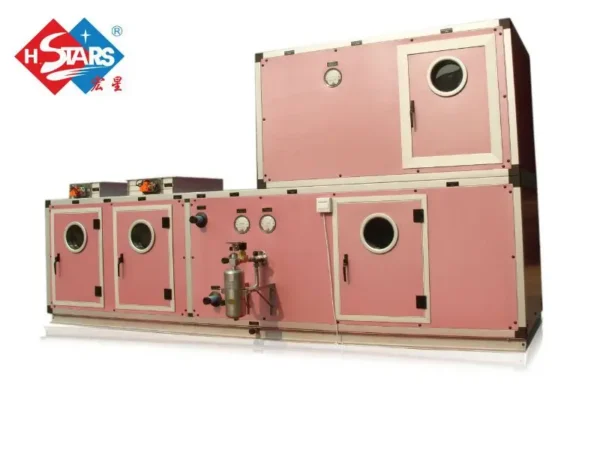

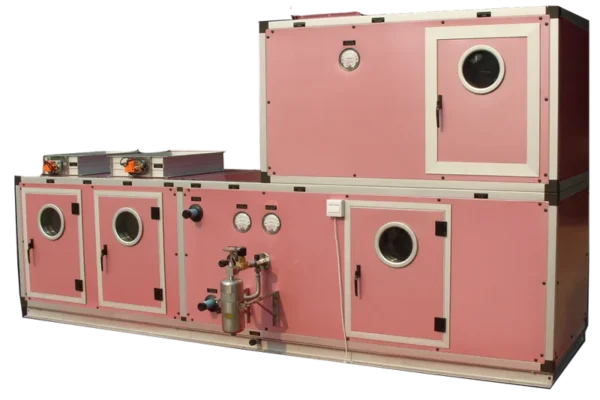

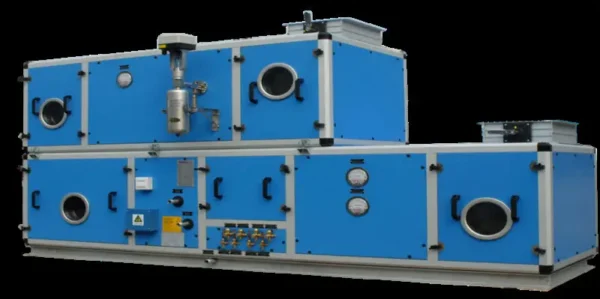

Air Handling Unit, 380VAC50Hz, Air-Cooled

Air handling unit prices, H.Stars central-station air handling unit

Unit profile:

  In terms of refrigeration, frozen water can be used as the carrier, or cold media can be used as the carrier (direct expansion type) for cooling and dehumidification: by combining different functional sections, air supply air condition can be adjusted..

Product type: clean air conditioning equipment

Structure type: clean air conditioning equipment

Refrigerating capacity: 25-169 (kw) kw

Product categories

Constant temperature dehumidification combined air-conditioning unit

Anti-corrosion type combined air-conditioning unit

Combined roof air conditioning unit

Large air conditioning unit

Direct expansion combined air-conditioning unit

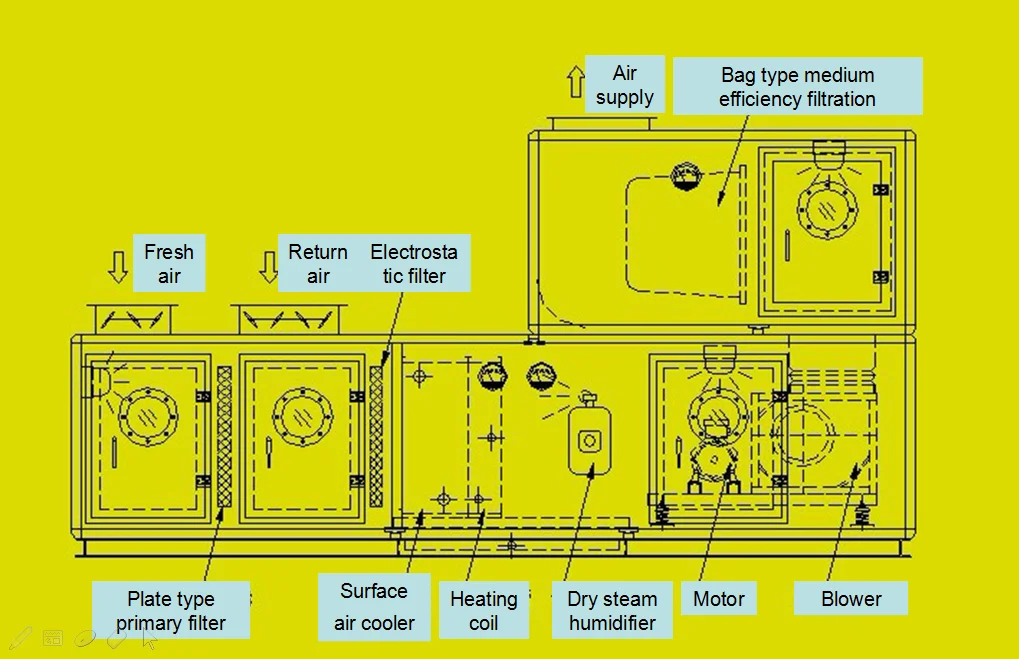

Details:

1.Eliminate the vibration effects of the fan assembly on the unit.

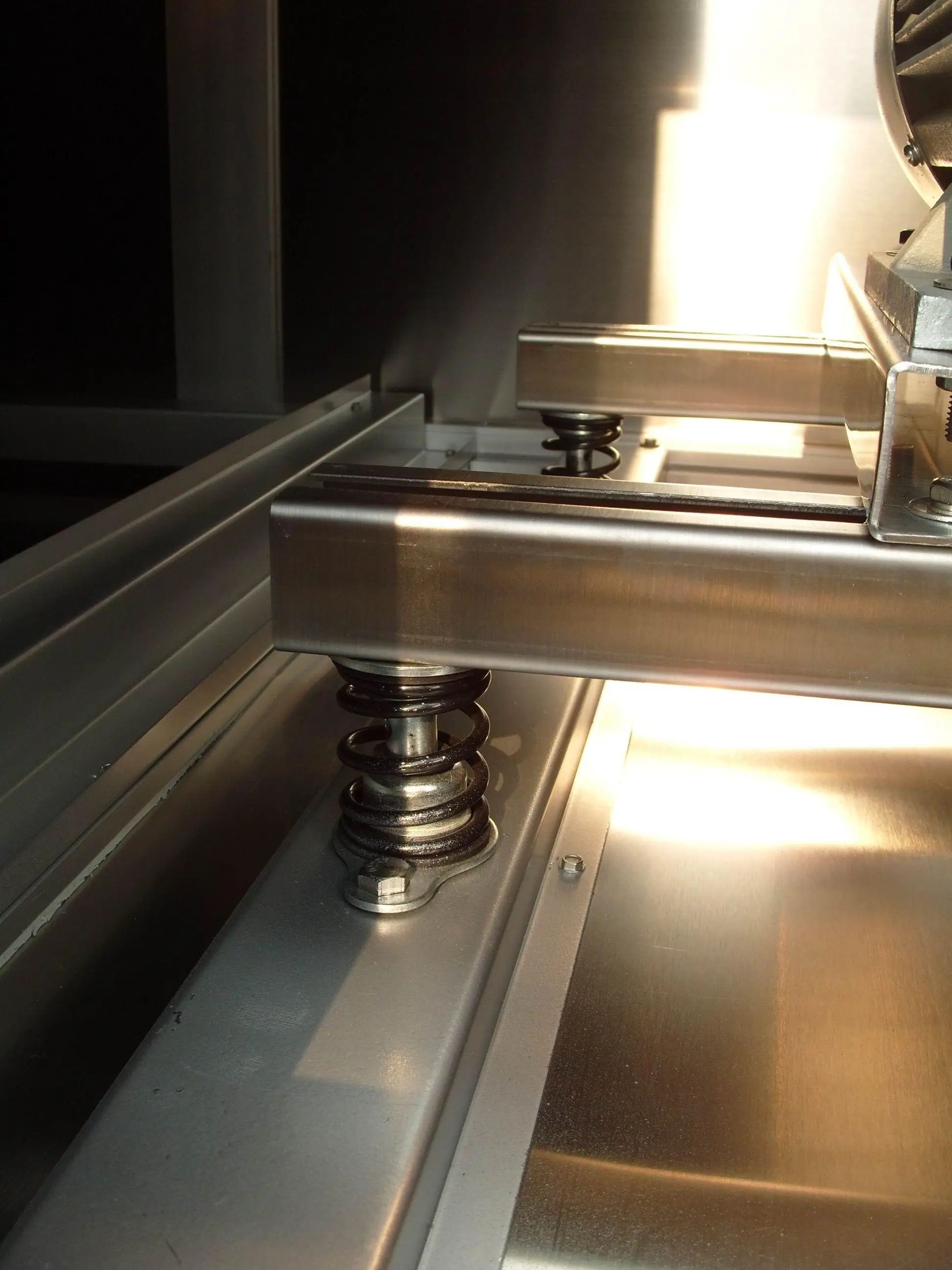

2.A vibration damping device is provided between the base and the wind frame for vibration isolation

3.Effectively reduce the vibration of the unit

Features:

1. Air handling capacity scope: 3000 m3/h —60000m3/h Cooling capacity scope: 18.6kw—467.3kw,

2. Good looking and clean surface, light weight, excellent heat and low noise, high strength.

3. Double 25mm and 50mm Skin Panel, outer plate is made of high quality steel sheet, while inner plate is made of zinc coated steel sheet. In the middle is high pressure foamed hard polyurethane as insulation

4. Fans and motors are from leading manufacturer.

5. Using advance software selection to have coil performance.

6. Filter sections of Aluminum pre-filter filter, medium filter, bag type filter HC filter are available upon application requirement;

7. High efficiency Aluminum fin copper chilled, Direct Expansion Coil, with drain pan, Hot water and electric step heating; Steam and Electrode type Humidifier are variable;

8. Energy saving Heat Wheel Recovery section are available;

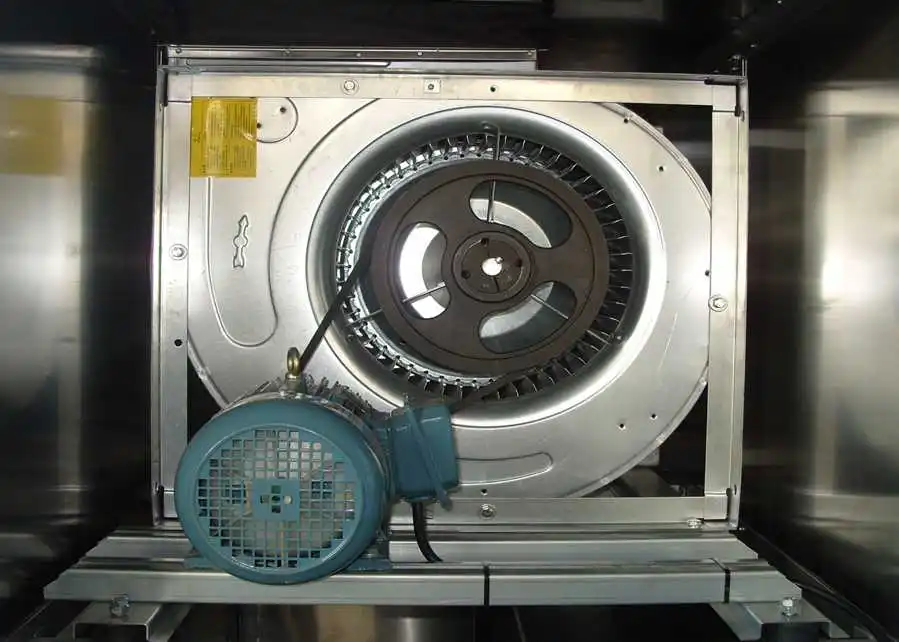

9. Forward, Backward inclined and Aero Foil Fans are available for specific fan application; Fan assembly framework with adjustable motor base for proper fan belt tension adjustment; Spring isolator for Fan Assembly Frame is special non defective type for protection of vigorous transportation;

10. Low leakage air dampers for fresh air, return air and exhaust air adjustment;

11. BA control factory installed as option for saving installation time and labor cost;

12. HStars' Air Handling Unit strength is found in most industrial application upon special design and long time experience.

Application:

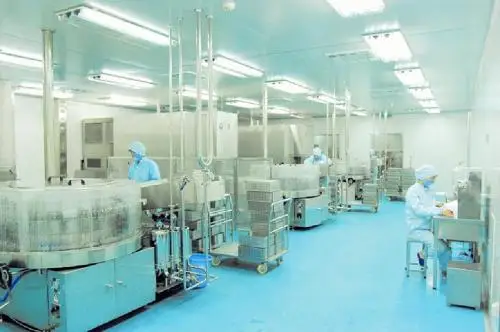

                  Food Processing                                 Pharmaceutical Production

 Packaging & Shipping:
