This air handling unit is published with the manufacturer’s full specification — airflow 3500m³/h, type Air Handling Unit. Made by H.stars (guangzhou) Refrigerating Equipment Group Ltd. (19 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Model Number:: HZ-XX
- Operating Voltage: optional
- Cooling Capacity: 25-169(kw) kw
- Cooling Handling Capacity: 1000CMH-60000CMH
- Airflow: 3500m³/h
- Internal And External Plates Material: can be galvanized, slab, color steel, stainless steel
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | 3500m³/h |
| Operating Voltage | optional |
| Mounting Type | Option |
| Key Selling Points | Automatic |
| Warranty | 2 Years |
| Core Components | Engine |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 500 KG |
| Brand Name | Hstars |
| Cooling Capacity | 25-169(kw) kw |
| Cooling Handling Capacity | 1000CMH-60000CMH |
| Model Number: | HZ-XX |
| Business Term: | OEM available |
| Product Type | Clean Air Conditioning Equipment |
| Cabinet Structure: | Cold-branched aluminum alloy frame with built-in material insulation |
| Standard Thickness Of The Panel: | 25mm, 50mm or 70mm |
| Internal And External Plates Material | can be galvanized, slab, color steel, stainless steel |
| Product Name | dehumidifier air handling unit |
| Packaging Details | Woodencase, CartonBox or optional |
| Port Of Dispatch | Huangpu |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 300 sets per Month dehumidifier air handling unit, air handling unit ahu |
Product Details

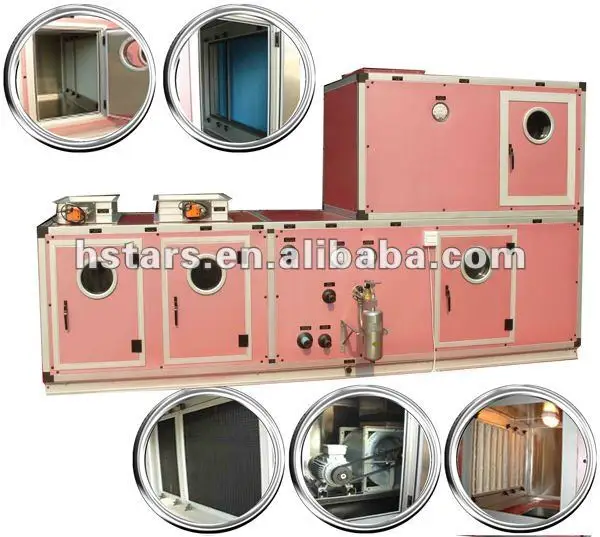

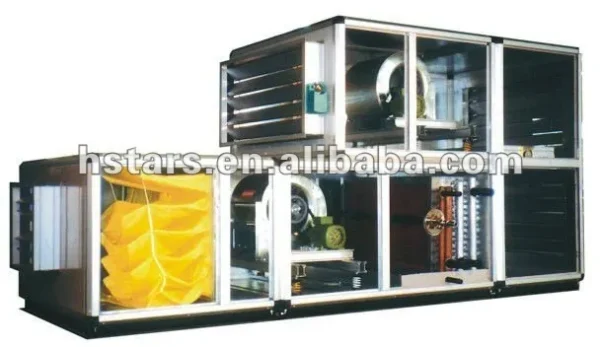

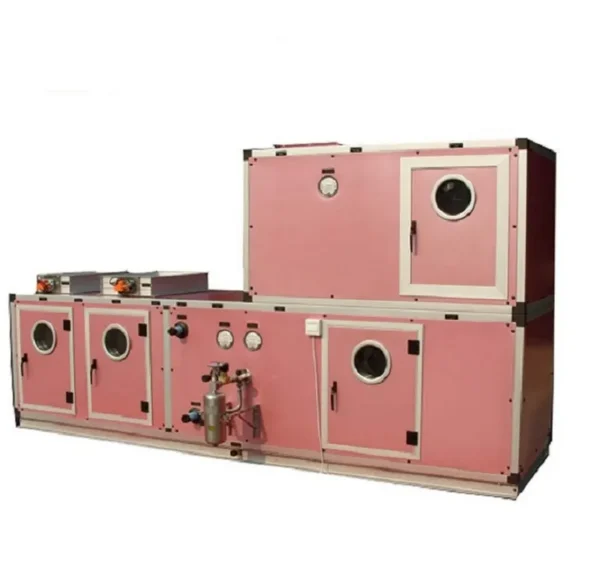

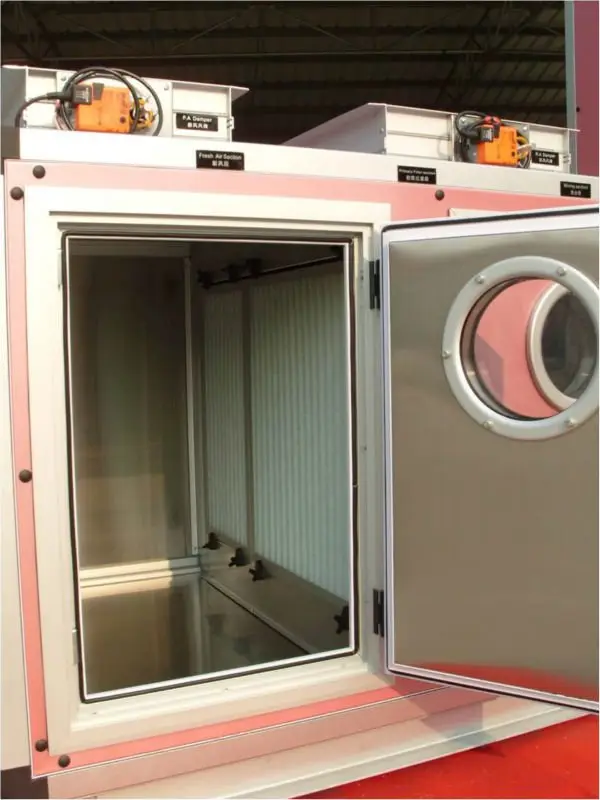

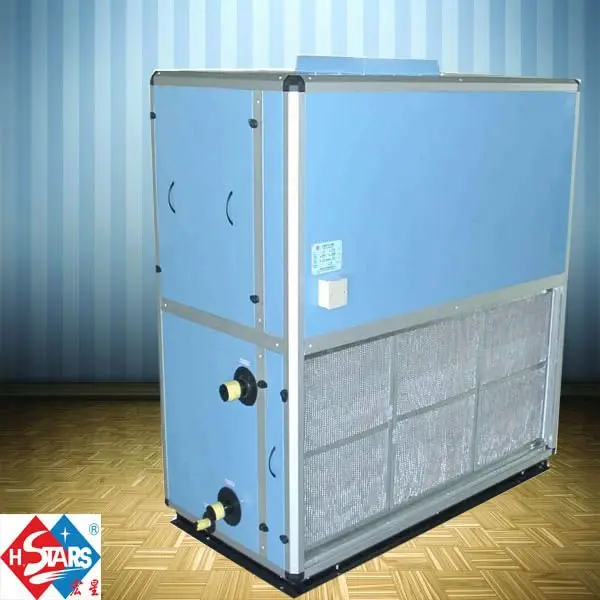

HVAC system fresh air handling units for operating room, dehumidifier air handling unit, air handling unit ahu
Configuration illustrate
1) High strength alloyed Aluminum framework construction
2) Good looking and clean surface, light weight, excellent heat preservation and low noise, high strength.
3) Cold Bridge Free Design.
4) Double 25mm and 50mm Skin Panel, outer plate is made of high quality steel sheet, while inner plate is made of zinc coated steel sheet. In the middle is high pressure foamed hard polyurethane as insulation.
1) Filter sections of Aluminum pre-filter filter, medium filter, bag type filter HEAP filter are available upon application requirement;
1) Fans and motors are from leading manufacturer.

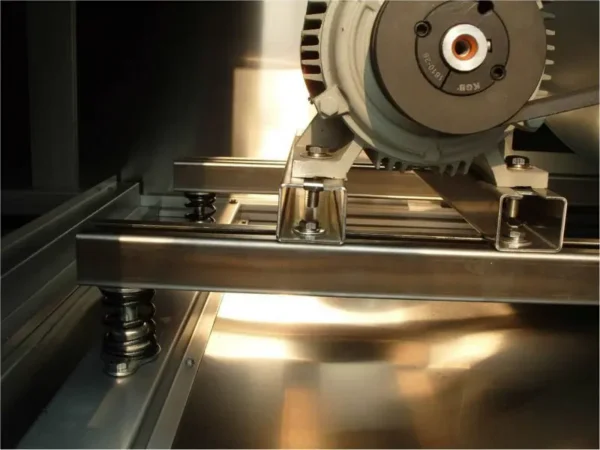

2) Forward, Backward inclined and Aero Foil Fans are available for specific fan application; Fan assembly framework with adjustable motor base for proper fan belt tension adjustment; Spring isolator for .
3) Fan Assembly Frame is special non defective type for protection of vigorous transportation.
4) VFD (OPTIONAL)
1) Three types heating (hot water , steam and electric)
1) High efficiency Aluminum fin copper chilled, Direct Expansion Coil, with drain pan, Hot water and electric step heating; Steam and Electrode type Humidifier are variable;
2) Using advance software selection to have coil performance.
1) Three types humidifying (electric , dry steam and spraying water)
Features:
1. Air handling capacity scope: 3000 m3/h —12000m3/h
Cooling capacity scope: 15980Kcal/h—66102Kcal/h
2. Energy saving Heat Wheel Recovery section are available;
3. Low leakage air dampers for fresh air, return air and exhaust air adjustment;
4. BA control factory installed as option for saving installation time and labor cost;
5. HStars' Air Handling Unit strength is found in most industrial application upon special design and long time experience.
Configuration Type
| SA | RA | FA | EA |
| Supply Air | Return Air | Fresh Air | Exhaust Air |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| Mixing Sction | Pre-filter | Cooling Coil | Heating Coil | Humidifying Section | Fan Section | Diffuser | Medium filter | Supply Air Section | Dehumidifying Section | Heat Recovery Wheel |
HVAC system fresh air handling units for operating room, dehumidifier air handling unit, air handling unit ahu
Controller
HVAC system fresh air handling units for operating room, dehumidifier air handling unit, air handling unit ahu
SHOWCASE
HVAC system fresh air handling units for operating room, dehumidifier air handling unit, air handling unit ahu
HStars(Guangzhou) Refrigerating equipment Manufacturing Co.,Ltd. Was established in 1992,is a foreign-invested enterprise, is specializing in cooling towner ,Heating Ventilation Air conditioning and cooling,industrial cooling and heating equipment manufacturing ,with all kinds of special equipment designe technology and manufacturing capabilities. In the course of more than 20 years of development, H.stars group has always been firmly convinced that quality is the first and win by quality, has obtained relevant certification in the refrigeration industry at home and abroad.Since its inception, H.stars group has been awarded many patents in the field of air conditioning refrigeration through a number of technical appraisals, and is the first enterprise to win the patent of heat recovery technology.
HVAC system fresh air handling units for operating room, dehumidifier air handling unit, air handling unit ahu
Pre-Sales Service and After-Sales Service
Guide,Site inspection send our engineer and
translator.+customers installation video
HVAC system fresh air handling units for operating room, dehumidifier air handling unit, air handling unit ahu
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $12000 / set
- 5+ set: US $11000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is optional. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by H.stars (guangzhou) Refrigerating Equipment Group Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full H.stars (guangzhou) Refrigerating Equipment Group Ltd. range on HVACR Nexus.
