Key specification for this air handling unit: airflow 2000~20000CMH (customized cap.), type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. (10 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Cooling Capacity: 12-200kW (customized cap.)
- Heating Capacity: 18-120kW (customized cap.)
- Airflow: 2000~20000CMH (customized cap.)
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Hotel, office, school, hospital, lab, factory
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | as requested |
| Fan Motors Type | EC |
| Key Selling Points | Low moisture control |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | coil, EC fan |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 700 |
| Brand Name | OEM |
| Dimension(L*W*H) | custom made |
| Application | Hotel, office, school, hospital, lab, factory |
| Function | Cooling, heating, heat recovery, purification, sterilization |
| Airflow | 2000~20000CMH (customized cap.) |
| Cooling Capacity | 12-200kW (customized cap.) |
| Heating Capacity | 18-120kW (customized cap.) |
| Purification | G4~H13 filter optional |
| External Static Pressure | 250-400Pa |
| Heat Recovery Type | Plate, rotary wheel |
| Fan Type | EC fan |
| Cabinet | Thermal insulation double skin panel 25/50mm |
| Selling Units | Single item |
| Single Package Size | 30X20X78 cm |
| Single Gross Weight | 68.0 kg |
Product Details

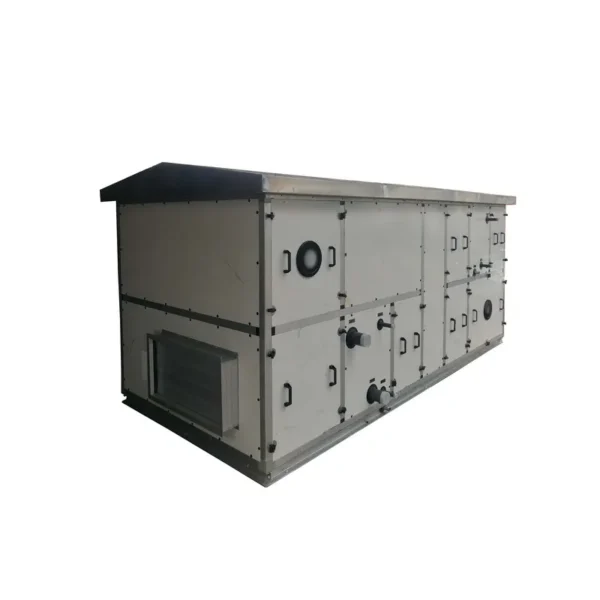

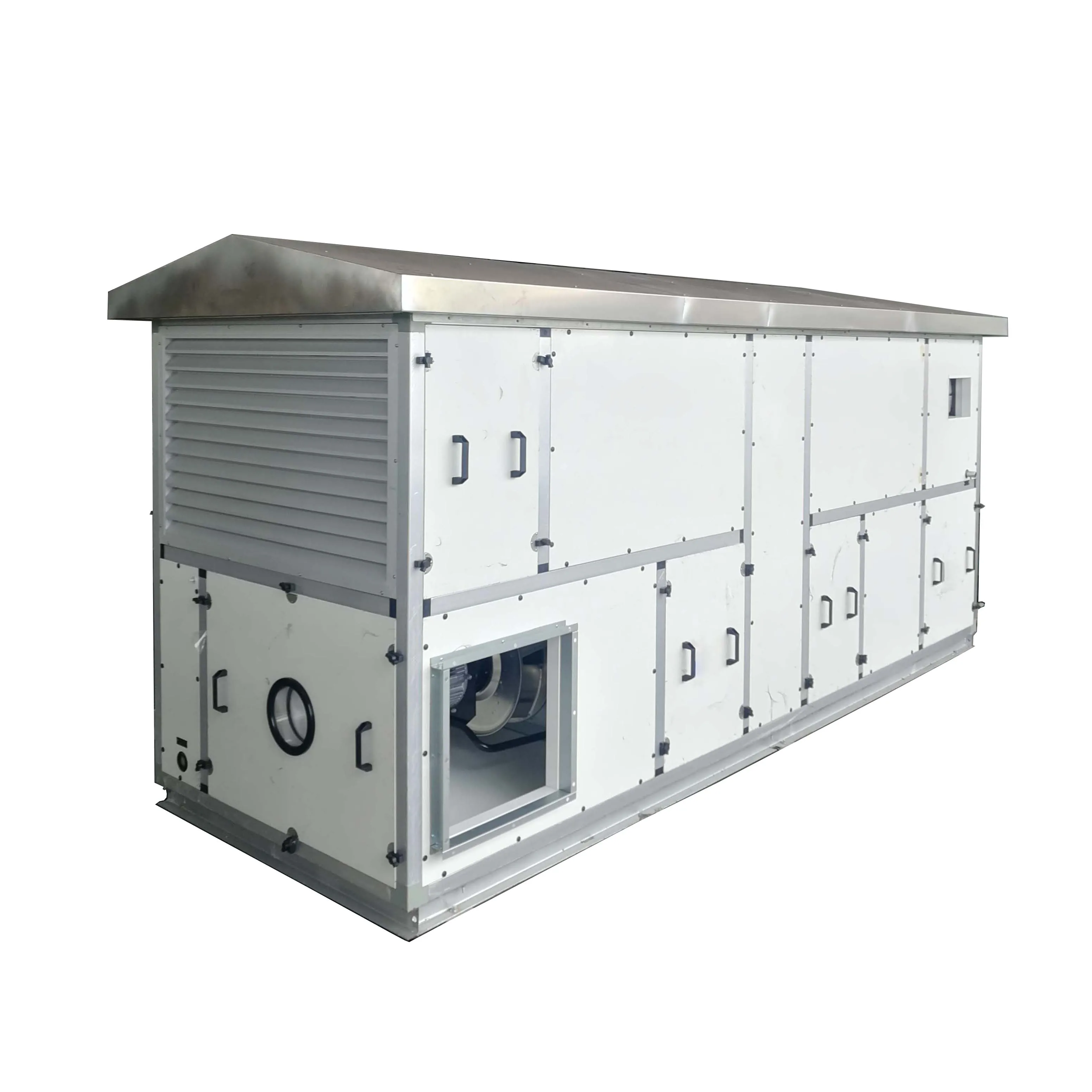

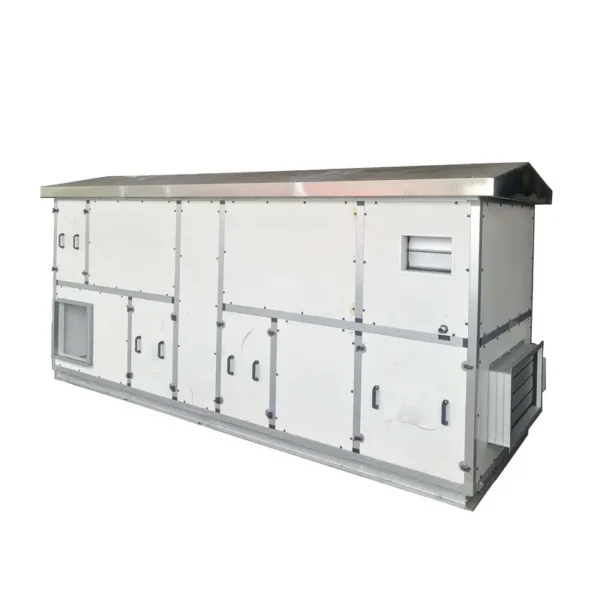

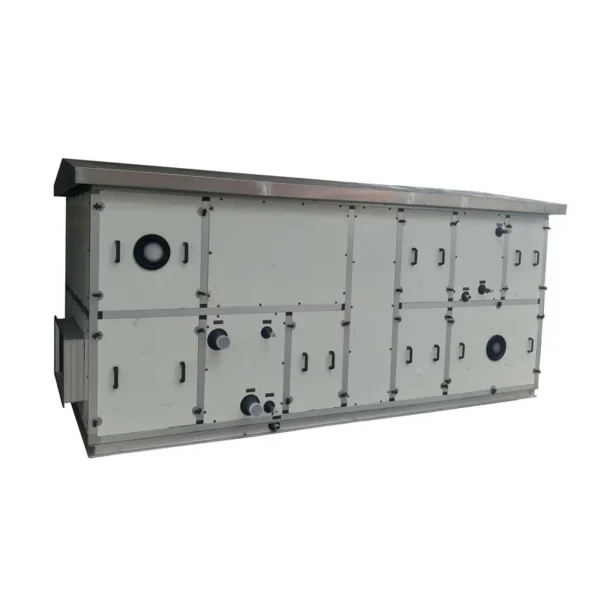

Outdoor weatherproof fresh air dehumidifying air handling unit with EC fan desiccant wheel
Main Features
-Air reactivation side hot water coil, desiccant wheel, EC fan;
-AHU side pre-heating coil + cooling coil for pre-dehumidifying, desiccant wheel for deep dehumidifying.
-Plug and play concept for easy installation and commissioning
-Heat recovery system, save energy and pay less electrical bill
-Operation efficiency and energy saving
-Outstanding reliability and performance
-Low noise and long service life with low running cost
-Suitable for commercial and industrial large open space, production line, sport center, airport terminal, train station, factory workshop and shopping mall
AHU cabinet customization | color steel / stainless steel panel skin | PU insulation 25 / 50 mm |
AHU functional sectional customization | pre-cooling & post cooling | air reactivation |
AHU performance customization | cooling only | dehumidifying |
Frame
• Penta-post extra heavy gauge aluminium profiles and strong fiber-reinforced PE corner connection forming the structural frame
• Superior mechanical strength and rigidity to the unit frame and to prevent any buckling or deformation• Thermal bridge free design, the profiles filled with polyurethane foam for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available
Casing Panel and Insulation
• Double skin construction is provided by sandwich type panels comprising inner and outer painted steel skins and polyurethane foam with minimum 48kg/m3 density, providing a good thermal and acoustical performance
• The gasket liner between the panels and frame ensures the air leakage rate to comply with GB/T 14294 clean air conditioning requirement
• The factory painted steel sheet covered with 6 insulation coatings, complies to 500h salt spray testing, showing an excellent corrosion protection performance

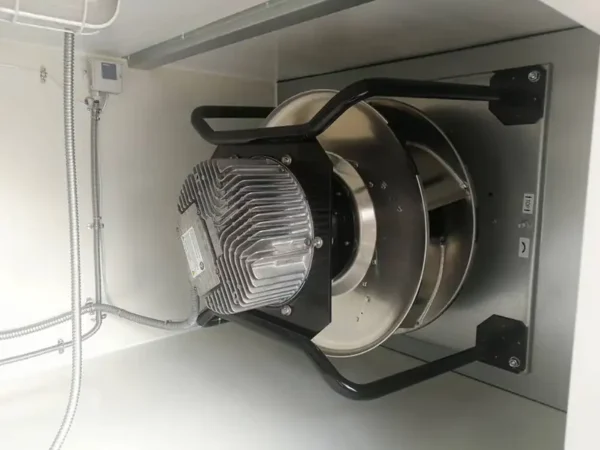

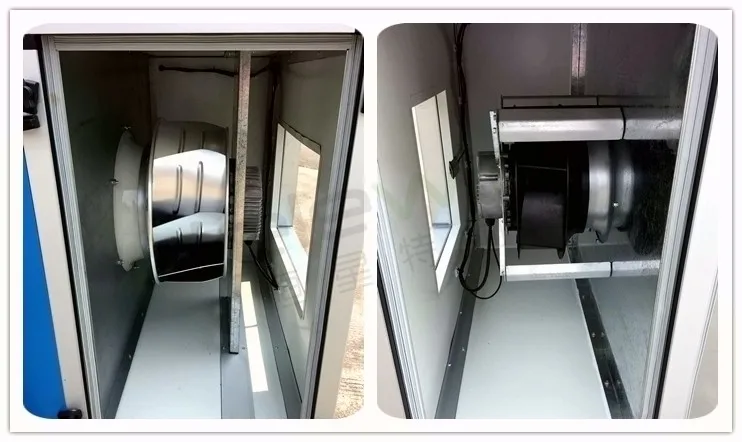

Famous Brand EC Blower
• Fan selection based on the air flow and air static requirement is done by fan selection software
• External rotor motor with integrated EC controller
• Integrated motor contactor, active temperature management
• Extremely energy efficient
• Compact, modular design
• Straightforward installation and commissioning
• Protection rating IP20, IP54
Direct driven/ Belt driven Centrifugal Fan availbe upon application
• Nicotra, Kruger, Deton, Yilida is offered as option
Energy Saving Crossflow Plate Heat Exchanger
• The heat exchanger is made with modular structure, aluminium extrudted sections, aluminium coated zinc plate, all the joints are sealed by sealant
• The heat exchanger pre-cools the hot outdoor air and transfer that heat into the supply air for reheat
• This exchanger can reduce the required air conditioning tonnage by upto 25% and overall energy consumption by over 40%

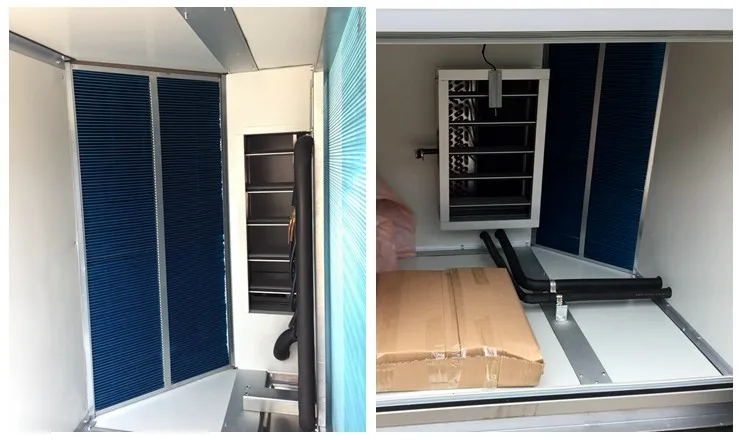

High Efficiency Cooling and Heating Coil
• All coils calculation and selection is done by selection software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
-Cooper tube with cooper fins coil
-Epoxy coated fins coil
-Electrophoresis fins coil
-Heresite coated coil

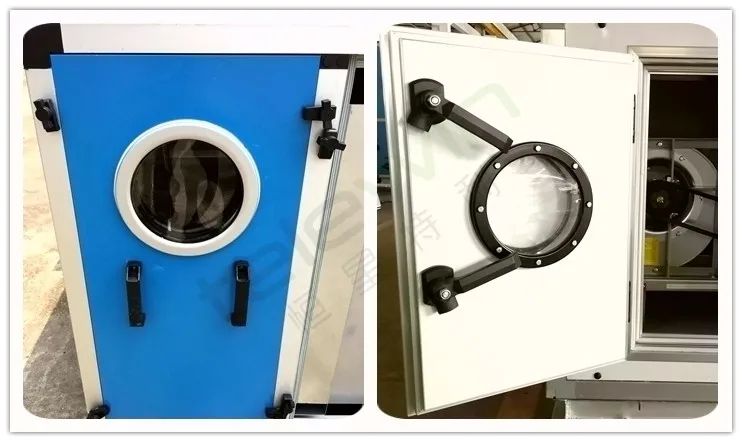

Sight Glass Service Door
• Double skin structure, both inner and outer panel made of painted steel sheet, inner stainless steel and outer painted steel available
• Easy to check the running status
• Wing Nuts removal service panel
• Handler–Maintain easily
Stainless Steel Drain Pan
• Slop type design, no drain water carryover
• Avoid the micro-organisms growth inside the drain pan
Antimicrobial Drain Pan available upon application
• SteriTouch technology Dust Free Drip Pan Coating
• Antimicrobial surface
• Good exterior durability and corrosion resistance
• Non-toxic, comply with BS476 part 7

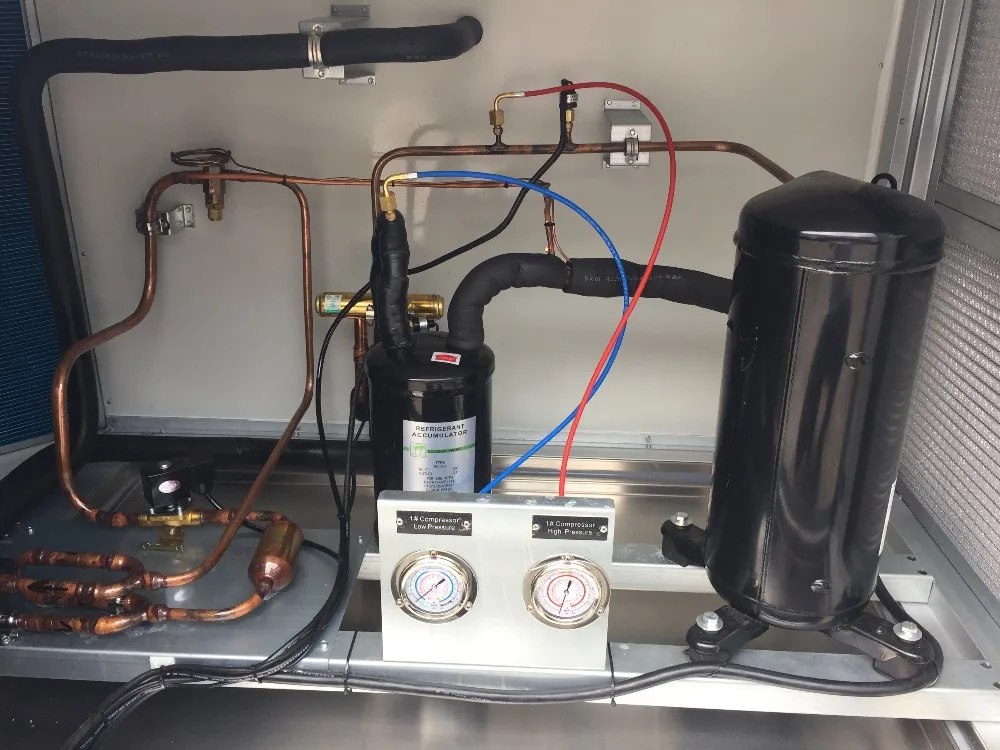

Energy Saving Refrigerating System
• DAIKIN scroll hermetic compressor
• Advanced design, low running noise, energy saving, safety and long service life
• Multi-circuits design, running reliably and energy-saving
• COPELAND, DANFOSS compressor available
• Assembled with high quality refrigerating accessories to ensure the reliability of system

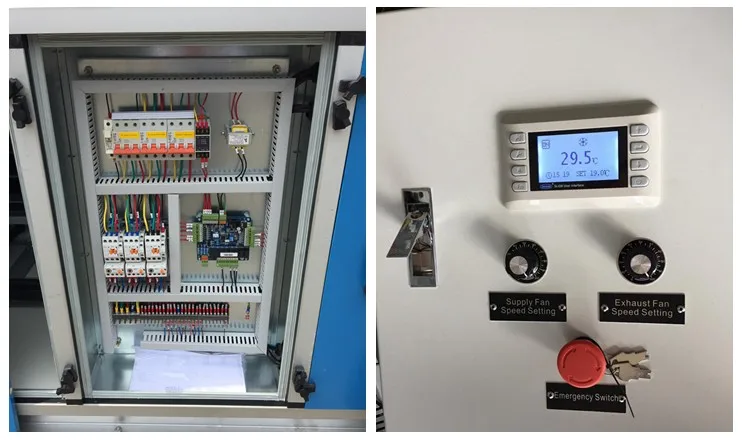

Intelligent Control Console
• Auto control each section of the unit to make sure the temperature, humidity and cleaness
• High quality and international brand electrical elements to ensure the unit operate more stable and energy-saving
• Each circuit with corresponding number to mark, to facilitate follow-up circuit repair and maintenance
• Separated control panel, with setting, display and memory function
• DDC and PLC available
Telewin supplies Air Conditioning products to oversea and domestic markets
▲Stable and timely supply guaranteed
▲Carton box and wooden case packing available
▲Customized packing acceptable
Solutions
Telewin offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation
Services
•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development
1.Are you a factory?
— Yes, we are a professional AHU manufacturer for more than 20 years.
2.How do you check the goods?
— We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
—The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.
4.How and when can I get the quotation?
— Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
— Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.
6.Where is your factory Located? How can I visit there?
— We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!
7.Do you provide OEM service?
— Yes! We provide OEM and ODM service.
8.What's the lead time for your goods?
— Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $6000 / set
- 10+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
