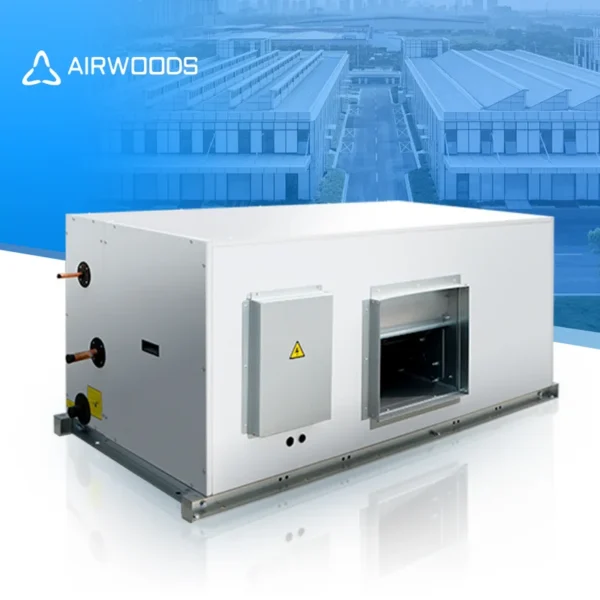

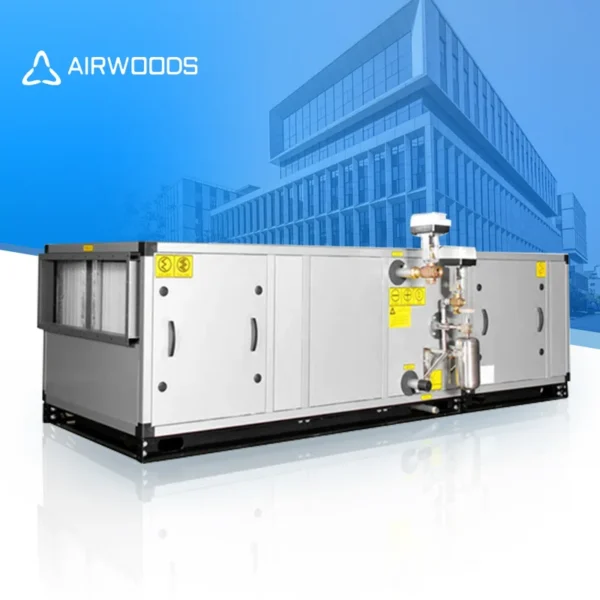

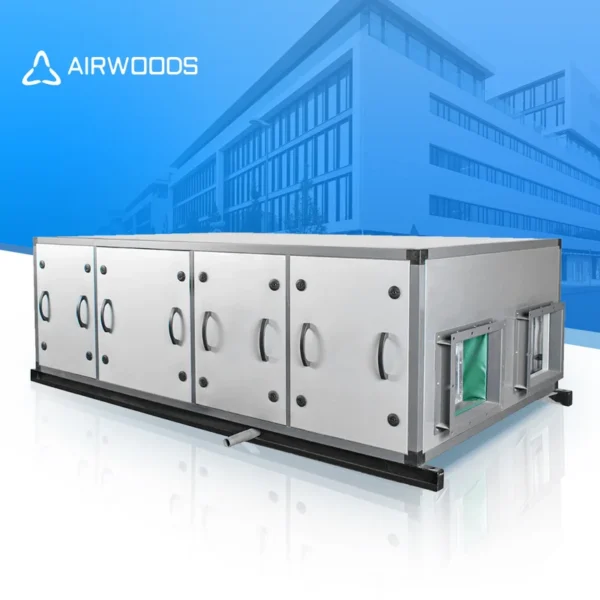

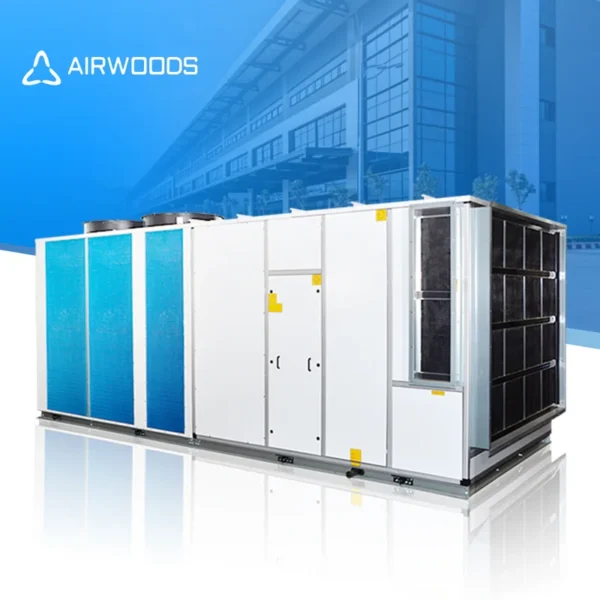

Air Handling Unit, Aluminum, Roof

This air handling unit is published with the manufacturer’s full specification — 5500 m3/h, refrigerant R410A. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Air Handling Unit

• Indoor Unit Fan Power: 1.5 KW
• Nominal Cooling Capacity: 25.5 Kw
• Nominal Heating Capacity: 28.3 Kw
• Airflow: 5500 m3/h
• Refrigerant: R410A
• Warranty: 1 Year

Technical Specifications

Product Details

Features of Indoor Unit

CROSSFLOW TOTAL HEAT EXCHANGER

Holtop crossflow total heat exchanger was made of imported ER paper, the thin corrugated paper produced with special technology will make sure the higher heat transmissibility, fire resistance(grade up to B2) stronger tire resistance and mold prevent(grade up to level 0).

CROSS FLOW PLATE HEAT EXCHANGER

Holtop cross flow plate heat exchanger was made of aluminum foils with 0.12mm thickness. In order to avoid the two airflows come cross without touch, Holtop have been committed to the research of cross-flow plate heat exchangers for many years. Multiple special processes are adopted to ensure the air tightness and improve the heat exchange performance, so that the heat exchange efficiency is highly improved.

ROTARY HEAT EXCHANGER

The surface of the wheel is coated with a 3A molecular sieve coating, which has the functions of heat storage and moisture adsorption (total heat), and exchanges energy with the fresh air and exhaust air passing through, to realize the energy recovery and saving.

PM2.5 SOLUTION

Equipped with a high-efficiency filtration filters, it can effectively remove PM2.5 particles carried by the air and ensure clean indoor air quality.

CONSTANT TEMPERATURE AND HUMIDITY

Precisely control the outlet air condition, with tolerance within ±2°C on temperature, and ±5% on humidity.

INDOOR FORMALDEHYDE REMOVAL SOLUTION

The indoor unit can optionally be equipped with a formaldehyde removal module, which can effectively filter and decompose formaldehyde molecules; coupled with fresh air replacement and dilution, double removal of formaldehyde.

VARIOUS FILTRATION CLASS

By selecting the plate type, bag type, chemical type, electronic purification type and other filters, it can meet the requirements of different filtration level ranging from G3-H13. At the same time, It provides the fresh air and a comfortable breathing environment by filtering, absorbing and decomposing the harmful substances.

Spare Parts Section

HIGH-EFFICIENCY REFRIGERANT HEAT EXCHANGE FLOW PATH

The high-efficiency 2in1 refrigerant confluence technology reduces the space occupied by the liquid-phase refrigerant on the heat transfer pipeline, and at the same time increases the degree of subcooling, making the long connecting pipe more efficient.

STREAMLINED FAN

The cooling fan of the top discharge outdoor unit adopts 750mm large-diameter axial fan, and the contact between the airflow and the blades is smoother, reducing the noise caused by eddy currents, increasing the air volume and significantly reducing the operating noise.

MODULE ASSEMBLY

Through outdoor unit alternate operation technology, the operation time of each outdoor unit is balanced, the safety and reliability of the system are improved, and the service life of the unit is prolonged.

HUMANIZED FREE COMBINATION OF OUTDOOR UNIT

The outdoor unit is modular design, when multiple units are arranged in a neat and consistent area, can effectively save space. • The outdoor unit has a complete range of specifications, which can be adjusted to match various cooling requirements through the combination of modules. • The unit can reasonably select a combination of modules according to the limitations of transportation and installation space to meet on-site installation requirements.

FULL DC INVERTER DESIGN, QUICK RESPONSE TO COOL DEMAND

The compressor as well as the condensing fan motor has been upgraded to DC inverter type, and the cooling or heating capacity can be rapidly adjust according to the working condition of the indoor unit, thus to meet variable cooling and heating needs.

RELIABLE OPERATION AND FLEXIBLE APPLICATION

Wide range of operating conditions, satisfying cooling and heating under extreme ambient temperature The DC inverter outdoor unit is still capable of cooling even the ambient temperature as low as -5°C. And it still capable of heating even the ambient temperature as low as -20°C.

Structural Features

COMFORT CONTROL SYSTEM

Dedicated controller, combines the convenience of independent controller and the functions of group control in centralized controller, can control multiple outdoor units in the same time, it is flexible and widely used in medium or small office-level business space.

FUNCTIONAL CONTROL SYSTEM

Building management systems based on the MODBUS protocol, can be directly connected to the centralized control system through the standard MODBUS communication interface of the unit, it can achieve centralized intelligent monitoring without access to conversion equipment, which is suitable for large and medium-sized air-conditioning places.

TOPOLOGY DIAGRAM FOR CONTROL NETWORK

Our service

What we can do for you?

1) We produce high quality AHU based on clients' need and help clients doing project design.
2) We offer a package(turn-key) service including engineering, design, installation, aftersale service,etc.
3) We are especially professionl and strong in cleanroom HVAC engineering.

What kind of HVAC job that we can do?

1) Food, Eectronic, Textile, Tobacco Industry, Hotels, Office, Sports Center, Exhibition center, etc.

Company Introduction

Hot sale products

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–999 unit: US $3000 / unit
  • 1000+ unit: US $2500 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
