Ceiling fan — 220V, 2000m3/h. The complete factory specification follows. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ceiling Fan
- Model Number: XHBQ-TF
- Voltage: 220V
- Airflow: 2000m3/h
- Blade Material: Plastic
- Speeds: 3 speeds(low, middle, high)
- Warranty: 1 Year
Technical Specifications
| Voltage | 220V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | DC |
| Mounting Type | Ceiling Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Beijing, China |
| Brand Name | HOLTOP |
| Model Number | XHBQ-TF |
| Speeds | 3 speeds(low, middle, high) |
| Heat Exchanger | Counterflow total heat exchanger |
| Airflow | 2000m3/h |
| Function | By-pass function/Air Refleshing |
| Noise DB(A) | 40-48 |
| Static Pressure | 20-75Pa |
| Current (A) | 5.6 |
| Efficiency | up to 80% |
| Supply For | office, supermarket,hotel, factoryetc. |
| Packaging Details | suitable for sea and air shipping |
| Port Of Dispatch | Tianjin |
| Selling Units | Single item |
| Single Package Size | 5X5X5 cm |
| Single Gross Weight | 45.000 kg |
| Supply Ability | 100000 sets per Year |
Product Details

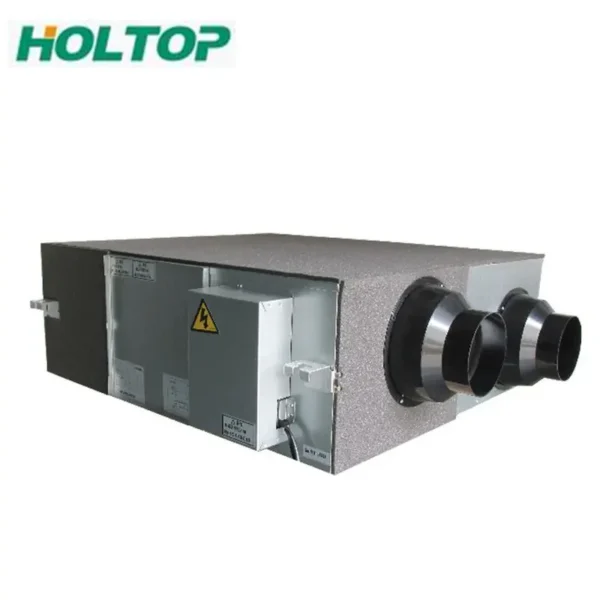

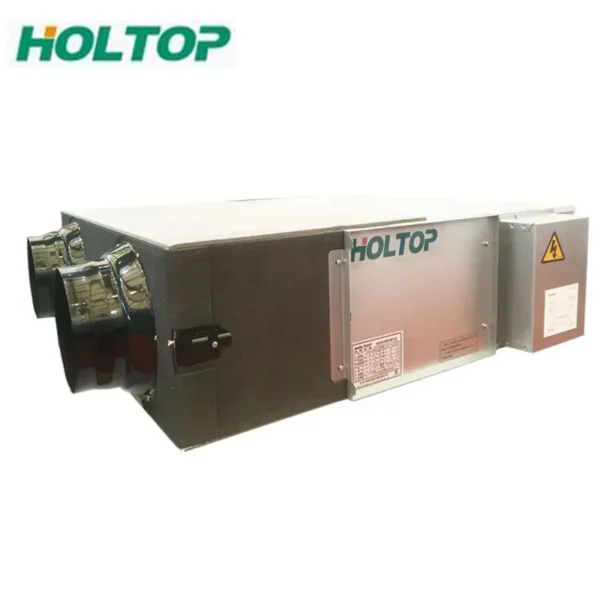

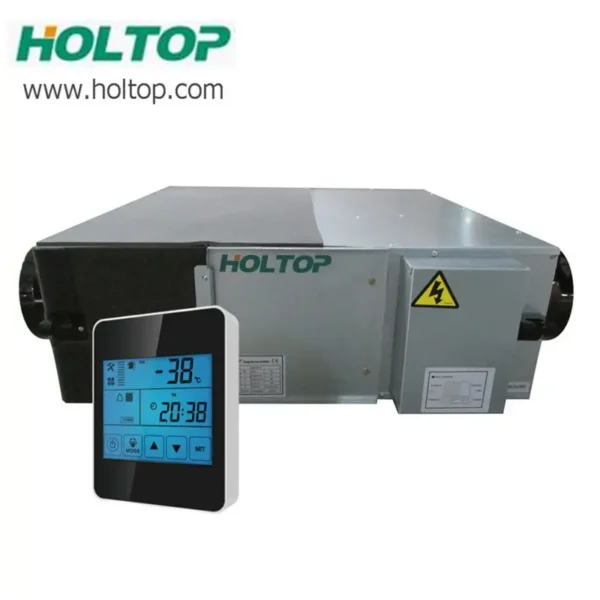

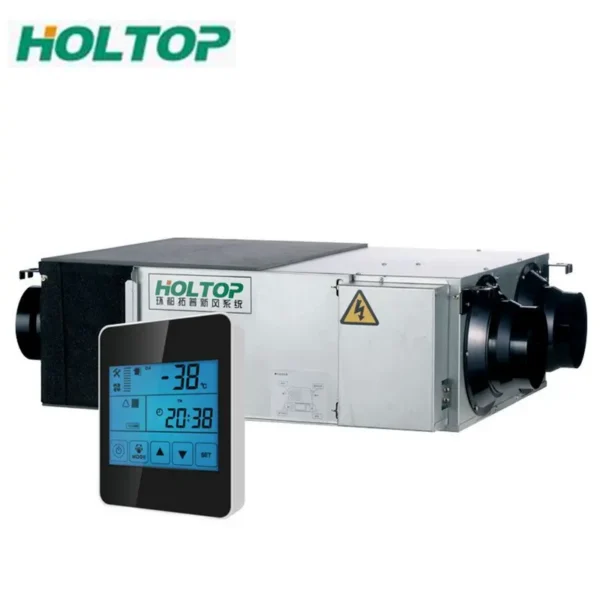

Europe air conditioning energy recovery ventilator ceiling fan for building construction project
Features of XHBQ-TFseries heat recovery ventilator
– Airflow various from 150-1300m3/h
– Sensible and latent heat recovery
– Quiet operation
– Suspended installation
– Bypass-function
– Optional HDK-08 standard controller and HDK-10 intelligent controller

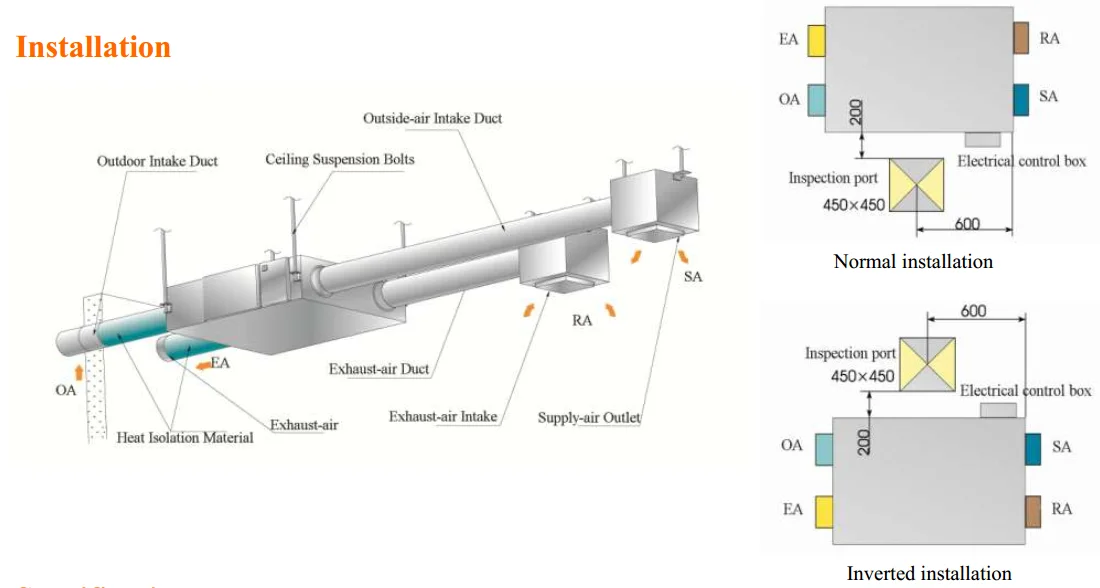

Instalaltion
Specification of XHBQ-TF series heat recovery ventilator
|
Model |
Airflow(m3/h) |
External |
Enthalpy |
Temp. Eff. |
Noise |
Current |
Input |
N. W. |
|||||||||||||
|
Summer |
Winter |
||||||||||||||||||||
|
L |
M |
H |
L |
M |
H |
L |
M |
H |
L |
M |
H |
L |
M |
H |
L |
M |
H |
||||
|
XHBQ-D1.5TFA |
100 |
100 |
150 |
110 |
118 |
120 |
65 |
60 |
60 |
70 |
63 |
63 |
80 |
75 |
75 |
25 |
30 |
31.5 |
0.5 |
105 |
23 |
|
XHBQ-D2.5TFA |
200 |
250 |
250 |
90 |
105 |
110 |
71 |
62 |
62 |
73 |
65 |
65 |
81 |
73 |
73 |
27 |
34 |
34.5 |
0.56 |
117 |
25 |
|
XHBQ-D3.5TFA |
300 |
350 |
350 |
110 |
118 |
120 |
70 |
62 |
62 |
73 |
65 |
65 |
82 |
74 |
74 |
31 |
37 |
37.5 |
0.72 |
150 |
31 |
|
XHBQ-D5TFA |
400 |
500 |
500 |
110 |
130 |
140 |
72 |
63 |
63 |
75 |
67 |
67 |
81 |
76 |
76 |
29 |
35 |
39 |
0.96 |
200 |
36 |
|
XHBQ-D6.5TFA |
550 |
650 |
650 |
120 |
150 |
160 |
67 |
60 |
60 |
71 |
65 |
65 |
82 |
74 |
74 |
37 |
40 |
43 |
1.7 |
355 |
60 |
|
XHBQ-D8TFA |
680 |
800 |
800 |
120 |
125 |
170 |
71 |
63 |
63 |
73 |
65 |
65 |
80 |
74 |
74 |
37 |
40 |
43 |
2.8 |
585 |
60 |
|
XHBQ-D10TFA |
840 |
1000 |
1000 |
105 |
120 |
175 |
68 |
60 |
60 |
72 |
62 |
62 |
80 |
76 |
76 |
36 |
42 |
44 |
3.3 |
690 |
79 |
|
XHBQ-D15TFA |
1260 |
1500 |
1500 |
120 |
125 |
170 |
71 |
63 |
63 |
73 |
65 |
65 |
80 |
74 |
74 |
39 |
41 |
44 |
5.6 |
1170 |
130 |
|
XHBQ-D20TFA |
1600 |
2000 |
2000 |
105 |
120 |
175 |
68 |
60 |
60 |
72 |
62 |
62 |
80 |
76 |
76 |
40 |
44 |
48 |
6.6 |
1380 |
175 |

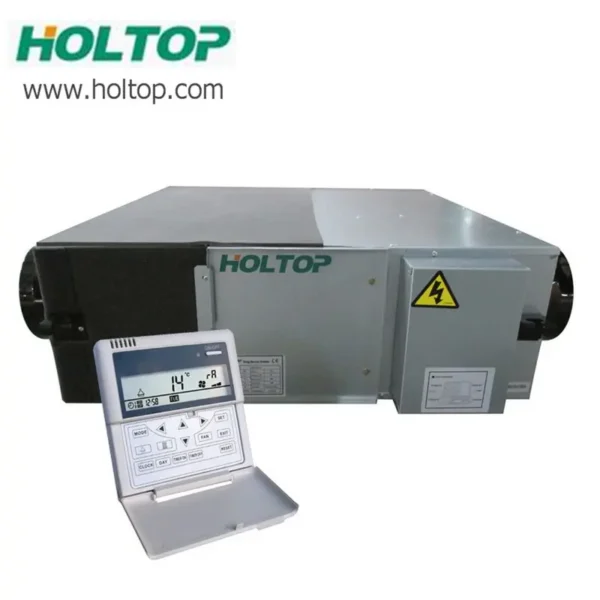

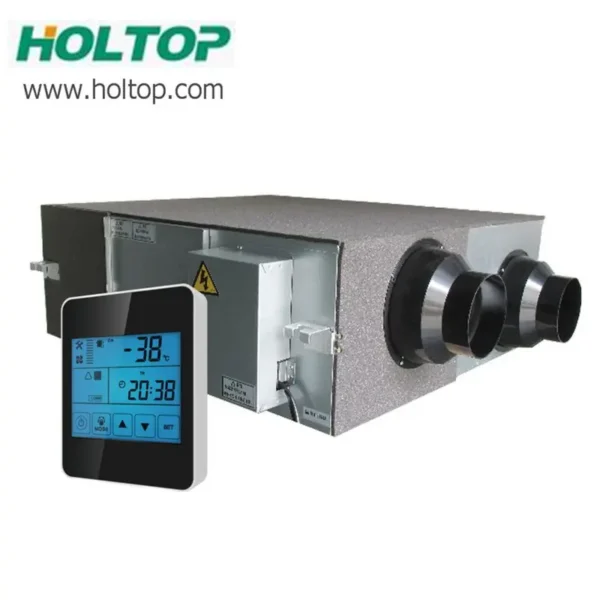

Control system
|
HDK-08 standard controller – 3 speeds – Ventilation mode and energy recovery mode switch – Temperature value revision |
Intelligent controller – 3 speeds – Temperature display – Auto-bypass – Weekly timer – Auto restart – Auto defrosting – Optional CO2 sensor connection – BMS system |

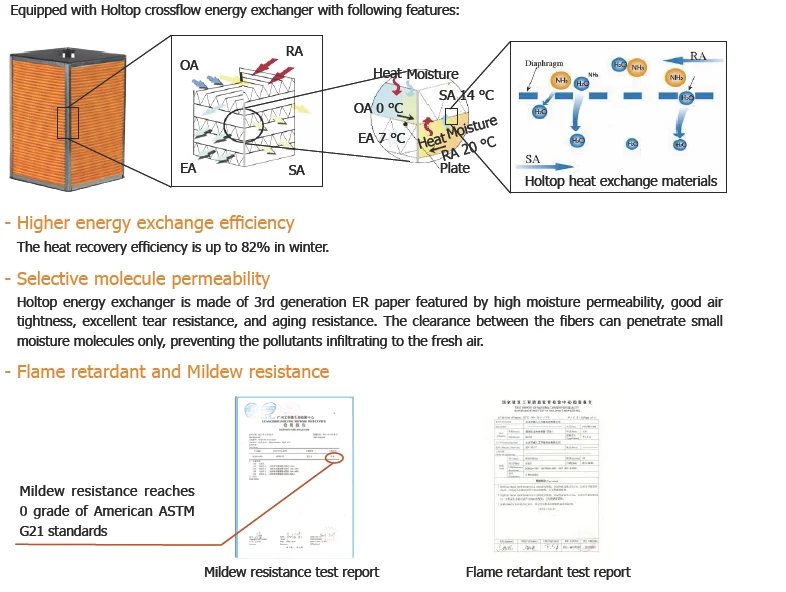

Heat exchanger of XHBQ-TF series heat recovery ventilator
Heat exchanger of Suspended installation 80% efficiency corssflow heat recovery ventilator is made of ER paper which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance. The clearance between the fibers is very small, so only the moisture molecules of small diameter can go through, the odor molecules of larger diameter are unable to pass through it. By this means, the temperature and humidity can be recovered smoothly, and prevent the pollutants infiltrating to the fresh air.

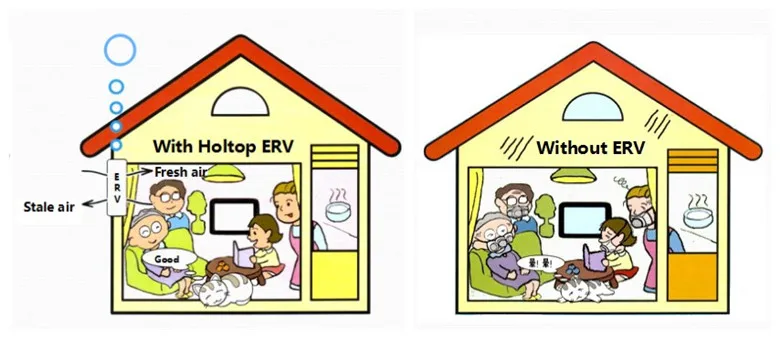

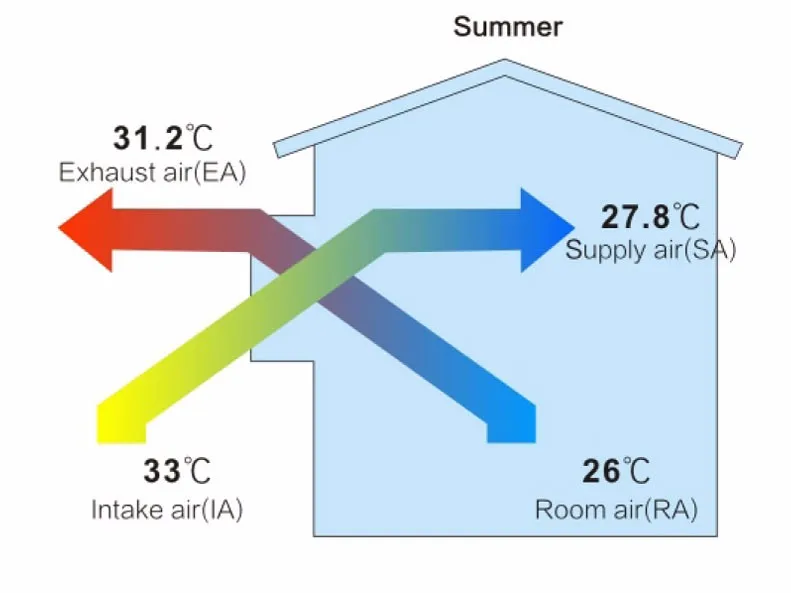

Working principle of XHBQ-TF series heat recovery ventilator
Holtop heat & energy recovery ventilator can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only smooth away the problem of indoor pollution, but also saving energy.
1. Holtop can supply OEM service for customers.
2. Produce ERV/HRV, heat exchanger and AHUaccording to customer’s special demands.
3. Supply spare parts according to order quantity.
4. General testing and operational test carried out for every units before delivery.
5. Long warranty period.

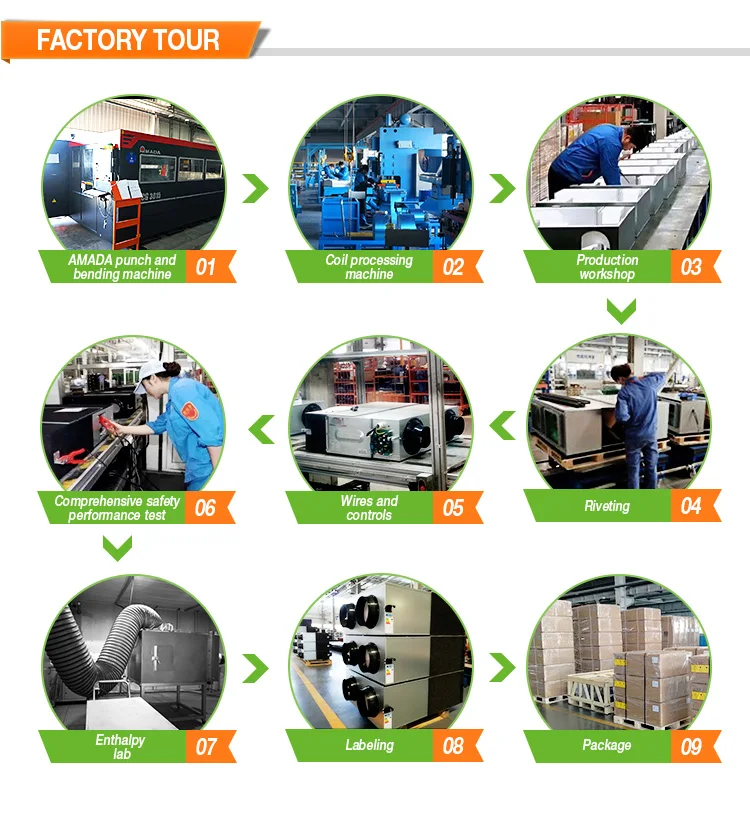

Holtop Factory
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products incluses energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop also offer turnkey hvac solutions for different industry.
Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing’s Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.
Holtop partner
Holtop cooperate with so many world famous brands, offering OEM /ODM service.
Holtop certificate
Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, CB, RCM, RoHs, FCC, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
PLEASE Click the following link to get more product information:
1) ECO-SMART HEPA ERV , ErP2018 eco design DMTH series
2) ECO-SMART Plus ERV , Eco design DCTP series
3) Ductless Eco Clean Wall Mounted ERV
4) Ductles Eco Clean Floor standing ERV
5) Energy Recovery Ventilator with Heat Pump Unit
Wall Mounted Heat Pump Type ERV
6 Slim design ERV, thinner design to save installation space
7) Convention TH series ERV, cheap and simple
8) Plate heat exchanger: counterflowsensible heat exchanger
9) Total heat exchanger _enthalpy type
10) Rotary heat exchanger
11) Air handling units
12) Water Chiller
Click to Get Best Price for Your Inquiry!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–29 set: US $550 / set
- 30–99 set: US $529 / set
- 100+ set: US $489 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
