Air Handling Unit, DOP, HEPA, Ceiling

Manufactured by Dongguan Yaning Purification Equipment, this air handling unit is documented here exactly as the factory publishes it. Supplier profile: 13 years on the platform, factory-assessed. Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Handling Unit

• Material: Stainless steel or coate cold rolled steel
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Size: Customized Size or factory size
• Weight (Kg): 50
• Single Gross Weight: 0.0 kg

Technical Specifications

Product Details

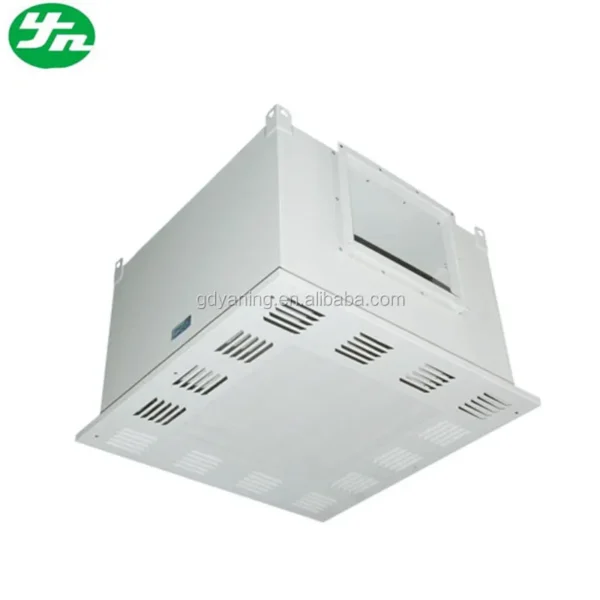

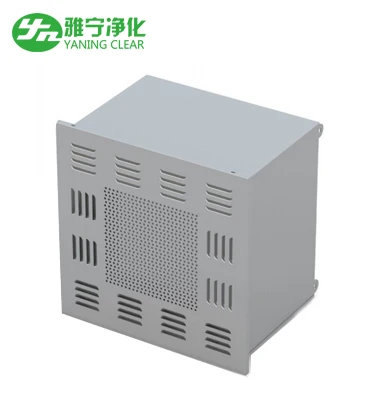

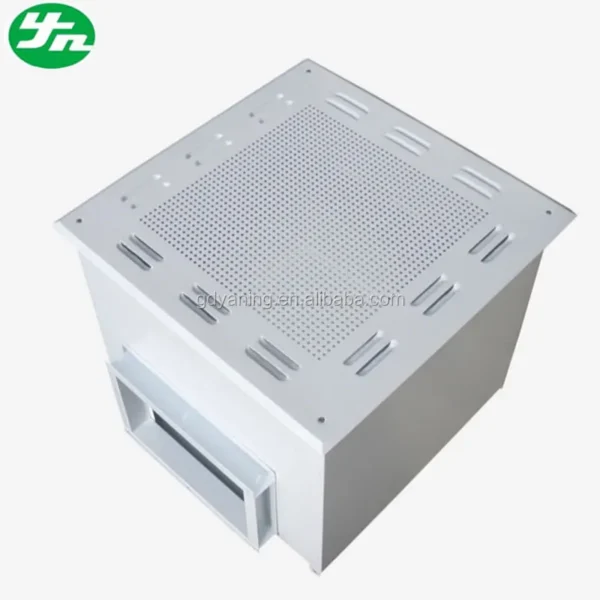

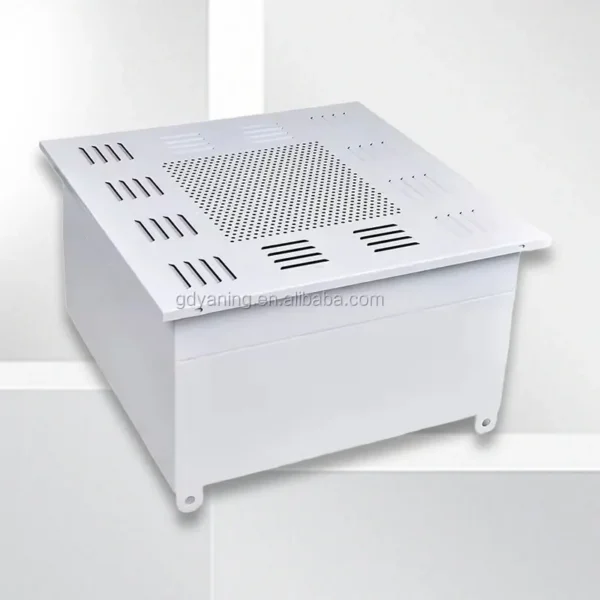

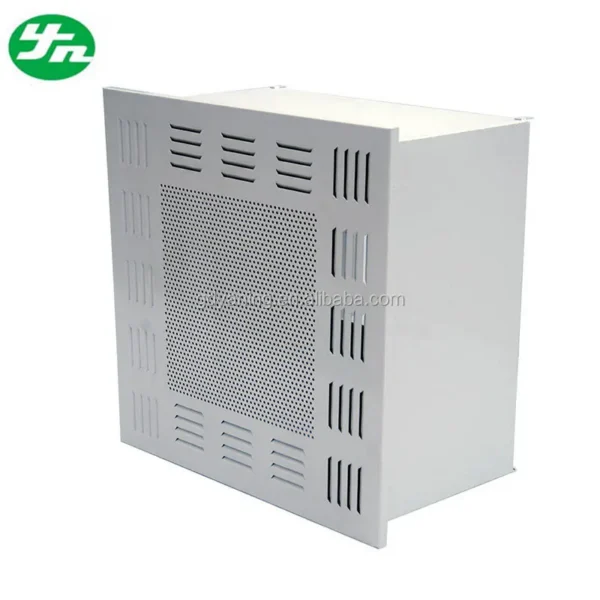

HEPA Filter Terminal Box

Product Description

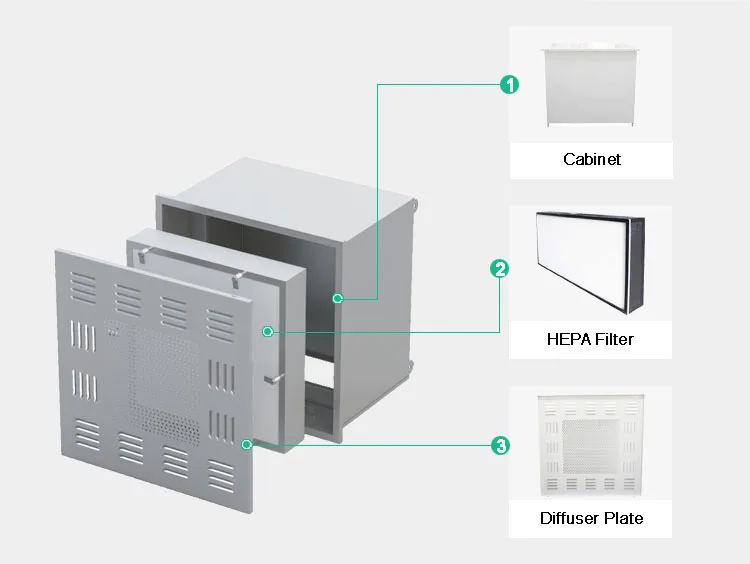

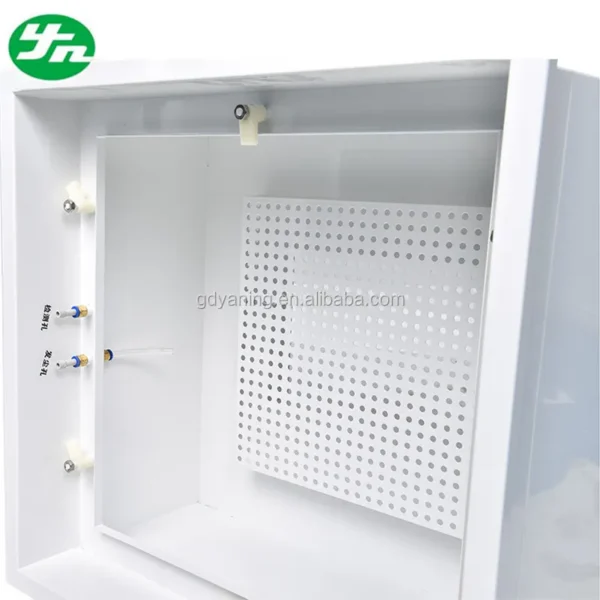

HEPA Filter Terminal Box is used as a terminal filtration device for the renovation and new construction of ISO 3 to ISO 6 clean rooms,and it is the key equipment to meet the purification requirements. It is mainly composed of a static pressure box, a hepa filter, a filter casing, and a diffusion type (diffuser) orifice plate. It has the advantages of beautiful shape, simple structure and simple construction. This equipment is widely used in biological laboratories, pharmaceutical factories, hospitals, food processing, electronics factories, painting and other air purification places.

Configuration Option

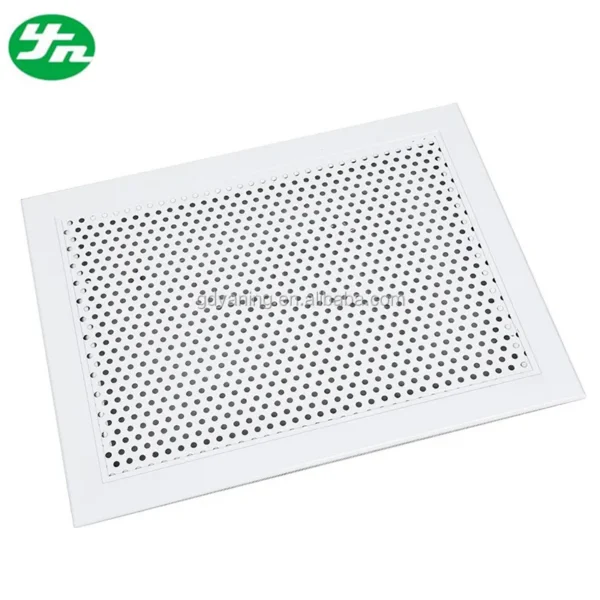

①5According to material: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316 ② According to air supply requirements: Side Air Supply: side flange air inlet and lower diffuser plate air supply. Top Air Supply: top flange air inlet, lower diffuser plate air supply. ③According to flange: square flange duct, round flange duct. ④ According to valve: Square manual control valve. Round manual control valve. Bottom regulating valve; ⑤According to diffuser: mesh steel plate, mesh/louver hole steel plate, gauze uniform flow film, louvers, etc.

Product Parameters
Product Name	Hepa Box
Product Model	YN-GS-01	YN-GS-02	YN-GS-03	YN-GS-04
Air Volume（m3/h)	500	1000	1500	2000
Air Diffuser Size (mm)	415×415×16.5	579×579×16.5	705×705×16.5	1010×705×16.5
Cabinet Size (mm)	370×370×400	534×534×400	660×660×400	965×660×400
Hepa Filter Size (mm)	320×320×90	484×484×90	610×610×90	915×610×90
Efficiency	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm
Flange Size (mm)	200×200	320×200	400×200	500×200

Products Description

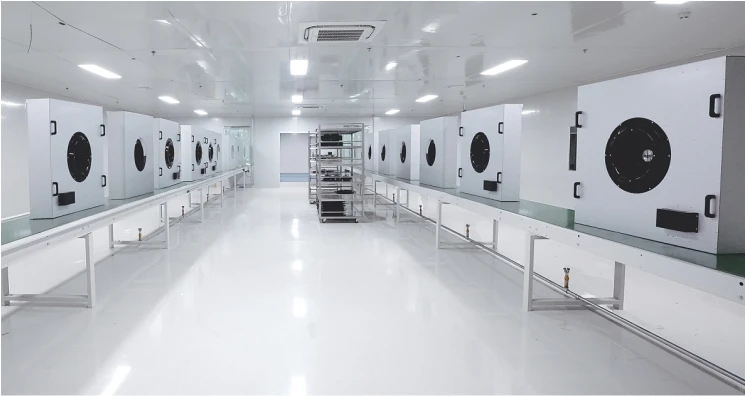

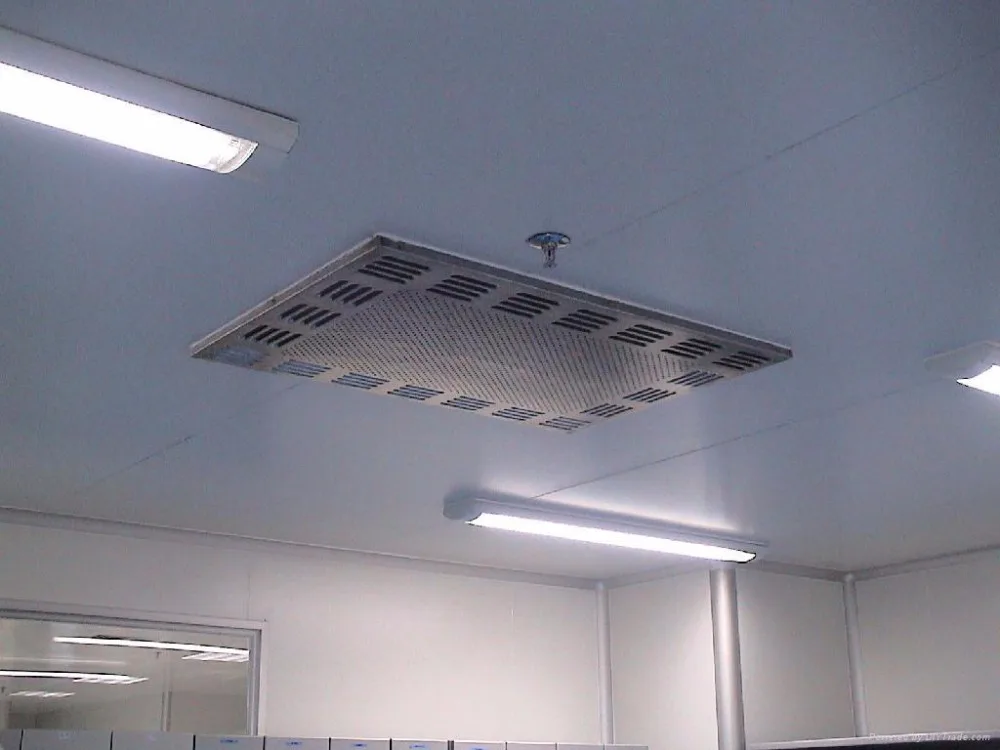

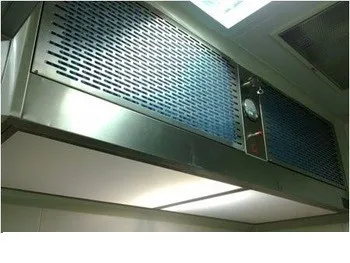

Success case show

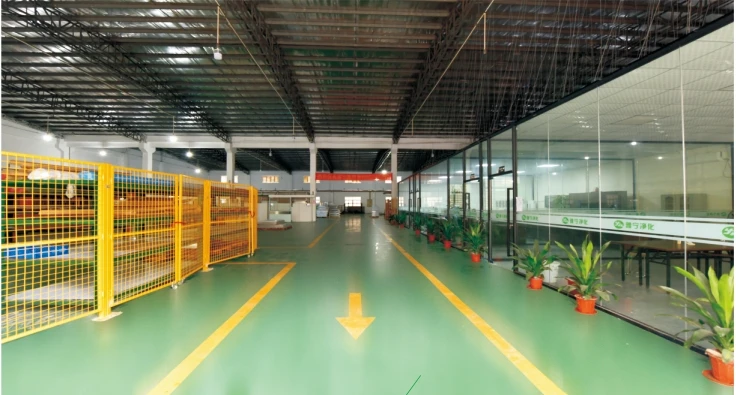

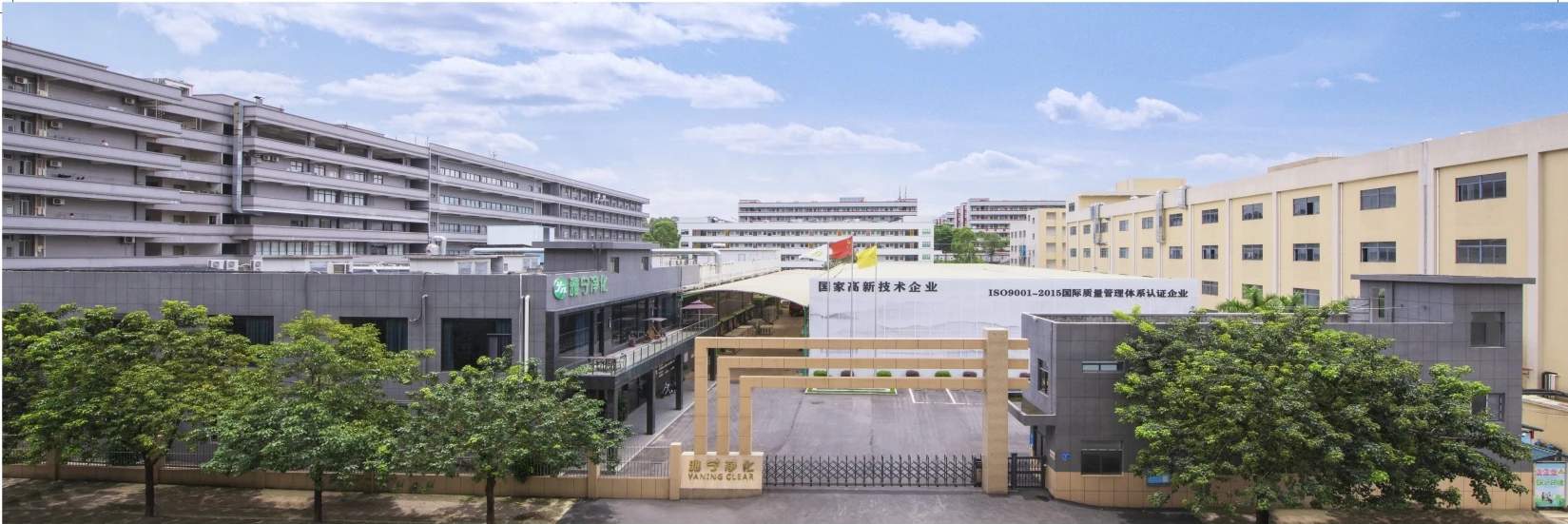

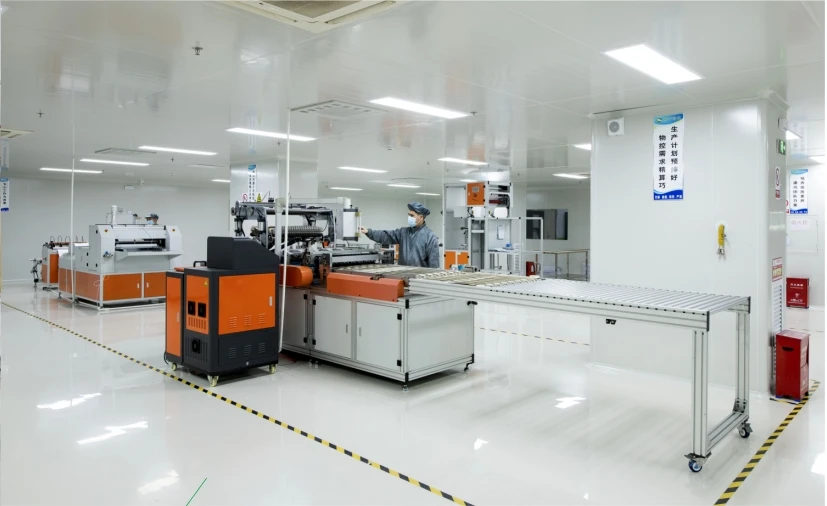

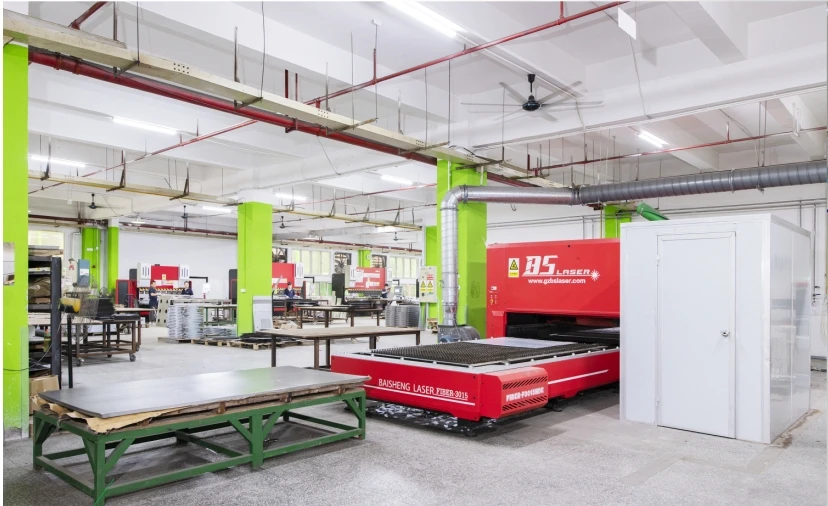

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong

Packing&Delivery

Exhibition

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.

4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–99 unit: US $380 / unit
  • 100+ unit: US $150 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
