Ffu Fan, HEPA, Ceiling

Key specification for this ffu fan: power AC220V/AC380V, material SUS304/Powder-coated Steel Plate. Everything below is reproduced from the factory data sheet. Made by Dongguan Yaning Purification Equipment Co., Ltd. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Ffu Fan

• Power: AC220V/AC380V
• Material: SUS304/Powder-coated Steel Plate
• Warranty: 1 Year
• Certification: CE ISO GMP
• Place Of Origin: Guangdong, China
• Application: 100 Lab / Laboratory Clean Room

Technical Specifications

Product Details

FFU

Product Description

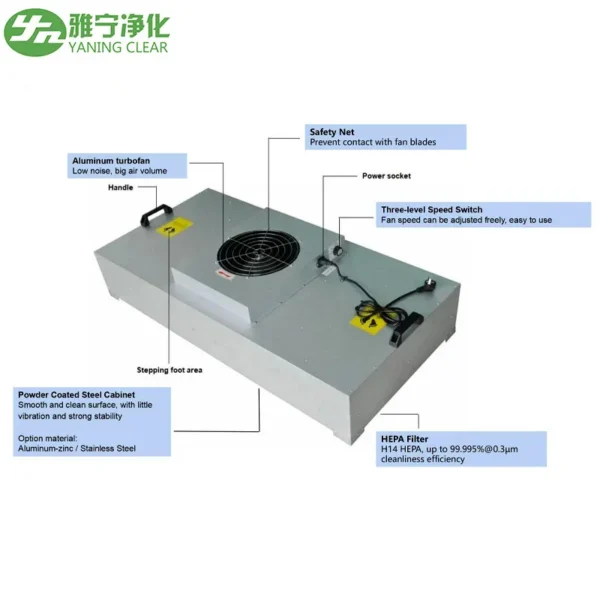

FFU is abbreviation of Fan Filter Unit. It is a modular terminal air supply device with its own power and filtering effect. Its main function is to inhale the air from the top of the FFU by the fan and filter it by HEPA, and the filtered clean air is evenly sent out at the air velocity of 0.45m/s+20% on the entire air outlet surface to meet the cleanliness requirements of the clean environment. It is mainly installed on ceiling keels and equipment machines in clean areas and working areas. It is widely used in semiconductors, optical electronics, precision instruments, biopharmaceuticals, aerospace, and automobiles, hospitals, food, spraying, printing and other fields.

Material Classification
Aluminium zinc plate	Stainless steel plate
Aluminum alloy plate	Powder coating steel
Rotor Classification
Internal rotor fan	External rotor fan
Current Classification
AC fan	EC fan
DC fan
System Classification
AC in-situ control	AC PC control system
EC PC control system	DC PC control system
Filter Level Classificat
99.95%@0.3μm（H13）	99.995%@0.3μm（H14）
99.9995%@0.12μm（U15）	99.99995%@0.12μm（U16）

FFU Features

Although when choosing FFU, the initial investment is higher than using duct ventilation. However, in the later operation, it
prominently shows the characteristics of energy saving and maintenance-free.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Because of its ability to provide static pressure, the clean room is positive pressure relative to the outside world. Therefore, external particles are not subject to leakage into the clean area, makes sealing easy and safe.

Compared to other systems, FFU system occupies less floor height in the supply air plenum. And basically does not occupy the clean room space.

Using FFU saves the production and installation of air ducts. Shorten the construction period.

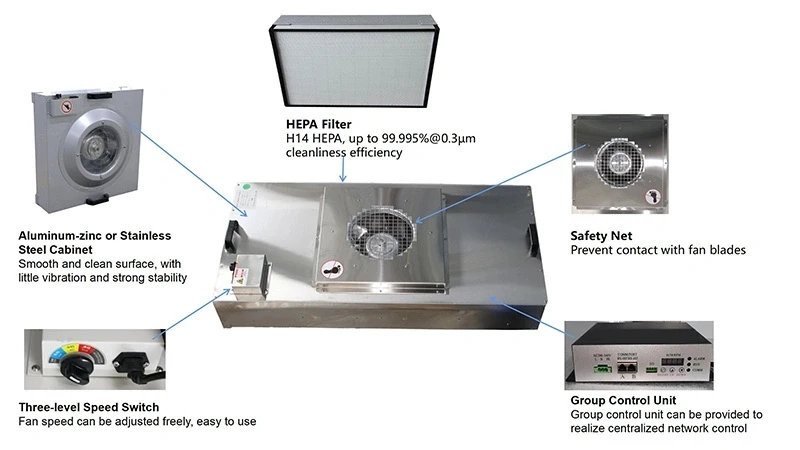

Group Control Features

The system is easy to operate, can monitor the FFU on the computer and touch screen, has strong anti-interference and low construction cost. The system is designed based on 485 bus and adopts hierarchical control. The system can control up to 64516 units, which can be precisely controlled according to the customer's on-site FFU layout.

The FFU can work independently during PC and PLC standby

Supply Power: AC 1N 110,220V/50,60Hz Control Function: Can control single or group FFU A. Start B. Stop C.Regulation Monitoring Function: Can monitor single or group FFU A. Working Status B. Error Alarm

Product Name	AC FFU
Product Model	YN-FFU-A01	YN-FFU-A02	YN-FFU-A03	YN-FFU-A04
Dimension(mm)	575x575x220	575x1175x220	875x1175x275	1175x1175x295
Filter Dimension(mm)	570x570x69	570x1170x69	870x1170x69	1170x1170x69
Air Volume	500m³/h	1000m³/h	1500m³/h	2000m³/h
Noise	52~62dB(A)	52~62dB(A)	52~62dB(A)	52~62dB(A)
Air Pressure	200PA	200PA	260PA	290PA
Power	170W	170W	200W	240W
Weight	28Kg	35Kg	47Kg	55Kg
Material	Galvanized/powder coated/SUS 304 plate
Supply Power	AC 1N 110, 220V/50,60Hz
Control System	3 stage regulation, group reguation
Filter Efficiency	99.95%MPPS above H13-U16@EN1822
Pre Filter	G3/G4 Filter, nylon filter
Work Status	power Indicator, work indicator, Error indicator
Connection Type	3 Pin Aviation Male Female socket, terminat blocks
Overload Protection	Overload protect of motor and controller
Monitor Contact Communication Method	port of reserve and Erro

Product Name	EC FFU
Product Model	YN-FFU-E01	YN-FFU-E02	YN-FFU-E03	YN-FFU-E04
Dimension(mm)	575x575x225	575x1175x275	875x1175x305	1175x1175x305
Filter Dimension(mm)	570x570x69	570x1170x69	870x1170x69	1170x1170x69
Air Volume	500m³/h	1000m³/h	1500m³/h	2000m³/h
Noise	48~54dB(A)	48~54dB(A)	52~58dB(A)	52~58dB(A)
Air Pressure	210PA	210PA	280PA	280PA
Power	60W	90W	140W	160W
Weight	28Kg	35Kg	47Kg	55Kg
Material	Galvanized/powder coated/SUS 304 plate
Supply Power	AC 1N 110, 220V/50,60Hz
Control System	Manual stepless regulation; PC group regulation
Filter Efficiency	99.95%MPPS above H13-U16@EN1822
Pre Filter	G3/G4 Filter, nylon filter
Work Status	Work indication; Error indication
Connection Type	Terminal Bolcks
Overload Protection	Overload protect of motor and controller
Monitor Contact Communication Method	R485 TCP

Pressure deviation range:±5% FFU test standard base on; IEST-CCO0361-2014, GB/T388-2012, GB/T1236-20000, GB9068-1988 Noise value is 1.5m below the air outlet of the filter Above data is laboratory test value,deviation value depend on site situation can customized acording to client's requierements

Products Description

Air Duct Connect Fan Filter Unit

Product Information: Fan Filter Unit (FFU) is self-clean air equipment, it can be installed to the ceiling or setted on the
wall holder, which can achieve Class 100 level. FFU has HEPA filter and pre-filter, the fan sucks the air from the top through the prefilter and HEPA filter then the clean air at 0.45m / s ± 20% speed blow out by the whole air supply grid.

Outstanding Features: longer Using life, less noise and vibration, maintenance-free, adjustable air speed, thousands unit can be easy
controlled.
Factory Strict Test: according to international ISO14644-1 standards, with a dust particle counter detection one by one to ensure the quality.
Application: widely used in the semiconductor, electronics, liquid crystal displayers, and optical disk drive manufacturers, bio-
industries, assembled clean room and laminar flow hood.Etc.

Model			YN-FFU-575	YN-FFU-1175	YN-FFU-1200	YN-FFU-1175D
Casing Size			575×875×230	575×1175×230	600×1200×230	1175×1175×230
Casing Material			Powder coated steel/Galvanized steel with aluminum painted/Stainless steel
Air Flow(m3/h)			800	1100	1200	2000
Noise(dB)			≤56	≤56	≤58	≤58
Air Velocity			0.3~0.5m/s	0.3~0.5m/s	0.3~0.5m/s	0.3~0.5m/s
HEPA Filter	Size	570×870×69	570×1170×69	610×1220×69	1170×1170×230
		Efficiency	99.995%0.3µm	99.995%0.3µm	99.995%0.3µm	99.995%0.3µm
		Frame	Aluminum
		Initial pressure loss	220pa/0.45m/s	220pa/0.45m/s	220pa/0.45m/s	220pa/0.45m/s
Fan	Power Supply	220V/50hz	220V/50hz	220V/50hz	220V/50hz
		Type	Aluminum turbofan
		Vibration	0.2~0.5mm/s	0.2~0.5mm/s	0.2~0.5mm/s	0.2~0.5mm/s
Total Power			170W	170W	210W	275W
Weight			24kg	28kg	31kg	47kg

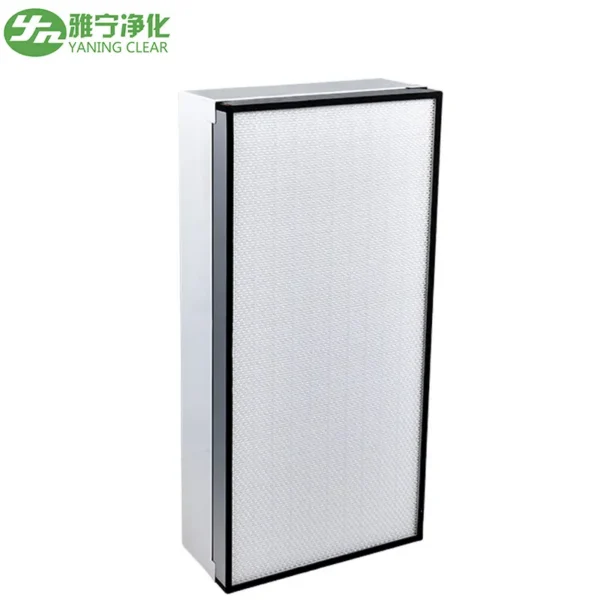

* HEPA (High-Efficiency Particulate Air) filters are rated 99.99% efficient at removing particles ≥ 0.3 microns.
* Painted white, expanded metal face screen.
* Low sound, low watts, low profile, and low operating costs.
* Snap-in pre-filter allows for easy replacement and maintenance (must be removed when ducting directly to the unit).
* OEM/ODM are available.

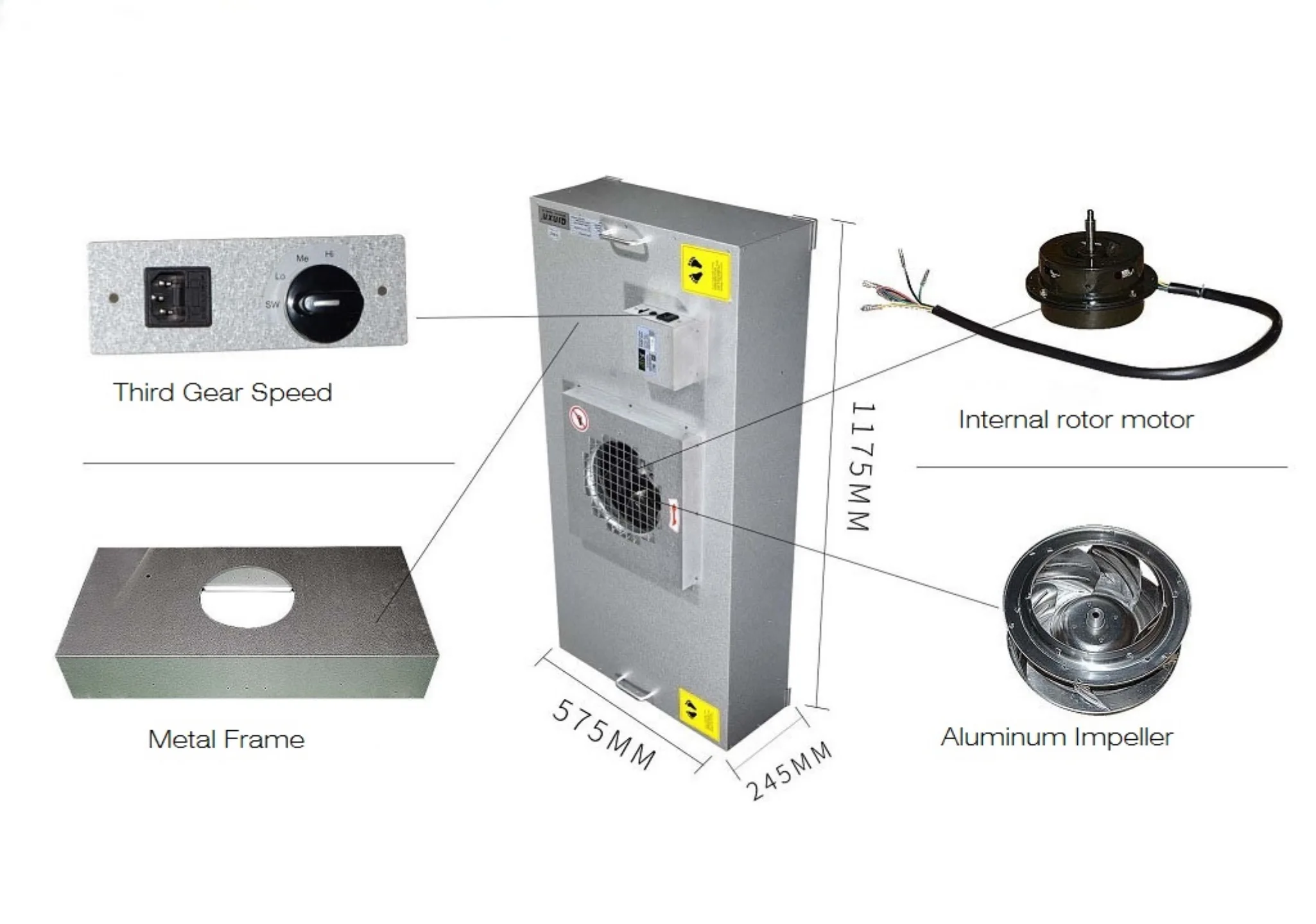

Details Images

Success case show

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong

Packaging & Delivery

Exhibition

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.

4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–99 unit: US $180 / unit
  • 100–299 unit: US $120 / unit
  • 300–499 unit: US $90 / unit
  • 500+ unit: US $68 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ffu fan?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this ffu fan carry?

It is supplied with CE ISO GMP documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
