The air handling unit listed here carries cooling capacity 30.7~663.9Kw, refrigerant R-410A, R134a, documented exactly as the manufacturer publishes it. Made by Shandong Shengpan Environmental Technology Co., Ltd. (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Model Number: Customized(consult merchant)
- Cooling Capacity: 30.7~663.9Kw
- Heating Capacity: 40.6~723.9Kw
- Refrigerant: R-410A, R134a
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Type | Rooftop Packaged Unit |
|---|---|
| Refrigerant | R-410A, R134a |
| Mounting Type | Rooftop |
| Compressor Brand | Copeland |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Filter Type | High-Efficiency Particulate Air Filter |
| Application | Hospital, Hotel, School, Plant, Warehouse |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC, compressor, Condenser/evaporator, Fan |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 300 |
| Brand Name | SPE |
| Model Number | Customized(consult merchant) |
| Dimension(L*W*H) | Customized on demand |
| Product Name | Rooftop air conditioning unit |
| Function | Cooling Heating |
| Cooling Capacity | 30.7~663.9Kw |
| Heating Capacity | 40.6~723.9Kw |
| Compressor | Copeland Srcoll Compressor |
| Control | LCD Screen |
| Coil | Copper tube+Hydrophilic AL fins |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
1：Danfoss/Copeland/Panasonic, an internationally renowned brand compressor 2：According to the ambient temperature, an ultra-low temperature host suitable for extremely cold climates can be configured 3：Provide cold and heat sources for the use environment
Fan section （Customized options）
1-EC brushless fan，large volume demand can provide EC fans wall 2-Single inlet backward curve fan 3-External rotor fan，direct drive 4-Double inlet centrifugal fan，Belt pulley drive，According to TSP requirements, choose a forward or backward curve impeller 5-Can optimal selection YILIDA brand fans，with AMCA certificate，obtain lower noise levels 6-Configure fixed frequency or variable frequency motors as needed，Special environment configuration includes high-altitude, moisture-proof, and explosion-proof motors
Coil section（Customized options）
1-Water coil standard configuration：φ12.7mm copper tube & hydrophilic aluminum foil fins 2-DX coil standard configuration：φ7mm internal thread copper tube & hydrophilic aluminum foil fins 3-Provide customized materials coils according to different applications 4-According to environmental requirements，provide Epoxy resin & Nano & Electrophoresis etc. Anti corrosion process
Constant temperature and humidity section
1：Configure appropriate condensers and evaporators based on the required cooling capacity for the usage area 2：Heating section:Configure PTC electric heating, hot water heating, steam heating, natural gas heating, etc. as needed 3：Humidification section:Configure electrode humidification, wet film humidification, high-pressure micro mist humidification, steam humidification, etc. as needed
Filter section（Customized options）
1-Primary filtration+Medium filtration+High efficiency filtration，Any combination configuration 2-Optional-UV sterilization lamp 3-Optional-Ozone sterilization 4-Optional-Activated carbon adsorption filtration
Heat recovery（Customized options）

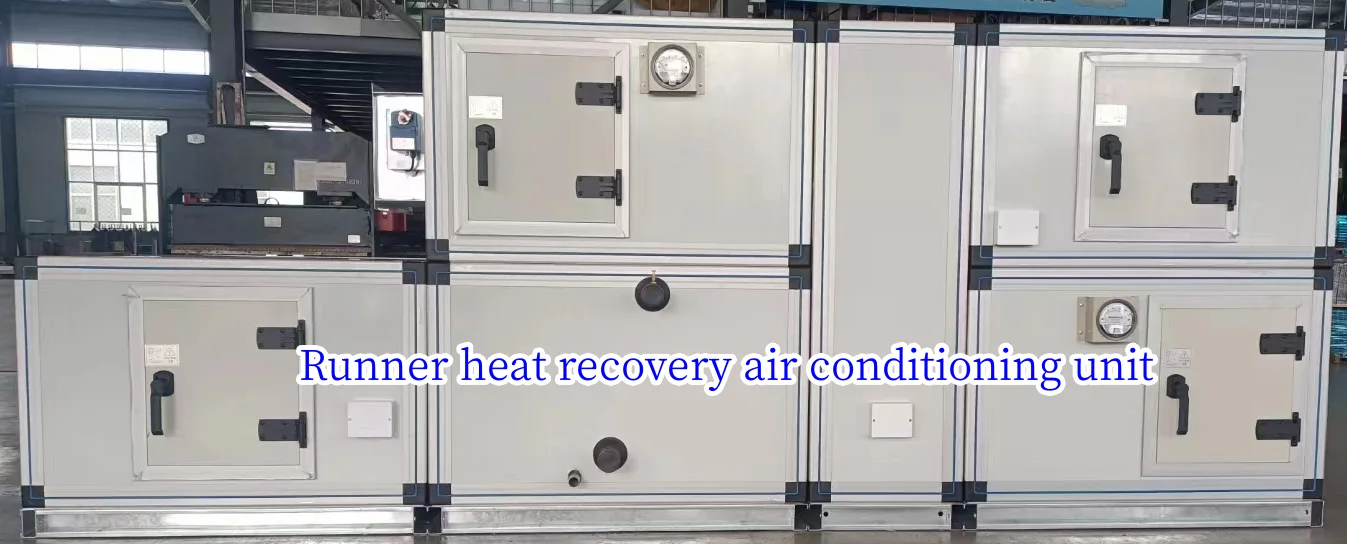

1-Plate type heat recovery，total heat recovery & sensible heat recovery 2-Rotary type（thermal wheel） heat recovery 3-heat pipe type heat recovery 4-Customized intermediate media based heat recovery（Run around coil），Circulating medium: water or ethylene glycol
Intelligent electronic control system
1：Single chip microcomputer and PLC control system 2：Provide motor overload protection, heating windless power outage protection, and humidification leakage protection 3：Alarm after blockage in the purification filtration section 4：Reserve 485 interface and provide modbus protocol; Integrated PLC system to achieve automatic adjustment and control of positive and negative pressure in the usage environment according to special needs
DX Coil air Handling Unit | ||||||||
Q1.Are you factory or trade company?
Q2.Are there any order requirements?
A:We are manufacture,with OEM service.
Q2.Are there any order requirements?
A:We will appreciate it a lot if you can offer us your product performance requirements and operation environment, so that we can customize optimal production to meet your every requirement.
(1) Air volume
(2)Cooling/heating capacity
(3) Cooling/heating area
(4) Power and voltage
Q3.What are your Before-sale services？
A:(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.
(3) Site inspection if you need.
Q4.What are your In-Sale services？
A:(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.
Q5.What are your After-sale services?
A:(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers
installation video to teach them how to fix and operate with our product.
A:(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers
installation video to teach them how to fix and operate with our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation for non-human factor damages,within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with the customer's
two-way communication.
two-way communication.
Q6.How long is the delivery time?
A:Generally it is 1-7 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Shengpan Environmental Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Shengpan Environmental Technology Co., Ltd. range on HVACR Nexus.
