Key specification for this cabinet air conditioner: power supply AC220V, 5000W. Everything below is reproduced from the factory data sheet. Made by Changzhou Chen Tong Yuan Communication Equipment Co., Ltd. (11 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cabinet Air Conditioner
- Power Supply: AC220V
- Cooling Capacity: 5000W
- Internal Airflow: 1250M3/h
- Refrigerant: R134a
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Cabinet Air Conditioner |
|---|---|
| Refrigerant | R134a |
| Mounting Type | Wall / Window Mount |
| Compressor Brand | Hitachi |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Filter Type | High-Efficiency Particulate Air Filter |
| Application | Telecom |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Pump |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 46 |
| Brand Name | OEM |

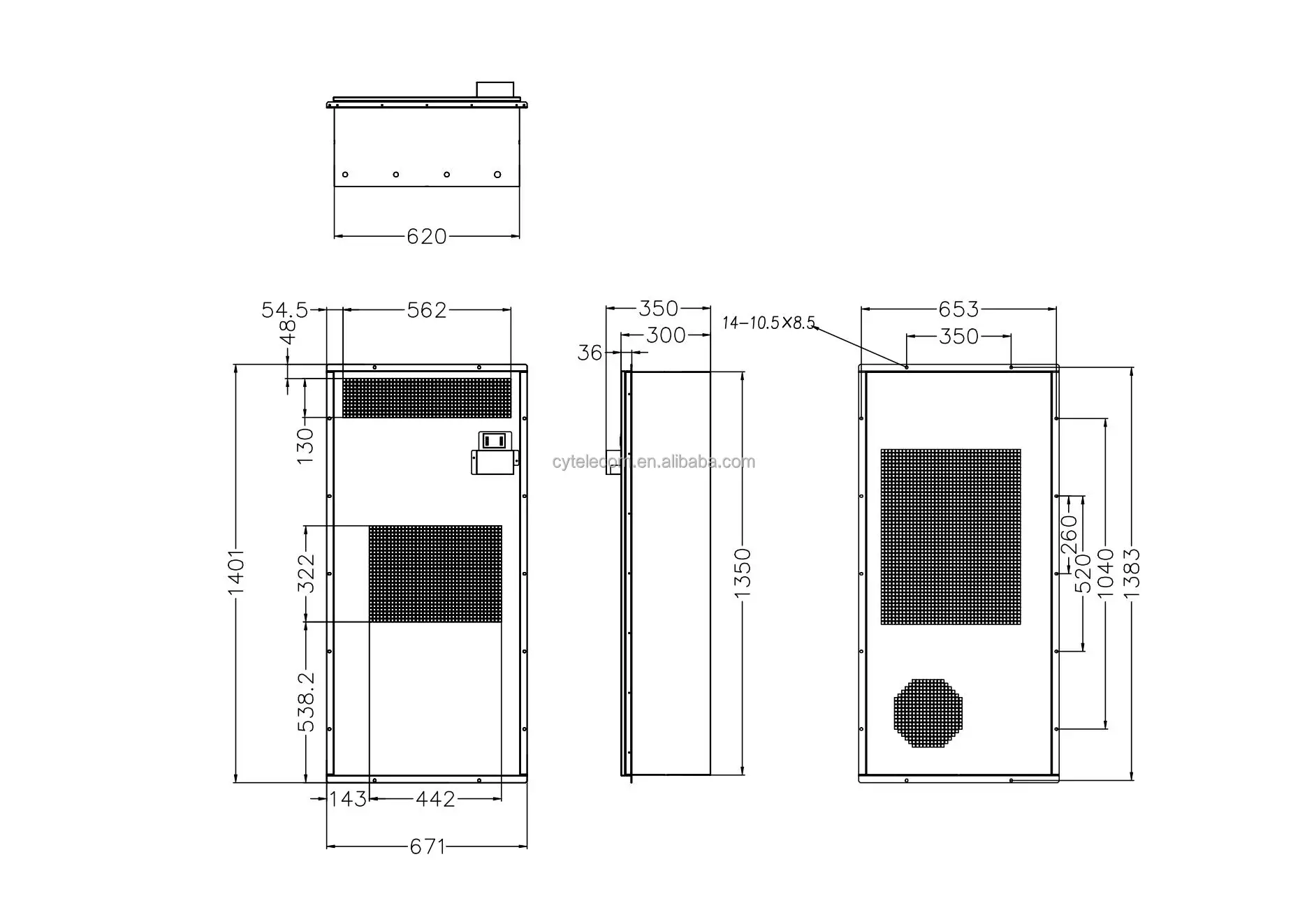

| Dimension(L*W*H) | 562*350*1401 |
| Product Name | Energy Storage AC |
| Cooling Capacity | 5000W |
| Color | RAL 7035(light Gray) |
| Internal Airflow | 1250M3/h |
| Mounting Method | semi-embedded mounting |
| Working Temperature Range | -40 degree to +55 degree |
| Power Supply | AC220V |
| IP Grade | IP55 |
| Heater | optional 2000w |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details

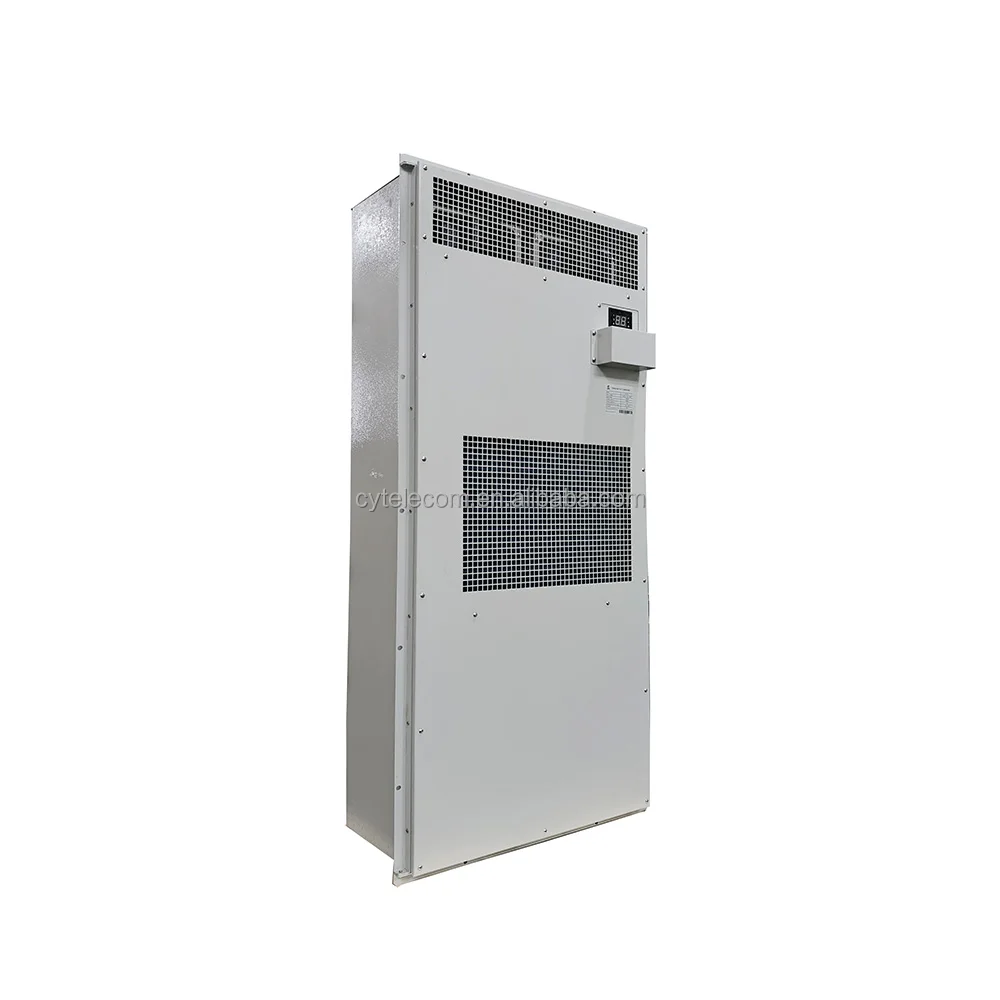

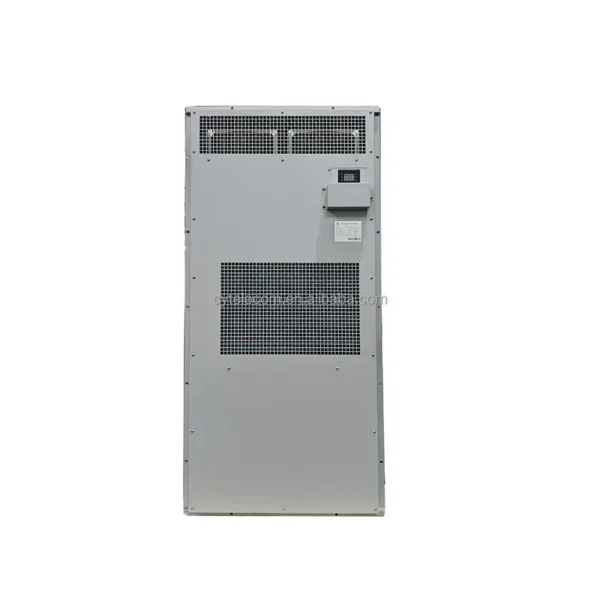

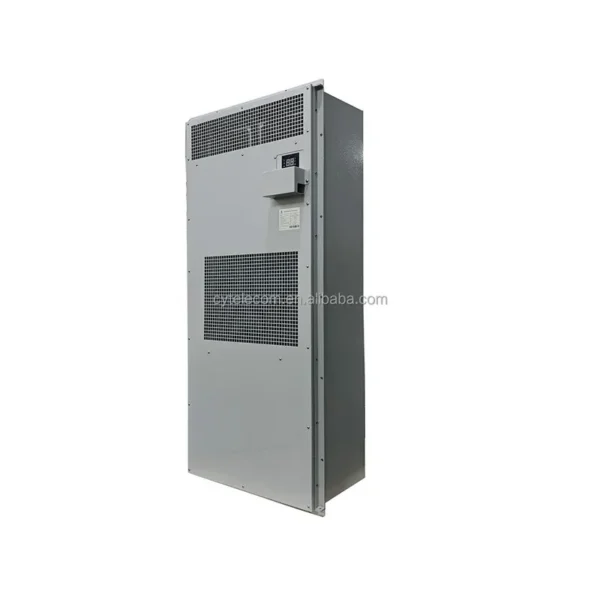

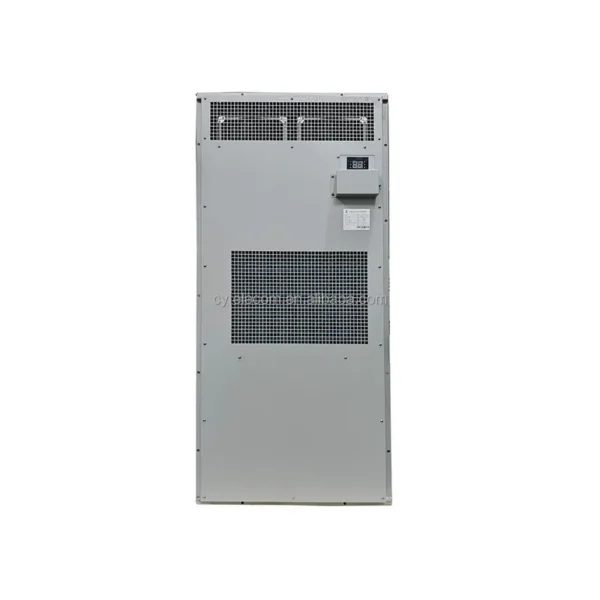

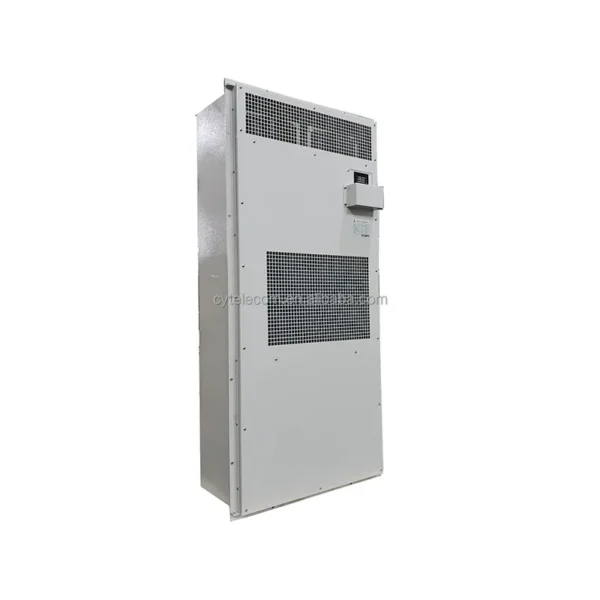

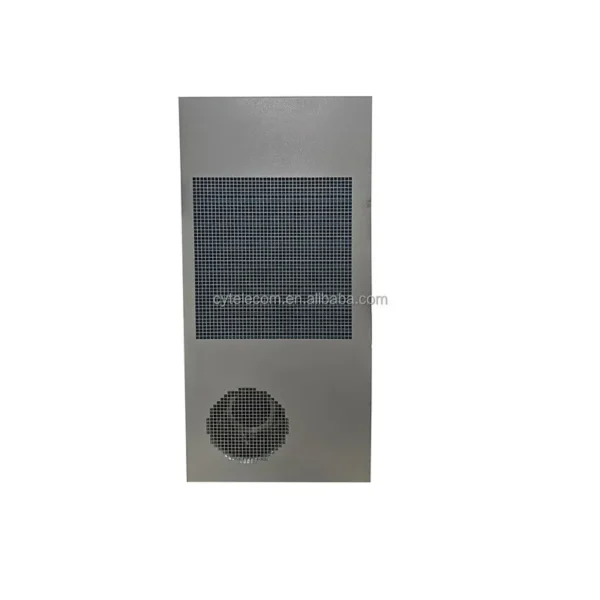

5000W IP55 Industrial Enclosure Air Conditioners for Server Rack Cooling – CE Certified
Name | Energy Storage AC |
Model | AC150-2 |
Mounting Method | Semi-embedded Mounting |
Power Supply | AC220V 50HZ |
Cooling capacity | 5000W@L35/35 |
Power capacity | 1850W@L35/35 |
Cooling capacity | 3000W@L35/55 |
Power capacity | 2400W@L35/55 |
Max Noise Level | 65dB（A） |
IP Grade | IP55 |
Net Weight | 87kg |
Refrigerant | R410 |
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V;

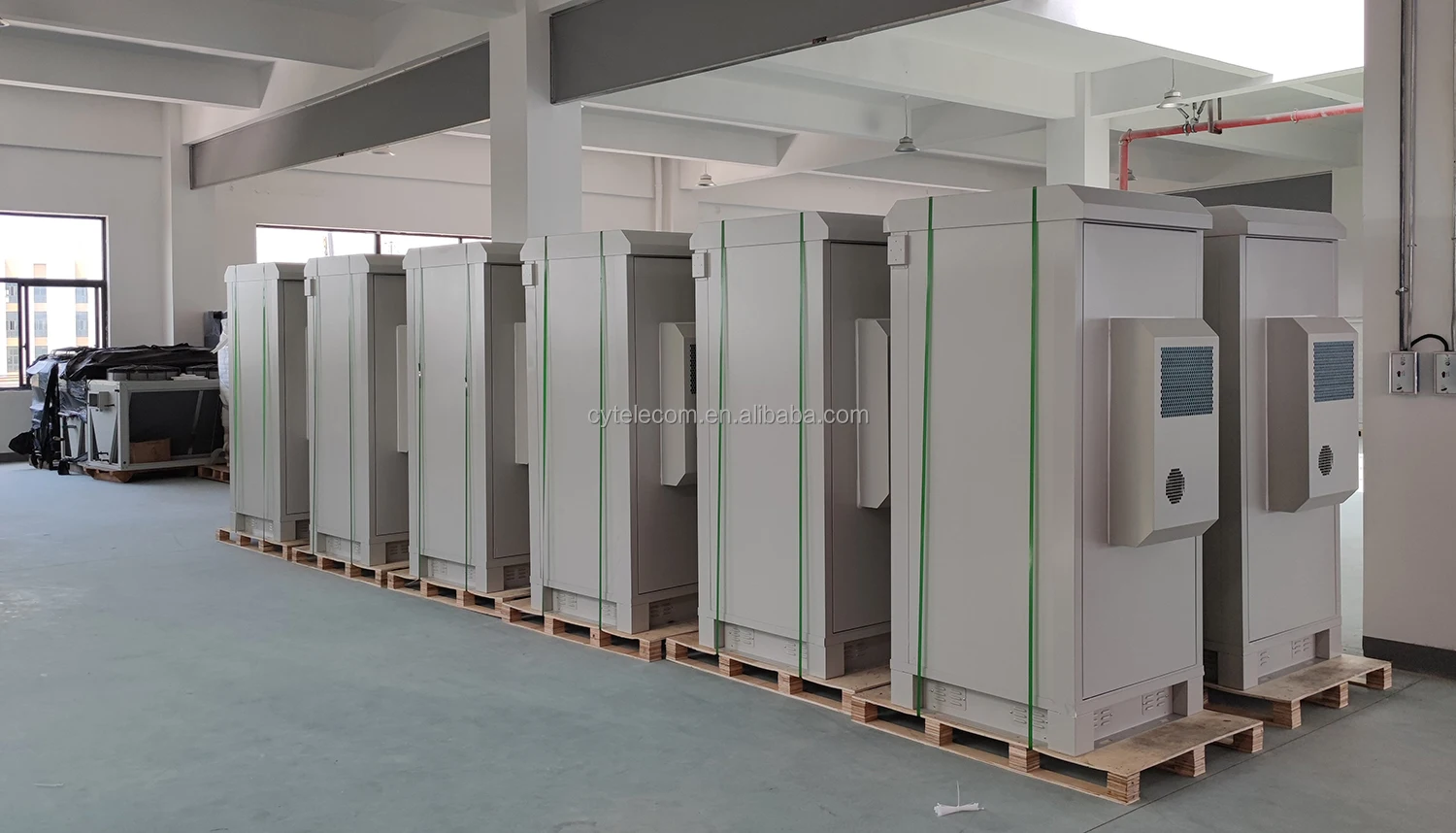

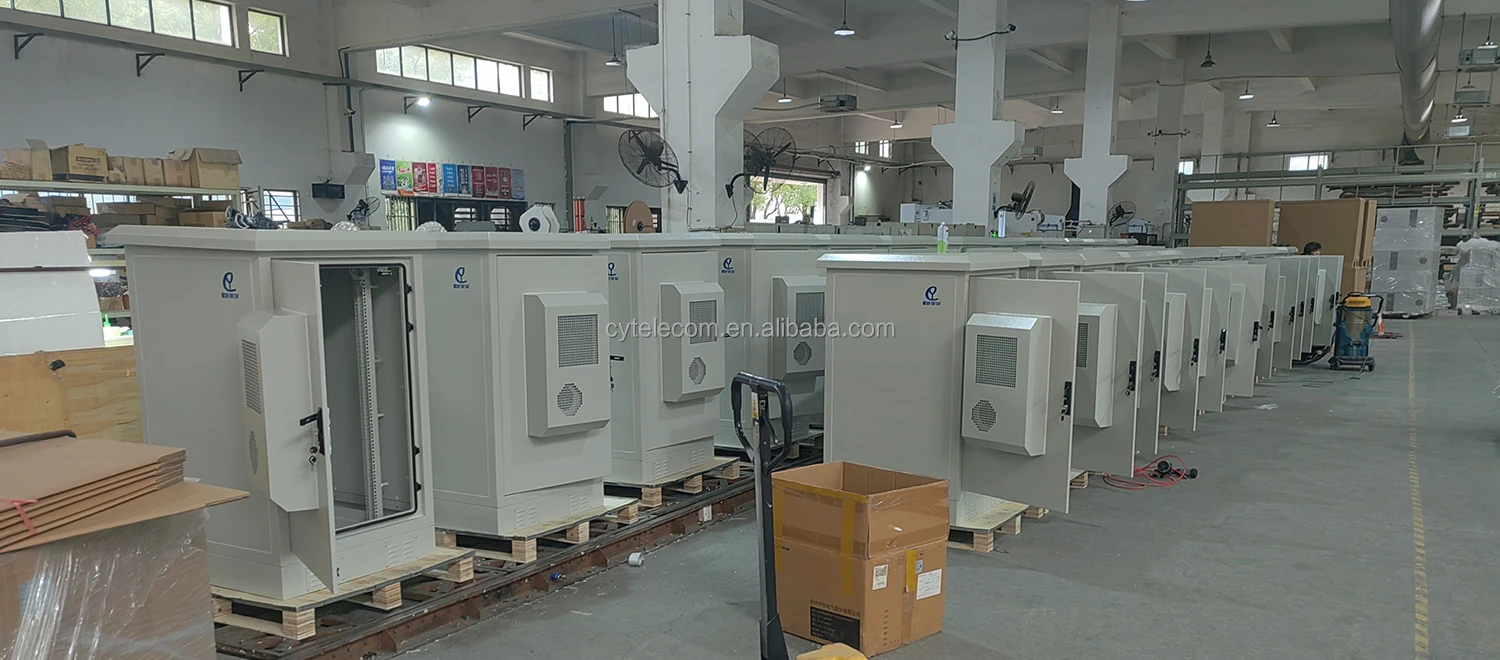

Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc;

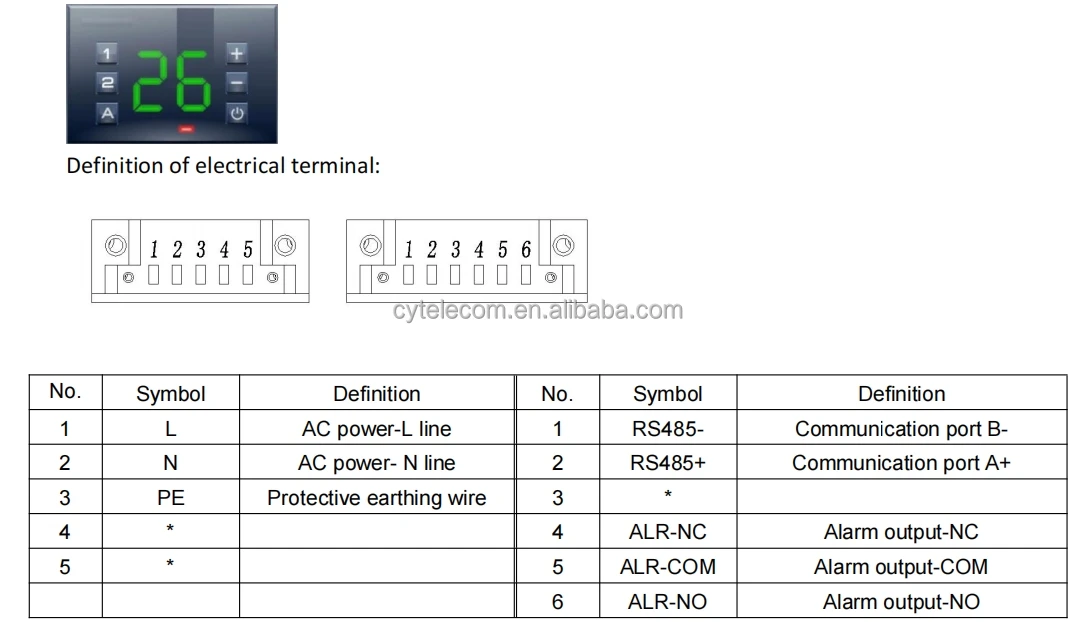

Remote monitoring system supported, communication protocol is RS485.
Name | Specification |
Air conditioner | AC220V 50HZ,AC220V 60HZ,AC110V 60HZ or DC48V, cooling capacity from 300W-5000W. |
Heat exchanger | DC48V,40W/K-200W/K |
Combined air conditioner & heat exchanger | AC220V 50HZ and DC48V 1500W&80W/K |
TEC | DC48V, 200W-1200W |
Fan | AC220V 50HZ,AC220V 60HZ,AC110V 60HZ or DC48V |

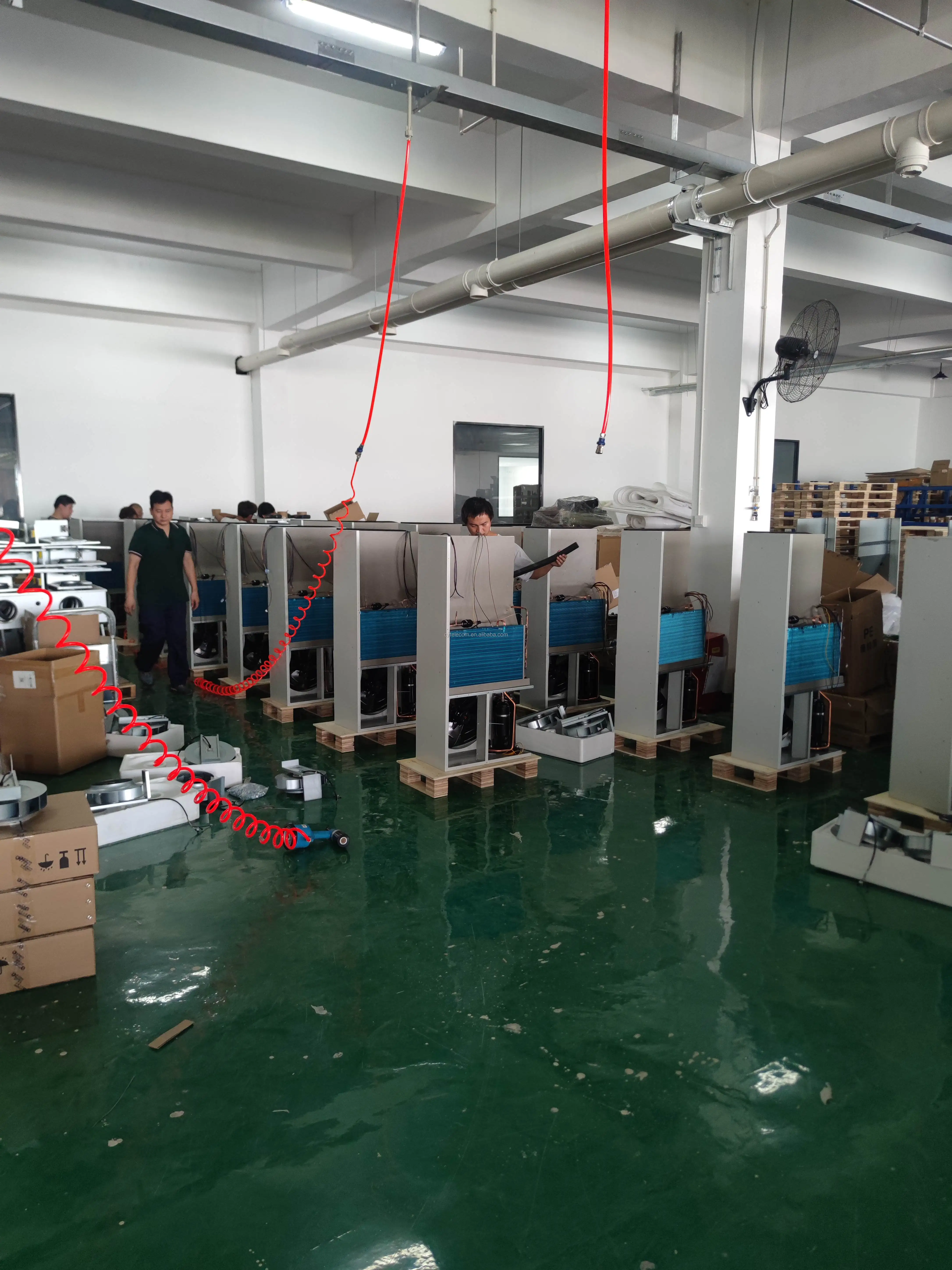

meters, the total number of employees is about 200, and the annual output sales are nearly 100 million RMB. Since its
establishment, the company has been focusing on enclosure air conditioner, network cabinet 48v air conditioner, electric cabinet air conditioning, heat exchanger, Thermal energy equipment，embedded switching power supply, power environment monitoring system,distribution cabinet research and development, production and sales.
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your Energy Storage AC can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee ?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application of Energy Storage AC?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station,steel, metallurgy, petrification, cars and war industry etc.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $720 / piece
- 10+ piece: US $710 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cabinet air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cabinet air conditioner be supplied for my local voltage?
The standard configuration is AC220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Chen Tong Yuan Communication Equipment Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Changzhou Chen Tong Yuan Communication Equipment Co., Ltd. range on HVACR Nexus.
