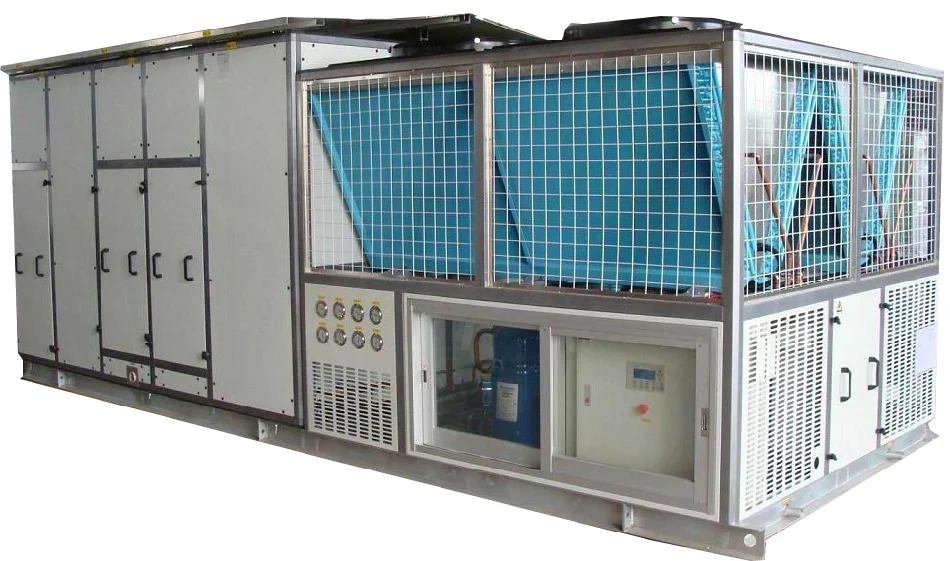

Key specification for this air handling unit: 8.8kw-181kw, type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. (10 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Total Electric Power: 67.7kw
- Cooling Capacity: 8.8kw-181kw
- Air Flow: 2000cmh-30000cmh
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Type: Air Handling Unit
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | as requested |
| Fan Motors Type | AC |
| Key Selling Points | Low Maintenance Cost |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC, Fan |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 600 |
| Brand Name | Telewin |
| Dimension(L*W*H) | 1750*1670*1000mm |
| Cooling Capacity | 8.8kw-181kw |
| Air Flow | 2000cmh-30000cmh |
| Temperature Control | 18℃-28℃ |
| Humidity Control | 50%-70%RH |
| Total Electric Power | 67.7kw |
| Condition | New |
| Selling Units | Single item |
| Single Package Size | 250X210X220 cm |
| Single Gross Weight | 1100.0 kg |
Product Details
Product Description
product name | HVAC Air Conditioning System Hospital DX Air Handling Unit Package AC Units |
cooling capacity | 10kw~200kw |
air flow | 2000cmh ~ 200000cmh |
external static pressure | 350pa |
Outstanding Features
■ Advanced structure
■ Easy maintenance
■ High cleaness
■ Reliable anti-corrosion
■ Flexible design

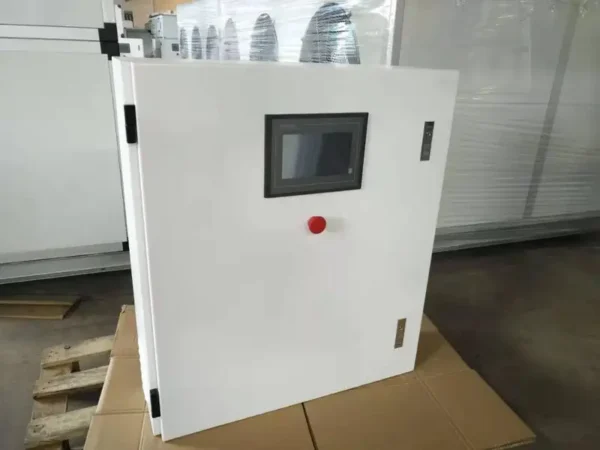

■ Intelligent control
Details Images

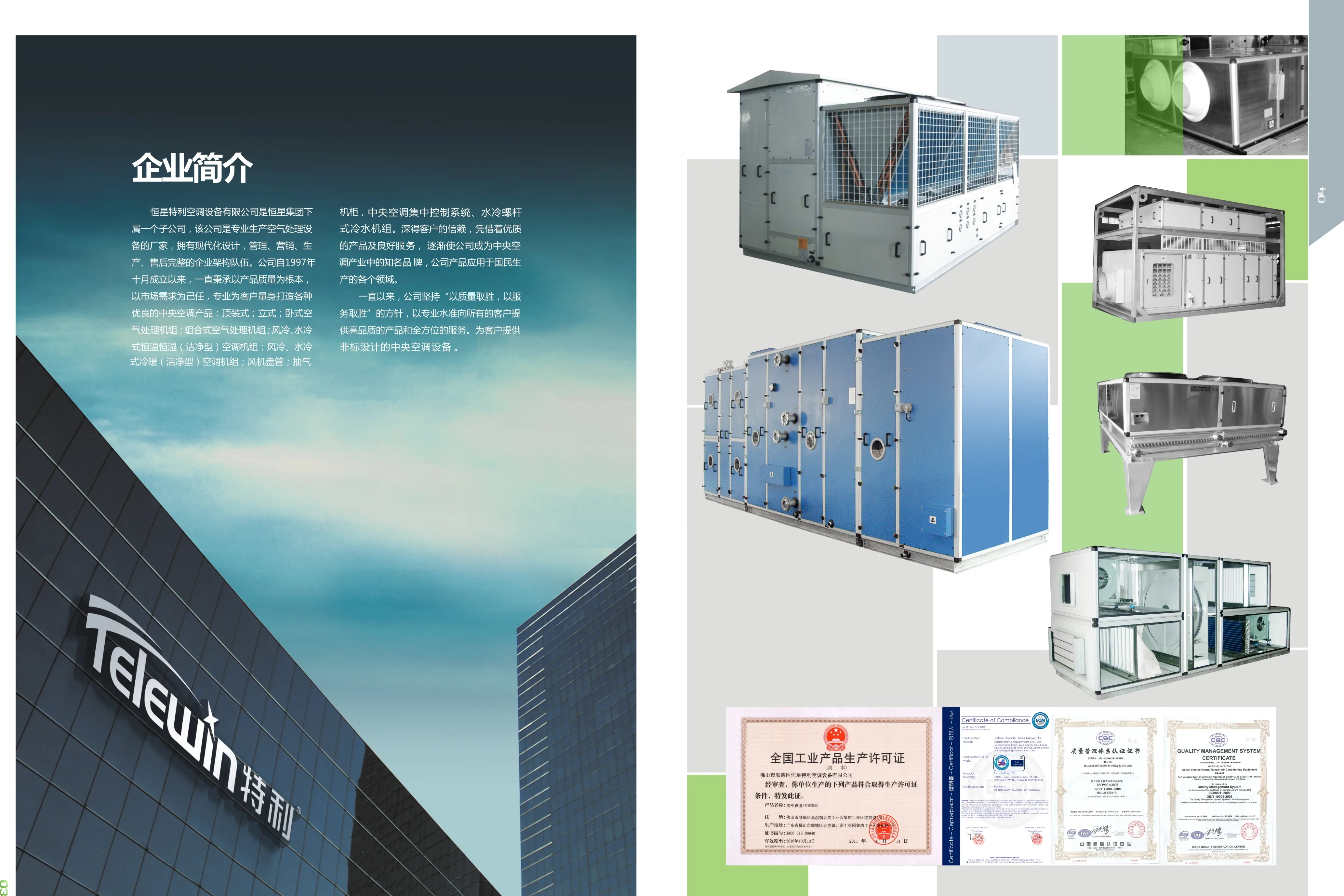

Telewin, a professional manufacturer concentrates on central air conditioning system for more than 20 years. Hstars Telewin Air Conditioning Equipment Co., Ltd. has been endeavouring to the product quality as fundamental, and provides excellent products, system solutions and after-services since the year 1997.

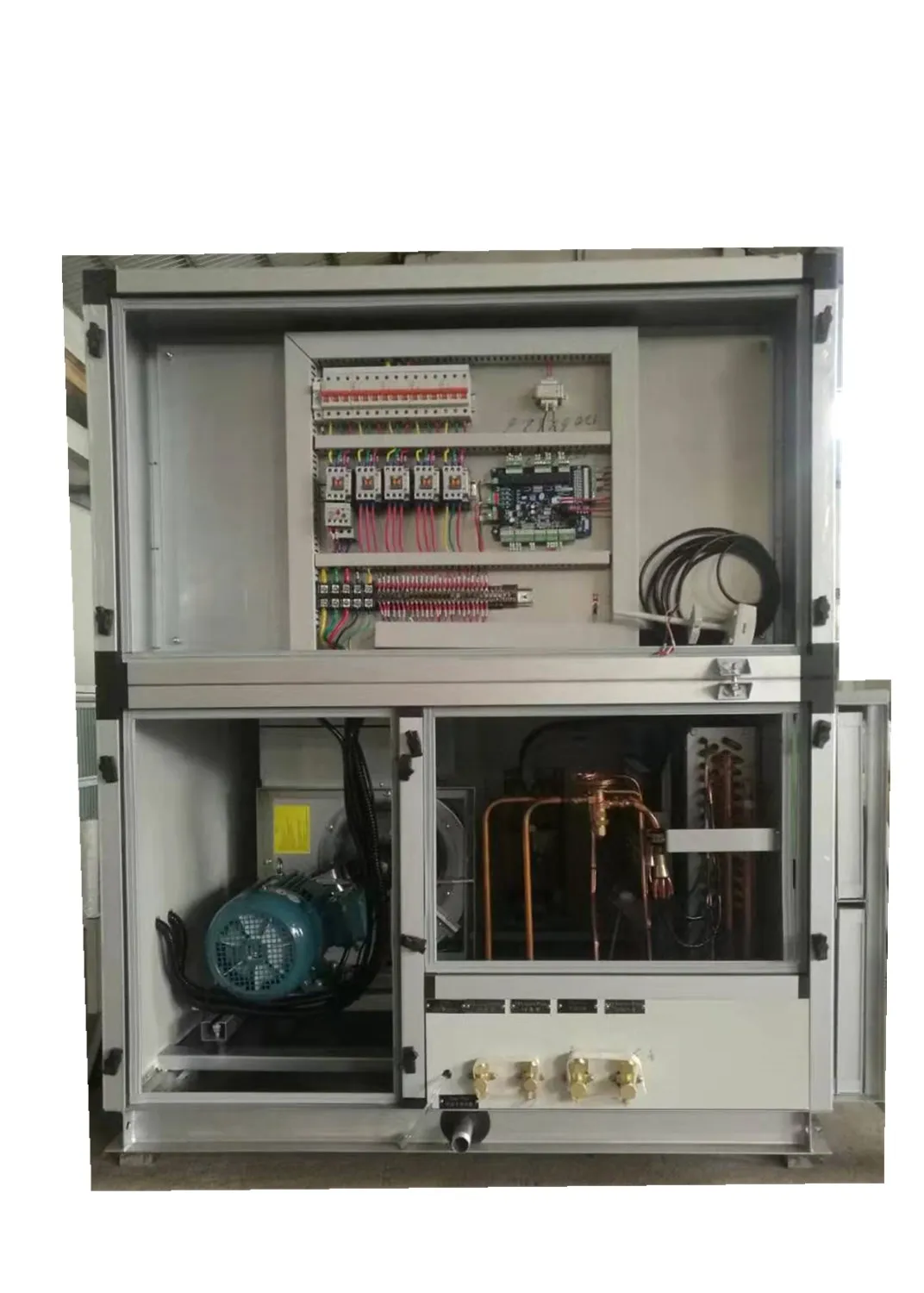

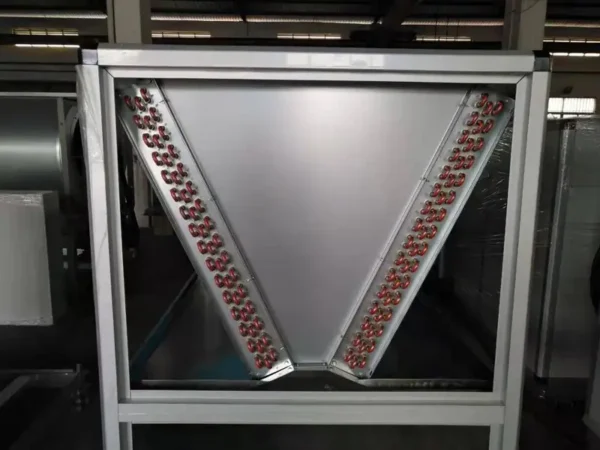

evaporator sention: cooling coil fabricated with premium copper tubes and anti-corrosion aluminum fins;

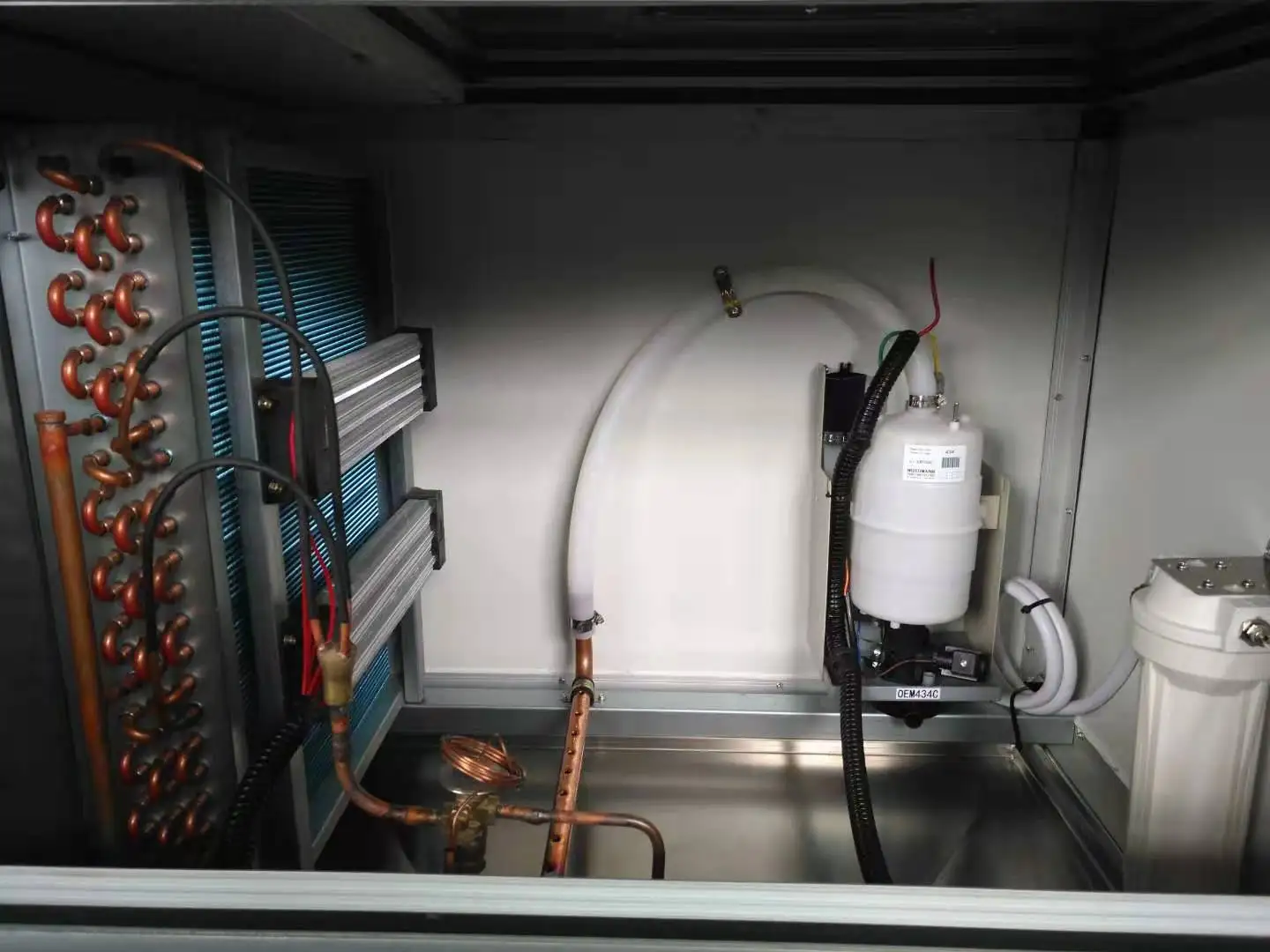

Heating section: Electric heater with s/s tubes and fins, or by PTC. humidifying section: electrode humidifier, humidifying capacity 13kgs/h.

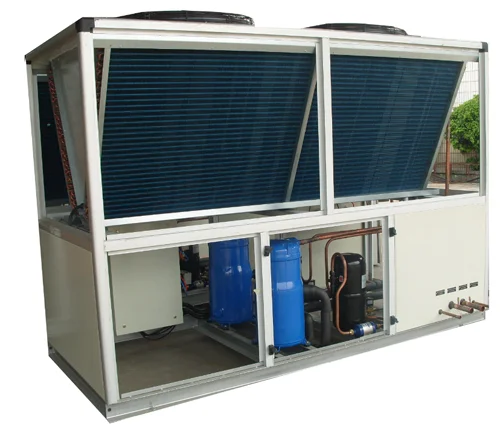

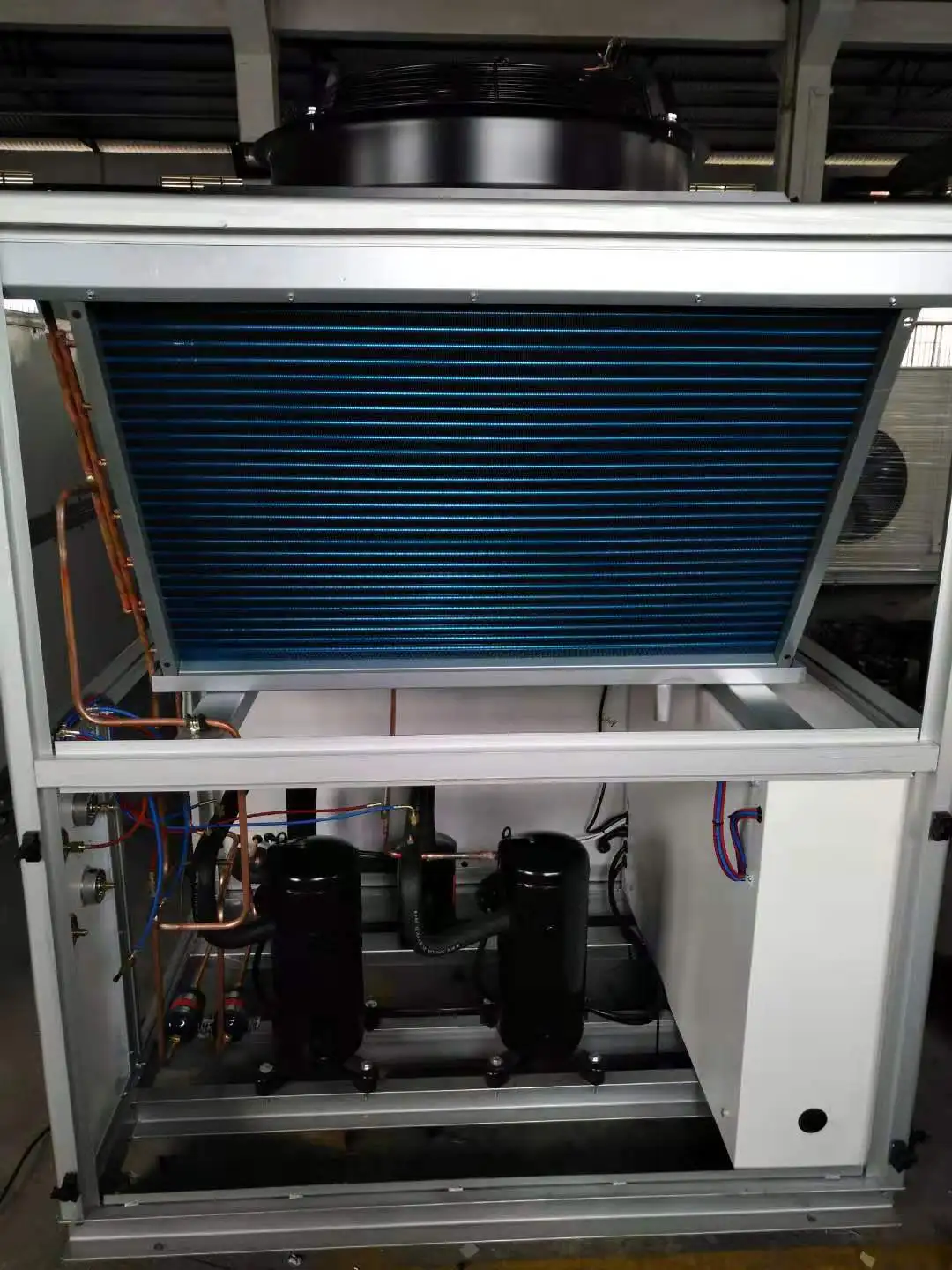

compressor section: high-efficiency hermetic scroll compressor, r407c refrigerant or other types. external balance thermal
espansion valve. compressors from international brand name, long service life and low maintenance cost.
espansion valve. compressors from international brand name, long service life and low maintenance cost.

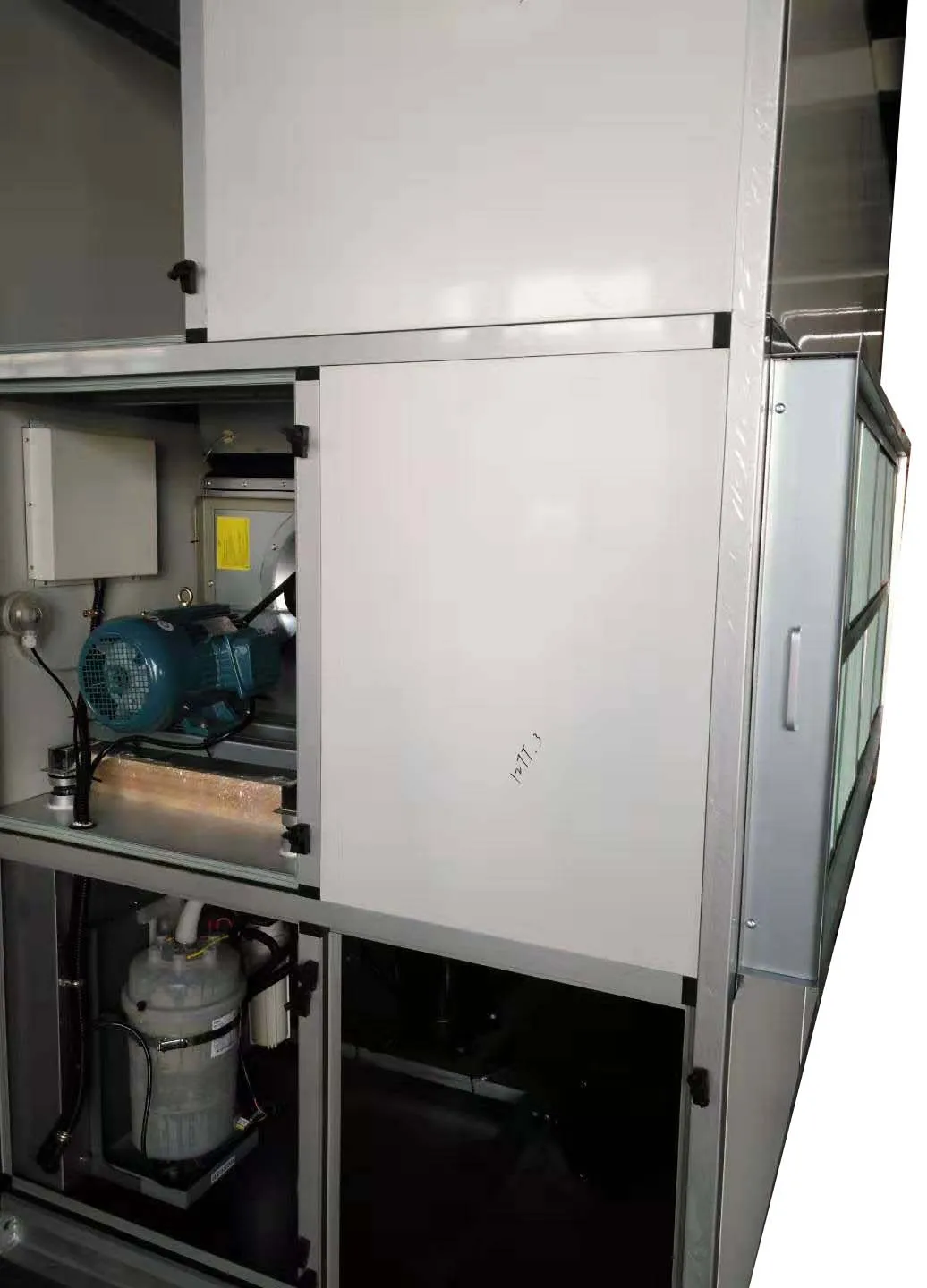

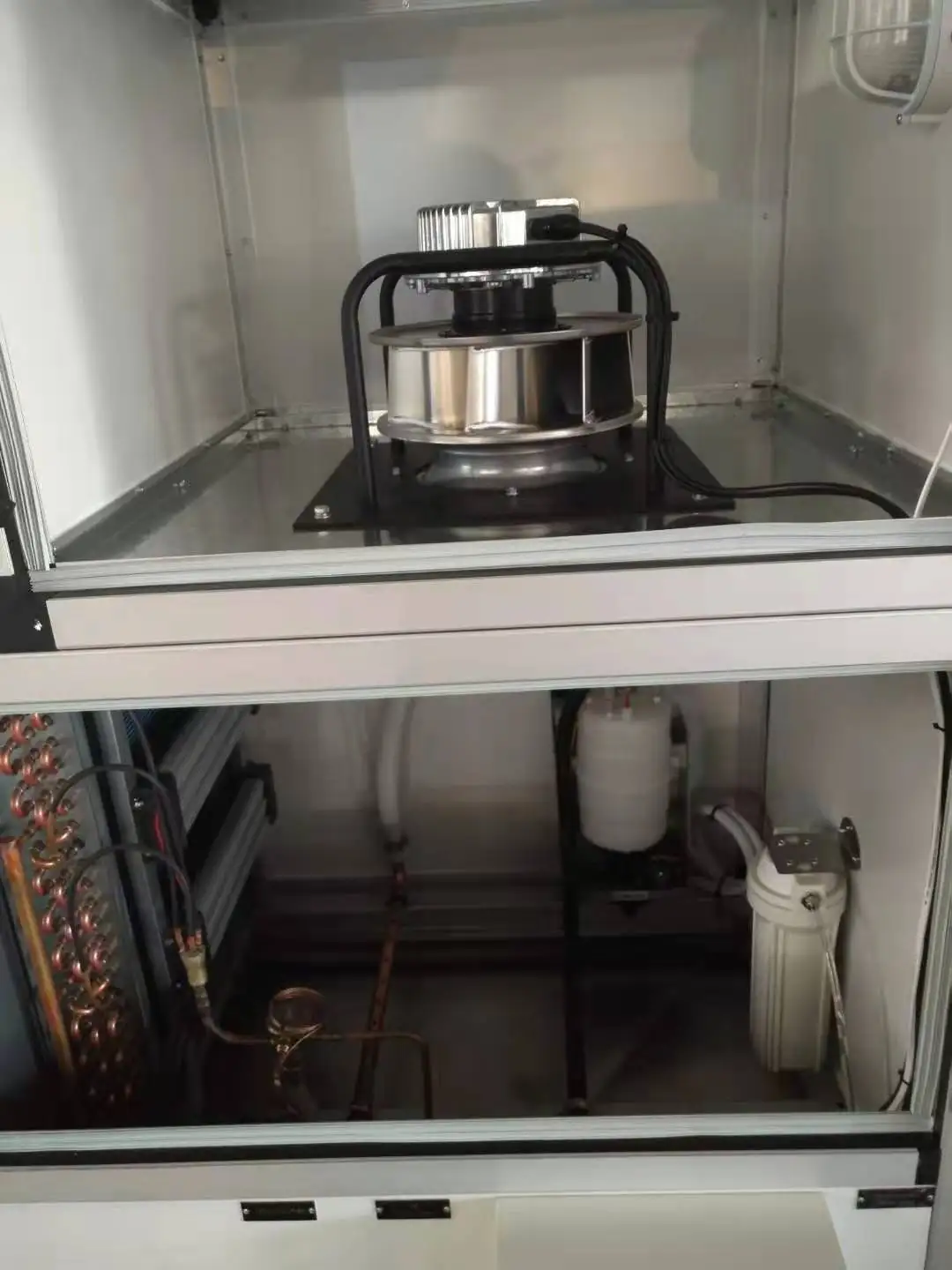

motor & fan section: low-noise centrifugal EC fan, internaltional brand names with long service life, power saving and excellent performance on vfd.
Product Usage
Product usage introduction
Before starting the unit, make sure every work is ready, including the power supply,clearing up the air route, checking the pipings and ductings.
Before commissioning please close the damper 3/4, adjust the damper slowly after starting the unit to adapt to the fresh air ratio and positive pressure.
It’s better to start the units for 5 seconds running first before formal commissioning, to detect any of abnormity.
Product usage introduction
temperature control: 18℃~28℃;
humidity control: 50%~70%RH;
electric power supply: 220v~440v, 3p, 50/60hz;

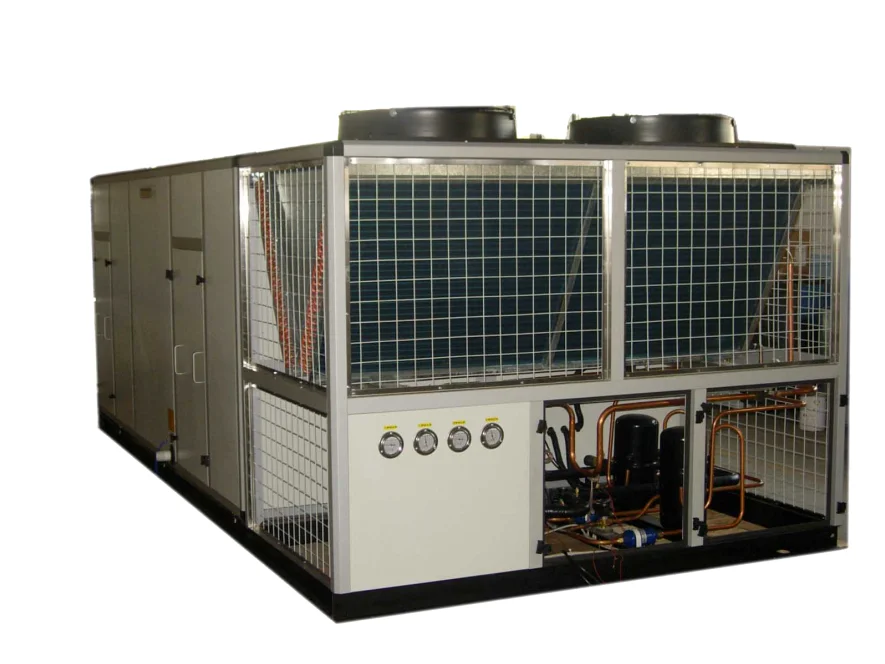

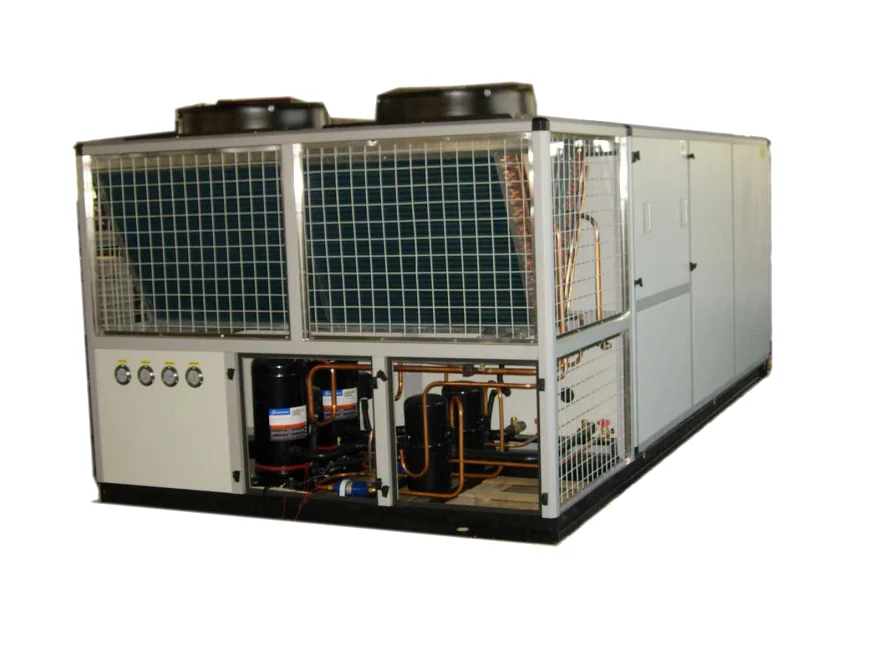

positioning: rooftop of ground area, can be packaged or split type according space consideration.
telewin model name clarification:
TZ160-30HS:
"TZ" for telewin, "160" for 160*100=16000cmh, "30" for 30hp, "H" for constant temperature and humidity, "F" for air cooled.
Related Products
Packing&Shipping

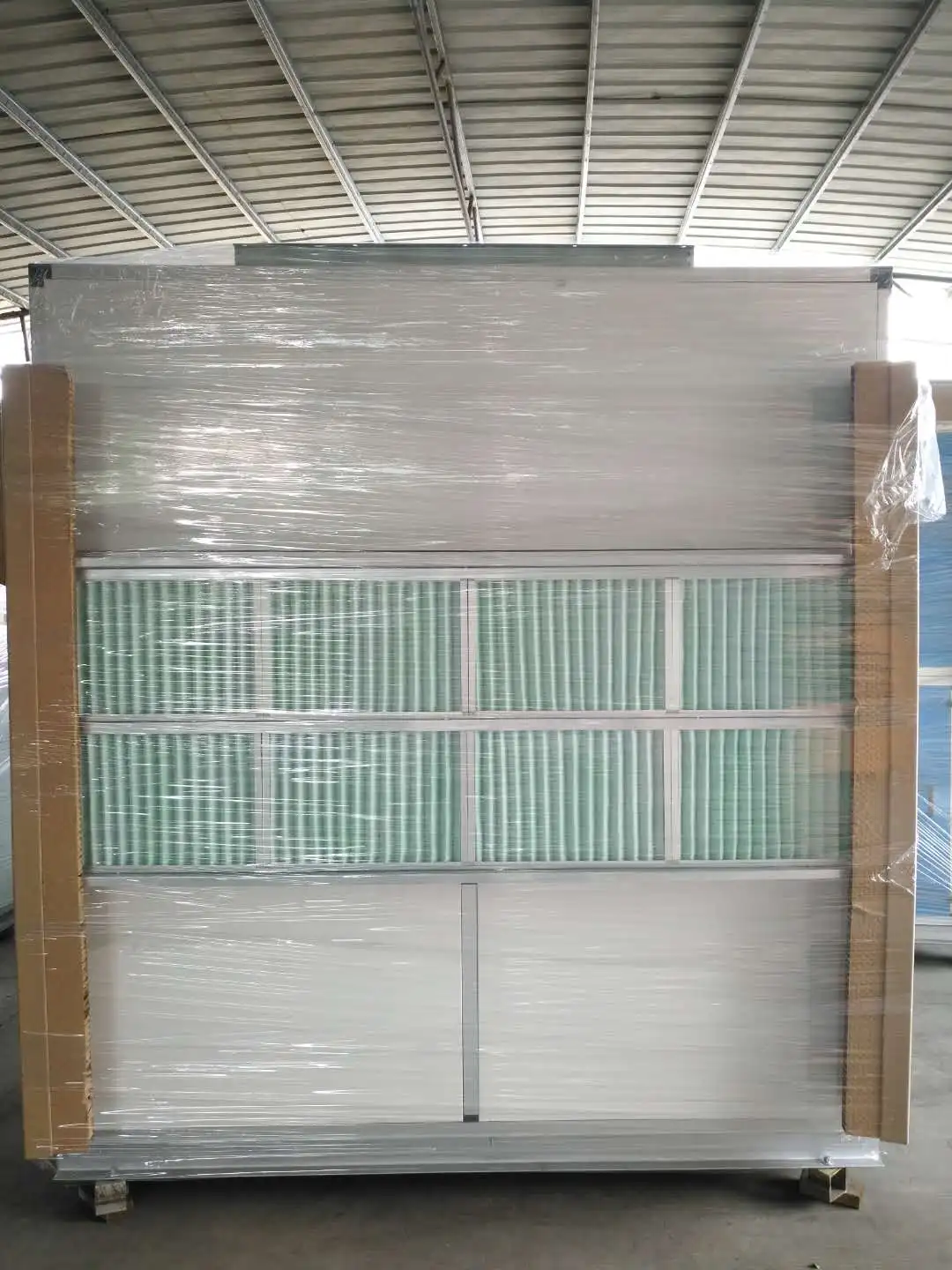

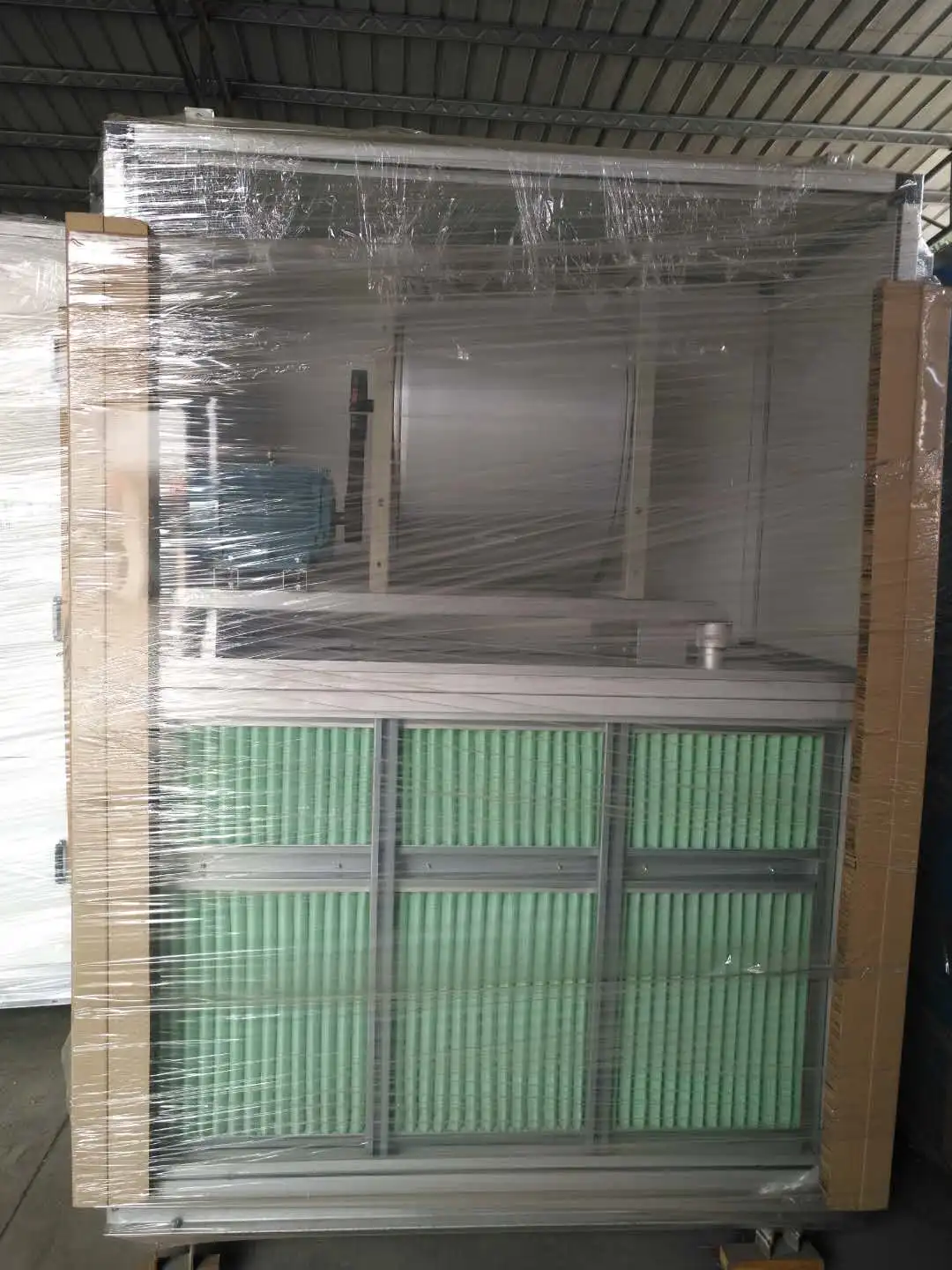

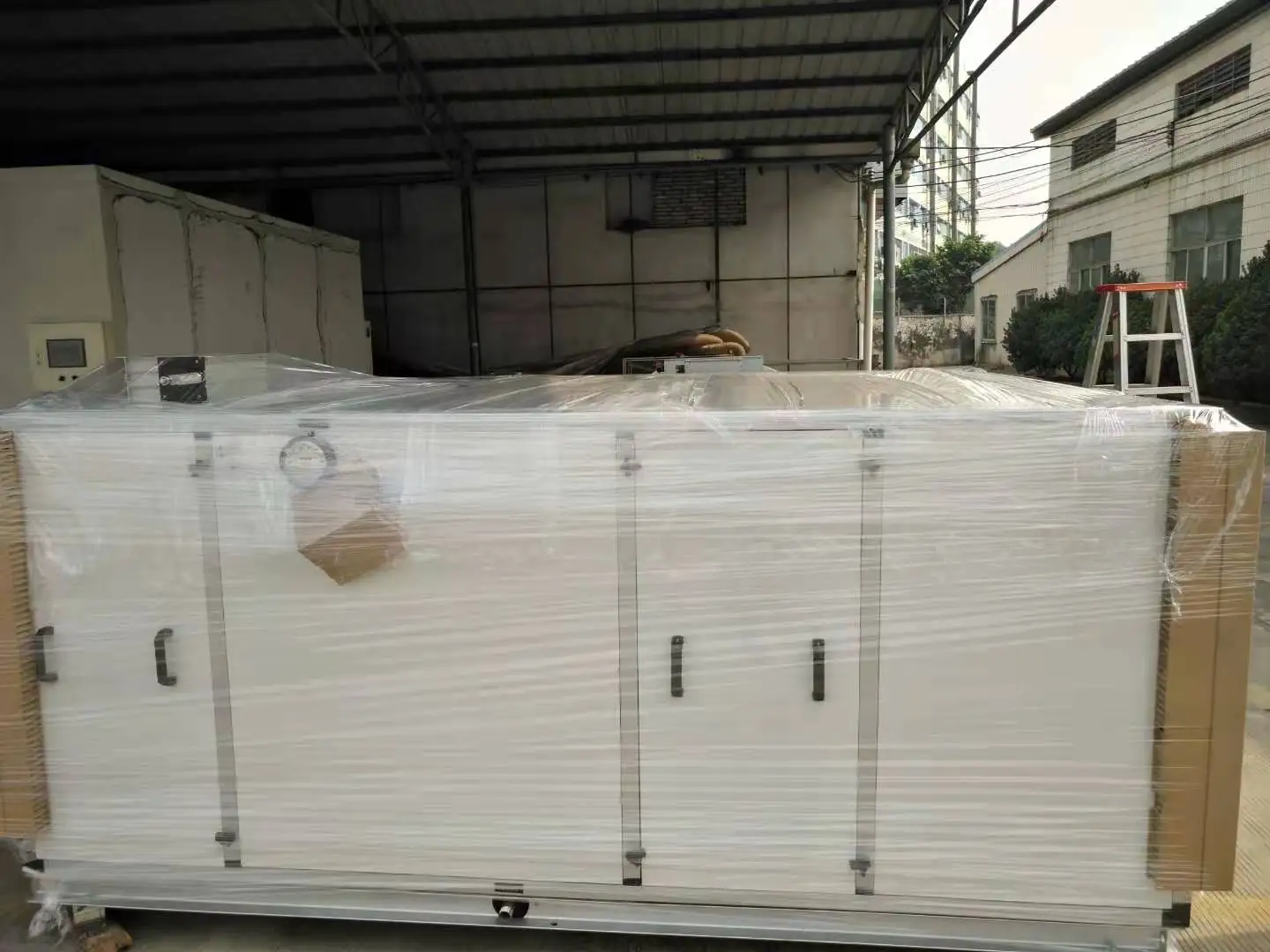

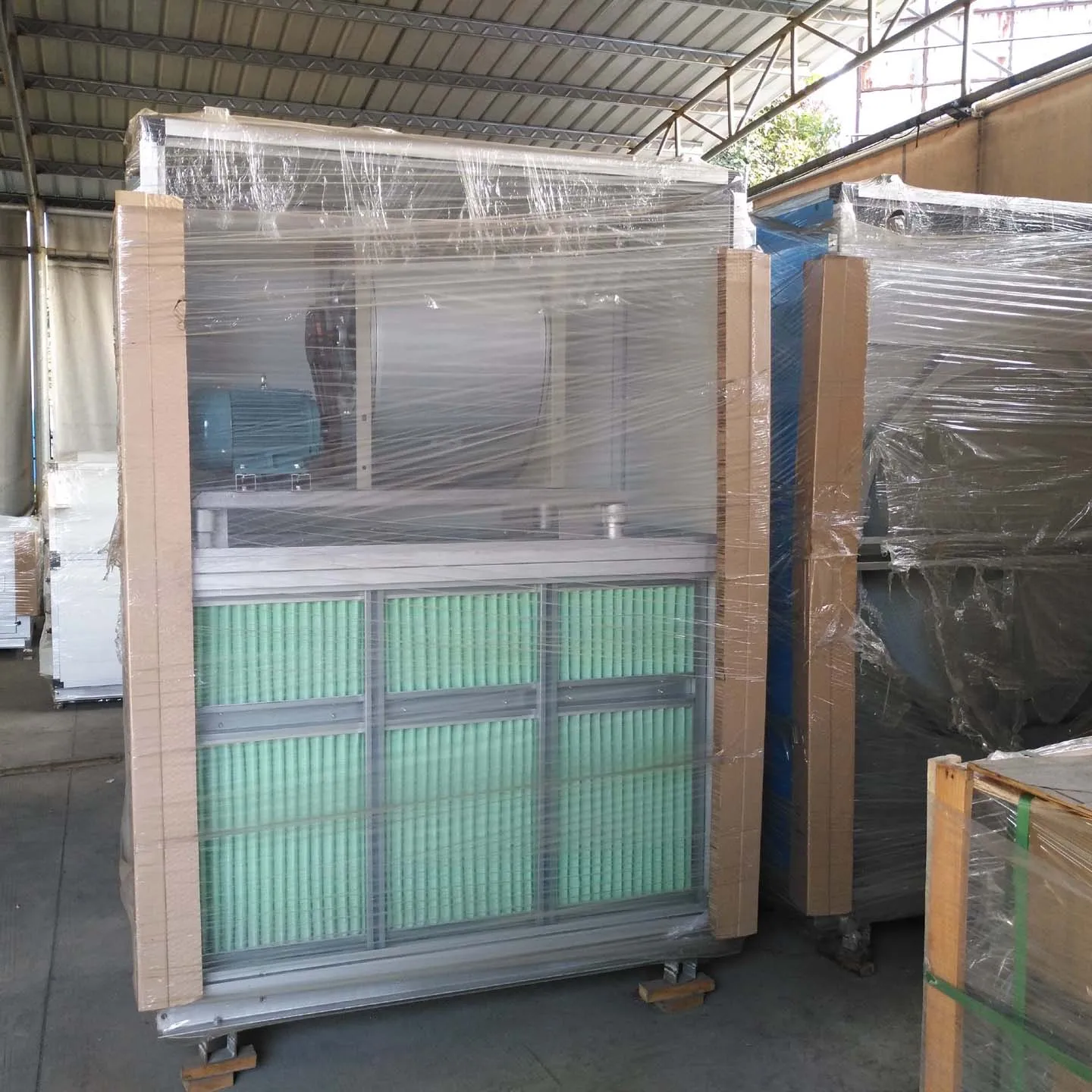

Hstars Telewin's cabinet air conditioners are normally packaged with pvc film wrap plus cardborad corner protection. can be changed to wooden case or crate according to customers' request.
Company Introduction
Telewin specializes in producing a variety of Cabinet Air Conditioners and Air Handling Units (AHU) products for industrial & commercial customers: roof-top, ceiling-top, vertical, horizontal air handling units, constant temperature and humidity AHU, Heat recovery AHU, IAQ AHU, Dehumidifying AHU, etc. We are also experts on DX (direct expansion) air conditioners, split or packaged type, air-cooled or water-cooled optional, condenser coils, evaporator coils, cooling coils, etc..
Our Services & Strength
Telewin, focuses on the technical innovation, especially on the application of environmental protection and energy saving, supplies Plate type and Rotary Wheel heat recovery energy saving units, energy saving dehumidifier unit with heatpipe heat recovery and provides various clean air handling units of modular multi-function to remove harmful gas, VOCs and reduce PM2.5 on the indoor air quality (IAQ) applications. To serve the society, satisfy the users from our products and services, we will take customer demands as our responsibility, keep in advancing and innovating, and keep pace with the times
FAQ
FAQ 1.Are you a factory? — Yes, we are a professional AHU manufacturer for more than 20 years. 2.How do you check the goods? — We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients. 3. How to select the suitable models? —The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you. 4.How and when can I get the quotation? — Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes. 5.What's your payment terms? — Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed. 6.Where is your factory Located? How can I visit there? — Our factory locates in Shunde District, Foshan City, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. You are warmly welcome to visit us! 7.Do you provide OEM service? — Yes! We provide tailor-made manufacturing for your provate label. 8.What's the lead time for your goods? — Normally 30 days. For urgent orders, we can make special arrangement to fulfill your request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $9500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
