Air handling unit — airflow 25000CMH (customized cap.), type Rooftop packaged air conditioning unit. The complete factory specification follows. Made by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. (10 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Cooling Capacity: 100kW (customized cap.)
- Airflow: 25000CMH (customized cap.)
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Industrial and commercial large open space
- Type: Rooftop packaged air conditioning unit
Technical Specifications
| Type | Rooftop packaged air conditioning unit |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | as requested |
| Fan Motors Type | AC |
| Key Selling Points | precise temperature and humidity control |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, heat exchanger, blower fan, fan motor, compressor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 700 |
| Brand Name | Telewin (AHU) |
| Dimension(L*W*H) | 5400x1900x2000mm |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Application | Industrial and commercial large open space |
| Function | Cooling/heating/heat recovery/humidifying/purification/ |
| Airflow | 25000CMH (customized cap.) |
| Cooling Capacity | 100kW (customized cap.) |
| External Statci Pressure | 300Pa (customized cap.) |
| Purification | G4, F8, H13 filter |
| Compressor Type | Hermitic Scroll |
| Fan Type | Direct driven or belt driven |
| Cabinet | Thermal insulation double skin panels 25/50mm |
| Selling Units | Single item |
| Single Package Size | 540X190X200 cm |
| Single Gross Weight | 1100.0 kg |
Product Details

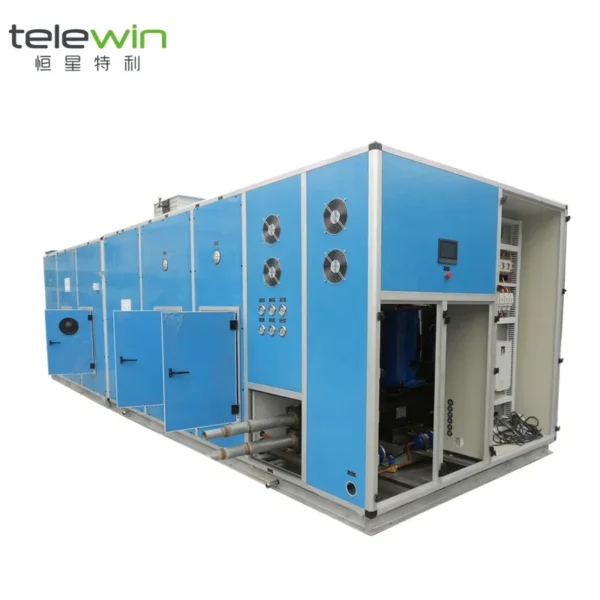

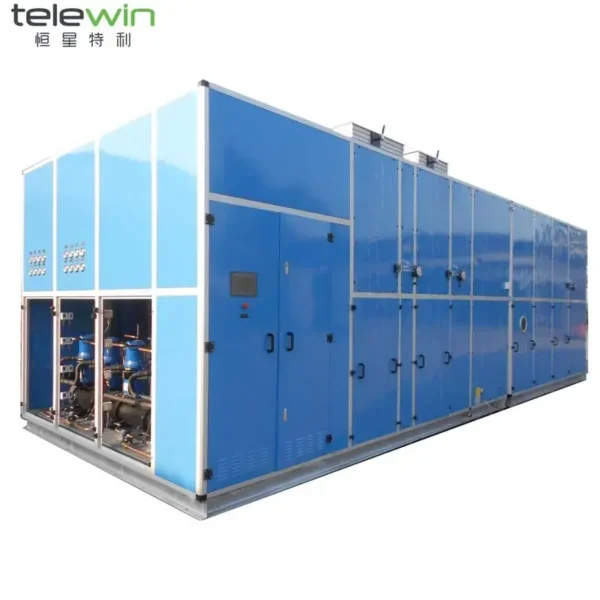

Water-cooled packaged unit with tube-and-shell condenser hygienic air handling unit PLC controlled temperature and humidity
Main Features
-All-in one compact industrial air conditioning unit
-Outdoor installation to save indoor space
-Large air flow (25000CMH), high supply air static of 400Pa and cooling capacity (100kW)
-Multi-circuits refrigerating system for part load energy saving
-Large and high level condenser coil design to increase operation efficiency and energy saving
-High quality major components including electrical, compressor, fans ensure outstanding reliability and performance
-Easy and clear Microprocessor control panel with all operating data display
-Green environmental Heat Wheel option available, configured flexibly, numerous options for customization
-Plug and play concept for simple easy installation and commissioning
Model No. | Cooling Cap. (KW) | Air Flow (m3/h) | ESP (Pa) | Refrigeration cycle |
TZ210-40HSJ | 108.6 | 21000 | 650 | 3 |
TZ230-50HSJ | 144.8 | 23000 | 700 | 4 |
TZ300-60HSJ | 181 | 30000 | 700 | 5 |
Energy Saving Refrigerating System

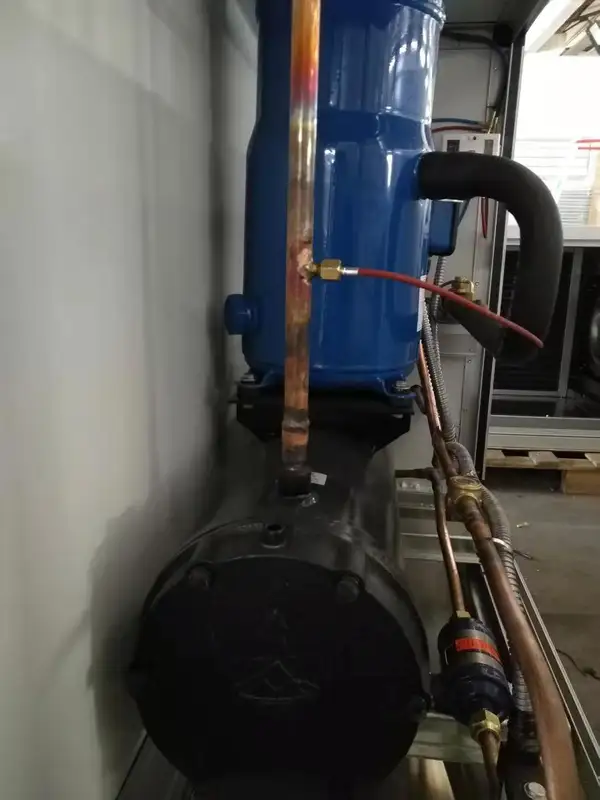

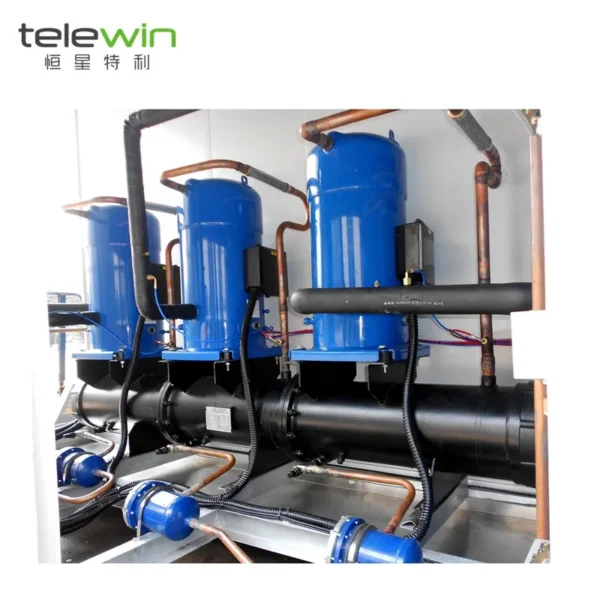

• DANFOSS scroll hermetic compressor
• Shell and tube type condenser
• Advanced design, low running noise, energy saving, safety and long service life
• Multi-circuits design, running reliably and energy-saving
• COPELAND, DAIKIN compressor available
Intelligent Control Console
• Auto control each section of the unit to make sure the temperature, humidity and cleaness
• High quality and international brand electrical elements to ensure the unit operate more stable and energy-saving
• Each circuit with corresponding number to mark, to facilitate follow-up circuit repair and maintenance
• Screen touch panel, with setting, display and memory function
• DDC and PLC available
Frame
• Penta-post extra heavy gauge aluminium profiles and strong fiber-reinforced PE corner connection forming the structural frame
• superior mechanical strength and rigidity to the unit frame and to prevent any buckling or deformation
• Thermal bridge free design, the profiles filled with polyurethane foam for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available
Casing Panel and Insulation
• Double skin construction is provided by sandwich type panels comprising inner and outer painted steel skins and polyurethane foam with minimum 48kg/m3 density, providing a good thermal and acoustical performance
• The gasket liner between the panels and frame ensures the air leakage rate to comply with GB/T 14294 clean air conditioning requirement
• The factory painted steel sheet covered with 6 insulation coatings, complies to 500h salt spray testing, showing an excellent corrosion protection performance
Famous Brand Fan and Motor
• Fan selection based on the air flow and air static requirement is done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve centrifugal fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• Motor is TEFC type, class F insulation and IP54 or IP55 protection, energy saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option
High Efficiency Cooling and Heating Coil
• All coils calculation and selection is done by selection software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
-Cooper tube with cooper fins coil
-Epoxy coated fins coil
-Electrophoresis fins coil
-Heresite coated coil
Vibration Eliminator
• To reduce the transmission of vibration and noise, fan and motor are installed on an independent complete base frame
• The complete base frame is isolated by deflection type spring isolators
• This unique structure not only reduce the vibration and noise, but also protect fan and motor during transportation
Stainless Steel Drain Pan
•Slop type design, no drain water carryover
•Avoid the micro-organisms growth inside the drain pan
Antimicrobial Drain Pan is offered as option
•SteriTouch technology Drip Pan Coating
•Antimicrobial surface
•Good exterior durability and corrosion resistance
•Non-toxic, comply with BS476 part 7
Telewin supplies Air Conditioning products to oversea and domestic markets
•Stable and timely supply guaranteed
•Carton box and wooden case packing available
•Customized packing acceptable
Solutions
Telewin offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation
Services
•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development
1.Are you a factory?
— Yes, we are a professional AHU manufacturer for more than 20 years.
2.How do you check the goods?
— We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
—The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.
4.How and when can I get the quotation?
— Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
— Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.
6.Where is your factory Located? How can I visit there?
— We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!
7.Do you provide OEM service?
— Yes! We provide OEM and ODM service.
8.What's the lead time for your goods?
— Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $15000 / set
- 10+ set: US $10000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. range on HVACR Nexus.
