The air handling unit listed here carries voltage 380±5%, type Air Handling Unit, documented exactly as the manufacturer publishes it. Made by Fujian Air Technology Systems Co., Ltd. (3 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Electric Power (KW): 0~0.85
- Voltage (V): 380±5%
- Operating Voltage: 380/400 VAC
- Rotating Speed Of Fan (R/Min): 0~900
- Warranty: 1 Year
- Place Of Origin: China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Ceiling Mount |
| Compressor Brand | no need |
| Fan Motors Type | AC |
| Key Selling Points | Low Maintenance Cost |
| Warranty | 1 Year |
| Place Of Origin | China |
| Weight (Kg) | 160 |
| Brand Name | AirTS |
| Rotating Speed Of Fan (R/Min) | 0~900 |
| Standard Circulating Air Volume (M³/H) | 0~6900 |
| Voltage (V) | 380±5% |
| Electric Power (KW) | 0~0.85 |
| Current (A) | 0~1.65 |
| Suitable Installation Height (M) | ≥ 4 |
| Control Mode | VAV stepless regulation |
| Function | Heating and cooling |
| Key Word | high and large space air conditioner |
| Operating Voltage | 380/400 VAC |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Working Principle
When hot/cold water or stream passes the equipment, the efficient heat exchanger in the equipment is used to achieve rapid heating/cooling of the air.
The large wind pressure axial flow fan installed on the top is used to forcedly press the hot/cold air down. Then the air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.
Features
By adjusting wind speed and air outlet angle, it achieves comfortable cooling or heating environment
Supply air angle stepless regulation
Utilize axial fan to efficiently recover heat from the top space, reducing heat/cool loss from the roof, achieving energy-saving effects
The fan is installed below the air exchanger to control noise level (<60 dB)
The special designed square-shaped type air exchanger prevent the leakage of condensate water
The complex designed air exchanger, 1.5 times exchange area than others, takes significant heating efficiency
Long air supply distance, high hot/cold air volume
4 sides return air structure, installed on the roof, require smaller installation space
Function: cooling, heating
Technical Comparison
AirTS top heating and cooling units
High and large space air conditioner lifted on the roof
It achieves heating /cooling air from the air exchanger in the equipment
It distributes the hot /cold air by means of efficient air distributor, which eliminates the undesirable indoor temp layers
Comfortable heating / cooling environment without wind feeling sense
Bottom heating unit
In high large space with great depth, using radiator can allow natural air convection as hot air rises
It can only radiate into small area with the range less than 5m. The heat rising to the roof will be dissipated and the temp cannot be achieved effectively in the middle area.
Radiator heating requires high requirements for supply water temp.

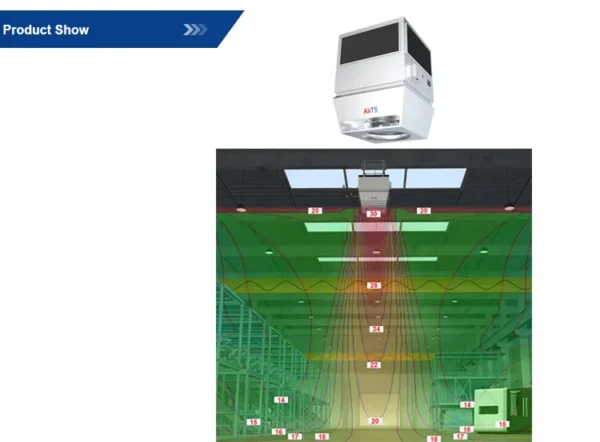

AirTS units temp field
Our heating units forcedly and quickly send the hot air down, make the temp in the working area rise rapidly.
Radiator heating temp field
It can be seen from the radiator heating temp field image that the heat is mainly gathered on the roof and the temperature is low in the lower working area.
| Recirculated Air Heating and Cooling Unit | |||
| Model | AirTS-K-I | AirTS-K-II | |
| Rotating speed of fan | r/min | 0~900 | 0~860 |
| Standard circulating air volume | m³/h | 0~6900 | 0~10100 |
| Voltage | V | 380±5% | 380±5% |
| Electric power | kW | 0~0.85 | 0~1.80 |
| Current | A | 0~1.65 | 0~3.60 |
| Suitable installation height | m | 4~15 | 4~23 |
| Control mode | VAV stepless regulation | VAV stepless regulation | |
| Noise | dB | <60 | <60 |
AirTS was established in 2005 as a technology-driven enterprise that integrates researchand development, manufacturing, sales, and technical services for energy-savingequipment. We are specialized in providing comprehensive solutions for system design, implementation, operation, and maintenance of energy-saving projects.
AirTS product line primarily consists of energy-efficient air conditioning systems specifically designed for high and large space, encompassing heating units, heating and cooling units, gas heating units, gas radiation units, VRF air conditioners, hot air curtain units, industrial HVLS fans, industrial control systems, and other products tailored for large spaces. These solutions effectively resolve diverse requirements such as heating, cooling, ventilation, humidification, dehumidification, dust removal, and
automation control in buildings ranging from 4 to 30 meters in height.
AirTS has collaborated with over 1600 well-known customers, with numerous application cases in the world's top 500 companies.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Who we are
AirTS was established in 2005 as a technology-driven enterprise that integrates research and development, manufacturing, sales, and technical services for energy-saving equipment. We are specialized in providing comprehensive solutions for system design,implementation, operation, and maintenance of energy-saving projects.
2. How to guarantee quality
Always a pre-production sample before mass production; always final Inspection before shipment;
3. What buy from us
Heating units, heating and cooling units, gas heating units, gas radiation units, VRF air conditioners, hot air curtain units, industrial HVLS fans, industrial control systems, and other products tailored for large spaces.
4. Why buy from us not from other suppliers
With 18 years' experience in the market, AirTS has became No.1 market share in China.
5. What services we can provide
Delivery Terms: FOB, CFR, EXW, CIF, Express Delivery;
Payment Currency: USD, CNY;
Payment Type: T/T, L/C, PayPal;
Language: English, Chinese
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–19 unit: US $4999 / unit
- 20–99 unit: US $4599 / unit
- 100+ unit: US $4199 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 380±5%. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
