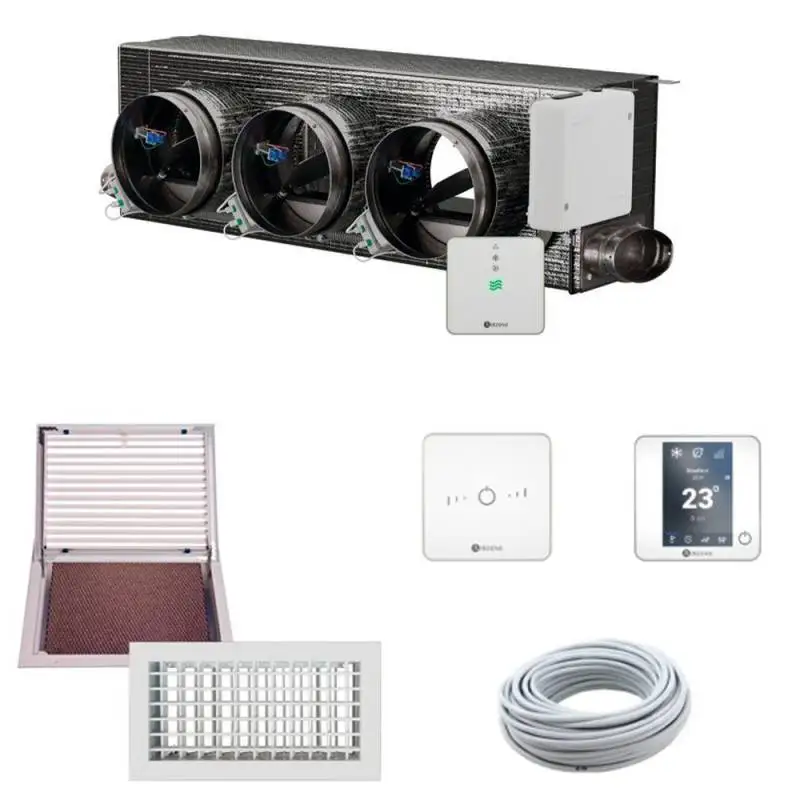

 Airzone 3 Zone Kit with Wi-Fi motorized dampers, control unit, and interface

3-Way Kit for motorized ducting Airzone Easyzone manages temperature control zone by zone, a simple solution for ducted installations. Everything is provided wired, configured, with thermostats and ducting kits. (Duct tubing not included).

The kit includes:

– Airzone Easyzone 25 Wi-Fi Medium GM0 3×200 02XS code: AZC25GM0BS02XS3

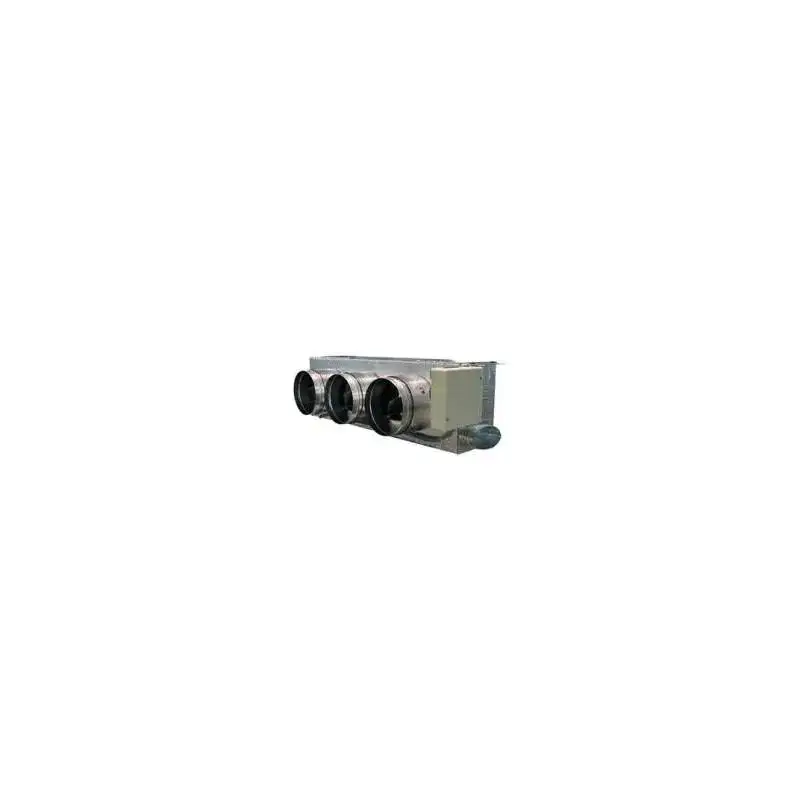

– Motorized Airzone plenum specifically designed to mechanically fit the main ducted air conditioners.

The motorized Airzone plenum includes the following elements:

– Central electronic board AZC25CB1IAQ, responsible for managing the entire system through peripherals and wired or radio thermostats.
– Airzone Cloud Wi-Fi Webserver AZX8WS1BWF.
– Air quality meter AirQ Sensor; AZX6AIQSNSB.
– Communication interface: AZX8GTCGM1.
– 3 motorized dampers 200 mm, with ionizer and manual flow adjustment system.

The dimensions of the plenum are: 454x250x930 mm. Depending on the motorized plenum (number of doors and configuration) and the internal unit to be controlled, the sound pressure can vary by 3dB (A) and the load loss can vary from 5 to 15 Pa.

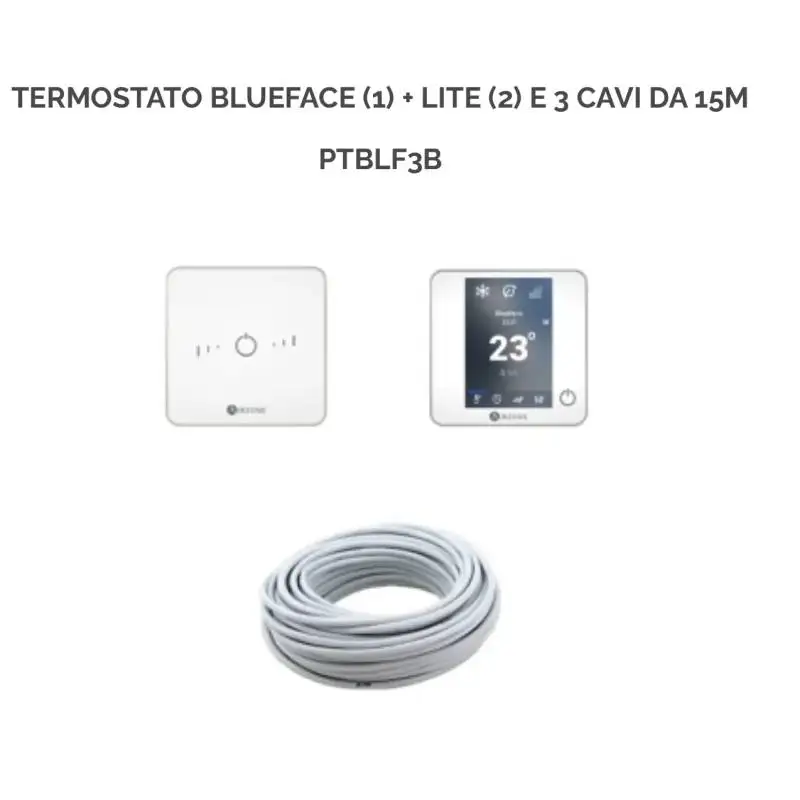

Thermostat pack Airzone – Blueface + 2 Lite white cable + 3 cables of 15m code: PTBLF3B

Features:

– 6 available languages (Spanish, English, French, Italian, German, and Portuguese).
– Temperature control, operating mode (master thermostat), and fan speed (master thermostat and installation with fan coil).
– Reading of ambient temperature and relative humidity.
– Control of the type of installation (air, radiant, combined).
– Eco-Adapt and Sleep functions.
– On and remote control to other zones of the system.
– Weather and machine consumption information (optional).

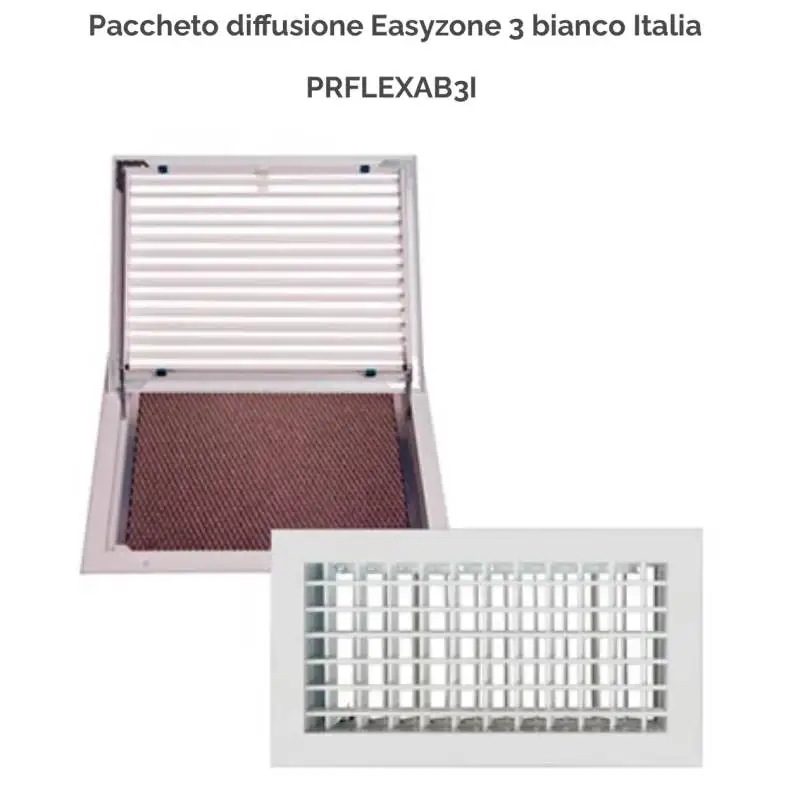

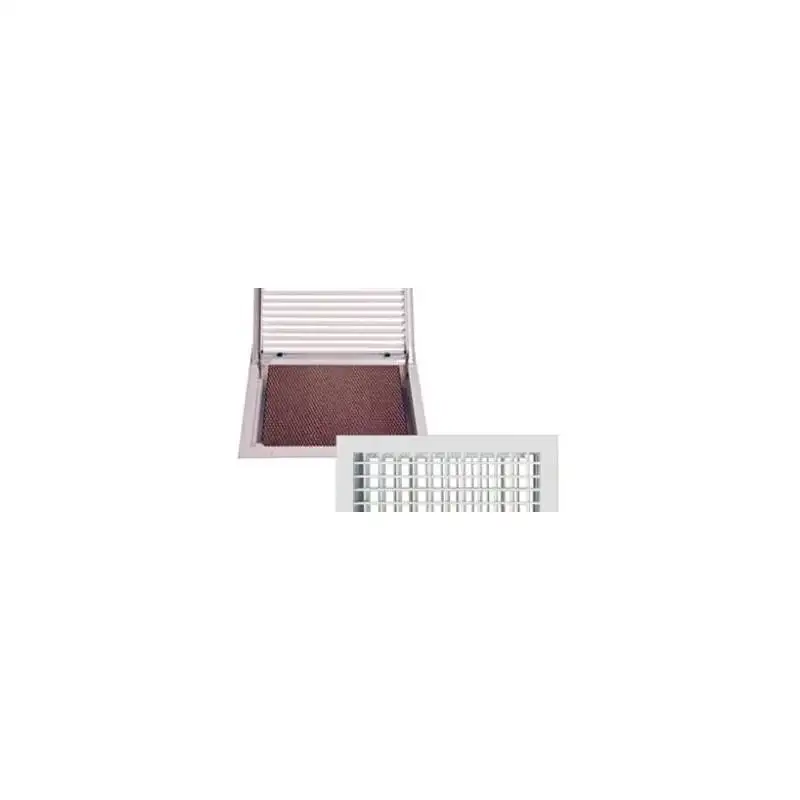

Air diffusion package consists of: Easyzone 3 white Italy code: PRFLEXAB3I

– Supply grilles (RTHV): 2x 300×150 mm grille and 1x 500×150 mm grille
– Grille holder plenum (PREJ-T): 2x for 300×150 mm grille and 1x for 500×150 mm grille
– Return grille (RRFR): 1x 800×400 mm grille

Easyzone 25: A 3-in-1 solution

– Energy and comfort management
– Indoor air quality

Combining the functions of our motorized plenum with the AirQ Sensor, Easyzone 25 offers a complete solution to control the various parameters that influence the comfort and well-being of occupants. In addition to measuring our system, it improves indoor air quality through ionization technology and ventilation unit control.

Efficient control

Bidirectional communication with the internal unit allows adapting its production to the real needs of the installation. Zonal temperature regulation, which combines different types of air and water conditioning technologies, optimizes units, offering maximum comfort and up to 64% energy savings.

Connectivity

The Airzone Cloud Webserver HUB adds unified and remote control of the installation through the Airzone Cloud application. It also allows the integration of these air conditioning units with home automation or building management systems for optimal and unified energy management.

Advantages of Easyzone 25 over a conventional air conditioning system

– Healthier environments thanks to purification through ionization.
– Maximum comfort and complete control of air conditioning in different zones.
– Control from smartphones and voice assistants thanks to the Webserver HUB and 5G.
– Savings due to heating only the required zones.
– Integrated technology with major manufacturers.
– Reduced installation costs, as lower power internal units are needed.
– Easily adaptable to renovations according to current building standards.
– Maximum energy efficiency thanks to Eco-Adapt mode.
– Certifications for sustainable construction.

Integrated air purification in air conditioning

Easyzone 25 purifies the air in indoor environments using ionization, the safest technology for removing harmful particles from the air and ensuring a healthy environment. The challenge of purification installations using ionization is to bring the air to the ionizers. Easyzone 25 solves this problem by using the existing flow in the ducts of residential and tertiary buildings.

What does Easyzone 25 include?

Manage your air conditioning system with the Easyzone 25 system, which integrates the motorized plenum with ionizers, the Airzone communication interface compatible with any manufacturer, an AirQ Sensor, and Airzone interfaces.

Plenum

The Easyzone 25 plenum has been specially designed for each…
