Air handling units — 380V~50Hz, air flow capacity 1000-15000 m³/h. The complete factory specification follows. Made by Henan Youngye Sunshine New Energy Technology Co., Ltd. (3 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Air Handling Units
- Model Number: TICA TFD-series
- Power Supply: 380V~50Hz
- Air Flow Capacity: 1000-15000 m³/h
- Refrigerant: Water
- Warranty: 3 Years
- Place Of Origin: Henan, China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | Water |
| Mounting Type | Ceiling Mount |
| Compressor Brand | other |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Filter Type | Regular Filter, High-Efficiency Particulate Air Filter, Activated Carbon Filter |
| Application | Hospital, Hotel, Plant, Office, Mall |
| Key Selling Points | Patented Product, Energy Saving, High Safety Level, Famous Brand Low Voltage Components, Automatic, Accurate Temperature Control |
| Warranty | 3 Years |
| Machinery Test Report | other |
| Video Outgoing-Inspection | other |
| Core Components | Motor, PLC, Pump |
| Place Of Origin | Henan, China |
| Weight (Kg) | 360 |
| Brand Name | TICA |
| Model Number | TICA TFD-series |
| Dimension(L*W*H) | 1047*609*950 mm |
| Product Name | TICA Ceiling Type Air Handling Unit |
| Power Supply | 380V~50Hz |
| Air Flow Capacity | 1000-15000 m³/h |
| Cooling Medium | Chilled Water |
| Drive System | Direct Drive / Belt Drive / Jet Type |
| Cooling Coil Option | Normal Cold / Highly Cold / 4 Rows / 6 Rows |
| Heating Option | 1 Row / 2 Rows Heating Coil Optional |
| Cabinet Structure | 30mm Thermal Break Foamed Panel |
| Water Temperature | Chilled Water: 7°C/12°C; Hot Water: 60°C/50°C |
| Application Places | Hotel, Office Building, Shopping Mall, Factory Workshop |
| Selling Units | Single item |
Product Details
TICA TFD Ceiling Suspended AHU
AHRI Certified Duct & Jet Type Commercial Air Handling Unit

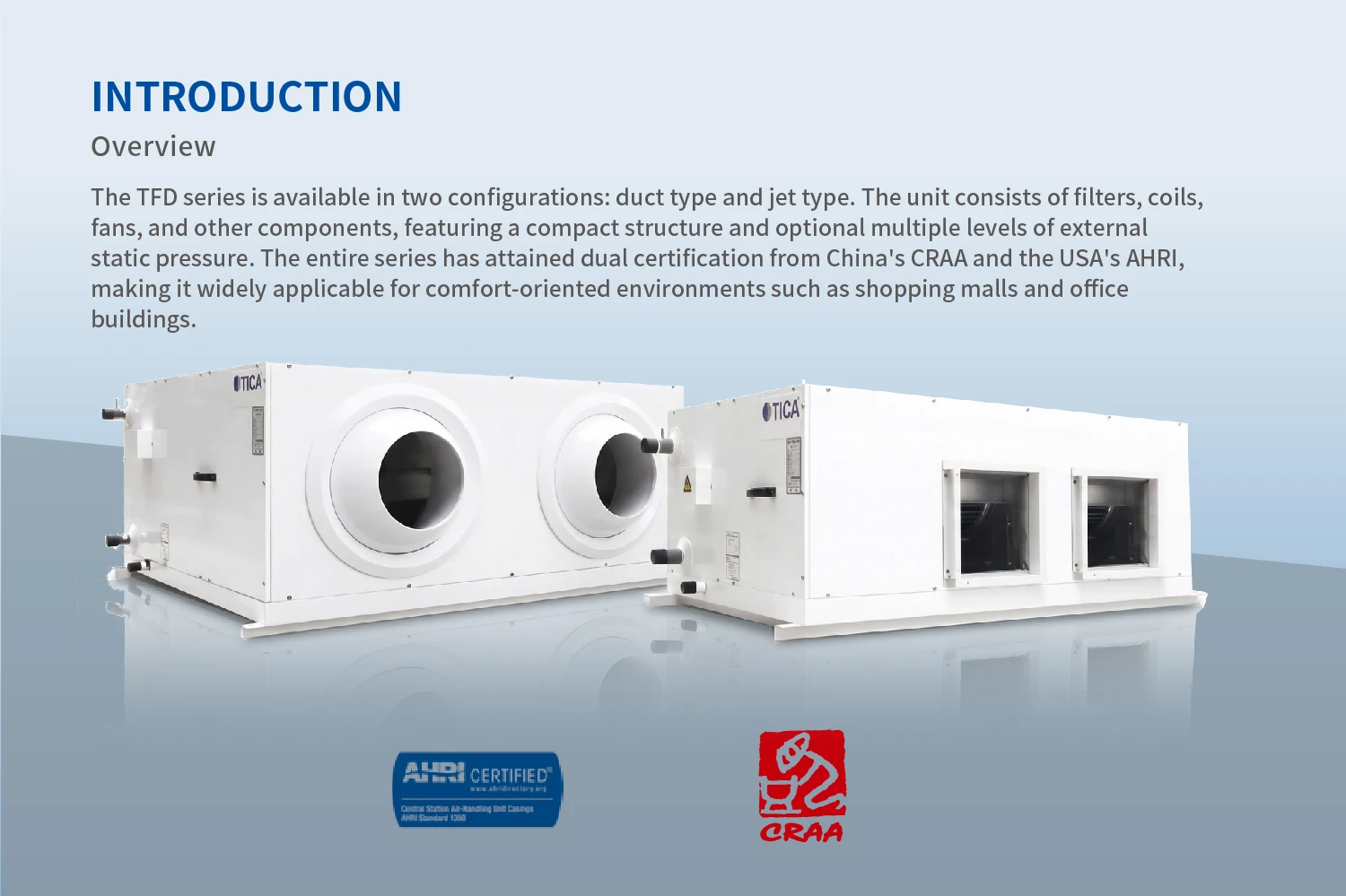

*Compact Ceiling Installation: Engineered with a highly compact structure consisting of integrated filters, coils, and fans, making it the perfect space-saving climate solution for commercial applications like shopping malls and office buildings. *Versatile Configurations: Available in two distinct structural forms: Duct Type (for concealed air distribution) and Jet Type (with spherical nozzles for direct, long-distance air supply), perfectly adapting to diverse architectural layouts. *Flexible Airflow & ESP: Delivers a reliable air volume range from 1,000 to 15,000 m³/h and features multiple external static pressure (ESP) options ranging from 80 to 400 Pa, easily overcoming various ductwork resistances.*Premium Thermal Casing: Constructed with high-quality 30mm thick sandwich insulation panels, ensuring excellent thermal resistance, minimizing energy loss, and preventing condensation in ceiling spaces.
Professional Design

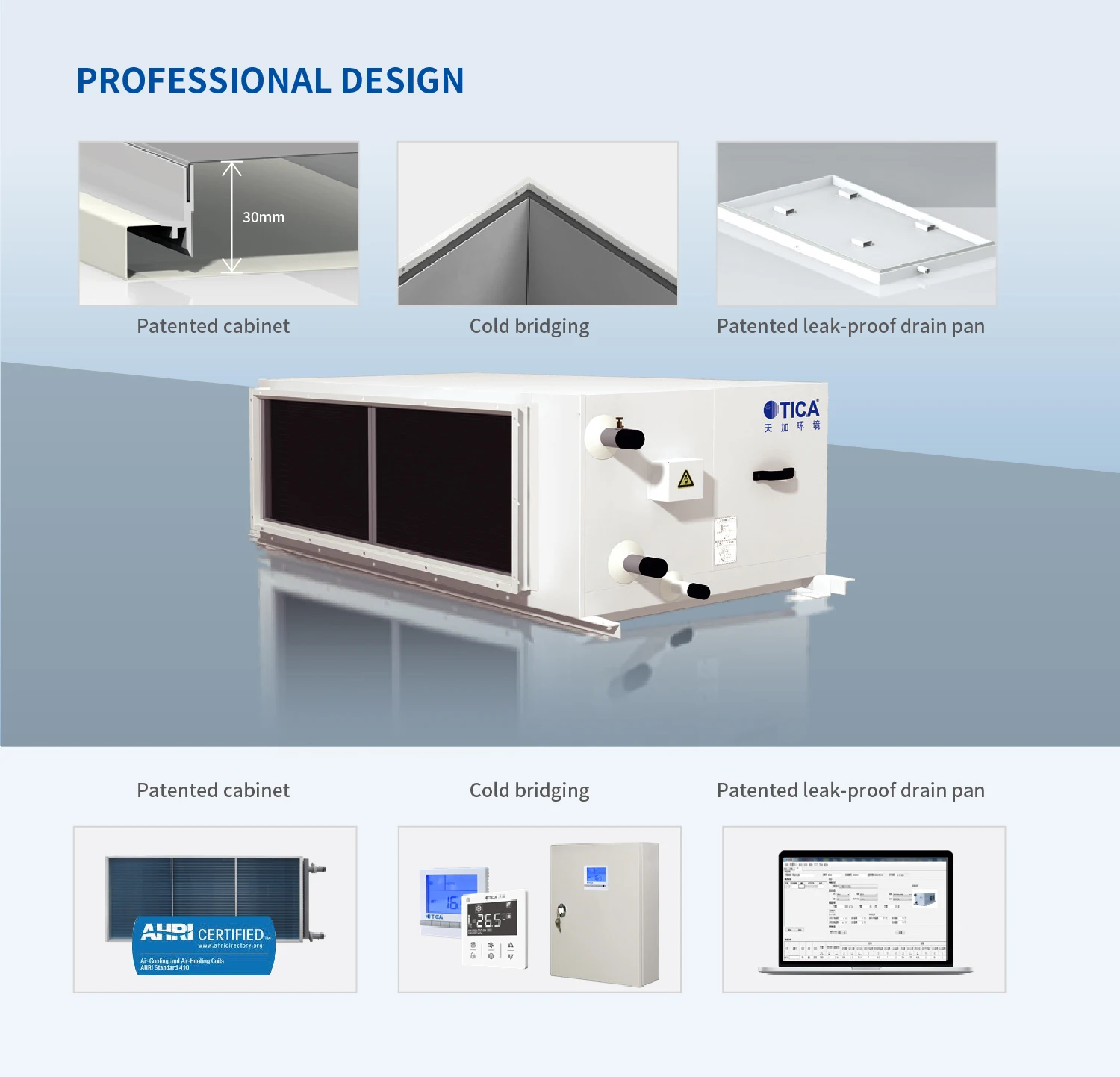

AHRI 1350 Certified Patented Frameless Design & Smart BAS Control
*Patented Frameless Casing: Features a revolutionary frameless direct-splicing patented structure combined with a 30mm high-density polyurethane sandwich panel. The advanced anti-cold bridge (thermal break) profile completely eliminates the hidden danger of condensation, while allowing for extremely easy assembly and disassembly without professional tools. *AHRI 1350 Certified Performance: Officially tested and certified to deliver top-tier mechanical and thermal casing performance, achieving Casing Strength CD4, Air Leakage CL2, Thermal Transmittance CT2, and Thermal Bridging Factor CB2. *Patented Leak-Proof Drain Pan: Equipped with an integrated, one-time foamed drain pan. This innovative sealant-free (no glue) design permanently solves the industry's common water leakage issues, protecting your commercial ceiling spaces from water damage. *100% Tested High-Efficiency Coils: Powered by an AHRI-certified heat exchanger with RoHS-certified copper pipes. Every single coil undergoes a rigorous 100% airtightness test before leaving the factory to guarantee absolute zero leakage. *Intelligent Integrated Control: Supports an optional customized electromechanical control cabinet with multiple built-in safety protections. The smart thermostat seamlessly connects to your Building Automation System (BAS), enabling highly efficient remote centralized management.
Jet Type Air Handling Unit

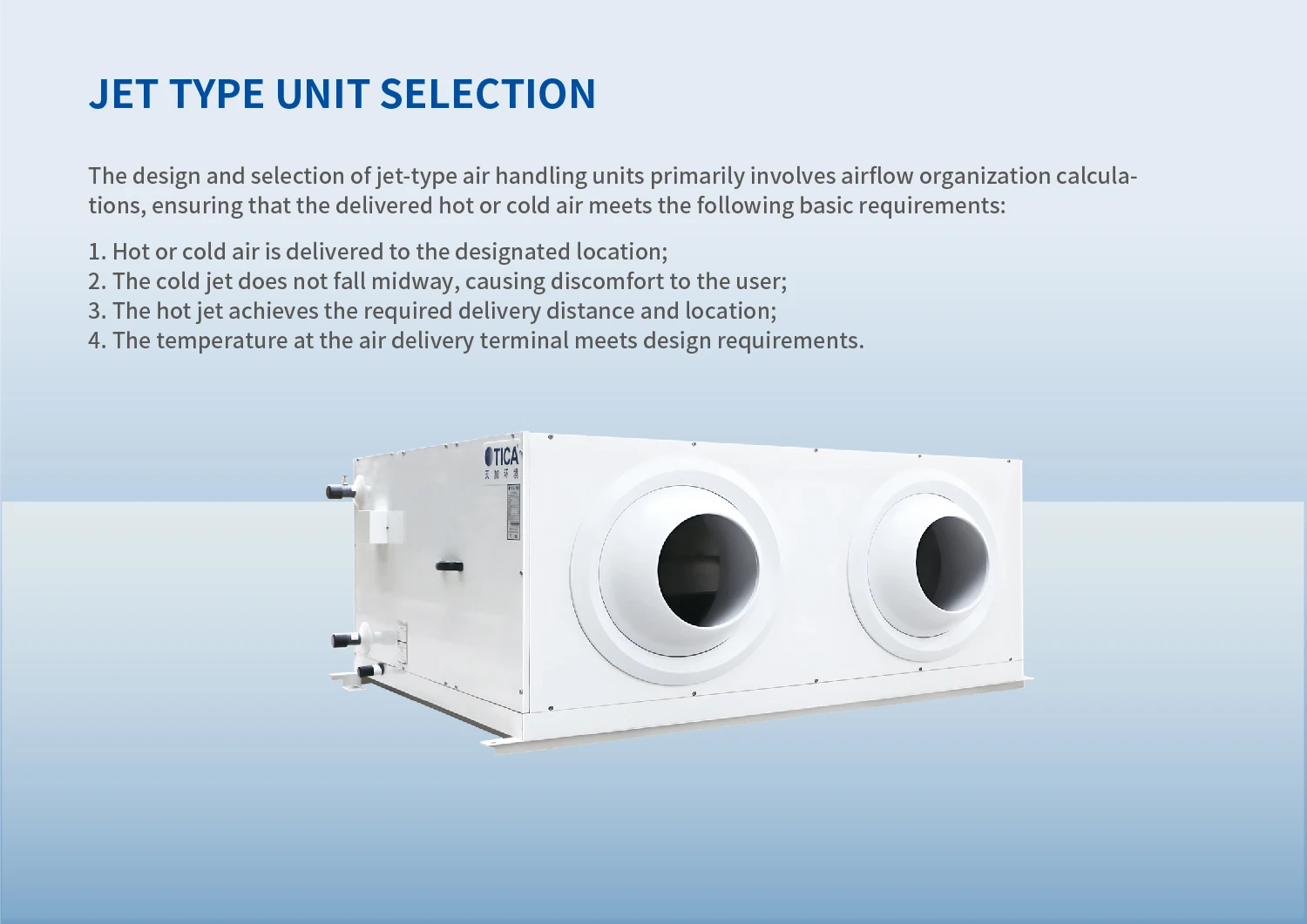

Spherical Nozzles & Long Throw Distance for High Ceiling Spaces
*Precise Air Distribution: Professionally engineered for optimal airflow calculation, ensuring both hot and cold conditioned air accurately reaches designated target zones in large open spaces without the need for extensive ductwork. *Anti-Draft Comfort Control: Features an advanced aerodynamic design that prevents cold air jets from dropping prematurely (avoiding human discomfort), while guaranteeing hot air jets easily achieve the required maximum throw distance. *Targeted Terminal Temperature: The high-velocity spherical nozzles are designed to maintain excellent temperature precision, ensuring the supply air perfectly meets the design requirements at the very end of the throw. *Advanced Coanda Effect Utilization: When installed flush against the ceiling, the unit smartly leverages the Coanda effect (attachment effect), significantly extending the effective air throw distance by 1.4 times compared to standard free airflow. *Scientific Multi-Unit Layout: Engineered with a predictable diffusion width of approximately 0.4 times the throw distance. This provides HVAC contractors with clear guidelines to optimize installation density and prevent mutual airflow interference between multiple units.
TFS Compact Single-Wall AHU
Commercial Ducted Air Handling Unit with IE3/IE4 Motor

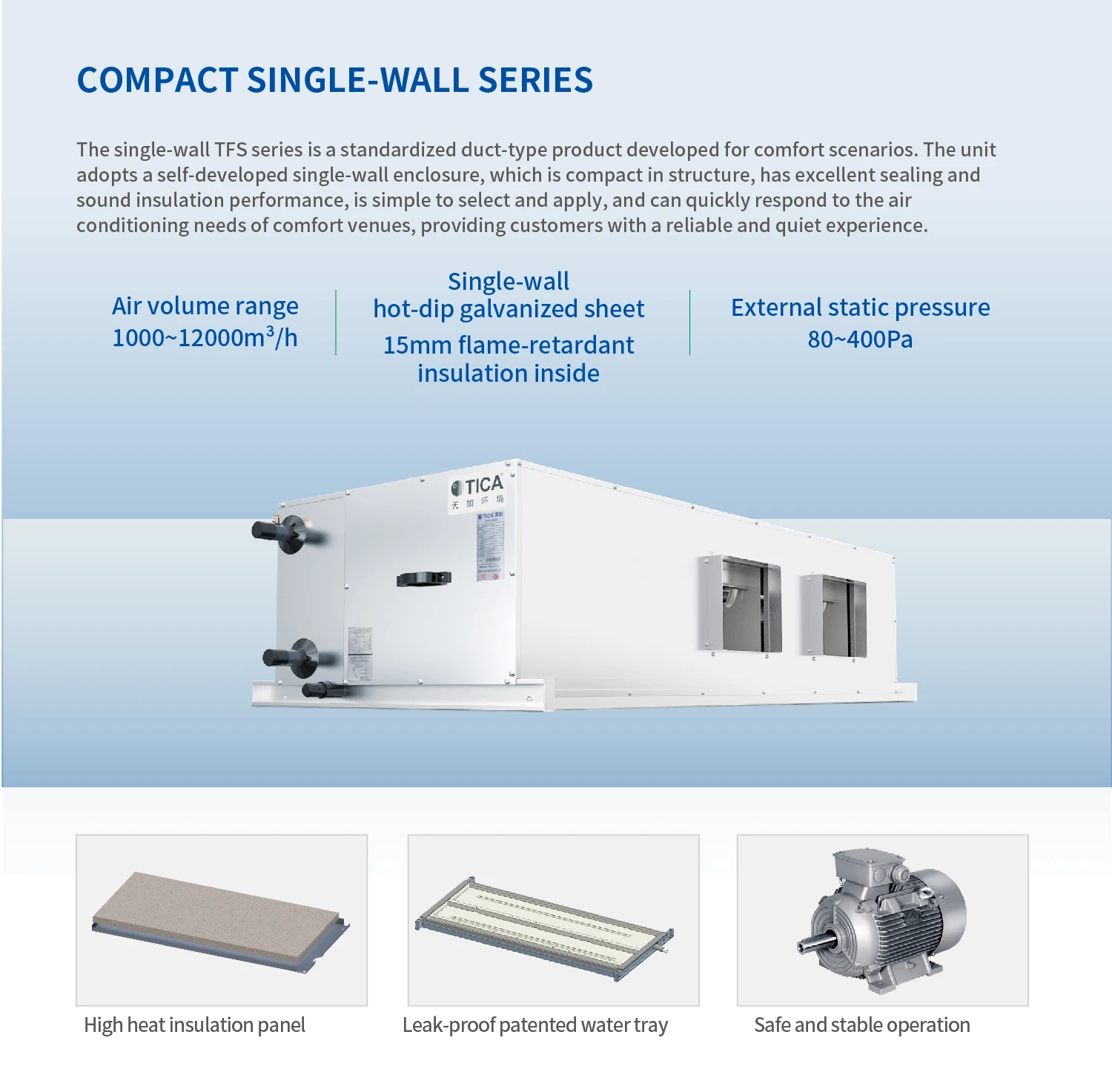

*Core Specifications： Airflow Capacity: 1,000 to 12,000 m³/h (Adaptable to various commercial space sizes). External Static Pressure (ESP): 80 to 400 Pa (Provides sufficient pressure to overcome long-distance duct resistance). Casing Construction: Single-wall hot-dip galvanized steel panel lined with 15mm flame-retardant insulation. *Key Engineering Advantages *Premium High-Insulation Panels： Constructed with an aesthetically pleasing, high-quality hot-dip galvanized outer panel. The interior is strictly lined with 15mm flame-retardant rubber and plastic insulation, providing superior thermal and acoustic resistance. It has been rigorously tested under conditions stricter than national standards to guarantee absolutely zero condensation (no sweating) during operation. *Patented Leak-Proof Drain Pan： Engineered with an integral sunken drain pan structure that effectively collects condensate and prevents overflow. The pan undergoes an advanced electrostatic spray anti-corrosion treatment for long-lasting durability. Furthermore, the drain pipe features a built-in inclined slope, ensuring rapid, natural water discharge and completely eliminating the risk of ceiling leaks. *Stable Operation & High Efficiency： Comes standard with a high-efficiency IE3 motor, with an IE4 motor available as an optional upgrade for maximum energy savings. The unit utilizes an integrated fan and motor base for exceptionally stable running. Additionally, the patented integral hanger design offers sturdy structural support and outstanding vibration isolation (shock absorption).
Global Presence & R&D Excellence
TICA's global footprint ensures seamless international collaboration, delivering uniform, high-standard HVAC solutions tailored to local markets worldwide. Our Unmatched Enterprise Strength: *30+ Years of Industry Leadership: Established in 1991, bringing decades of proven expertise to the commercial cooling and HVAC manufacturing sector. *Massive Global Network: Trusted by clients across 107 countries, backed by a dedicated workforce of 7,000+ global employees. *World-Class Innovation Power: Driven by over 1,500 global R&D engineers operating across 200+ advanced laboratories. *Localized Manufacturing & Support: We operate 40 R&D and Manufacturing Centers strategically located across the globe (including major hubs in Milan, Montreal, Stuttgart, Melbourne, Osaka, and Nanjing). This extensive network—incorporating globally recognized brands like SMARDT and EXERGY—ensures rapid delivery, localized expertise, and reliable global after-sales support.
TICA Factory Tour: World-Class Manufacturing Strength
Source Manufacturer with Advanced Production Capabilities: *State-of-the-Art Production Lines: Our expansive manufacturing facility is equipped with precision assembly lines and advanced automated welding systems, ensuring the highest manufacturing standards for large-scale HVAC equipment. *Industry-Leading Testing Center: We boast a massive, internationally certified 4000 RT Water-Cooled Test Lab (as shown in our facility). Every single chiller undergoes rigorous performance, stability, and load testing before leaving the factory, guaranteeing 100% reliable field operation. *Heavy-Duty Manufacturing Capacity: Outfitted with heavy-duty overhead cranes (up to 20t) and highly organized 5S workshop environments, our plant is fully capable of handling high-volume OEM/ODM orders and mega-scale industrial chiller productions. *Strict Quality Control (QC): From individual component processing to final module assembly, our standardized, end-to-end quality management system ensures consistent, premium quality for global engineering projects.
Company Introduction
Yangye Sunshine: 16-Year Expert in Integrated HVAC & Hot Water Project Solutions
Who We Are Founded with a vision for green technology, Yangye Sunshine New Energy is a premier High-Tech Enterprise with over 16 years of expertise. We specialize in delivering One-Stop Integrated Solutions that combine Commercial HVAC Systems with high-efficiency Hot Water generation. We don't just supply equipment; we design the entire energy ecosystem for your building.
Our Core Expertise:
The "AC + Hot Water" Ecosystem We solve the complexity of sourcing separately. Our integrated approach ensures optimal energy efficiency for:
*Commercial HVAC: Advanced VRF/VRV Systems, Modular Chillers, and Rooftop Units.
*Central Hot Water: Air Source Heat Pumps (ASHP) & Solar Thermal integration.
*Synergy: Energy-saving solutions where AC heat recovery can be used for water heating.
*Central Hot Water: Air Source Heat Pumps (ASHP) & Solar Thermal integration.
*Synergy: Energy-saving solutions where AC heat recovery can be used for water heating.
Why Global Buyers Choose Our Project Solutions?
*Full-Cycle Project Management: From initial CAD Engineering Design to equipment manufacturing and global installation guidance.
*Customized for Your Climate: Proven performance in extreme environments (T3 Tropical High Temp / European Low Temp).
*Turnkey Capabilities: Successfully delivered 1,000+ Benchmark Projects worldwide, including 5-Star Hotels, Hospitals, and Commercial Complexes.
*Full-Cycle Project Management: From initial CAD Engineering Design to equipment manufacturing and global installation guidance.
*Customized for Your Climate: Proven performance in extreme environments (T3 Tropical High Temp / European Low Temp).
*Turnkey Capabilities: Successfully delivered 1,000+ Benchmark Projects worldwide, including 5-Star Hotels, Hospitals, and Commercial Complexes.
*24/7 Technical Empowerment: A dedicated engineering team offering round-the-clock support for OEM/ODM customization and after-sales service.
FAQ:
Q1: What are the main structural and performance advantages of the TICA Ceiling Type Air Handling Unit? A:Patented Cabinet Design: Features a patented joint system (maze structure) where panels lock to thermal-break profiles and are foamed-in-place with high-density polyurethane. It delivers excellent thermal-break performance and a extremely low air leakage rate, and can be assembled and disassembled without the need for professional tools. Patented Leak-Proof Drain Pan: Adopts a single-piece foamed flush-rim drain pan with a leak-proof design (no sealant required), ensuring rapid condensate removal and zero water leakage. High-Efficiency Heat Exchanger: The coils are AHRI-certified, utilizing RoHS-compliant copper tubes. Each unit undergoes a 100% air-tightness pressure test before leaving the factory to ensure zero leakage. Intelligent Integrated Control: An optional built-in M&E control cabinet is available, featuring multiple protections (phase loss, reverse phase, overload, etc.). The temperature controller can be seamlessly integrated into a BAS (Building Automation System) for remote centralized control.
Q2: What are the main types of the TFD series units, and what scenarios are they suitable for? A:Unit Classifications: The TFD series is mainly divided into the Direct Drive Series (B), Belt Drive Series (D), and Jet Series (S). Standard Scenarios: Conventional ducted units like the direct drive and belt drive series feature a compact structure and are widely used in comfort-oriented places requiring centralized air processing, such as shopping malls, hotels, and office buildings. Large Space Scenarios: The Jet type unit uses a high-performance spherical nozzle to achieve long-distance direct air supply without ducts, saving space and lowering initial investment costs. It is ideal for supermarkets, large commercial buildings, factory workshops, stadiums, waiting halls, and exhibition centers.
Q4: What are the mandatory installation specifications for water pipe connection and condensate drainage? A:Inlet/Outlet Pipe Connection: When connecting water pipes, use a pipe wrench to hold the inlet/outlet pipes firmly to avoid applying torsion to the unit's internal piping. It is highly recommended to use Teflon tape for sealing to prevent water leakage. Condensate Water Seal: The condensate water generated by the unit must be discharged with a water seal of a specific height (such as a U-shaped or spherical water trap) and smoothly connected to the sewer via a drain pipe. Anti-Clogging & Anti-Freezing: Valves and filtering devices must be installed at the water inlet to prevent impurities from clogging the system. If the unit is shut down for a long time or during winter, the water in the system and coils must be completely drained to prevent freezing and cracking.
Q5: What is the routine maintenance cycle for the filters and fan bearings? A:Filter Inspection & Cleaning: It is recommended to regularly check the dust accumulation on the filters (monthly or twice a month). When the final resistance of the unit reaches the specified value or the filter becomes clogged with dirt, it should be cleaned or replaced promptly. Bearing Lubrication: Under normal conditions, the fan bearing lubricating grease needs to be replaced after approximately 1,500 hours of operation. If the equipment runs continuously for 24 hours a day, the grease should be replaced every 500 to 700 operating hours.
Q3: What is the warranty policy for purchasing this series of TICA air handling units?
A:Extended Warranty Period: TICA provides an industry-leading commitment of a "6-Year Warranty" for all its product categories, alongside lifetime support. Warranty Coverage: During the free warranty period, TICA will repair or replace parts free of charge for any faults or component damages caused by the product's own quality issues (excluding appearance or cleanliness issues affected by the environment/climate, and consumable parts or materials).Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
