Split Air Conditioners, 840, DC

Split air conditioners — capacity 840,000, power type DC. The complete factory specification follows. Made by Henan Youngye Sunshine New Energy Technology Co., Ltd. (3 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of These Split Air Conditioners

• Model Number: RUXYQ88BBN
• Power Type: DC
• Power Source: Electric
• Power (W): 69.2kw
• Horsepower: 88HP
• Capacity (Btu): 840,000

Technical Specifications

Product Details

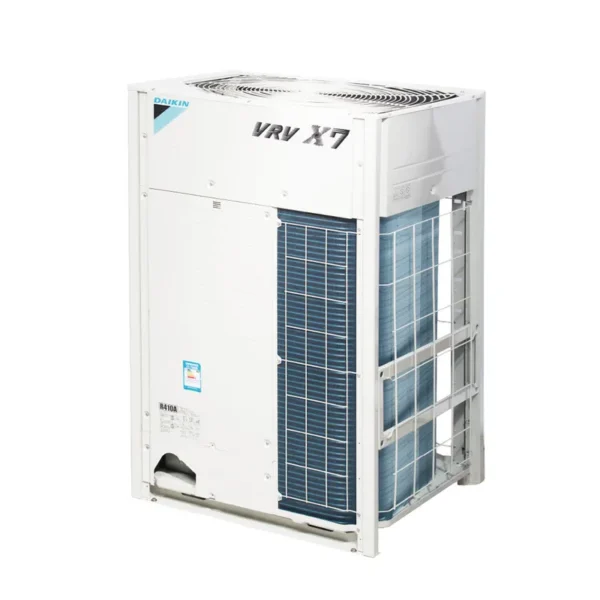

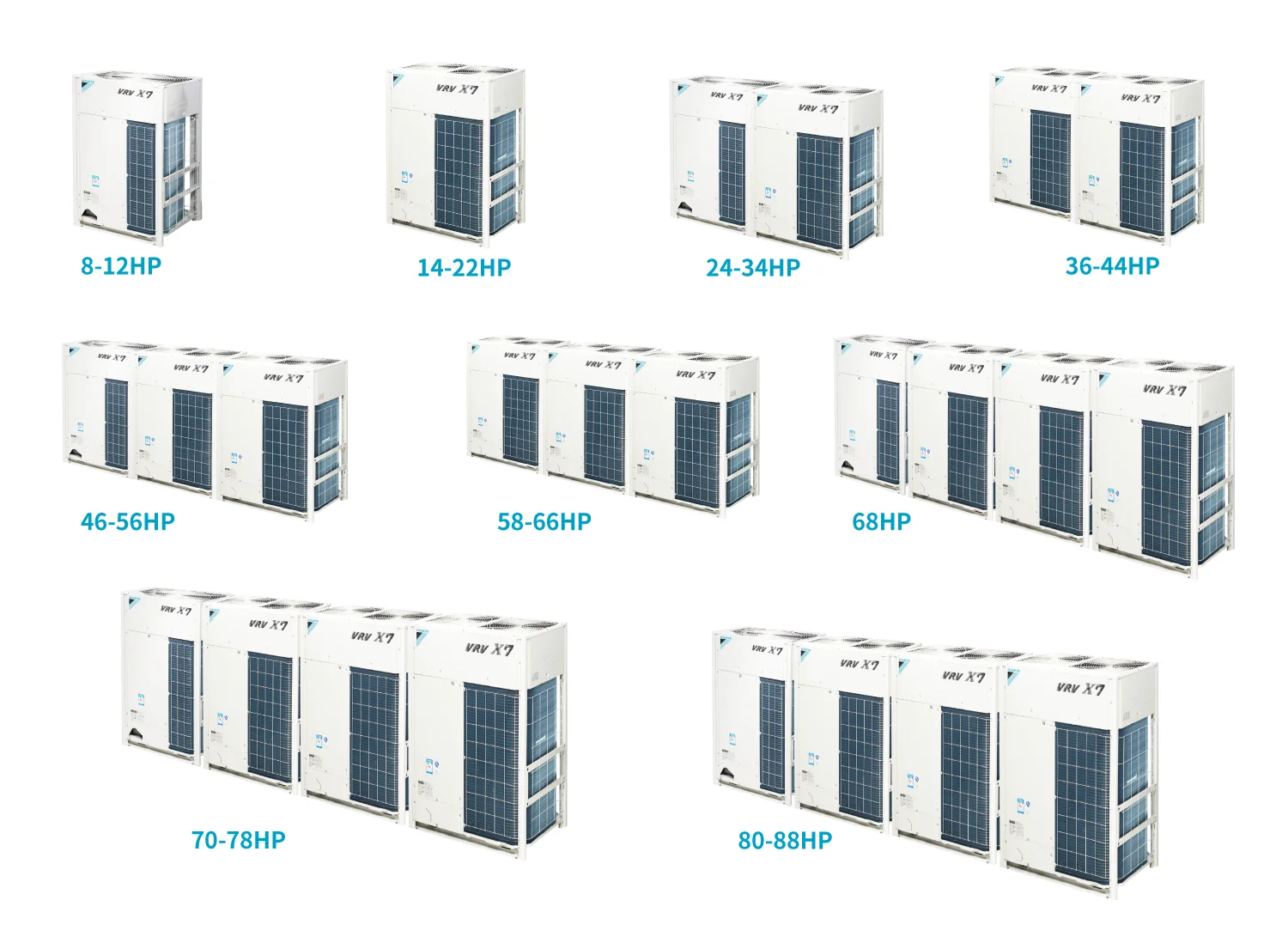

VRV X7 Series

Model		RUXYQ8BBN	RUXYQ10BBN	RUXYQ12BBN	RUXYQ14BBN	RUXYQ16BBN	RUXYQ18BBN	RUXYQ20BBN	RUXYQ22BBN
Horsepower	HP	8	10	12	14	16	18	20	22
Power Supply		Three-phase 380V 50Hz
Rated Cooling Capacity	KW	22.4	28	33.5	40	45	50.4	56.5	61.5
Rated Heating Capacity	KW	25	31.5	37.5	45	50	56.5	63	69
Rated Power Consumption kW	Cooling	4.7	6.71	8.1	9.88	11.8	12.8	14.7	17.3
		Heating	5.24	6.72	8.48	10.5	12.1	13.3	15.3	17
Fan Air Volume	m³/min	162	175	185	223	280	271	271	271
Unit Dimensions	(HxWxD) mm	1657x930x765					1657x1240x765
Operating Noise dB(A)	Front-side Operating Noise	53	54	56	56	57	58	59	60
		Four-side Operating Noise	56	57	59	59	60	61	62	63
Night Silent Operation	dB(A)	40
Indoor/Outdoor Unit Pipe Connection Diameter	Liquid Pipe (mm)	Ф9.5	Ф9.5	Ф12.7	Ф12.7	Ф12.7	Ф15.9	Ф15.9	Ф15.9
		Gas Pipe(mm)	Ф19.1	Ф22.2	Ф25.4	Ф25.4	Ф28.6	Ф28.6	Ф28.6	Ф28.6
Outdoor Unit Pipe Connection Diameter	Liquid Pipe(mm)	Ф9.5	Ф9.5	Ф9.5	Ф12.7	Ф12.7	Ф12.7	Ф12.7	Ф12.7
		Gas Pipe(mm)	Ф19.1	Ф25.4	Ф25.4	Ф25.4	Ф25.4	Ф28.6	Ф28.6	Ф28.6
Weight	kg	189	196	196	250	280	300	300	300
Refrigerant	Name	R410A
		Filling volume kg	8.4	8.6	8.7	11.1	11.1	15.6	15,6	15.6
Operating Range °CDB	Cooling	-15~54°CDB
		Heating	-25~27°CDB
Minimum Circuit Current	MCA (A)	16.1	18	20.1	24.4	26	34.8	39.6	43.6
Maximum Fuse Current	MFA  (A)	20	20	25	32	32	40	50	50
Intelligent Control Module (Optional)	Model	BRG8AC5							BRG22AC5
		Dimensions(HxWxD) mm	45x265x335

Model		RUXYQ24BBN	RUXYQ26BBN	RUXYQ28BBN	RUXYQ3OBBN	RUXYQ32BBN	RUXYQ34BBN	RUXYQ36BBN	RUXYQ38BBN
Horsepower	HP	24	26	28	30	32	34	36	38
Combination method		RUXYQ10BBN RUXYQ14BBN	RUXYQ12BBN RUXYQ14BBN	RUXYQ8BBN RUXYQ20BBN	RUXYQ8BBN RUXYQ22BBN	RUXYQ10BBN RUXYQ22BBN	RUXYQ12BBN RUXYQ22BBN	RUXYQ14BBN RUXYQ22BBN	RUXYQ18BBN RUXYQ20BBN
Power Supply		Three-phase 380V 50Hz
Rated Cooling Capacity	KW	68	73.5	78.9	83.9	89.5	95	101.5	106.9
Rated Heating Capacity	KW	76.5	82.5	88	94	100.5	106.5	114	119.5
Rated Power Consumption kW	Cooling	16.6	18	19.4	22	24	25.4	27.2	27.5
		Heating	17.2	19	20.5	22.2	23.7	25.5	27.5	28.6
Fan Air Volume	m³/min	175+ 223	185+ 223	162+ 271	162+ 271	175+ 271	185+ 271	223+ 271	271+ 271
Unit Dimensions	(HxWxD) mm	1657x930x765+1657x1240x765											1657x1240x765+1657x1240x76
Operating Noise dB(A)	Front-side Operating Noise	58	59	60	61	61	62	62	62
		Four-side Operating Noise	61	62	63	64	64	65	65	65
Night Silent Operation	dB(A)	43
Indoor/Outdoor Unit Pipe Connection Diameter	Liquid Pipe (mm)	Ф15.9	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1
		Gas Pipe(mm)	Ф28.6	Ф31.8	Ф31.8	Ф31.8	Ф31.8	Ф31.8	Ф31.8	Ф31.8
Weight	kg	446	446	489	489	496	496	550	600
Refrigerant	Name	R410A
		Filling volume kg	8.6+ 11.1	8.7+ 11.1	8.4+ 15.6	8.4+ 15.6	8.6+ 15.6	8.7+ 15.6	11.1+ 15.6	15.6+ 15.6
Operating Range °CDB	Cooling	-15~54°CDB
		Heating	-25~27°CDB
Minimum Circuit Current	MCA (A)	40.2	44	46.1	59.7	61.6	63.7	68	69.6
Maximum Fuse Current	MFA  (A)	50	50	63	80	80	80	80	80

Model		RUXYQ4OBBN	RUXYQ42BBN	RUXYQ44BBN	RUXYQ46BBN	RUXYQ48BBN	RUXYQ50BBN	RUXYQ52BBN	RUXYQ54BBN
Horsepower	HP	40	42	44	46	48	50	52	54
Combination method		RUXYQ18BBNRUXYQ22BBN	RUXYQ2OBBNRUXYQ22BBN	RUXYQ22BBNRUXYQ22BBN	RUXYQ10BBNRUXYQ14BBNRUXYQ22BBN	RUXYQ12BBNRUXYQ14BBNRUXYQ22BBN	RUXYQ8BBNRUXYQ20BBNRUXYQ22BBN	RUXYQ10BBNRUXYQ20BBNRUXYQ22BBN	RUXYQ10BBNRUXYQ22BBNRUXYQ22BBN
Power Supply		Three-phase 380V 50Hz
Rated Cooling Capacity	KW	111.9	118	123	129.5	135	140.4	146	151
Rated Heating Capacity	KW	125.5	132	138	145.5	151.5	157	163.5	169.5
Rated Power Consumption kW	Cooling	30.1	32	34.6	33.9	35.3	36.7	38.7	41.3
		Heating	30.3	32.3	34	34.2	36	37.5	39	40.7
Fan Air Volume	m³/min	271+271	271+271	271+271	175+223+271	185+223+271	162+271+271	175+271+271	175+271+271
Unit Dimensions	(HxWxD) mm	1657x1240x765+1657x1240x765					1657x930x765＋1657x1240x765＋1657x1240x765
Operating Noise dB(A)	Front-side Operating Noise	62	63	63	62	63	63	62	62
		Four-side Operating Noise	65	66	66	65	66	66	65	65
Night Silent Operation	dB(A)	43					45
Indoor/Outdoor Unit Pipe Connection Diameter	Liquid Pipe (mm)	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1
		Gas Pipe(mm)	Ф31.8	Ф31.8	Ф31.8	Ф31.8	Ф31.8	Ф31.8	Ф31.8	Ф31.8
Weight	kg	600	600	600	746	746	789	796	796
Refrigerant	Name	R410A
		Filling volume kg	15.6+15.6	15.6+15.6	15.6+15.6	8.6+11.1+15.6	8.7+11.1+15.6	8.4+15.6+15.6	8.6+15.6+15.6	15.6+15.6
Operating Range °CDB	Cooling	-15~54°CDB
		Heating	-25~27°CDB
Minimum Circuit Current	MCA (A)	78.4	83.2	87.2	85.7	87.6	89.7	101.2	105.2
Maximum Fuse Current	MFA  (A)	100	100	100	100	100	100	125	125

Model		RUXYQ56BBN	RUXYQ58BBN	RUXYQ60BBN	RUXYQ62BBN	RUXYQ64BBN	RUXYQ66BBN	RUXYQ68BBN	RUXYQ70BBN
Horsepower	HP	56	58	60	62	64	66	68	70
Combination method		RUXYQ12BBN RUXYO22BBN RUXYQ22BBN	RUXYQ14BBN RUXYQ22BBN RUXYQ22BBN	RUXYQ20BBN RUXYQ20BBN RUXYQ20BBN	RUXYQ18BBN RUXYO22BBN RUXYQ22BBN	RUXYQ20BBN RUXYQ22BBN RUXYQ22BBN	RUXYQ22BBN RUXYQ22BBN RUXYQ22BBN	RUXYQ12BBN RUXYQ12BBN RUXYQ22BBN RUXYQ22BBN	RUXYO12BBN RUXYQ14BBN RUXYQ22BBN RUXYQ22BBN
Power Supply		Three-phase 380V 50Hz
Rated Cooling Capacity	KW	156.5	163	169.5	173.4	179.5	184.5	190	196.5
Rated Heating Capacity	KW	175.5	183	189	94.5	201	207	213	220.5
Rated Power Consumption kW	Cooling	42.7	44.5	44.1	47.4	49.3	51.9	50.8	52.6
		Heating	42.5	44.5	45.9	47.3	49.3	51	51	53
Fan Air Volume	m³/min	185+271+271	223+271+271	271+271+271	271+271+271	271+271+271	271+271+271	185+185+271+271	185+223+271+271
Unit Dimensions	(HxWxD) mm	1657x930x765＋1657x1240x765＋1657x1240x765	1657x1240x765 + 1657x1240x765 + 1657x1240x765									1657x930x765＋1657x930x765＋1657x1240x765＋1657x1240x765	1657x930x765 + 1657x1240x765 + 1657x1240x765 + 1657x1240x765
Operating Noise dB(A)	Front-side Operating Noise	64	64	64	64	65	66	65	65
		Four-side Operating Noise	67	67	67	67	68	69	68	68
Night Silent Operation	dB(A)	45											46	46
Indoor/Outdoor Unit Pipe Connection Diameter	Liquid Pipe (mm)	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф19.1
		Gas Pipe(mm)	Ф41.3	Ф41.3	Ф41.3	Ф41.3	Ф41.3	Ф41.3	Ф44.5	Ф44.5
Weight	kg	796	850	900	900	900	900	992	1046
Refrigerant	Name	R410A
		Filling volume kg	8.7+15.6+15.6	11.1+15.6+15.6	15.6+15.6+15.6							8.7+8.7+15.6+15.6	8.7+11.1+15.6+15.6
Operating Range °CDB	Cooling	-15~54°CDB
		Heating	-25~27°CDB
Minimum Circuit Current	MCA (A)	107.3	111.6	113.2	122	126.8	130.8	127.4	131.7
Maximum Fuse Current	MFA  (A)	125	125	125	140	140	160	160	160
Indoor Unit Model		RUXYQ72BBN	RUXYQ74BBN	RUXYQ76BBN	RUXYQ78BBN	RUXYQ80BBN	RUXYQ82BBN	RUXYQ84BBN	RUXYQ86BBN
Horsepower	HP	72	74	76	78	80	82	84	86
Combination method		RUXYQ12BBNRUXYQ16BBNRUXYQ22BBNRUXYQ22BBN	RUXYQ12BBNRUXYQ18BBNRUXYQ22BBNRUXYQ22BBN	RUXYQ10BBNRUXYQ22BBNRUXYQ22BBNRUXYQ22BBN	RUXYO12BBNRUXYQ22BBNRUXYQ22BBNRUXYQ22BBN	RUXYQ14BBNRUXYQ22BBNRUXYQ22BBNRUXYQ22BBN	RUXYQ16BBNRUXYQ22BBNRUXYQ22BBNRUXYQ22BBN	RUXYQ18BBNRUXYQ22BBNRUXYO22BBNRUXYQ22BBN	RUXYQ20BBNRUXYO22BBNRUXYO22BBNRUXYQ22BBN
Power Supply		Three-phase 380V 50Hz
Rated Cooling Capacity	KW	201.5	206.9	212.5	218	224.5	229.5	234.9	241
Rated Heating Capacity	KW	225.5	232	238.5	244.5	252	257	263.5	270
Rated Power Consumption kW	Cooling	54.5	55.5	58.6	60	61.8	63.7	64.7	66.6
		Heating	54.6	55.8	57.7	59.5	61.5	63.1	64.3	66.3
Fan Air Volume	m³/min	185+280+271+271	185+271+271+271	175+271+271+271	185+271+271+271	223+271+271+271	280+271+271+271	271+271+271+271	271+271+271+271
Unit Dimensions	(HxWxD) mm	1657x930x765 + 1657x1240x765 + 1657x1240x765 + 1657x1240x765							1657x1240x765 + 1657x1240x765 + 1657x1240x765 + 1657x1240x765
Operating Noise dB(A)	Front-side Operating Noise	65	66	66	65	66	66	66	66
		Four-side Operating Noise	68	69	69	68	69	69	69	69
Night Silent Operation	dB(A)	46
Indoor/Outdoor Unit Pipe Connection Diameter	Liquid Pipe (mm)	Ф19.1	Ф19.1	Ф19.1	Ф19.1	Ф22.2	Ф22.2	Ф22.2	Ф22.2
		Gas Pipe(mm)	Ф44.5	Ф44.5	Ф44.5	Ф44.5	Ф44.5	Ф44.5	Ф44.5	Ф44.5
Weight	kg	1076	1096	1096	1096	1150	1180	1200	1200
Refrigerant	Name	R410A
		Filling volume kg	8.7+11.1+15.6+15.6	8.7+15.6+15.6+15.6	8.6+15.6+15.6+15.6	8.7+15.6+15.6+15.6	11.1+15.6+15.6+15.6			15.6+15.6+15.6+15.6
Operating Range°CDB	Cooling	-15~45°CDB
		Heating	-25~27°CDB
Minimum Circuit Current	MCA (A)	133.3	142.1	148.8	150.9	155.2	156.8	165.6	170.4
Maximum Fuse Current	MFA (A)	160	160	200	200	200	200	200	200

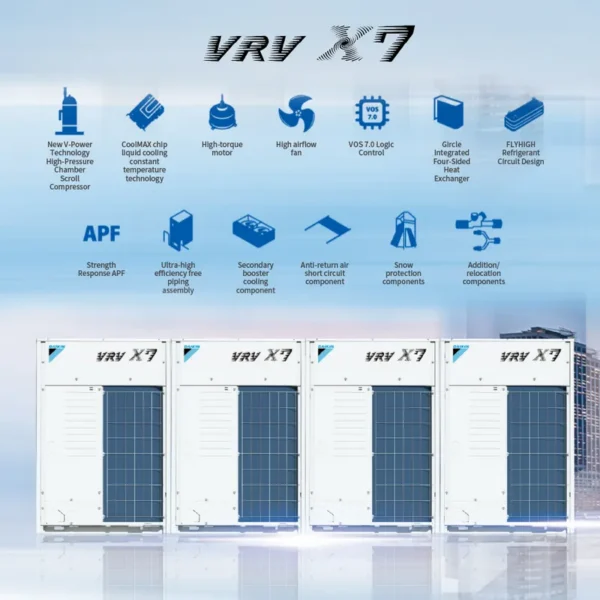

Technological advantages

Super Technology Create more value

*High-performance VRV central air conditioning systems are more efficient than you think

The Daikin VRV central air conditioning system is designed not only to make the air conditioner work, but also to make it operate more efficiently, bringing you unimaginable value. Daikin's VOS7.0 control logic, the new V-Power technology high-pressure scroll compressor, the Gircle integrated four-sided heat exchanger, and the high-torque motor—these meticulously crafted features come together to create the ultra-high efficiency Daikin VRVX7 series, achieving energy savings of approximately 10%*.

*Energy efficiency has been further improved, resulting in higher operating costs and greater economic benefits

Traditional central air conditioning systems have numerous energy-consuming components, including the main unit, indoor units, cooling towers, boilers, and water system power consumption. With so many power-consuming devices, the actual operating efficiency of the system is not high. Daikin's VRVX7 series, employing VRV multi-split technology, consumes only the outdoor and indoor units, along with several upgraded accessories, resulting in a more efficient and energy-saving system.

*Large capacity and compact outdoor unit design overcomes the challenges of tight outdoor unit installation space

In modern buildings where every inch of space is precious, the space required for equipment installation is constantly being reduced in order to maximize rental and sales space and generate more rental and sales profits. The VRVX7 series is equipped with Daikin's latest New V-Power technology high-pressure scroll compressor, achieving a groundbreaking design of a large-capacity, compact outdoor unit. It strives to maximize the space utilization efficiency of modern buildings, saving up to 35%* of equipment floor space.

Ultra-stable and unaffected by extreme weather

*45°C – No temperature decay during cooling

We face real ultra-high temperature operating conditions. When adopting the new VRV air conditioning system design, even at ultra-high temperatures of 45°C, the cooling capacity can be achieved without temperature decay.

*54°C Continuous cooling operation

Extreme heat and poor heat dissipation in outdoor units can lead to ineffective cooling. The heat island effect caused by placing multiple outdoor units together is often a heat dissipation problem that designers encounter when pursuing creative designs by centrally arranging air conditioners. However, solving these air conditioning problems is precisely what Daikin excels at.

*24% improvement in heating performance

The VRVX7 series features a combination of advanced technology, including rapid heating start-up and multi-dimensional intelligent defrosting, resulting in a comprehensive improvement in heating capacity, up to 24%, ensuring a comfortable heating experience for you.

Ultra-energy-saving technology continues to contribute to green and low-carbon development

Daikin's VRV air conditioning system, combined with intelligent control modules and smart IoT, helps traditional buildings further transform into low-carbon structures, reduces air conditioning energy consumption, and contributes to the construction of low-carbon and green cities.

*Professional air conditioning maintenance saves approximately 3% on energy

*The worry-free energy-saving mode saves approximately 10% on energy

*Comfort and energy-saving mode saves approximately 15% on energy

*Adaptive energy-saving mode saves approximately 15% of energy

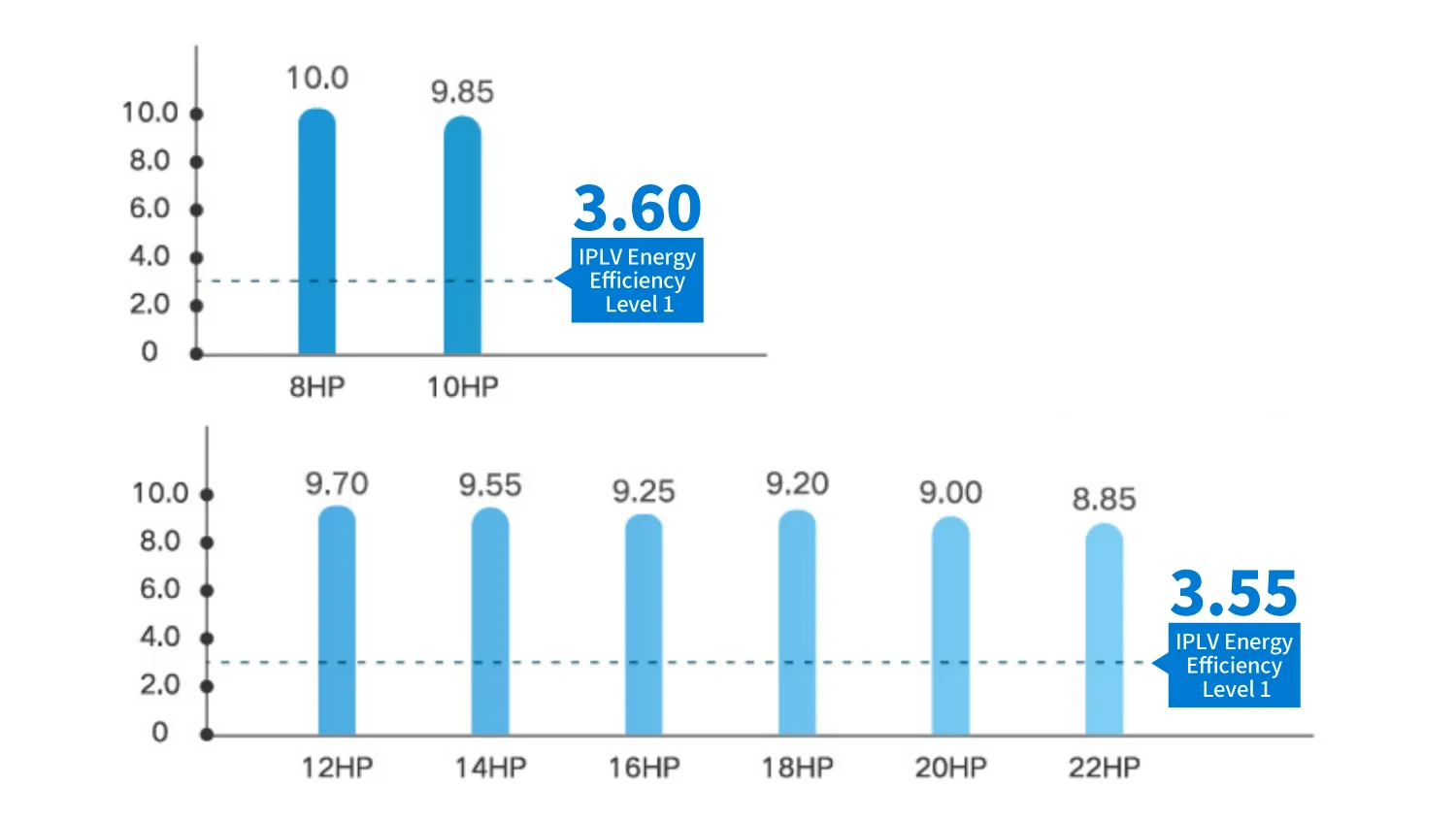

IPLV(C) Breakthrough

A breakthrough in IPLV(C): IPLV(C) values ​​can reach up to 10.0, with an average IPLV(C) value exceeding 9.43.

FLYHIGH refrigerant loop design comprehensively improves system performance

The VRV X7 series utilizes the FLYHGH refrigerant circuit design, optimizing and upgrading the refrigerant subcooling circuit structure inside the outdoor unit. This enables more precise control of the system refrigerant, further breaking through the system pipe length limit and enhancing the air conditioning capacity when the system employs a long piping design. This makes outdoor unit placement more convenient in high-rise and super high-rise buildings, while also providing superior air conditioning performance.

FLYHIGH refrigerant loop design

*The main pipe is 1000m long

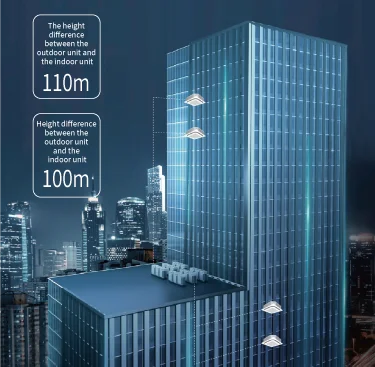

*Maximum height difference between indoor and outdoor units:

100m outdoor unit above indoor unit 110m outdoor unit below indoor unit

*Maximum actual single pipe length 240m

*Maximum equivalent single tube length 280m

*The maximum pipe length after the first branch pipe is 120m.

No need for air conditioning unit louvers; building facade design is no longer limited by outdoor unit placement requirements.

Each floor does not require an outdoor equipment room, aiming to minimize public space and create more high-quality rental area.

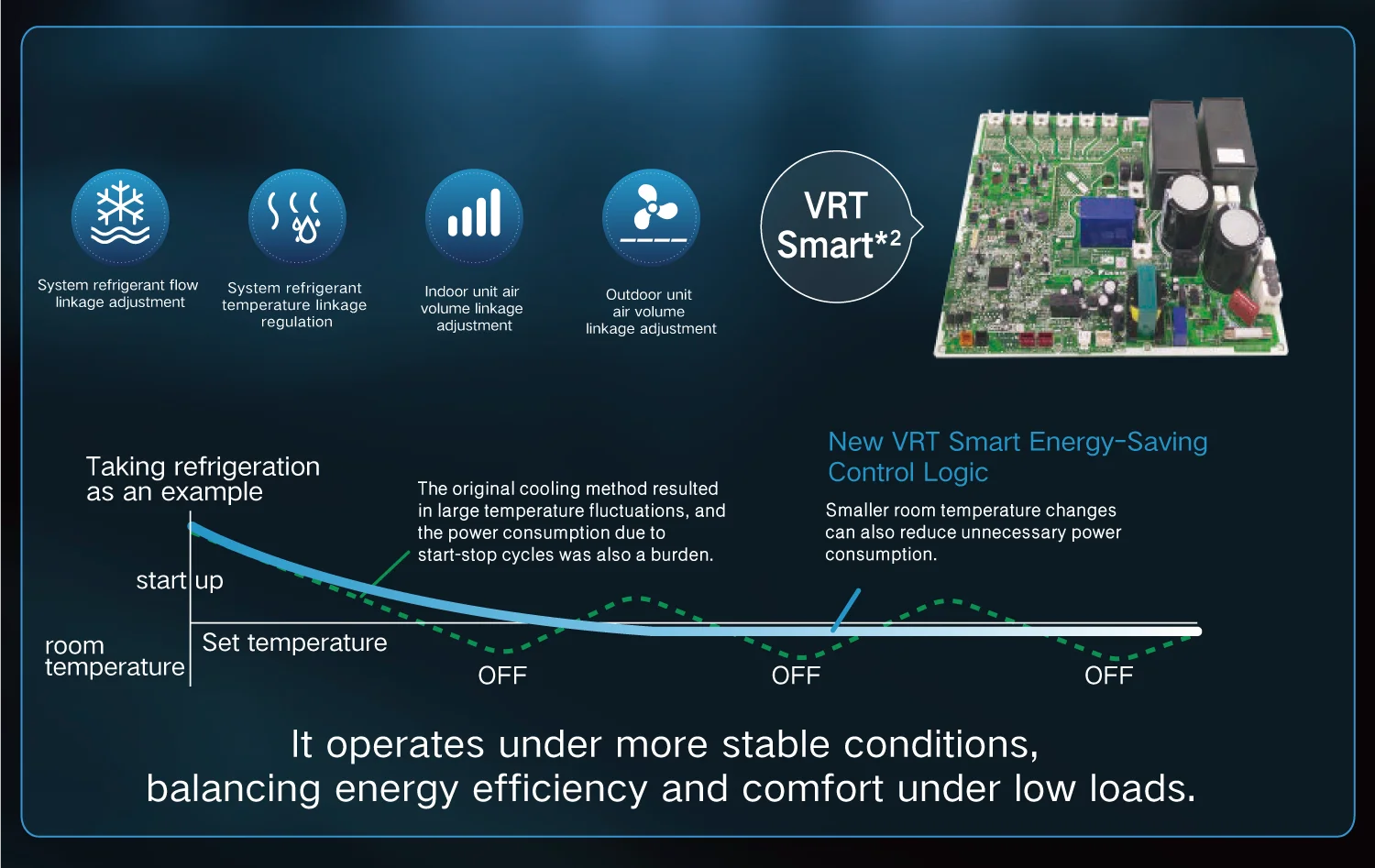

VOS 7.0 control logic fully upgraded

The Daikin VRVX7 series air conditioning system features Daikin's latest VOS7.0 control logic. Unlike the control logic of common multi-split systems (indoor and outdoor unit linkage control logic), it achieves a groundbreaking new control logic: linkage control logic between indoor and outdoor units and multiple indoor units. It monitors the dynamic changes in indoor air conditioning load in real time and adaptively adjusts refrigerant flow, refrigerant temperature, and the air circulation volume of each indoor unit and outdoor unit. Coupled with optimized crankshaft heating control technology, this further improves the energy efficiency of the air conditioning system while significantly enhancing user comfort and preventing excessive indoor temperature fluctuations.

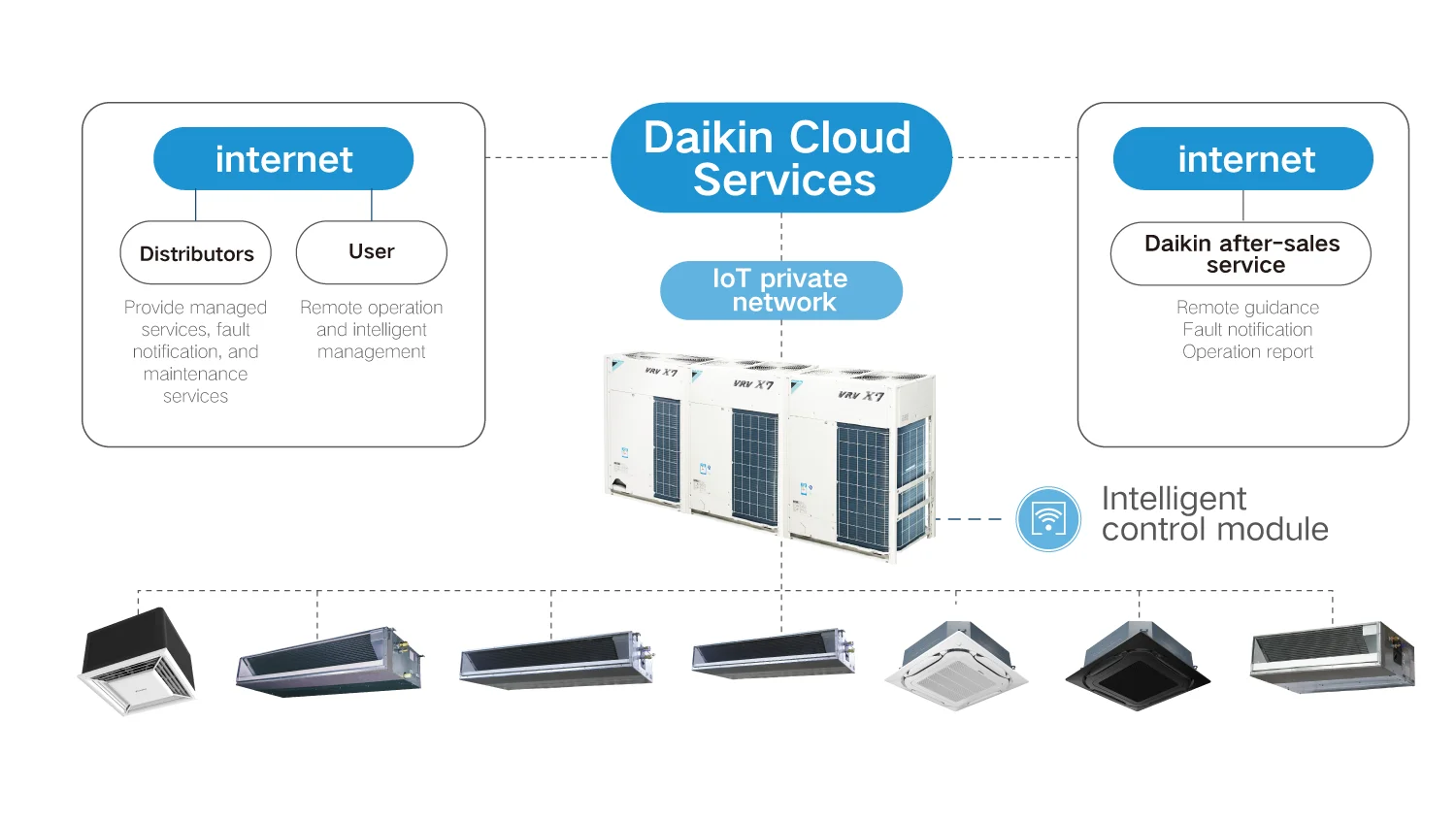

IoT Intelligent Control System

One intelligent control module can connect to up to 7 systems/64 indoor units, facilitating intelligent management and control of the air conditioning system.

*Remote web control via computer/mobile phone/tablet.

*User account hierarchical permission management.

*Centralized control / Area control / Individual control (on/off, temperature adjustment, mode switching, fan speed adjustment, airflow direction adjustment).

*Schedule. *Air conditioner indoor unit linkage settings.

*Monitoring function, displays the air conditioner's operating status.

*Fault display function; Multi-project management

*Open API Port *Energy Consumption Visualization *Easy Energy Saving Mode (Schedule Setting) *Comfort Energy Saving Mode (Permission Settings) *Adaptive Energy Saving Mode (Peak Shaving)

*Energy-saving health check report，Energy-saving diagnosis *Air quality visualization, linked with Daikin fresh air system

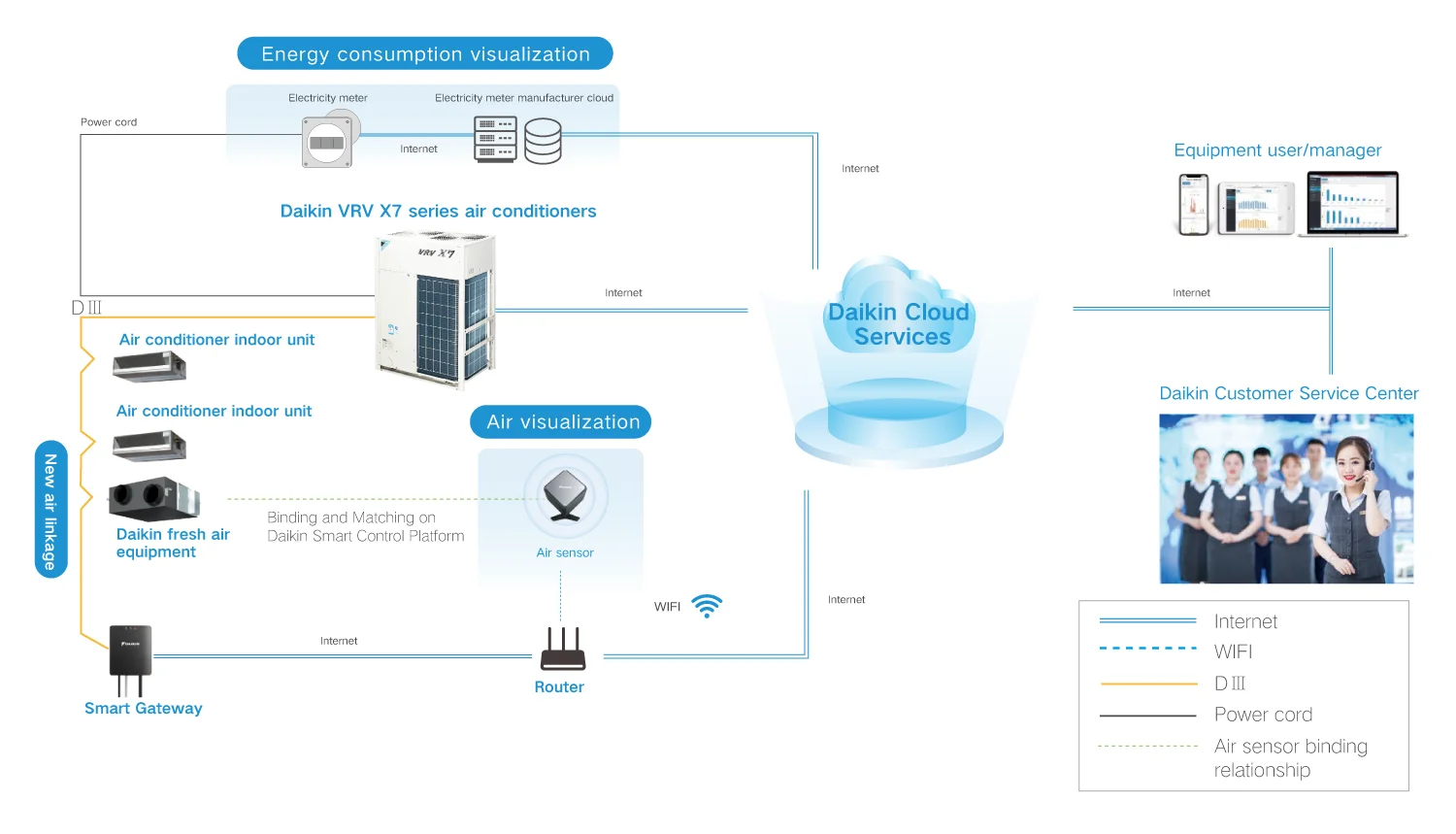

Energy consumption visualization

Schematic diagram of energy consumption visualization/air quality visualization/fresh air linkage system.

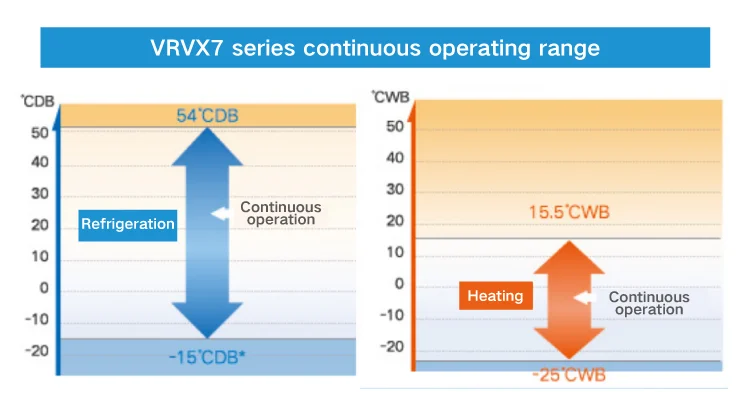

Wider operating range

Heating continuous operation range down to -25°C

Short heating start-up time

The compressor starts at full speed to provide rapid heating

Six special defrosting mechanisms

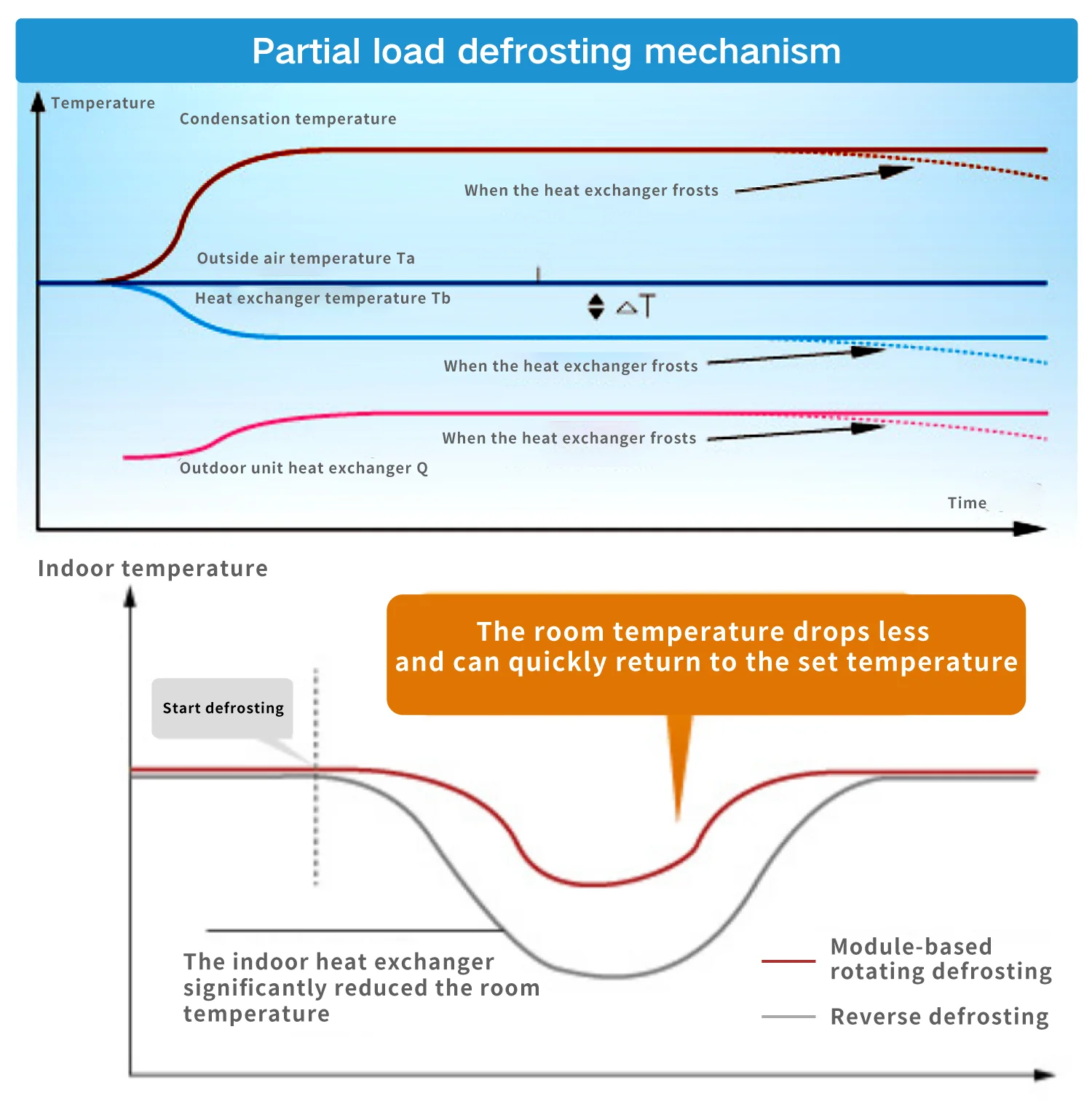

*Partial Load Defrosting Mechanism When the system is operating at full load, the defrosting timing is accurately determined based on changes in the outdoor unit's heat exchange temperature difference. Under partial load, the defrosting timing is accurately determined based on changes in the outdoor unit's heat exchange efficiency.

*High Humidity Environment Defrosting Mechanism

The higher the ambient humidity, the easier it is for the unit to frost. Daikin units can judge the ambient humidity by the data from each defrosting operation, so as to perform defrosting operation more accurately and avoid ineffective defrosting or excessive frost.

*Dust Accumulation Learning Defrosting Mechanism

By comparing data before and after each defrost, Daikin units can accurately determine changes in heat exchange efficiency caused by dust accumulation, thereby reducing ineffective defrosting caused by heat exchanger contamination.

*Low-Temperature Defrosting Mechanism

When defrosting is difficult, extending the heating time can reduce heat loss during defrosting. When the outdoor temperature is even lower, the unit automatically corrects the temperature sensor data based on the outside air temperature, making the data more accurate and ensuring more precise defrosting timing.

*Modular alternating defrosting mechanism

When two or more outdoor units are combined into a system, the system can use the heat from the outside air to alternately defrost, which can alleviate the drop in room temperature, shorten the recovery time after defrosting, and thus improve comfort.

*Coil heat storage defrosting mechanism

Before entering defrosting mode, the refrigerant temperature is increased to achieve heat storage effect of the indoor unit heat exchanger. After the defrosting mode ends, the heat stored in the coil is automatically used to heat the room, so that the indoor temperature can be restored as soon as possible.

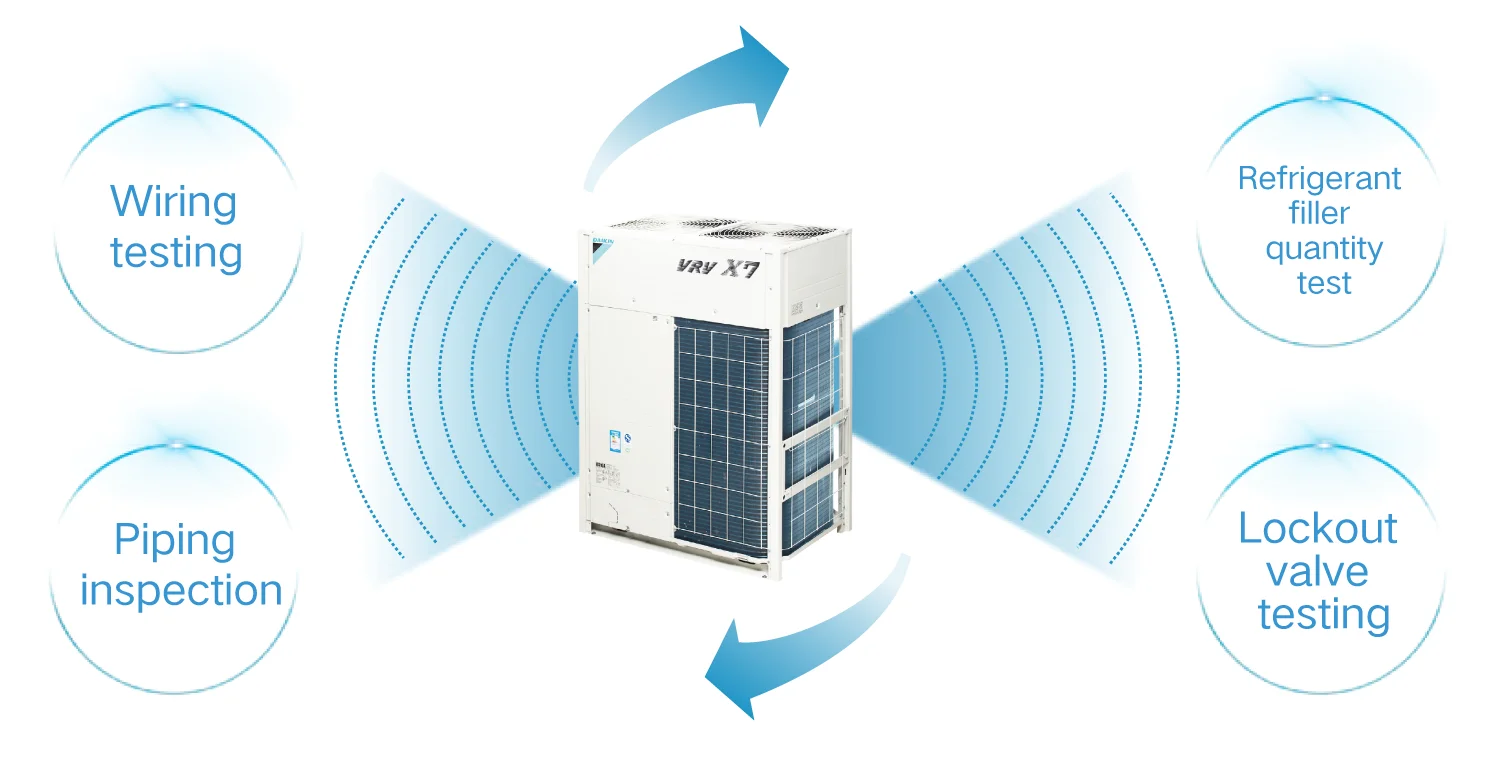

Multiple advanced functions for greater stability

The Daikin VRVX7 series features a user-friendly and efficient commissioning function that automatically detects whether the wiring, piping, refrigerant filling, and shut-off valve settings are correct. This not only significantly improves construction speed but also effectively enhances the quality of on-site construction.

Applicable Scenarios

Company Introduction

Yangyesunshine New Energy – a high-tech enterprise focusing on thermal energy and air conditioning. With 16 years of experience in clean thermal energy, we specialize in solar energy, air source heat pumps, and central air conditioning technologies, providing a full-chain service from R&D and design to installation and after-sales support. We have completed over 1000 benchmark projects nationwide, empowering our clients with one-stop solutions. Upholding the spirit of "Integrity, Professionalism, Pragmatism, and Progress," we offer 24/7 online service and attentive quality. We practice environmental protection and energy conservation, pursuing harmonious coexistence between humanity and nature.

*Our official website: yangyesunshine.com

Packing＆Shipping

FAQ:

Q1: How is the product quality control being handled?
A: "Quality is our top priority." Our team takes quality control very seriously from start to finish.

Q2: Where is your packaging?
A: Standard packaging:
FCL (Full Container Load): Inner bags with outer export carton packaging
LCL (Less than Container Load): Plywood box + carton packaging

Q3: What about your air conditioners?
A: All our air conditioners are designed according to market requirements.

Q4: How can I obtain after-sales service?
A: If the issue is caused by us, we will send you spare parts for free.
If it's a human-induced issue, we will also send spare parts, but you will need to pay for them.
For our air conditioners, we offer lifetime maintenance.

Q5: Do you have an inspection procedure for air conditioners?
A: We conduct a 100% self-inspection before packaging.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this split air conditioners?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Youngye Sunshine New Energy Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Henan Youngye Sunshine New Energy Technology Co., Ltd. range on HVACR Nexus.

See more in Split Air Conditioners on HVACR Nexus.
