Key specification for this air inverter heating pump: power source Electric, material galvanized steel. Everything below is reproduced from the factory data sheet. Made by Power World Machinery Equipment Co., Ltd (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Inverter Heating Pump
- Model Number: PW040-DKZLRS-C
- Power Source: Electric
- Housing Material: metal or Stainless Steel
- Material: galvanized steel
- Refrigerant: R32
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | metal or Stainless Steel |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Place Of Origin | Guangdong, China |
| Brand | Power World |
| Model Number | PW040-DKZLRS-C |
| Function | heating cooling and hot water |
| Heat Exchanger | Titanium Heat Exchanger |
| Refrigerant | R32 |
| Heat Source | Air Source 75%+ity25% |
| Material | galvanized steel |
| Sound Level | 45dB(1m) |
| Controller | Digital LCD and wifi |
| Use | domestic or commercial |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

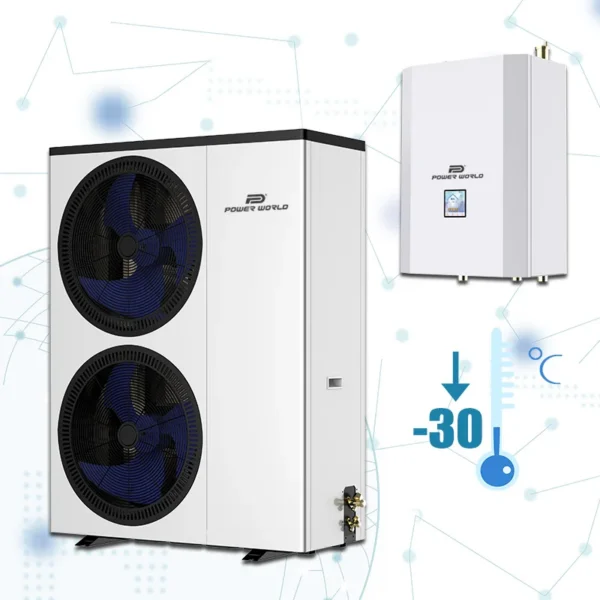

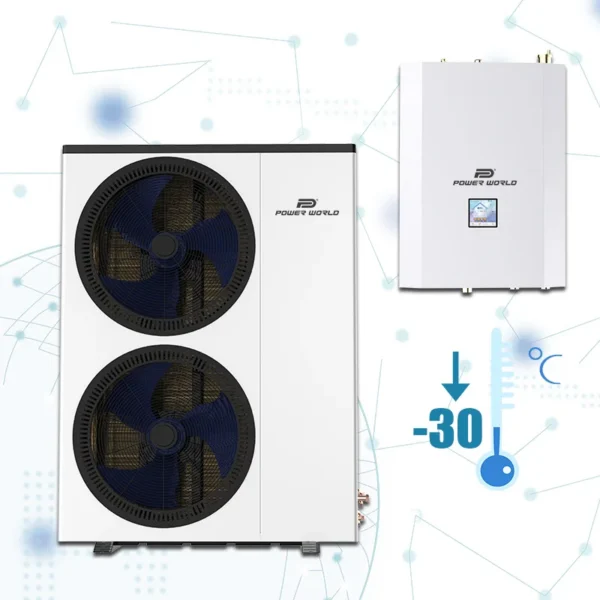

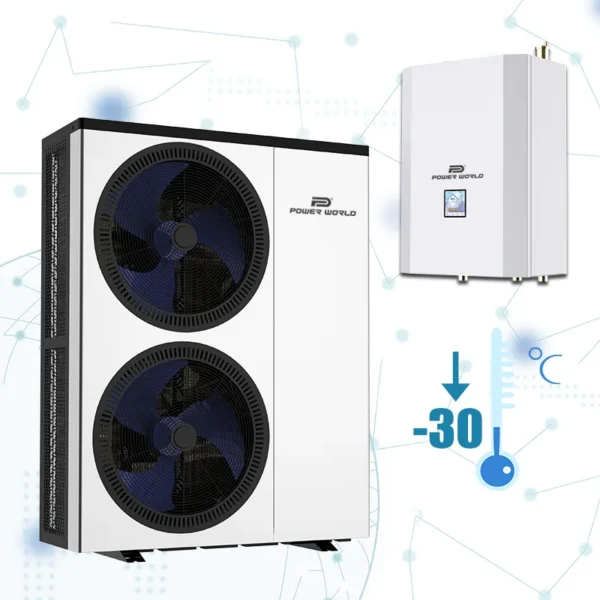

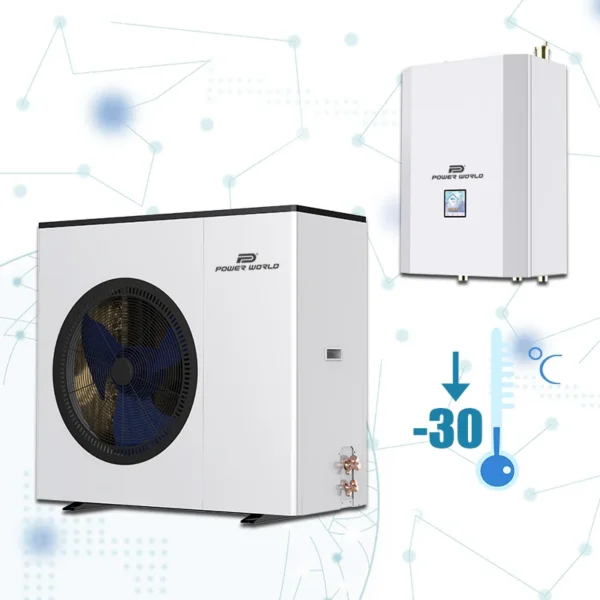

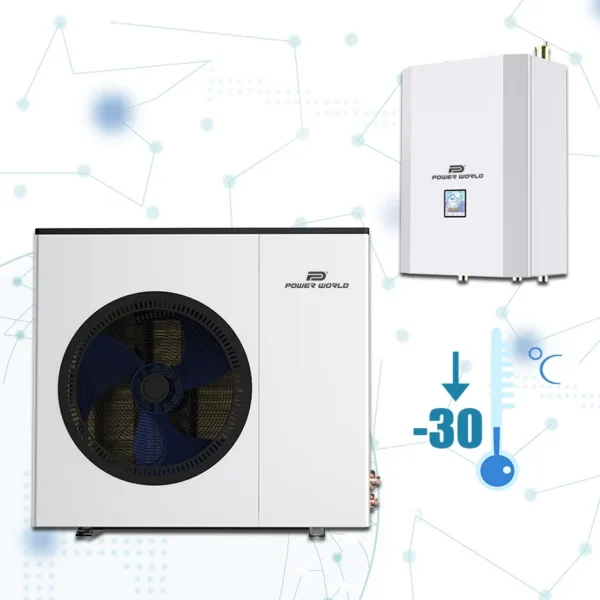

Power World R32 slpit EVI Full DC inverter Heat Pump for Heaing Cooling,DHW
Split EVI air to water heat pump is specially designed for house heating and sanitary hot water in cold area. The ambient temperature range is -25℃ to 43℃. It can use safely in -25℃ ambient with strong low-temperature heating capacity.
Certificate:CE, CB, RoHS, Conform to EN14825,EN14511 test standard , ISO9001, ISO14001.
OPTIONAL:Galvanized metal cabinet or stainless steel cabinet
*Full DC Inverter Technology
Adopting the most advanced low-temperature Enhanced Vapors Injection compressor technology. Split EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.
Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
The unique control logic enables our EVI split heat pump to adjust the outlet water temperature intelligently,according to the real-time changing ambient temperature. Thanks to this function,our users can not only enjoy greater comfort, but also save more bills.
The unique control logic enables our EVI split heat pump to adjust the outlet water temperature intelligently,according to the real-time changing ambient temperature. Thanks to this function,our users can not only enjoy greater comfort, but also save more bills.
Consisting of an indoor unit that blows air over evaporator coils and an outdoor unit that powers the system, split heat pumps have many advantages to offer homeowners. For example, the split model design can better avoid freezing problems. The system will implement automatic anti-freezing protection by detecting system water temperature.
*Intelligent Defrosting Power World EVI split type DC inverter heat pump series adopt the intelligent defrosting technology to make optimal decisions on whether it is time to defrost or not. In this way,the unit is able to minimize energy consumption and improve customer satisfaction.
The intelligent controller is adopted to realize the linkagecontrol between the heat pump unit and the terminal application end. With theCascade function, multiple heat pumps can be controlled at once for greateroperating efficiency. The WIFI APP enables users to operate their unitsthrough a smart phone wherever and whenever they are.
With below features, Power World Easylife Series can be widely used:
1.Heating, Cooling,and DHW functions for all year round running.
2.EVI technology ensures smooth operation from -25°C to 43°C.
3.Various Capacity Selection from 8~30 kW for different houses.
4.Wide Voltage Range (170-254V for single phase, 320-460V for 3 phase)
Mode 1: Central Hot Water: Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply.
Mode 2: Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.
Mode 3: Whole House Heating: Water Cycled Floor Heating,Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4: Hot Water + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.
Mode 5: Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.
1.With Panasonic rotary compressor and DC inverter brushless fans, our DC inverter heat pumps adopt new noise reduction measures so that the sound of the unit is controlled at a satisfactory level.
2.With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.
3.Hidden screw design is very popular with European clients,the whole unit is very simple and beautiful.
3.Hidden screw design is very popular with European clients,the whole unit is very simple and beautiful.
PW030-DKZLRS-C
(R410a)
PW050-DKZLRS-C
(R410a)
Product model | PW040-DKZLRS-C | PW060-DKZLRS-C | ||||
Heating | Heating Capacity Range (kW) | 6.5~12.6 | 10.5~22 | |||
Heating input Range (kW) | 1.41~2.99 | 2.27~5.2 | ||||
current Range (A) | 6.45~13.7 | 4.06~9.30 | ||||
COP Range | 4.21~4.62 | 4.23~4.63 | ||||
Cooling | Cooling capacity Range (kW) | 4.2~8.2 | 7.2~14.2 | |||
Cooling input power(kW) | 1.30~3.33 | 2.17~5.55 | ||||
current Range (A) | 5.96~15.3 | 3.88~9.93 | ||||
EER Range | 2.46~3.23 | 2.56~3.32 | ||||
DHW | Heating Capacity Range (kW) | 5.5~10.5 | 8.8~17.5 | |||
Heating input Range (kW) | 1.42~3.42 | 2.24~5.61 | ||||
current Range (A) | 6.51~15.7 | 4.01~10.0 | ||||
COP Range | 3.07~3.86 | 3.12~3.93 | ||||
Refrigerant | R32 | |||||
Power supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | ||||
Working area | -30～43℃ | |||||
Water pressure drop （kPa） | 25 | 30 | ||||
IP Grade (Level of protection) | IPX4 | IPX4 | ||||
Anti-electric shock Rate | I | I | ||||
Noise (dB(A)) | ≤53 | ≤58 | ||||
Net weight/Gross weight（kg） | 90/100 | 140/155 | ||||
Water Connectione （inch） | 1（DN25) | |||||
Heating Side Water Connection（inch） | 1（DN25) | |||||
Hot Water Side Water Connection （inch） | 1（DN25) | |||||
Body size(W*D*H) (mm) | 1030×475×970/ 700×500×272 | 1000×480×1380/ 700×500×272 | ||||
ErP Level (35°C) | A+++ | A+++ | ||||
ErP Level (55°C) | A++ | A++ | ||||
Compressor Brand | Panasonic | |||||
Four-way valve | Sanhua | |||||
Expansion valve | Sanhua | |||||
Three-way valve | Honywell | |||||
Water Pump Brand | SHIMGE | |||||
Water Head（m） | 9m | 12m | ||||
Expansion Tank(L) | 2L | 5L | ||||
Electric Heater(kW) | 3 | |||||
Operating water temperature (℃) DHW | 20~55℃ | |||||
Operating water temperature (℃) heating | 20~50℃ | |||||
Operating water temperature (℃) cooling | 7~35℃ | |||||
Remark: Heating working condition: Inlet water temperature 30℃, Outlet water temperature 35℃, Dry bulb temperature 7℃, Wet bulb temperature6℃. Cooling working condition:Inlet water temperature 12℃, Outlet water temperature 7℃, Dry bulb temperature 35℃, Wet bulb temperature 24℃. DHW working condition: Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 7℃, Wet bulb temperature 6℃ . | ||||||
Company Profile
VR
FAQ
Q1: Are you heat pump supplier of trading company or manufacturer ?
A1: We are an R&D and manufacturing factory with a 200,000 m² modern facility. We offer OEM services, and our minimum order quantity is 20 units.
A1: We are an R&D and manufacturing factory with a 200,000 m² modern facility. We offer OEM services, and our minimum order quantity is 20 units.
Q2: How long is your Heat Pump delivery time?
A2: Generally, it takes 1–5 working days if the goods are in stock, and 15–25 working days if not. The exact time also depends on the quantity.
Q3: Wonder if you accept small orders?
A3: Don't worry, and feel free to contact us. In order to secure more orders and provide our clients with greater convenience, we accept small orders.
Q4: Can you send products to my country?
A4: Sure, we can. If you do not have your own shipping forwarder, we can help you.
Q5: Can you do OEM for me?
A5: We accept all OEM orders. Just contact us and send us your design, and we will offer you a reasonable price and make samples for you as soon as possible.
Q6: What's your payment terms ?
A6: By T/T, LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q7: How can I place the order?
A7: First sign the PI, pay deposit,then we will arrange the production. After finished production need you pay balance. Finally we will ship the Goods.
Q8 When can I get the quotation ?
A8: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation. Please call us or tell us in your mail, so that we could regard your inquiry priority.
A2: Generally, it takes 1–5 working days if the goods are in stock, and 15–25 working days if not. The exact time also depends on the quantity.
Q3: Wonder if you accept small orders?
A3: Don't worry, and feel free to contact us. In order to secure more orders and provide our clients with greater convenience, we accept small orders.
Q4: Can you send products to my country?
A4: Sure, we can. If you do not have your own shipping forwarder, we can help you.
Q5: Can you do OEM for me?
A5: We accept all OEM orders. Just contact us and send us your design, and we will offer you a reasonable price and make samples for you as soon as possible.
Q6: What's your payment terms ?
A6: By T/T, LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q7: How can I place the order?
A7: First sign the PI, pay deposit,then we will arrange the production. After finished production need you pay balance. Finally we will ship the Goods.
Q8 When can I get the quotation ?
A8: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation. Please call us or tell us in your mail, so that we could regard your inquiry priority.
Looking Forward to Your Inquiry
Power World
Email:marketing@powerworld-e.com
Website: www.powerworld-e.com
Add:Headquarters Add:No.24,the fourth industrial zone,HouTing Street,ShaJing Town,BaoAn District,Shenzhen China.
Fatory Add: No. 1, Zhenxing South 1st Road, Zhihuigu Industrial Park, Shiwan Town, Boluo County, Guangdong Province,China
If you are interested in this product,please fill in the below and send us,we will reply you and also send you the latest product catalog and latest quotation within 1 hour.
Ordering and Pricing
- Minimum order quantity: 20 set
- Volume pricing:
- 20–99 set: US $2285 / set
- 100–499 set: US $2185 / set
- 500+ set: US $1885 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air inverter heating pump?
The standard minimum order quantity is 20 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Power World Machinery Equipment Co., Ltd, based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Power World Machinery Equipment Co., Ltd range on HVACR Nexus.
