Water Heater, 220, 4kw

Key specification for this water heater: voltage 220/380V, 4kw. Everything below is reproduced from the factory data sheet. Made by Power World Machinery Equipment Co., Ltd (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Water Heater

• Model Number: PW008-KZXYC-F
• Power Source: Electric
• Power (W): 4000
• Voltage: 220/380V
• Capacity: 4kw
• Housing Material: Stainless Steel

Technical Specifications

Product Details

Products Description

PATENT DESIGN

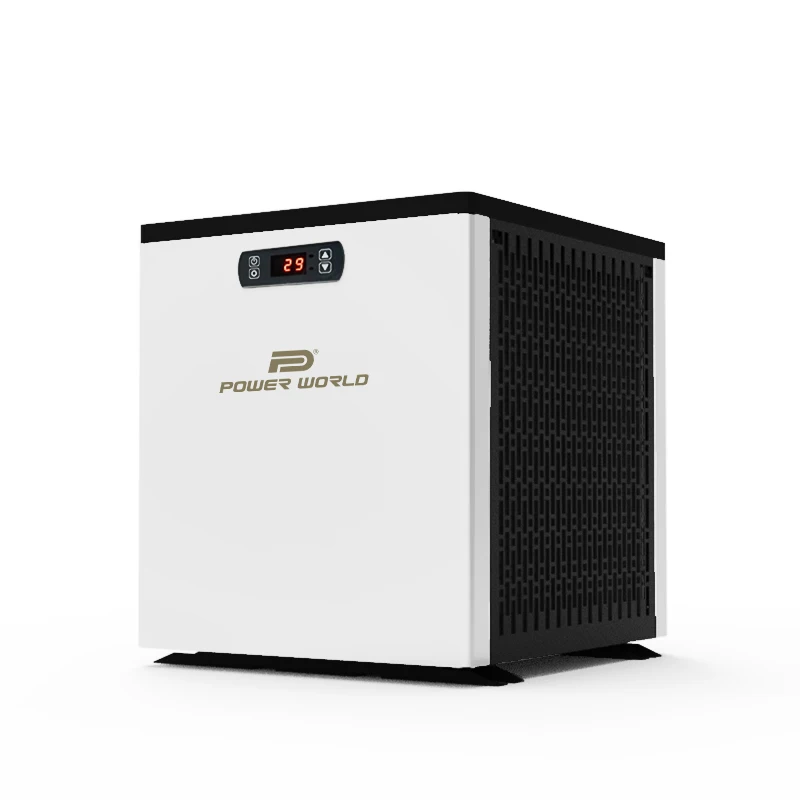

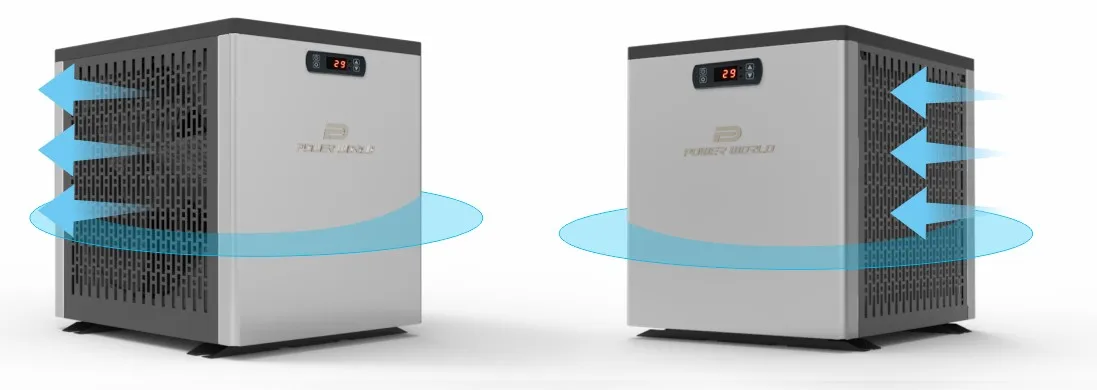

Min Pro Pool Heat Pump is Patented unique design with Square structure design with arc style corner. The air inlet and outlet are symmetrically design.

SUPER SILENCE

Thanks to patented silent-design,Min Pro Pool Heat Pump makes a quieter swimming environment and friendly neighborhood for you. The sound level is only 45dB.

SIMPLE INSTALLATION & OPERATION

Easy plug & play and press & heat controller bring more comfortable and convenient experience to end user.

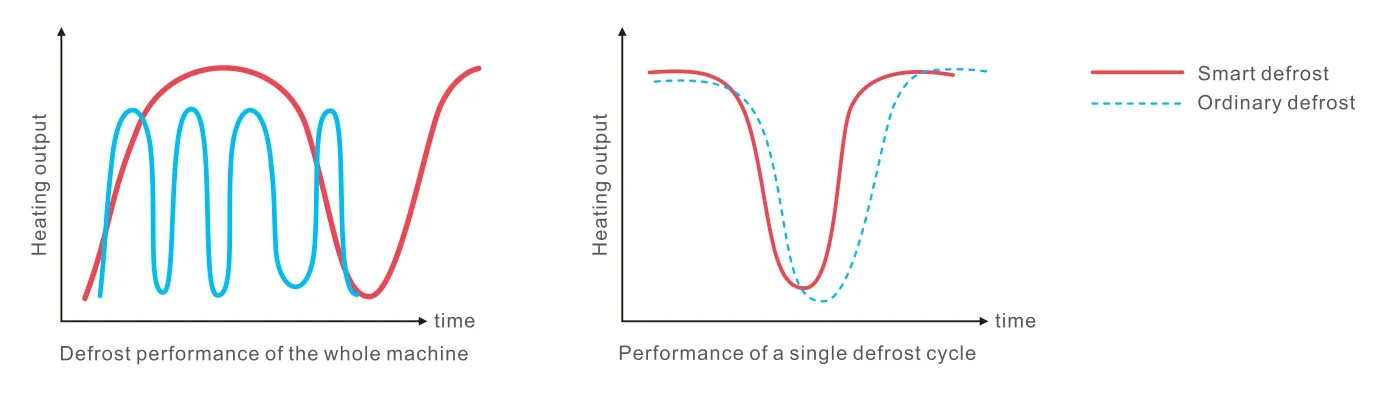

INTELLIGENT DEFROSTING

Equipped with four-way valve,Min Pro Pool Heat Pump can automatically defrost efficiently and quickly when ambient temperature is low,perfectly adapting to the needs of different temperature and areas.This also ensures the wide application range from 5 to 43℃

3 Colors Options:

Model	PW005-KZXYC-F	PW008-KZXYC-F	PW012-KZXYC-F	PW015-KZXYC-F
Advised pool volume (m3)	5~15	10~20	12~22	15~25
Operating air temperature (℃)	-5 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	2.8	3.5	4.5	5.5
Heating Capacity(Btu)	9520	11900	15300	18700
Consumed power (kW)	0.56	0.65	0.83	1.02
COP	5.0	5.4	5.4	5.4
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	2.0	2.5	3.3	3.9
Heating Capacity(Btu)	6800	8500	11050	13328
Consumed power (kW)	0.53	0.63	0.81	0.98
COP	3.8	4.0	4.0	4.0
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	1.5	2.0	2.6	3.3
Sound pressure at 1m dB(A)	45	46	47	48
Sound pressure at 10m dB(A)	28	30	31	32
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	220 ~240V/1 Ph/50Hz
Water Connection (mm)	Φ32
Rated input current at air 15℃（A）	2.42	2.88	3.50	4.30
Advised water flux (m³/h)	1.0-1.5	1.5-2.0	1.7-2.2	2.0-2.5
Water Pressure Drop (max) kPa	2	2	4	4
Net weight/Gross weight（kg)	25/27	26/28	33/36	34/37
Carton size（mm）	394*444*435mm			498*499*500mm
Package size（mm）（carton）	420*510*485			555*576*542
Package size（mm）（Polywood）	437*510*475			572*576*545
Loading quantity (20GP/40GP/40HQ)	208/416/520			144/288/288
Refrigerant consumption（g）	200g	265g	320g	380g
Refrigerant	R32
Compressor	Gree
Four-way valve	Sanhua
Expansion valve	Sanhua
Operating water temperature (℃) heating	9 ~43
Operating water temperature (℃) cooling	9 ~35

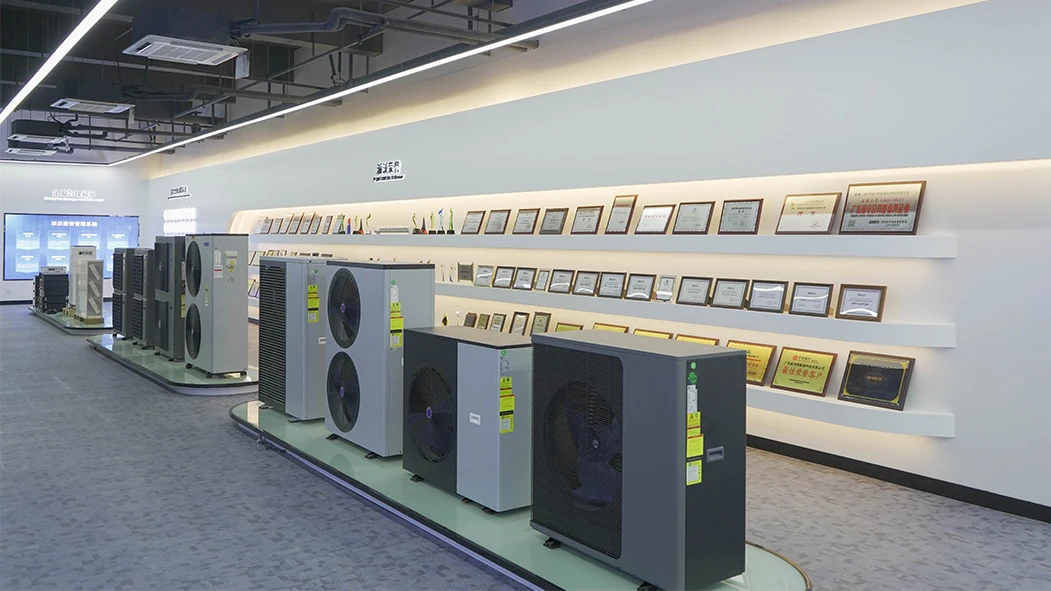

Company Profile

VR

FAQ

Q1: Are you heat pump supplier of trading company or manufacturer ?
A1: We are an R&D and manufacturing factory with a 200,000 m² modern facility. We offer OEM services, and our minimum order quantity is 20 units.

Q2: How long is your Heat Pump delivery time?
A2: Generally, it takes 1–5 working days if the goods are in stock, and 15–25 working days if not. The exact time also depends on the quantity.

Q3: Wonder if you accept small orders?
A3: Don't worry, and feel free to contact us. In order to secure more orders and provide our clients with greater convenience, we accept small orders.

Q4: Can you send products to my country?
A4: Sure, we can. If you do not have your own shipping forwarder, we can help you.

Q5: Can you do OEM for me?
A5: We accept all OEM orders. Just contact us and send us your design, and we will offer you a reasonable price and make samples for you as soon as possible.

Q6: What's your payment terms ?
A6: By T/T, LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.

Q7: How can I place the order?
A7: First sign the PI, pay deposit,then we will arrange the production. After finished production need you pay balance. Finally we will ship the Goods.

Q8 When can I get the quotation ?
A8: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation. Please call us or tell us in your mail, so that we could regard your inquiry priority.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $398 / set
  • 10–49 set: US $356 / set
  • 50+ set: US $282 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the water heater be supplied for my local voltage?

The standard configuration is 220/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Power World Machinery Equipment Co., Ltd, based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Power World Machinery Equipment Co., Ltd range on HVACR Nexus.
