Key specification for this air recuperator energy ventilator: airflow 20/42/64 m3/h, material ABS Plastic. Everything below is reproduced from the factory data sheet. Made by Beijing Holtop Air Conditioning Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Recuperator Energy Ventilator
- Model Number: AV-TTW5-W
- Input Power: 12 w
- Airflow (L/M/H): 20/42/64 m3/h
- Material: ABS Plastic
- Warranty: 1 Year
- Place Of Origin: Beijing, China
Technical Specifications
| Application | Villa, Hotel, Apartment, Bedroom |
|---|---|
| Material | ABS Plastic |
| Installation | Wall-mounted |
| Feature | Energy Saving, Easy Install |
| Design Style | European, Contemporary, Modern |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Free Spare Parts |
| Project Solution Capability | total solution for projects |
| Model Number | AV-TTW5-W |
| Place Of Origin | Beijing, China |
| Brand Name | ODM |
| Heat Exchanger Type | Heat recovery ventilator |
| Input Power | 12 w |
| Current | 0.04-0.06 A |
| RPM | 2000 (max) |
| Airflow (L/M/H) | 20/42/64 m3/h |
| Noise | ≤ 36.7 dB(A) |
| Regeneration Efficiency | ≤ 92 % |
| Ingress Protection Rating | IP22 |
| Product Type | Decentralized ventilation with heat recovery |
| Selling Units | Multiple of 2 items |
| Package Size Per Batch | 58X36X33 cm |
| Gross Weight Per Batch | 14.000 kg |
Product Details
Product Description

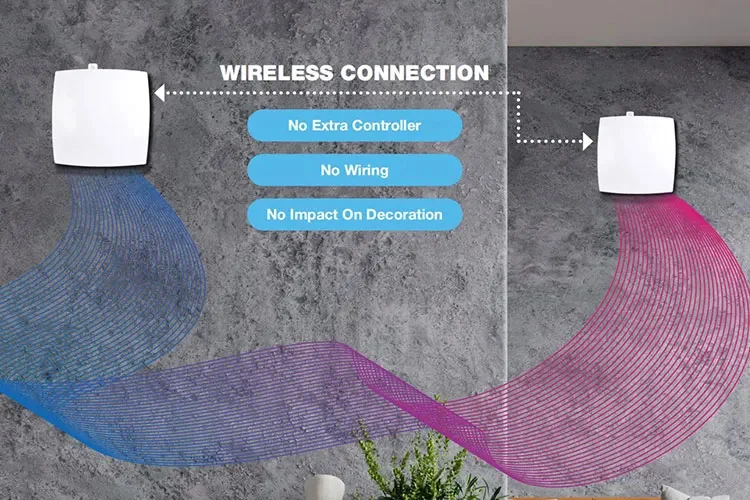

WIRELESS OPERATION INPAIR TO ENSURE BALANCED VENTILATION
Wireless connection of master and slave unit, no wiring or dialing needed, 30 meters ultra long distance transmission.
* 30 meters was tested without barrier and interference. In practical application, it is recommended to install within 8-15 meters. Please avoid the strong interference sources and shielding objects (e.g. iron frames, aluminum ceiling).
Wireless connection of master and slave unit, no wiring or dialing needed, 30 meters ultra long distance transmission.
* 30 meters was tested without barrier and interference. In practical application, it is recommended to install within 8-15 meters. Please avoid the strong interference sources and shielding objects (e.g. iron frames, aluminum ceiling).

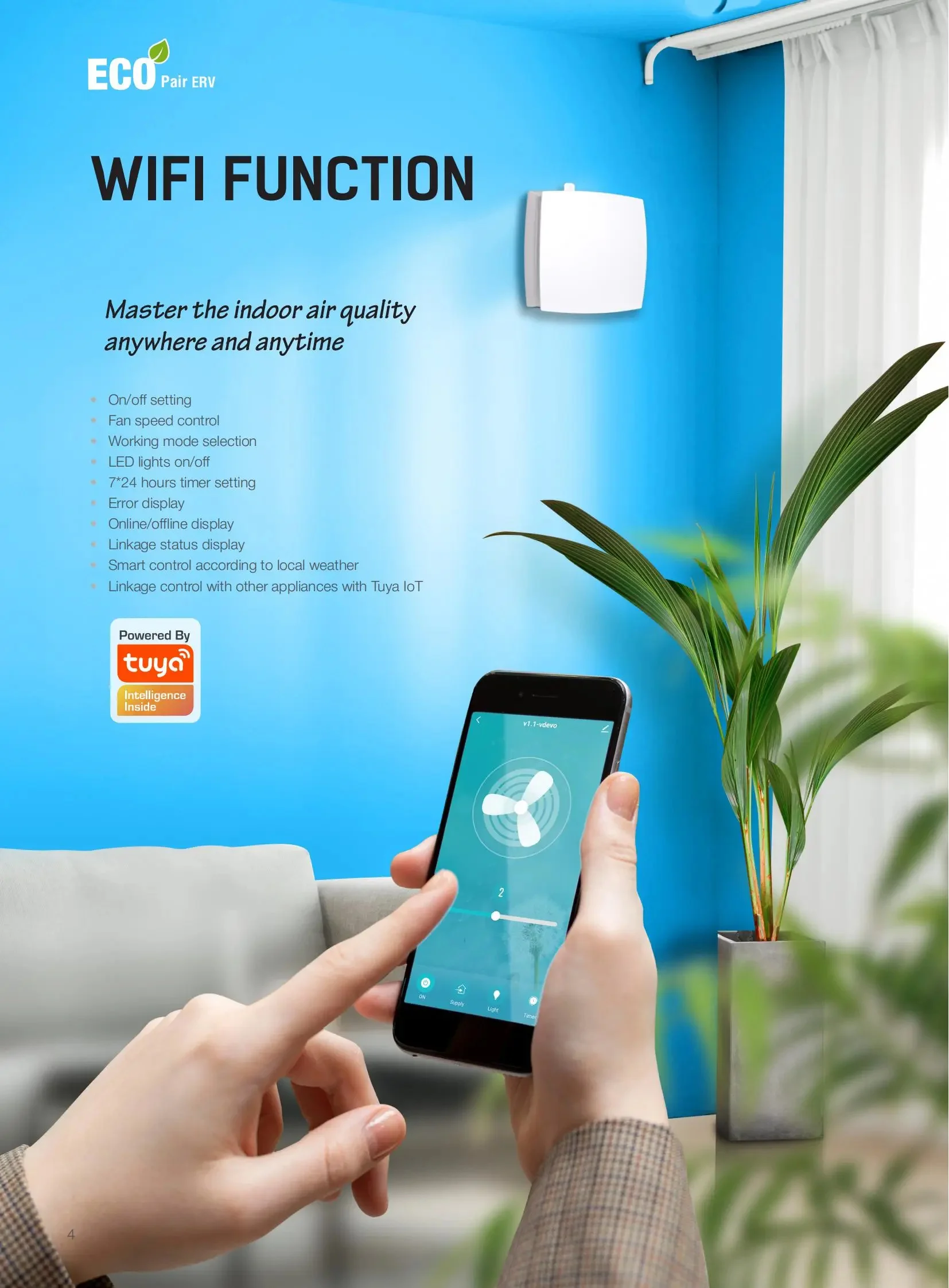

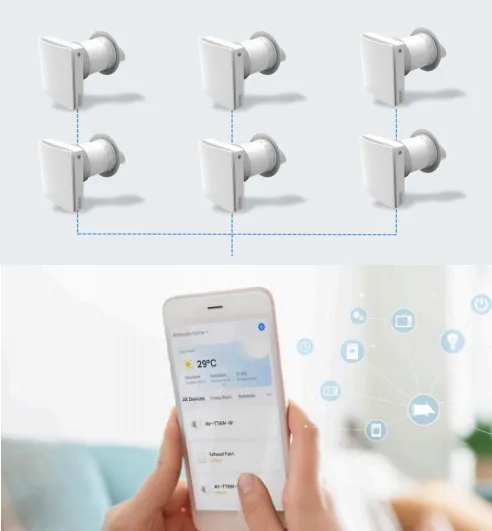

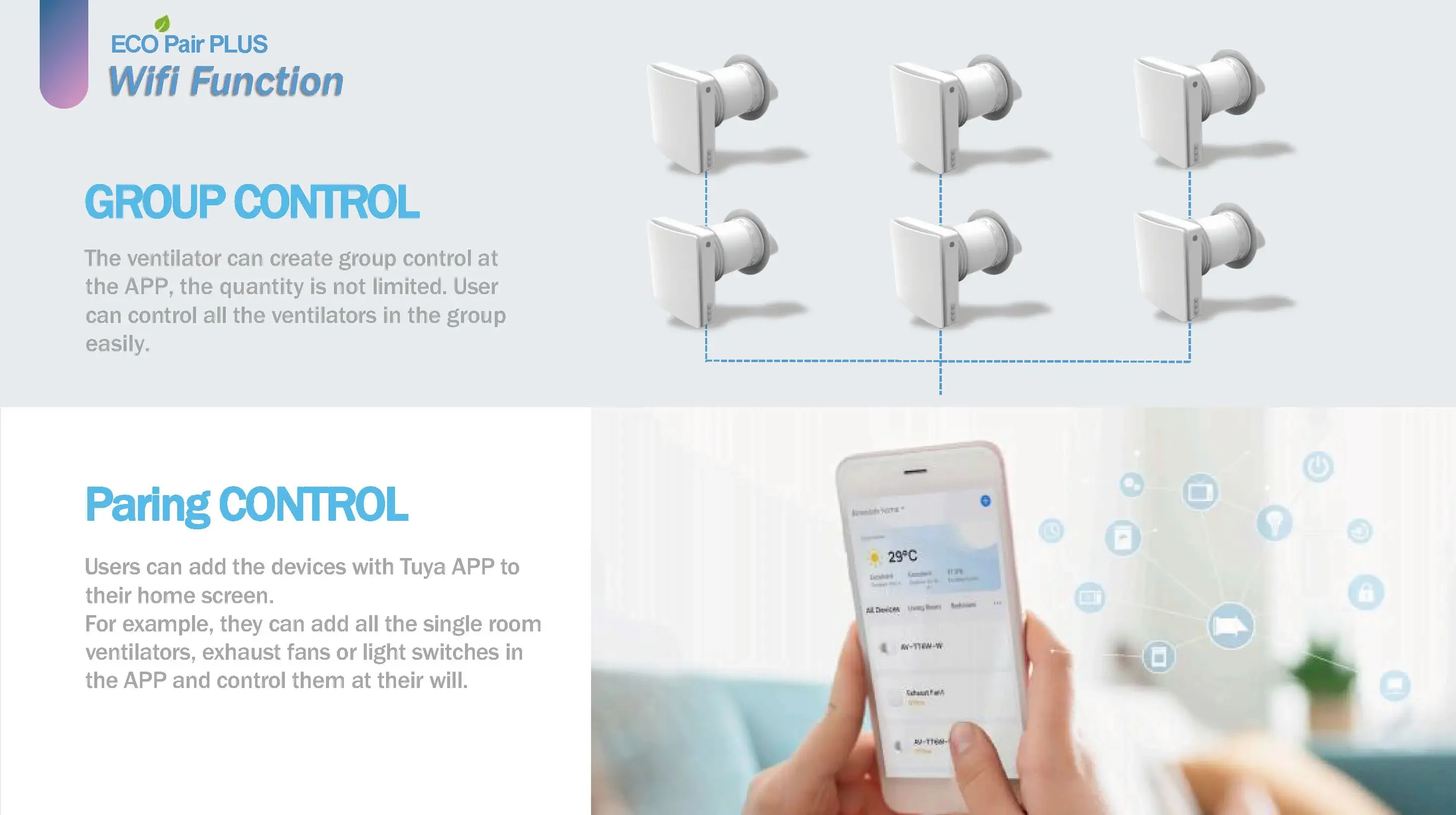

WIFI FUNCTION
•On/off setting
• Fan speed control• Working mode selection
• LED lights on/off
• 7*24 hours timer setting
• Error display
• Online/offline display
• Linkage status display
• Smart control according to local weather
• Linkage control with other appliances with Tuya IoT
•On/off setting
• Fan speed control• Working mode selection
• LED lights on/off
• 7*24 hours timer setting
• Error display
• Online/offline display
• Linkage status display
• Smart control according to local weather
• Linkage control with other appliances with Tuya IoT

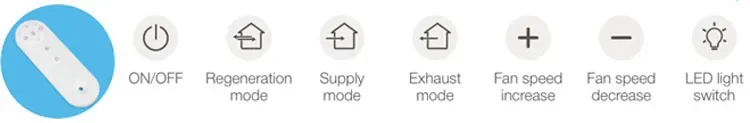

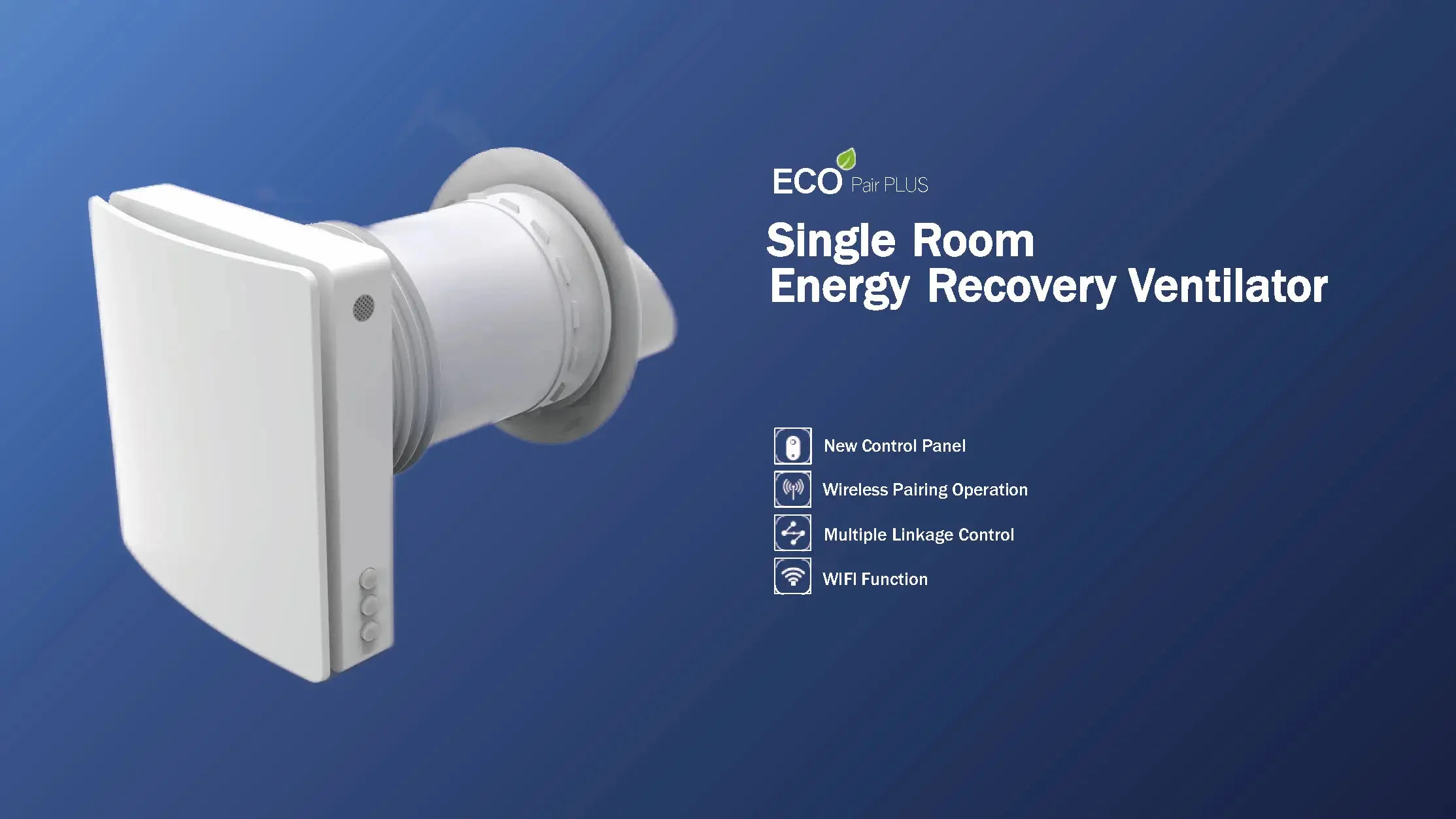

New Contorl Panel
•Using radio signal for communication.
•Longer distances communication up to 15m without barrier.
•Wider control area, multiple devices can be controlled at the same time.
•Accurate control to avoid controlling the wrong device.
•Using radio signal for communication.
•Longer distances communication up to 15m without barrier.
•Wider control area, multiple devices can be controlled at the same time.
•Accurate control to avoid controlling the wrong device.

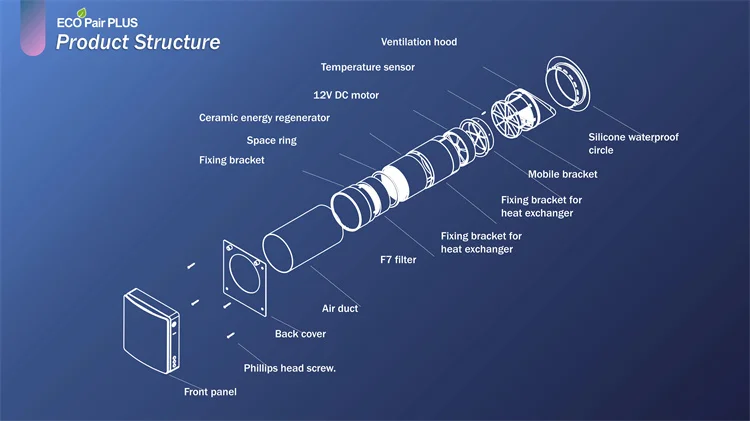

Product Structure
CERAMIC ENERGY REGENERATOR
The high-tech ceramic energy accumulator with regeneration efficiency up to 97 % ensures extract air heat recovery for warming of supply air flow. Due to the cellular structure the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties.
The ceramic regenerator is treated with an antibacterial composition which prevents bacteria growth inside of the energy regenerator. The antibacterial properties last for 10 years.
AIR FILTERS
The two integrated air filters with total filtration rate G3 provide supply and extract air filtration. The filters prevent ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial treatment.
The filter cleaning is done with a vacuum cleaner or water flushing. The antibacterial solution is not removed. F8 filter is available as a specially ordered accessory, but when installed, it reduces the air flow down to 40 m 3 /h.
REVERSIBLE EC-Fan
The reversible axial fan with a EC motor. Due to the applied EC technology the fan is featured with low power consumption and silen operation. The fan motor has integrated thermal overheating protection and ball bearings for long service life
The high-tech ceramic energy accumulator with regeneration efficiency up to 97 % ensures extract air heat recovery for warming of supply air flow. Due to the cellular structure the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties.
The ceramic regenerator is treated with an antibacterial composition which prevents bacteria growth inside of the energy regenerator. The antibacterial properties last for 10 years.
AIR FILTERS
The two integrated air filters with total filtration rate G3 provide supply and extract air filtration. The filters prevent ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial treatment.
The filter cleaning is done with a vacuum cleaner or water flushing. The antibacterial solution is not removed. F8 filter is available as a specially ordered accessory, but when installed, it reduces the air flow down to 40 m 3 /h.
REVERSIBLE EC-Fan
The reversible axial fan with a EC motor. Due to the applied EC technology the fan is featured with low power consumption and silen operation. The fan motor has integrated thermal overheating protection and ball bearings for long service life

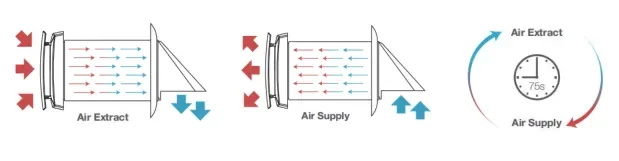

Operation In Different Mode
Regeneration Mode
Under regeneration model, the ventilators work in pair, one will extract air and the other will supply air. The fans rotate in different direction.
Supply Mode
Under supply mode, two ventilators will run simultaneously to supply air to the room
Exhaust Mode
Under exhaust mode, two ventilators will exhaust air simultaneously
Regeneration Mode
Under regeneration model, the ventilators work in pair, one will extract air and the other will supply air. The fans rotate in different direction.
Supply Mode
Under supply mode, two ventilators will run simultaneously to supply air to the room
Exhaust Mode
Under exhaust mode, two ventilators will exhaust air simultaneously

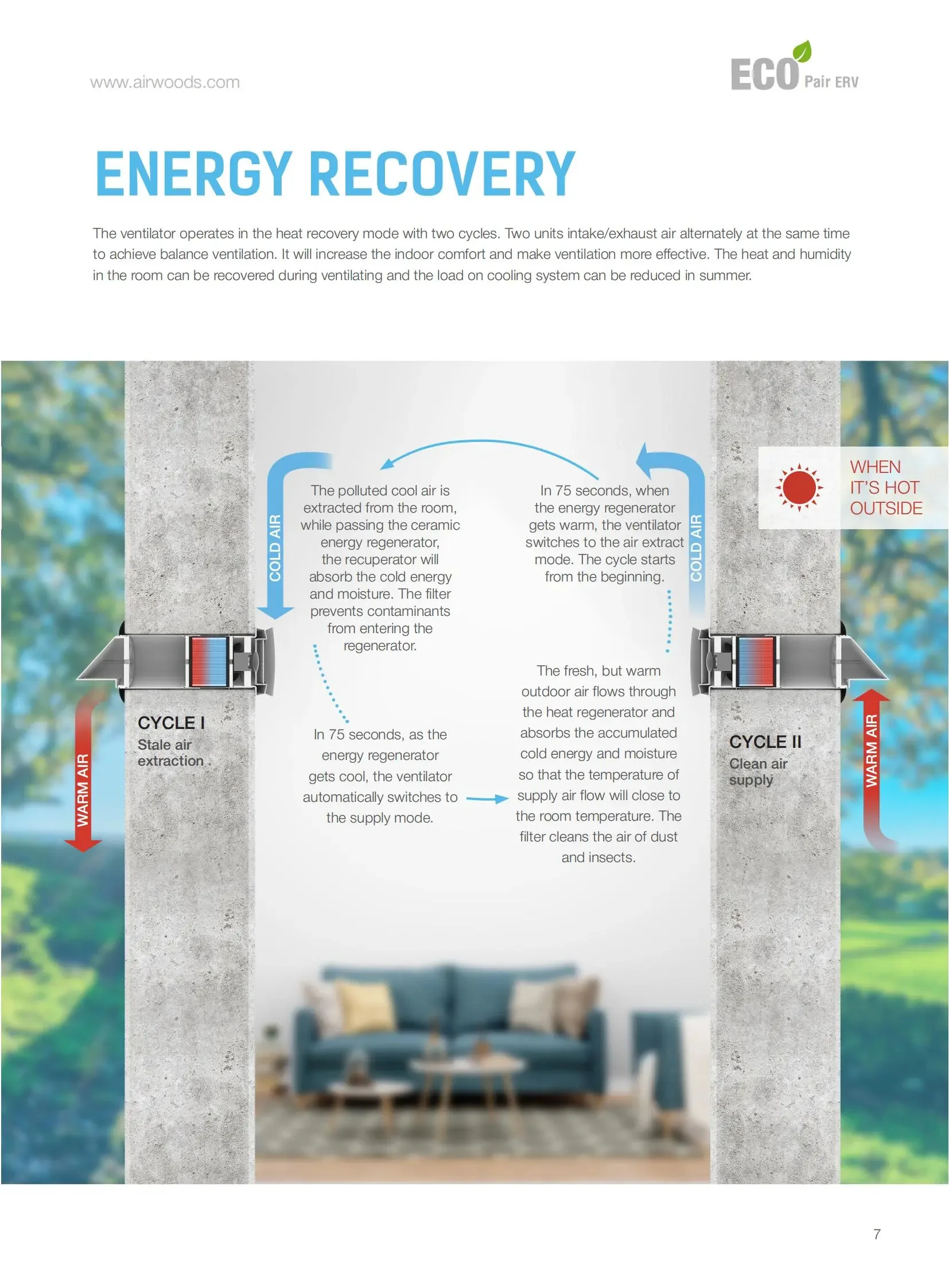

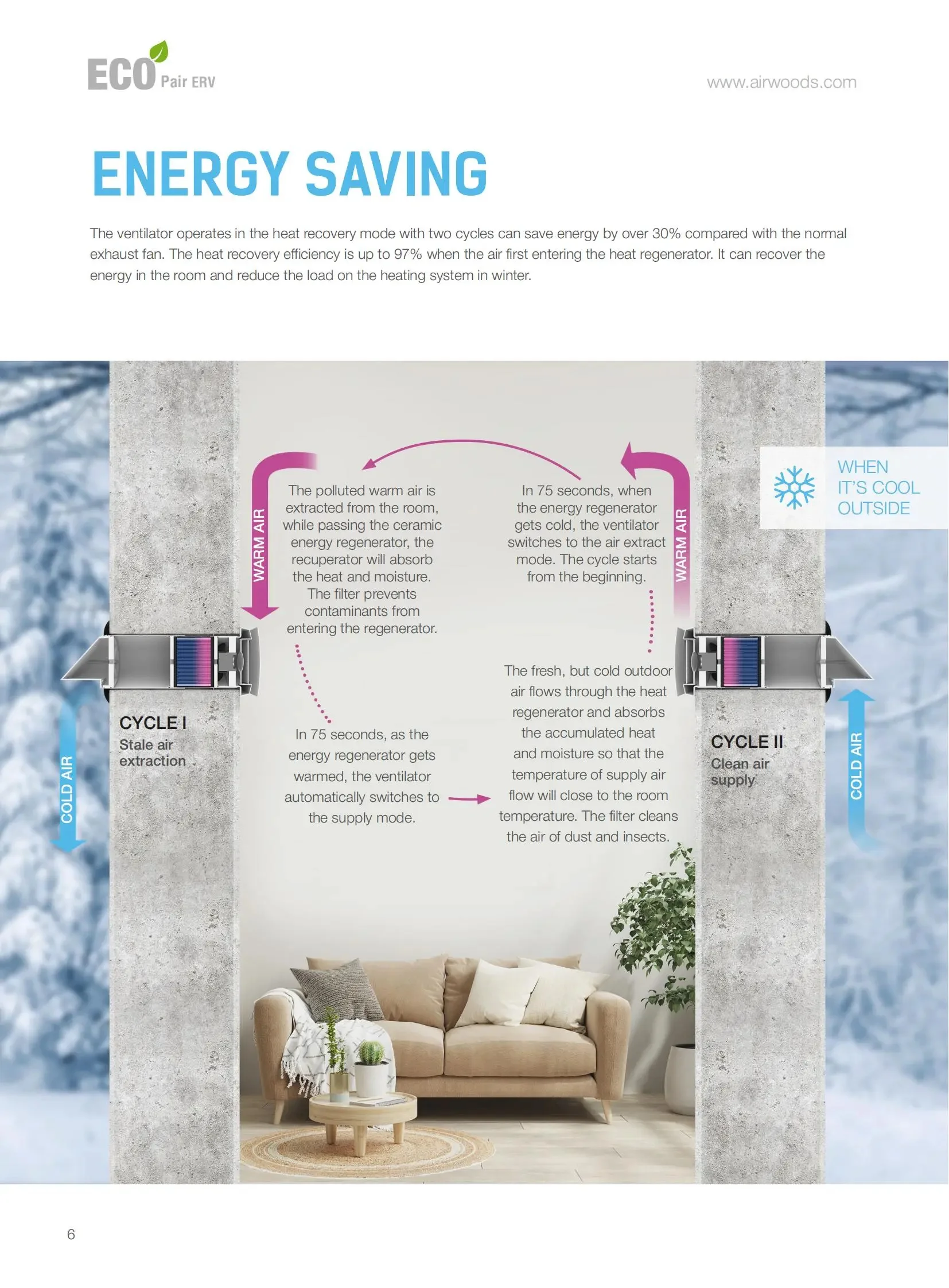

ENERGY SAVING
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.
The ventilator operates in the heat recovery mode with two cycles. Two units intake/exhaust air alternately at the same time to achieve balance ventilation. It will increase the indoor comfort and make ventilation more effective. The heat and humidity in the room can be recovered during ventilating and the load on cooling system can be reduced in summer.

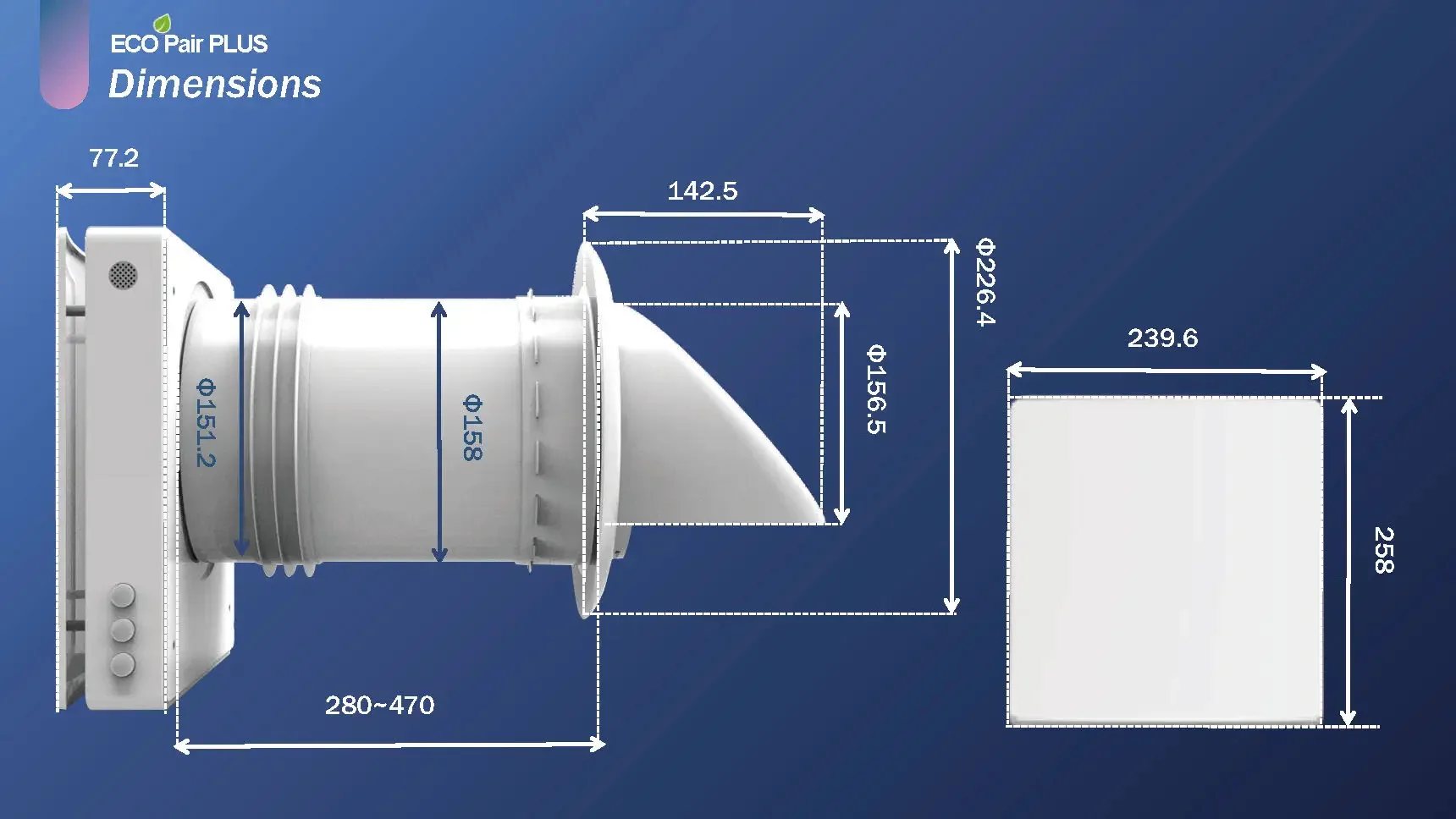

Specification
Model No. | AV-TTW5-W | ||||
Voltage | 100V~240V AC /50-60Hz | ||||
Power [W] | 6 | 7 | 7.8 | ||
Current [A] | 0.04 | 0.05 | 0.06 | ||
Air flow in regeneration mode [m3/h] | 20 | 40 | 50 | ||
Sound pressure level [dBA] 32.7 | 32.7 | ||||
SEC | Class A | ||||
Transported air temperature [°C] | -20~50 | ||||
Ingress Protection Rating | IP22 | ||||
RPM | 2000 (max) | ||||
Diameter of duct [mm| | 158mm | ||||
Type of installation | Wall mounting | ||||
Net Weight | 4.2kg | ||||
Company Profile
Since 2007, Airwoods dedicated to provide comprehensive building air quality solutions for various applications. Its a brand for better air quality and better life products. AIRWOODS brand mainly focus on the marketing, sales and product development to meet different market demand. The main products include air purifier, air disinfection system, fresh air ventilator, energy recovery ventilator, heat pump type heat recovery ventilator, air heat exchanger, air handling unit, water chiller, heat pump, etc. Our products have exported to more than 100 countries, certified by SGS CE, CB, EPCS, etc. and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services. We aim to deliver good building air quality to the world with energy efficient products, optimized solutions, cost-effective prices and great services to our customers.
Certifications
The ventilator is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls and other residential and public premises. The ventilator is equipped with a ceramic regenerator that enables supply of fresh filtered air heated by means of extract air heat regeneration. The ventilator is designed for through-the-wall mounting and is rated for non-stop operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–998 set: US $165 / set
- 1000+ set: US $125 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air recuperator energy ventilator?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
