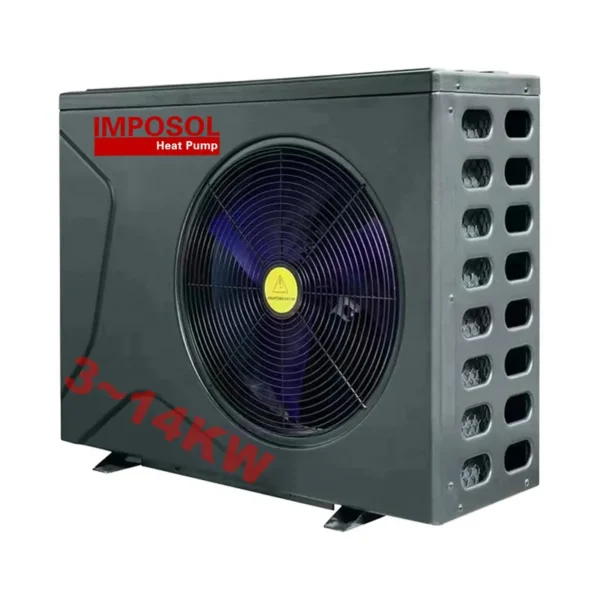

Air source heat pump — power supply 220-240V/50Hz/1ph, 14 kW MAX. The complete factory specification follows. Made by Jiangsu Imposol New Energy Co., Ltd. (19 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Source Heat Pump
- Model Number: WHP 015HP-R3DC
- Power Source: Battery, Electric, Solar, Manual, Vehicle Power Supply
- Power Supply: 220-240V/50Hz/1ph
- Heating Capacity: 14 kW MAX
- Housing Material: Plastic
- Refrigerant: R32
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 14 kW MAX |
| Energy Efficiency Rating | Class A+++ |
| Application | Car, RV, Outdoor, Hotel, Garage, Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | Instant / Tankless |
| Compressor | Rotary Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Plastic |
| Feature | High Efficiency, Safe, Energy-Saving, Easy Operation, Easy Installation, Eco-Friendly |
| Power Source | Battery, Electric, Solar, Manual, Vehicle Power Supply |
| Warranty | 5 year |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation, Return and Replacement, None, Field Maintenance and Repair Service, Overseas Call Centers |
| Operating Language | English |
| Private Mold | Yes |
| Logo/Graphic Design | Silk Screen Printing, Laser Printing, Hot Stamping, Inkjet Printing, UV printing, Heat-Transfer Printing, 3D Printing |

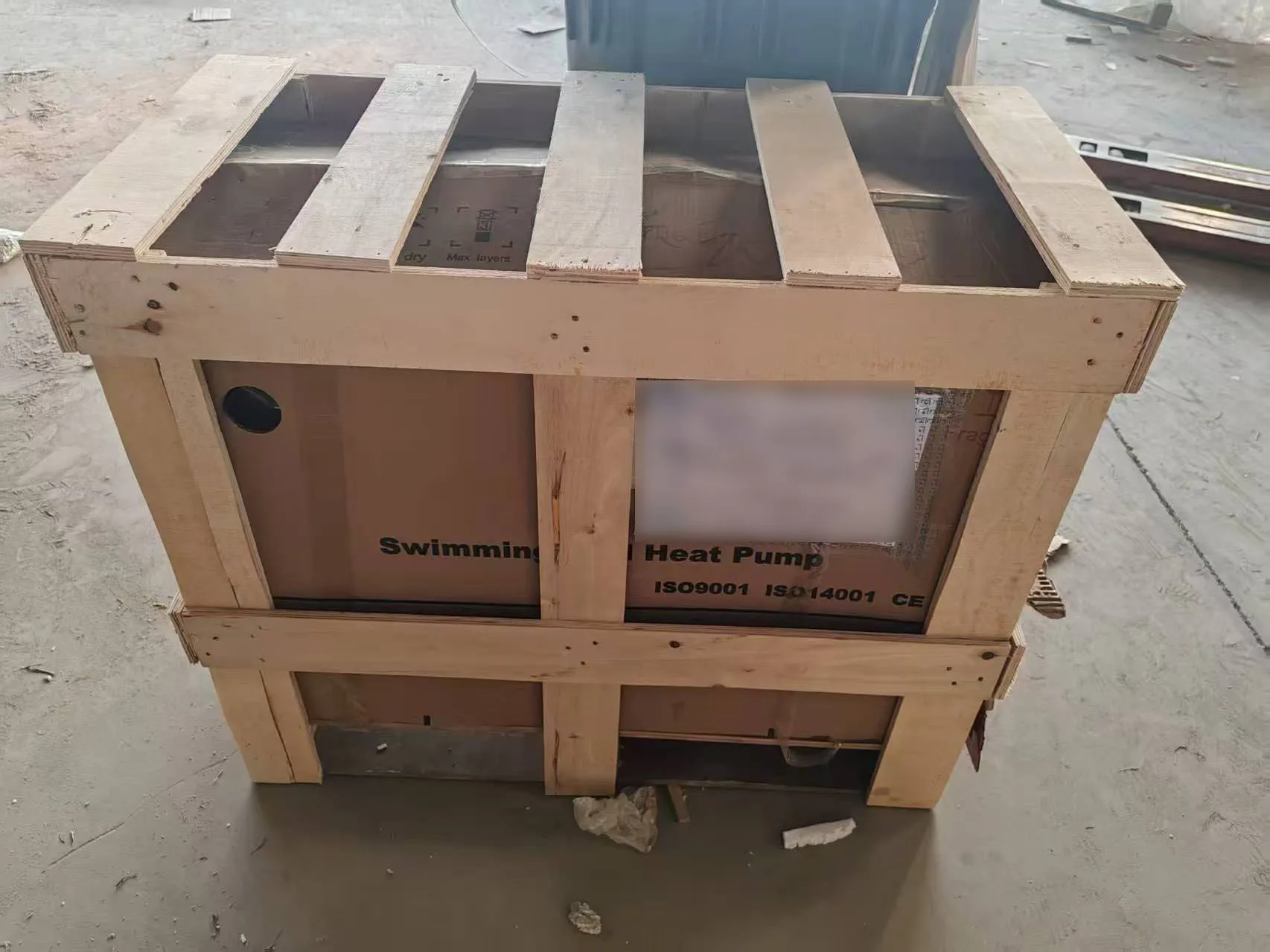

| Packaging Types | Corrugated Box |
| Place Of Origin | Jiangsu, China |
| Brand | IMPOSOL |
| Model Number | WHP 015HP-R3DC |

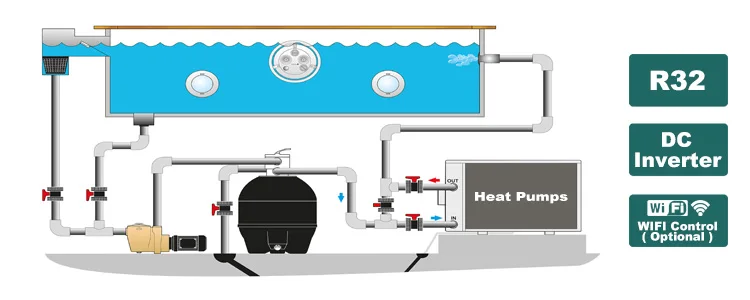

| Function | Swimming Pool Cooling Heating |
| Heat Exchanger | Titanium Heat Exchanger |
| Heat Source | Air Source 75%+electricity25% |
| Power Supply | 220-240V/50Hz/1ph |

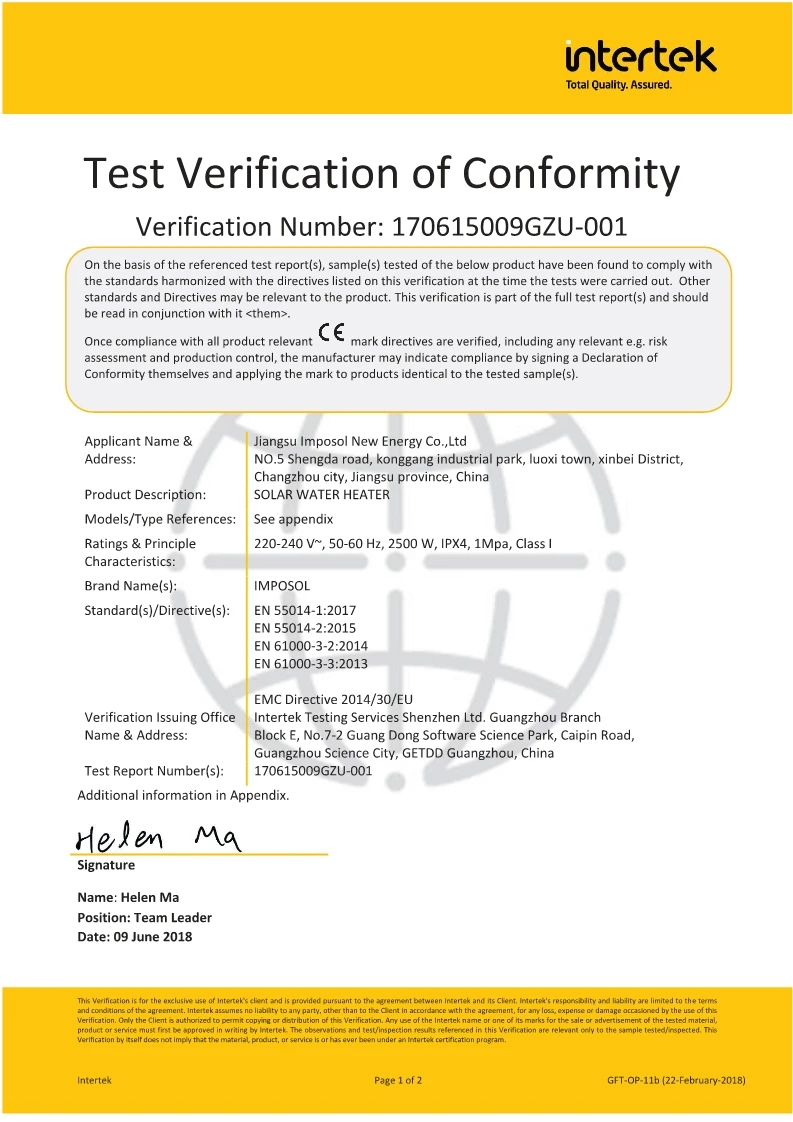

| Certification | CE Certificate |
| Controller | Wifi Remote Control |
| COP | 5.2-10 |
| Selling Units | Single item |
| Single Package Size | 95.511X40.101X70.122 cm |
| Single Gross Weight | 52.123 kg |

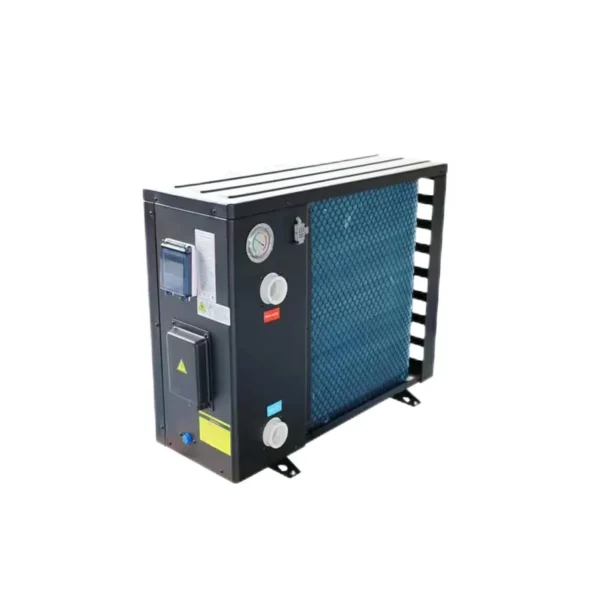

Product Details

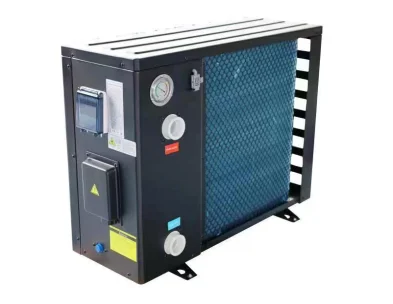

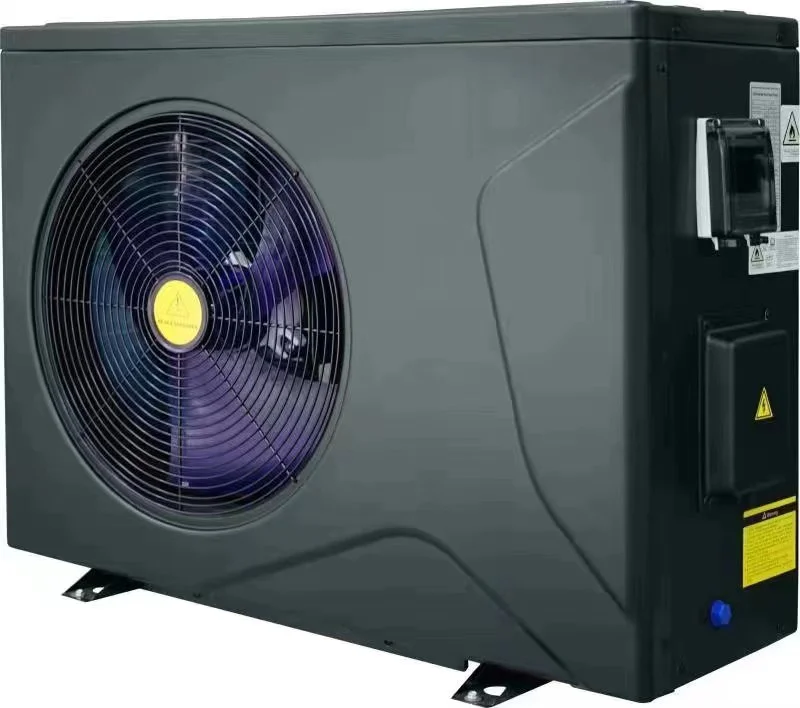

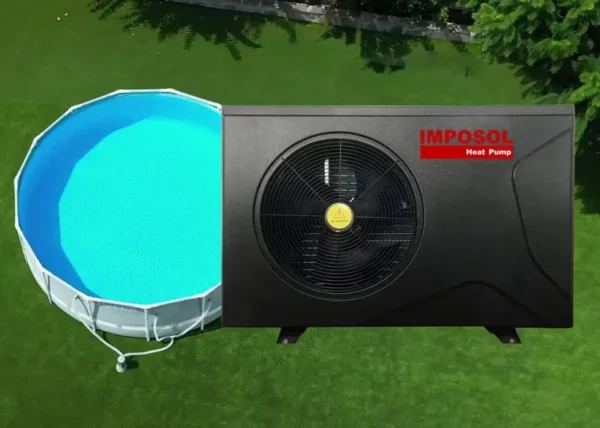

Product Name | Europe High Efficiency Inverter Swimming Pool Air Source Heat Pump Water Heater Unit | ||||||
Heating capacity | 8-28kW | ||||||
Refrigerant | R32 | ||||||
Compressor | Big Brand Compressor | ||||||
Noise | 50db | ||||||
Model | WHP-015HP | WHP-020HP | WHP-030HP | WHP-050HP | ||||||
Advised Pool Volume（m³） | 20-40 | 30-60 | 30-70 | 40-80 | ||||||
Power Supply – Refrigerant | 220 – 240V~, 1Ph, 50Hz -R32 | |||||||||
Heating performance: A26ºC, RH70% / W26ºC/28ºC | ||||||||||
Heating Capacity ( KW ) | 2.01 – 8.65 | 2.5-13.2 | 3.81-17.31 | 6.00-22.3 | ||||||
Input Power ( KW ) | 0.20 – 1.56 | 0.26-2.54 | 0.37-3.33 | 0.45-3.60 | ||||||
COP ( W/W ) | 10.23 – 5.54 | 9.61-5.20 | 10.3-5.2 | 13.3-6.20 | ||||||
Heating performance: A15ºC, RH70% / W26ºC/28ºC | ||||||||||
Heating Capacity ( KW ) | 1.23 – 7.06 | 1.83-10.09 | 3.6-14.52 | 4.80- 18.29 | ||||||
Input Power ( KW ) | 0.23 – 1.90 | 0.36-2.70 | 0.58-3.56 | 0.60- 4.03 | ||||||
COP ( W/W ) | 5.25 – 3.72 | 5.06-3.74 | 6.2-4.08 | 8.00- 4.54 | ||||||
Heating performance: A7ºC, RH70% / W26ºC/28ºC | ||||||||||
Heating Capacity ( KW ) | 1.00- 5.98 | 1.80-7.24 | 2.9-10.1 | 4.10- 14.36 | ||||||
Input Power ( KW ) | 0.21- 1.75 | 0.38-2.05 | 0.52-2.46 | 0.55- 4.00 | ||||||
COP ( W/W ) | 4.71- 3.41 | 4.68-3.53 | 5.5-4.1 | 7.45- 3.59 | ||||||
Cooling Performance: A35ºC, W28ºC/26ºC | ||||||||||
Cooling Capacity | 1.75-4.50 | 2.5-6.07 | 3.0-6.59 | 3.80-10.50 | ||||||
Rated Input Power ( KW ) | 0.30-1.50 | 0.42-1.66 | 0.48-1.6 | 0.52-3.20 | ||||||
EER ( W/W ) | 5.83-3.00 | 5.95-3.66 | 6.2-4.12 | 7.30-3.28 | ||||||
Max. Input Power ( W ) | 2,185 | 2875 | 3850 | 4600 | ||||||
Max. Input Current ( A ) | 9.5 | 12.5 | 17.5 | 20 | ||||||
Water flow ( m³/H ) | 2 – 5 | 5-7 | 6-8 | 5 – 10 | ||||||
Water pressure drop (kPa) | 17 | 18 | 19 | 20 | ||||||
Running temperature range | -25ºC – 43ºC | |||||||||
Compressor | GMCC DC Inverter | |||||||||
Air side heat-exchanger | Copper tube + hydrophilic aluminum fin | |||||||||
Fan motor | Brushless DC motor | |||||||||
Water side heat-exchanger | PVC titanium tube heat exchanger | |||||||||
Water pipe connection | Φ50 | |||||||||

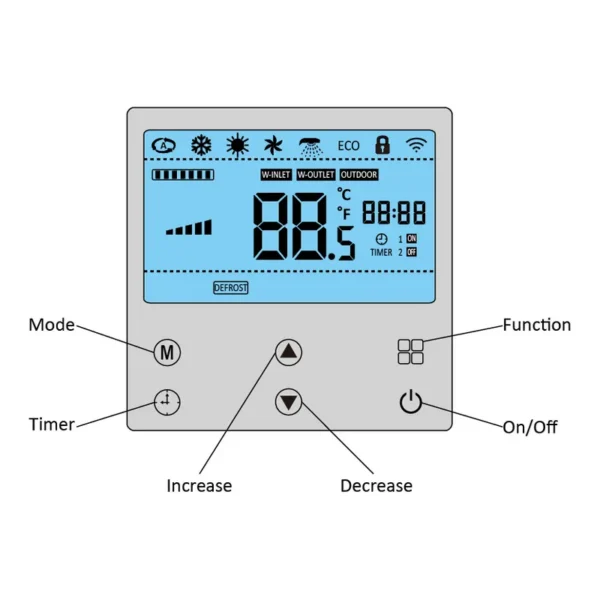

Controller | LCD, built-in Wifi module | |||||||||
Waterproof Grade | IPX4 | |||||||||
Unit Dimension ( mm ) | Unit | 855×285×660 | 990*345*670 | 990*345*670 | 1,090×415×720 | |||||
Packing | 940×400×688 | 1120*450*845 | 1120*450*845 | 1200*490*760 | ||||||
Weight ( KG ) | Net | 40.5 | 53 | 57 | 75.5 | |||||
Gross | 51.5 | 70 | 73.7 | 94.5 | ||||||
finished products.
2.What products can you offer?
We mainly produce space-heating refrigeration heat pumps, heat pump water heaters, and swimming pool heat pumps.
3.Can you make customized products?
Yes, we can provide customized products, we develop and produce products according to the requirements provided by customers.
4.How are the goods shipped to customers?
Usually we ship by sea, if the customer's cargo is urgent, we can also air freight.
5.What is the payment method?
When quoting, we will confirm with you the trading method, FOB , CIF , CNF , T/T , L/C or other methods.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $900 / set
- 10–19 set: US $790 / set
- 20+ set: US $700 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air source heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air source heat pump carry?
It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the air source heat pump be supplied for my local voltage?
The standard configuration is 220-240V/50Hz/1ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Imposol New Energy Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Imposol New Energy Co., Ltd. range on HVACR Nexus.
