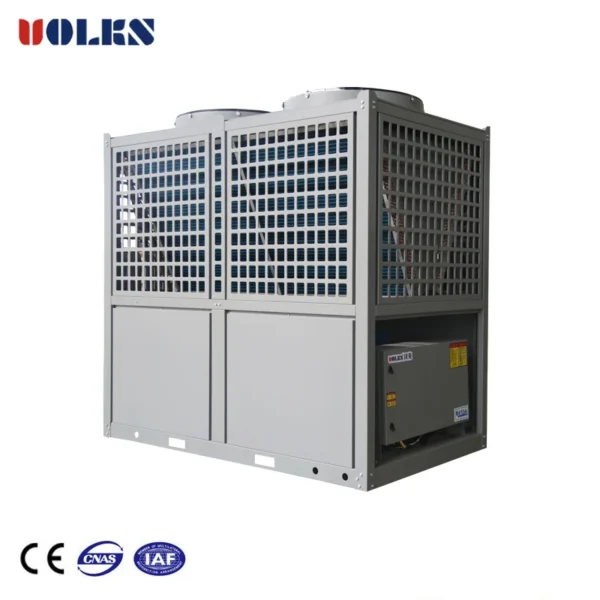

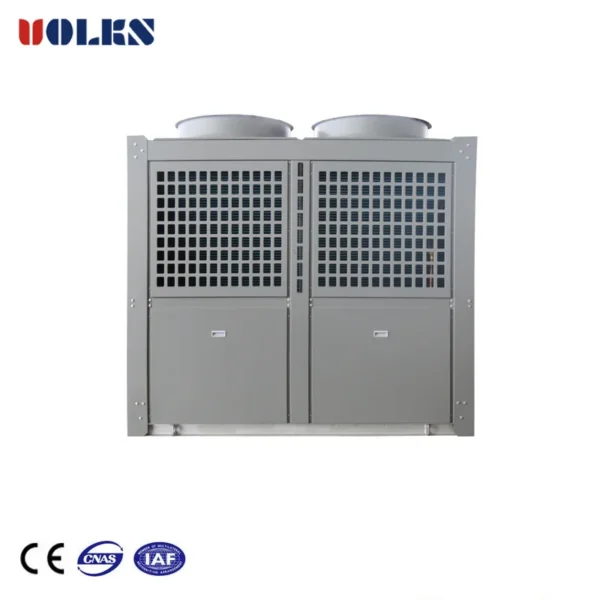

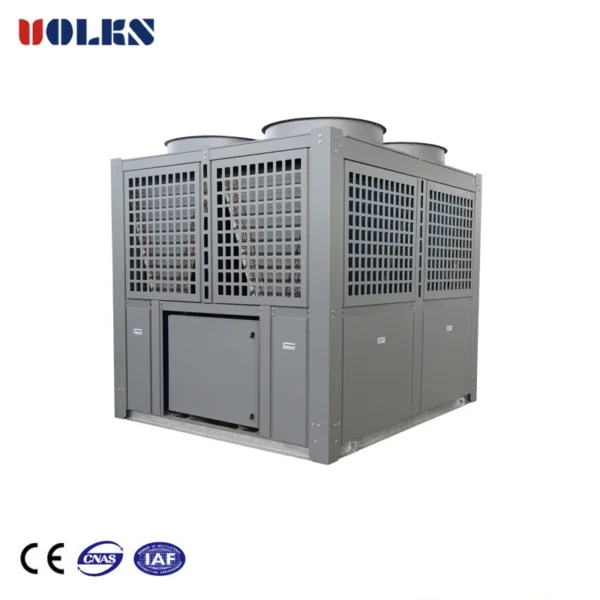

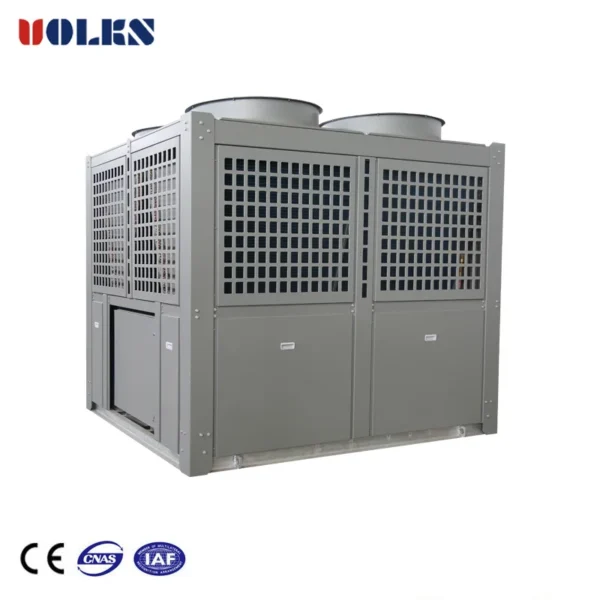

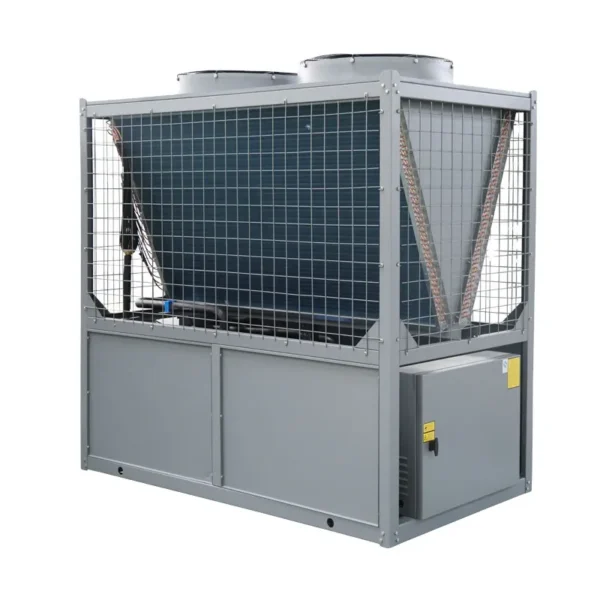

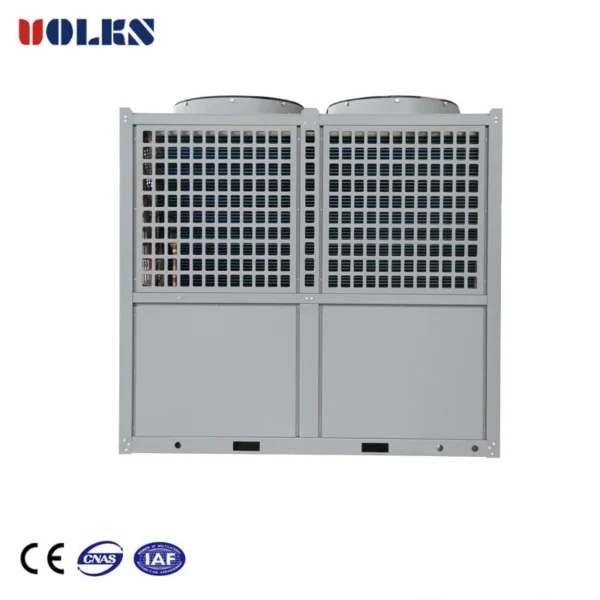

Air Source Heat Pump, VOLKS, R410A, Stainless, Steel

The air source heat pump listed here carries 380 V, material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Shandong Volks Air Conditioner Group Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Air Source Heat Pump

• Model Number: LSQWRF170MGA, LSQWRF300MGA
• Voltage: 380 V
• Material: Stainless Steel
• Refrigerant: R-410A
• Refrigerant Type: R410A
• Noise Level: 60-70dB

Technical Specifications

Product Details

Product introduction

Air-source heat pump units, as efficient air conditioning and refrigeration equipment, are occupying an increasingly important position in the global market. With the world's growing focus on energy efficiency and sustainable development, these devices have gradually become the first choice in commercial and residential cooling and heating sectors due to their excellent Integrated Part Load Value (IPLV) and low environmental impact. Air-source heat pump units not only provide stable cooling and heating capabilities but also operate efficiently under various climatic conditions, particularly excelling in high-temperature environments during summer. The use of R410A environmentally friendly refrigerant is not only non-destructive to the ozone layer (zero ODP value), but also relatively low in greenhouse effect potential, making it an environmentally friendly option in the current market.

Details Images

Working principle of the unit

Air-cooled modular air conditioning unit is an integrated central air conditioning equipment with air as the cold (hot) source, water as the cooling (hot) medium and cold (hot) source. Modular air cooling (hot) water unit, realize heating in winter through consumption of part of the electrical energy, by drawing out the low-grade energy in the air to supply heating; In Summer, it draws the indoor heat out to release into the air to achieve the purpose of air cooling.

Products Description

Compressor

The unit adopts the world famous brand compressor, which can realize the efficient operation of the full pressure ratio and obtain better comprehensive operation efficiency.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Electronic EEV

Precise adjustment of cooling capacity, more energy-saving operation. Adopt high-precision electronic expansion valve to ensure stable and efficient operation under all working conditions.

Water-side heat exchanger

The water-side heat exchanger adopts a new shell-and-tube heat exchanger with high efficiency, and the heat exchange tube is a high-efficiency copper tube with internal thread, which enhances the heat exchange efficiency between the water side and the refrigerant side, optimizes the pipeline layout and baffle design, ensures low water resistance and high efficiency, and has a large internal waterway flow area, which is not easy to block and scale, prolongs the cleaning cycle and ensures the long-term operation stability of the unit.

Condensing fan

Adopt high efficiency and low speed fan, low noise, and adopt fully sealed scroll compressor, with rubber shock absorber at the bottom as standard, which runs smoothly.

Product Paramenters

Model							LSQWRF68MGA	LSQWRF150MGA	LSQWRF300MGA
Ambient dry/wet bulb temperature	Inlet/outlet water temperature	Capacity	Unit
35℃	12/7℃	Cooling Capacity	KW	63	135	270
				Power Input	KW	20.8	44.5	89
				COP	KW/KW	3.03	3.03	3.03
7/6℃	40/45℃	Heating Capacity	KW	68	155	310
				Power Input	KW	20.5	48	97
				COP	KW/KW	3.32	3.23	3.20
Compressor					Type	Scroll	Scroll	Scroll
						Qty	2	2	4
Fan					Type	Axial fan	Axial fan	Axial fan
						Qty	2	2	4
Power supply					V/N/HZ	380/3/50	380/3/50	380/3/50
Refrigerant					kg	R410A/11	R410A/2*13.5	R410A/4*12
Evaporator	Type		Type		Shell and tube	Shell and tube	Shell and tube
		Water Flow			m³/h	10.84	23.22	46.44
		Pressure Drop			kPa	40	45	80
		Connect Size			DN	50	65	100
Dimension	Length			mm	2056	2270	2450
		Width			mm	1106	1286	2230
		Height			mm	2045	2130	2275
Weight	Net Weight			kg	610	930	1860
		Runing Weight			kg	650	980	1960
Noise					dB(A)	69	74	78

Model							LSQWRF390MGA	LSQWRF520MGA	LSQWRF650MGA
Ambient dry/wet bulb temperature	Inlet/outlet water temperature	Capacity	Unit
35℃	12/7℃	Cooling Capacity	KW	396	532	665
				Power Input	KW	133.5	178	24.2
				COP	KW/KW	2.72	2.74	2.74
7/6℃	40/45℃	Heating Capacity	KW	465	620	775
				Power Input	KW	144	192	240
				COP	KW/KW	3.23	3.23	3.23
Compressor					Type	Scroll	Scroll	Scroll
						Qty	6	8	10
Fan					Type	Axial fan	Axial fan	Axial fan
						Qty	6	8	10
Power supply					V/N/HZ	380/3/50	380/3/50	380/3/50
Refrigerant					kg	R410A/6*13	R410A/8*13	R410A/10*13
Evaporator	Type		Type		Shell and tube	Shell and tube	Shell and tube
		Water Flow			m³/h	68	92	114
		Pressure Drop			kPa	52	58	58
		Connect Size			DN	150	150	100+150
Dimension	Length			mm	3756	5006	6256
		Width			mm	2270	2270	2270
		Height			mm	2350	2350	2350
Weight	Net Weight			kg	4100	5400	6900
		Runing Weight			kg	4400	5600	7200
Noise					dB(A)	75	75	80

Model							LSQWRF780MGA	LSQWRF910MGA	LSQWRF1040MGA
Ambient dry/wet bulb temperature	Inlet/outlet water temperature	Capacity	Unit
35℃	12/7℃	Cooling Capacity	KW	798	931	1064
				Power Input	KW	291	339	388
				COP	KW/KW	2.74	2.74	2.74
7/6℃	40/45℃	Heating Capacity	KW	930	1085	775
				Power Input	KW	288	336	384
				COP	KW/KW	3.23	3.23	3.23
Compressor					Type	Scroll	Scroll	Scroll
						Qty	12	14	16
Fan					Type	Axial fan	Axial fan	Axial fan
						Qty	12	14	16
Power supply					V/N/HZ	380/3/50	380/3/50	380/3/50
Refrigerant					kg	R410A/12*13	R410A/14*13	R410A/16*13
Evaporator	Type		Type		Shell and tube	Shell and tube	Shell and tube
		Water Flow			m³/h	137	160	183
		Pressure Drop			kPa	58	62	65
		Connect Size			DN	2-150	2-150	2-150
Dimension	Length			mm	7512	8763	10012
		Width			mm	2270	2270	2270
		Height			mm	2350	2350	2350
Weight	Net Weight			kg	8400	9450	11000
		Runing Weight			kg	8500	9700	11400
Noise					dB(A)	80	80	85

Installation Instructions

Unit hoisting

When lifting with a crane, handle it carefully. Use a flat belt or steel cable to bind the lifting steel pipe for lifting. There should be a pad at the contact between the steel cable and the machine to avoid injury to the equipment. The steel cable at the hook should be wound around the hook to avoid danger due to unbalanced weight.

Unit installation specification

The installation of the unit shall meet the following requirements: 1)Ensure that air inlet and exhaust are smooth; 2)Avoid being affected by dirty and corrosive airflow; 3)There should be room for outdoor unit maintenance; 4)The impact on the surrounding environment should be minimized; 5)Condensate and defrosting water should have drainage channels. 6)Unit installation refer to the recommended spacing to ensure smooth airflow. There should be no obstacles up there. If the top space is insufficient, install a curved air duct to direct the air far away to avoid short circuit and affect the unit performance.

Company Profile

Shandong Volks Air Conditioning Group

Shandong Volks Air Conditioning Group, started from an HVAC manufacturing plant in 1993. After nearly 30 years of development, it
becomes to be a high-tech enterprise with advanced production equipment and modern workshop which covers nearly 200,000 ㎡ in
Dezhou . It is a supplier of integrated solutions for air source heat pump and central air-conditioning systems. Our business
covers development, design, production, sales, installation and maintenance.

The company attaches great importance to all-staff technical progress and technological innovation, and forms a team of industry experts, technical authorities and company technicians and also gained lots of national patents. We passed CRAA, IS09001:2015 system, IS014001 and HSAS18001:2007 system, AAA credit rating and other international and domestic certificates.

We also have import and export right . The products have obtained the EU CE certification, SGS factory certification and ROHS certificate. All kinds of products have passed the inspection of the National Air Conditioning Testing Center; We also established four major labs: national standard central air conditioning laboratory, national standard central air conditioning terminal laboratory, ultra-low temperature -35℃ air-cooled heat pump experiment and drying laboratory.
The main products includes central air-conditioning unit series, ultra-low temperature air source heat pump unit series, drying unit series, edible fungus breeding unit series, direct expansion unit series, constant temperature and humidity unit series, air-conditioning terminal series, etc. All products are 100% inspected . Products are widely used in: commercial real estate, large supermarkets, hotels, hospitals, schools, office buildings, bio-pharmaceuticals, electronic chemicals, data centers, smart communities, smart energy, bathing centers, aquatic product breeding, animal husbandry breeding, edible fungus breeding ,Industrial and agricultural drying, household central air-conditioning and other fields, the products sell well in China and are also exported to Russia, South Korea, Pakistan, India, Southeast Asia, the Middle East, Europe, Africa, America ,etc.
We looks forward to working with you to improve environmental quality and create a better life!

Exhibition

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–9 unit: US $5900 / unit
  • 10+ unit: US $5800 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air source heat pump?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the air source heat pump be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
