Scroll compressor — 9 kW, power source Electric, Manual, Solar, Gas. The complete factory specification follows. Made by Dongguan Lehao Energy Saving Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Scroll Compressor
- Model Number: E
- Power Source: Electric, Manual, Solar, Gas
- Heating Capacity: 9 kW
- Housing Material: Metal
- Refrigerant: R410a/R134a
- Warranty: 1 Year
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 9 kW |
| Energy Efficiency Rating | Class A+++ |
| Application | Commercial, Garage, HOTEL, HOUSEHOLD, OUTDOOR |
| Refrigerant | R410a/R134a |
| Storage / Tankless | Storage |
| Compressor | scroll Copeland |
| Installation | FREESTANDING |
| App-Controlled | No |
| Housing Material | Metal |
| Feature | High Efficiency, Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving |
| Power Source | Electric, Manual, Solar, Gas |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation, Overseas Call Centers |
| Operating Language | English |
| Private Mold | Yes |
| Packaging Types | corrugated box |
| Place Of Origin | Guangdong, China |
| Brand | LOCKHOOT |
| Model Number | E |
| Selling Units | Single item |
| Single Package Size | 118X94X197 cm |
| Single Gross Weight | 180.0 kg |
Product Details

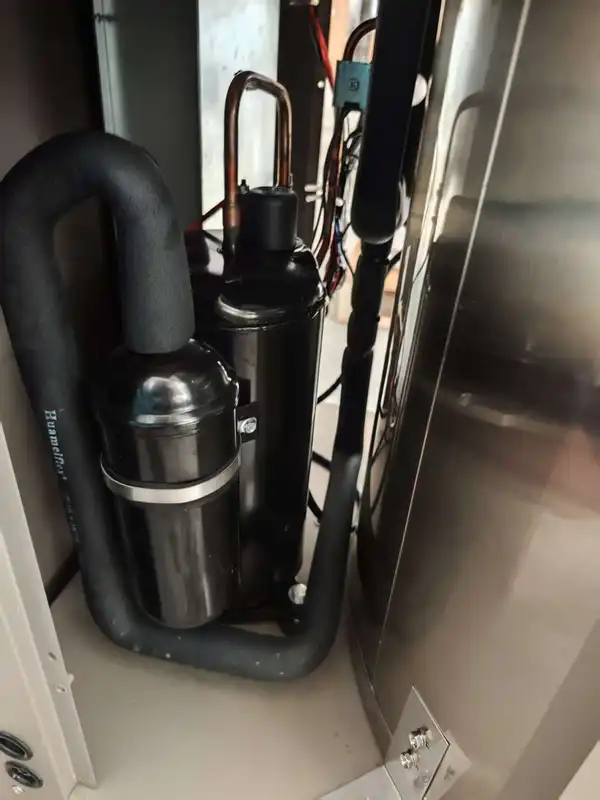

- Microchannel heat exchanger, GMCC PA250 compressor, R410a refrigerant, anti-fingerprint water tank shell + coffee color overall casing, LED controller, 3KW electric heater, wooden pallet + wooden frame packaging.
- Change to WIFI version controller: Add $80 .
- Add solar coil: $200.

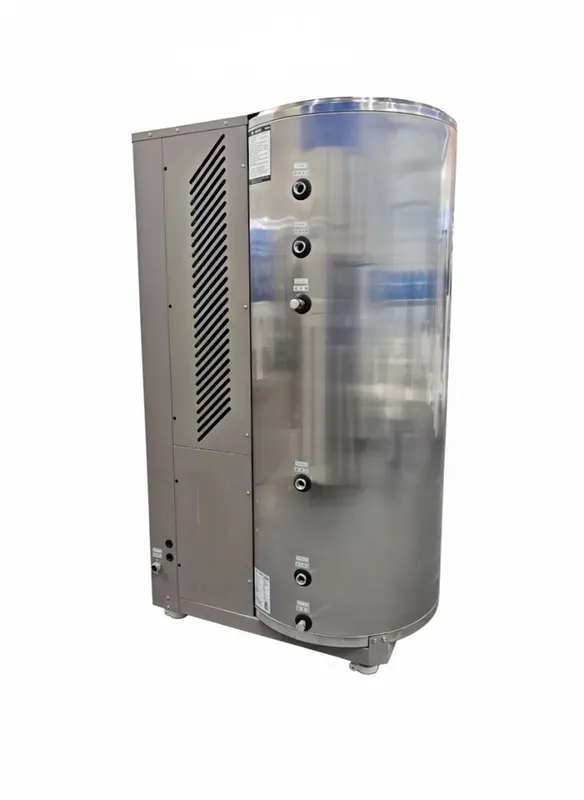

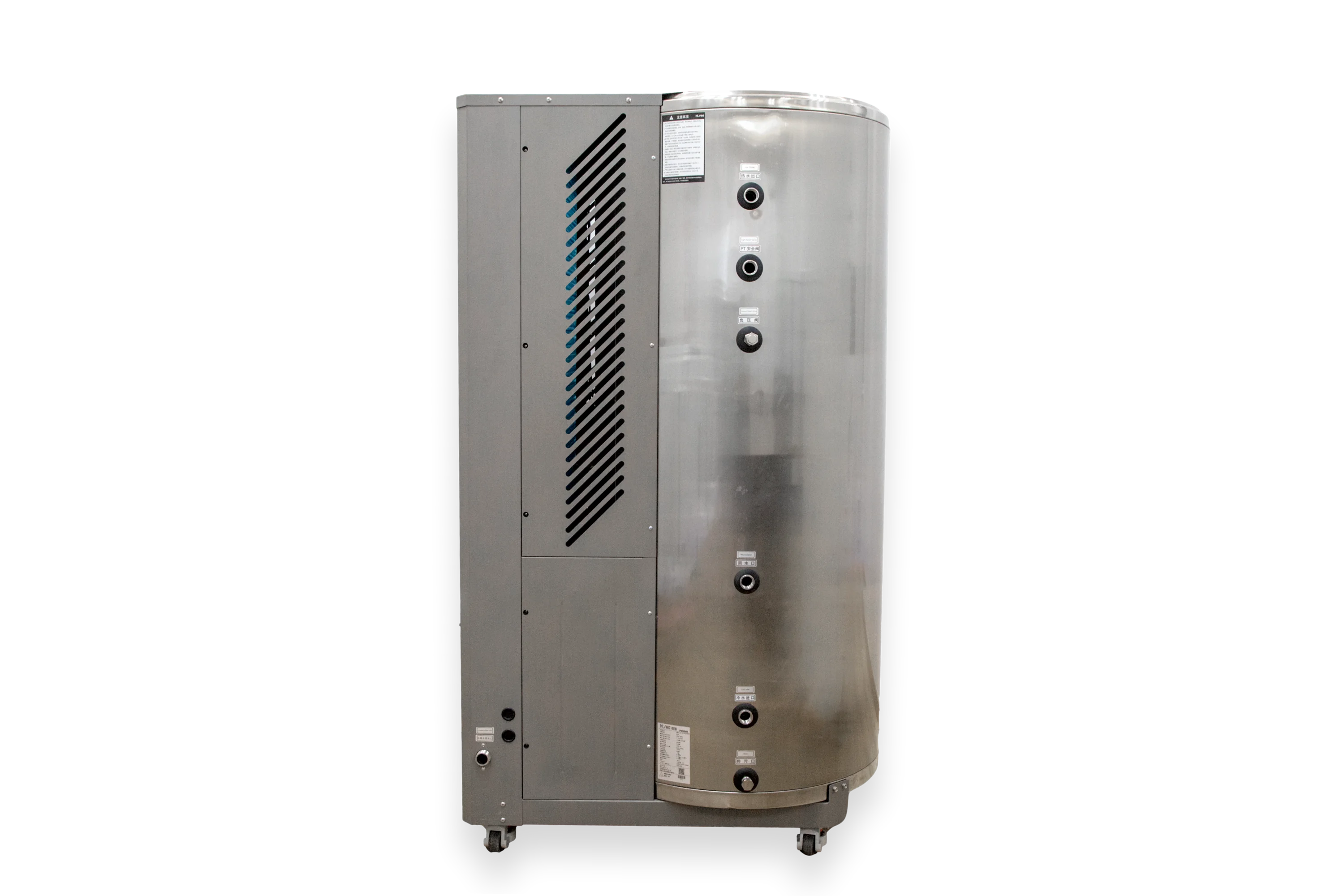

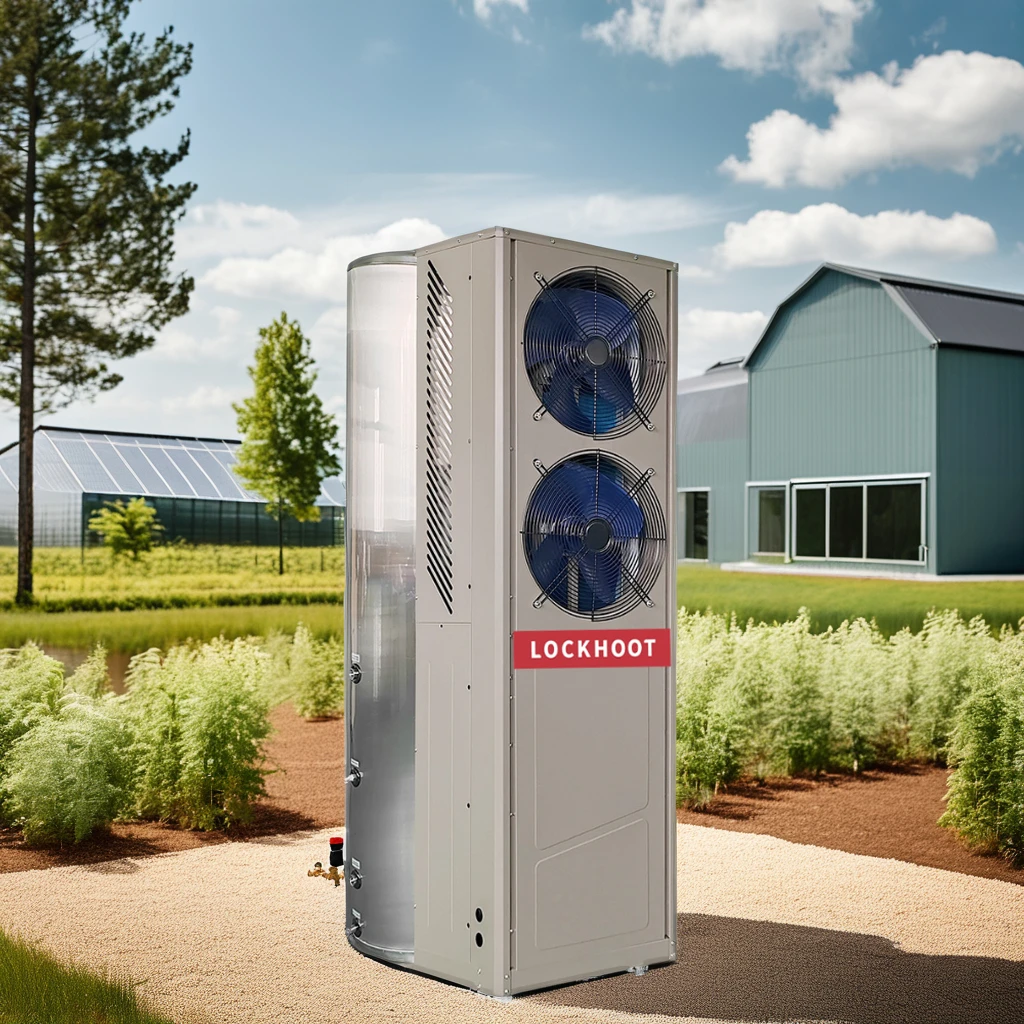

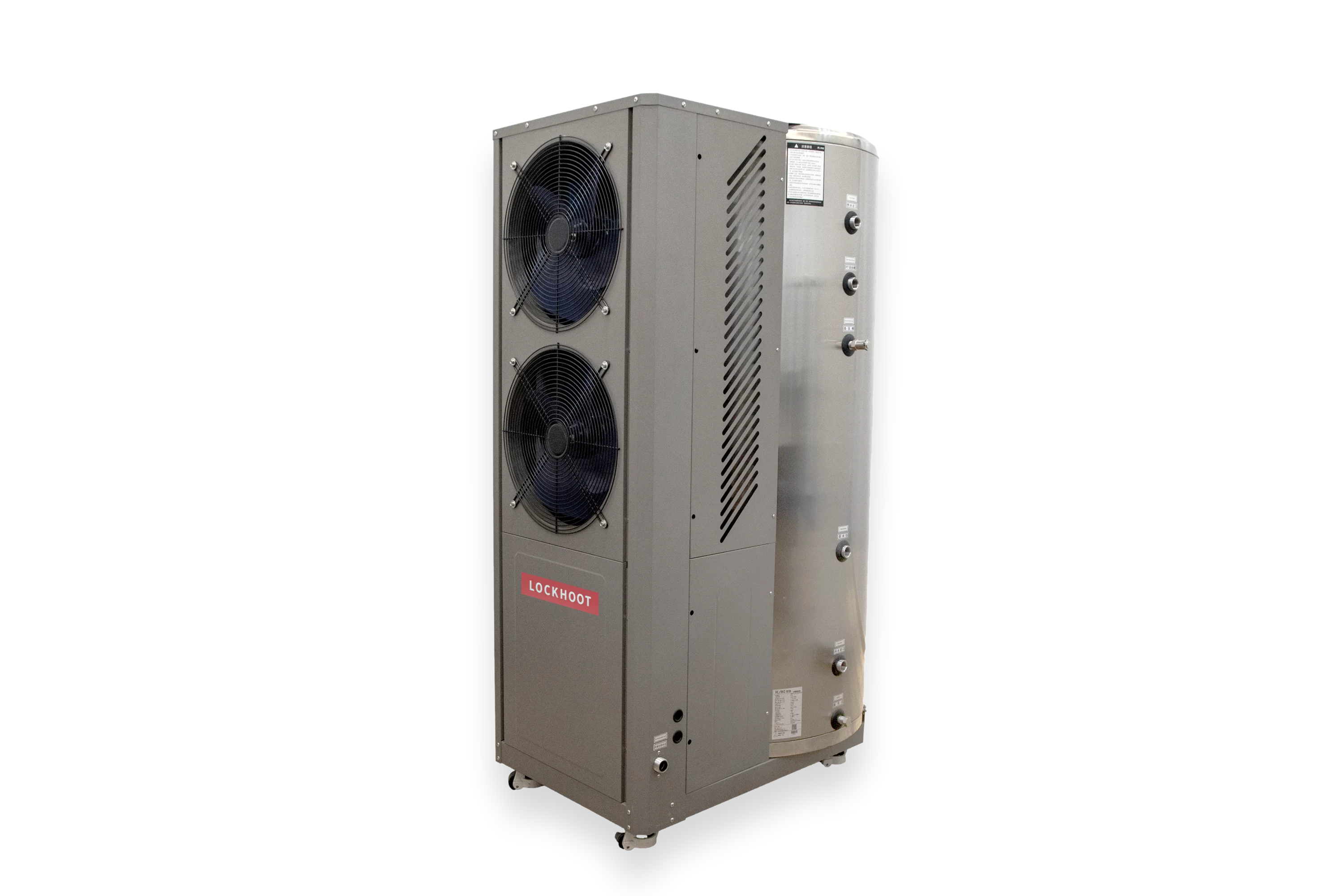

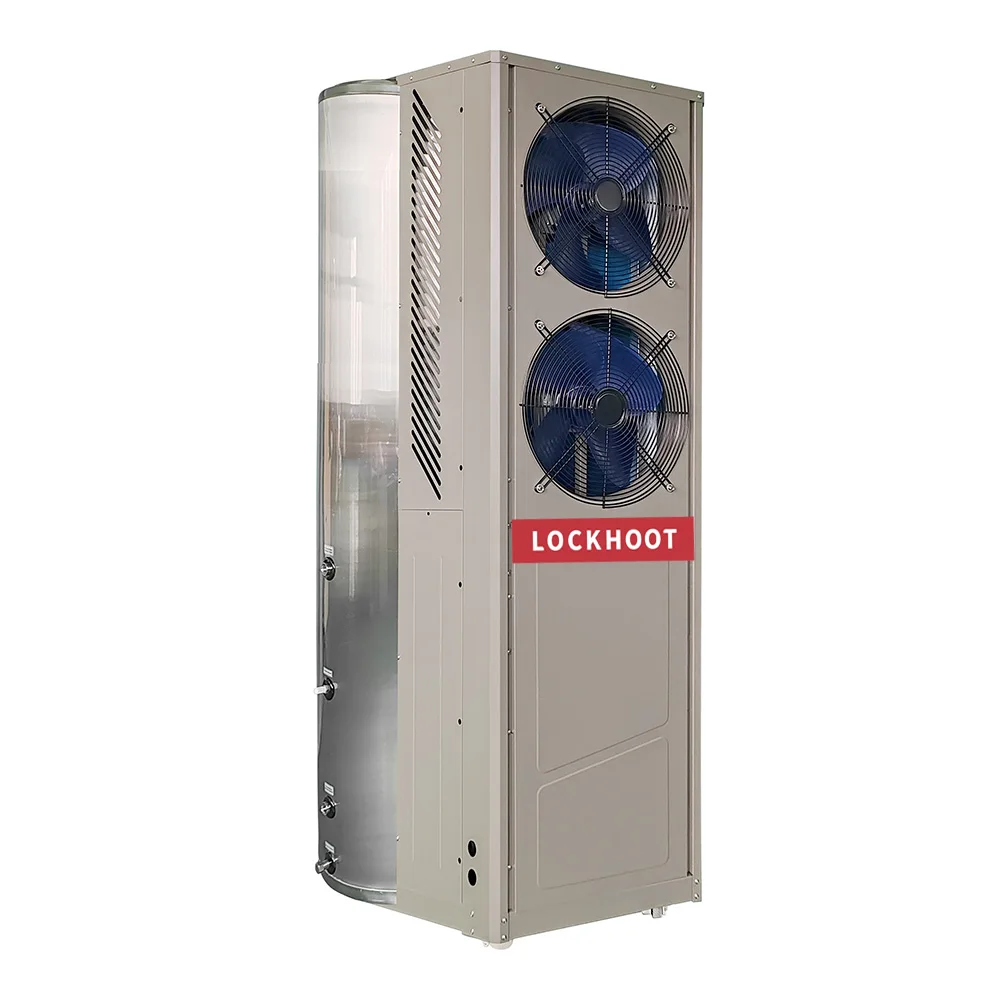

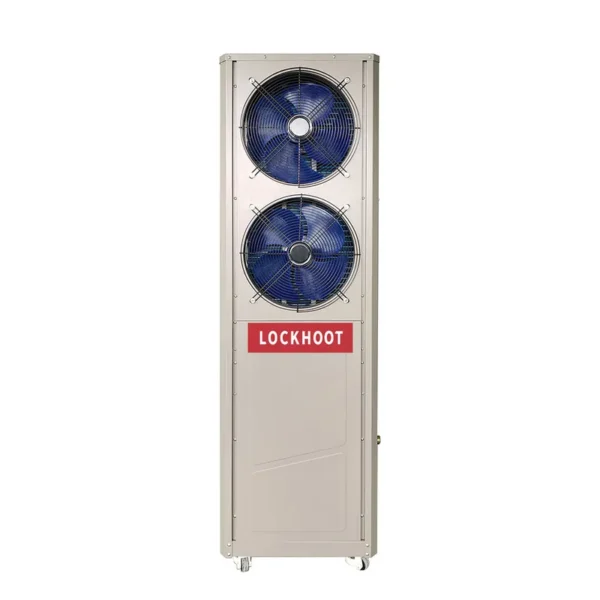

| LOCKHOOT All in one HeatPump Unit – Model E | ||
| 1. All models below feature an anti-fingerprint water tank shell + coffee color overall casing. 2. Defaults include an LED controller, 3KW electric heater, and wooden pallet + wooden frame packaging. 3. Change to WIFI version controller: Add 80 USD. 4. Add solar coil: Add 200 USD. | ||
| 1.5P – 5300W – R410a | ||
| Model | WKHW-15-C1-420EF | WKHW-15-C1-500EF |
| Water Tank Capacity | 420L | 500L |
| Rated Heating Capacity(W) | 5300 | |
| Rated Power(W) | 1250 | |
| Compressor | GMCC-PA140 | |
| Refrigerant | R410a | |
| Heat Exchanger | Micro-Channel | |
| Inlet/Outlet | 3/4" | |
| Product Dimensions | 1000x700x1700mm | 1000x700x1980mm |
| Packaging Dimensions | 1100x780x1840mm | 1100x780x2120mm |
| 1.5P – 5300W – R134a | ||
| Model | WKHW-15-C1-420EF | WKHW-15-C1-500EF |
| Water Tank Capacity | 420L | 500L |
| Rated Heating Capacity(W) | 5300 | |
| Rated Power(W) | 1250 | |
| Compressor | GMCC-PJ250 | |
| Refrigerant | R134a | |
| Heat Exchanger | Micro-Channel | |
| Inlet/Outlet | 3/4" | |
| Product Dimensions | 1000x700x1700mm | 1000x700x1980mm |
| Packaging Dimensions | 1100x780x1840mm | 1100x780x2120mm |
| 3P – 9000W – R410a | ||
| Model | WKHW-30-C1-420EF | WKHW-30-C1-500EF |
| Water Tank Capacity | 420L | 500L |
| Rated Heating Capacity(W) | 9000 | |
| Rated Power(W) | 2250 | |
| Compressor | GMCC-PA250 | |
| Refrigerant | R410a | |
| Heat Exchanger | Micro-Channel | |
| Inlet/Outlet | 1" | |
| Product Dimensions | 1000x700x1700mm | 1000x700x1980mm |
| Packaging Dimensions | 1100x780x1840mm | 1100x780x2120mm |
| Functions of LOCKHOOT Air Energy All-in-One Unit – E Model: |
| Continuous Hot Water Supply: By absorbing heat from the air, it heats water and stores it in a tank, ensuring a 24-hour supply of hot water. |
| Stable Water Temperature: Maintains sufficient water volume and stable temperature, to avoid water flow and temperature fluctuations and prevent burning. |
| On-demand Heating: Suitable for hot water circulation system, allowing for immediate heating without waiting, improving comfort and avoid wasting water. |
| Exhaust Ventilation: During the heating process, it generates exhaust air and discharges it to the room for ventilation. |
| Advantages of LOCKHOOT Air Energy All-in-One Unit – E Model: |
| 1. High-quality Materials: The inner tank is made of SUS304/SUS316L/Duplex2205 stainless steel, ensuring hygiene and durability. |
| 2. Advanced Welding Technology: Semi-automatic laser welding technology ensures precise and stable welding, extending the product's lifespan. |
| 3. Customizable Capacity: Can be produced in any capacity between 150L and 300L, suitable for various applications and can be combined with heat pumps, wall-hung boilers, and solar heaters. |
| 4. Excellent Insulation: The water tank uses high-density polyurethane foam insulation, providing excellent heat preservation and reducing heat loss. |
| 5. Aesthetics: The water tank exterior is made of appliance grade color steel plate, offering a stylish and elegant appearance. |
| 6. Optimized Design: The inlet and outlet are optimized for improved water efficiency, making installation easier. |
| 7. Optional Electric Heating: Equipped with electric heating to meet heating needs in case of insufficient heat pump performance or low temperatures. |
| 8. Solar Compatibility: Can be customized to work with solar energy for greater energy efficiency. |
| 9. Reliable Components: Uses renowned brand compressors and fluorine system components, ensuring system stability and energy efficiency. |
Lockhoot, a reputable manufacturer of heat pumps and pressure tanks in South China, specializes in offering professional OEM and ODM services. Recognized with certifications in ISO9001 and 14001, the company boasts an impressive daily production capacity of over 1,000 units. With CE and various other international certifications under its belt, Lockhoot is also a distinguished high-tech enterprise recognized at the national level.
Additionally, Lockhoot prides itself on providing exceptional quality products and services, ensuring customer satisfaction while adhering to industry standards.
Apart from its robust manufacturing capabilities and conforming to international standards, Lockhoot is dedicated to contributing to environmentally friendly practices. Its operations are conducted with a strong commitment to sustainable business practices, which is evident in their pursuit of eco-friendliness.
As the company continues to grow, its commitment to quality and innovation remains steadfast. It is poised to maintain its position as a leading manufacturer in the heating and storage equipment market, while also pursuing new frontiers in the industry.
Q: What materials do you use for your water tanks?
A: The inner liner of the buffer water tank can be SUS304, 316L, and Duplex 2205. The outer shell can be galvanized stainless steel, SUS201, and SUS304.
Q: What is the capacity of the water tank?
A: We can provide 30L, 40L, 6OL, 8OL, 100L, 120L, 150L,200L,260L,300L,400L, 500L, 600L, 800L, 1000L, 2000L, 3000L.4000L, and any other capacity. Welcome to provide detailed drawings for customization or let our factory designers design for you.
Q: What is the failure rate of your products?
A: Our customer recallrate is less than 0.19%, and the customer inspection first-pass rate is 99.9%. The after-sales repair rate isless than 0.2%.Customer satisfaction exceeds 99.9%.
Q: What certifications and certificates do you have?
A: We have these certifications: CE, RoHS, 3C, 1S09001/14001/45001, etc., and have a large number of industry patentcertificates.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–2 unit: US $1499 / unit
- 3–9 unit: US $1485 / unit
- 10+ unit: US $1475 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this scroll compressor?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Lehao Energy Saving Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Lehao Energy Saving Technology Co., Ltd. range on HVACR Nexus.
