The air-to-air heat pump listed here carries 220V/380V, 22.6KW, documented exactly as the manufacturer publishes it. Made by Weifang Hanhong Energy-Saving Temperature Control Equipment Co., Ltd. (10 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air-To-Air Heat Pump
- Model Number: LYBKLNJ-060
- Power(W): 22.6KW
- Voltage: 220V/380V
- Heating Capacity: 22.6KW
- Cooling Capacity: 17.5KW
- Refrigerant: R410a
Technical Specifications
| Working Temperature Range | -35~45℃ |
|---|---|
| Voltage | 220V/380V |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Competitive Price, High Productivity, Remote Monitoring, Long Service Life, Bi-Color, Remote Control, Patented Product, Energy Saving, Low Maintenance Cost, Famous Brand PLC, R410A, Accurate Temperature Control, Digital, IOT, Other |
| Place Of Origin | Shandong, China |
| Power(W) | 22.6KW |
| Brand Name | HANHONG |
| Model Number | LYBKLNJ-060 |
| Dimension(L*W*H) | 800x800x1060mm, 450x1500x700mm |
| Refrigerant | R410a |
| Heating Capacity | 22.6KW |
| Cooling Capacity | 17.5KW |
| Compressor Type | Scroll Inverter Compressor |
| Installation | Free standing |
| After Warranty Service | Online support |
| Working Ambient Temperature | -35℃~43℃ |
| Marketing Type | EVI air source heat pump |
| Name | Air to Air Heat Pump |
| Selling Units | Single item |
| Single Package Size | 80X80X135 cm |
| Single Gross Weight | 220.0 kg |
Product Details
Product Description

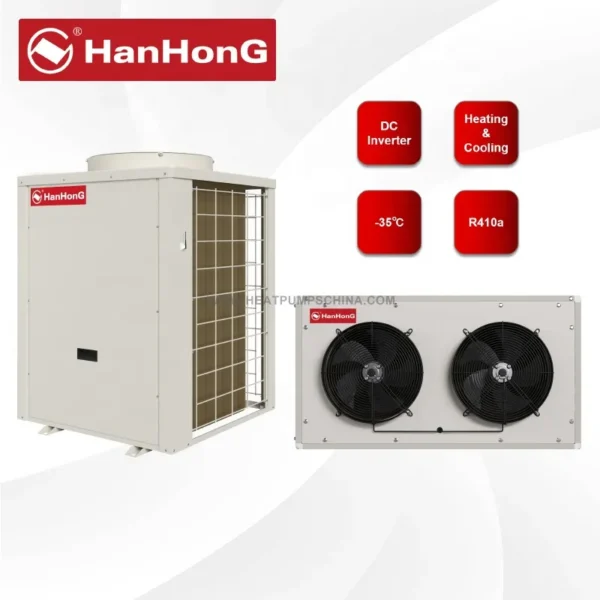

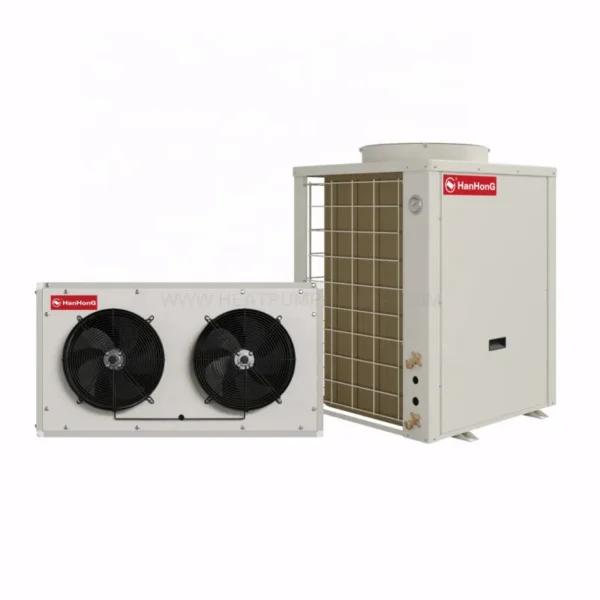

EVI R410a Air-to-Air Heat Pump

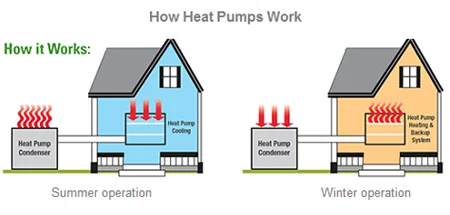

HANHONG Air-to-air heat pumps transfer heat from the outside air to the air inside, increasing the air temperature in each room. This warm air enters your home through a series of fan coil units, or ‘blowers’. Air-to-air heat pumps are sometimes referred to as air conditioning. While many people think of air conditioning as a way of cooling buildings, it can also be used for heating.
Unit Mainly Components Includes: Panasonic Brand Rotary Twin-Cylinder EVI Low Temp DC Inverter Compressor, Danfoss Brand Electric Expansion Valve SANHUA Brand Four way valve, Sensata Brand Pressure Transducer, Wolong Brand Dc Motor, Hydro-philic Aluminium foil & Inner-Grooved Copper Evaporator, Refrigerant valve and De-Ice Heater so on parts.
● Heating in Summer
● Cooling in Winter
HEAT PUMP TYPE | Air to Air Heat Pump, EVI Heat Pump, Air Souce Heat Pump, | ||||||
Function | Heating & Cooling | ||||||
Frequency | ON/OFF 7HP, DC inverter 8HP, ON/OFF 25HP | ||||||
*Rated Heating Capacity (7°C/45°C) | 22.6kw/25.2kw/75kw | ||||||
*Rated Cooling Capacity (35°C/7°C) | 17.5kw/20kw/65kw | ||||||
*Refrigerant | R410a | ||||||
*Heating & Hot Water Temp | 30℃~60℃ | ||||||
*Outdoor Temperature limit | -35℃~43℃ | ||||||

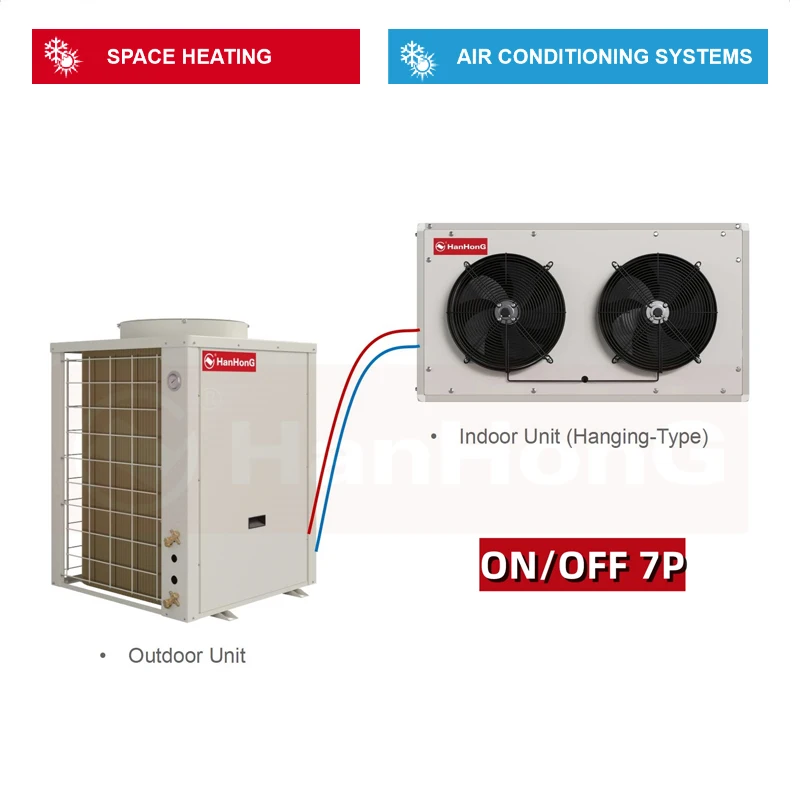

>>>7HP ON/OFFAir -to-Air Heat Pump

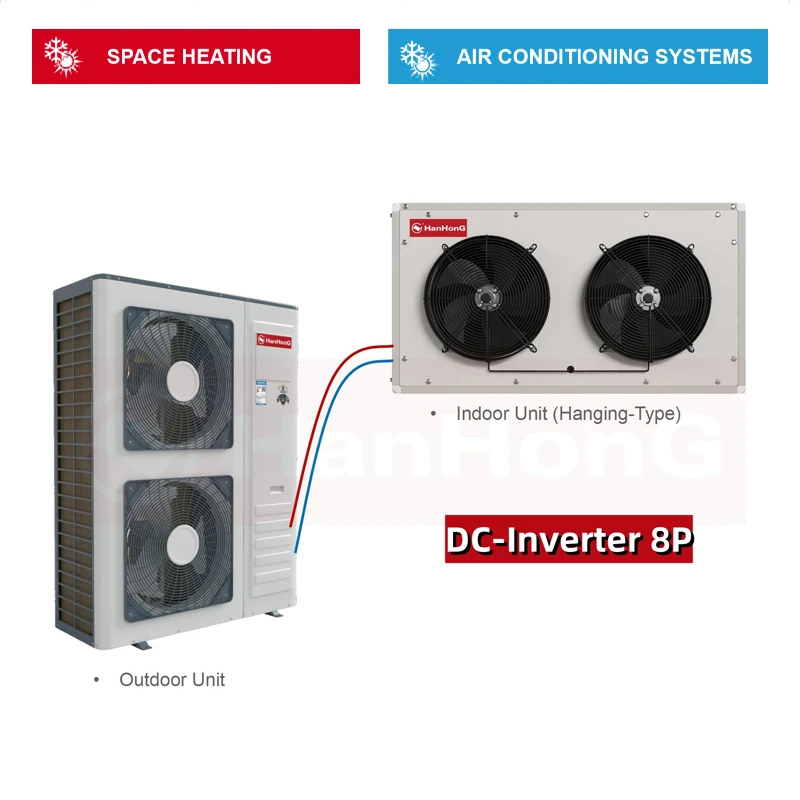

>>>8KW DC-Inverter Air-to-Air Heat Pump
Our Advantages
SIMPLE INSTALLATION & MAINTENANCE
It’s just as easy as installing a regular air conditioner. No complex pipe fittings or systems are required, saving installation, use and maintenance costs.
-30℃ ULTRA-LOW TEMP. HEATING TECHNOLOGY
Gas injection technology, Lower discharge temperatures, increasing capacity and expanded operating envelop for enhanced performance. • Min operating ambient temperature: -30°C • Max operating ambient temperature: 45°C
ENERGY SAVINGS
EVI compressor, patented high efficient heat exchanger, hydrophilic aluminum foil fin heat exchanger with internal thread copper and advanced control technology, COP up to 5.
INTELLIGENT DEFROSTING RAISES HEAT CAPACITY
Intelligent defrosting program to judge the defrosting time according to the system real requirement, reduce the heating loss by unnecessary defrosting and make the indoor side more comfortable.
HIGH RELIABILITY
The heat pump is developed with multiple functions to ensure safe and efficient running, especially including Compressor Current Detect and Over current Protection, Modbus RS485/BMS or DTU, Peak Shifting Function and so on.
Project Reference

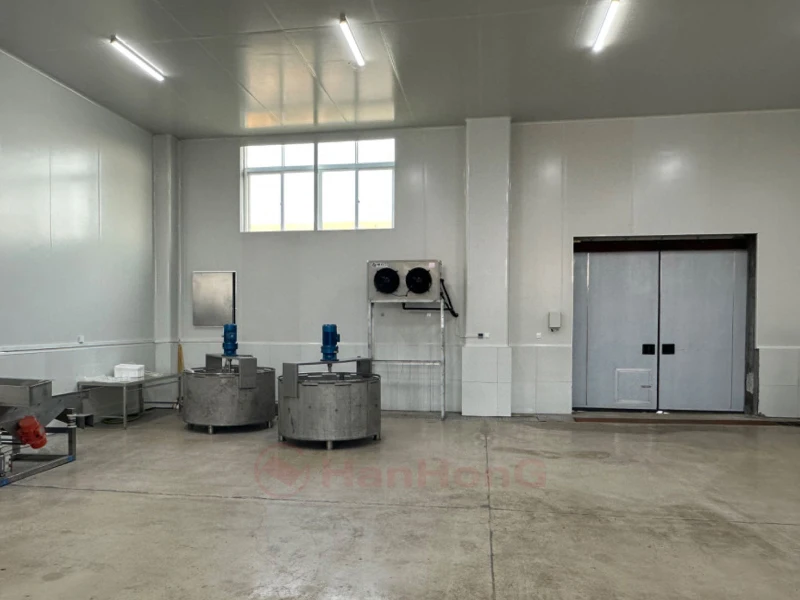

● Commercial Application
Very suitable for factory, warehouse etc.

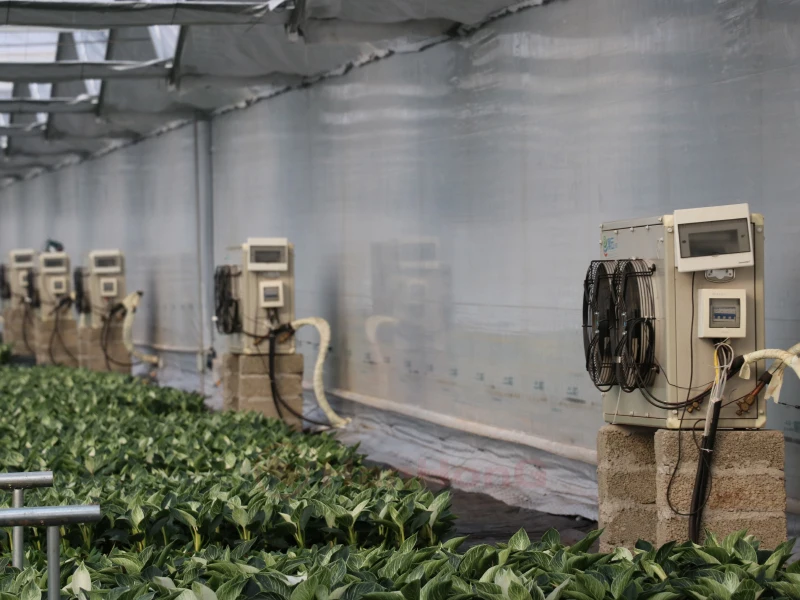

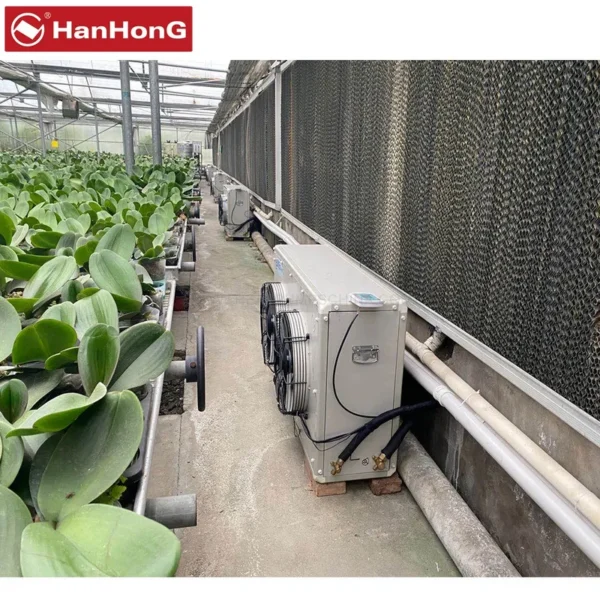

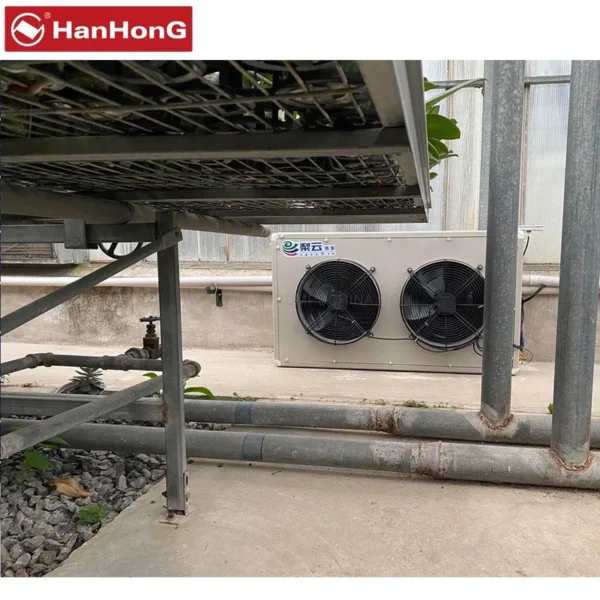

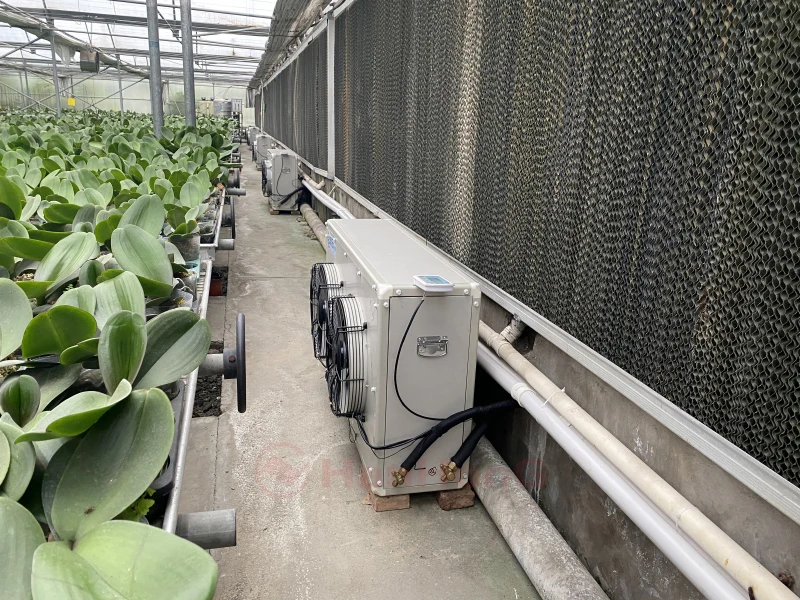

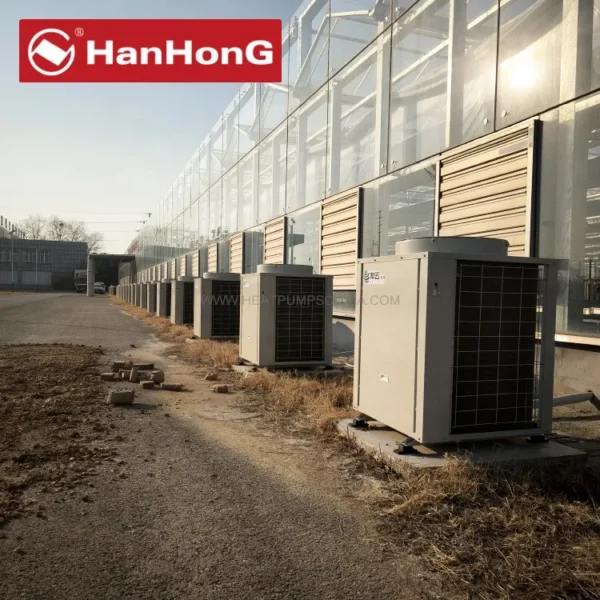

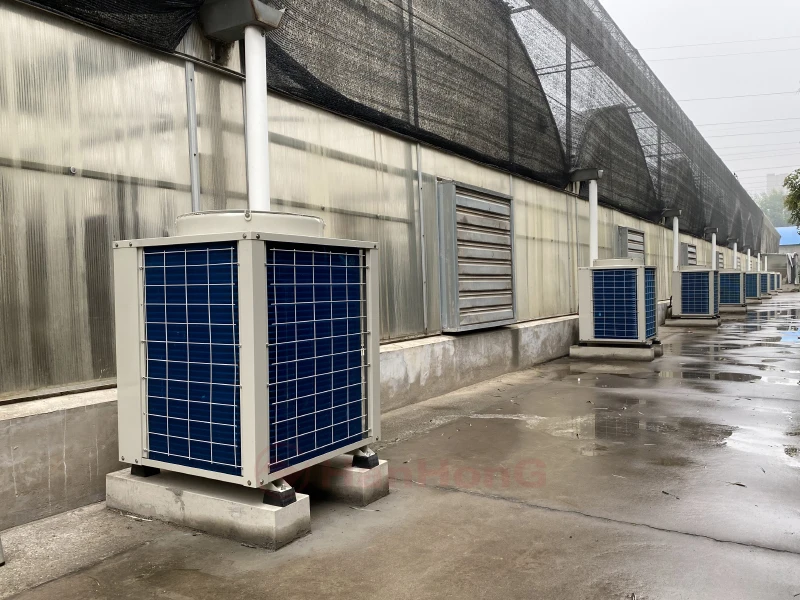

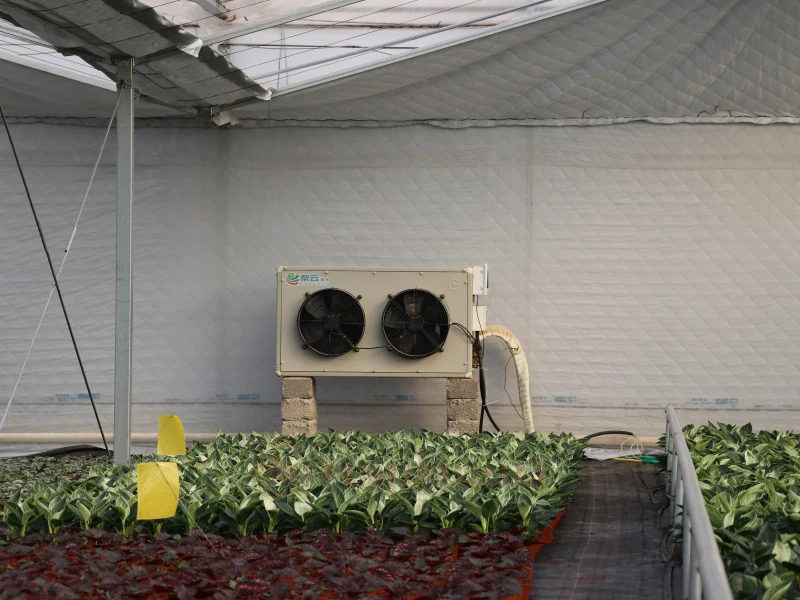

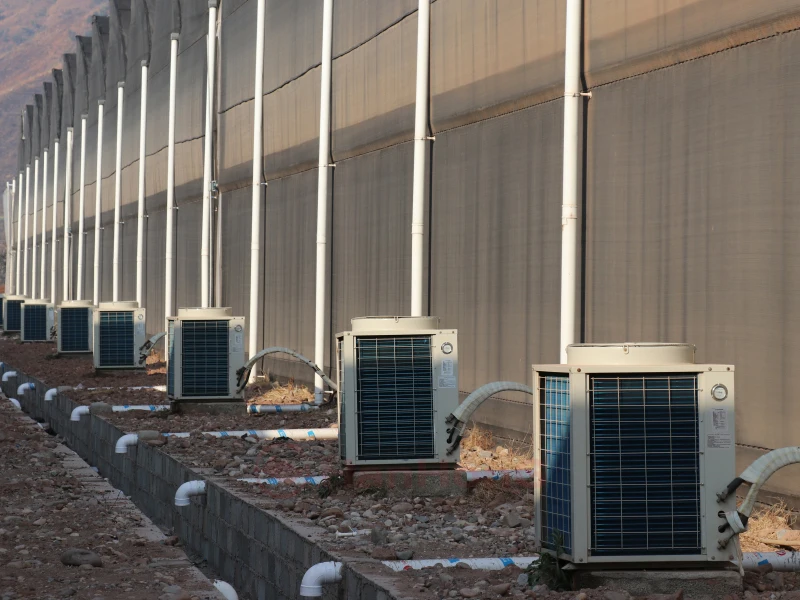

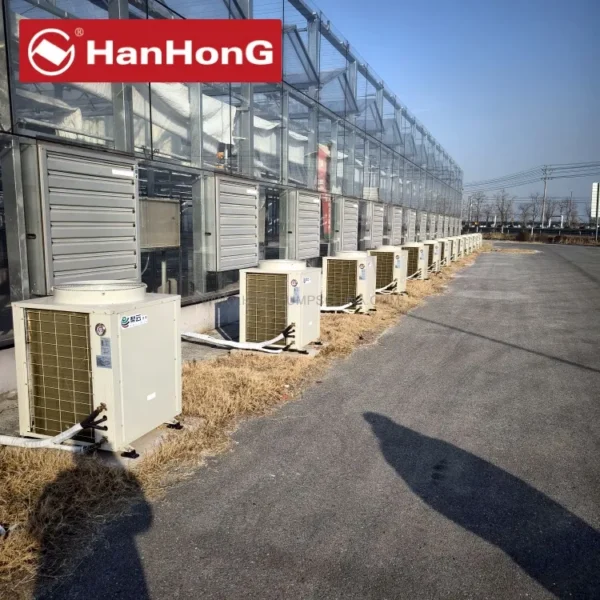

● Agricultural Application
Greenhouse, poultryhouse etc.
Specification
Parameter | LYKRFJ-070 | LYKRFJ-080 | LYKRFJ-250 | |||
Electric Parameter(V/PH/HZ) | 380V/3N~/50HZ | 380V/3N~/50HZ | ||||
Type | Heating & Cooling | |||||
①Rated Heating Capacity (KW) | 22.6 | 25.2 | 75 | |||
①Power Input (KW) | 6.5 | 7.1 | 21 | |||
①COP | 3.48 | 3.55 | 3.57 | |||
②Rated Cooling Capacity (KW) | 17.5 | 20.0 | 65 | |||
②Power Input (KW) | 6.2 | 7.1 | 23.04 | |||
②EER | 2.82 | 2.82 | 2.82 | |||
③Nominal Heating Capacity (KW) | 14.6 | 18.6 | 52 | |||
③Power Input (KW) | 5.6 | 6.94 | 20 | |||
③COP | 2.61 | 2.68 | 2.60 | |||
④-20℃ Heating Capacity (KW) | 12.6 | 14.07 | 41.9 | |||
④Power Input (KW) | 6 | 6.7 | 19.95 | |||
④COP | 2.1 | 2.1 | 2.1 | |||
Max. Current Input (A) | 18 | 26 | 55 | |||
Rated Water Flow Volume (m³/H) | 4.5 | 6.0 | 9.0 | |||
Net Weight (KG) | 220 | 240 | 900 | |||
Nosie (DB) | ≤65 | ≤56 | ≤65 | |||
Working Condition (℃) | -35~45 | |||||
①Rated Heating working condition: Dry/Wet bulb temp. 7℃/6℃. ②Rated Cooling working condition: Dry/Wet bulb temp. 35℃/24℃. ③Norminal working condition: Dry/Wet bulb temp. -12℃/-14℃. ④-20℃ working condition: Dry/Wet bulb temp. -20℃/-. | ||||||
Packing & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
WEIFANG HANHONG ENERGY-SAVING TEMPERATURE CONTROL EQUIPMENT CO.,LTD.
is a technology and quality oriented HVAC manufacturer in China, specializing in R&D, manufacturing, sales and service of central air conditioning products.
Established in 2003, by performing for 8 years in HVAC industry, HANHONG has made great success in China domestic market and began to take its place in global markets. We have played an important role in supplying our HVAC products to various projects including stadium, exhibition cener, automobile manufacturers, pharmaceuticals, hospitals, microelectronics, hotels and municipal engineering.
HANHONG has a complete heat pump industry chain, and its products involves Commercial & Industrial High Temperature Water Heating Solution, Industrial and Agricultural Heat Pump, Swimming Pool Heat Pump, House Heating & Cooling Heat Pump, Domestic Hot Water Heat Pump, Heat Pump Dehumidifier, ,etc. Among them, the export volume of super greenhouse heat pumps has been among the best and ranking the top place in China for many years.
The ultra-low temperature EVI heat pump has been widely used for house heating in Northern China. What’s more, because of its advantages such as safety, efficiency, environmental protection and low energy consumption, it has become a government recommended solution to replace traditional boilers. The core of HANHONG’s culture is innovation, in the past years we’ve been focusing on technology and design innovation, therefore we won a lot of patents on the technology and design for our products and enjoyed a good reputation in HVAC industry. HANHONG has been making an implement of continuous quality improving program. In cooperation with senior management team and professional expertise, HANHONG has evolved not only R&D and processing engineering standard, but also manufacturing and quality control system.
Recommend Products
FAQ
Q1:Are you a manufacturer?
A1: Yes, we are a professional heat pump manufacturer since 2003, with experienced and improved R&D, production, sales and service
supplying.
Q2: Do you provide OEM/ODM customized manufacturing service?
A2:Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and
according to your special needs.
Q3: Can you provide a sample?
A3:Yes, sample order is acceptable.
Q4: How is your price?
A4:We have our own factory not the trading company. There is no middleman between clients and us. We give customers the most favorable price.
Q5: How long is your Heat Pump delivery time?
A1: Yes, we are a professional heat pump manufacturer since 2003, with experienced and improved R&D, production, sales and service
supplying.
Q2: Do you provide OEM/ODM customized manufacturing service?
A2:Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and
according to your special needs.
Q3: Can you provide a sample?
A3:Yes, sample order is acceptable.
Q4: How is your price?
A4:We have our own factory not the trading company. There is no middleman between clients and us. We give customers the most favorable price.
Q5: How long is your Heat Pump delivery time?
A5: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q6: How about the channel management?
Q6: How about the channel management?
A6: We are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer Pool World’s own brand products and services to dealers.
Heating & Cooling & Hot Water Solution, All heart for You!
EVI DC Inverter air to water heat pump monoblock heating water system invert heater pump
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air-to-air heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air-to-air heat pump be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Weifang Hanhong Energy-Saving Temperature Control Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Weifang Hanhong Energy-Saving Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
