Off Combination Pool Heater, R32, COP, Plastic

Off combination pool heater — 220V/1P/50Hz/60HZ, 2.5KW — 28.8KW. The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Off Combination Pool Heater

• Model Number: R06-DC
• Power Source: Electric
• Power Supply: 220V/1P/50Hz/60HZ
• Heating Capacity: 2.5KW — 28.8KW
• Housing Material: ABS plastic
• Refrigerant: R32

Technical Specifications

Product Details

Products Description

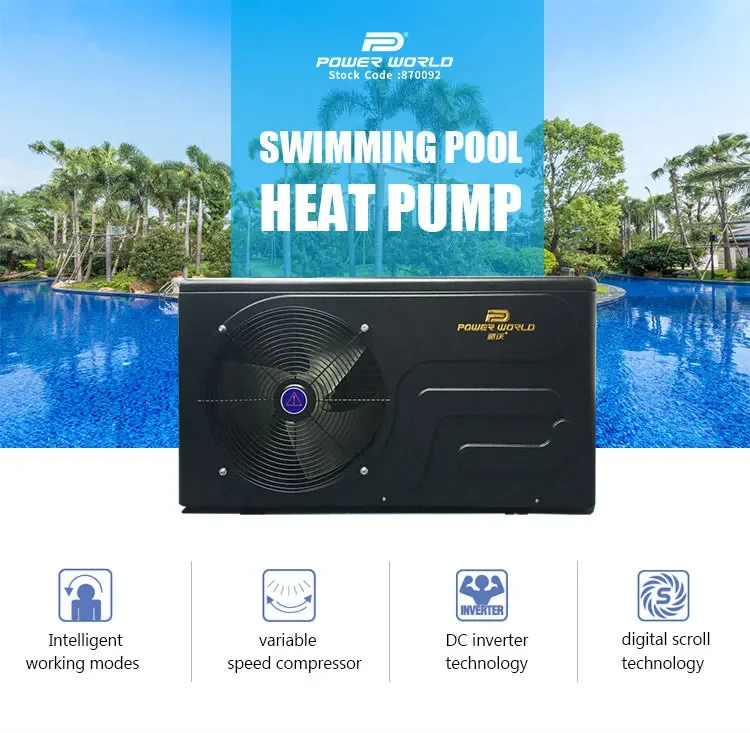

DC Inverter Pool Heat Pump (energy saving solution)

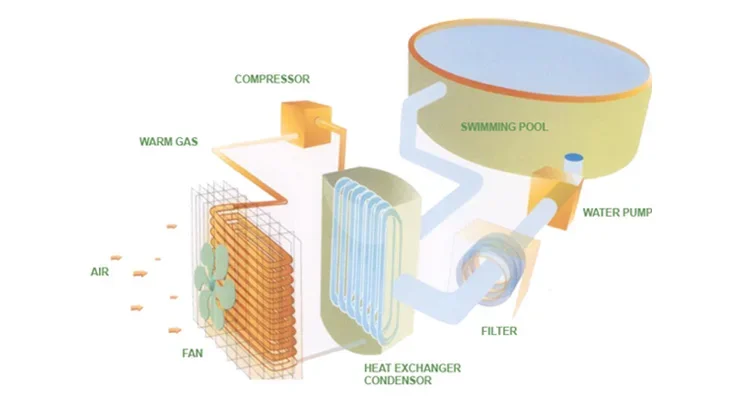

PowerWorld DC inverter pool heat pumps are designed toefficiently and consistently heat your pool year round,while using up to 30-50% less electricity. The inverter heat pump heats your swimming pool water using the sameprinciple of a reverse cycle air conditioner that heats your home. The warmer it is, the better it works.

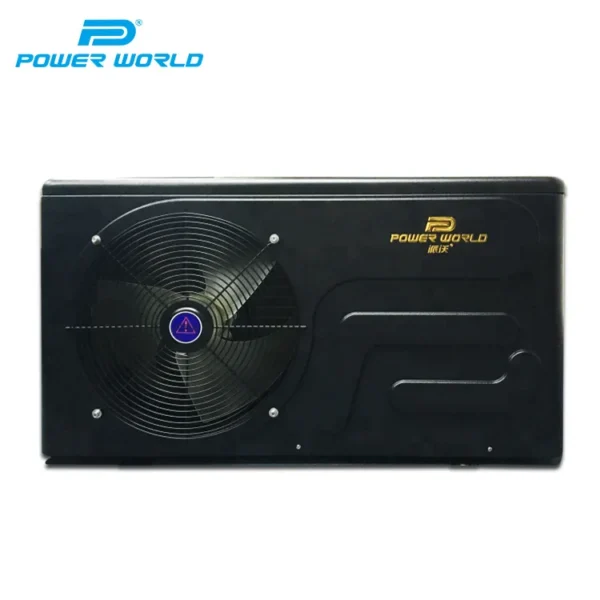

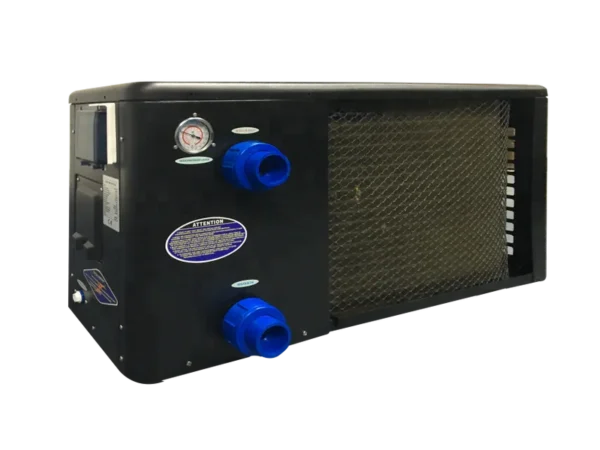

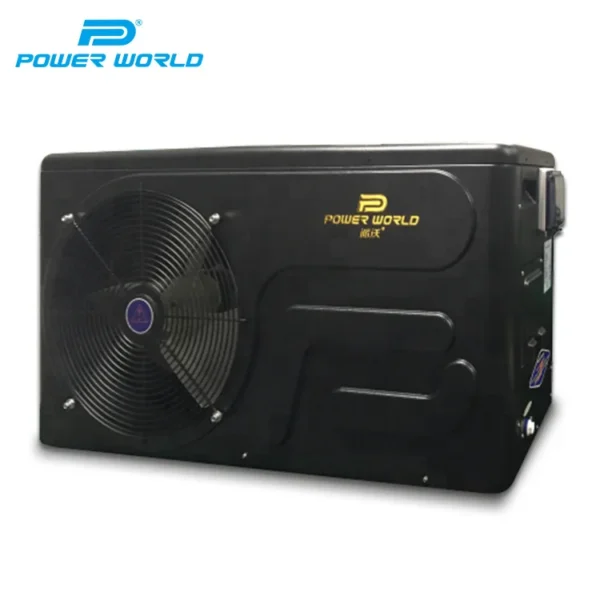

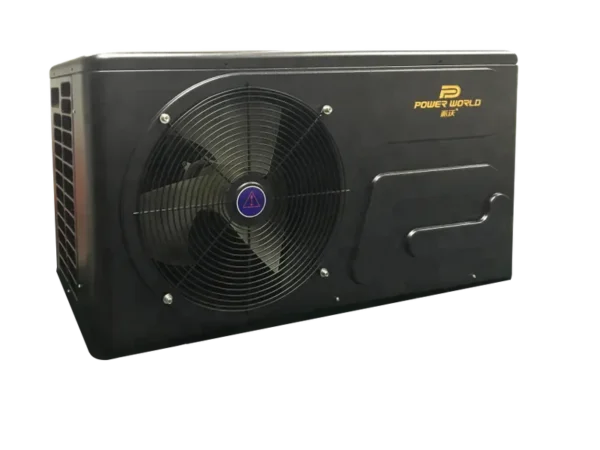

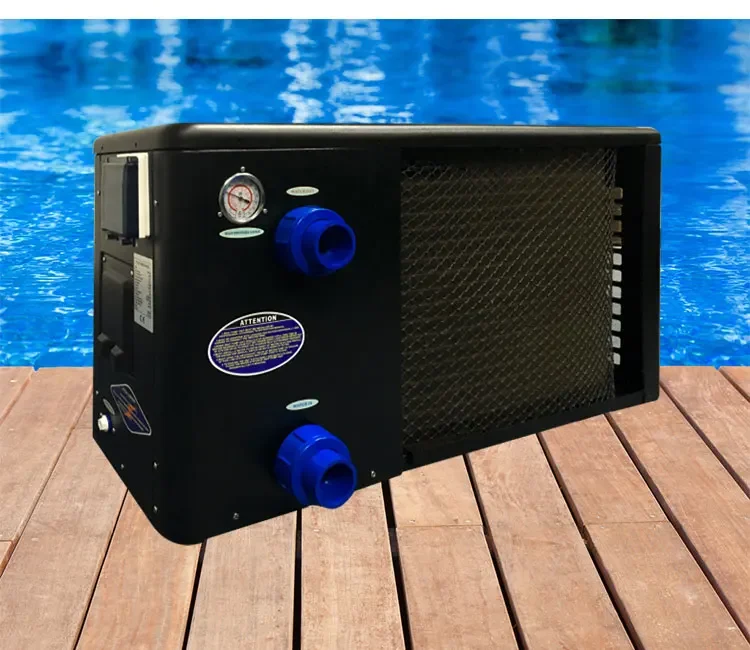

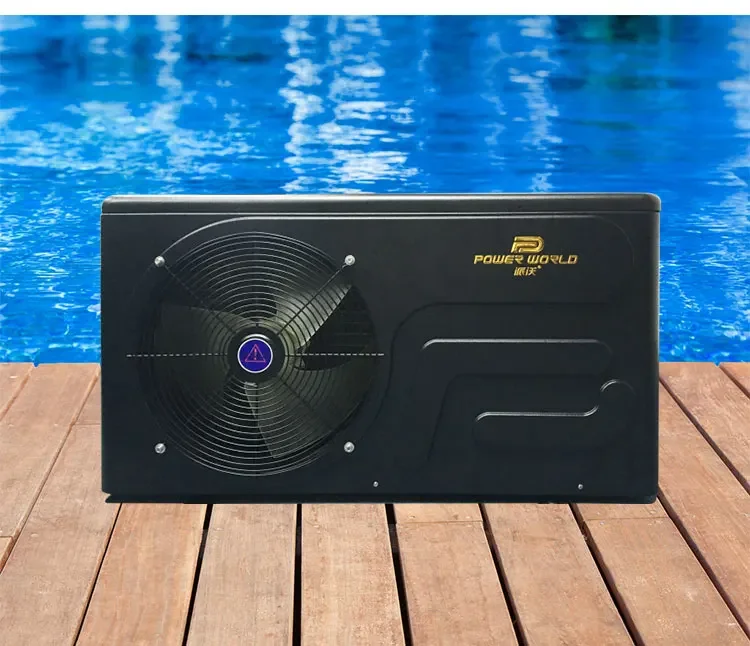

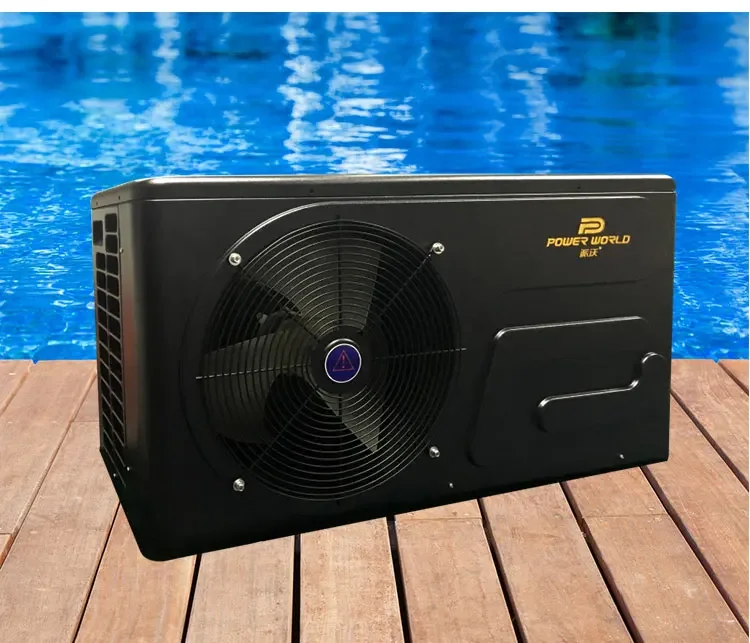

Product Show

Product Paramenters

Product model					PFSPS06-DC	PFSPS09-DC	PFSPS12-DC	PFSPS16-DC
Advised pool volume（m3） (with cover)					10-25	12-40	15-60	25-85
Parameters	heating*	Heating capacity (kW)	6.2-2.5	9.3-2.8	12.6-3.2	16.2-3.5
				Heating capacity (BTU/h)	21143-7843	31715-9548	42969-10913	55246-11936
				Input power (kW)	1.09-0.17	1.59-0.21	2.02-0.24	2.65-0.26
				COP	5.69-13.5	5.85-13.3	6.24-13.3	6.11-13.5
		heating**	Heating capacity (kW)	4.8-2.3	6.9-2.3	9.5-2.5	11.8-2.7
				Heating capacity (BTU/h)	16369-8526	23531-7844	32397-8526	40241-9208
				Input power (kW)	1.04-0.32	1.51-0.32	2.05-0.35	2.58-0.38
				COP	4.62-7.14	4.56-7.19	4.63-7.14	4.57-7.11
		Rated current(A)			4.4	6.9	8.5	11.7
		Minimum fuse current (A)		7	10	13	16
		Advised water flux（m³/H）			2.5	2.8	3.7	4.6
		IP Grade (Level of protection)			IPX4	IPX4	IPX4	IPX4
		Anti-electric shock Rate			I	I	I	I
		Noise (dB(A)) (1m)			50-40	52-40	52-40	54-41
		Net weight/Gross weight(kg)			54/66			68/73	78/83
		Diameter of pipe (mm)			φ50	φ50	φ50	φ50
Standard Configuration	Metel plate			ABS plastic casing black color	ABS plastic casing black color	ABS plastic casing black color	ABS plastic casing black color
		Body size(W*D*H)mm			1008×380×577	1008×380×578	1008×380×579	1050×440×709
		Compressor			GMCC	GMCC	Mitsubishi	Mitsubishi
		Refrigerant			R410A	R411A	R412A	R413A
		Power supply			220V/1p/ 50Hz-60HZ	220V/1p/ 50Hz-61HZ	220V/1p/ 50Hz-62HZ	220V/1p/ 50Hz-63HZ
		Condenser			Titanium in PVC	Titanium in PVC	Titanium in PVC	Titanium in PVC
		Evaporator			L-1.5/900*500/φ7	L-1.5/900*500/φ7	L-2/900*500/φ9.52	L-2/1000*650/φ7
		Four-way valve			SHF-4-23U	SHF-4-23U	SHF-7H-34U	SHF-7H-34U
		Expansion valve			Sanhua	Sanhua	Sanhua	Sanhua
		Motor			DC 25W	DC 25W	DC 25W	DC 120W
		Fan			φ400*1	φ400*1	φ400*1	φ490*1
		Controller			Mitsubishi driver	Mitsubishi driver	Mitsubishi driver	Mitsubishi driver
		High-voltage switch			3.6/4.2MPa	3.6/4.2MPa	3.6/4.2MPa	3.6/4.2MPa
		Power line connect with unit			3*1.5mm2	3*1.5mm2	3*2.5mm2	3*2.5mm2
		Package			wooden package	wooden package	wooden package	wooden package
	Remark:heating*: working condition, Inlet water temperature 26℃, Outlet water temperature 28℃, Dry bulb temperature 26℃. heating**: working condition, Inlet water temperature 26℃, Outlet water temperature 28℃, Dry bulb temperature 15℃.

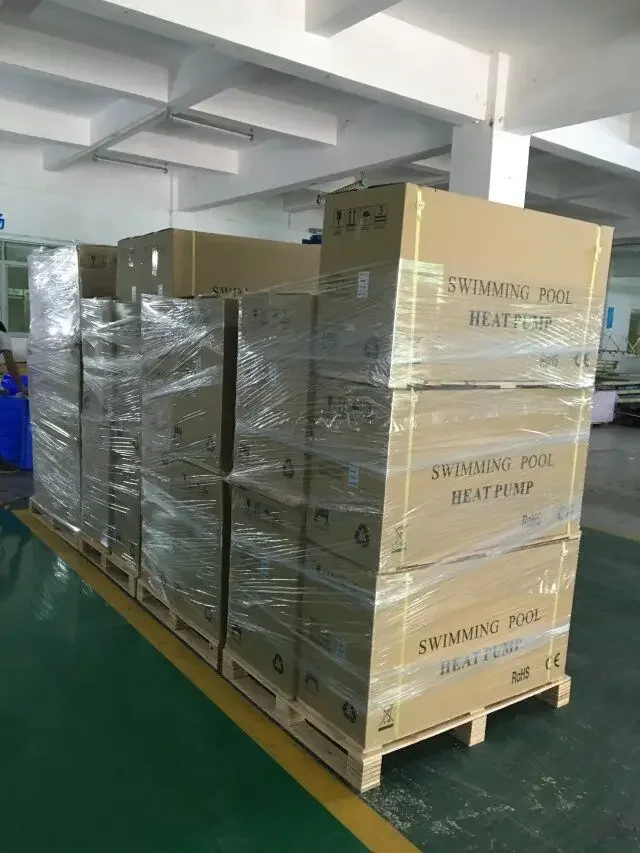

Product packaging

Packaging	Packed by Plywood case/ cardboard case
Timing	Send out next day after payment if in stock 4-7 working days to deliver
Logistics	DHL ,UPS,FedEx or as you request

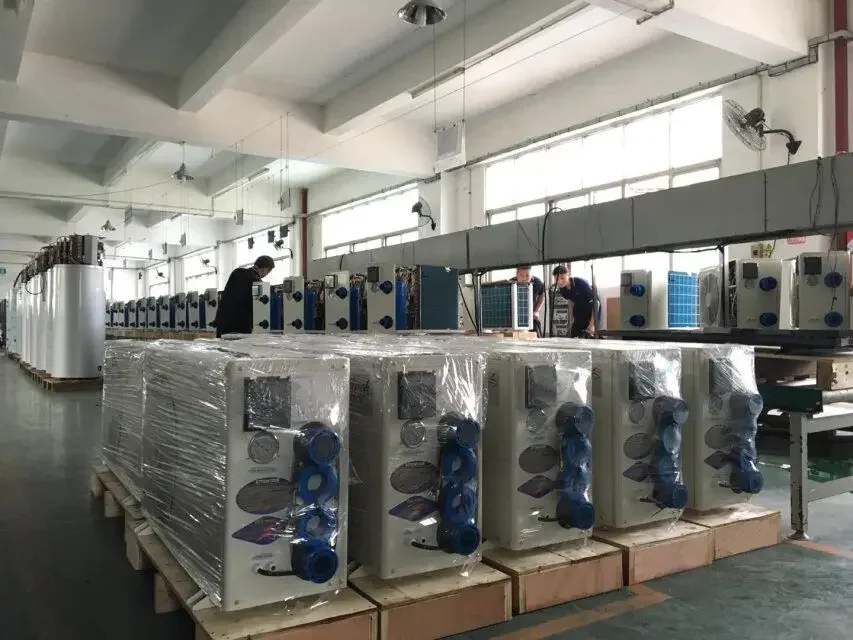

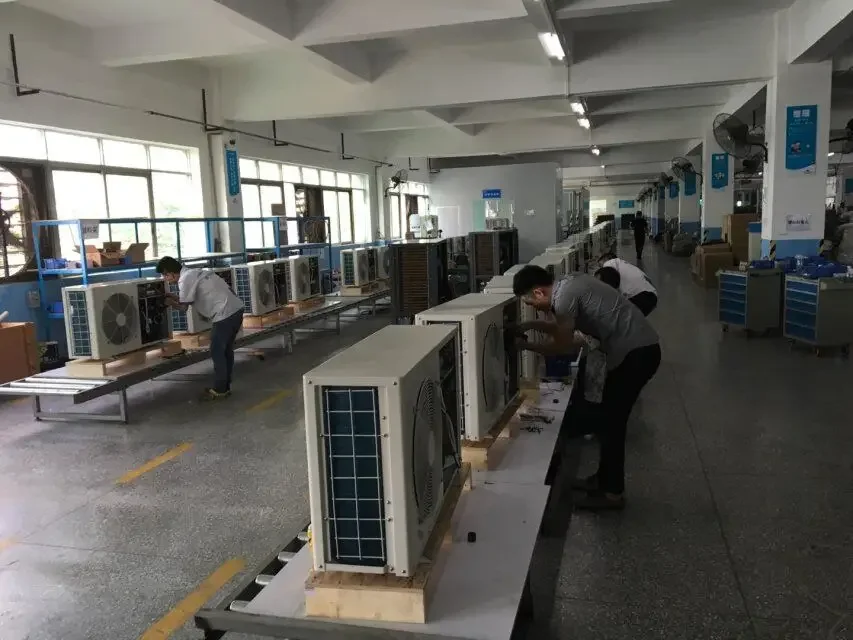

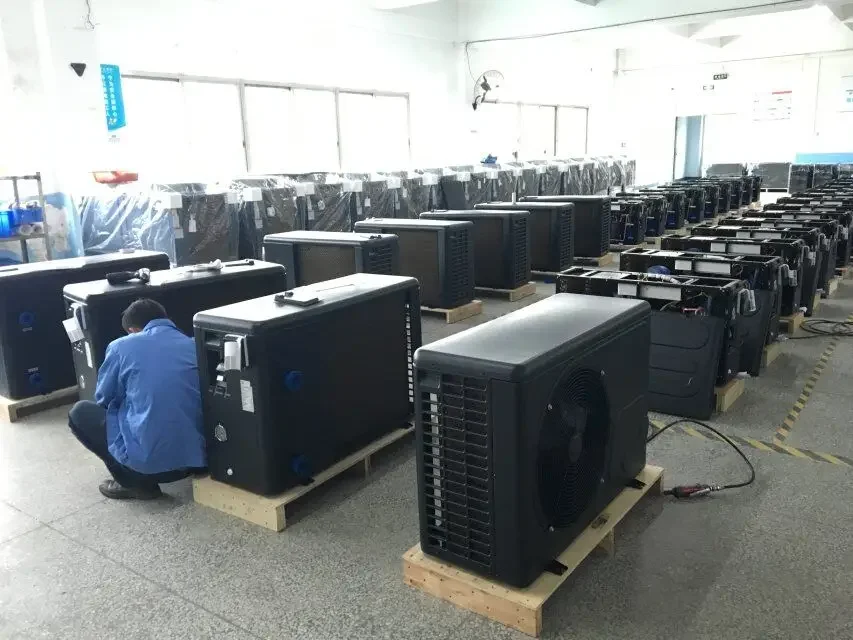

Company Profile

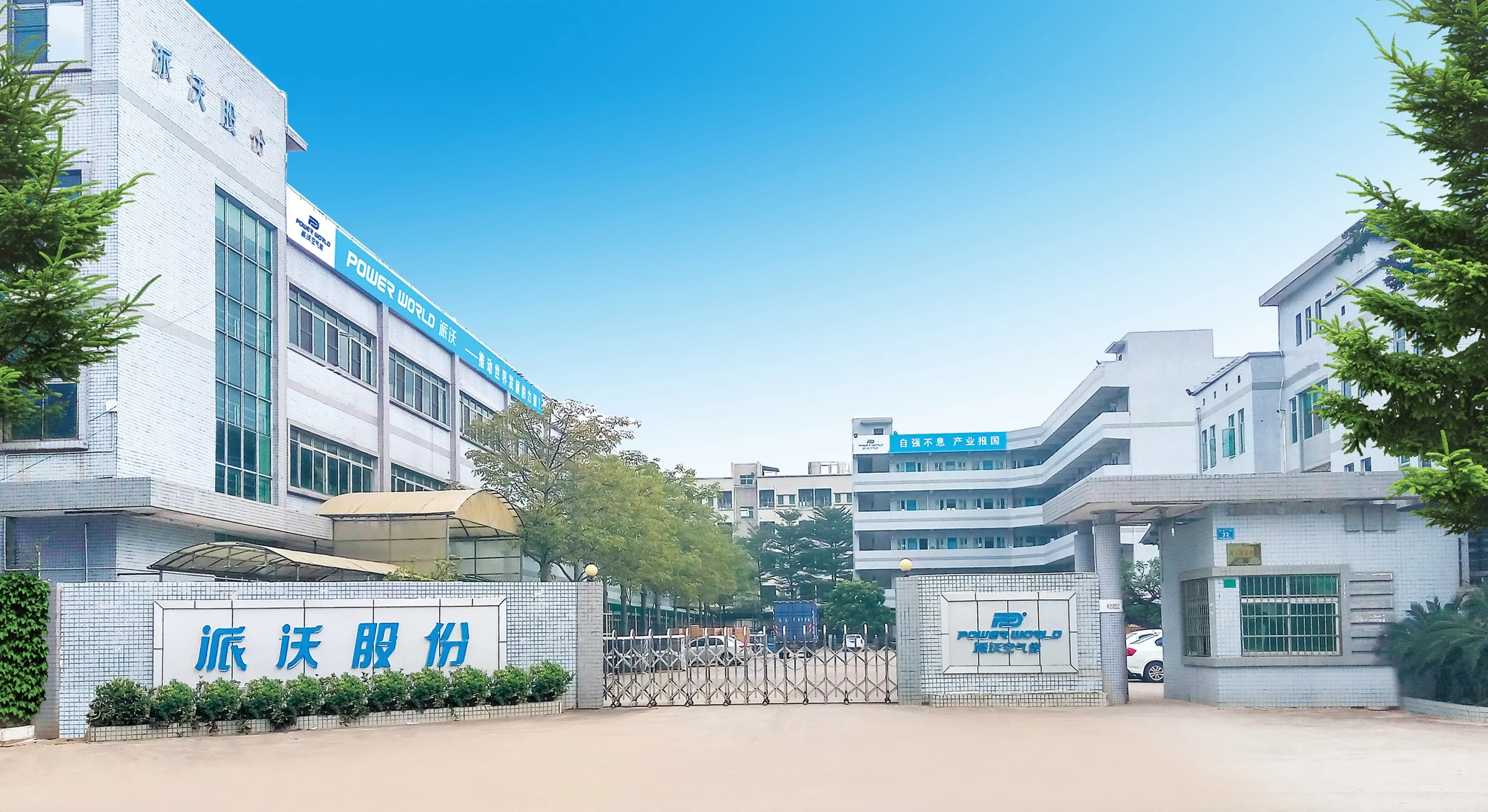

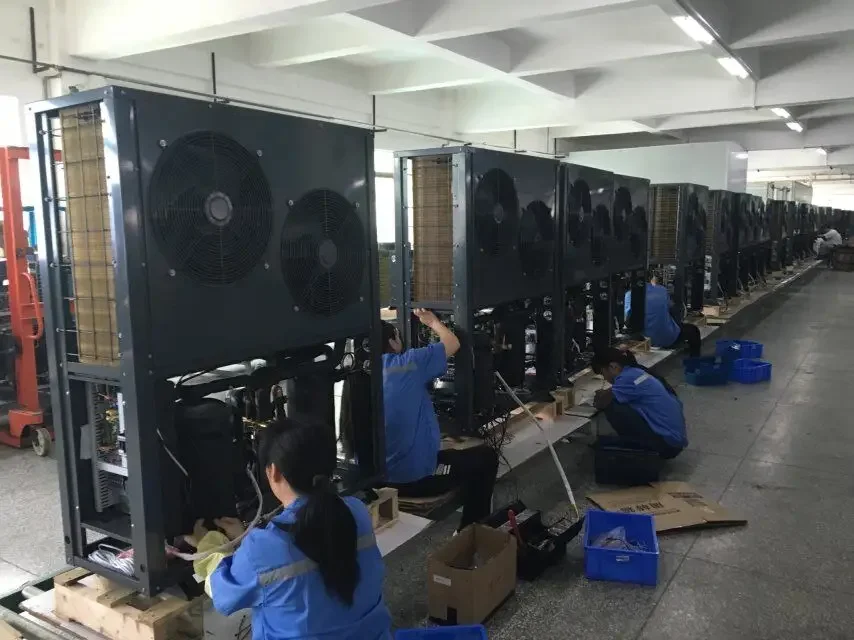

Power World is a professional heat pump manufacturer since 2004,successfully publicly listed on the NEEQ in 2016 with stock code 870092.It covers an area of 30000 m2 factory in Dongguan,China and has more than 500 emplyees.With 8 flexible production line, it's honored to be top 10 brand heat pump supplier in China with one billion USD output value per year.

Power World has a heat pump R&D center with a team of more than 20 engineers and 4 professional laboratories.Complying with ISO9001:2008 & ISO14001:2004,all products get CE,CB(IEC)certificate and ERP Energy Label based on EN14825,EN14511,strictly according to latest EHPA requirement.

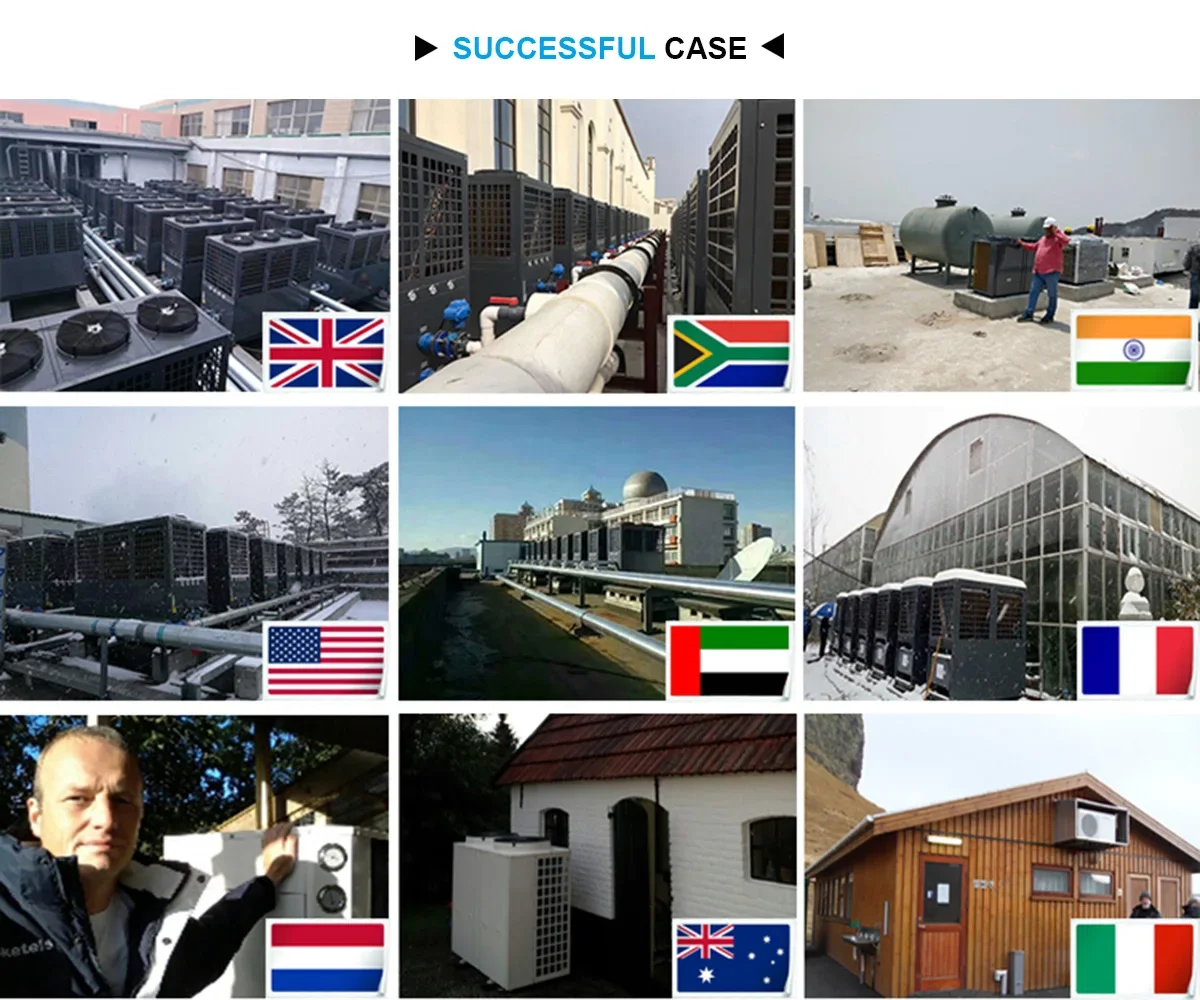

Market Overview

Through years of technological innovation and strategic market expansion, power world has become one of the

most famous and influential brands of heat pump in china. Now power world committed to development of the international market, the products sold to more than 60countries ,serving more than 1/10 of the world’s population.get highly praised by customers

Exihibition

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $725 / piece
  • 10–49 piece: US $683 / piece
  • 50+ piece: US $592 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this off combination pool heater?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the off combination pool heater be supplied for my local voltage?

The standard configuration is 220V/1P/50Hz/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
