The air to water heat pump listed here carries 380V/3PH/50HZ, 12kw, documented exactly as the manufacturer publishes it. Made by Guangdong Folansi Energy Saving Equipment Co., Ltd. (8 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air To Water Heat Pump
- Model Number: FA-03EVI(12KW)
- Power Source: Electric
- Power Supply: 380V/3PH/50HZ
- Heating Capacity: 12kw
- Housing Material: powder coating or stainless steel
- Refrigerant: R32 R290
Technical Specifications
| Type | EVI low temp heat pump |
|---|---|
| Heating Capacity | 12kw |
| Energy Efficiency Rating | Class A+++ |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R32 R290 |
| Storage / Tankless | instantaneous heater |
| App-Controlled | Yes |
| Housing Material | powder coating or stainless steel |
| Feature | Easy Installation, Easy Operation, Eco-Friendly, Energy-Saving, High Efficiency, Safe |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation, Field Maintenance and Repair Service |
| Operating Language | English |
| Place Of Origin | Guangdong, China |
| Brand | folansi |
| Model Number | FA-03EVI(12KW) |
| EVI Air To Water Heat Pump | low temp heat pump can working good in cold weather |
| Compressor | Copeland* Scroll EVI Compressor |
| Power Supply | 380V/3PH/50HZ |
| Working Ambient Temperature | Minus 25C- 45C |
| Heat Exchanger | tube in shell heat exchange |
| COP | 4.22 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
| EVI low temp Air to water heat pump (60degree oulet) | ||||
| Model | heat pump | FA-03EVI | ||
| Unit function | Standard condition | Heating capacity | kw | 12 |
| kcal/h | 9802.00 | |||
| Hot water supply | T/h | 0.25 | ||
| Input power | kw | 2.77 | ||
| Low temperature conditions | Heating capacity | kw | 9.59 | |
| kcal/h | 8246.00 | |||
| Hot water supply | T/h | 0.18 | ||
| Input power | kw | 2.80 | ||
| Ultra-low temperature conditions | Heating capacity | kw | 5.95 | |
| kcal/h | 5116.00 | |||
| Hot water supply | T/h | 0.11 | ||
| Input power | kw | 2.70 | ||
| Standard condition heating input current | A | 4.85 | ||
| Max running current | A | 7.50 | ||
| Power | V/Ph/Hz | 380~415V/3N/50Hz | ||
| Unit Noise comprehensive index | Db(A) | 55.00 | ||
| Dimension | W | mm | 883.00 | |
| D | mm | 363.00 | ||
| H | mm | 1000.00 | ||
| Unit weight | kg | 115.00 | ||
| Running control | Water temperature control precision | ℃ | ±2℃ | |
| Ambient temperature range | ℃ | –25℃ – 43℃ | ||
| Refrigerants circulation structure | Throttle type | thermostatic expansion valve/electric expansion valve | ||
| Refrigerant | Type | R32 R290,R410A | ||
| Refrigerant charge | kg | 2.60 | ||
| Max working pressure | bar | 28.00 | ||
| Compressor | Type | Efficient fully enclosed type vortex. Copeland,panasonic EVI | ||
| Stall Current | A | 36.00 | ||
| Air-source side heat exchanger | Type | Finned heat exchanger | ||
| Qty | pc | 1.00 | ||
| Motor power | kw | 0.20 | ||
| Hhot water side heat exchanger | Type | tube in shell heat exchange | ||
| Water flow | m3/h | 1.98 | ||
| Water pressure down | kPa | 27.00 | ||
| Connecting pipe size | DN | 20.00 | ||
| Water side max working pressure | kPa | 1000.00 | ||
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.

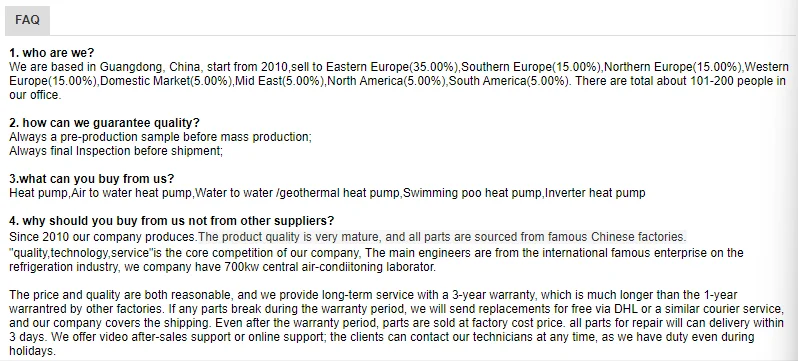

Frequently Asked Questions
What is the minimum order quantity for this air to water heat pump?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the air to water heat pump be supplied for my local voltage?
The standard configuration is 380V/3PH/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

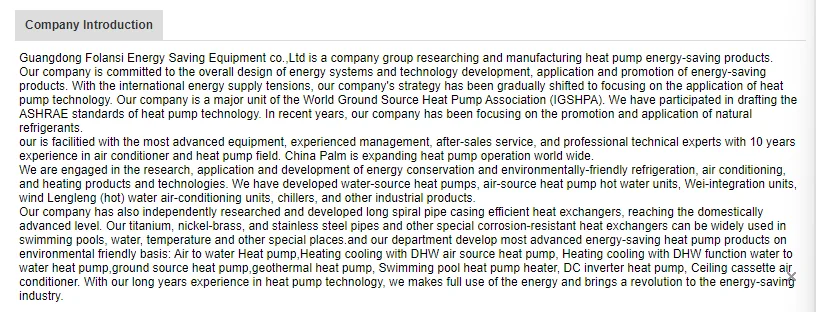

About the Manufacturer
This product is produced by Guangdong Folansi Energy Saving Equipment Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Folansi Energy Saving Equipment Co., Ltd. range on HVACR Nexus.
