The water heater listed here carries 10KW~38KW(13.41hp~50.96hp), power source Electric, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Water Heater
- Model Number: SW-100D
- Power Source: Electric
- Heating Capacity: 10KW~38KW(13.41hp~50.96hp)
- Housing Material: Sprayed alvanized sheet metal
- Refrigerant: R32
- Refrigerant Of Pool Heat Pump: R32/R410a
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 10KW~38KW(13.41hp~50.96hp) |
| Energy Efficiency Rating | Class A+++ |
| Application | Outdoor, Hotel, Garage, Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | Storage |
| Compressor | Scroll Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Sprayed alvanized sheet metal |
| Feature | Easy Installation, Easy Operation, Energy-Saving, Safe, Eco-Friendly, High Efficiency |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English |
| Private Mold | No |
| Packaging Types | Color Box |
| Place Of Origin | Guangdong, China |
| Brand | SWINDON |
| Model Number | SW-100D |
| Product Name | pool heater inverter |
| Refrigerant Of Pool Heat Pump | R32/R410a |
| Compressor Type | DC Inverter Compressor |
| COP Of Swimming Pool Heat Pump | 5.0 |
| Certification Of Pool Heat Pump | CE certificate |
| Max Hot Water Temperature | 28~40 C |
| Working Ambient Temperature | Minus 25C- 45C |
| Heat Exchanger | Titanium heat exchanger |
| Function | heating water |
| Selling Units | Single item |
| Single Package Size | 145X71X113 cm |
| Single Gross Weight | 370.0 kg |
Product Details
Inverter Heat Pump
Model | Rotational speed | SWMDIV20D | SWMDIV30D | |||||||||||
Temperature 40℃/ -10~15℃ | Temperature 50℃/ -10~15℃ | Temperature 60℃/ -10~15℃ | Temperature 40℃/ -10~15℃ | Temperature 40℃/ -10~15℃ | Temperature 60℃/ -10~15℃ | |||||||||
Heating capacity (KW) | 30rps | 1.8~4.5 | 1.5~4.0 | 1.1~3.5 | 3~7 | 2.5~6.2 | 1.8~5.5 | |||||||
Input power(KW) | 0.65~0.7 | 0.79~0.85 | 0.9~1.08 | 1.08~1 | 1.25~1.35 | 1.45~1.7 | ||||||||
Current(A) | 4.4~4.1 | 5.2~5.5 | 6.3~6.9 | 8.5~8.3 | 9.8~10.5 | 11.2~13 | ||||||||
COP (Energy efficiency ratio) | 2.8~7.4 | 2.05~5.0 | 1.25~3.25 | 2.9~7.5 | 2.1~5.0 | 1.45~3.5 | ||||||||
Heating capacity(KW) | 60rps | 3.8~9.5 | 3.2~8.5 | 2.8~7.2 | 6~15 | 5~13 | 4.5~11.5 | |||||||
Input power(KW) | 1.32~1.3 | 1.5~1.65 | 1.8~2.1 | 2.2~2.0 | 2.3~2.9 | 3.0~3.5 | ||||||||
Current(A) | 4.6~4.4 | 5.5~5.8 | 6.5~7.5 | 9~8.5 | 10.5~11 | 12.1~14 | ||||||||
COP(Energy efficiency ratio) | 2.84~7.5 | 2.1~5 | 1.35~3.15 | 2.84~7.5 | 2.1~5 | 1.5~3.5 | ||||||||
Heating capacity(KW) | 90rps | 5.2~14 | 4.8~12 | 3.5~10 | 10~23 | 8~21 | 7~18 | |||||||
Input power(KW) | 2~2.1 | 2.4~2.6 | 2.8~3.2 | 3.5~3.4 | 4.2~4.6 | 5.0~5.9 | ||||||||
Current(A) | 7.2~6.8 | 8.8~9 | 10.5~11.5 | 11~10 | 12.5~13.5 | 14.8~17.2 | ||||||||
COP(Energy efficiency ratio) | 2.4~6.9 | 2.0~4.15 | 1.45~3.35 | 2.7~7 | 2.0~4.6 | 1.5~3.2 | ||||||||
Voltage frequency | V/HZ | 110V~460V,0~60hz | ||||||||||||
Water flow | m3/h | 2 | 3 | |||||||||||
Refrigerant | R410A/R32 | |||||||||||||
Protection level | IPX4 | |||||||||||||
Control model | Multi contolling | |||||||||||||
Heat exchanger | High-efficiency internal thread | |||||||||||||
Size | mm | 1120*490*1260 | 890*810*1060 | |||||||||||
Weight | kg | 70 | 100 | |||||||||||
Noise | dB(A) | <40 | <45 | |||||||||||
Ambient temperature | ℃ | -35℃—40℃ | ||||||||||||
Pipe size | DN | 25 | ||||||||||||
A: We are real factory manufacturer. our factory about 10,000 square meters.
2.Q: How long is the production period?
A: it often takes about 15-20 days.
3. Q: How about the MOQ?
A: MOQ is 1pc.
4.Q: What is your company advantages?
a. As a manufacturer, we can strictly control the quality of our products.
b. We have an experienced design and installation team to provide customers with timely installation guidance and effective purchasing suggestions.
c.We can provide transportation services that meet customer requirements.
5.Q：Can you send products to my country?
A：Sure, we can. If you do not have your own ship forwarder, we can help you.
A：First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we
will ship the Goods.
A：We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation. Please call us or tell us in your mail, so that we could regard your inquiry priority.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this water heater carry?
It is supplied with CE certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

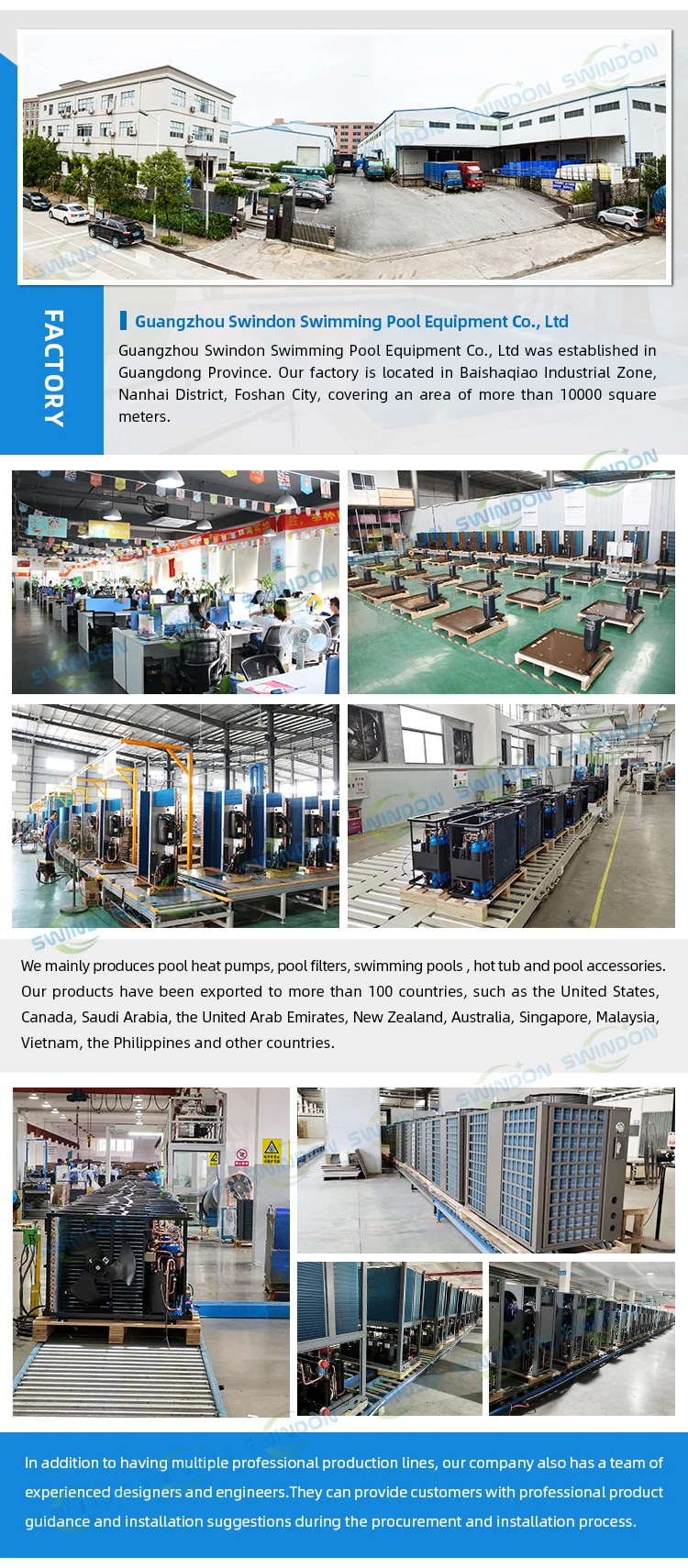

About the Manufacturer
This product is produced by Guangzhou Swindon Swimming Pool Equipment Co.,ltd, based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Swindon Swimming Pool Equipment Co.,ltd range on HVACR Nexus.
