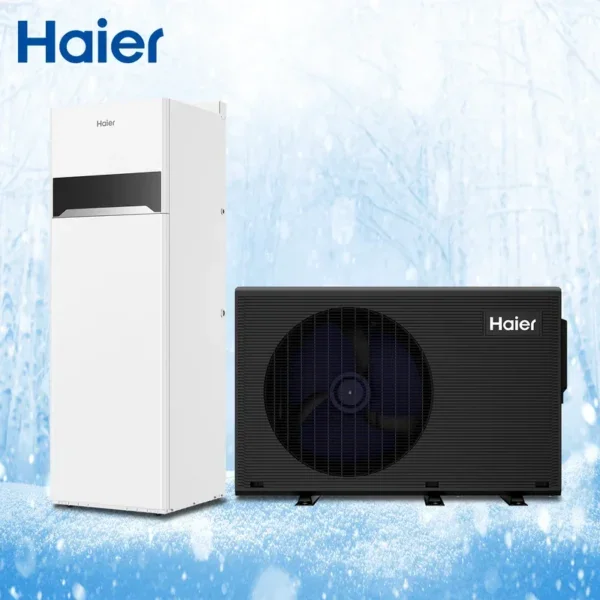

The all-in-one heat pump listed here carries 220V/50Hz, 380V/50Hz, 6kw 8kw 10kw 12kw 14kw 16kw, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This All-In-One Heat Pump
- Model Number: LinkWarm-All in One
- Power Source: Electric, Gas, Solar
- Power Supply: 220V/50Hz, 380V/50Hz
- Heating Capacity: 6kw 8kw 10kw 12kw 14kw 16kw
- Housing Material: Stainless Steel
- Refrigerant: R290
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 6kw 8kw 10kw 12kw 14kw 16kw |
| Energy Efficiency Rating | Class A+++ |
| Application | RV, Outdoor, Hotel, Garage, Commercial, Household |
| Refrigerant | R290 |
| Storage / Tankless | Storage |
| Compressor | EVI DC Inverter Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, Safe, High Efficiency |
| Power Source | Electric, Gas, Solar |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation, Return and Replacement, Field Maintenance and Repair Service, Overseas Call Centers |
| Operating Language | English |
| Private Mold | Yes |
| Packaging Types | Corrugated Box |
| Place Of Origin | Shandong, China |
| Brand | Haier or OEM |
| Model Number | LinkWarm-All in One |
| Product Name | EVI DC Inverter R290 Air To Water Heat Pump For Heating And Cooling |
| Keyword | Air To Water Heat Pump |

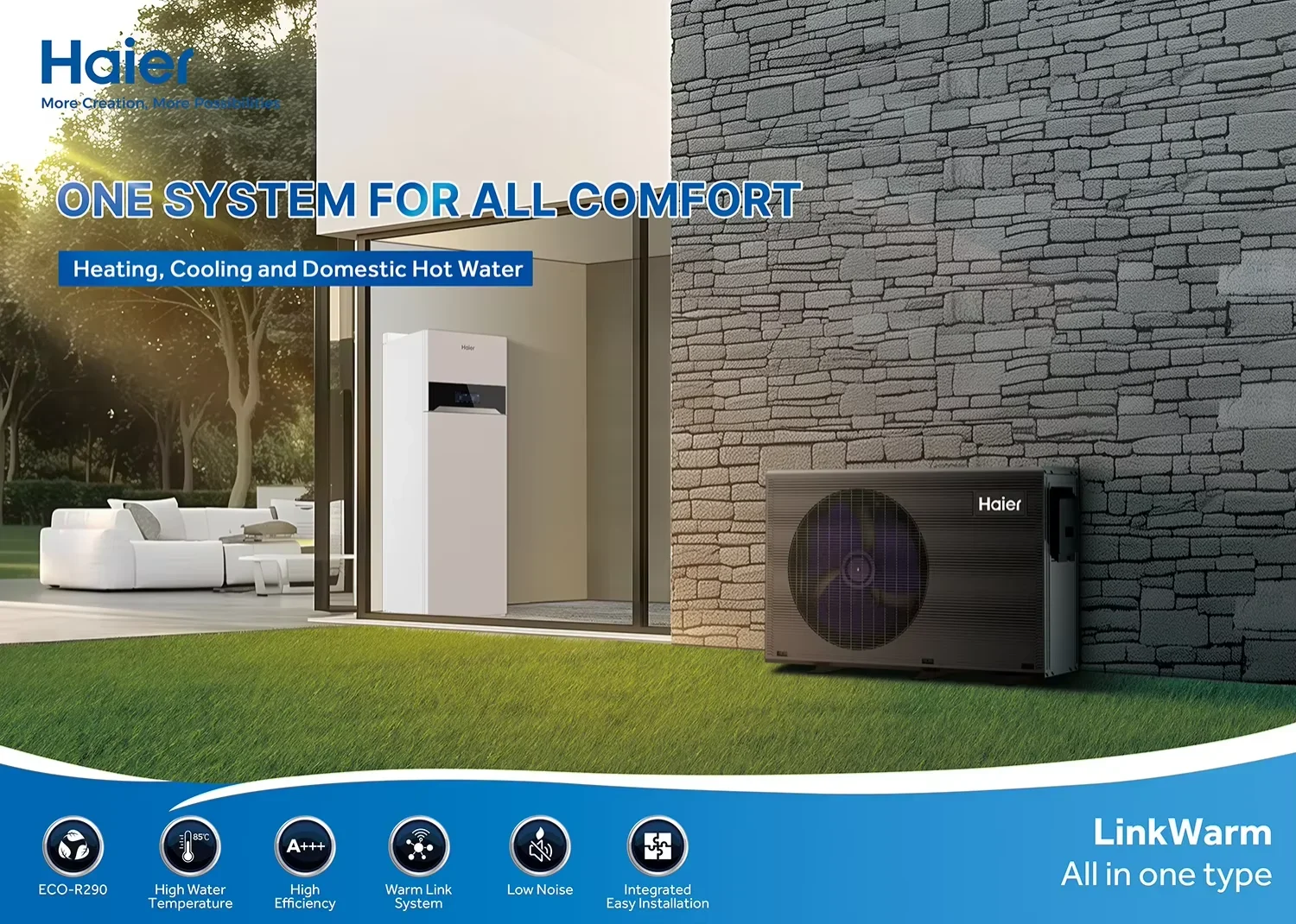

| Function | House Heating Cooling Hot Water |
| Ambient Temperature | Minus 30~43 Degree |
| Power Supply | 220V/50Hz, 380V/50Hz |
| Noise Level | ≤66dB(A) |
| Selling Units | Single item |
| Single Package Size | 155X54X108 cm |
| Single Gross Weight | 205.0 kg |
Product Details

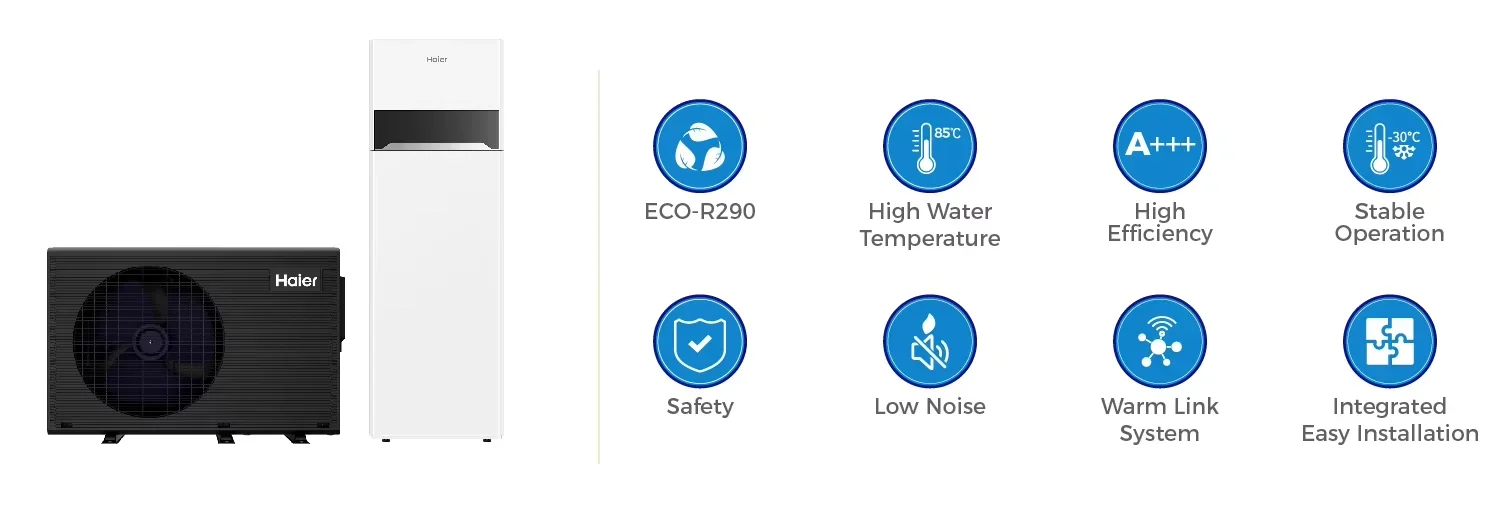

PRODUCT HIGHLIGHTS
- High Efficiency A+++: High COP values up to 5.1

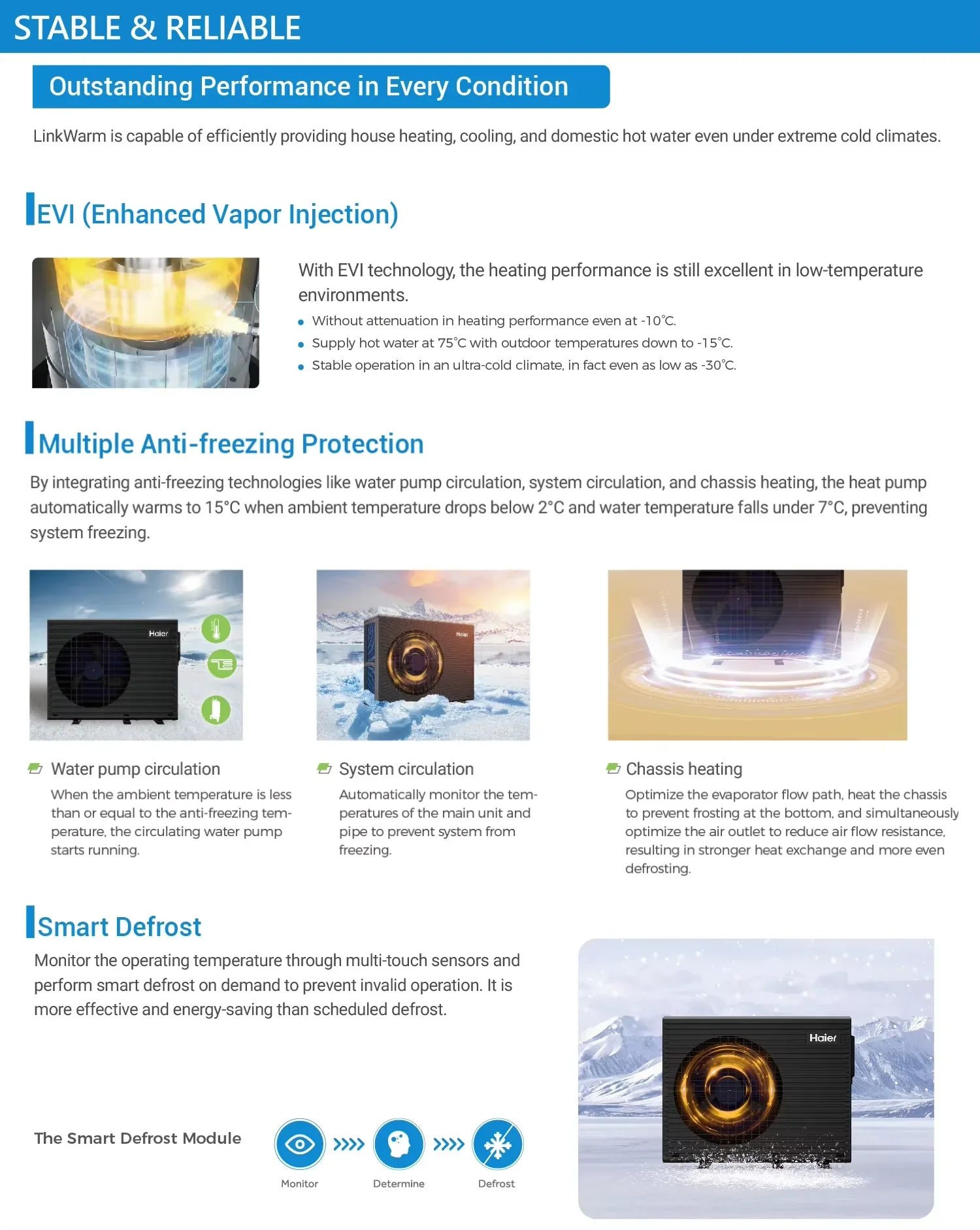

- EVI DC Inverter: Heating performance is still excellent in low-temperature environments
- Full Inverter Technology : Improves energy-saving effect by 15%

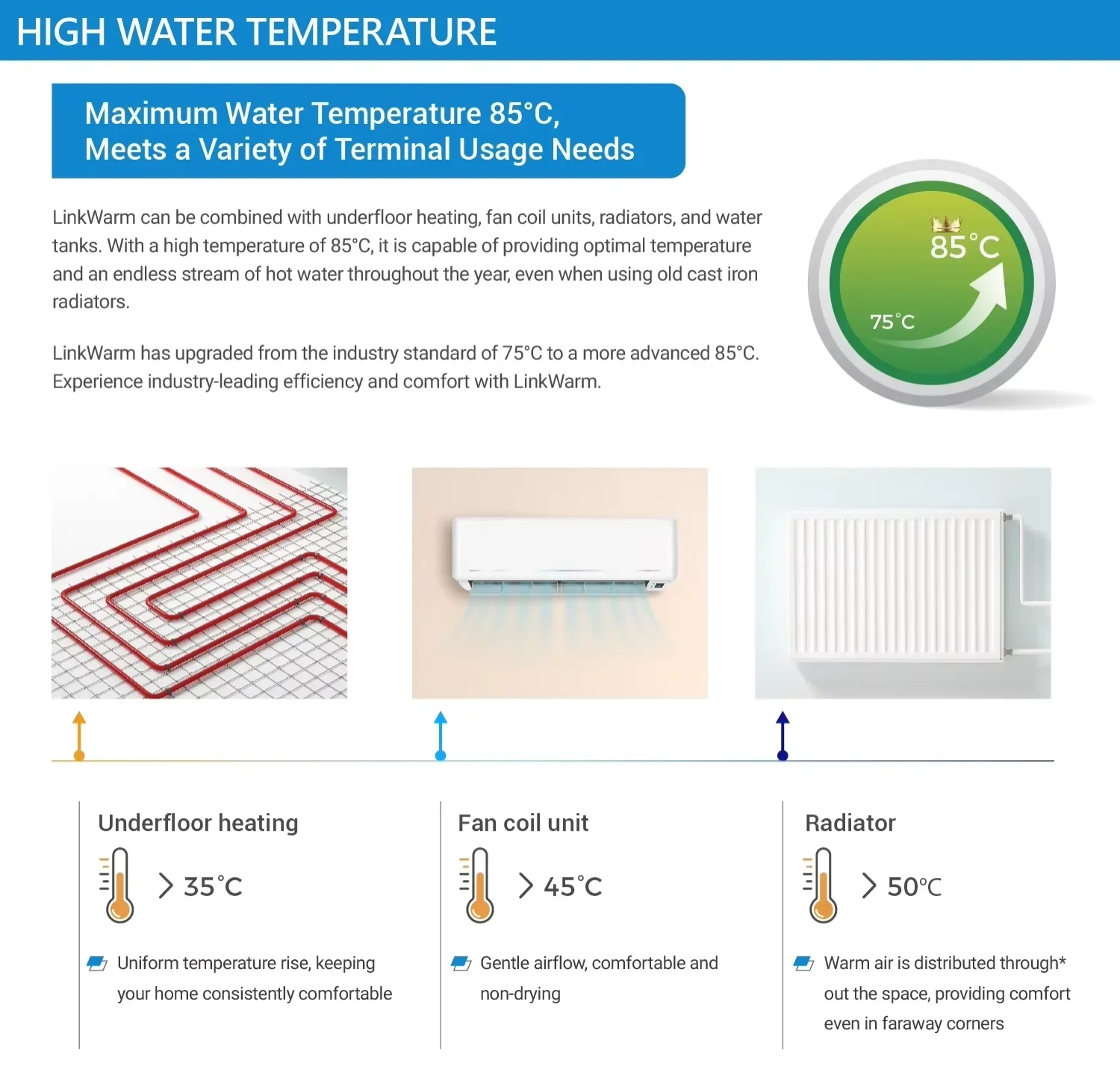

- High Water Temperature: Maximum water temperature 85°C, meeting diverse heating needs
- R290 Refrigerant: Natural, non-toxic, zero ozone depletion
- Stable and Reliable: Haier LinkWarm* delivers efficient heating, cooling, hot water in extreme cold
- Multiple Anti-freezing Protection: Auto heats to 15°C under ambient <2°C, water <7°C
- Smart Defrost: Multi-touch temp monitoring triggers smart defrost, more efficient than scheduled defrost
- Safty: Silver brazing prevents R290 leakage
- Powerful & Money Savings: Works with other heat sources + energy-saving mode
- Low Noise: LinkWarm adopts multiple noise reduction technologies, min 66dB
- Warm Link System: User-friendly one-app control for temperature and energy management solutions
- Easy Installation: Simplifies setup with freestanding design

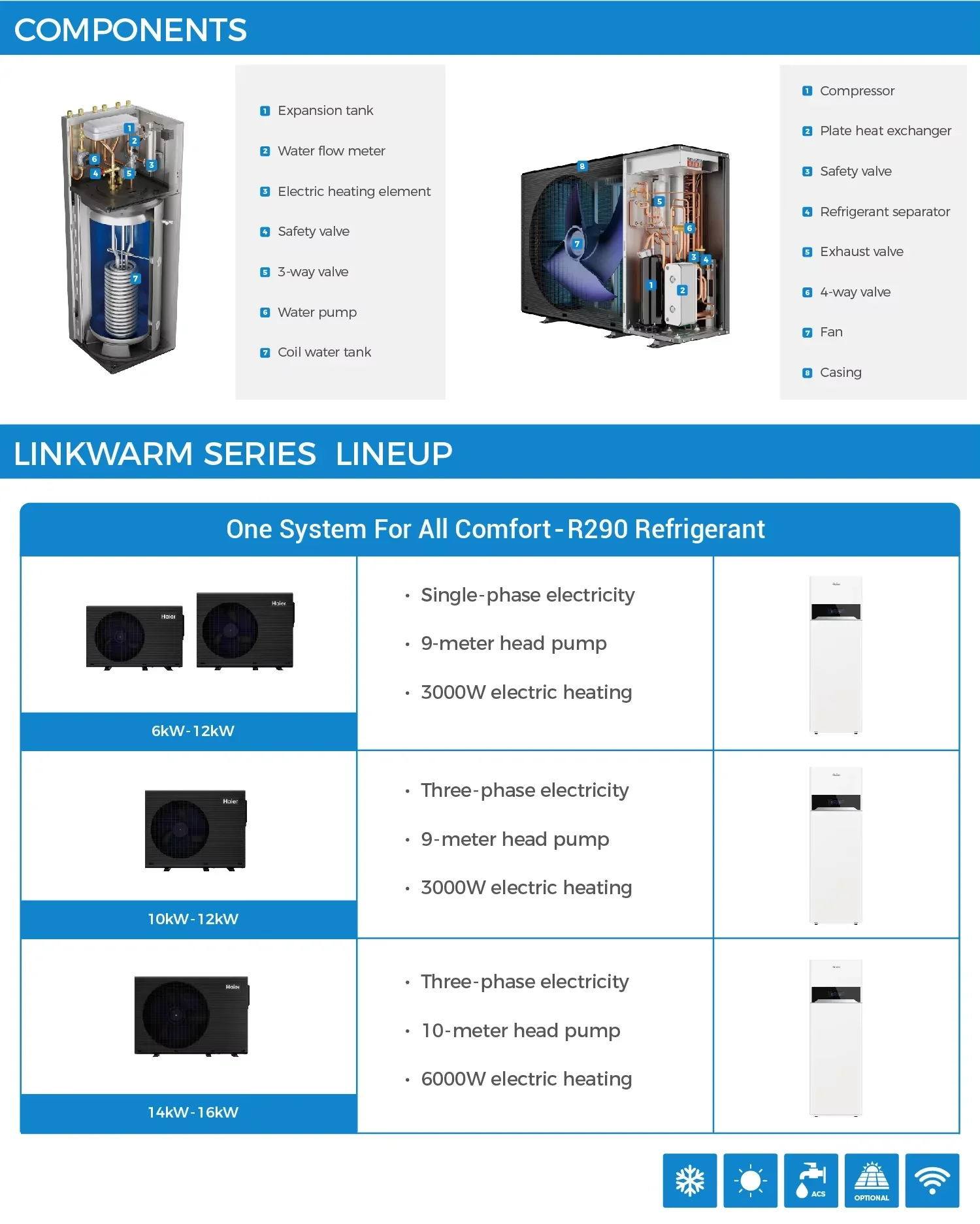

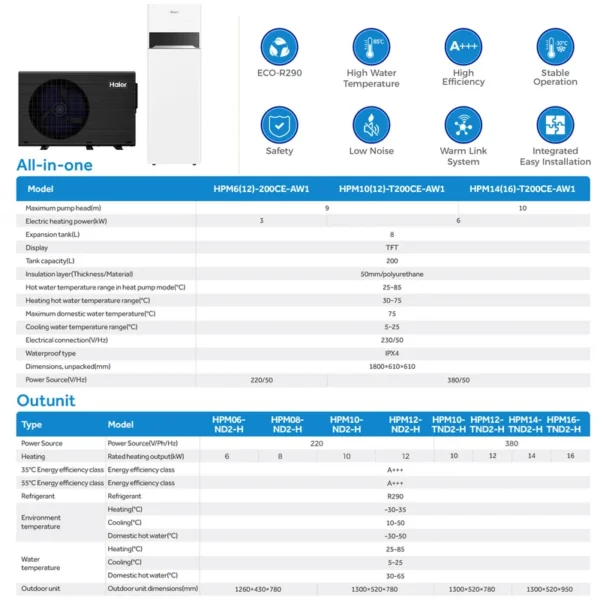

Indoor Unit With Water Tank | ||||||
Model | HPM6(12)-200CE-AW1 | HPM10(12)-T200CE-AW1 | HPM14(16)-T200CE-AW1 | |||
Maximum pump head (m) | 9 | 9 | 10 | |||
Electric heating power (kW) | 3 | 6 | 6 | |||
Expansion tank (L) | 8 | 8 | 8 | |||
Display | TFT | TFT | TFT | |||
Tank capacity (L) | 200 | 200 | 200 | |||
Maximum water pressure (Mbar) | 1 | 1 | 1 | |||
Heat exchange area (m2) | 1.8 | 1.8 | 1.8 | |||
Tank electric heating | 3 | 3 | 3 | |||
Insulation layer (Thickness/Material) | 50mm/polyurethane | 50mm/polyurethane | 50mm/polyurethane | |||
Hot water temperature range in heat pump mode (°C) | 25-85 | 25-85 | 25-85 | |||
Heating hot water temperature range (°C) | 30~75 | 30~75 | 30~75 | |||
Maximum domestic water temperature (°C) | 75 | 75 | 75 | |||
Cooling water temperature range (°C) | 5~25 | 5~25 | 5~25 | |||
Domestic water connection (G) | 1" | 1" | 1" | |||
Connection heating pipe diameter (G) | 1" | 1" | 1" | |||
Heat pump (main unit) connection (G) | 1" | 1" | 1" | |||
Electrical connection (V/Hz) | 230/50 | 230/50 | 230/50 | |||
Waterproof type | IPX4 | IPX4 | IPX4 | |||

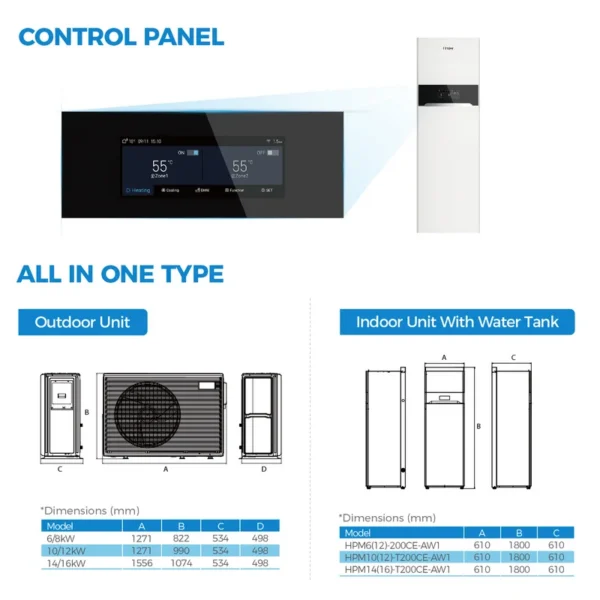

Dimensions, unpacked (mm) | 1800×610×610 | 1800×610×610 | 1800×610×610 | |||
Power source (V/Hz) | 220/50 | 380/50 | 380/50 | |||
Outdoor Unit | ||||||||||||||||||
Type | Model | HPM06-ND2- H | HPM08-ND2- H | HPM10-ND2- H | HPM12-ND2- H | HPM10-TND2- H | HPM12-TND2- H | HPM14-TND2- H | HPM16-TND2- H | |||||||||
Power source | Power source (V/Ph/Hz) | 220 | 380 | |||||||||||||||
Heating | Rated heating output (kW) | 6 | 8 | 10 | 12 | 10 | 12 | 14 | 16 | |||||||||
35°C Energy efficiency class | Energy efficiency class | A+++ | ||||||||||||||||
55°C Energy efficiency class | Energy efficiency class | A+++ | ||||||||||||||||
Refrigerant | Refrigerant | R290 | ||||||||||||||||
Environment temperature | Heating (°C) | -30-35 | ||||||||||||||||
Cooling (°C) | 10-50 | |||||||||||||||||
Domestic hot water (°C) | -30-50 | |||||||||||||||||
Water temperature | Heating (°C) | 25-85 | ||||||||||||||||
Cooling (°C) | 5~25 | |||||||||||||||||
Domestic hot water (°C) | 30-65 | |||||||||||||||||
Compressor | Type | DC inverter | ||||||||||||||||
Draught fan | Type | DC inverter | ||||||||||||||||
Outdoor unit | Outdoor unit dimensions (mm) | 1260×430×780 | 1260×430×780 | 1300×520×780 | 1300×520×950 | |||||||||||||
uD83CuDF0DuD83DuDCA7Natural, Non-toxic
and Free of Ozone-depleting
R290 is a high-purity propane refrigerant with a global warming potential (GWP) of 3, which means it will not contribute to ozone depletion as much as other options. It meets the environmental regulations of multiple countries, making it an eco-friendly choice.
♨️uD83DuDCA7Excellent
Thermodynamic Performance
Moreover, R290 refrigerant offers excellent thermodynamic performance, enabling higher water temperatures to meet various application demands.
Safety Craftmanship
To deal with the R290 refrigerant which is combustible, we have adopted silver brazing welding technology to ensure stronger welding and avoid leeakage.

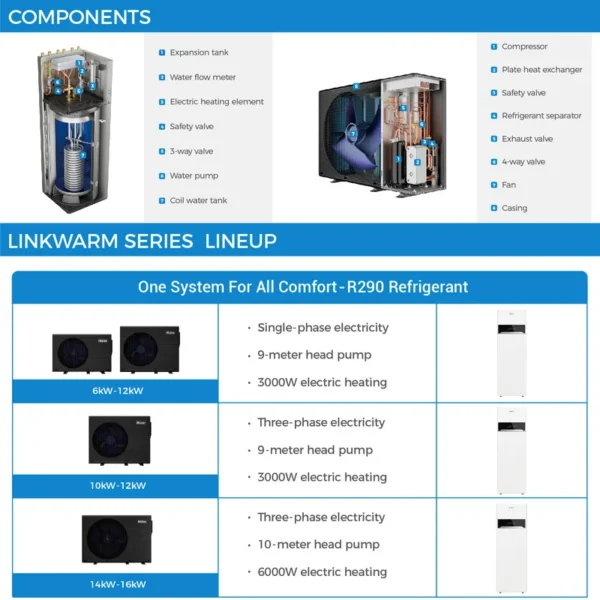

Safety Component

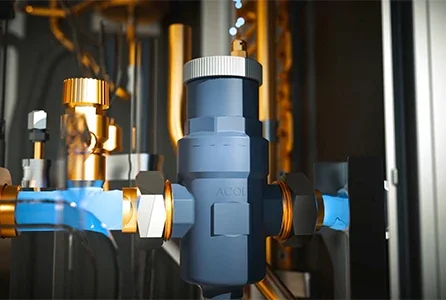

Refrigerant separator can quickly discharge the refrigerant fromthe water system in case of leakage and prevent it from entering the water system anid indoor space.
At the same time, a fully sealed control cabinet is used to avebid potential fire hazards and provide strong protection for user safety.
MORE
Over 11 Years Of Export Experience | Support OEM/ODM | Compliance And Quality Assurance | One-stop Service
FAQs
Who are we?
Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
What can you buy from us?
Heat pump water heater, air source heat pump, inverter heat pump, EVI heat pump, commercial heat pump water heater, instant electric water heater, storage electric water heater, solar water heater, gas water heater, etc.
Why should you buy from us not from other suppliers?
Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11global production base.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9 piece: US $3200 / piece
- 10–49 piece: US $3100 / piece
- 50–99 piece: US $3000 / piece
- 100+ piece: US $2900 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this all-in-one heat pump?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the all-in-one heat pump be supplied for my local voltage?
The standard configuration is 220V/50Hz, 380V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
